X-Sign User Manual
In this section, we'll explain how to manage content in X-Sign, control the player, and set up playlists.
X-sign 2.0 / X-sign User manual / Video Wall
Creating the Video Wall content from X-Sign Designer
2020 / 08 / 24
With X-Sign Designer, you can easily create content for the Video Wall display.

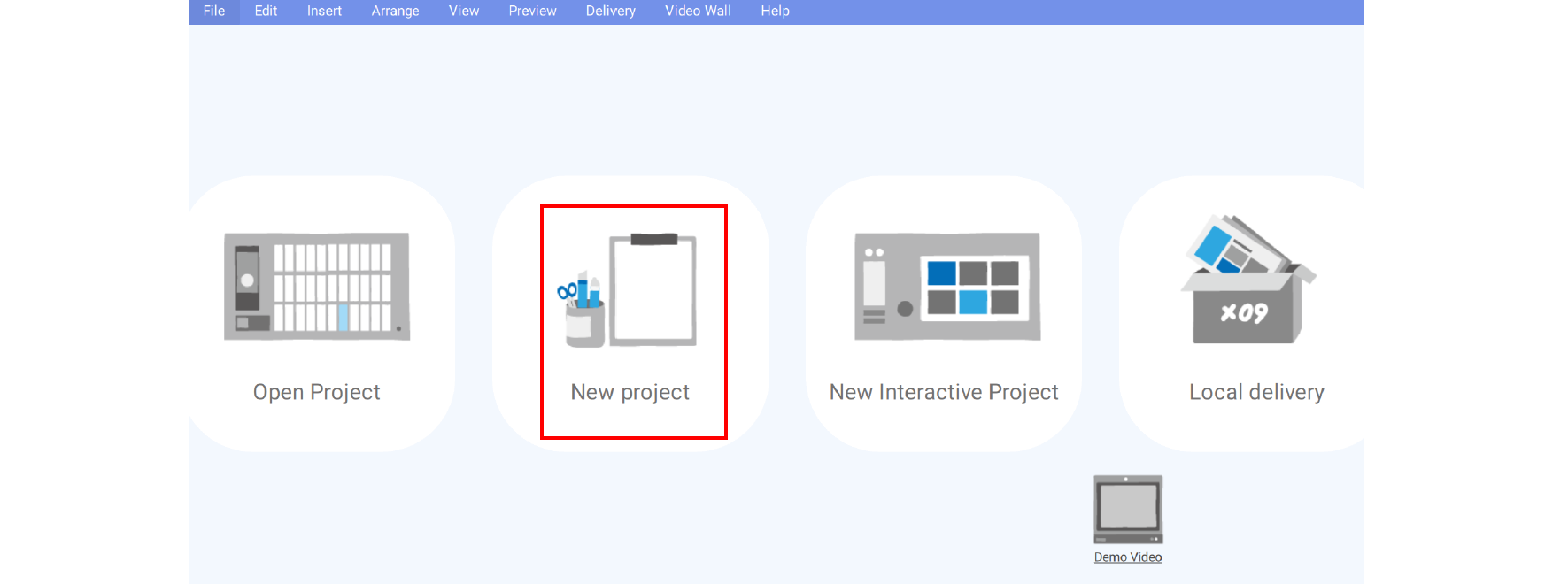

1. Create a new project.

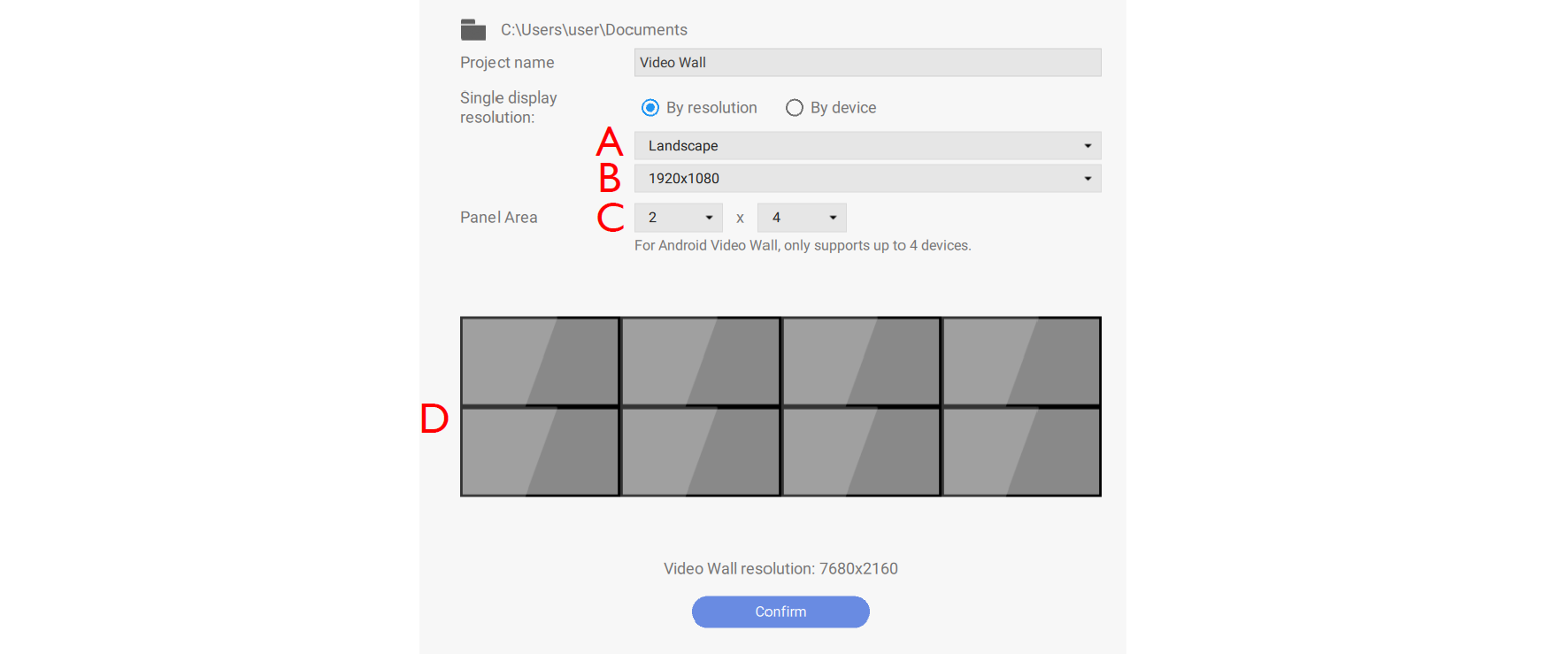

2. Below is a brief introduction for Video Wall setting.
A. You can set the device in landscape or portrait mode.
B. You can choose the resolution of each device.
C. This shows the Panel Area (Horizontal x Vertical).
D. This shows the simulation of the Video Wall and the overall resolution.
Note: Android Video Wall only supports up to 4 devices.
3. After all configuration is set, press Confirm.

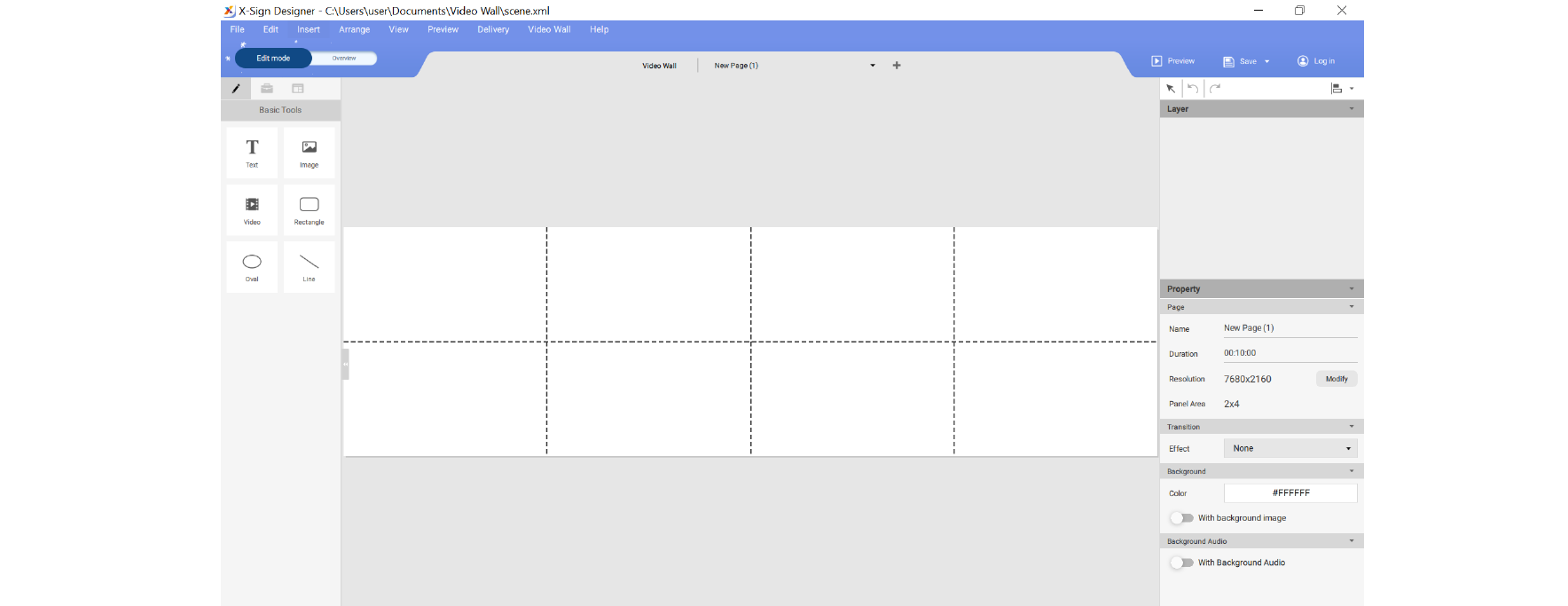

4. Now you can start to design your content.
