X-Sign User Manual

In this section, we'll explain how to manage content in X-Sign, control the player, and set up playlists.

X-sign 2.0 / X-sign User manual / Manager

Scheduling the content by channel

2020 / 08 / 21

With X-Sign Manager, you can easily play the same content on multiple devices remotely. You can also play different content whenever you want. Click here to watch the demonstration video.
1. Be sure that the device’s license in the channel hasn’t expired yet.

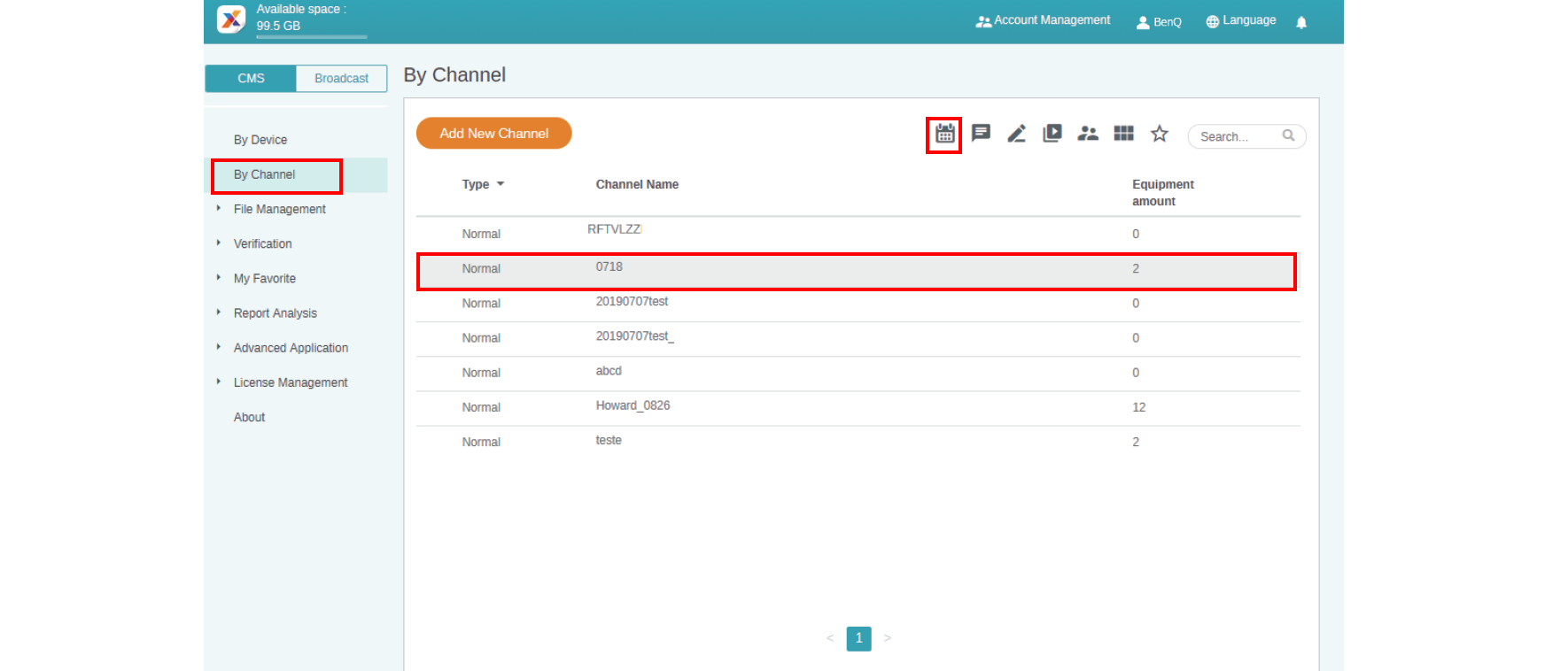

2. Go to By Channel, then choose the channel you want to play the content.
3. Click the icon and you will see the schedule management page of Channel. Click the time slice you want to set schedule.

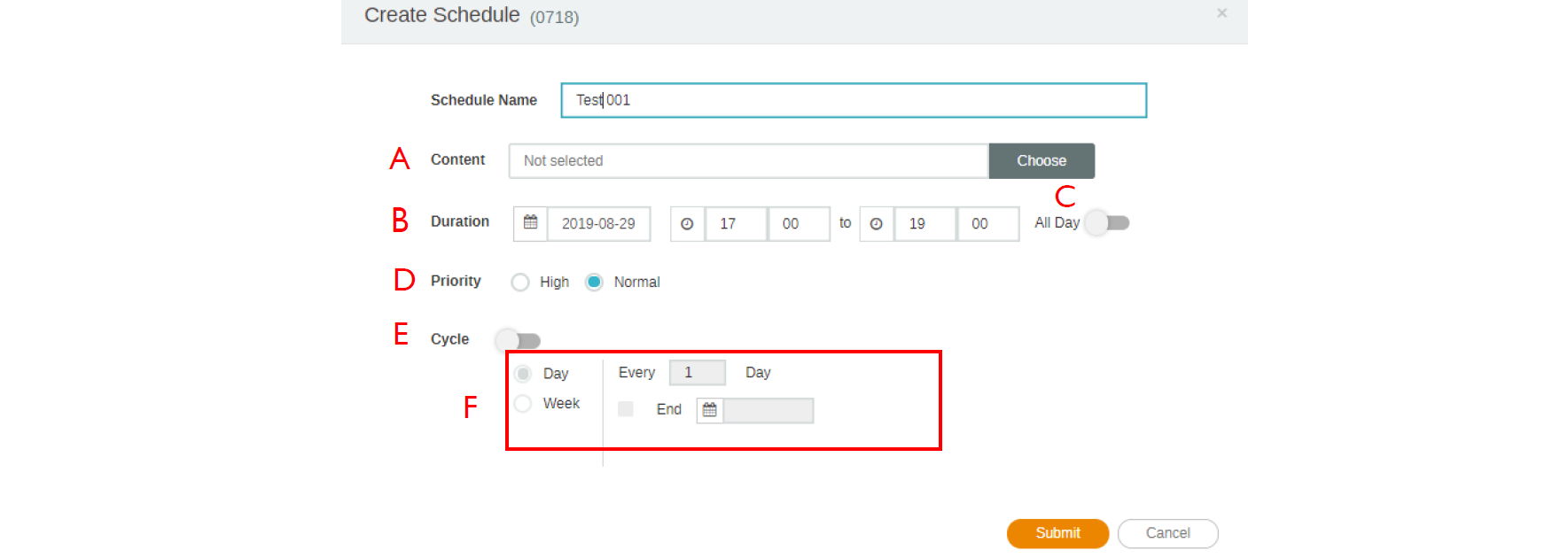

4. You will see the schedule setup window. Below is some required information.
A. Select the project you want to play on the channel. Be sure to upload your project file to Manager first.
B. Set the schedule time you want to play the content.
C. Enable to play content all day long.
D. Select the priority of the project. If it is urgent, select High for interruption scheduling. High priority schedule can overwrite Normal priority schedule by overlapping time blocks.
E. Enable to play content periodically.
F. You can set time here. You have to set the end date and choose to repeat by day or week.



5. After all configuration is set, click Submit.

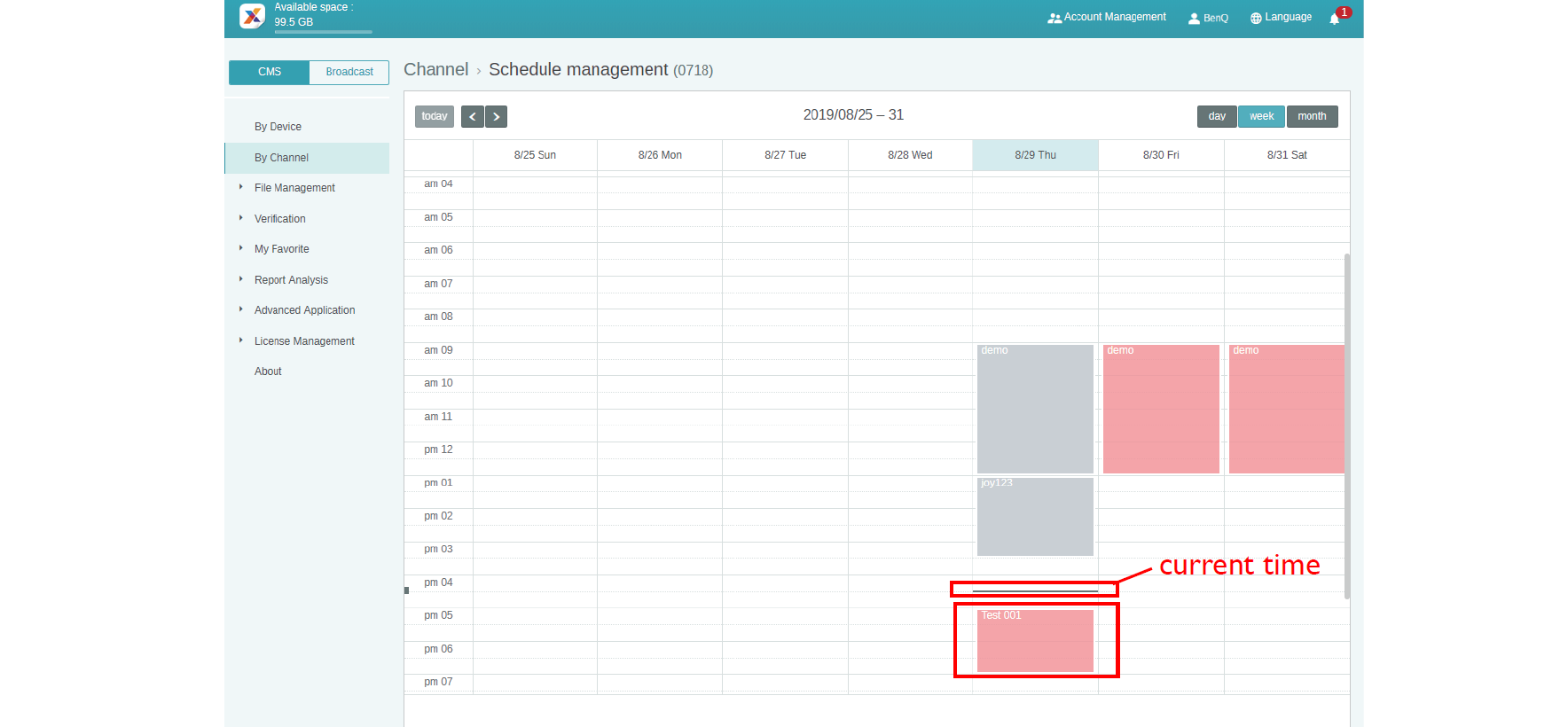

6. You will see the schedule on the management page.
7. Double click the schedule event, and you can see the status of devices in the channel.
8. No matter by device or by channel, you can create and edit time blocks in the timetable by clicking and dragging.
