X-Sign User Manual

In this section, we'll explain how to manage content in X-Sign, control the player, and set up playlists.

X-sign 2.0 / X-sign User manual / Designer

Uploading your content from Designer

2020 / 08 / 24

With X-Sign Designer, you can directly upload your content to Manager. You don't need to save the project and upload it separately. Click here to watch the demonstration video.

Note:

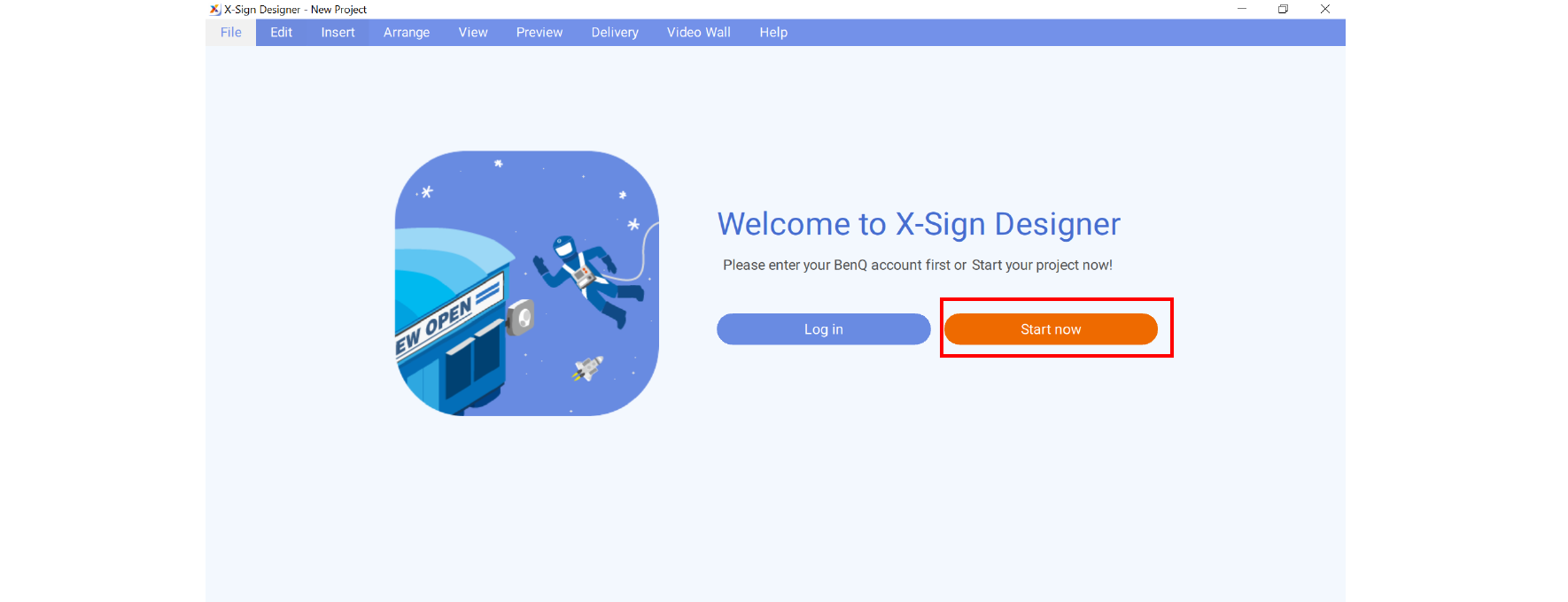

1. You can also use X-Sign Designer without logging in the account by clicking Start now. You cannot upload content on X-Sign Manager only after logging in the account.

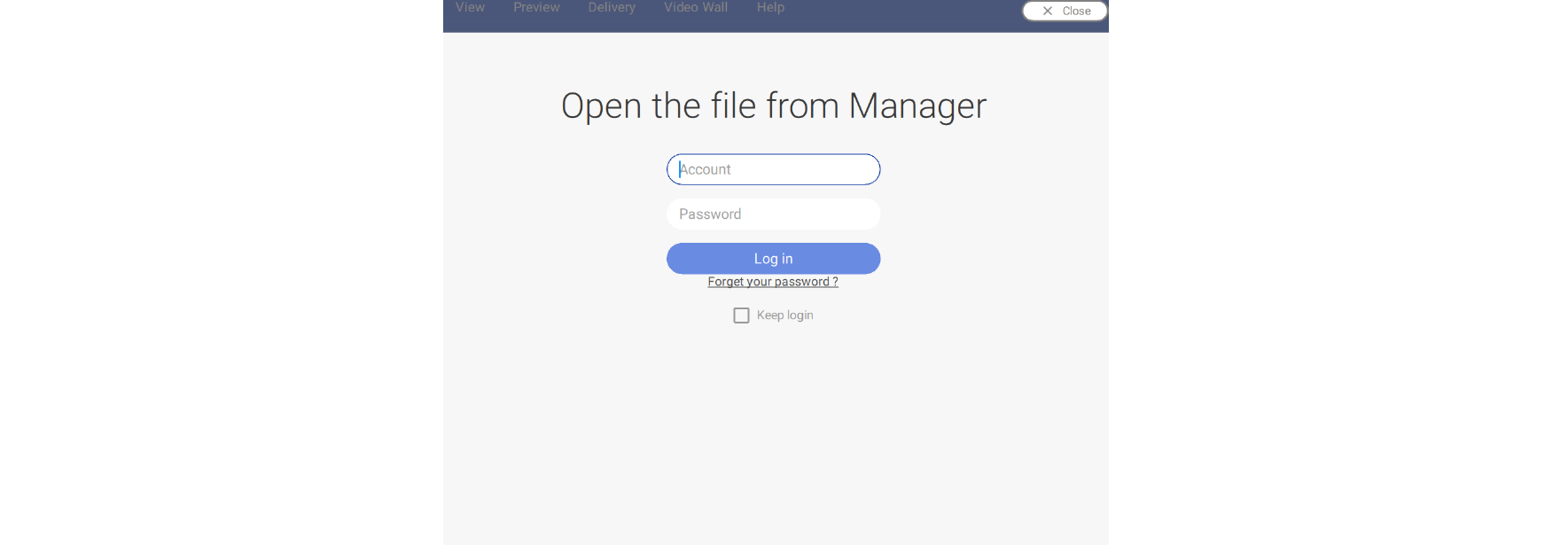

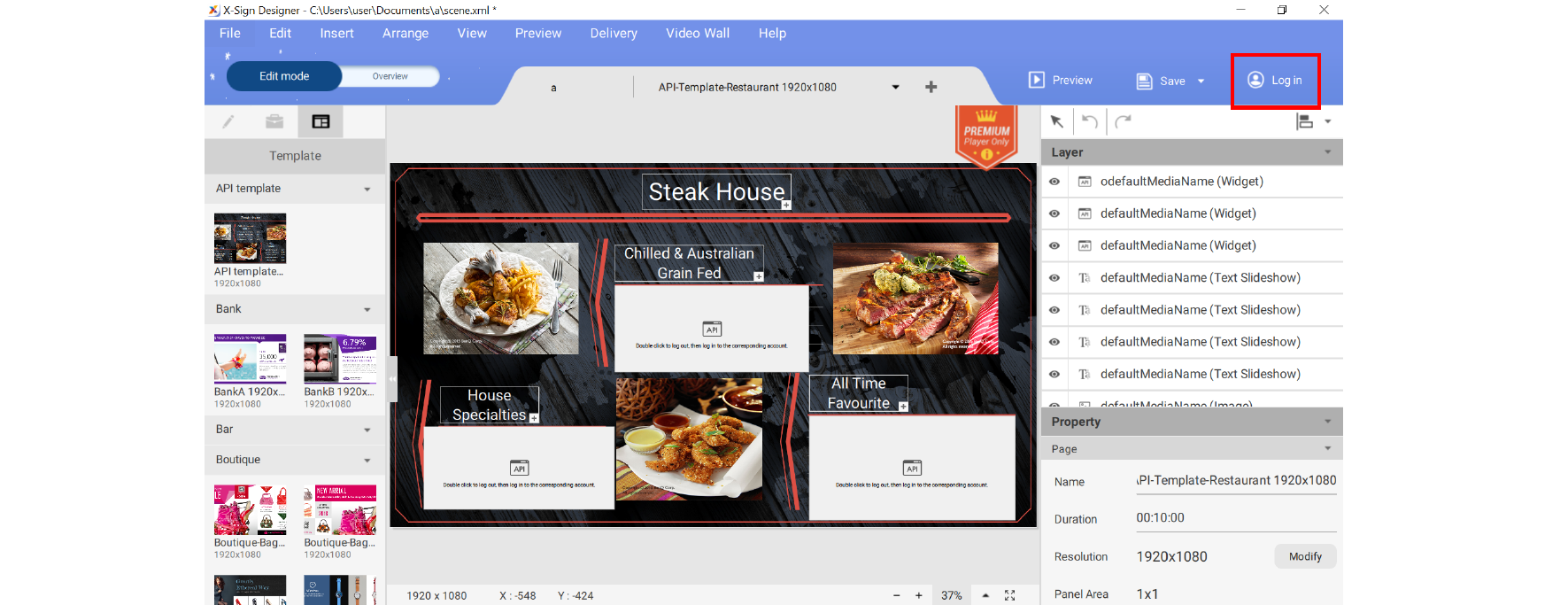

2. Press Log in to log in the X-Sign Manager account.

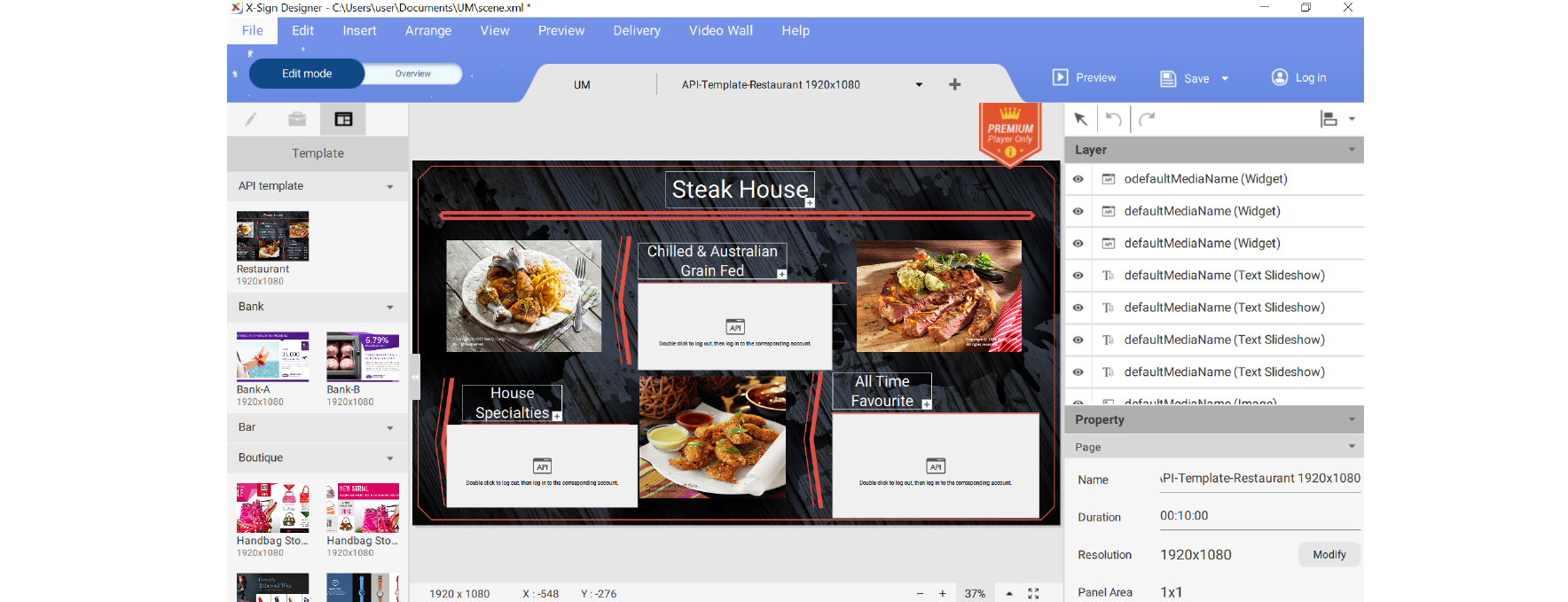

3. Once you have successfully logged in, you can see your account information.

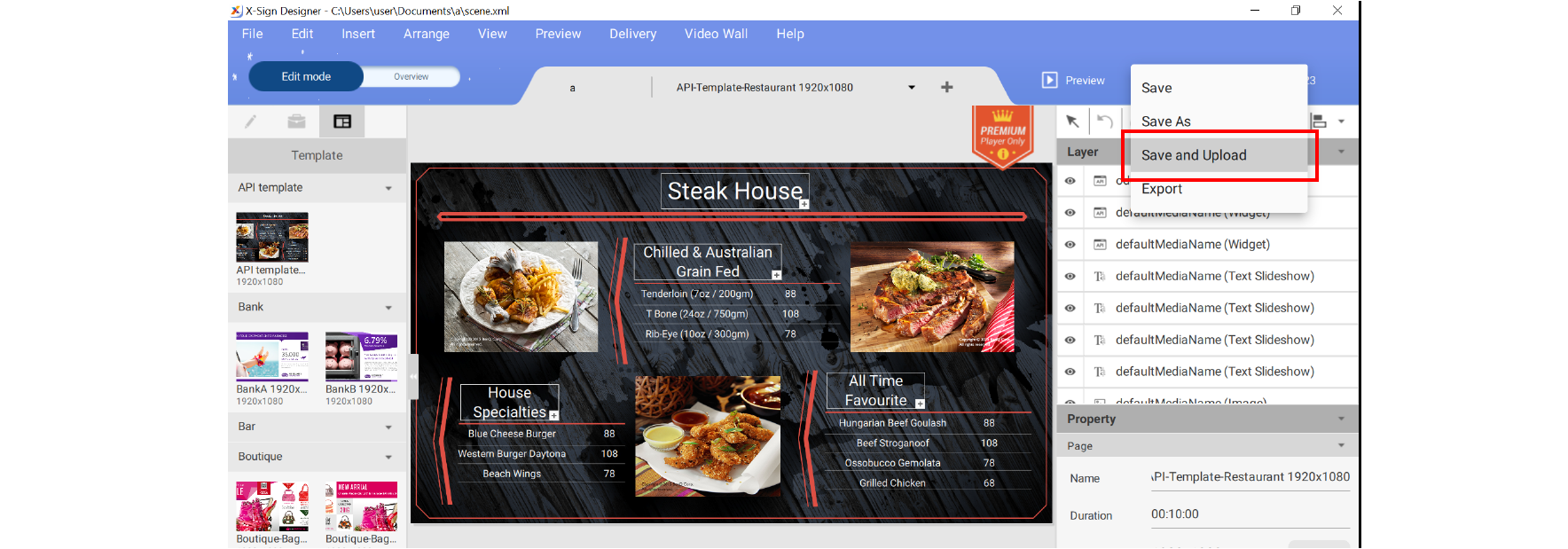

4. As soon as you finish making the content, press Save and Upload.

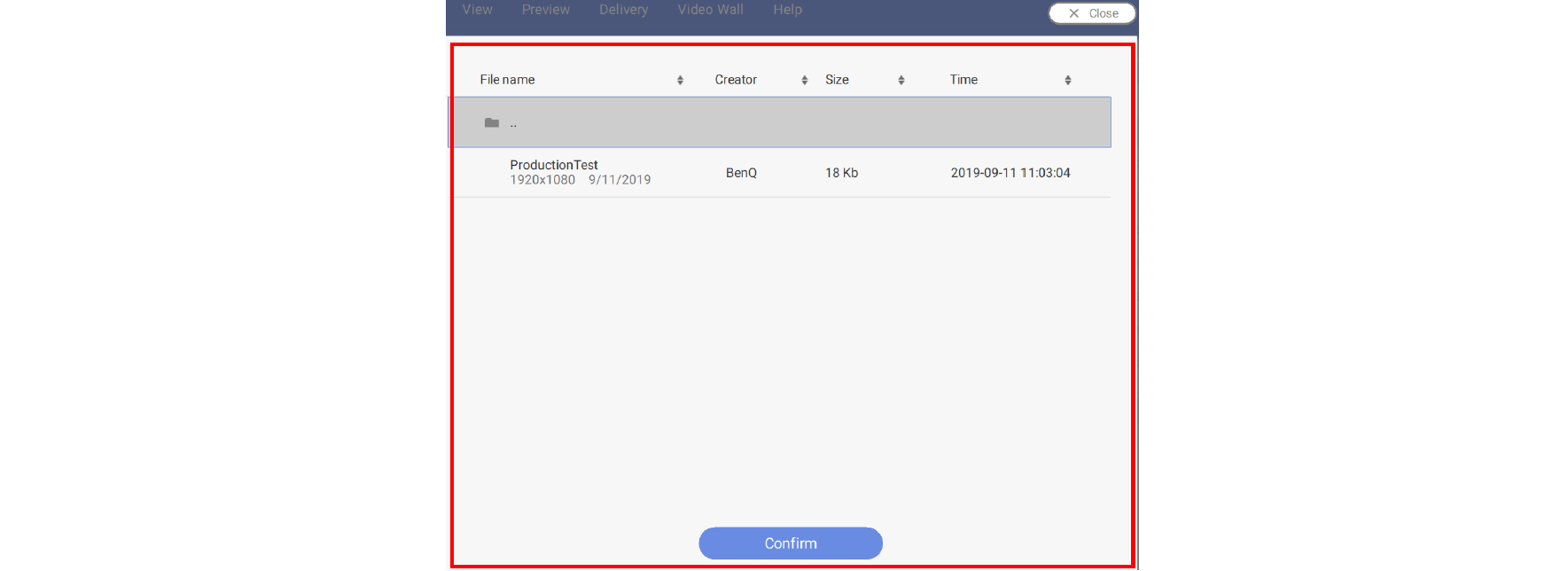

5. The file list on Manager will be shown automatically. Choose the path to store the file, then press Confirm.
6. Designer will automatically upload the file to Manager.

Note: If you want to modify a file, you have to choose the same path and upload the file again. Designer will only upload the changes rather than the whole file.

7. Only when the administrator approves the file can the file be added to the schedule. Refer to Setting Verification for more information.
Now you can go to X-Sign Manager to schedule your content.
