X-Sign User Manual

In this section, we'll explain how to manage content in X-Sign, control the player, and set up playlists.

X-sign 2.0 / X-sign User manual / Designer

Adding a data connection

2020 / 08 / 24

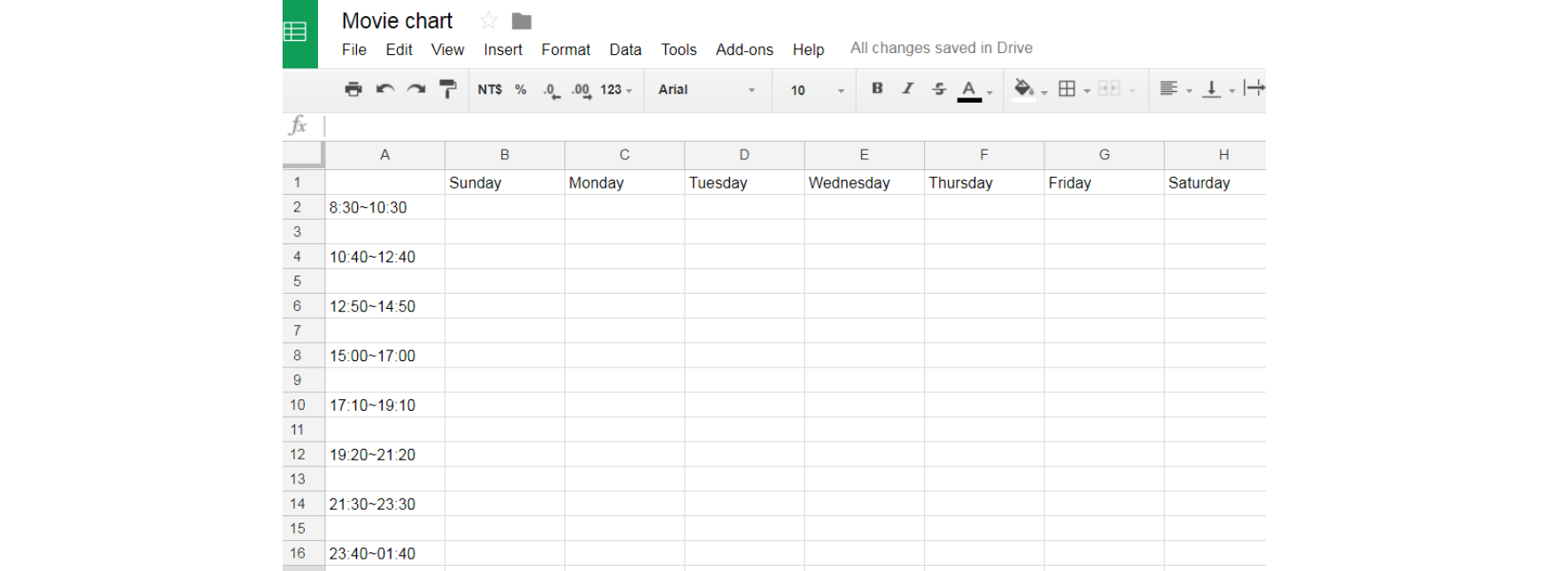

1. Before adding a data connection to BenQ X-Sign Designer, create the data in Google sheets.

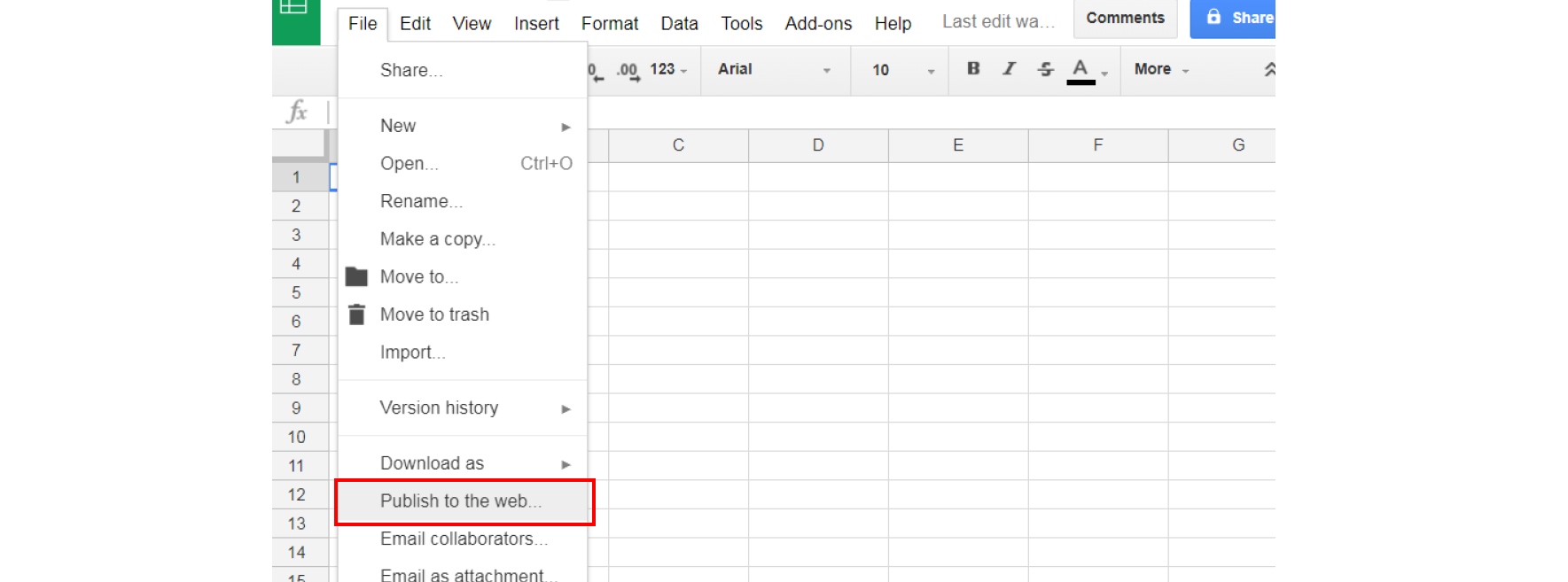

2. Select File and choose Publish to the web.

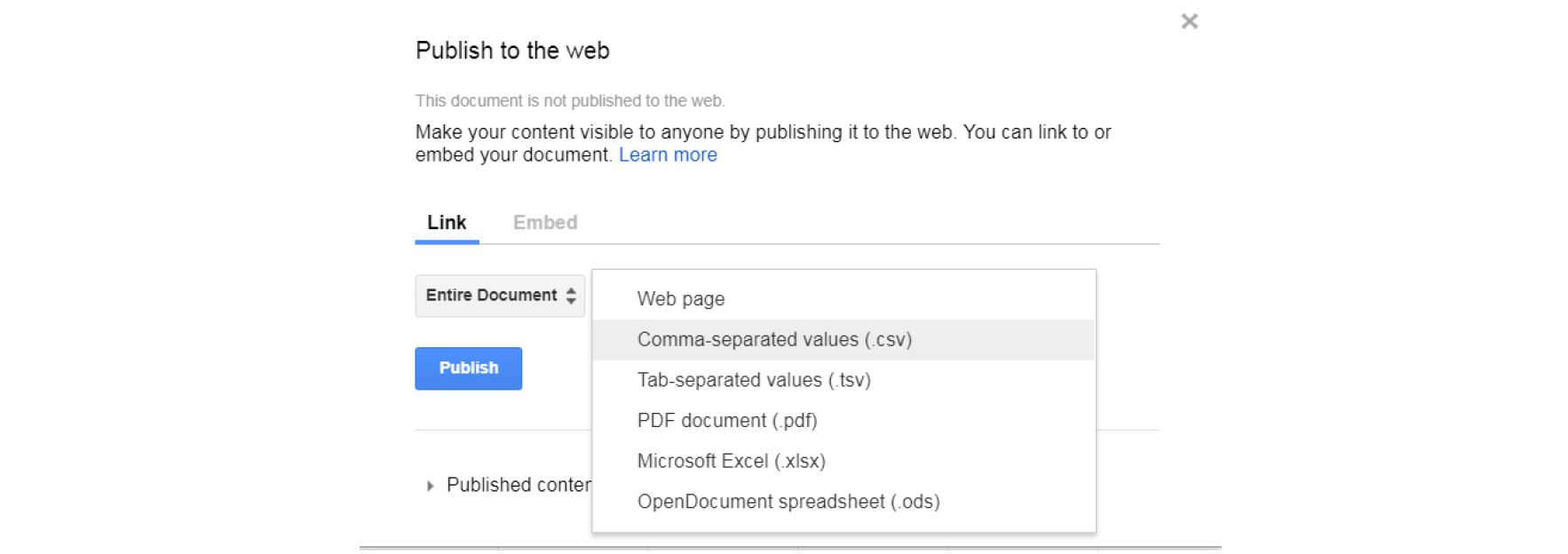

3. Make sure the file is saved in CSV format.

Note: It may take about five minutes for Google data to synchronize with X-Sign Designer.

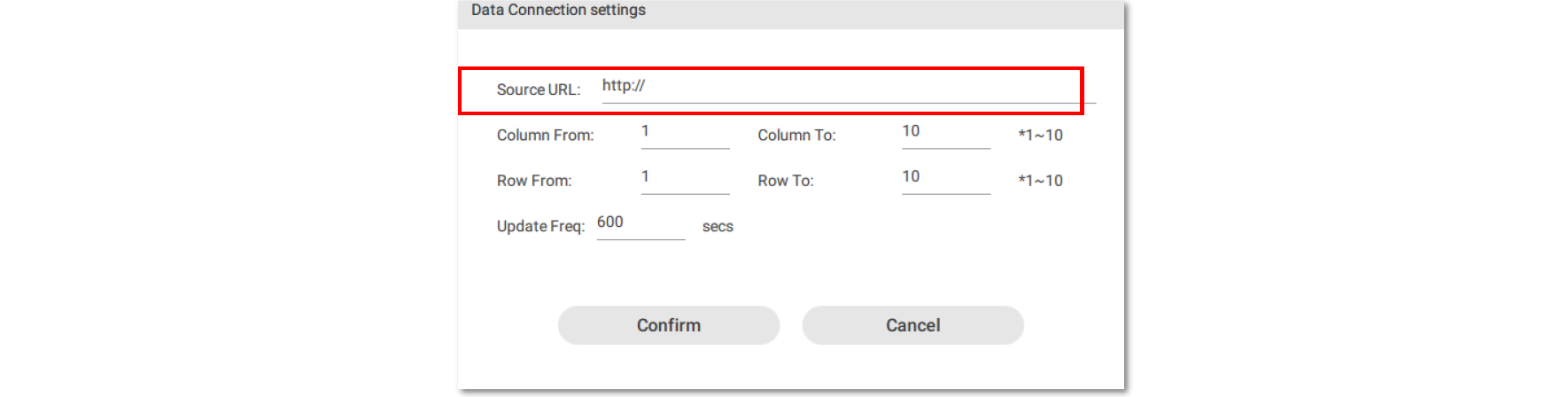

4. Click on the icon to add a data connection, and you will be prompted to enter the Input Web URL corresponding to the data in Google sheets. Then enter the information for the column, row, and update frequency. You can create the data connection with one single table instead of creating a cell one by one.
