X-Sign User Manual

In this section, we'll explain how to manage content in X-Sign, control the player, and set up playlists.

X-sign 2.0 / X-sign User manual / Designer

Creating a new project file in X-Sign Designer

2020 / 08 / 24

In X-Sign Designer you can create your own project with customizable features. Click here to watch the demonstration video.

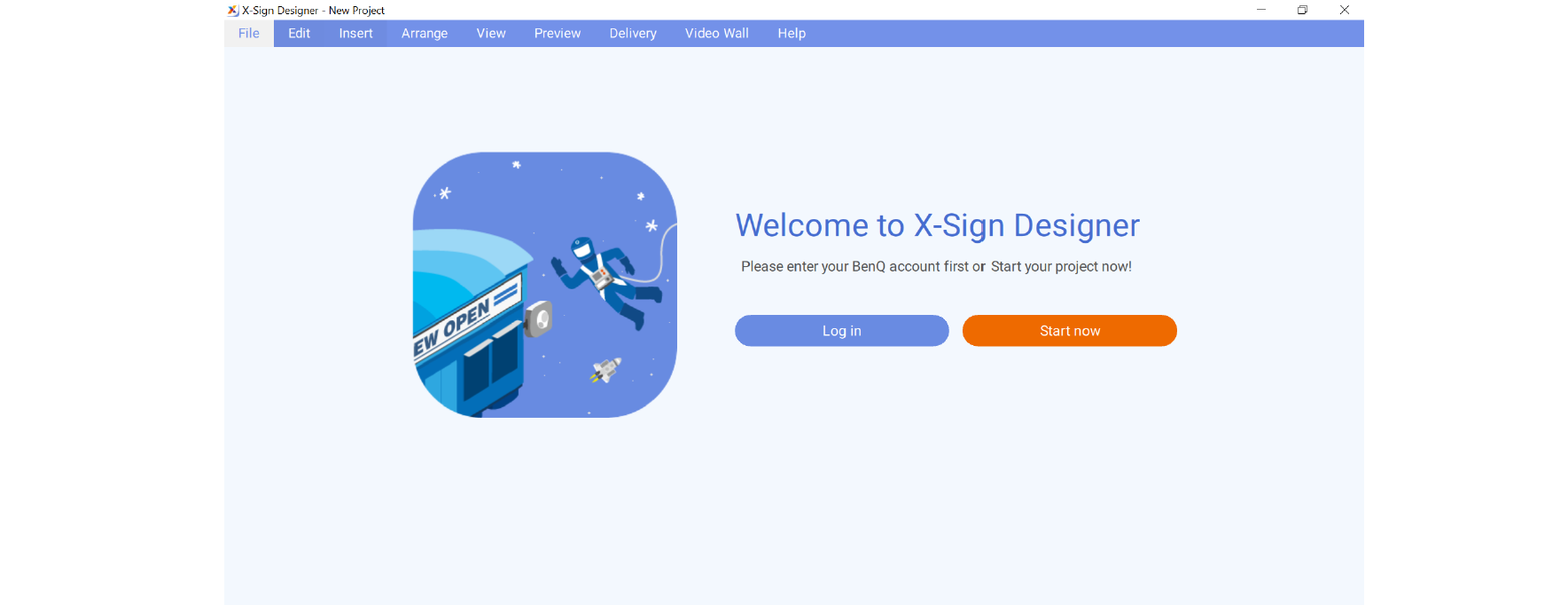

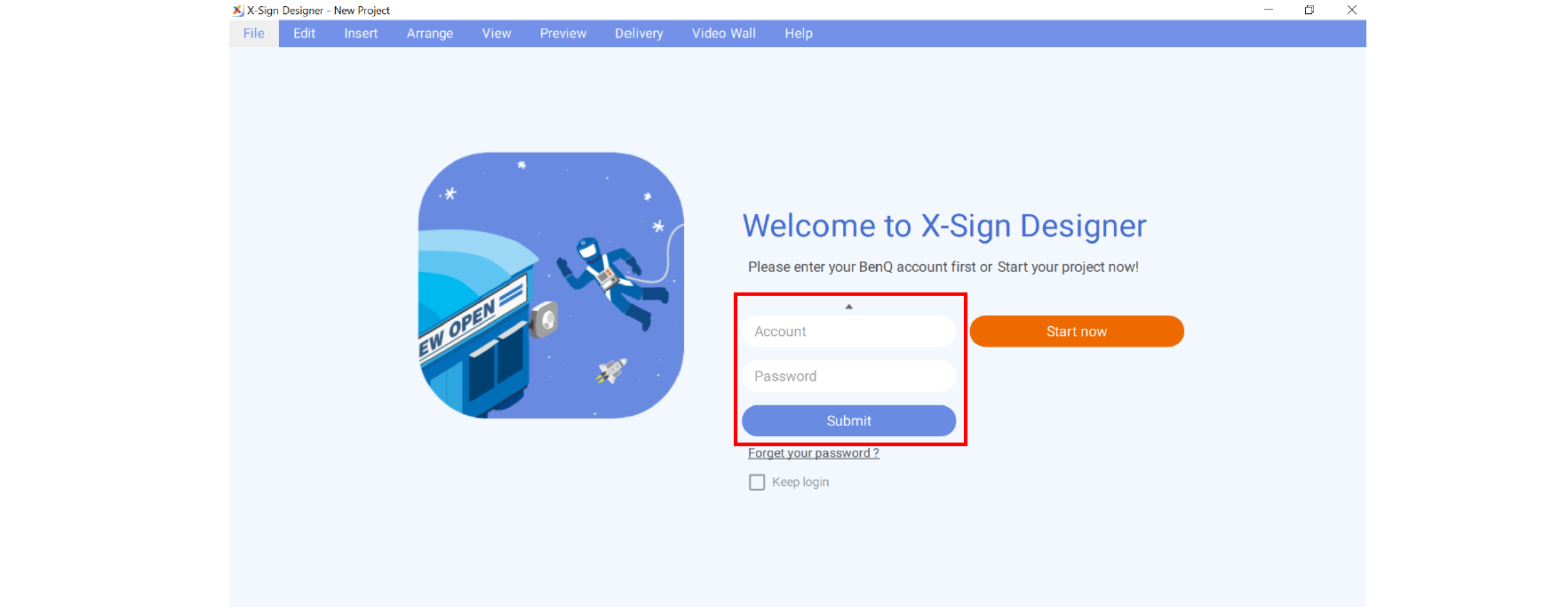

  • By logging in the account, you can upload content on X-Sign Manager.
  • You can also use X-Sign Designer without logging in the account by clicking Start now. You cannot upload content on X-Sign Manager only after logging in the account. Read Uploading your content from Designer for more imformation.

To create a new project file in X-Sign Designer:

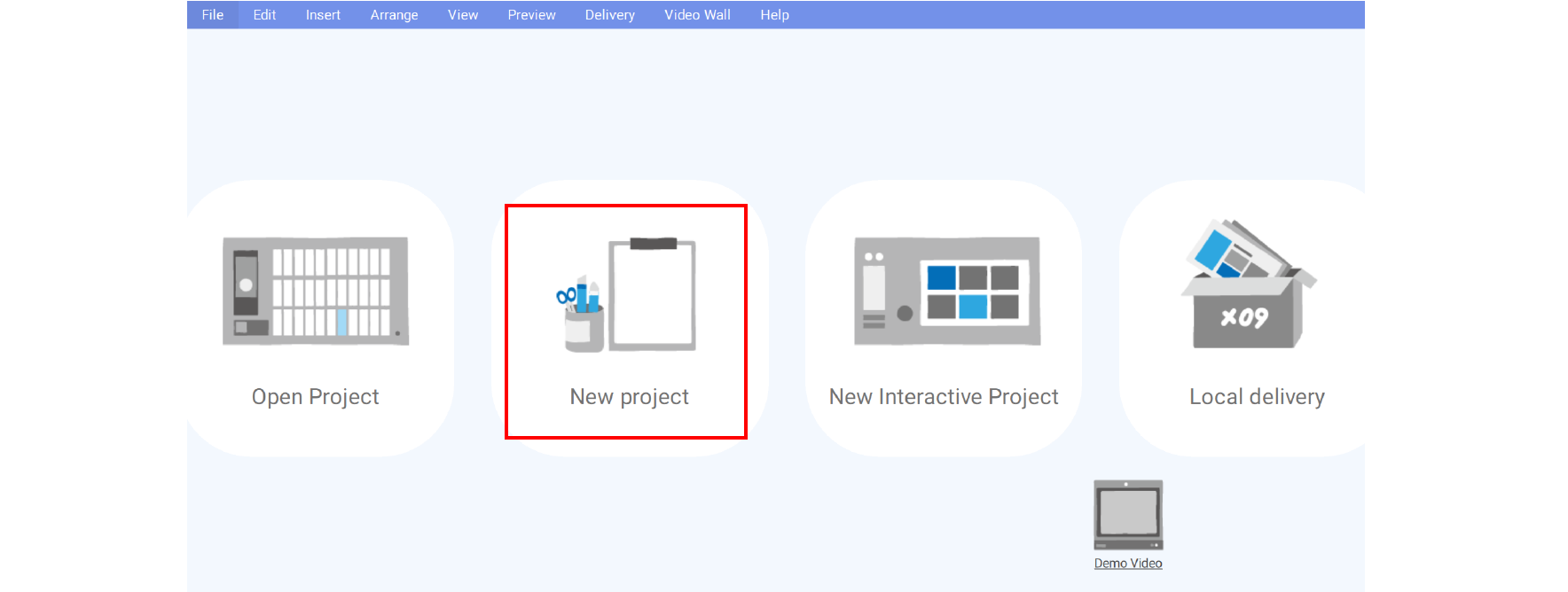

1. Launch the software and click New project.

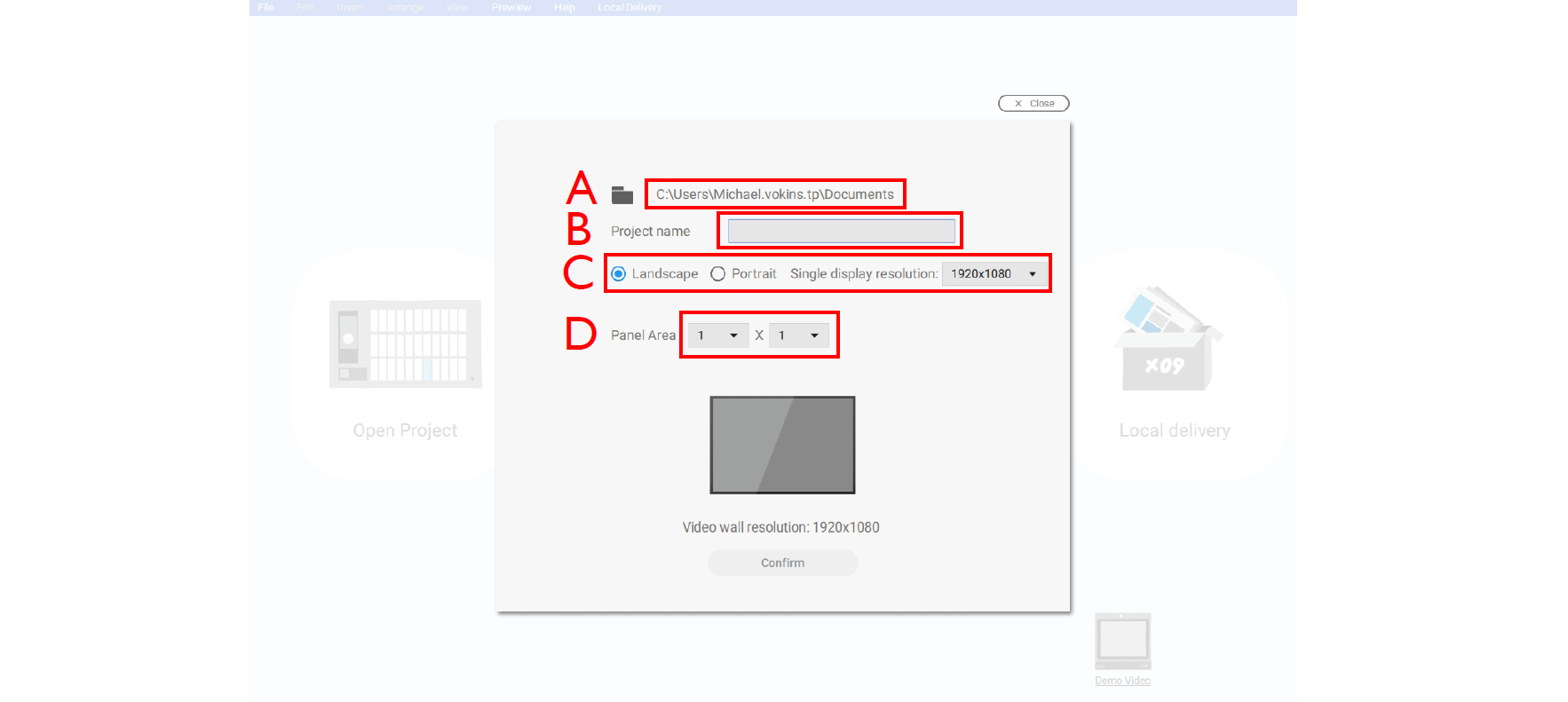

2. To customize the project settings, configure the following items:
A. Project Location - Select the folder where your project will be saved.
B. Project Name - Create a name for your project.
C. Project Orientation and Resolution - Choose the layout and size of your project.
D. Panel Area - Adjust this setting for creating a Video Wall project.
3. Select Confirm to create the new project file.

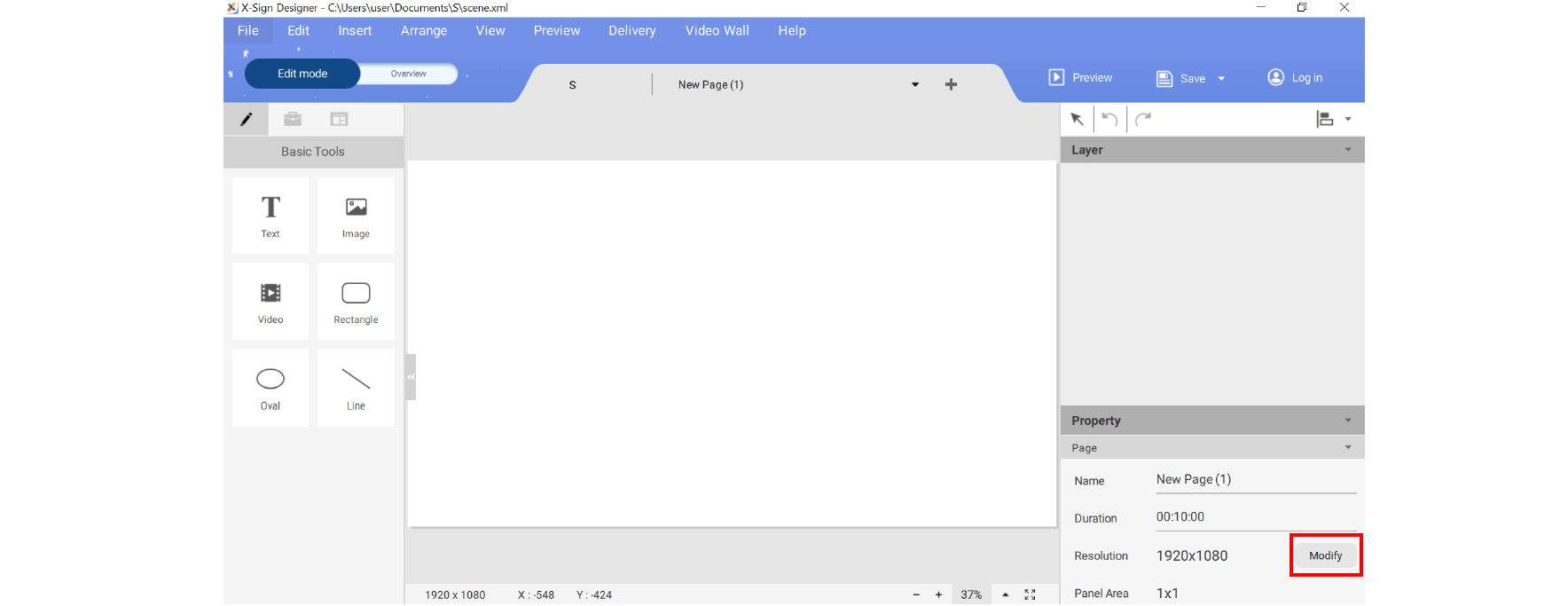

4. To adjust the project settings after a project has been created, click Modify in the Page panel.

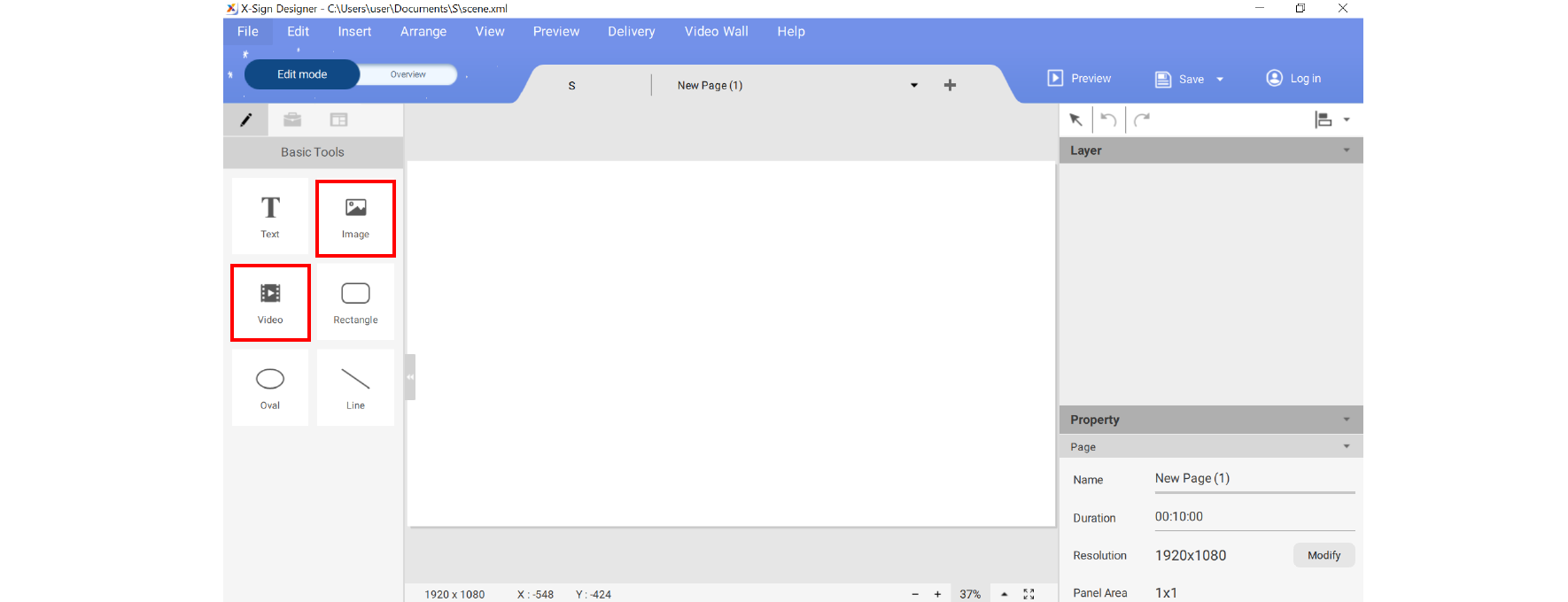

5. To import media into your project, click the Image or Video button in the Basic Tool panel.
6. Select the media file to import and click Open.
