You plug two external monitors into your MacBook Pro, but only one turns on. The second screen shows no signal, or both monitors show the same image. In most cases, this does not mean your monitor or Mac^® is broken. It usually means your MacBook Pro, cable, dock, or monitor setup does not match the required display specifications.

How many external displays your MacBook Pro can support depends on:

• Native external display support in Apple Silicon chip
• Available Thunderbolt, USB-C, or HDMI ports
• Cable and monitor bandwidth
• Target resolution and refresh rate
• Whether you use USB-C, Thunderbolt, HDMI, Daisy Chain, or DisplayLink

Before buying another adapter, first confirm what your Mac supports, what connection method you need, and whether your cable can handle the display signal.

If you are using a non-Apple monitor, also check the monitor’s OSD menu, including Input Source, USB-C configuration, Daisy Chain, and USB hub settings.

Native external display support means the monitor is driven directly by Apple Silicon chip without extra display software. Native support usually provides better stability, full resolution and refresh-rate options, and more reliable sleep / wake behavior.

If your Mac natively supports only one external display, having two Thunderbolt ports does not necessarily mean you can connect two external monitors directly.

Use this chart to check whether your MacBook Pro can support dual displays natively before buying cables, docks, or monitors.

Note: This table is a quick reference. Supported resolution and refresh rate may vary by Mac model, monitor, cable, adapter, and connected displays. Always refer to Apple’s official specifications for your exact MacBook model.

Related reading: How many displays can be connected to MacBook Pro - Apple Support

A base M1 or M2 MacBook Pro may have two Thunderbolt ports, but it still natively supports only one external display. Also consider whether other devices, such as chargers, external drives, receivers, card readers, microphones, or webcams, will occupy the available ports.

If you need multiple monitors and peripherals at the same time, Thunderbolt Daisy Chain or a dock can help reduce the number of MacBook Pro ports used.

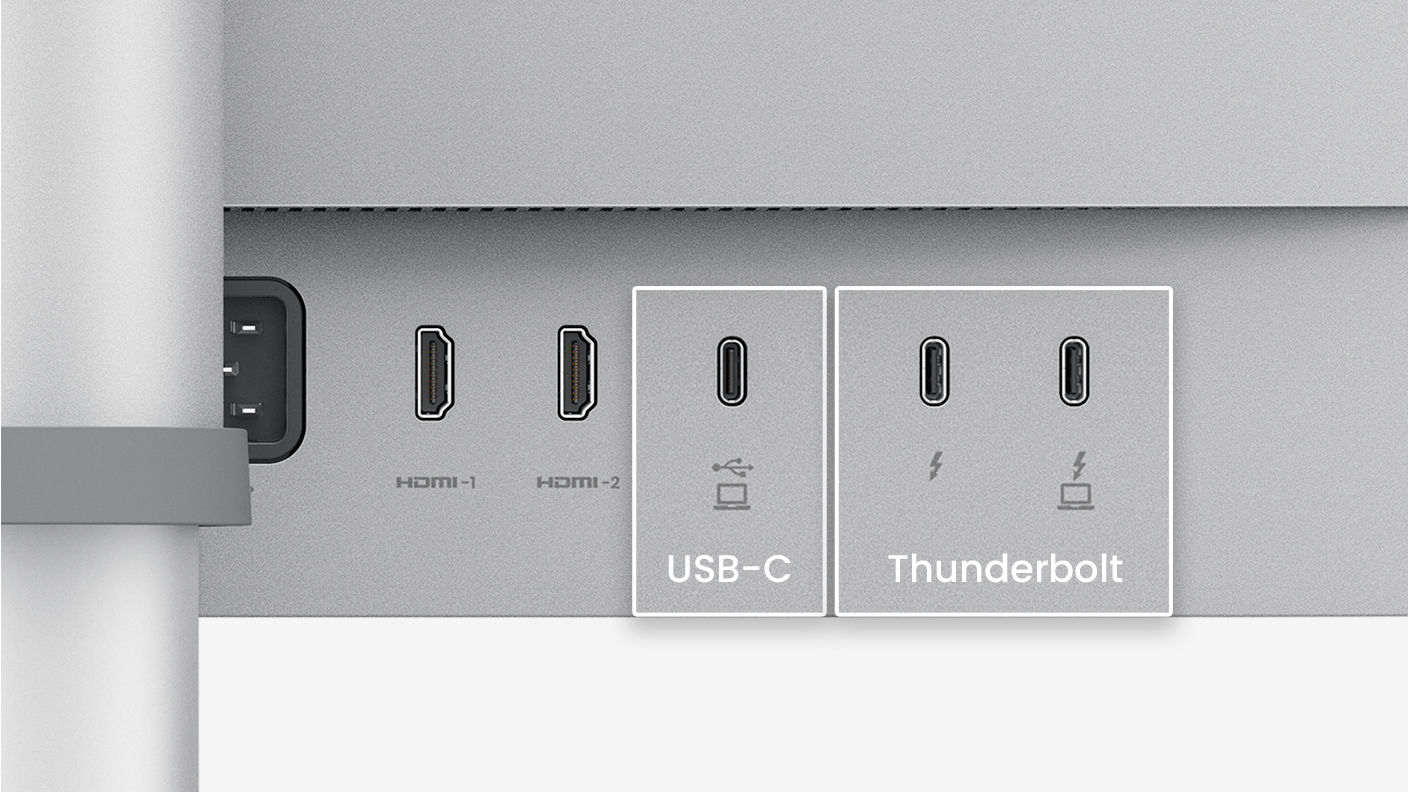

USB-C and Thunderbolt look similar because both use the Type-C connector, but their capabilities are not always the same. Before choosing a cable, dock, or monitor, check what both your Mac and monitor support.

Related reading: Identify the ports on your Mac - Apple Support

Bandwidth determines how much video, data, and peripheral traffic can pass through the connection at the same time. If bandwidth is limited, you may see:

• 4K limited to 30Hz
• Cursor lag
• Screen flickering
• Missing resolution or refresh-rate options
• Slower data transfer through a monitor hub

A common issue is connecting two 4K monitors through a low-cost USB-C hub and finding that the refresh rate is locked at 30Hz. This usually happens because video, data, and peripherals share the same limited bandwidth.

• USB-C: Up to around 10Gbps for data and video, with up to 100W charging depending on device and cable support.
• Thunderbolt: Up to around 40Gbps for data and video, better for heavy workloads, fast file transfers, Daisy Chain, and high-resolution displays.

If you only need one 4K 60Hz monitor, USB-C or Thunderbolt may both be enough. But for dual 4K high-refresh-rate displays, dual 5K displays, 5K / 6K professional monitors, or stable multi-device chaining, Thunderbolt is usually the better choice.

If your MacBook Pro supports dual displays, you can connect two monitors directly using two Thunderbolt cables. However, you need to plug and unplug two cables every time you move your MacBook Pro.

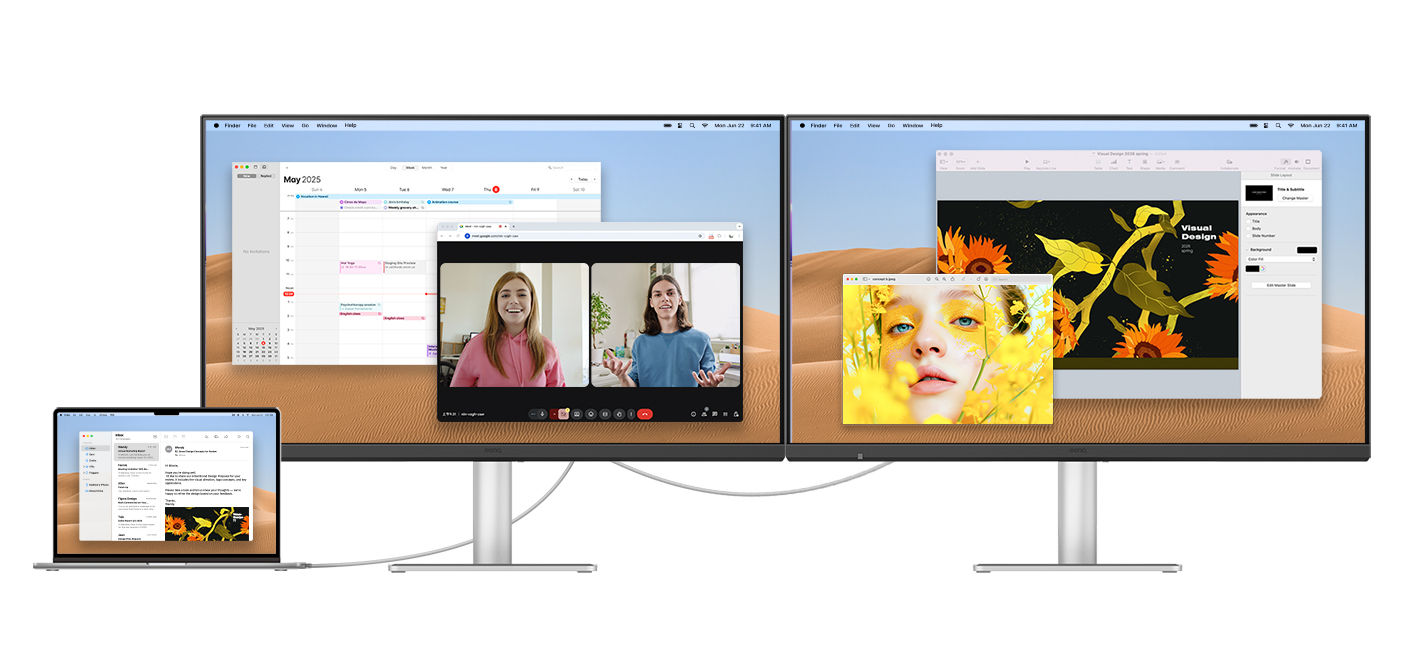

With Thunderbolt Daisy Chain, one cable connects your MacBook Pro to the first monitor, and a second cable connects the first monitor to the second monitor. This reduces cable clutter and port usage.

Basic setup:

1. Connect MacBook Pro to the first Thunderbolt monitor.
2. Connect the first monitor’s Thunderbolt output to the second monitor.
3. Go to System Settings > Displays.
4. Set the displays as extended or mirrored.

Learn More: How to Daisy Chain Monitors Using Thunderbolt or DisplayPort

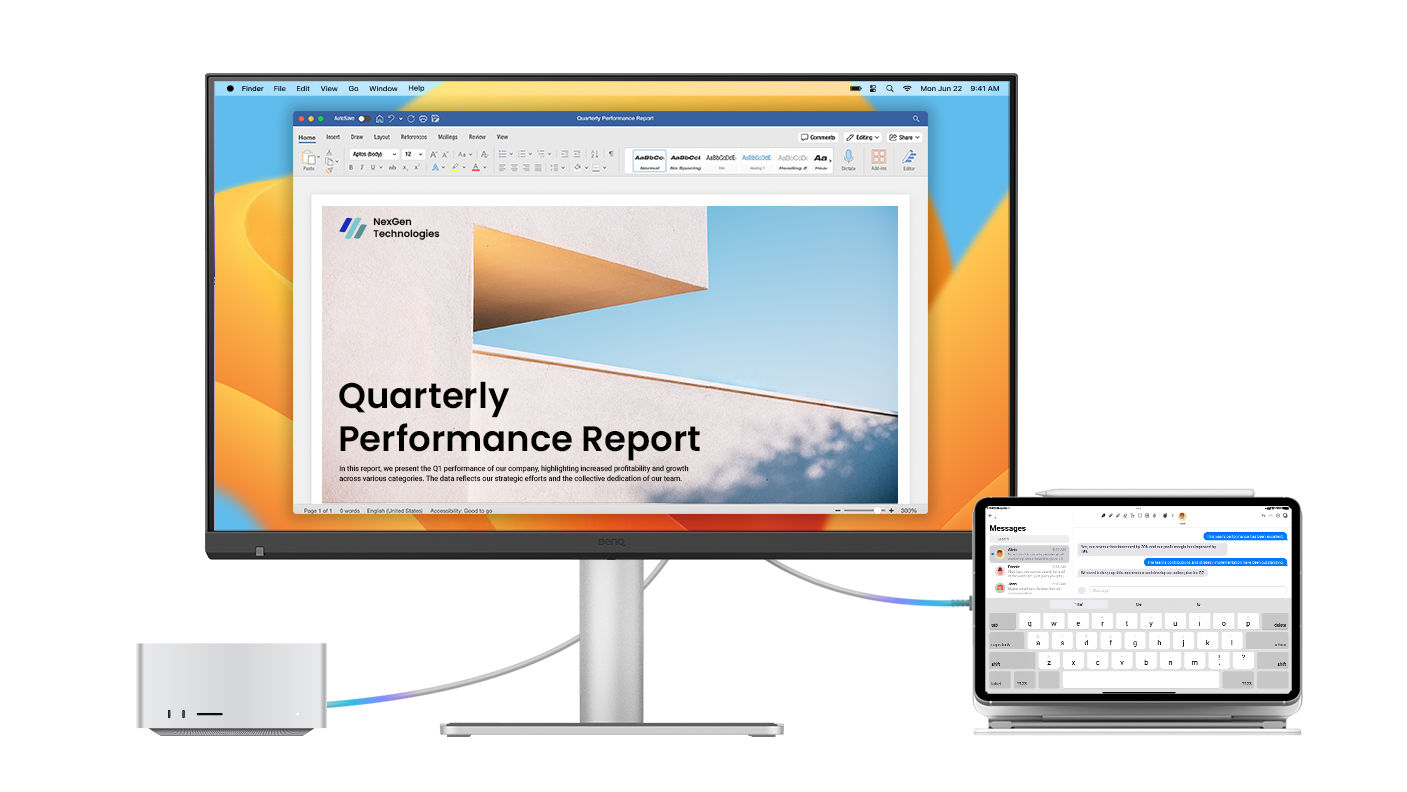

USB-C and Thunderbolt can support up to 100W charging, but actual charging performance depends on the monitor, dock, cable, and MacBook Pro power requirements.

For 14-inch or 16-inch MacBook Pro models, or for heavy workloads like video editing, 3D work, compiling code, or multi-monitor use, choose a monitor or dock with higher Power Delivery wattage to help prevent battery drain.

Common cable problems include:

• Charging-only USB-C cables
• Low-spec USB 2.0 cables
• Insufficient bandwidth for 4K 60Hz or higher
• Cables that are too long or low quality
• Cables that do not support enough Power Delivery wattage

Cable Buying Tips

Before using a cable, check:

• Does it support video output through DP Alt Mode?
• Is it marked as USB 3.2 Gen 2, USB4, or Thunderbolt 4?
• Does it support enough Power Delivery wattage?
• Can it support your target resolution and refresh rate?
• Is it certified or from a reliable brand?

Thunderbolt 4 cables usually include a lightning icon and the number “4,” and can provide up to 40Gbps bandwidth. USB-C cables that support DP Alt Mode can transmit video, but their bandwidth varies by specification.

Choose the setup path that fits your Mac and monitors:

• Thunderbolt + Thunderbolt: Best for Macs that natively support dual displays and need stable high bandwidth.
• HDMI + Thunderbolt: Best for MacBook Pro models with both HDMI and Thunderbolt.
• Thunderbolt Daisy Chain: Best for fewer cables and fewer occupied ports.

Connect each monitor using the selected method. If using USB-C, make sure the cable supports DP Alt Mode. If using Thunderbolt Daisy Chain, use a Thunderbolt cable.

Also check that the monitor input source is set correctly, such as USB-C, Thunderbolt, or HDMI.

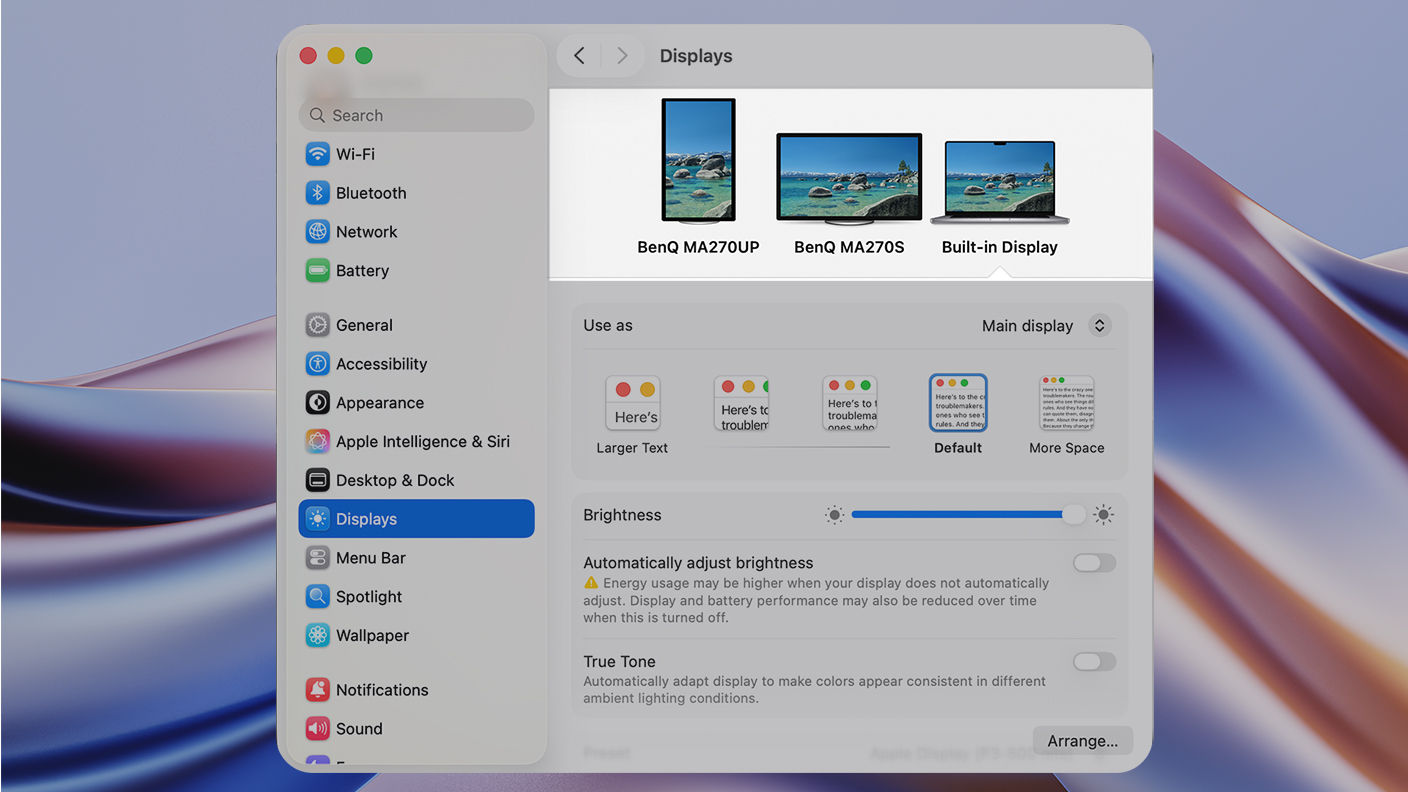

If your cursor moves in the wrong direction, drag the display icons in macOS Display settings to match your physical desk layout.

Example:

Left monitor ← Main monitor / Main Display → MacBook Pro

If you want to use your external monitor vertically, adjust the rotation setting first.

Go to:

System Settings → Displays → Select the external monitor → Rotation

Select a 90° rotation for a standard vertical setup, or 270° if the monitor is rotated in the opposite direction.

Go to:

System Settings → Displays → Use as → Extended Display / Mirror Display

• Extended Display: Creates more workspace across multiple screens.
• Mirror Display: Shows the same content on both screens.
• Main Display: Sets the primary display for the menu bar and default window placement.

After enabling extended display mode, adjust:

• Scaling / HiDPI: Text, icon, and UI size
• Desktop partition software: Faster window organization

For some 4K monitors, macOS may default to a 2560 x 1440 scaled view because it often balances readable text size and sharp image quality. Choose the option that feels most comfortable for your viewing distance and workflow.

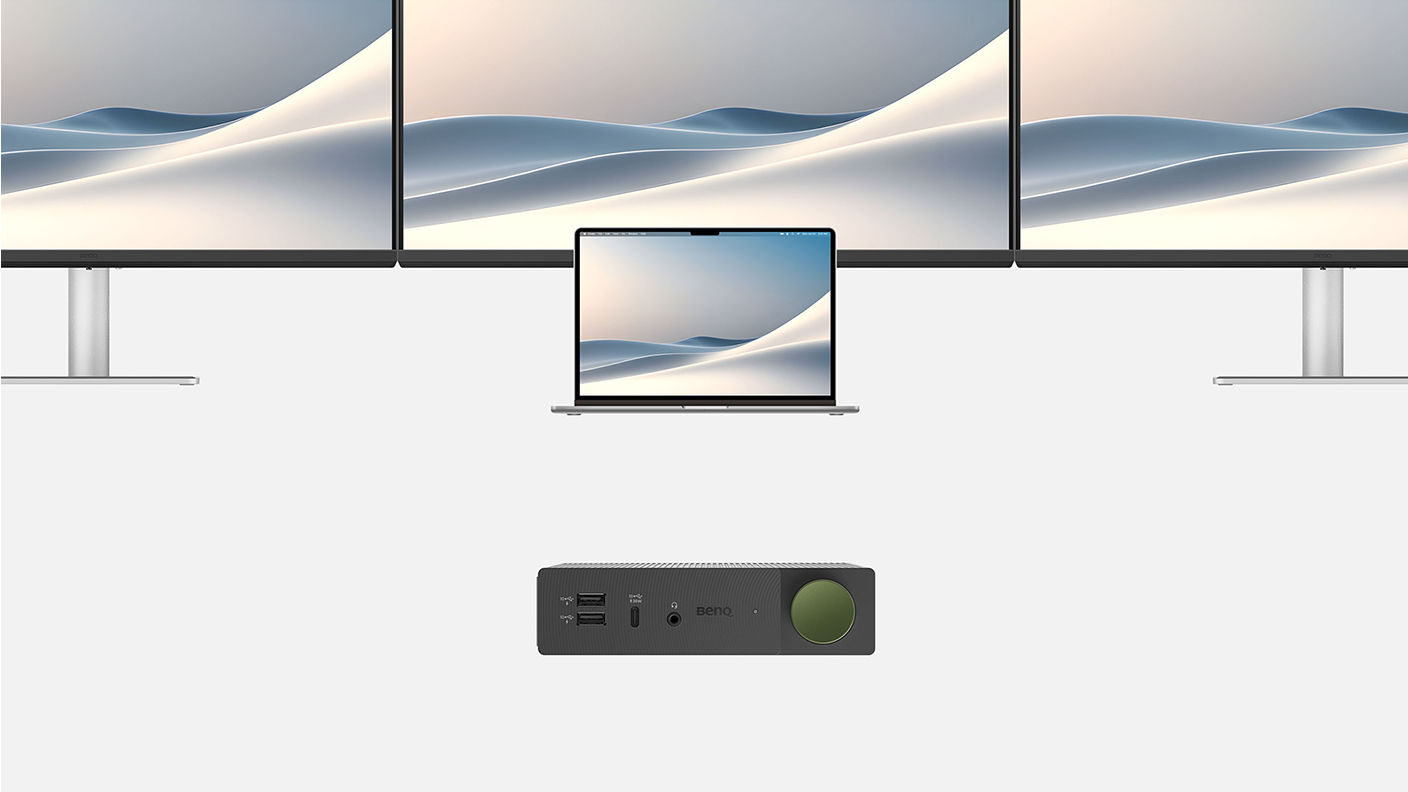

Some MacBook Pro models, especially base M-series models, have native external display limits. This means the Mac may not directly support two or more external monitors even if it has multiple ports. In this case, a USB docking station, USB hub, or DisplayLink dock can provide an alternative way to connect additional screens.

A dock-based solution may be suitable for office work, browsing, documents, and general productivity. However, it may not perform the same as native Thunderbolt output for high-quality video, gaming, color-critical work, or high-refresh-rate use.

Learn More: How to Set up Triple Monitors for MacBook Air and MacBook Pro with USB-C hub (M1, M2, M3, M4)

Check these items on the monitor side:

• Input Source: USB-C, Thunderbolt, HDMI, or DisplayPort
• USB-C Configuration: May affect data bandwidth and hub functions
• Daisy Chain Setting: Must be supported and enabled for chained setups
• USB Hub / KVM: Check upstream and KVM settings if peripherals are connected to the monitor

Menu names vary by model, so refer to the product specifications and user manual.

If macOS does not detect the second monitor, check:

1. Confirm whether your Mac natively supports a second external monitor.
2. Make sure the monitor is powered on.
3. Check the monitor input source.
4. Unplug and reconnect the cable.
5. Try another Thunderbolt or USB-C port.
6. Try another cable that supports video output.
7. Go to System Settings > Displays and check whether the display appears.
8. Hold the Option key to see whether Detect Displays appears, then try detecting again.
9. If using a dock or hub, confirm that it supports your target resolution and refresh rate.

If the issue continues, test each monitor, cable, and port one at a time with a single display first. Then return to the dual display setup.

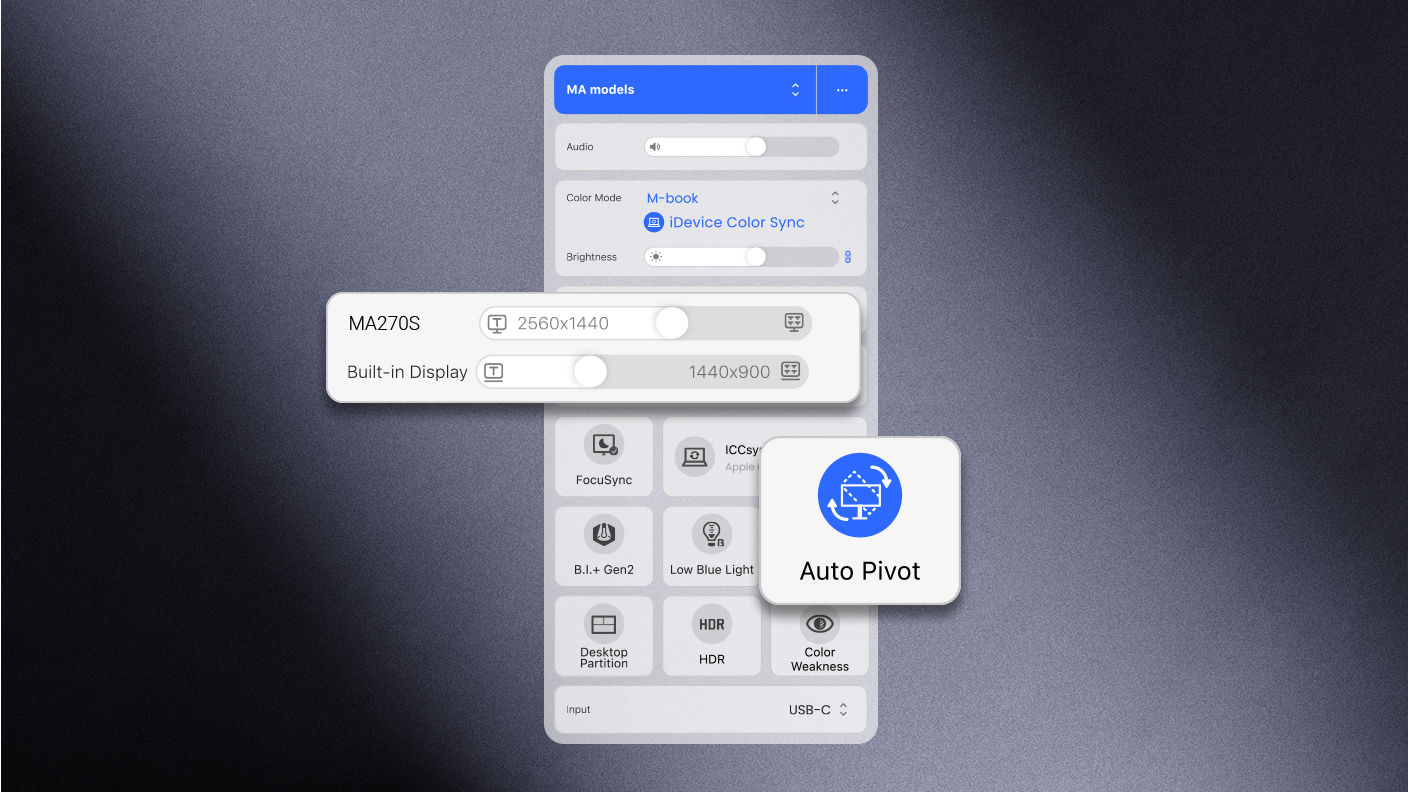

BenQ Display Pilot 2 helps simplify resolution, HiDPI, rotation, and multi-monitor management for supported BenQ monitors. Helping users manage BenQ monitor settings more intuitively, especially for multi-monitor and Mac workflows.

Adjust Resolution and HiDPI Settings

Display Pilot 2 provides an interface for adjusting monitor and laptop resolution settings. Users can adjust settings with a slider, and the setting takes effect once the slider is released.

Vertical Monitor and Auto-Rotation

For programmers and developers, a vertical monitor is useful for reading code, documentation, and long pages. Display Pilot 2 can help set screen rotation through software.

DP2 Multi-Monitor Compatibility Notes

Display Pilot 2 can support two or more external monitors, but compatibility may vary by Mac device, chip, connection method, and whether the monitors are the same model.

DP2 Compatibility Check >

Q1: Why can my MacBook Pro connect to only one external monitor?

Your MacBook Pro may only support one external monitor natively. Some base M1 / M2 MacBook Pro models natively support only one external display, even if they have two Thunderbolt ports.

Q2: Can an M1 or M2 MacBook Pro support dual displays?

Base M1 / M2 MacBook Pro models usually do not support dual external displays natively. If you need more monitors, consider a DisplayLink dock or another supported expansion solution.

Q3: Why is my 4K monitor running at only 30Hz?

A 4K monitor may run at 30Hz when the connection lacks bandwidth. This can happen when video, data transfer, and peripherals share the same USB-C or hub connection.

Q4: Can USB-C and Thunderbolt both support dual displays?

Yes, but only if your Mac natively supports dual displays or you use a supported expansion solution. USB-C or Thunderbolt is the connection method, not the display support limit.

Q5: How do I set up extended displays?

Go to System Settings > Displays, then choose Extended Display or stop mirroring under Use as. You can also set the main display and arrange monitor positions.

Q6: Why does my external monitor look blurry?

A blurry external monitor is often related to macOS HiDPI scaling. Try different scaling sizes in System Settings > Displays to find the clearest and most comfortable setting.

Q7: What should I do if my dual display setup flickers or shows a black screen?

Check the cable and monitor input source first. Make sure your cable supports DP Alt Mode, USB4, or Thunderbolt 4. Low-quality, long, or bandwidth-limited cables can cause flickering or black screens.

Q8: Why do both monitors show the same image?

macOS is likely set to Mirror Display. Go to System Settings > Displays and change Use as to Extended Display.

Q9: Can I use an external monitor vertically?

Yes. Go to System Settings > Displays, select the monitor, and choose a rotation angle. Vertical monitors are useful for coding, long documents, web browsing, and data analysis.

Q10: Can I use an iPad as a second display for my Mac?

Yes. If your Mac and iPad support Sidecar, you can use the iPad as an extended or mirrored display. For long work sessions, a dedicated external monitor is still recommended.
