No. Your MacBook does not need to be connected only to an Apple monitor. As long as the external monitor has the right connection standard, enough video bandwidth, and Mac-friendly display and charging features, a non-Apple monitor can also work well with your MacBook.

This guide explains how to set up a MacBook additional screen, including port differences, cable selection, physical connection steps, macOS display settings, and common troubleshooting tips.

An external monitor is not only a screen. If the monitor includes USB hub features and connects to your MacBook through USB-C or Thunderbolt, it can handle video output, data transfer, peripheral signals, and charging at the same time.

For example, you can plug a mouse, keyboard, or receiver into the USB-A or USB-C ports on the back of the monitor, then connect the monitor to your MacBook with one USB-C or Thunderbolt cable. In this setup, your MacBook does not need to be the physical center for every accessory. The monitor becomes the connection hub for your desk.

Before connecting an external monitor, check your MacBook model, chip, ports, and monitor input specifications. If you only want to connect one additional screen, most MacBooks can do this through USB-C, Thunderbolt, or HDMI. If you want to connect a second monitor or build a multi-monitor setup, you need to check your Mac chip and native external display support.

If you need to connect multiple external monitors, connect the highest-resolution display first, then connect the others. This may help reduce unexpected resolution or refresh-rate issues.

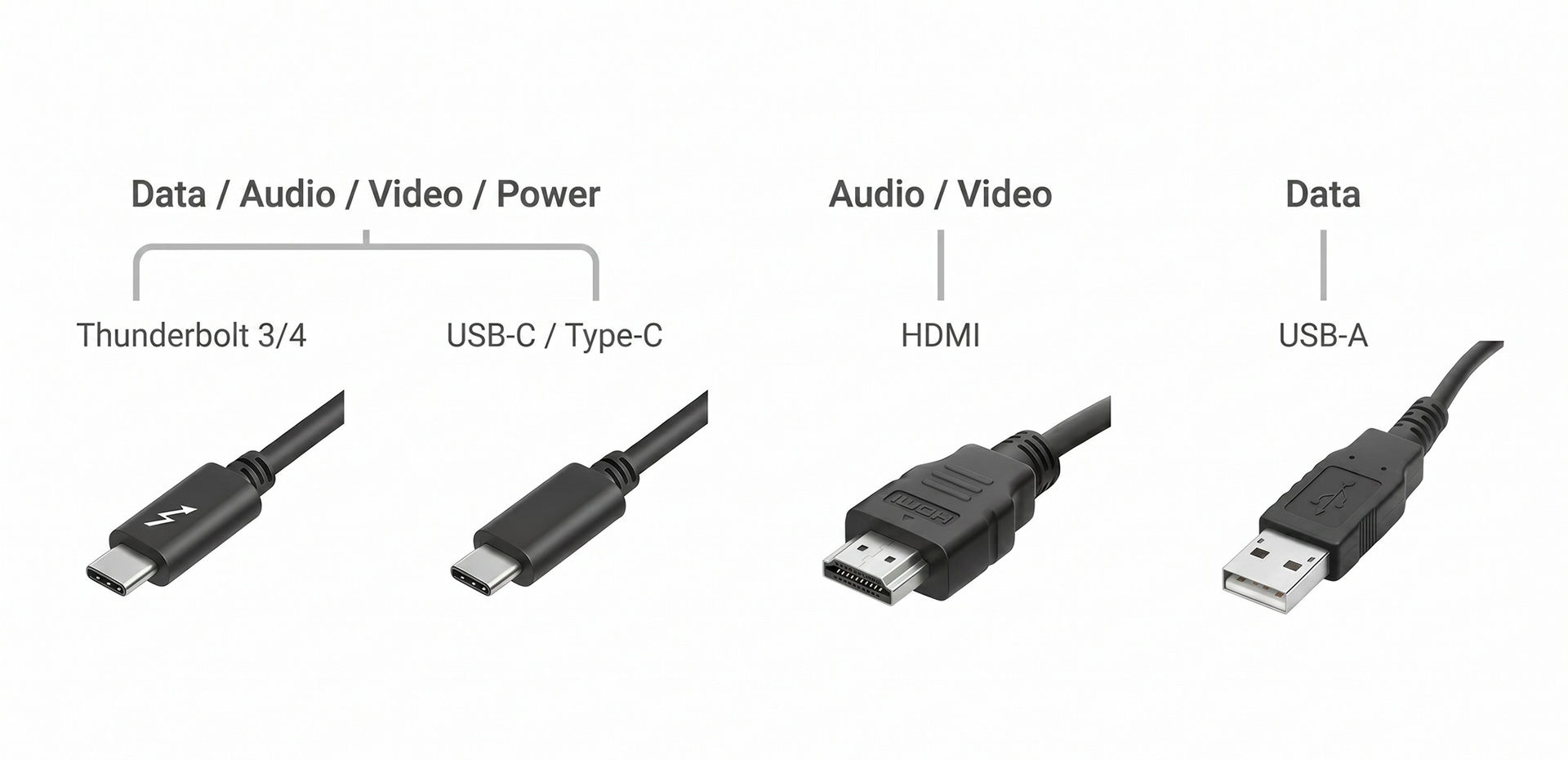

The key point is that USB-C and Thunderbolt can support data, audio, video, and power, but actual capability depends on your Mac, monitor, port, and cable specifications. To transmit video through USB-C, confirm that the connection supports DP Alt Mode or Thunderbolt.

Step 1: Power On the Monitor

Use the power cord included in the monitor box to connect the monitor to power first. Turn on the monitor and make sure it is ready to receive a signal.

Step 2: Choose a USB-C, Thunderbolt, or HDMI Cable

Connect your MacBook and monitor with a USB-C, Thunderbolt, or HDMI cable. If the cable connector does not match your MacBook port, use a compatible adapter or choose a cable that connects directly without an adapter.

If your monitor supports USB-C or Thunderbolt, a one-cable setup is recommended. One cable can handle video, audio, data, charging, and peripheral signals, helping keep your desk cleaner.

Cable selection tips:

• For 4K 60Hz output, choose a cable marked for 4K / 60Hz or USB 3.2 and above.
• For higher resolution, higher refresh rate, or multi-monitor workflows, Thunderbolt 4 cables are usually more suitable.
• If using a USB-C cable, make sure it supports DP Alt Mode. Avoid charging-only or low-speed USB-C cables.

Actual resolution and refresh rate still depend on your Mac model, monitor, cable, adapter, and dock specifications.

Step 3: Make Sure Your MacBook Is On and Awake

After connecting the cable, make sure your MacBook is powered on, awake, and has enough battery, or is receiving power through USB-C or Thunderbolt.

Step 4: Select the Correct Input Source

Turn on the monitor and choose the correct input source in the monitor’s OSD menu, such as USB-C, Thunderbolt, HDMI, or DisplayPort. Many no-signal issues happen simply because the monitor is set to the wrong input source.

If you use a non-Apple monitor, some settings may need to be adjusted from the monitor OSD, such as brightness, input source, USB-C mode, sharpness, or hub functions.

Once the external monitor shows an image, go to:

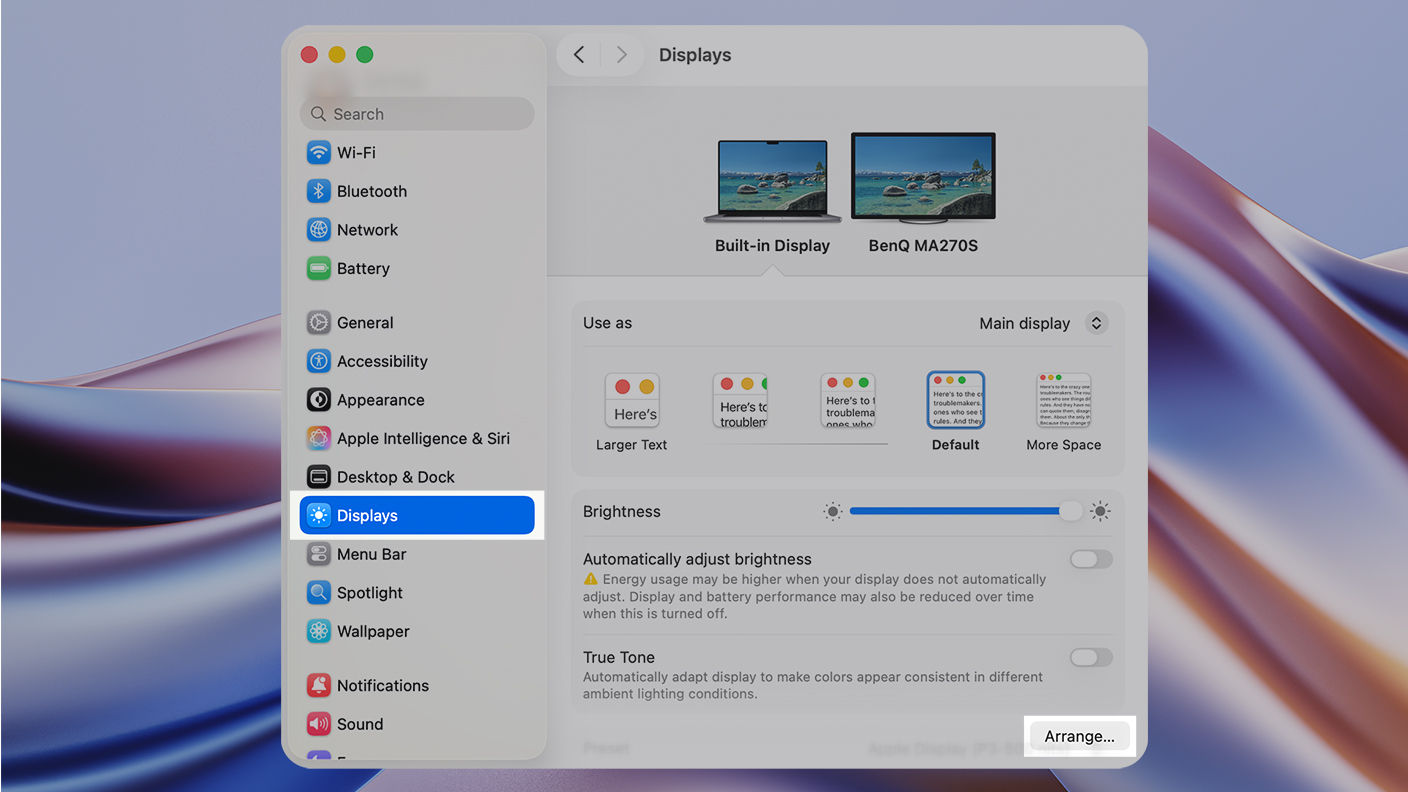

Path: System Settings → Displays

In the Displays panel, you should see both the Built-in Display and the external screen. Select the external screen first, then adjust the display mode, arrangement, refresh rate, resolution, or scaling settings for that monitor.

* The UI screenshots below are based on the 2026 macOS display settings interface, so the steps reflect the latest layout at the time of writing.

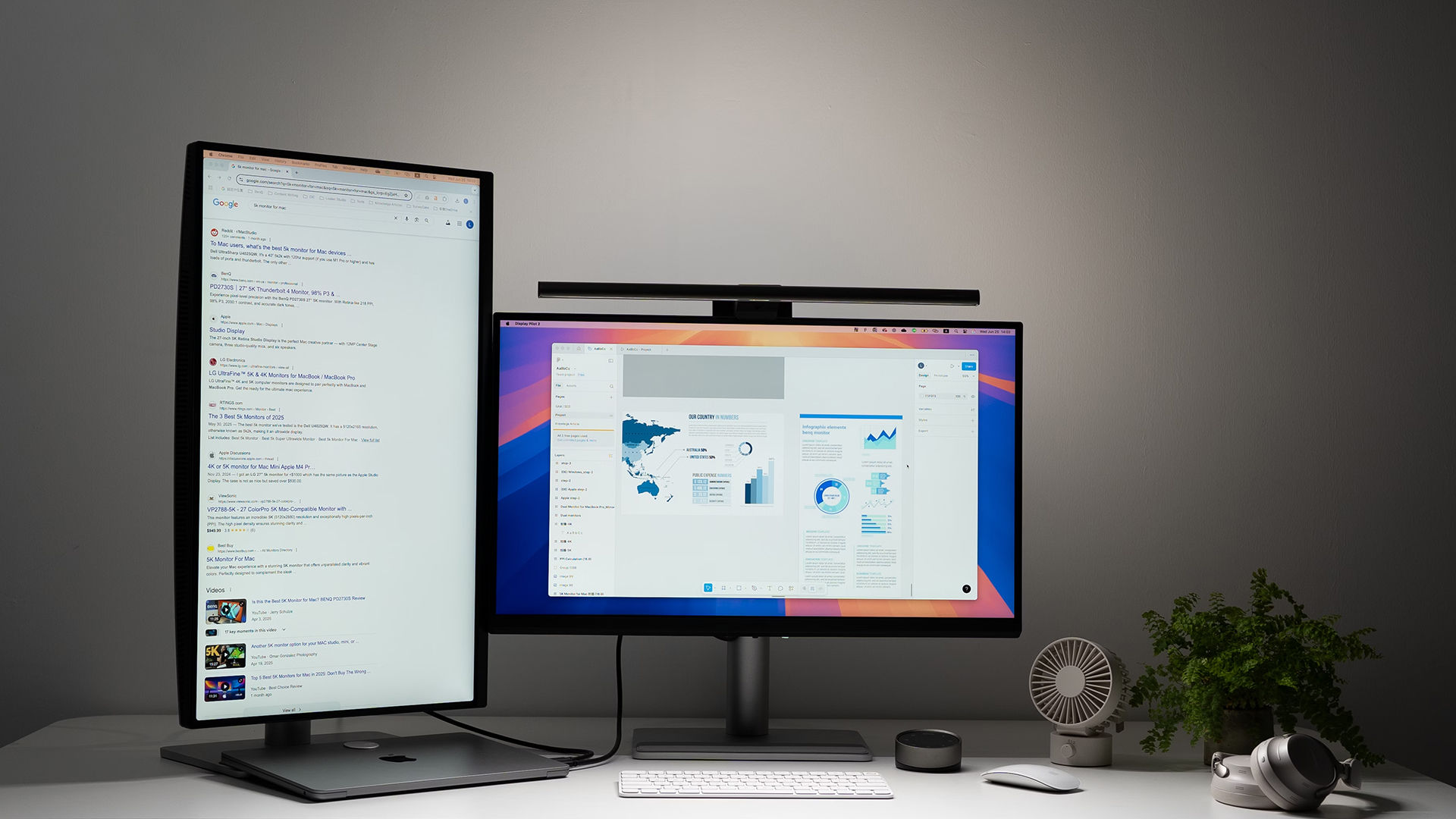

A vertical monitor is useful for coding, long documents, web browsing, and spreadsheet work.

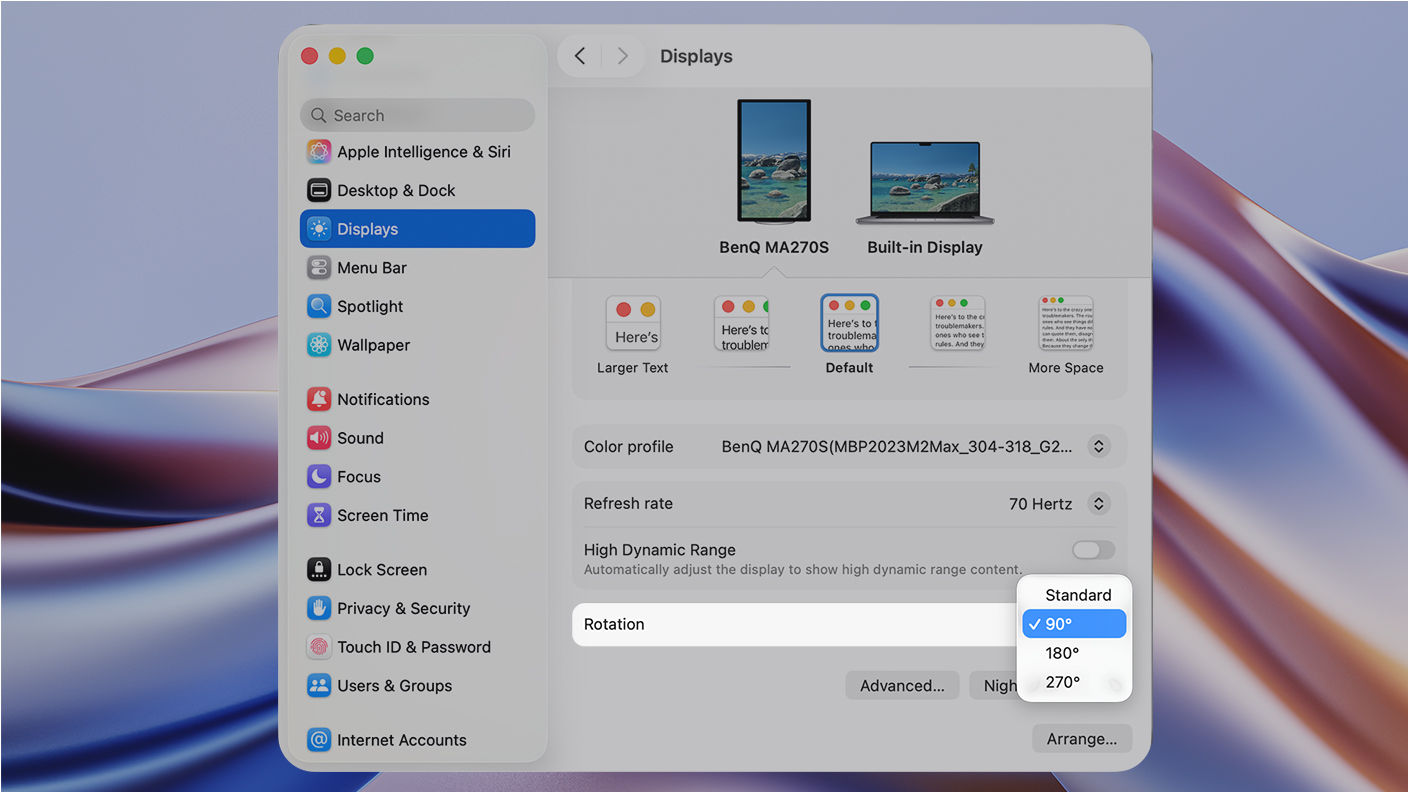

If you want to use your external monitor vertically, adjust the rotation setting first. Select a 90° rotation for a standard vertical setup, or 270° if the monitor is rotated in the opposite direction. This helps macOS match the external screen’s physical orientation before you fine-tune display mode, arrangement, refresh rate, resolution, or scaling. If you do not need vertical use, you can skip this step.

Path: System Settings → Displays → Select the external monitor → Rotation

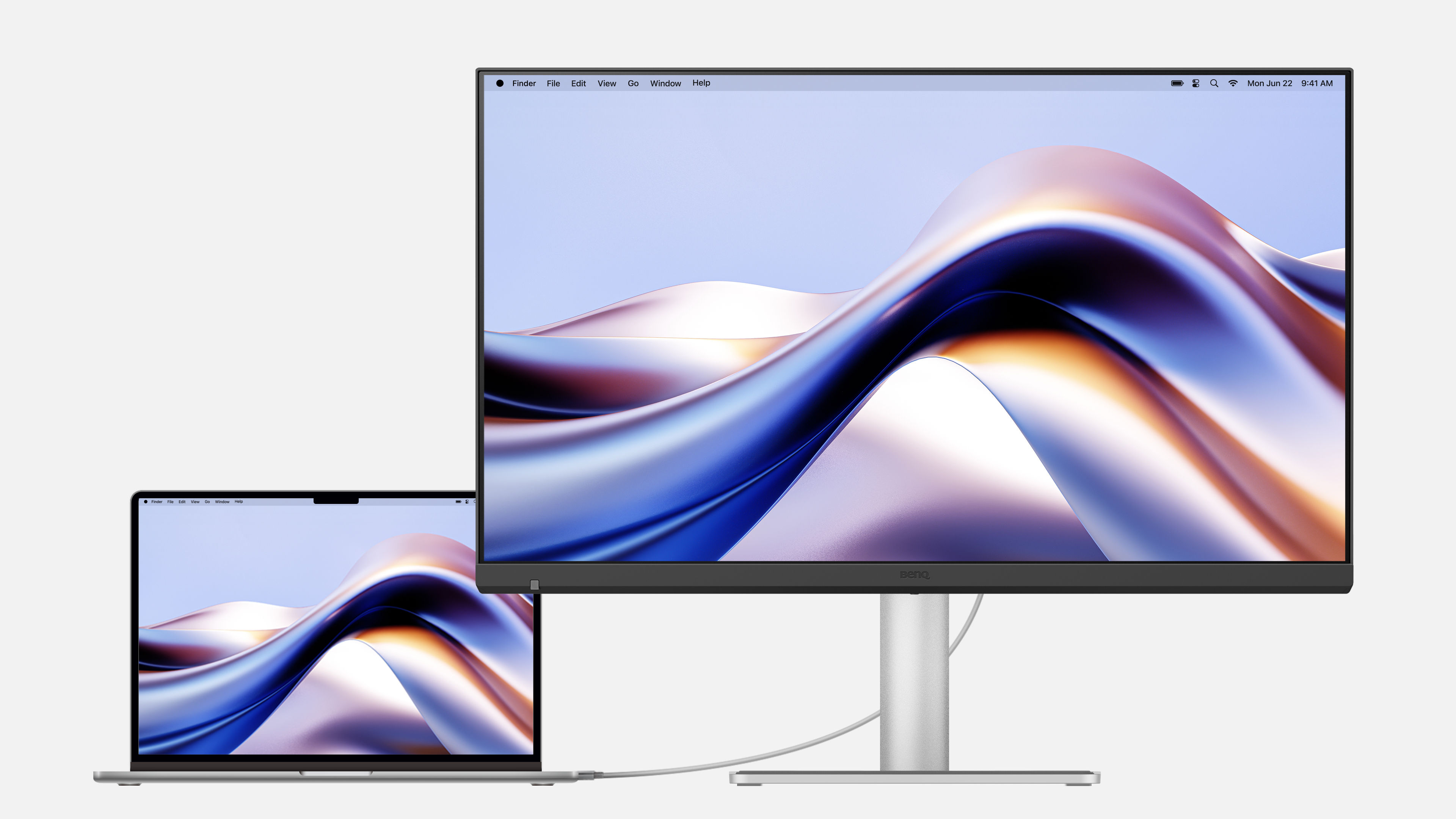

If your cursor moves in the wrong direction between screens, adjust the display arrangement so it reflects your physical desk setup.

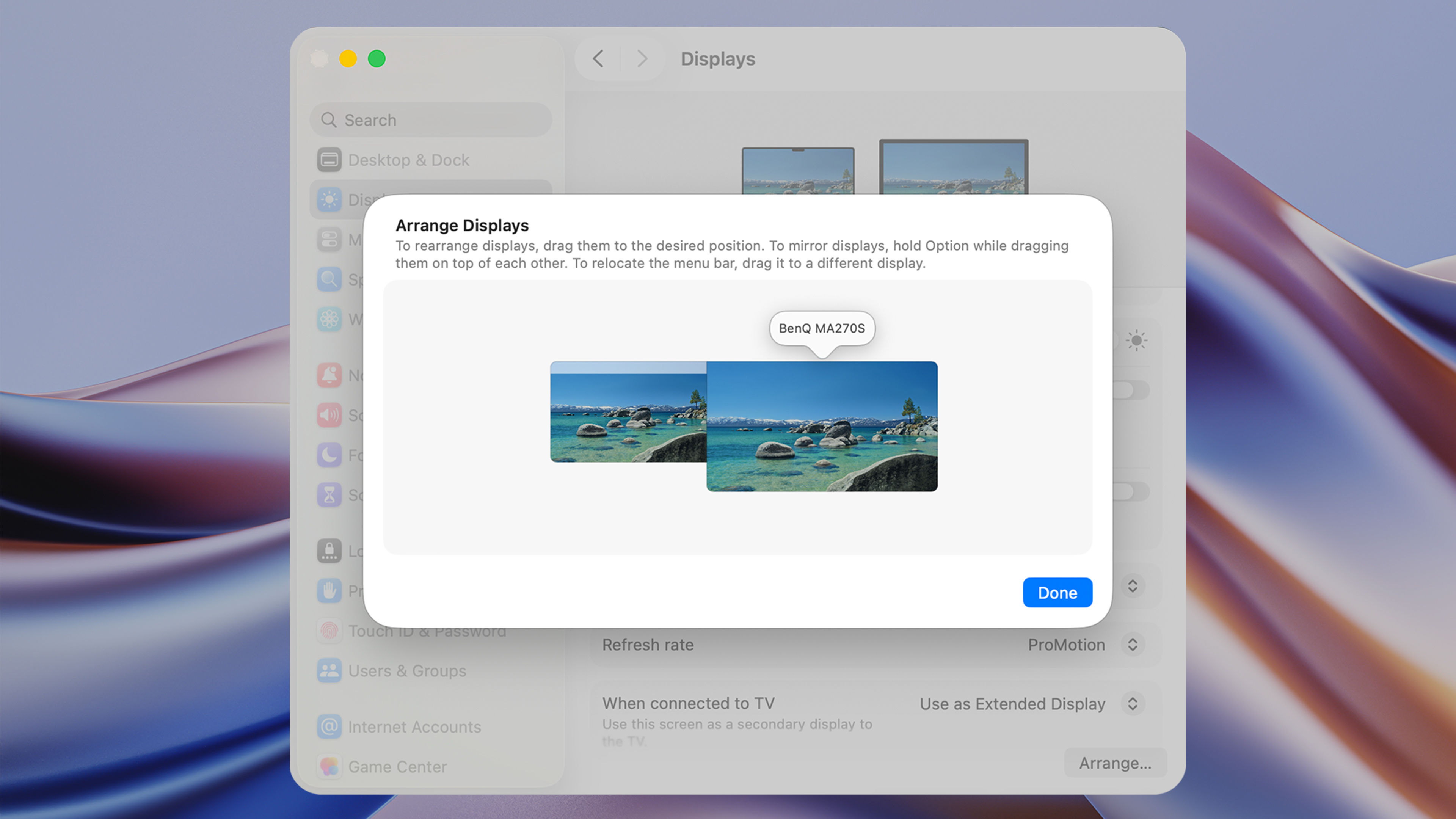

Path: System Settings → Displays → Arrange

Then drag the display icons to match your physical desk layout.

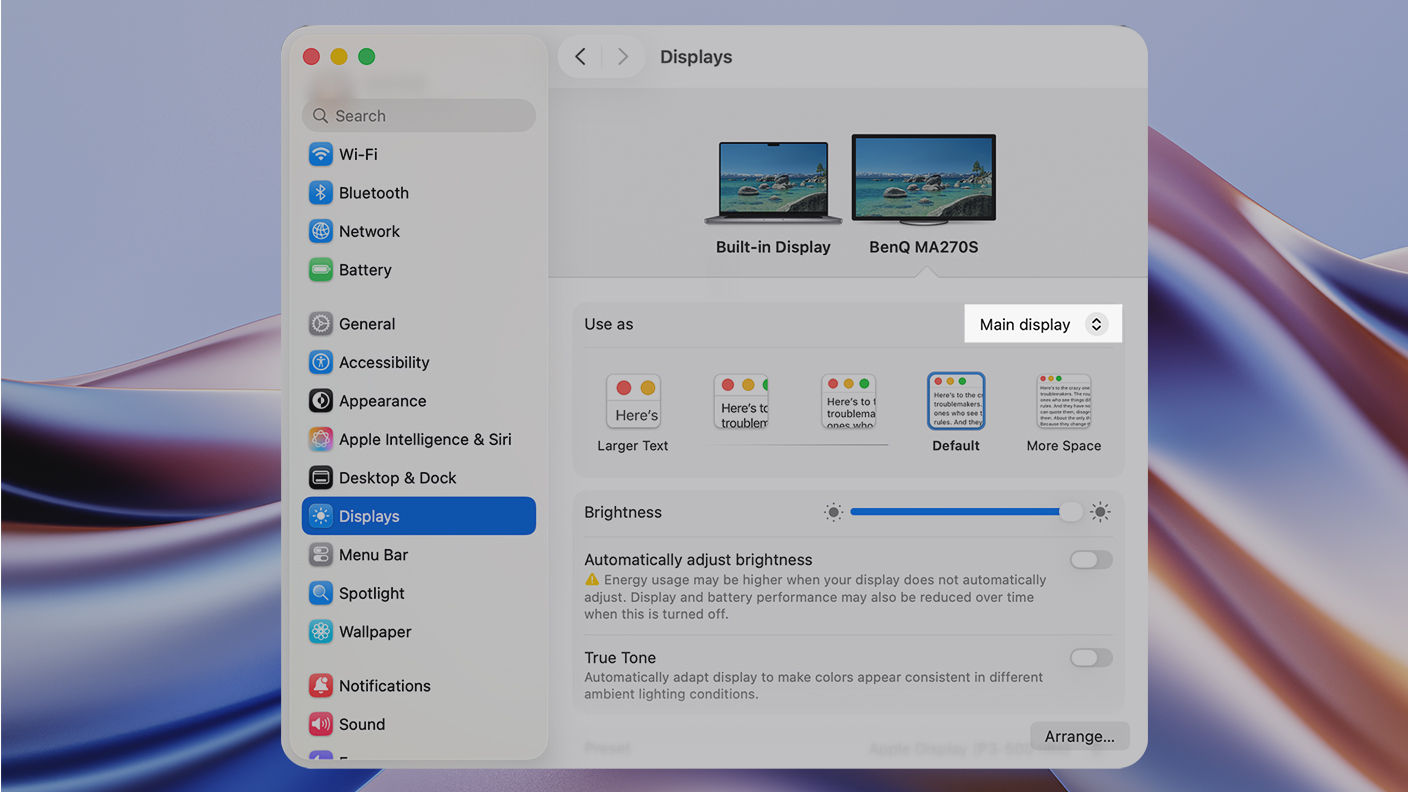

If you want the external monitor to become your main workspace, set it as the main display.

Path: System Settings → Displays → Select the monitor → Use as → Main Display

The main display determines where the menu bar, desktop, and some default windows appear.

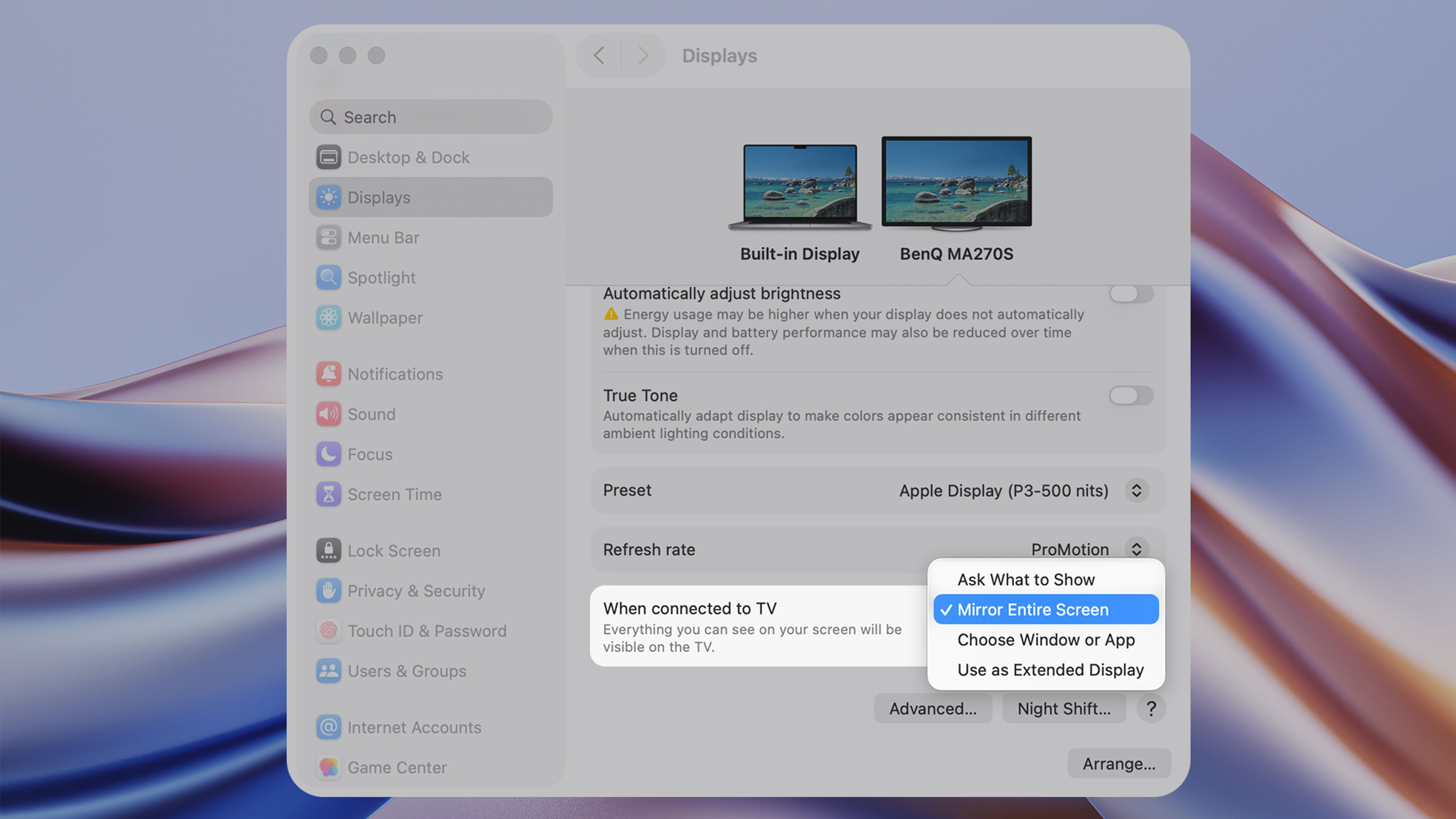

Mirroring shows the same content on both your MacBook and the external monitor. It is useful for meetings, presentations, teaching, or sharing one screen with others.

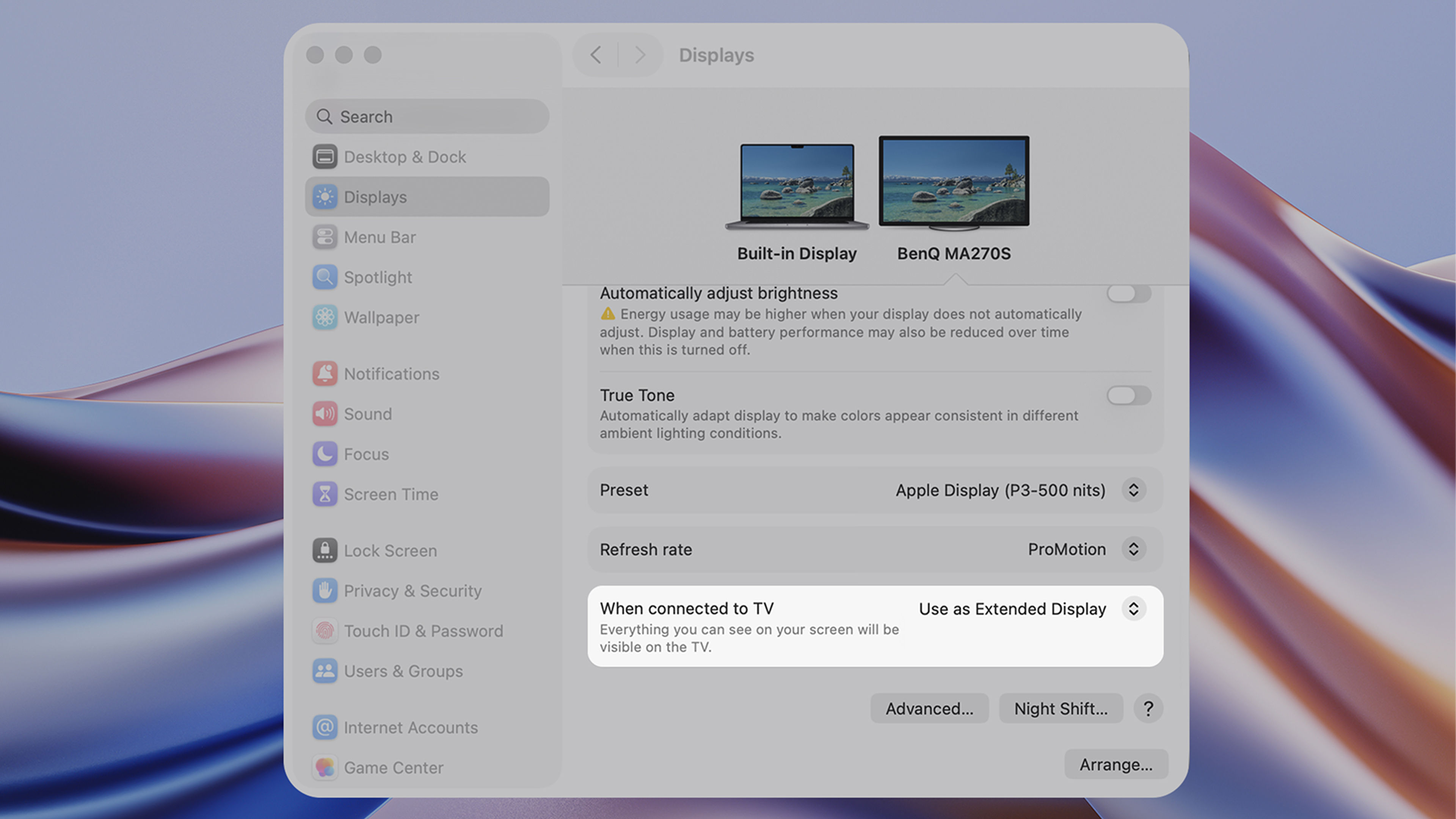

Extended Desktop turns the external monitor into additional workspace. It is useful for multitasking, design, video editing, coding, and working with multiple documents or windows.

Path: System Settings → Displays→When connected to TV → Mirror Entire Screen/ Use as Extended Display

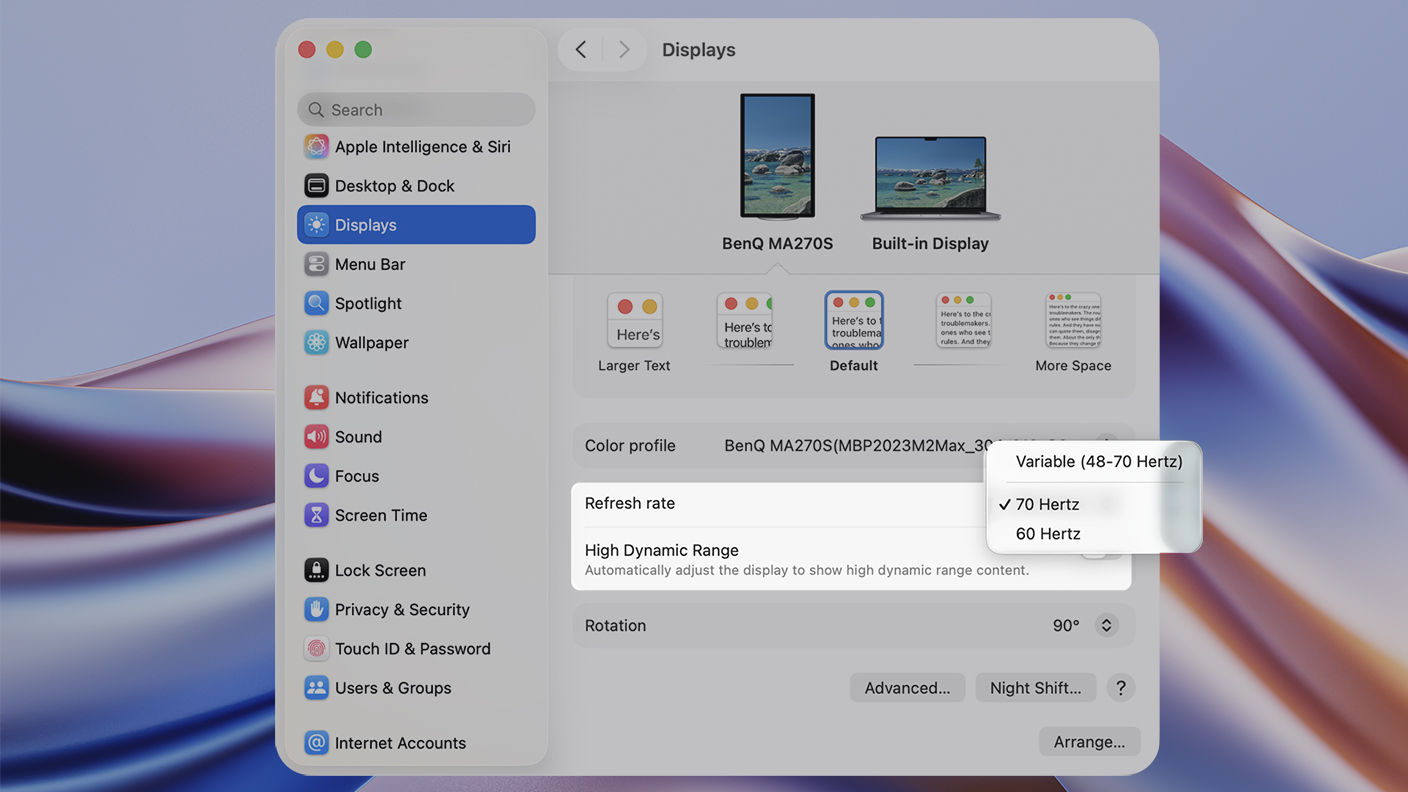

If your external monitor is running at only 30Hz, scrolling, cursor movement, and window dragging may feel less smooth. For everyday use, check that your external monitor can run at 60Hz or higher.

If 60Hz does not appear as an option, possible reasons include:

• Insufficient cable bandwidth
• Hub or dock limitations
• Monitor input port limitations
• MacBook external display output limits
• A charging-only or low-speed USB-C cable

Thunderbolt supports up to 40Gbps bandwidth and is usually better for high-resolution, high-refresh-rate, or multi-monitor workflows. Actual performance still depends on your Mac, monitor, cable, adapter, and dock.

macOS automatically chooses a display setting it considers suitable. If text looks too small, the interface looks too large, or the image does not look sharp, adjust resolution or scaling.

Path: System Settings → Displays → Select the external monitor → Resolution / Scaling

The goal of scaling is to balance readable text size with image detail. Try a few options based on your viewing distance, screen size, and daily workflow.

If your external monitor shows no signal, a black screen, or is not detected by your MacBook, check the following:

1. Make sure the monitor is powered on and the cable is properly connected.
2. Confirm the monitor input source is correct.
3. Make sure your MacBook is powered on and awake.
4. Unplug the monitor cable, wait a few seconds, then reconnect it.
5. Try another USB-C or Thunderbolt port.
6. If using USB-C, confirm the cable and adapter support DP Alt Mode or Thunderbolt.
7. If using a hub or dock, connect the monitor directly to the Mac first.
8. If the monitor works but resolution or refresh rate is low, check whether the cable, adapter, hub, or dock supports that specification.
9. Try detecting the display manually.
   Manual detection path: System Settings → Displays → Hold Option → Detect Displays
10. Update macOS. If using a third-party monitor, also check whether monitor firmware is up to date.

Clamshell Mode lets you close your MacBook and work with an external monitor, keyboard, and mouse.

Before using Clamshell Mode, make sure:

• Your MacBook is connected to an external monitor
• A keyboard and mouse are connected through cable, receiver, or Bluetooth
• Your MacBook is connected to power
• The external monitor is already displaying correctly

If the MacBook is not connected to power, closing the lid usually puts it to sleep. If you use an Apple silicon Mac, you may need to allow external accessories the first time you connect an external monitor, keyboard, or mouse.

If your external monitor does not wake after your MacBook wakes from sleep, try:

1. Unplug the monitor cable, wait 2–3 seconds, then reconnect it.
2. Confirm the monitor power is still on.
3. Check that the monitor input source has not changed.
4. If using Clamshell Mode, make sure your MacBook is connected to power.

Open the MacBook lid to wake the system, then close it again.

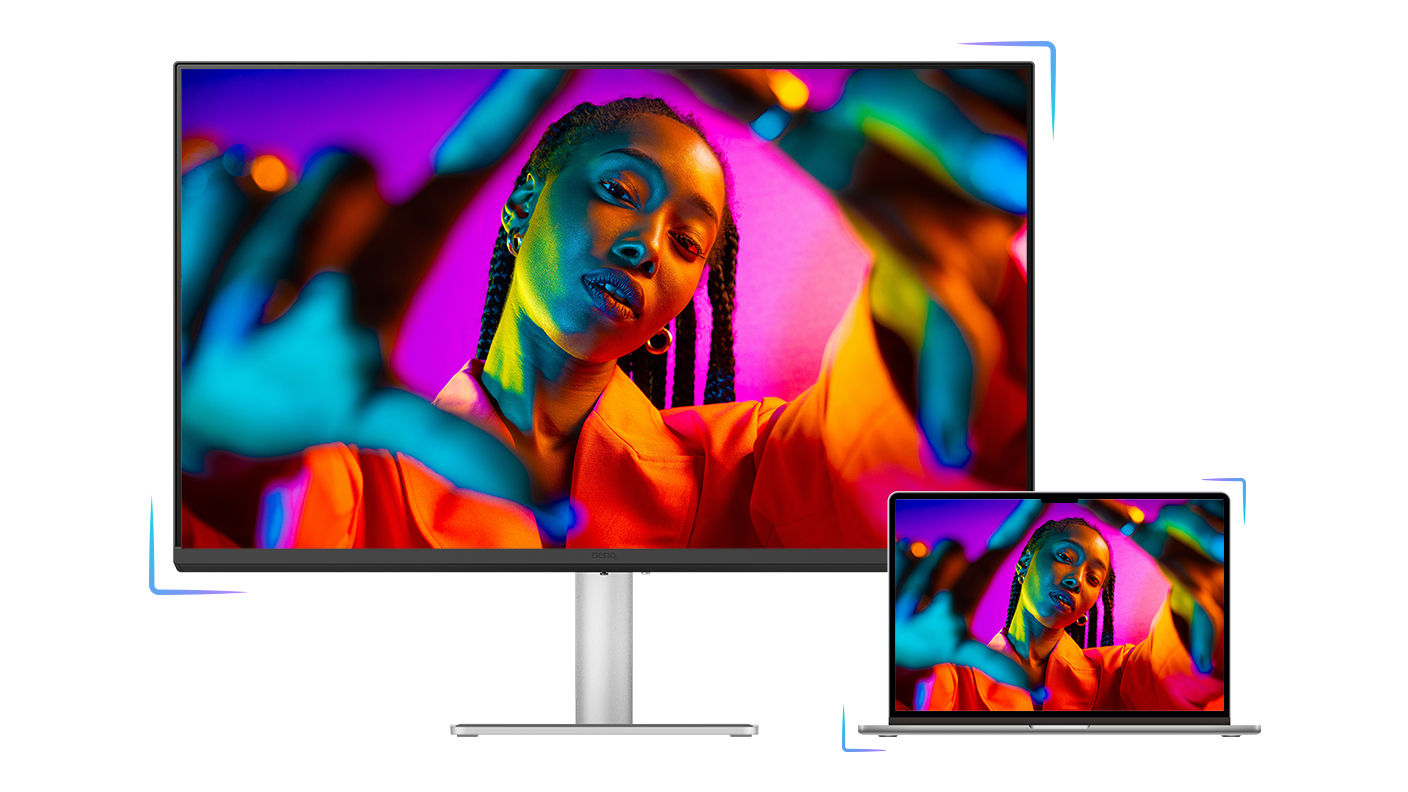

If you are worried that a non-Apple monitor may show different colors, require repeated scaling adjustments, or need manual setup every time, the BenQ MA Series is designed for MacBook users.

BenQ MA Series features Show Mac Colors and offers a more Mac-friendly plug-and-play experience, helping reduce setup friction when using an external monitor.

Learn more: BenQ MA Series for MacBook Users

With Display Pilot 2, BenQ MA Series helps users manage display settings more easily instead of repeatedly adjusting options inside macOS Displays.

Key features include:

• iDevice Color Sync: Built-in dedicated chip detects MacBook system information and helps deliver colors closer to the MacBook display.
• Less setup effort: Reduces repeated scaling, arrangement, and color setting adjustments.
• Auto rotation: Supports automatic screen rotation when switching between horizontal and vertical use.

BenQ MA Series uses USB-C one-cable connection to integrate video, data, and charging.

• Power and video in one cable: One cable handles 4K video transmission and MacBook charging.
• Cleaner desk setup: Fewer cables and adapters for a simpler workspace.

Q1: Can I use a non-Apple monitor with a MacBook?

Yes. You can use a non-Apple monitor with a MacBook if the monitor, cable, and MacBook port support the right video standard, such as USB-C DP Alt Mode, Thunderbolt, or HDMI.

Q2: How do I connect an external monitor to my MacBook?

Power on the monitor, connect it to your MacBook with USB-C, Thunderbolt, or HDMI, select the correct input source, then go to System Settings → Displays to adjust display settings.

Q3: Why is my MacBook monitor showing no signal?

A no-signal issue usually comes from the wrong input source, an unsupported cable, a hub or dock limitation, or a MacBook that is asleep or not detecting the display.

Q4: What cable do I need for a MacBook external monitor?

Use a cable that supports your monitor’s target resolution and refresh rate. For USB-C video, the cable must support DP Alt Mode. For higher bandwidth workflows, Thunderbolt is usually recommended.

Q5: How do I use a MacBook with the lid closed?

Use Clamshell Mode by connecting your MacBook to power, an external monitor, and an external keyboard and mouse before closing the lid.

Q6: Why does my external monitor look blurry on MacBook?

A blurry external monitor is often related to resolution or scaling. Go to System Settings → Displays, select the external monitor, and try different resolution or scaling options.
