Settings

The Settings menu allows users to configure their BenQ Board settings. There are three ways to open the menu:

  • Gesture: Swipe up from the bottom edge of the screen. For details, see Gestures.
  • Control panel: Press the Settings button . For details, see Front panel.
  • Remote control: Press the MENU button. For details, see Remote control.

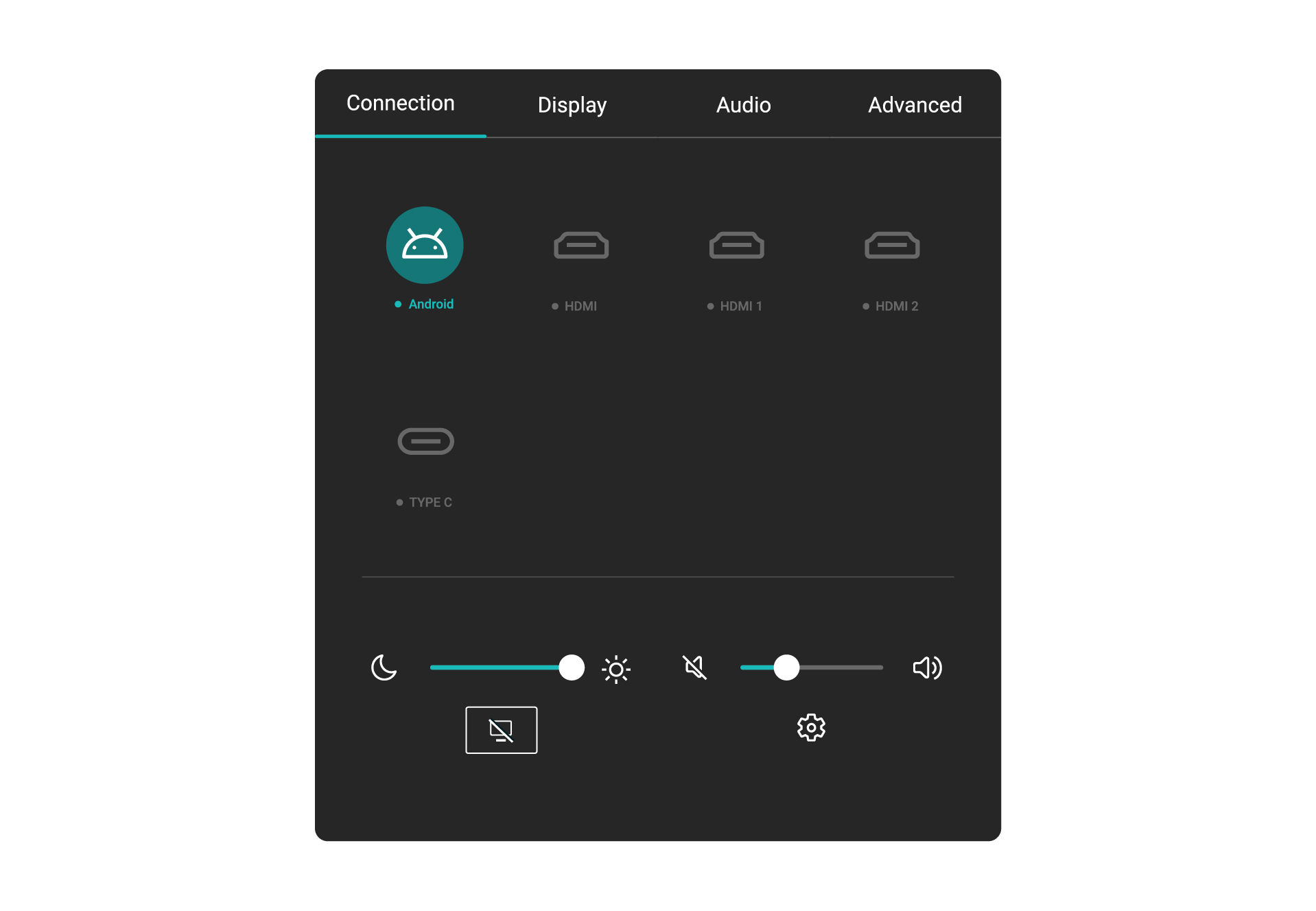

Connection settings

4-settings
4-settings

Menu Item

Description

Input source

Switch to a different input source.

For details, see Switching the input source.

Brightness

Adjust the slider to increase or decrease the display brightness.

Volume

Adjust the slider to increase or decrease the display volume.

Blank screen

Turn the screen blank while keeping the sound and all applications running.

For details, see the following topics:

Android settings

Open the Android settings menu.

For details, see Android settings.

Switching the input source

  1. Connect an input source to the display.
    For details, see Connections.
  2. Open the Settings menu.
  3. Select an input source.

Tip

To quickly go to the Home screen, press the Home button   on either the display control panel or the remote control.

Switching to blank screen

Method

Steps

Settings menu

  1. Open the Settings menu.
  2. Tap  .

Remote control

Press the BLANK button.

Tip

Tap the screen to exit the blank screen.

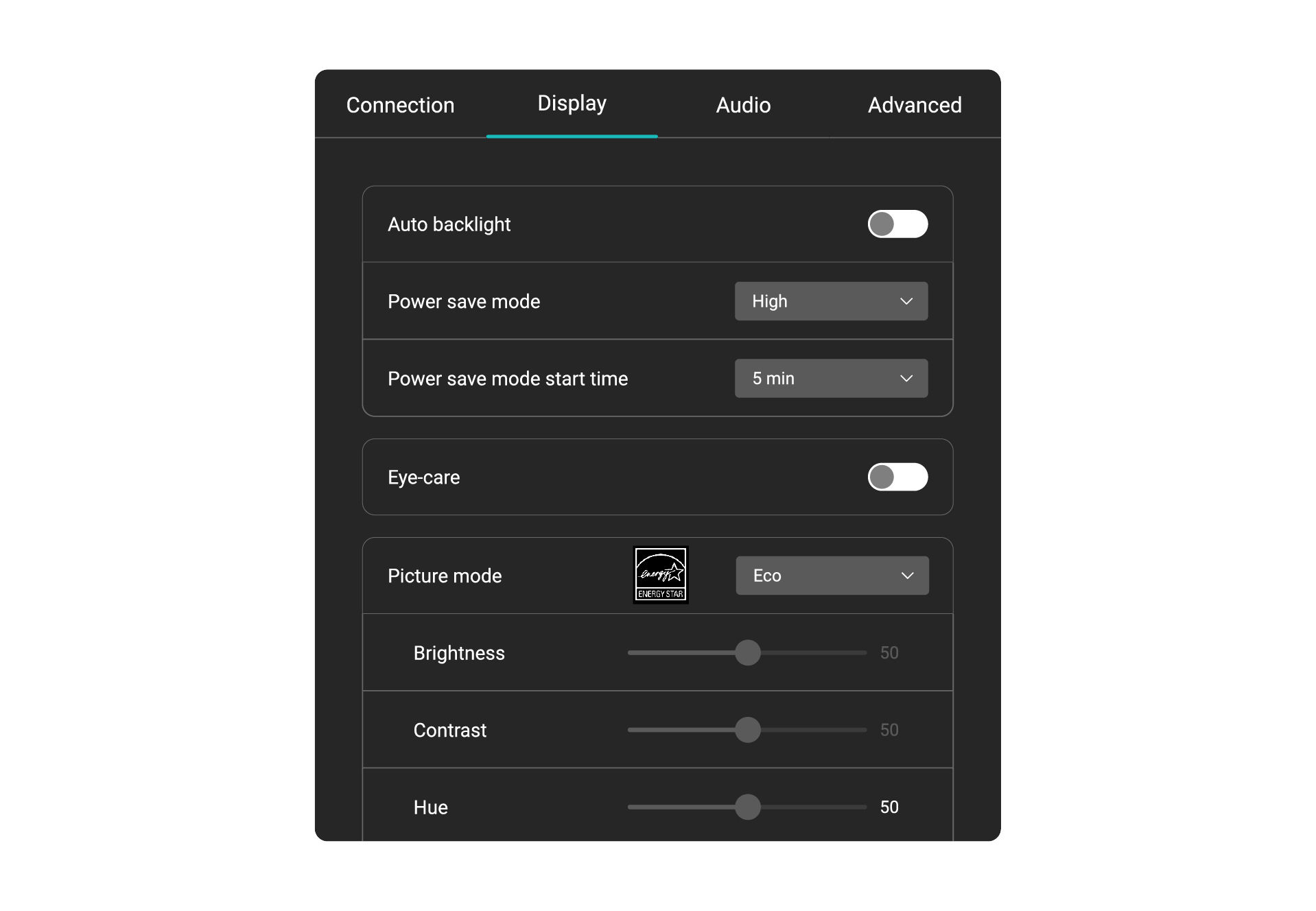

Display settings

4-settings
4-settings

Menu Item

Description

Auto backlight

When this setting is enabled, the display automatically adjusts the backlight depending on the brightness of the room.

Power save mode

This mode conserves display power when the connected input source is either asleep or disconnected.

  • Off: Always keep the screen on.
  • Low: Enter sleep mode after five minutes.
  • High: Power off the display after five minutes.

Power save mode start time

Set the timer that initiates power save mode.

Eye-care

When this setting is enabled, the display turns on low blue light mode.

Picture mode

Select from the following preset picture modes or set a custom mode.

  • Eco
  • Standard
  • Bright
  • Soft
  • Custom: Adjust the sliders for brightness, contrast, hue, sharpness, and saturation.

Color temperature

Select from the following preset modes:

  • Normal
  • Cool
  • Warm

Custom source names

Set a custom source name for each input source. For details, see Setting an input source name.

Advanced settings

Menu item

Description

Aspect ratio

Select from the following options:

• 16:9

• Pixel-to-pixel (PTP)

EDID

Select an EDID setting to ensure minimal HDMI

dropout when there is a mismatch between the

maximum resolutions of the display and the

input source.

• Auto

• EDID 1.4: Use 4K (3840 × 2160) @ 30Hz

• EDID 2.0: Use 4K (3840 × 2160) @ 60Hz

HDMI CEC

When this setting is enabled, users are able

to control the display and all HDMI-connected

devices with a single remote control.

HDMI ARC

Set the HDMI port as audio output to other audio devices.

Pixel shift

When this setting is enabled, the display dynamically shifts the pixels on screen to prevent burn in when displaying static images

Dynamic contrast ratio (DCR)

When this setting is enabled, the display dynamically adjusts the backlight based on the lightest and darkest items shown on screen.

Auto-switch source

When this setting is enabled, the display detects and switches to the new input source when it is connected to the display, and automatically reverts to the default Android screen when the source is disconnected.

HDMI out resolution

Select an output resolution when sharing the display screen using HDMI.

HDMI out

When this setting is enabled, the BenQ Board is able to transmit audio and video to the external device connected through the HDMI out port.

HDMI out sound

When this setting is enabled, other displays connected to the BenQ Board through HDMI will also receive the audio and video from the connected input source.

Blank button on remote

Set the behavior of the BLANK button on the remote control. For details, see Configuring the remote control blank screen setting

Setting an input source name

  1. Tap Custom source names.
  2. Tap an input source.
  3. Enter a new name.
    • Maximum length: 20 characters
    • Supported characters: This field supports all characters. Special characters count as two characters.
  4. Tap Save.

Configuring the remote control blank screen setting

  1. Open the Settings menu.
  2. Tap Display > Advanced settings > Blank button on remote
  3. Select either Monitor off & Mute or Monitor off.

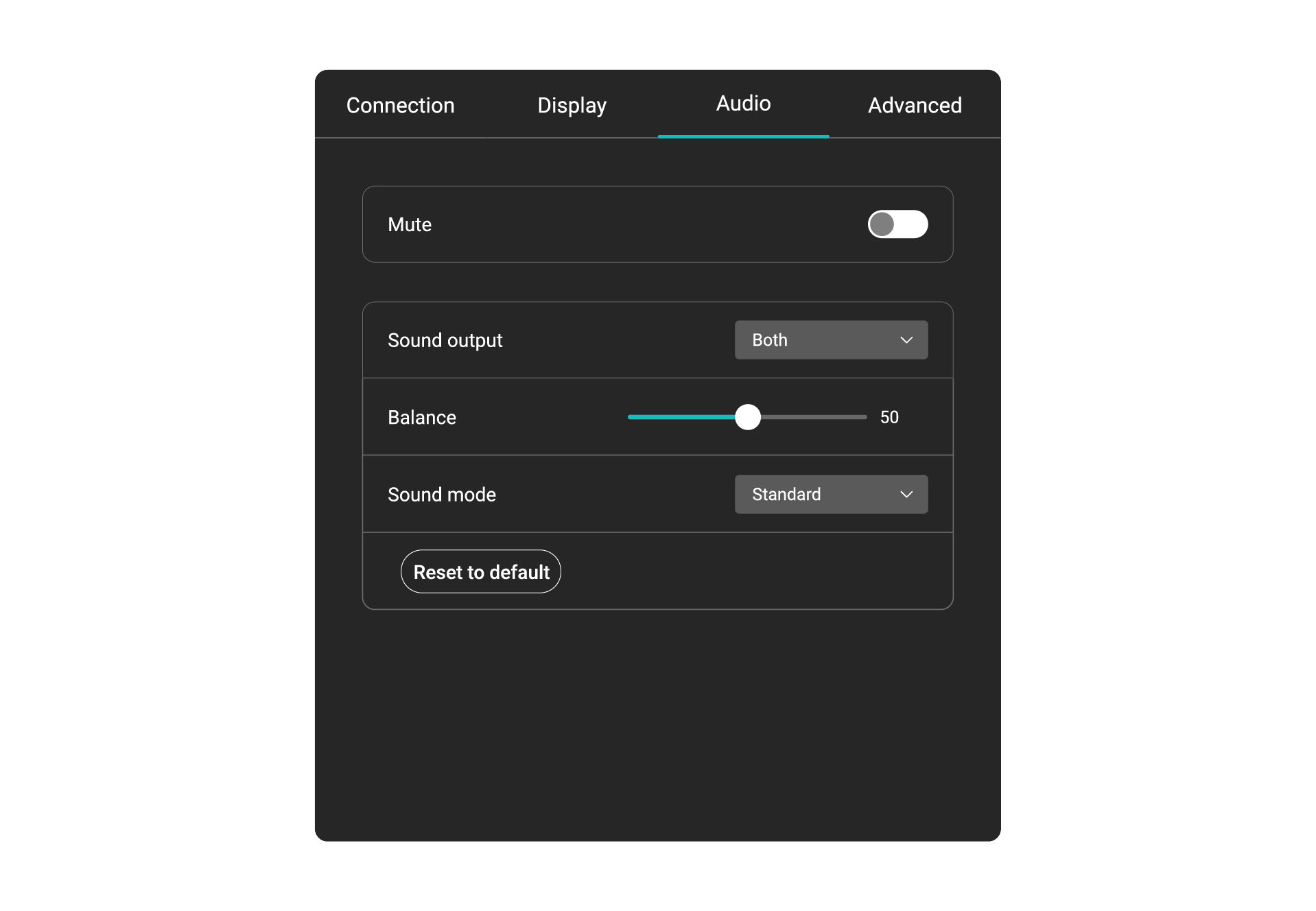

Audio settings

4-settings
4-settings

Menu Item

Description

Mute

Mute all sounds from the display.

Note

Balance and sound mode are unavailable when the display audio is set to mute.

Sound output

Select your audio output source.

• Speaker: Play audio from the display's built-in speakers.

• Line out: Play audio from the external speaker connected to the 3.5 mm audio out jack

• Both: Play audio simultaneously from the external speaker connected to the 3.5 mm audio out jack and the display’s built-in speakers.

Balance

Move the slider to adjust the audio output balance.

Sound mode

Select from the following preset sound modes:



  • Standard
  • News
  • Cinema
  • Sports
  • Music



Reset to default

Reset the display audio to its default settings.

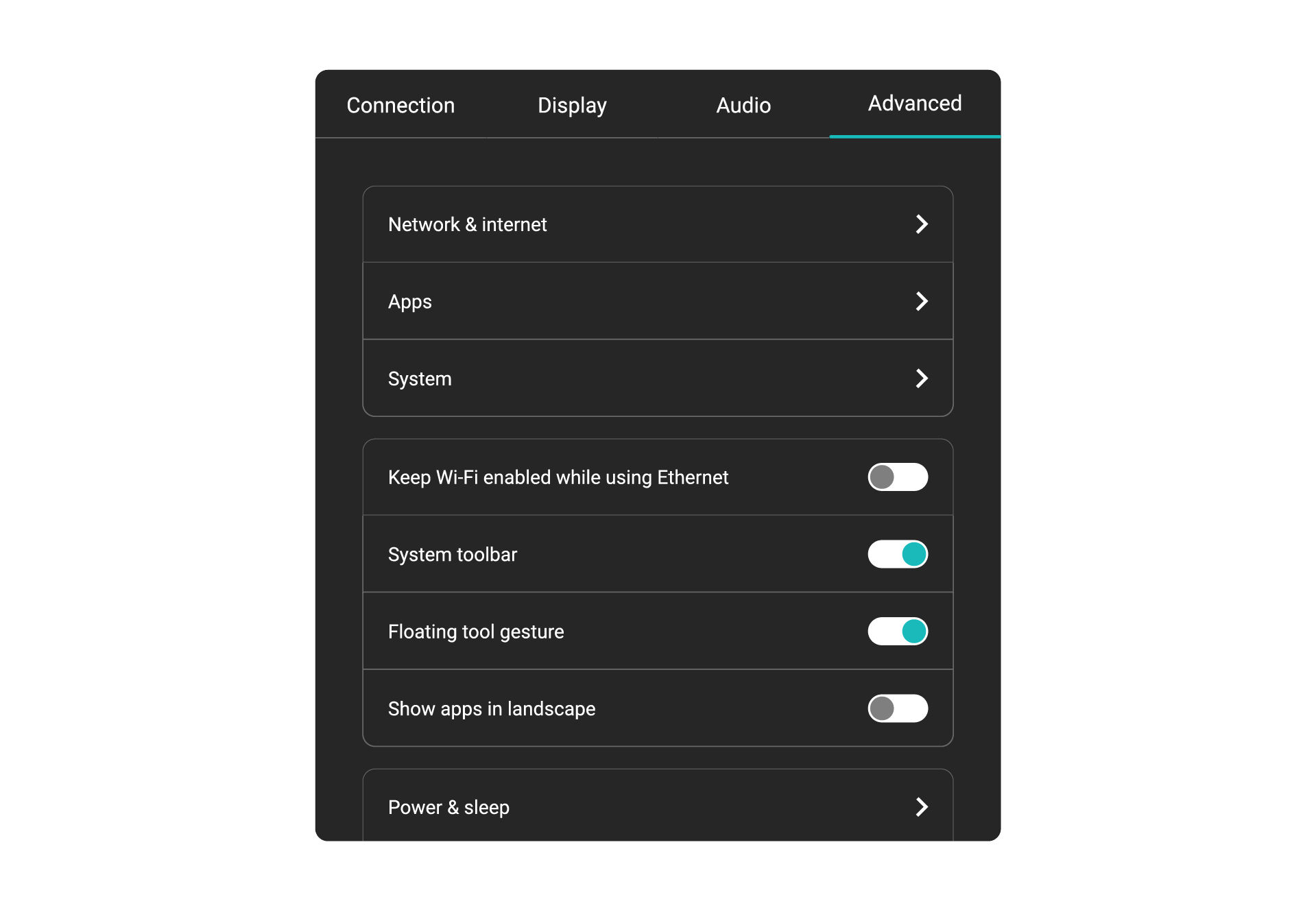

Advanced settings

4-settings
4-settings

Menu Item

Description

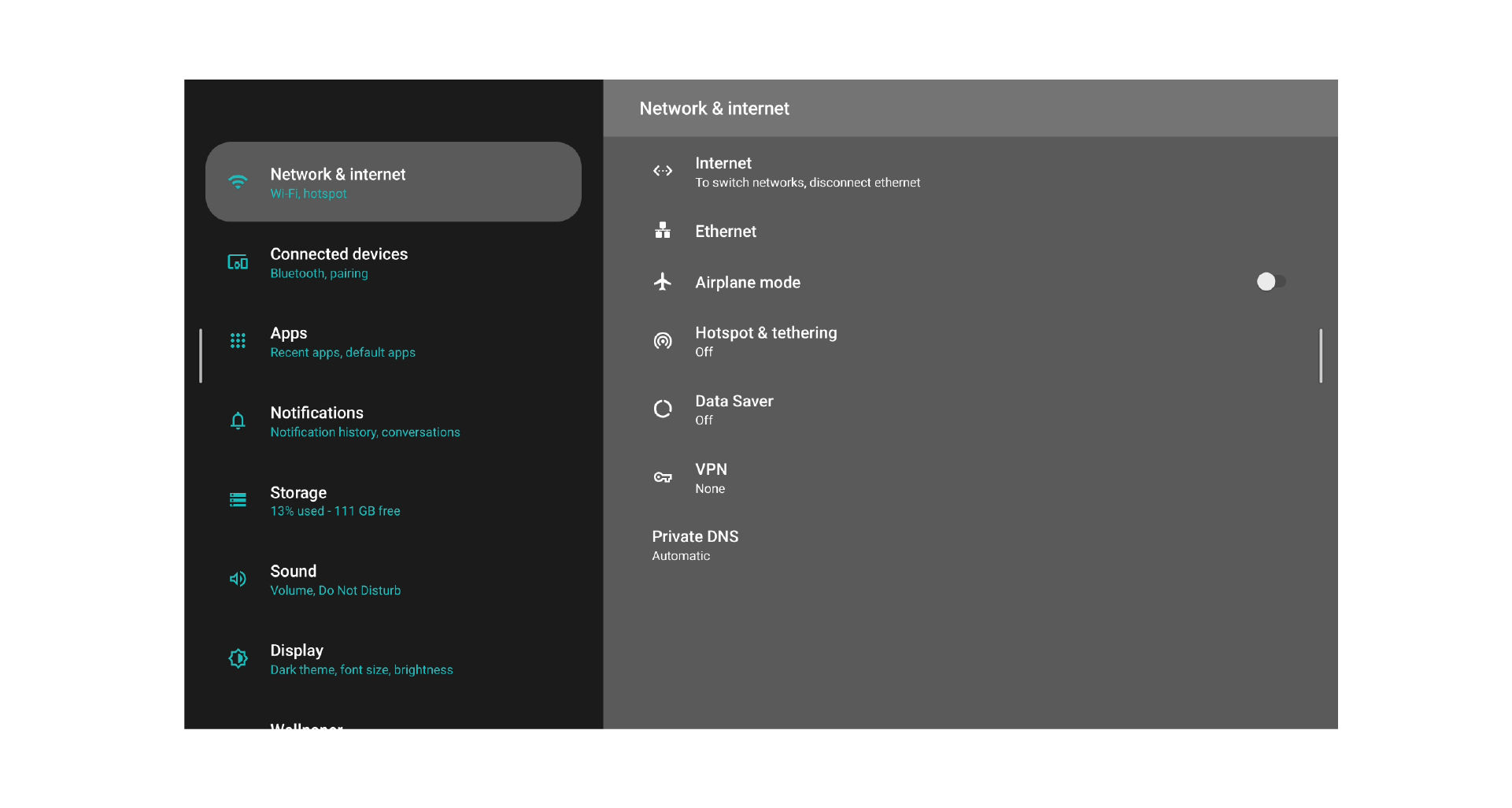

Network & internet

Use either Ethernet or Wi-Fi to connect the display to the internet. For details, see the following topics:

Apps

Manage the applications installed on the display. For details, see Apps.

System

Modify system settings such as the display language and time, or reset the display to its default factory settings. For details, see the following topics:

Keep Wi-Fi enabled while using Ethernet

This setting is enabled by default and allows users to enable the Ethernet and Wi-Fi connections at the same time.
When this setting is disabled, connecting to the internet using one method automatically disables the other.

System toolbar

When this setting is enabled, users can access the sidebar. For details, see Sidebar.

Floating Tool gesture

When this setting is enabled, users can use the Floating Tool gesture to access the Floating Tool. For details, see the following topics:





Show apps in landscape

When this setting is enabled, all apps will be displayed in landscape mode.

Power & sleep

The display powers off or enters sleep mode after being inactive for a specified period of time. For details, see Configuring power and sleep settings.

Menu item

Description

Display locks

View device details including the device name, model, serial number, and firmware version.

Accessories

Configure the default microphone and camera settings for the

display. For details, see the following topics:

Startup settings

Configure the startup and shutdown behavior and controls for the display. For details, see Configuring startup and shutdown settings.

Power schedule

Set a recurring schedule to automatically power on and power off the display at specific times during the week. For details, see Setting a power schedule.

Log export

Export the system logs for monitoring and troubleshooting. For details, see Exporting system logs.

USB Cloning

Export the display settings to a USB drive so they can be cloned to other displays of the same model. For details, see the following topics:

System update

Manually update the BenQ Board firmware. For details, see Updating the firmware.

About

View device details including the device name, model, serial number, and firmware version.

Connecting to the internet

Method

Steps

Ethernet

  1. Ensure that the Ethernet cable is connected to the display.
    For details, see Connections.
  2. Open the Settings menu.
  3. Tap Advanced → Network & internet.
    The Network & Internet menu appears.
  4. Tap Ethernet.
  5. Enable the Ethernet connection.

Wi-Fi

  1. Ensure that a Wi-Fi adapter is connected to the display.
    For details, see Adapters.
  2. Open the Settings menu.
  3. Tap Advanced → Network & internet.
    The Network & Internet menu appears.
  4. Tap Internet.
  5. Enable Wi-Fi.
    The list of available networks appears on screen.
  6. Select a network.
  7. Enter the Wi-Fi password.

Configuring proxy settings

  1. Ensure that the display is connected to a local area network.
    For details, see Connecting to the internet.
  2. Open the Settings menu.
  3. Tap Network & internet → Internet.
    The Network & Internet menu appears.
  4. Tap Ethernet.
  5. Configure any of the following settings:
    • DHCP or Static IP
      • IP address: Enter a fixed IP address.
      • Default gateway: Enter the IP address of the default gateway.
      • Netmask: Enter the netmask to subdivide the IP address.
      • DNS 1: Enter an IP address for the primary DNS server.
      • DNS 2: Enter an IP address for the secondary DNS server.
    • Proxy settings
      • Proxy: Select between None, Manual, and Proxy Auto-Config.
      • Proxy hostname: Enter a host name for the proxy.
      • Proxy port: Specify the port to use.
      • Bypass proxy for: Specify one or more addresses.

Installing a Wi-Fi certificate


  1. Ensure that the display is connected to a Wi-Fi network.
    For details, see Connecting to the internet.
  2. Open the Settings menu.
  3. Tap Advanced → Network & internet.
    The Network & Internet menu appears.
  4. Tap Internet.
  5. Scroll to the bottom of the screen, and then tap Network preferences.
  6. Tap Install certificates.
    The Android file browser appears.
  7. Tap  and then locate the Wi-Fi certificate file.
  8. Tap the file, and then enter a name for the certificate.
  9. Tap OK.

Configuring language settings

  1. Open the Settings menu.
  2. Tap Advanced → System.
    The System menu appears.
  3. Tap Languages & input.
  4. Perform one or more of the following actions:

Action

Steps

Change the display language

  1. Tap Languages.
  2. Select a language from the list.



Tip

Tap Add a language to add a language to the list.

Set the language for each app

  1. Tap App Languages.
  2. Select an app from the list.
  3. Select a language from the list.

Setting the display time

  1. Open the Settings menu.
  2. Tap Advanced → System.
    The System menu appears.
  3. Tap Date & time.
  4. Perform one or more of the following actions:

Set the time

Steps

Automatic

Enable Set time automatically.



Manual

  1. Disable Set time automatically.
  2. Tap Date.
  3. Specify the date, and then tap OK.
  4. Tap Time.
  5. Specify the time, and then tap OK.

Set the time zone

Steps

Automatic

  1. Enable Set time zone automatically.
  2. (Optional) Enable Use location to set time zone.



Manual

  1. Disable Set time zone automatically.
  2. Tap Time zone.
  3. Select a region and a time zone.

Set the time format

Steps

Automatic

Enable Use locale default.

Manual

  1. Disable Use locale default.
  2. Enable or disable Use 24-hour format.

Performing a factory reset

Warning

Performing a factory reset erases all data from the display and restores all the original device settings. Make sure to back up all important files, settings, and data before proceeding with the following steps.

  1. Open the Settings menu.
  2. Tap Advanced > System.
    The System menu appears.
  3. Tap Reset options.
  4. Tap Erase all data (factory reset).
  5. Tap Erase all data.

Configuring the display locks

  1. Open the Settings menu.
  2. Tap Advanced → Display locks.
  3. Enable or disable any of the following locks:

Menu item

Description

Keypad lock

Prevent users from using any of the buttons on the display control panel.

Remote control lock

Prevent users from using the remote control with the display.

Touchscreen lock

Prevent users from using the display touchscreen.

Tip

In case all locks are enabled, press and hold the Settings button  for five seconds to disable them.

Setting the default microphone

  1. Open the Settings menu.
  2. Tap Advanced → Accessories.
  3. Under Microphone, all external microphones connected to the display appear in the drop-down list. Select a microphone to use it as the default.

Setting the default camera

  1. Open the Settings menu.
  2. Tap Advanced → Accessories.
  3. Under Webcam, all external cameras connected to the board appear in the drop-down list. Select it to use it as the default camera.

Configuring the startup and shutdown settings

  1. Open the Settings menu.
  2. Tap Advanced → Startup & shutdown.
  3. Configure any of the following settings:

Setting

Description

Startup source

Set a default input source that will be automatically loaded when the display is powered on.

Wake-on-LAN

When this setting is enabled, administrators can remotely power on the display through the local area network (LAN).

Standby after startup

When this setting is enabled, the display enters sleep mode after the display is powered on.

Source wake up

When this setting is enabled and the display is powered off, it automatically powers on the display when a user connects an external input source.

Power switch

Select the default power-on behavior of a powered-off display

once it is connected to a power source.

  • Off: Keep the display powered off.
  • On: Automatically power on the display.
  • Last: Remember the last power-on status and apply that to the display.

Power off reminder

When this setting is enabled, the power off countdown appears before the display powers off. This only applies to when the display is following a power schedule or power off timer.

Slot-in OPS startup

Select when to power on the slot-in PC.

  • Source selected: Power on when selected as an input source.
  • Board startup: Power on when the display is powered on.

Configuring power off and sleep settings

  1. Open the Settings menu.
  2. Tap Advanced > Power off & sleep.
  3. Set the power off timer.
  4. Set the sleep timer.

Setting a power schedule

  1. Open the Settings menu.
  2. Tap Advanced → Power schedule.
  3. Select a weekday.
  4. Set the startup and shutdown times.
  5. Select a startup source.
  6. Tap OK.
    The schedule is added to the list and is enabled by default.

Important

Make sure to check for conflicts when setting a schedule. If there are two or more overlapping power schedules, the display will apply all of them.

Exporting system logs

  1. Connect a USB drive to the display.
  2. Open the Settings menu.
  3. Tap Advanced → Log export.
  4. Enter a file name.
  5. Tap OK.
    The system logs are exported as xbug_log/[file name].zip in the USB drive.

Updating the firmware

Warning

  • The firmware update requires a system restart. Make sure to save all important data before proceeding.
  • The update process may take a few minutes to complete. Ensure that there are no interruptions. Do not power off the device or disconnect from the internet to prevent permanent damage to the display.
  1. Open the Settings menu.
  2. Tap Advanced → System update.
  3. Tap Update system.
    The system downloads and updates the firmware and then restarts automatically.

Exporting display settings

  1. Connect a USB drive to the display.
  2. Open the Settings menu.
  3. Tap Advanced → USB cloning → Export settings.
    A confirmation message appears.
  4. Tap OK.
    The settings are exported as "benq/Settings.json" to the USB drive.

Importing display settings

  1. Connect the USB drive containing the settings file to the display.
  2. Open the Settings menu.
  3. Tap Advanced → USB cloning → Import settings.
    The file selection window appears.
  4. Select the settings file, and then tap OK.
    The display imports the settings.
  5. Restart the display.

Android Settings

The Android settings menu combines all the miscellaneous device settings including factory reset, network and internet, Bluetooth connections, and app permissions.

To access these settings from the Home screen, tap  on the taskbar, and then tap Settings .

4-settings
4-settings

See all
Cookie Setting

We use cookies and similar technologies to process personal information for the operation of our website, statistical analysis, and providing targeted advertising. We share information about your use of the site with our advertising partners who may further share it with additional parties. You may opt out of performance cookies here, and learn more about how we use cookies here”

How can I change my BenQ cookie settings?

Page updated: May 2020

Some essential features on BenQ sites just won’t work without cookies. And having other cookies switched off can seriously affect the way you’ll be able to enjoy our services.

Please check your cookie settings below and turn on any cookies you’re happy with.

“Strictly necessary” cookies can’t be turned off. But Functional and Performance cookies can be turned on or off below. You can learn more about cookies and what they do on our other pages.

If you've chosen to block third-party cookies on your browser, your cookie preferences won't carry over from benq.eu to benq.xx and vice versa. Please make sure to set your cookie preferences in both places.

  • On

    Strictly necessary cookies

    These cookies are essential so that you can move around the website and use its features. Without these cookies services you have asked for cannot be provided.

    See list of strictly necessary cookies

  • On

    Off

    Functional cookies

    These cookies allow the website to remember choices you make to give you better functionality and personal features.

    See list of functional cookies

  • On

    Off

    Performance cookies and advertising cookies

    Performance cookies

    These cookies help to improve the performance of BenQ. If you want to opt-out of advertising cookies, you have to turn-off performance cookies. We also use Google Analytics, SessionCam and Hotjar to track activity and performance on the BenQ website. You can control the information provided to Google, SessionCam and Hotjar.  To opt out of certain ads provided by Google you can use any of the methods set forth here or using the Google Analytics opt out browser add-on here. To opt-out of SessionCam collecting data, you can disable tracking completely by following link：https://sessioncam.com/choose-not-to-be-recorded/. To opt-out of Hotjar collecting data, you can disable tracking completely by following link：https://www.hotjar.com/privacy/do-not-track/.

    See list of performance and advertising cookies



    Advertising cookies

    These cookies are used to track your activity on the BenQ website and other websites across the Internet, help measure the effectiveness of our advertising campaign and deliver advertisements that are more relevant to you and your interests. We use various advertising partners, including Amazon, Facebook, and Google. These cookies and other technologies capture data like your IP address, when you viewed the page or email, what device you were using and where you were. You can find out how to avoid them below.

    See list of performance and advertising cookies



We use cookies and similar technologies to process personal information for the operation of our website, statistical analysis, and providing targeted advertising. We share information about your use of the site with our advertising partners who may further share it with additional parties. You may opt out of performance cookies here, and learn more about how we use cookies here”

Cookie Setting Find More
