Panel
This chapter provides basic information about the BenQ Board RE04A interactive display.
About the RE04A
The BenQ Board RE04A is the Google ELDA-certified interactive display by BenQ. It combines the computing power of a 4-core Arm Cortex chipset, Precision IR touch, a full set of ClassroomCare® technologies, and Google Mobile Services. Users of the BenQ Board can utilize the interactive display for effective and engaging learning experiences and workplace collaboration.
Specifications
Important
Modifying the hardware or software of your BenQ product invalidates the warranty. BenQ is not responsible for any damage or data loss caused by the unauthorized modifications to both and hardware and software and the installation of third-party add-ons and applications.
RE6504A
RE7504A
RE8604A
Screen size
65"
75"
86"
Panel type
IPS
IPS
IPS
Resolution
UHD 3840 × 2160 pixels
UHD 3840 × 2160 pixels
UHD 3840 × 2160 pixels
Active area
1428.5 × 803.5 mm
1649.7 × 927.9 mm
1895.0 × 1066.0 mm
Response time
8 ms
8 ms
8 ms
Aspect ratio
16:9
16:9
16:9
Orientation
Landscape
Landscape
Landscape
Contrast ratio
1,200:1
1,200:1
1,200:1
Dynamic contrast ratio
50,000:1
50,000:1
50,000:1
Color depth
10-bit
10-bit
10-bit
Color gamut
72% NTSC
72% NTSC
72% NTSC
Panel brightness (without glass)
450 nits
450 nits
450 nits
Panel brightness
(with glass)
400 nits
400 nits
400 nits
Backlight life
50,000 hrs
50,000 hrs
50,000 hrs
Glass
RE6504A
RE7504A
RE8604A
Hardness
9H tempered
9H tempered
9H tempered
Germ-resistant screen*
Nano-ionic silver
Nano-ionic silver
Nano-ionic silver
Anti-glare
Yes
Yes
Yes
Note
* The feature varies by region.
Touchscreen
RE6504A
RE7504A
RE8604A
Touch technology
Precision IR
Precision IR
Precision IR
Touch points
Up to 40
Up to 40
Up to 40
Touch response time
≤ 5 ms
≤ 5 ms
≤ 5 ms
System
RE6504A
RE7504A
RE8604A
CPU
Arm Cortex-A73 × 4
Arm Cortex-A73 × 4
Arm Cortex-A73 × 4
GPU
Arm Mali-G52 2EE MC1
Arm Mali-G52 2EE MC1
Arm Mali-G52 2EE MC1
Memory
8 GB
8 GB
8 GB
Storage
64 GB
64 GB
64 GB
Operating system
Android 14 (EDLA)
Android 14 (EDLA)
Android 14 (EDLA)
Connectivity
RE6504A
RE7504A
RE8604A
USB-C
- All USB-C ports can be used for data transmission.
- Only the USB 3.0 and USB 2.0 ports that support power delivery can be used for touch.
- 1 × 3.0 (PD 65 W)
- 1 × 2.0
- 1 × 3.0 (PD 65 W)
- 1 × 2.0
- 1 × 3.0 (PD 65 W)
- 1 × 2.0
USB Type-B (for touch)
2 × 2.0
2 × 2.0
2 × 2.0
USB Type-A
- 4 × 3.0
- 1 × 2.0
- 4 × 3.0
- 1 × 2.0
- 4 × 3.0
- 1 × 2.0
HDMI (in | out)
3 × HDMI 2.0 | 1 × HDMI 2.0 (Optional)
3 × HDMI 2.0 | 1 × HDMI 2.0 (Optional)
3 × HDMI 2.0 | 1 × HDMI 2.0 (Optional)
Audio in
1 × 3.5mm microphone jack
1 × 3.5mm microphone jack
1 × 3.5mm microphone jack
Audio out
1 × 3.5 mm audio out jack
1 × 3.5 mm audio out jack
1 × 3.5 mm audio out jack
S/PDIF out
1 (optical)
1 (optical)
1 (optical)
RS-232
1
1
1
OPS slot (for slot-in PC)
1
1
1
Ethernet
Gigabit Ethernet (10M/100M/1000M)
Gigabit Ethernet (10M/100M/1000M)
Gigabit Ethernet (10M/100M/1000M)
Built-in peripherals
RE6504A
RE7504A
RE8604A
Ambient light sensor
1
1
1
IR sensor
1
1
1
Speaker
2 × 20 W (max)
2 × 20 W (max)
2 × 20 W (max)
Power
RE6504A
RE7504A
RE8604A
ENERGY STAR®
Yes
Yes
Yes
Power
AC 100-240V 50/60Hz
AC 100-240V 50/60Hz
AC 100-240V 50/60Hz
Standby power consumption
< 0.5 W
≤ 0.5 W
≤ 0.5 W
Typical power consumption
114.8 W
132.8 W
157.2 W
Physical
RE6504A
RE7504A
RE8604A
Dimensions (W × H × D)
1482.1 x 891.4 x 87.7 mm
(58.4 × 35.1 × 3.5 in)
1716.5 × 1025.8 × 87.7 mm
(67.6 × 40.4 × 3.5 in)
1961.8 × 1163.9 × 87.7 mm
(77.2 × 45.8 × 3.5 in)
Shipping dimensions
(W × H × D)
1640 × 1010 x 185 mm
(64.6 × 39.8 × 7.3 in)
1860 × 1125 x 185 mm
(73.2 × 44.3 × 7.3 in)
2095 × 1265 x 185 mm
(82.5 × 49.8 × 7.3 in)
Weight
(product I shipping)
36.6 kg | 49.5 kg
(80.69 lbs | 109.1 lbs)
49.95 kg | 64.45 kg
(110.1 lbs | 142.1 lbs)
62.85 kg | 80.6 kg
(138.6 lbs | 177.7 lbs)
Mount (screws)
VESA 600 × 400 mm
(4 × M8 × 25L)
VESA 800 × 400 mm
(4 × M8 × 25L)
VESA 800 × 600 mm
(4 × M8 × 25L)
Environment
RE6504A
RE7504A
RE8604A
Operating temperature
0°C~40°C | 32°F~104°F
0°C~40°C | 32°F~104°F
0°C~40°C | 32°F~104°F
Storage temperature
-10°C~60°C | 14°F~140°F
-10°C~60°C | 14°F~140°F
-10°C~60°C | 14°F~140°F
Storage humidity
10%~80% RH non-condensing
10%~80% RH non-condensing
10%~80% RH non-condensing
Operating humidity
20%~80% RH non-condensing
20%~80% RH non-condensing
20%~80% RH non-condensing
Software
RE6504A
RE7504A
RE8604A
Whiteboarding
EZWrite 6
EZWrite 6
EZWrite 6
Wireless screen sharing
InstaShare 2
InstaShare 2
InstaShare 2
Account management
AMS
AMS
AMS
Device management
DMS
DMS
DMS
Quick access tool
Floating Tool
Floating Tool
Floating Tool
Broadcast system
X-Sign Broadcast
X-Sign Broadcast
X-Sign Broadcast
Accessories
RE6504A
RE7504A
RE8604A
Cables*
- 1 × HDMI (3 m | 9.8ft)
- 1 × Touch-USB (3 m | 9.8ft)
- 1 × USB-C (1.5 m | 4.9 ft)
- 1 × HDMI (3 m | 9.8ft)
- 1 × Touch-USB (3 m | 9.8ft)
- 1 × USB-C (1.5 m | 4.9 ft)
- 1 × HDMI (3 m | 9.8ft)
- 1 × Touch-USB (3 m | 9.8ft)
- 1 × USB-C (1.5 m | 4.9 ft)
Wall mount
1
1
1
Pen
2
2
2
Remote control
1
1
1
Note
* The type and quantity of cables may differ depending on the region of purchase
• Specifications and features are subject to change without notice.
• The OPS should be equipped with fire-resistant enclosures.
Dimensions
RE6504A
RE7504A
RE8604A
Package contents
Verify all the contents after opening the package. If any item is missing or damaged, please contact your dealer immediately.
LCD display
Pens
Remote control
Power cord*
USB Type-C cable*
Touch USB cable
HDMI cable
Wall mount with screws
User documents
• Quick start guide
• Wall mount installation guide
• Regulation sheets
Wi-Fi cover*
Note
* The type and quantity of power cord and cables may differ depending on the region of purchase.
* The availability of the Wi-Fi cover may vary per region.
• Available accessories and the pictures shown here may differ from the actual contents and the product supplied for your region. And the package contents may subject to change without prior notice. For cables that are not supplied with your product, you can purchase them separately.
Important
- Ensure that there are no accessories left inside the box before discarding the packaging.
- Do not leave plastic bags within reach of young children or babies.
- Dispose of packaging materials wisely. Consider recycling the cardboard carton or storing the package for future transport of the display.
Components
Front panel
1. Touchscreen
2. Soundbar
3. 6-microphone array
4. Touch USB 2.0 Type-B port
5. HDMI in port
6. USB 3.0 Type A ports1
7. USB 3.0 Type-C port (PD 65 W)2
8. Ambient light sensor
9. IR sensor
10. Power button
11. Home button
12. Back button
13. Settings button
14. Volume down button
15. Volume up button
Note
1 The USB 3.0 Type-A ports function as USB passthrough ports. When a laptop is connected to the display as an input source, users can use these as extra data ports for their laptop.
2 The multi-purpose USB-C port can be used for data, video, and audio transmission, touchback, and 65-watt charging.

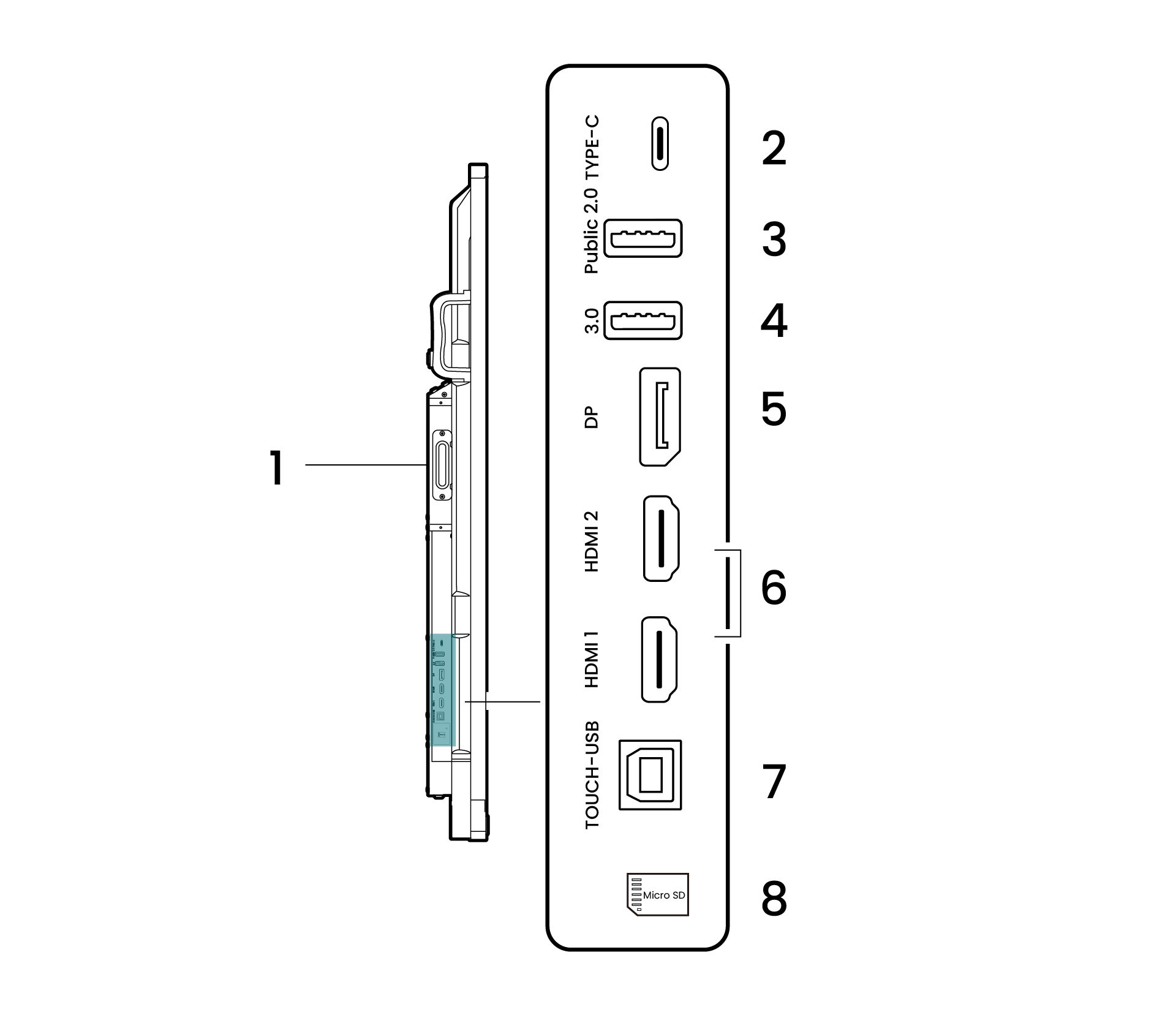

Left panel
- OPS slot
- USB 2.0 Type-C port
- USB 2.0 Type-A ports1
- USB 3.0 Type-A port2
- DisplayPort port3
- HDMI in ports
- Touch USB 2.0 Type-B port
- Micro SD card slot
Note
1 The USB 2.0 Type-A ports function as USB passthrough ports. When a laptop is connected to the display as an input source, users can use these as extra data ports for their laptop.
2 The USB 3.0 Type-A ports are dedicated for the Bluetooth Wi-Fi adapter.
3 Selected models only.
Power delivery of USB and OPS ports
• USB-A 2.0 (at left panel) = 5V
• USB-A 3.0 (at front & left panel)= 5V
• USB-C 2.0 (at left panel)= 5V
• USB-C 3.0 (at front panel)= 5V
• OPS=18V
Note
Alternating Current (AC)
Right panel

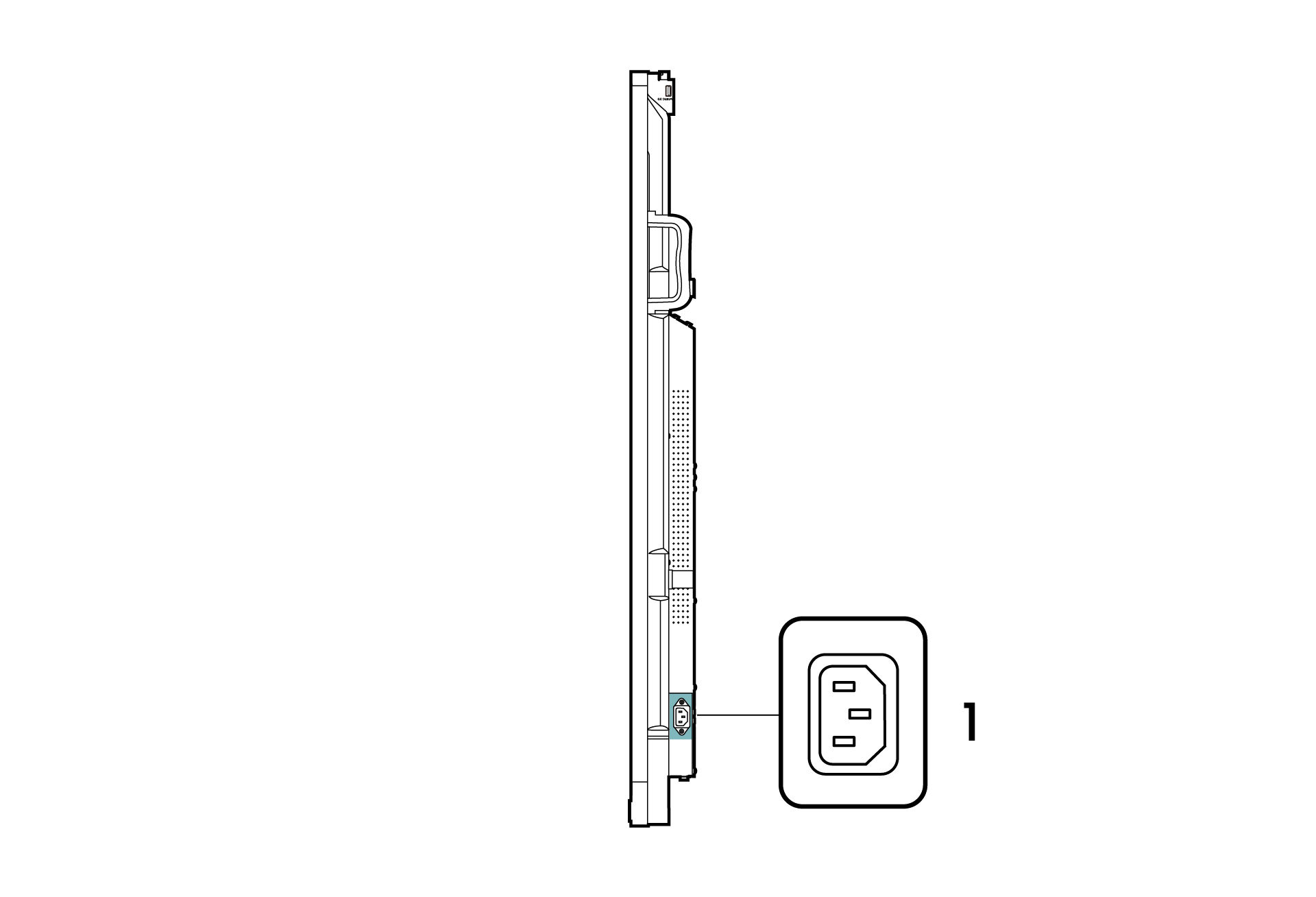

1. Power input
Bottom panel
1. Gigabit Ethernet ports1
2. 3.5 mm audio out jack2
3. S/PDIF port
4. RS-232 port
5. 3.5 mm microphone jack3
6. HDMI out port (selected models only)
7. Power switch
Note
1 The Gigabit Ethernet ports support data transfer speeds of 10/100/1000 Mbps.
2 The 3.5 mm audio out jack does not support audio input, including microphone input from headset devices.
3 The 3.5 mm microphone jack only supports 3.5 mm TRS connectors.

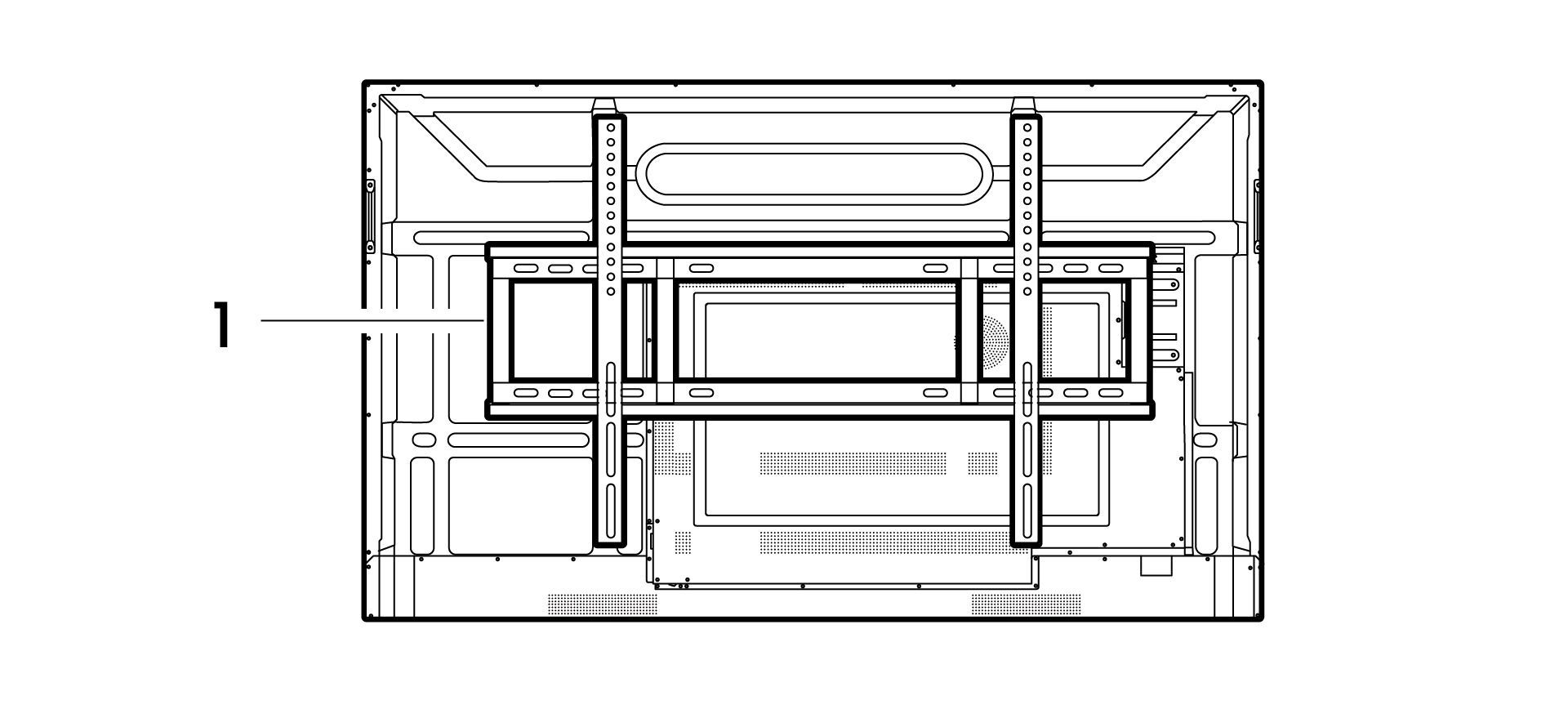

Rear panel
1. Wall mount (pre-installed)

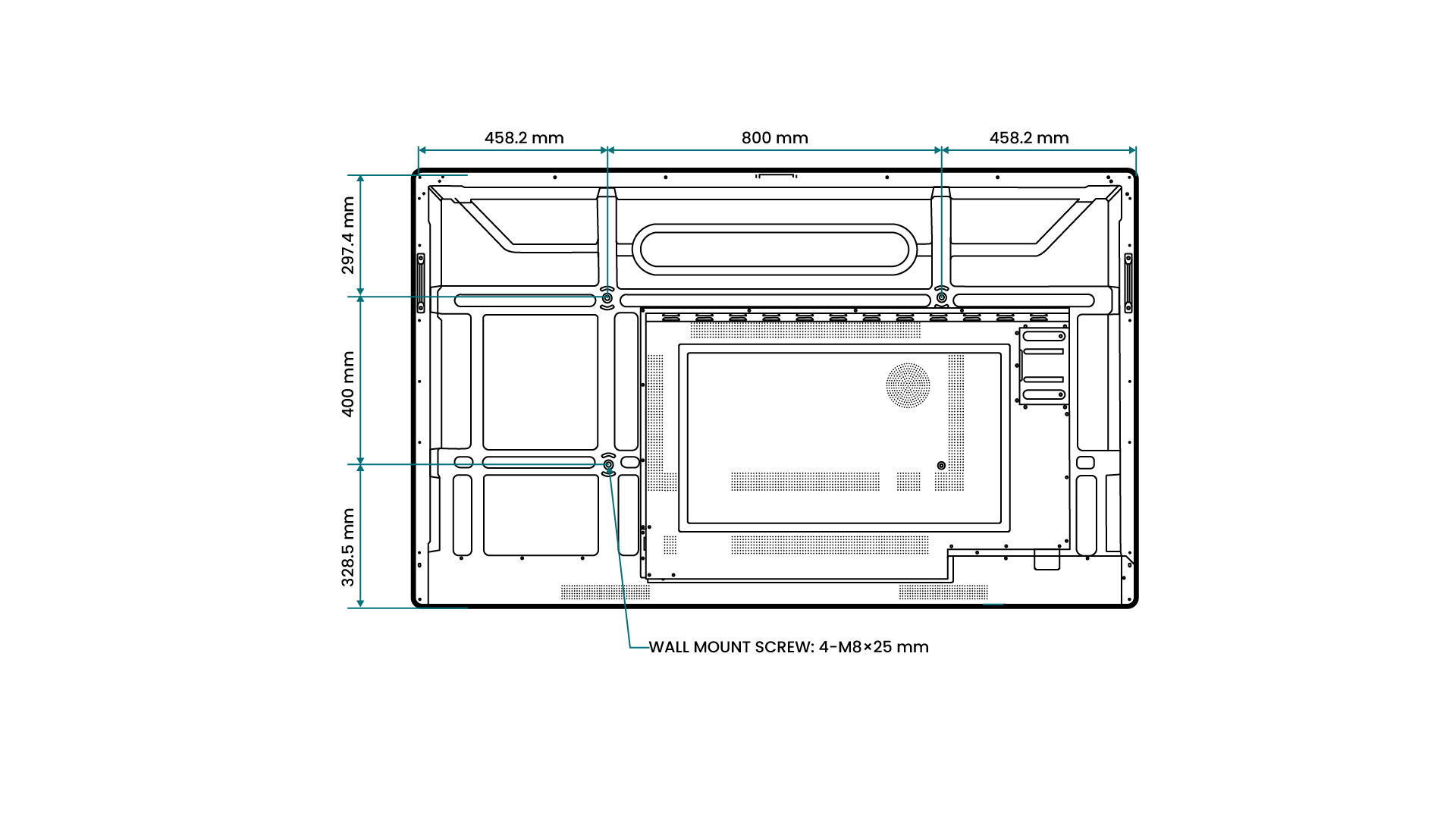

VESA specifications
Screw size: M8 × 25L
Dimension
65"
75"
86"
A
600 mm
800 mm
800 mm
B
228.5 mm
297.4 mm
266.4 mm
C
400 mm
400 mm
600 mm
Installation requirement
Category
Item
Environment
- Room temperature: 0 to 40˚C (32 to 104˚F)
- Non-condensing relative humidity: 20 to 80%
- Flat, anti-static surface with no exposure to direct sunlight, liquids, and chemicals
Hardware and peripherals
Wireless USB adapter and/or Ethernet cable
Tools
- Scissors
- Phillips screwdriver
- Padding
- Anti-static wrist strap
Setting up the display
- Place the display in an environment that meets the requirements.
For details, see Installation requirements. - Add the display to DMS.
For details, see Adding the display to DMS. - Unbox the diplay.
For details, see Unboxing. - Mount the display.
For details, see Mounting. - Install any additional accessories and peripherals.
For details, see the following topics: - Connect the power cord and all applicable cables.
- Power on the display.
For details, see Powering on the display. - Set up BenQ Launcher.
For details, see Setting up BenQ Launcher. - Bind the display to AMS.
For details, see Binding the display to AMS.
