Model
This chapter provides basic information about the BenQ Board RP05 interactive display.
About the RP05
The BenQ Board Pro RP05 is a Google ELDA-certified interactive display by BenQ. It combines the computing power of an 8-core Arm Cortex chipset, Ultra Precision IR touch, top-of-the line hardware and software, a full set of ClassroomCare® technologies, and Google Mobile Services. Users of the BenQ Board can utilize the interactive display for effective and engaging learning experiences and workplace collaboration.
Specifications
Important
Modifying the hardware or software of your BenQ product invalidates the warranty. BenQ is not responsible for any damage or data loss caused by the unauthorized modifications to both and hardware and software and the installation of third-party add-ons and applications.
Panel
RP6505
RP7505
RP8605
Screen size
65”
75”
86”
Panel type
IPS
IPS
IPS
Resolution
UHD 3840 × 2160 pixels
UHD 3840 × 2160 pixels
UHD 3840 × 2160 pixels
Active area
1428.5 × 803.5 mm
1650.2 × 928.2 mm
1895 × 1066 mm
Response time
< 8 ms
< 8 ms
< 8 ms
Aspect ratio
16:9
16:9
16:9
Orientation
Landscape
Landscape
Landscape
Contrast ratio
1,500:1
1,500:1
1,200:1
Dynamic contrast ratio
50,000:1
50,000:1
50,000:1
Color depth
10-bit
10-bit
10-bit
Color gamut
72% NTSC
72% NTSC
72% NTSC
Panel brightness
(without glass)
450 nits
450 nits
450 nits
Panel brightness
(with glass)
400 nits
400 nits
400 nits
Backlight life
50,000 hrs
50,000 hrs
50,000 hrs
Glass
Model
RP6505
RP7505
RP8605
Hardness
9H tempered
9H tempered
9H tempered
Germ-resistant screen*
Nano-ionic silver
Nano-ionic silver
Nano-ionic silver
Anti-glare
Yes
Yes
Yes
Touchscreen
Model
RP6505
RP7505
RP8605
Touch technology
Ultra Precision IR
Ultra Precision IR
Ultra Precision IR
Touch points
Up to 50
Up to 50
Up to 50
Touch response time
< 2.5 ms
< 2.5 ms
< 2.5 ms
System
Model
RP6505
RP7505
RP8605
CPU
Arm Cortex-A78 x 2 + A55 x 6
Arm Cortex-A78 x 2 + A55 x 6
Arm Cortex-A78 x 2 + A55 x 6
GPU
Arm Mali-G57 MC2
Arm Mali-G57 MC2
Arm Mali-G57 MC2
Memory
16 GB
16 GB
16 GB
Storage
128 GB
128 GB
128 GB
Operating system
Android 15
(EDLA)
Android 15
(EDLA)
Android 15
(EDLA)
Connectivity
Model
RP6505
RP7505
RP8605
USB-C (in | out)
Note
- All USB-C ports can be used for data transmission.
- Only the USB 3.0 that support power delivery can be used for touch.
1 × 3.0 (PD 100 W), 1 x 2.0 | 1 × 2.0
1 × 3.0 (PD 100 W), 1 x 2.0 | 1 × 2.0
1 × 3.0 (PD 100 W), 1 x 2.0 | 1 × 2.0
USB Type-B (for touch)
3 × 3.0
3 × 3.0
3 × 3.0
USB Type-A
4 x 3.0, 3 x 2.0
4 x 3.0, 3 x 2.0
4 x 3.0, 3 x 2.0
HDMI (in | out)
3 × HDMI 2.0 | 1 × HDMI 2.0
3 × HDMI 2.0 | 1 × HDMI 2.0
3 × HDMI 2.0 | 1 × HDMI 2.0
DisplayPort
1 × 1.2a
1 × 1.2a
1 × 1.2a
VGA
1
1
1
Audio in
- 1 × 3.5 mm microphone jack
- 1 × 3.5 mm audio jack (VGA)
- 1 × 3.5 mm microphone jack
- 1 × 3.5 mm audio jack (VGA)
- 1 × 3.5 mm microphone jack
- 1 × 3.5 mm audio jack (VGA)
Audio out
1 × 3.5 mm audio out jack
1 × 3.5 mm audio out jack
1 × 3.5 mm audio out jack
S/PDIF out
1 (optical)
1 (optical)
1 (optical)
RS-232
1
1
1
OPS slot (for slot-in PC)
1
1
1
Ethernet
Gigabit Ethernet (10M/100M/1000M)
Gigabit Ethernet (10M/100M/1000M)
Gigabit Ethernet (10M/100M/1000M)
Wi-Fi
Wi-Fi 6
Wi-Fi 6
Wi-Fi 6
Bluetooth®
Note
Depending on the region, the display comes preinstalled with the WD02AT Wi-Fi Bluetooth adapter.
Bluetooth 5.2
Bluetooth 5.2
Bluetooth 5.2
Built-in peripherals
Model
RP6505
RP7505
RP8605
NFC sensor
1
1
1
Ambient light sensor
1
1
1
IR sensor
1
1
1
Microphone
8-microphone array
(range up to 12 m | 39 ft)
8-microphone array
(range up to 12 m | 39 ft)
8-microphone array
(range up to 12 m | 39 ft)
Speaker
2 × 25 W
(max)
2 × 25 W
(max)
2 × 25 W
(max)
Subwoofer
1 × 20 W
1 × 20 W
1 × 20 W
Air quality sensor
CO2, PM2.5, PM10, TVOC, CH2O, temperature, humidity
CO2, PM2.5, PM10, TVOC, CH2O, temperature, humidity
CO2, PM2.5, PM10, TVOC, CH2O, temperature, humidity
Air ionizer
1
1
1
Power
Model
RP6505
RP7505
RP8605
ENERGY STAR®
Yes
Yes
Yes
Power
AC 100-240V 50/60Hz
AC 100-240V 50/60Hz
AC 100-240V 50/60Hz
Standby power consumption
< 0.5 W
< 0.5 W
< 0.5 W
Typical power consumption
77.4 W
91.1 W
126.4 W
Physical
Model
RP6505
RP7505
RP8605
Dimensions
(W × H × D)
1488.4 × 937.3 × 130.0 mm
(58.6 × 36.9 × 5.1 in)
1709.4 × 1060.8 × 130.0 mm
(67.3 × 41.8 × 5.1 in)
1957.0 × 1200.6 × 130.0 mm
(77.0 × 47.3 × 5.1 in)
Shipping dimensions
(W × H × D)
1628 × 1024 × 208 mm
(64.1 × 40.3 × 8.2 in)
1863 × 1170 × 205 mm
(73.4 × 46.1 × 8.1 in)
2110 × 1314 × 205 mm
(83.1 × 51.7 × 8.1 in)
Weight
(product I shipping)
34.5 kg | 44.5 kg
(76.1 lbs | 98.1 lbs)
45.1 kg | 58.2 kg
(99.4 lbs | 128.3 lbs)
55.0 kg | 73.6 kg
(121.3 lbs | 162.3 lbs)
Mount
(screws)
VESA 600 × 400 mm
(4 × M8 × 25L)
VESA 800 × 400 mm
(4 × M8 × 25L)
VESA 800 × 600 mm
(4 × M8 × 25L)
Pen tray
1
1
1
Environment
Model
RP6505
RP7505
RP8605
Operating temperature
0°C~40°C | 32°F~104°F
0°C~40°C | 32°F~104°F
0°C~40°C | 32°F~104°F
Storage temperature
-20°C~60°C | -4°F~140°F
-20°C~60°C | -4°F~140°F
-20°C~60°C | -4°F~140°F
Storage humidity
10%~60% RH non-condensing
10%~60% RH non-condensing
10%~60% RH non-condensing
Operating humidity
20%~80% RH non-condensing
20%~80% RH non-condensing
20%~80% RH non-condensing
Software
Model
RP6505
RP7505
RP8605
Whiteboarding
EZWrite 6
EZWrite 6
EZWrite 6
Wireless screen sharing
InstaShare 2
InstaShare 2
InstaShare 2
Account management
AMS
AMS
AMS
Device management
DMS
DMS
DMS
Quick access tool
Floating Tool
Floating Tool
Floating Tool
Broadcast system
X-Sign Broadcast
X-Sign Broadcast
X-Sign Broadcast
Accessories
Model
RP6505
RP7505
RP8605
Cables
- 1 × HDMI (3 m | 9.8 ft)
- 1 × Touch-USB (3 m | 9.8 ft)
- 1 × USB-C (1.5 m | 4.9 ft)
- 1 × HDMI (3 m | 9.8 ft)
- 1 × Touch-USB (3 m | 9.8 ft)
- 1 × USB-C (1.5 m | 4.9 ft)
- 1 × HDMI (3 m | 9.8 ft)
- 1 × Touch-USB (3 m | 9.8 ft)
- 1 × USB-C (1.5 m | 4.9 ft)
Wall mount
1
1
1
Pen
2
2
2
Remote control
1
1
1
Note
Specifications and features are subject to change without notice.

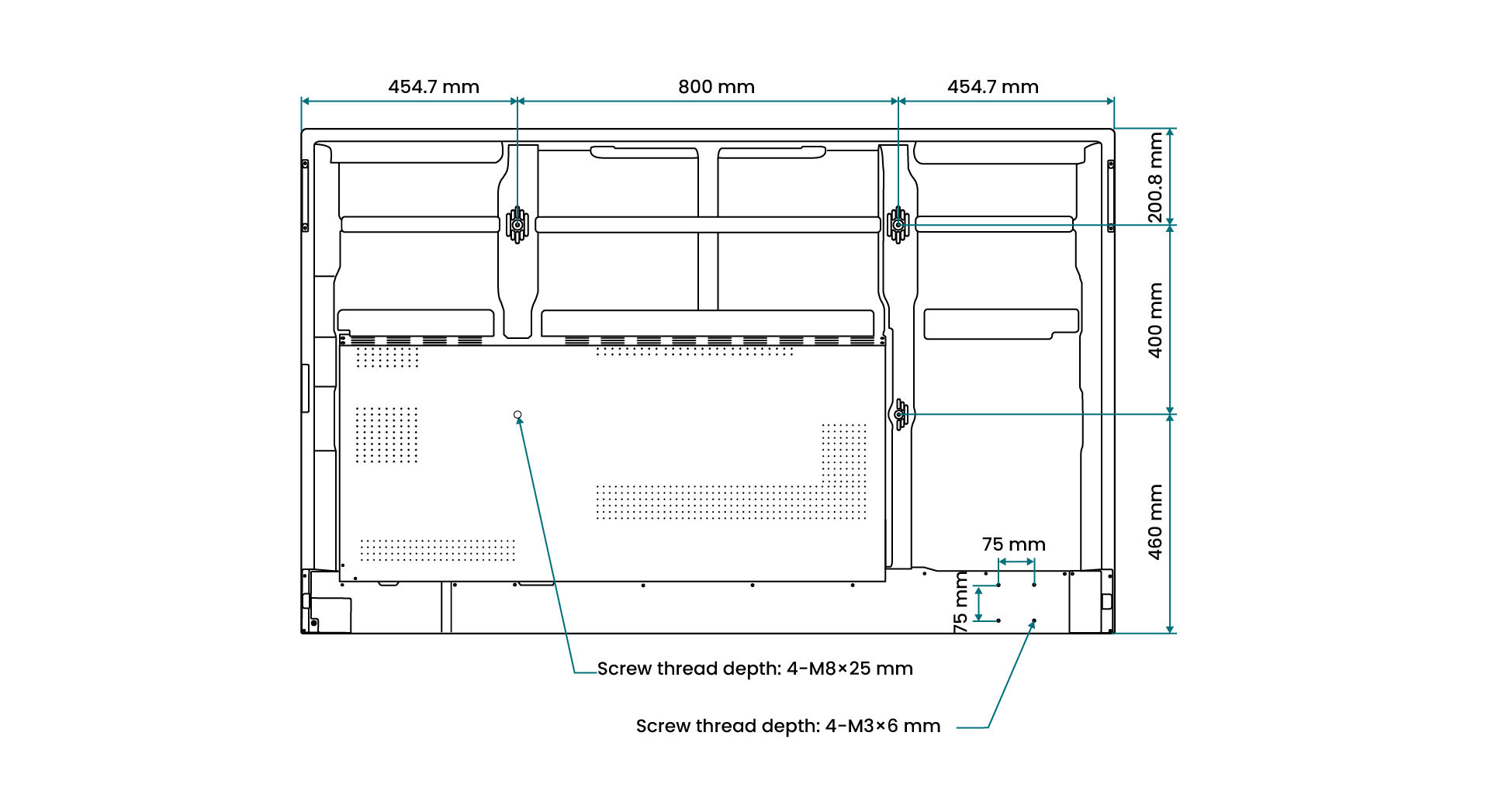

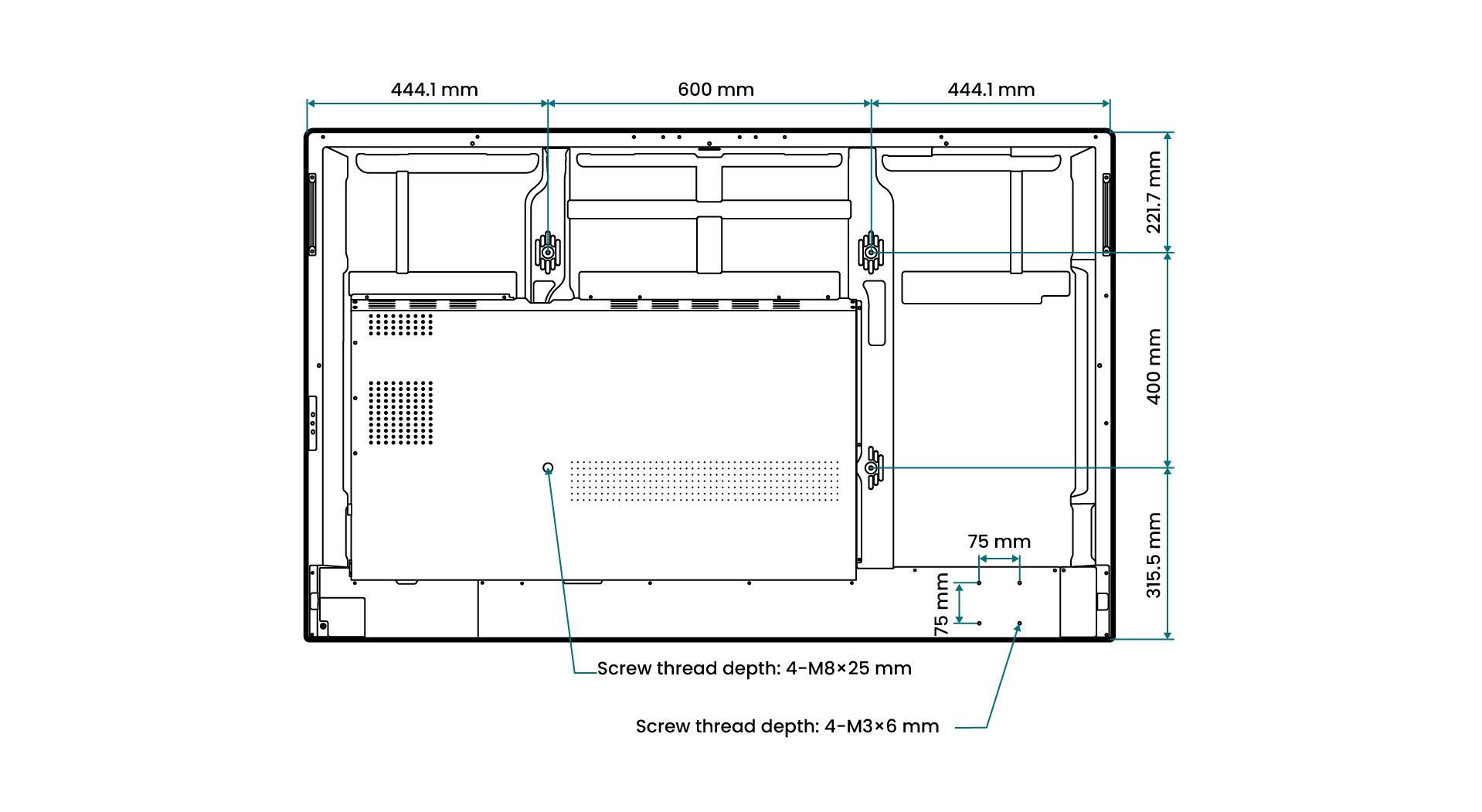

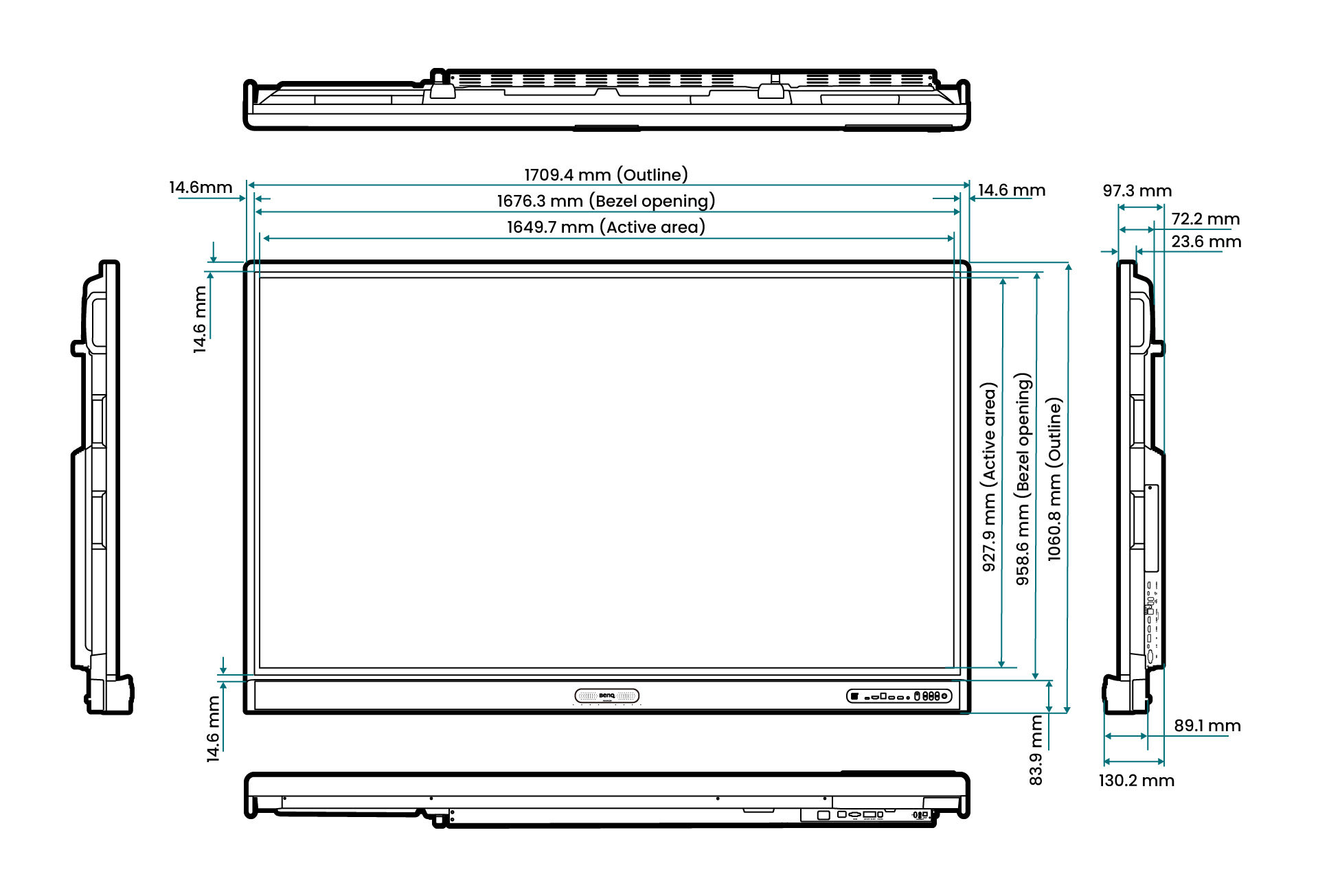

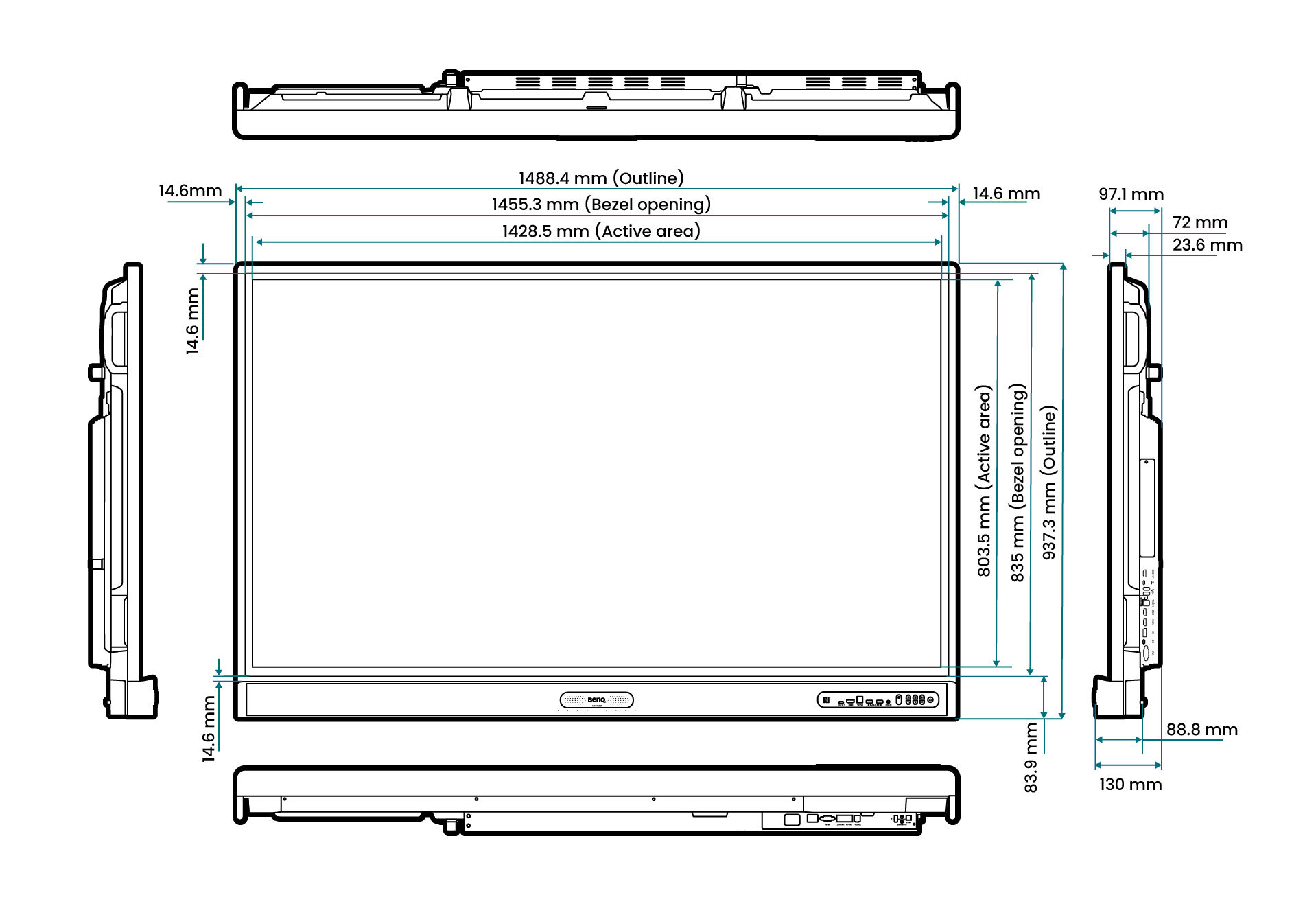

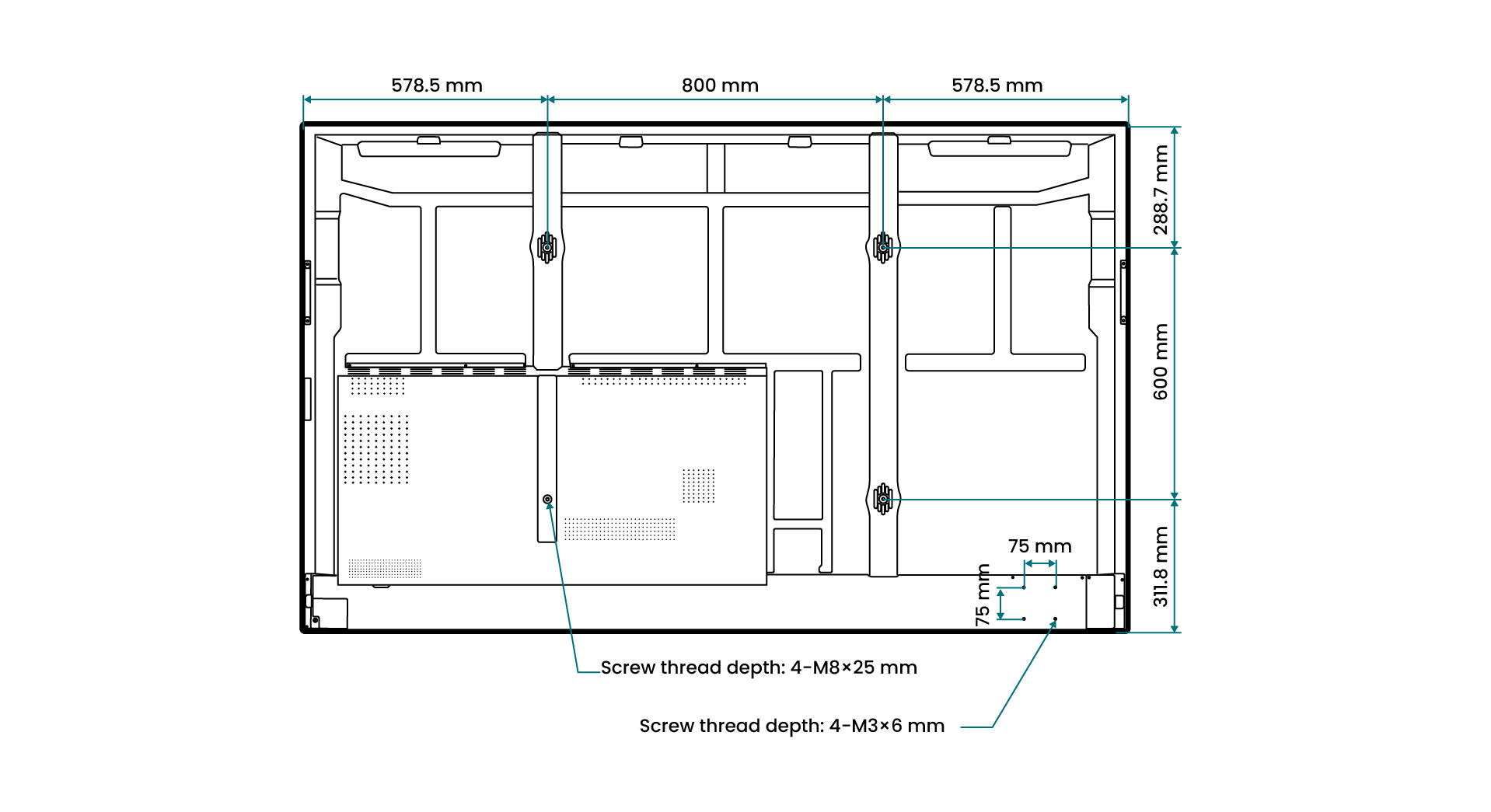

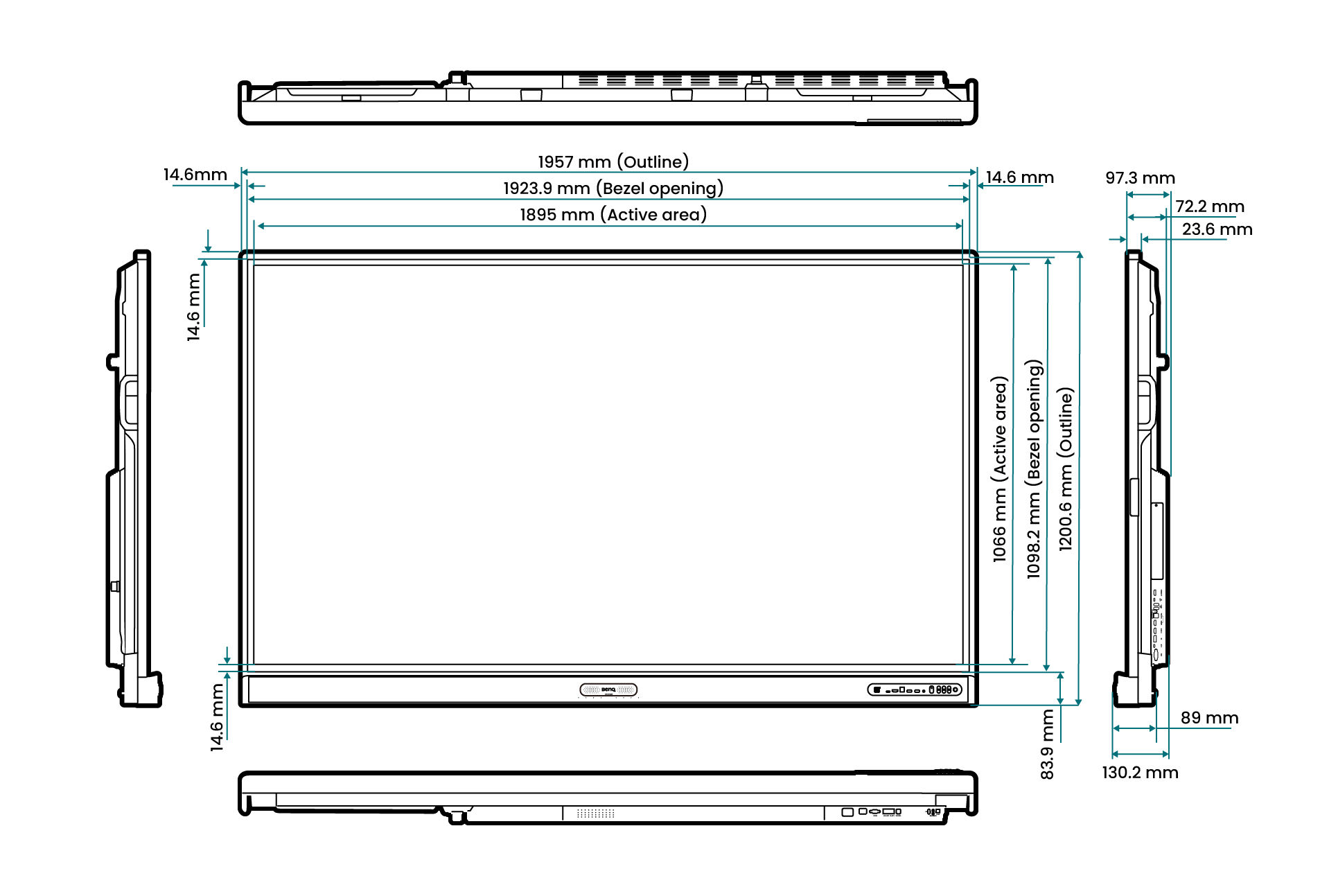

Dimensions
RP6505
RP7505
RP8605
Package contents
Verify all the contents after opening the package. If any item is missing or damaged, please contact your dealer immediately.
Note
- Package contents and the picture shown here may vary by region. Purchase these items separately if they are not included inn the package.
- The type and quantity of power cord may differ depending on the region of purchase.
Interactive display
Pens with NFC tag
Wireless USB adapter
2.4 GHz remote control
AAA batteries
Power cord
USB Type-C cable
Touch USB cable
HDMI cable
Eraser
Wall mount with screws
User documents
(Quick start guide, wall mount installation guide, regulation sheets)
Important
- Ensure that there are no accessories left inside the box before discarding the packaging.
- Do not leave plastic bags within reach of young children or babies.
- Dispose of packaging materials wisely. Consider recycling the cardboard carton or storing the package for future transport of the display.
Components

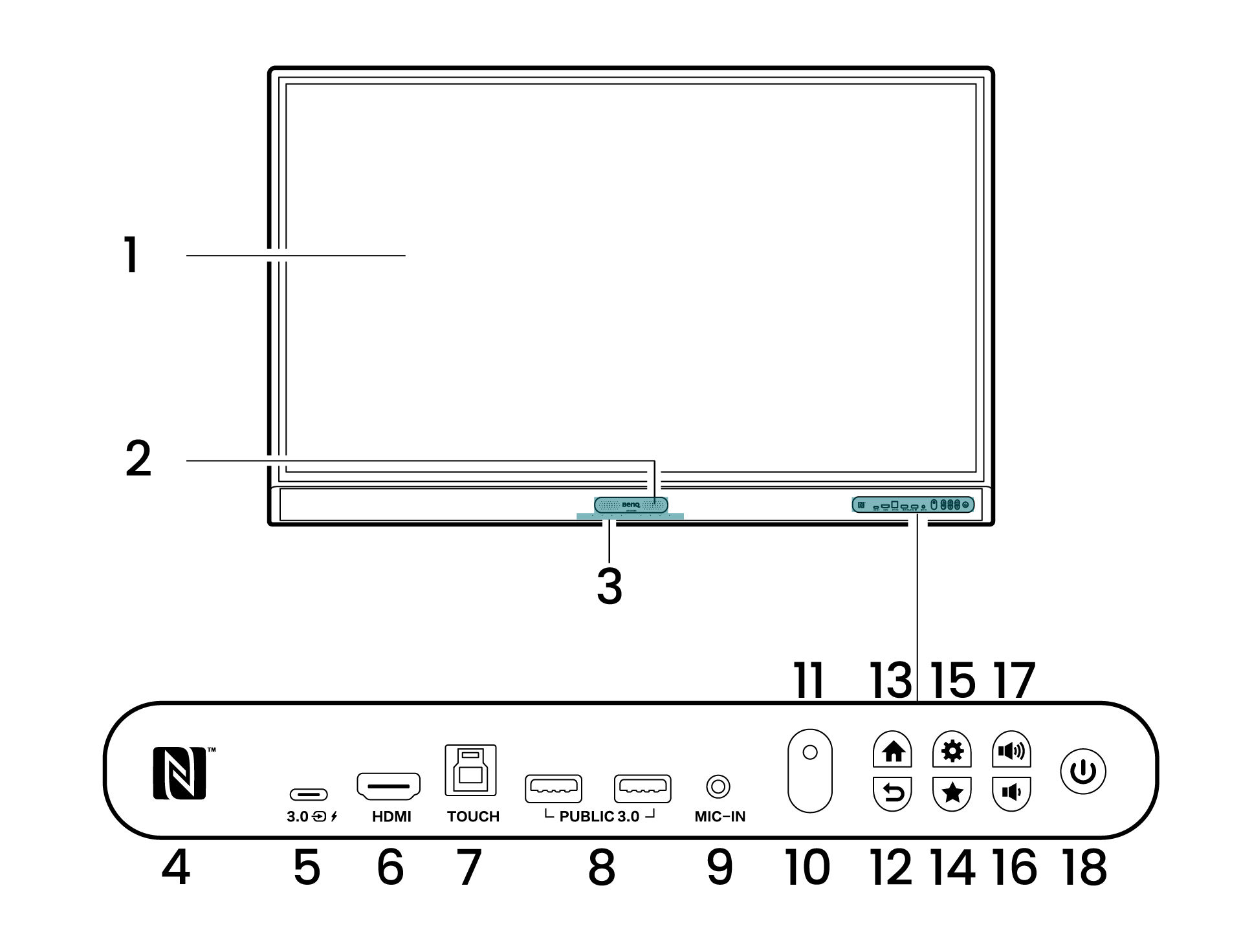

Front panel
Component
Component
1. Touchscreen
10. IR sensor
2. Air ionizer1
11. Ambient light sensor
3. 8-microphone array
12. Back button
4. NFC sensor
13. Home button
5. USB 3.0 Type-C port (PD 100 W)2
14. Customized button
6. HDMI in port
15. Settings button
7. Touch USB 3.0 Type-B port
16. Volume down button
8. USB 3.0 Type A ports3
17. Volume up button
9. 3.5 mm microphone jack4
18. ower button
Note
1 The air ionizer uses corona discharge technology, which may generate a slight sound during operation. This is normal and does not affect the device's functionality or performance.
2 The multi-purpose USB-C port can be used for data, video, and audio transmission, touchback, and 100-watt charging.
3 The USB 3.0 Type-A ports function as USB passthrough ports. When a laptop is connected to the display as an input source, users can use these as extra data ports for their laptop.
4 The 3.5 mm microphone jack supports only TRS-type and active microphones. Passive microphones are not supported.
- Regularly clean thee input/output ports to prevent dust accumulation.

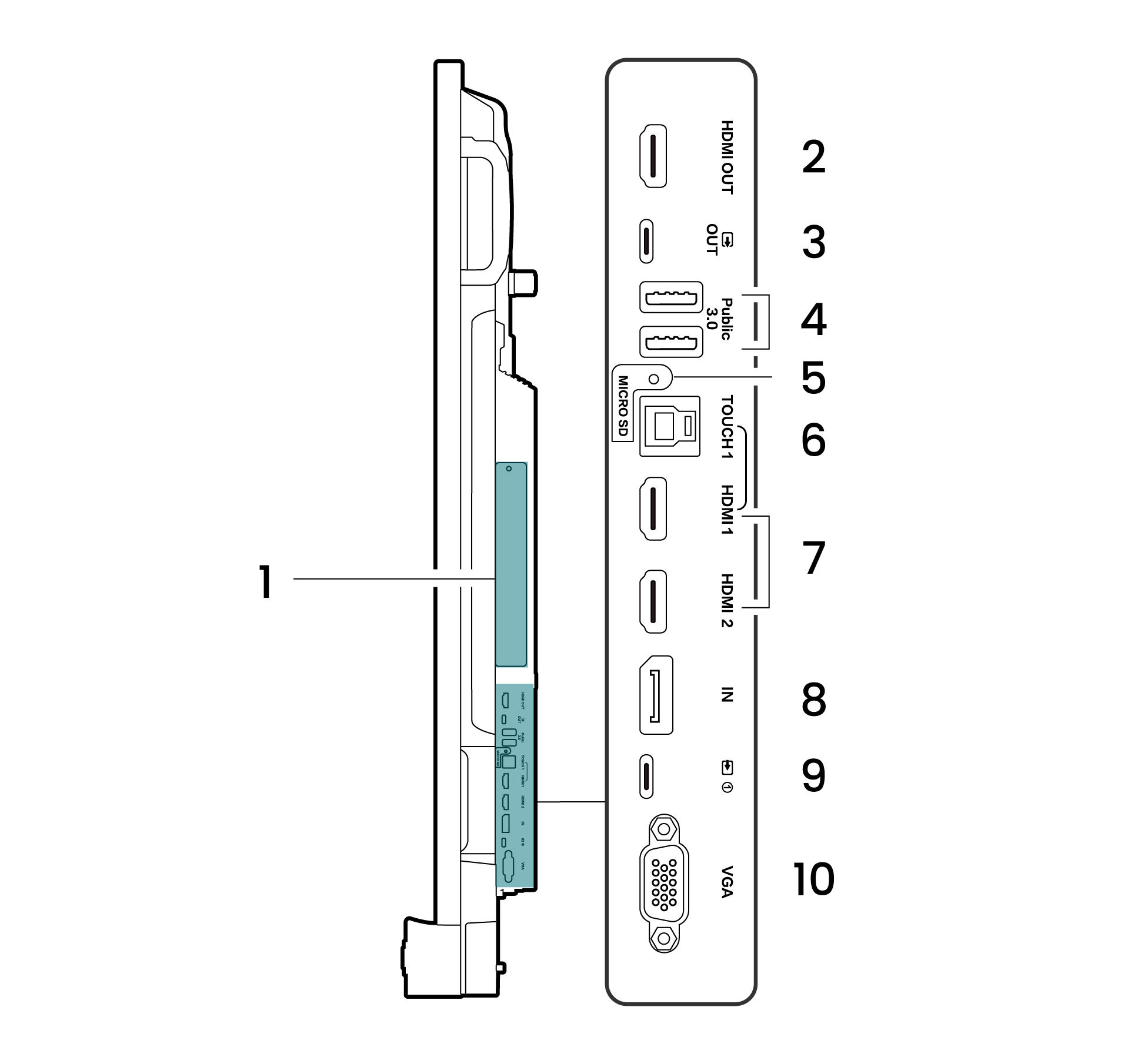

Right panel
Component
Component
1. OPS slot with cove
6. Touch USB 3.0 Type-B port 1
2. HDMI out port
7. HDMI in ports4
3. USB 2.0 Type-C out port1
8. DisplayPort port
4. USB 3.0 Type-A ports2
9. USB 2.0 Type-C port5
5. microSD card slot3
10. VGA port
Note
1 The USB 2.0 Type-C out port allows users to extend the BenQ Board screen to another device. Supports the transmission of video, audio, and touch function.
2 These USB 3.0 Type-A ports function as USB passthrough ports. When a laptop is connected to the display as an input source, users can use these as extra data ports for their laptop.
3 The microSD card slot allows users to insert a microSD card for expanded storage options.
4 The HDMI1 port supports HDMI ARC. For details, see Output.
5 The multi-purpose USB Type-C port can be used for data, video, and audio transmission and touchback.
- Regularly clean thee input/output ports to prevent dust accumulation.

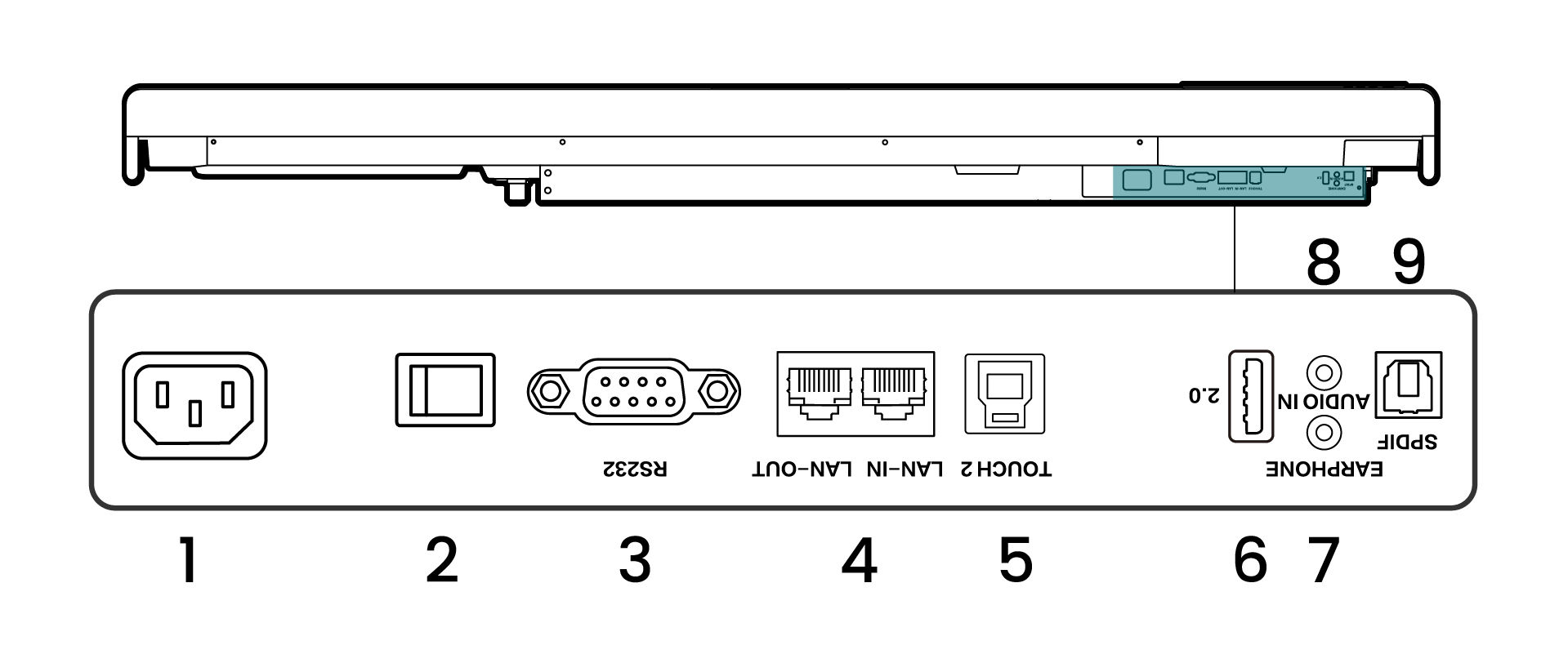

Bottom panel
Component
Component
1. Power switch
6. USB 2.0 Type-A port
2. Power input
7. 3.5 mm audio out jack2
3. RS-232 port
8. 3.5 mm audio jack3
4. Gigabit Ethernet ports1
9. S/PDIF port
5. Touch USB 3.0 Type-B port 2
Note
1 The Gigabit Ethernet ports support data transfer speeds of 10/100/1000 Mbps.
2 The 3.5 mm audio out jack does not support audio input, including microphone input from headset devices.
3 The 3.5 mm audio jack is dedicated for the VGA input.
- Regularly clean thee input/output ports to prevent dust accumulation.

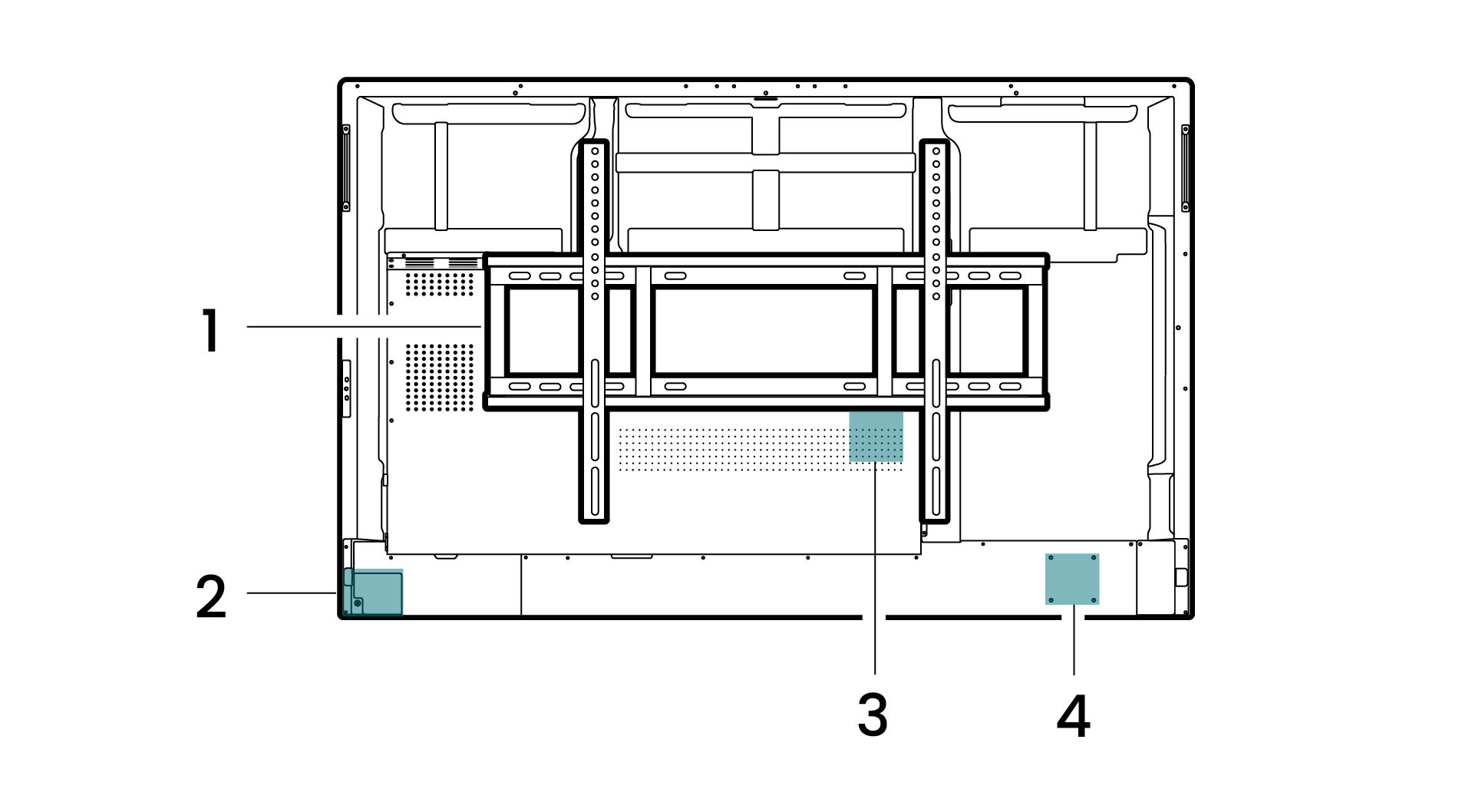

Rear panel
Component
Component
1. Wall mount (pre-installed)
3. 20 W subwoofer
2. USB slot security cover
4. Mini PC screw holes

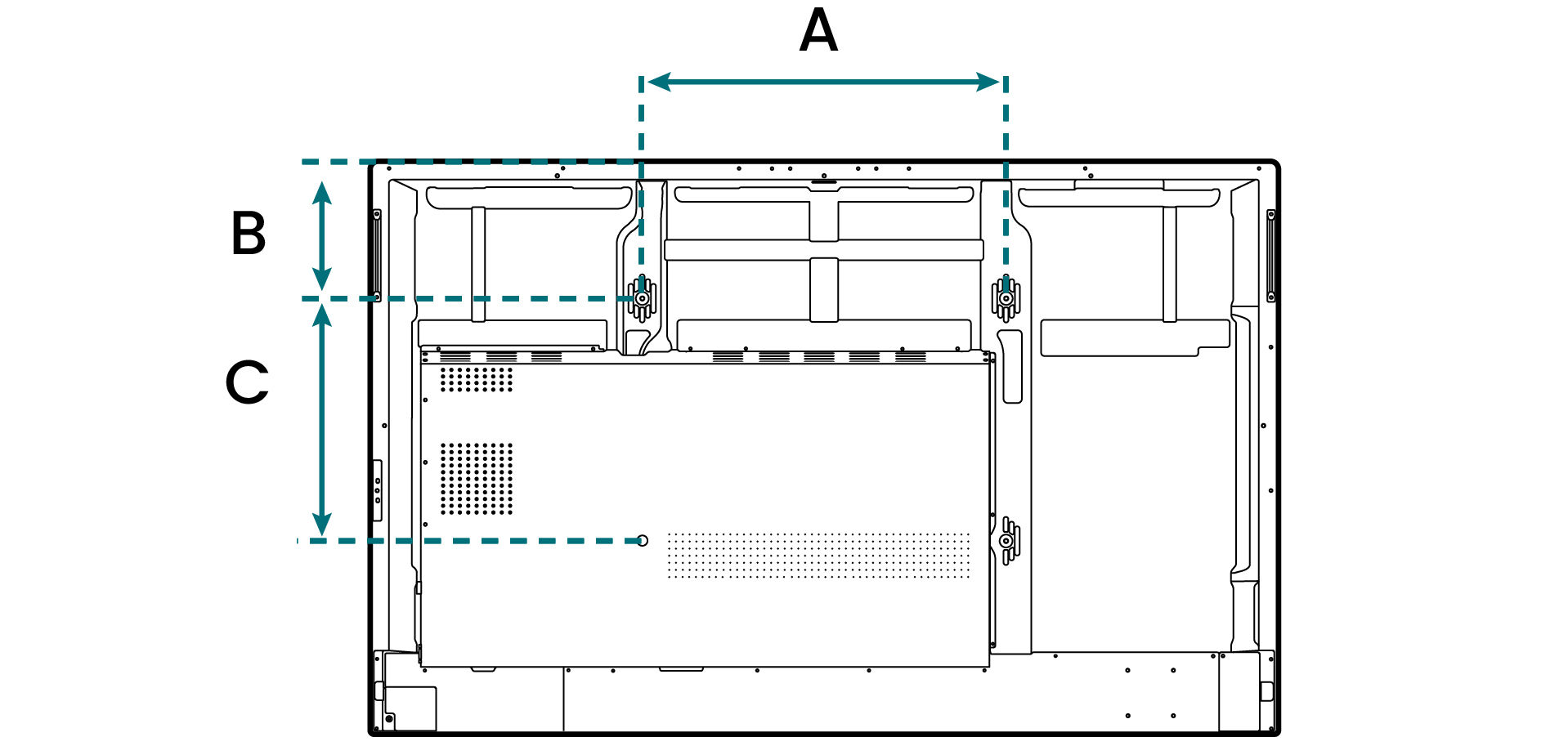

Vesa specifications
Screw size: M8 × 25L
Dimension
65"
75"
86"
A
600 mm
800 mm
800 mm
B
221.7 mm
200.8 mm
288.7 mm
C
400 mm
400 mm
600 mm
Installation requirements
Category
Item
Environment
- Room temperature: 0 to 40˚C (32 to 104˚F)
- Non-condensing relative humidity: 20 to 80%
- Flat, anti-static surface with no exposure to direct sunlight, liquids, and chemicals
Hardware and peripherals
Wireless USB adapter and/or Ethernet cable
Tools
- Scissors
- Phillips screwdriver
- Padding
- Anti-static wrist strap
Setting up the display
- Place the display in an environment that meets the requirements.
For details, see Installation requirements. - Add the display to DMS.
For details, see Adding the display to DMS. - Unbox the display.
For details, see Unboxing. - Mount the display.
For details, see Mounting. - Install any additional accessories and peripherals.
For details, see the following topics:
- Adapters
- External PCs - Connect the power cord and all applicable cables.
- Power on the display.
For details, see Powering on the display. - Set up BenQ Launcher.
For details, see Setting up BenQ Launcher. - Bind the display to AMS.
For details, see Binding the display to AMS.
