Model
This chapter provides basic information about the BenQ Board RE04 Series interactive display.
About the RE04 Series
The BenQ Board RE04 Series is the Google ELDA-certified interactive display by BenQ. It combines the computing power of an 8-core Arm Cortex chipset, Precision IR touch, a full set of ClassroomCare® technologies, and Google Mobile Services. Users of the BenQ Board can utilize this interactive display for effective and engaging learning experiences and workplace collaboration.
The BenQ Board RE04 Series consists of the following models: RE04, RE04F, RE04FV, and RE04FV2. Other models, including the RE6504D, RE7504D, RE8604D, RE6504FVD, RE7504FVD, RE8604FVD, and RE9804FVD, share the same specifications as the RE04 and RE04FV models. The 'D' suffix indicates regional sales variations only.
Specifications
Important
Modifying the hardware or software of your BenQ product invalidates the warranty. BenQ is not responsible for any damage or data loss caused by the unauthorized modifications to both and hardware and software and the installation of third-party add-ons and applications.
Panel
RE6504/
RE6504F/
RE6504FV/
RE6504FV2
RE7504/
RE7504F/
RE7504FV/
RE7504FV2
RE8604/
RE8604F/
RE8604FV/
RE8604FV2
RE9804FV/
RE9804FV2
Screen size
65”
75”
86”
98"
Panel type
IPS
IPS
IPS
IPS
Resolution
UHD 3840 × 2160 pixels
UHD 3840 × 2160 pixels
UHD 3840 × 2160 pixels
UHD 3840 × 2160 pixels
Active area
1428.5 × 803.5 mm
1649.7 × 927.9 mm
1895 × 1066 mm
2158.8 x 1214.4 mm
Response time
8 ms
8 ms
8 ms
8 ms
Aspect ratio
16:9
16:9
16:9
16:9
Orientation
Landscape
Landscape
Landscape
Landscape
Contrast ratio
1,200:1
1,200:1
1,200:1
1,200:1
Dynamic contrast ratio
30,000:1
30,000:1
30,000:1
30,000:1
Color depth
10-bit
10-bit
10-bit
10-bit
Color gamut
72% NTSC
72% NTSC
72% NTSC
72% NTSC
Panel brightness
(without glass)
450 nits
450 nits
450 nits
500 nits
Backlight life
50,000 hrs
50,000 hrs
50,000 hrs
50,000 hrs
Glass
Model
RE6504/
RE6504F/
RE6504FV/
RE6504FV2
RE7504/
RE7504F/
RE7504FV/
RE7504FV2
RE8604/
RE8604F/
RE8604FV/
RE8604FV2
RE9804FV/
RE9804FV2
Hardness
9H tempered
9H tempered
9H tempered
9H tempered
Germ-resistant screen*
Nano-ionic silver
Nano-ionic silver
Nano-ionic silver
Nano-ionic silver
Anti-glare
Yes
Yes
Yes
Yes
Note
* Availability dependent on region.
Touchscreen
Model
RE6504/
RE6504F/
RE6504FV/
RE6504FV2
RE7504/
RE7504F/
RE7504FV/
RE7504FV2
RE8604/
RE8604F/
RE8604FV/
RE8604FV2
RE9804FV/
RE9804FV2
Touch technology
High Precision IR
High Precision IR
High Precision IR
High Precision IR
Touch points
Up to 40
Up to 40
Up to 40
Up to 40
Touch response time
< 5 ms
< 5 ms
< 5 ms
< 5 ms
System
Model
RE6504/
RE6504F/
RE6504FV/
RE6504FV2
RE7504/
RE7504F/
RE7504FV/
RE7504FV2
RE8604/
RE8604F/
RE8604FV/
RE8604FV2
RE9804FV/
RE9804FV2
CPU
Arm Cortex-A73 × 4 + A53 × 4
Arm Cortex-A73 × 4 + A53 × 4
Arm Cortex-A73 × 4 + A53 × 4
Arm Cortex-A73 × 4 + A53 × 4
GPU
Arm Mali-G52 MP8
Arm Mali-G52 MP8
Arm Mali-G52 MP8
Arm Mali-G52 MP8
Memory | Storage*
8 GB | 128 GB
8 GB | 128 GB
8 GB | 128 GB
8 GB | 128 GB
Operating system
Android 14
(EDLA)
Android 14
(EDLA)
Android 14
(EDLA)
Android 14
(EDLA)
Note
*The Storage may vary by region.
Connectivity
Model
RE6504/
RE6504F/
RE6504FV/
RE6504FV2
RE7504/
RE7504F/
RE7504FV/
RE7504FV2
RE8604/
RE8604F/
RE8604FV/
RE8604FV2
RE9804FV/
RE9804FV2
USB-C
- All USB-C ports can be used for data transmission.
- Only the USB 3.0 that support power delivery can be used for touch.
- 1 × 3.0 (PD 65 W)
- 1 × 2.0
- 1 × 3.0 (PD 65 W)
- 1 × 2.0
- 1 × 3.0 (PD 65 W)
- 1 × 2.0
- 1 × 3.0 (PD 65 W)
- 1 × 2.0
USB Type-B
(for touch)
2 × 2.0
2 × 2.0
2 × 2.0
2 × 2.0
USB Type-A
- 2 × 3.0
- 2 × 2.0
- 2 × 3.0
- 2 × 2.0
- 2 × 3.0
- 2 × 2.0
- 2 × 3.0
- 2 × 2.0
HDMI
(in | out)
3 × HDMI 2.0 | 1 × HDMI 2.0
3 × HDMI 2.0 | 1 × HDMI 2.0
3 × HDMI 2.0 | 1 × HDMI 2.0
3 × HDMI 2.0 | 1 × HDMI 2.0
DisplayPort
1 × 1.2a
1 × 1.2a
1 × 1.2a
1 × 1.2a
VGA
1
1
1
1
Audio in
- 1 × 3.5 mm microphone jack
- 1 × 3.5 mm audio jack (VGA)
- 1 × 3.5 mm microphone jack
- 1 × 3.5 mm audio jack (VGA)
- 1 × 3.5 mm microphone jack
- 1 × 3.5 mm audio jack (VGA)
- 1 × 3.5 mm microphone jack
- 1 × 3.5 mm audio jack (VGA)
Audio out
1 × 3.5 mm audio out jack
1 × 3.5 mm audio out jack
1 × 3.5 mm audio out jack
1 × 3.5 mm audio out jack
S/PDIF out
1 (optical)
1 (optical)
1 (optical)
1 (optical)
RS-232
1
1
1
1
OPS slot
(for slot-in PC)
1
1
1
1
Ethernet
10 / 100 / 1000 Mbps (Android), 10 / 100 / 1000 Mbps (OPS) × 2
10 / 100 / 1000 Mbps (Android), 10 / 100 / 1000 Mbps (OPS) × 2
10 / 100 / 1000 Mbps (Android), 10 / 100 / 1000 Mbps (OPS) × 2
10 / 100 / 1000 Mbps (Android), 10 / 100 / 1000 Mbps (OPS) × 2
Wi-Fi
Wi-Fi 6
Wi-Fi 6
Wi-Fi 6
Wi-Fi 6
Bluetooth®
Depending on the region, the display comes preinstalled with the WD02AT Wi-Fi Bluetooth adapter.
Bluetooth 5.2
Bluetooth 5.2
Bluetooth 5.2
Bluetooth 5.2
Built-in peripherals
Model
RE6504/
RE6504F/
RE6504FV/
RE6504FV2
RE7504/
RE7504F/
RE7504FV/
RE7504FV2
RE8604/
RE8604F/
RE8604FV/
RE8604FV2
RE9804FV/
RE9804FV2
NFC sensor
Yes:
RE6504F, RE6504FV, RE6504FV2
No:
RE6504
Yes:
RE7504F, RE7504FV, E7504FV2
No:
RE7504
Yes:
RE8604F, RE8604FV, RE8604FV2
No:
RE8604
Yes
Ambient light sensor
Yes
Yes
Yes
Yes
IR sensor
Yes
Yes
Yes
Yes
Microphone
RE6504FV:
8-microphone array (range up to 8 m | 26 ft)
RE6504FV2:
8-microphone array (range up to 12m | 39.4 ft)
-
Yes:
RE6504FV, RE6504FV2
No:
RE6504, RE6504F
RE7504FV:
8-microphone array (range up to 8 m | 26 ft)
RE7504FV2:
8-microphone array (range up to 12m | 39.4 ft)
-
Yes:
RE7504FV, RE7504FV2
No:
RE7504, RE7504F
RE8604FV:
8-microphone array (range up to 8 m | 26 ft)
RE8604FV2:
8-microphone array (range up to 12m | 39.4 ft)
-
Yes:
RE6504FV, RE8604FV2
No:
RE8604, RE8604F
RE9804FV:
8-microphone array (range up to 8 m | 26 ft)
RE9804FV2:
8-microphone array (range up to 12m | 39.4 ft)
-
Yes
Speaker
2 × 20 W (max)
2 × 20 W (max)
2 × 20 W (max)
2 × 20 W (max)
Camera
Yes:
RE6504FV, RE6504FV2
No:
RE6504, RE6504F
Yes:
RE7504FV, RE7504FV2
No:
RE7504, RE7504F
Yes:
RE8604FV, RE8604FV2
No:
RE8604, RE8604F
Yes
Power
Model
RE6504/
RE6504F/
RE6504FV/
RE6504FV2
RE7504/
RE7504F/
RE7504FV/
RE7504FV2
RE8604/
RE8604F/
RE8604FV/
RE8604FV2
RE9804FV/
RE9804FV2
ENERGY STAR®
Yes
Yes
Yes
Yes
Power
AC 100-240V 50/60Hz
AC 100-240V 50/60Hz
AC 100-240V 50/60Hz
AC 100-240V 50/60Hz
Standby power consumption
< 0.5 W
< 0.5 W
< 0.5 W
< 0.5 W
Typical power consumption
66.7 W
73.9 W
106.8 W
122.7 W
Physical
Model
RE6504/
RE6504F/
RE6504FV/
RE6504FV2
RE7504/
RE7504F/
RE7504FV/
RE7504FV2
RE8604/
RE8604F/
RE8604FV/
RE8604FV2
RE9804FV/
RE9804FV2
Dimensions
(W × H × D)
1482.1 × 907 × 87.7 mm (58.4 × 35.7 × 3.5 inch)
-
RE6504FV2:
1482.1 × 914.1 × 87.7 mm (58.4 × 36.0 × 3.5 inch)
1716.5 × 1041.6 × 87.7mm (67.6 × 41.0 × 3.5 inch)
-
RE7504FV2:
1716.5 × 1045.4 × 87.7 mm (67.6 × 41.2 × 3.5 inch)
1961.8 × 1179.7 × 87.7mm (77.2 × 46.4 × 3.5 inch)
-
RE8604FV2:
1961.8 × 1183.4 × 87.7 mm (77.2 × 46.6 × 3.5 inch)
2230.8 × 1335.9 × 103.1 mm (87.8 × 52.6 × 4.1 inch)
-
RE9804FV2:
2230.8 × 1347 × 103.1 mm (87.8 × 53.0 × 4.1 inch)
Shipping dimensions
(W × H × D)
1640.0 × 1010.0 × 185.0 mm (64.6 × 39.8 × 7.3 inch)
1860.0 × 1125.0 × 185.0 mm (73.2 × 44.3 × 7.3 inch)
2095 × 1265 × 185 mm (82.5 × 49.8 × 7.3 inch)
2455 × 1485 × 310 mm ( 96.7 × 58.4 × 12.2 inch)
Weight
(product I shipping)
36.4 kg | 49.4 kg (80.2 lbs | 108.9 lbs)
-
RE6504FV2:
36.4 kg | 42.5 kg (80.25 lbs | 93.70 lbs)
50.2 kg | 64.9 kg (110.7 lbs | 143.1 lbs)
-
RE7504FV2:
49.6 kg | 57 kg (109.4 lbs | 125.7 lbs)
63.4 kg | 80.2 kg (139.8 lbs | 176.8 lbs)
-
RE8604FV2:
65.8 kg | 79.6 kg (145.05 lbs | 175.46 lbs)
104.75kg | 134.65kg ( 230.9 lbs | 296.9 lbs)
-
RE9804FV2:
107 kg | 137.5 kg (235.9 lbs | 303.4 lbs)

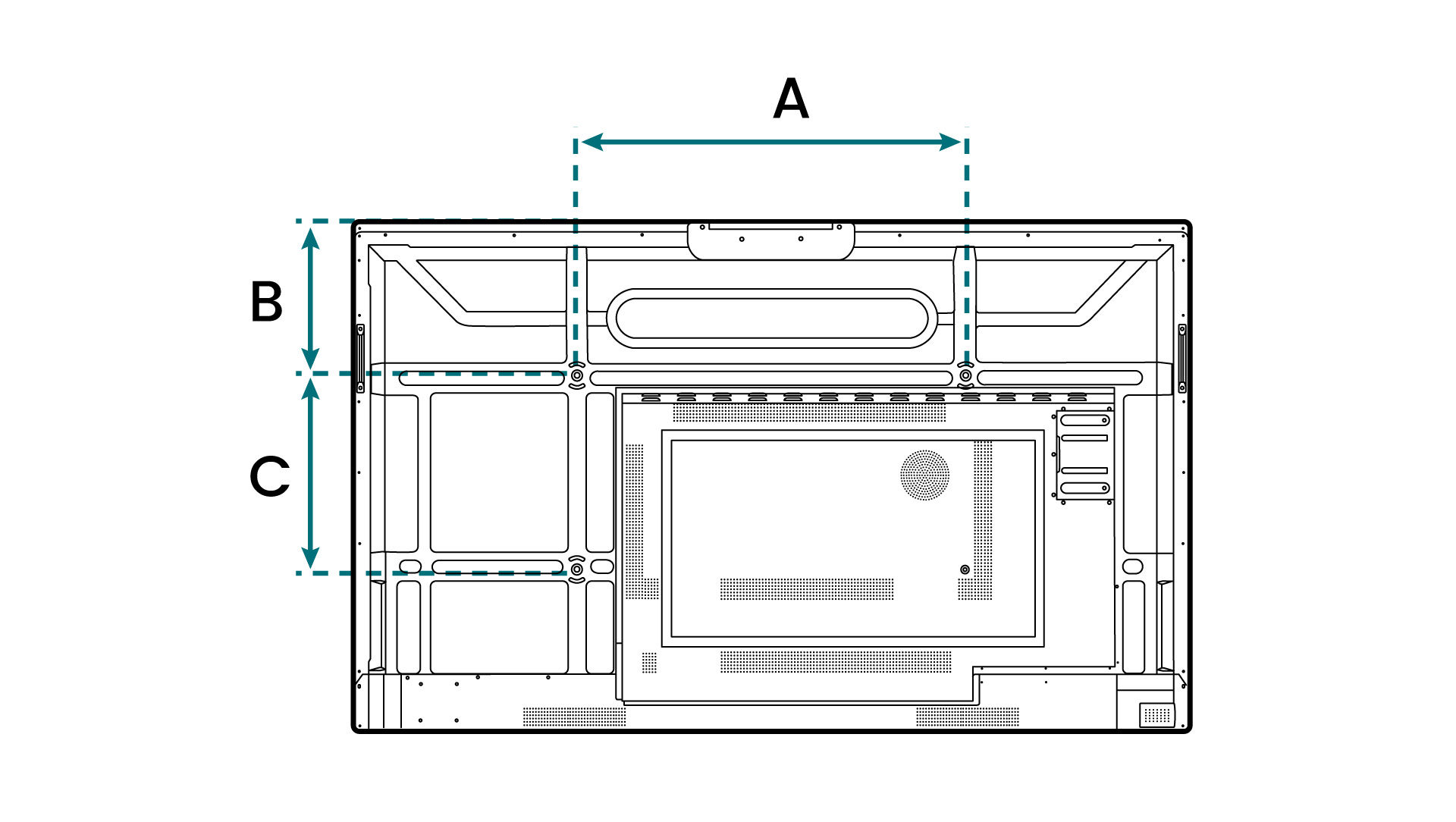

Mount
(screws)
VESA 600 × 400 mm (4 × M8 × 25L)
VESA 800 × 400 mm (4 × M8 × 25L)
VESA 800 × 600 mm (4 × M8 × 25L)
VESA 800 × 600 mm ( 4 × M8 × 20L)
Environment
Model
RE6504/
RE6504F/
RE6504FV/
RE6504FV2
RE7504/
RE7504F/
RE7504FV/
RE7504FV2
RE8604/
RE8604F/
RE8604FV/
RE8604FV2
RE9804FV/
RE9804FV2
Operating temperature
0°C - 40°C | 32°F - 104°F
0°C - 40°C | 32°F - 104°F
0°C - 40°C | 32°F - 104°F
0°C - 40°C | 32°F - 104°F
Storage temperature
-10°C - 60°C | 14°F - 140°F
-10°C - 60°C | 14°F - 140°F
-10°C - 60°C | 14°F - 140°F
-10°C - 60°C | 14°F - 140°F
Storage humidity
10% - 80% RH non-condensing
10% - 80% RH non-condensing
10% - 80% RH non-condensing
10% - 80% RH non-condensing
Operating humidity
20% - 80% RH non-condensing
20% - 80% RH non-condensing
20% - 80% RH non-condensing
20% - 80% RH non-condensing
Software
Model
RE6504/
RE6504F/
RE6504FV/
RE6504FV2
RE7504/
RE7504F/
RE7504FV/
RE7504FV2
RE8604/
RE8604F/
RE8604FV/
RE8604FV2
RE9804FV/
RE9804FV2
Whiteboarding
EZWrite 6
EZWrite 6
EZWrite 6
EZWrite 6
Wireless screen sharing
InstaShare 2
InstaShare 2
InstaShare 2
InstaShare 2
Account management
AMS
AMS
AMS
AMS
Device management
DMS
DMS
DMS
DMS
Quick access tool
Floating Tool
Floating Tool
Floating Tool
Floating Tool
Broadcast system
X-Sign Broadcast
X-Sign Broadcast
X-Sign Broadcast
X-Sign Broadcast
Accessories
Model
RE6504/
RE6504F/
RE6504FV/
RE6504FV2
RE7504/
RE7504F/
RE7504FV/
RE7504FV2
RE8604/
RE8604F/
RE8604FV/
RE8604FV2
RE9804FV/
RE9804FV2
Cables
- 1 × VGA (3 m | 9.8 ft)
- 1 × HDMI (3 m | 9.8ft)
- 1 × Touch-USB (3 m | 9.8ft)
- 1 × USB-C (1.5 m | 4.9 ft)
- 1 × VGA (3 m | 9.8 ft)
- 1 × HDMI (3 m | 9.8ft)
- 1 × Touch-USB (3 m | 9.8ft)
- 1 × USB-C (1.5 m | 4.9 ft)
- 1 × VGA (3 m | 9.8 ft)
- 1 × HDMI (3 m | 9.8ft)
- 1 × Touch-USB (3 m | 9.8ft)
- 1 × USB-C (1.5 m | 4.9 ft)
- 1 × VGA (3 m | 9.8 ft)
- 1 × HDMI (3 m | 9.8ft)
- 1 × Touch-USB (3 m | 9.8ft)
- 1 × USB-C (1.5 m | 4.9 ft)
Wall mount
1
1
1
1
Pen
2
2
2
2
Remote control
1
1
1
1
Note
- Specifications and features are subject to change without notice.
- The OPS should be equipped with fire-resistant enclosures.

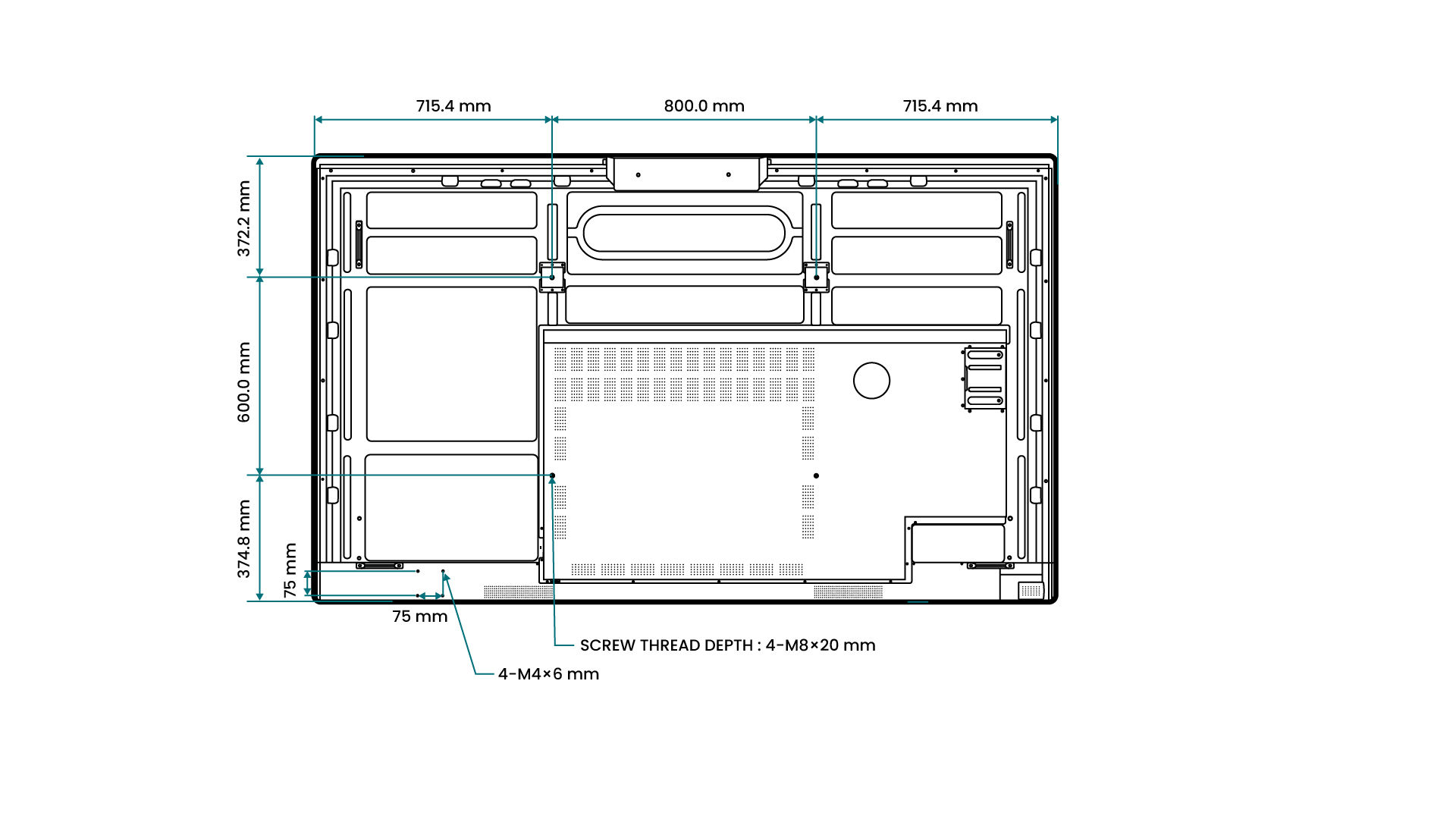

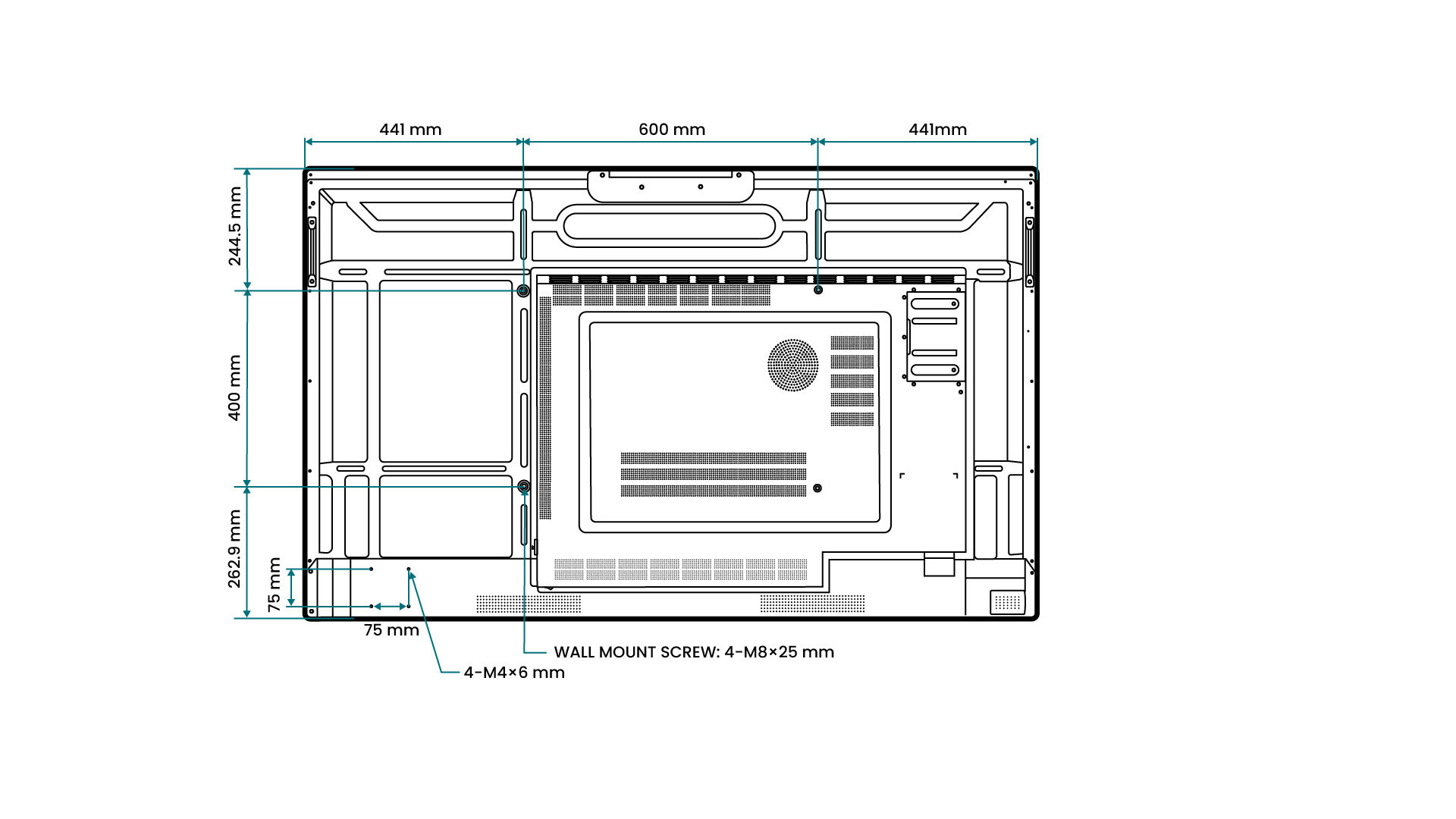

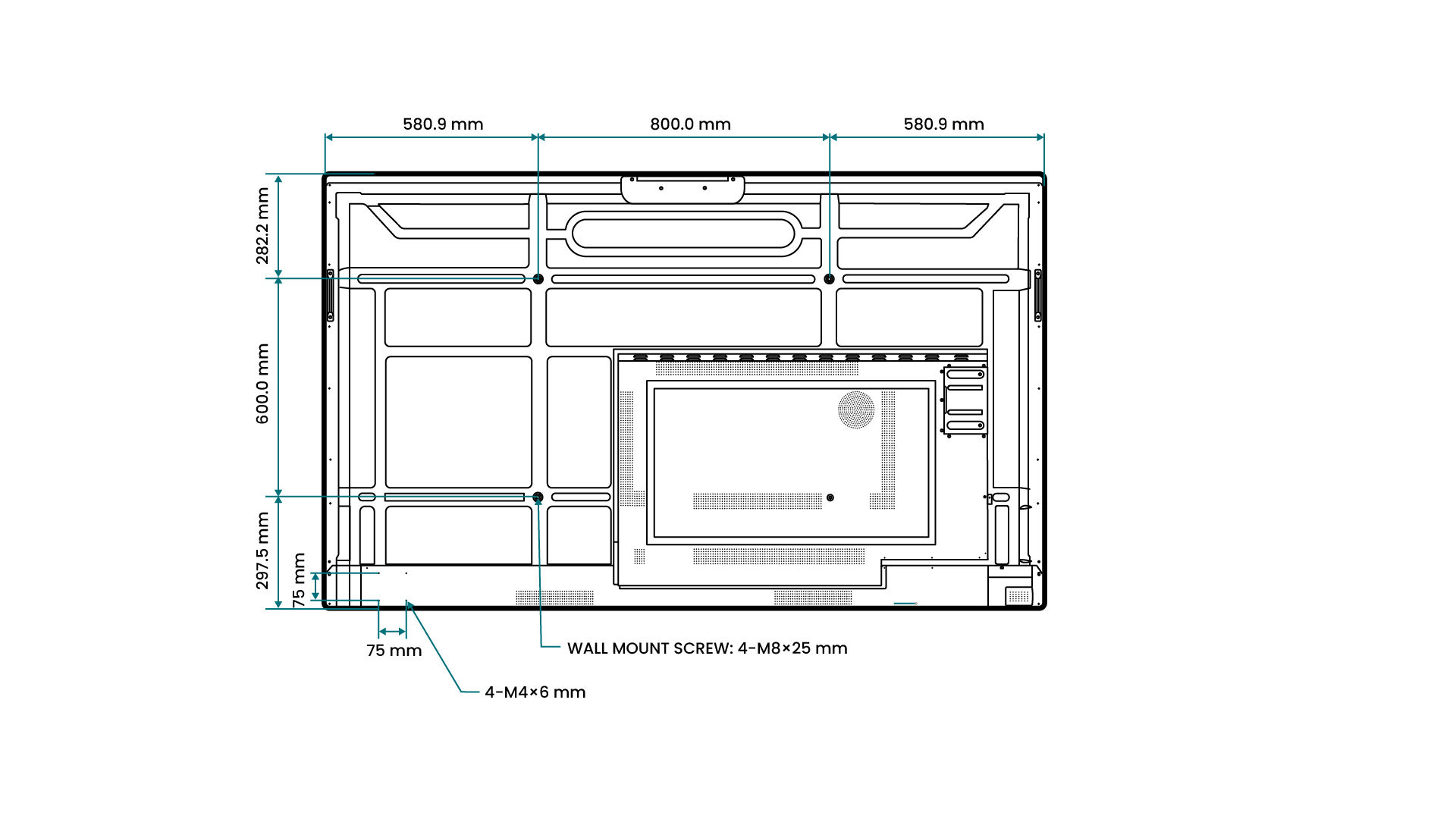

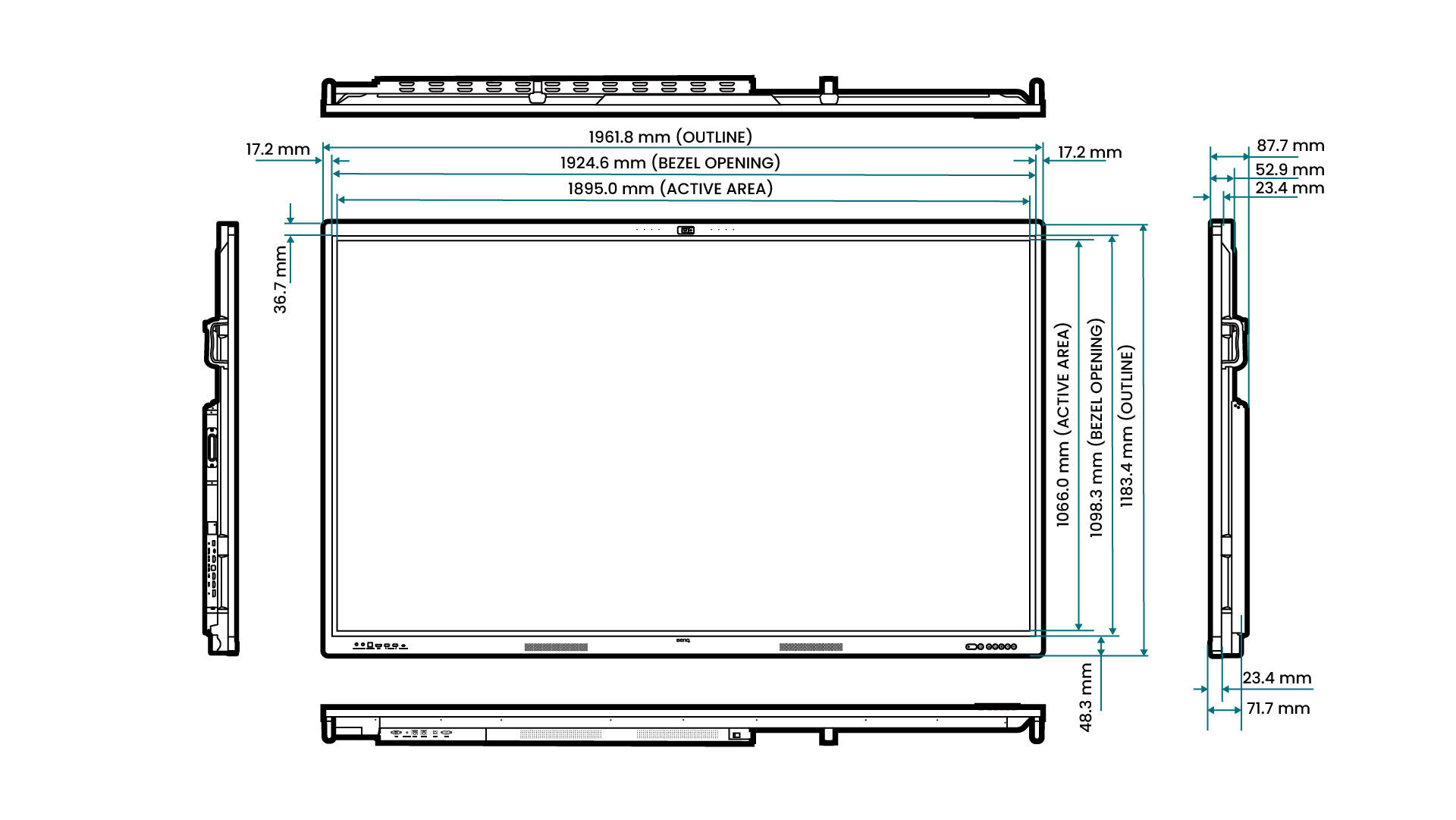

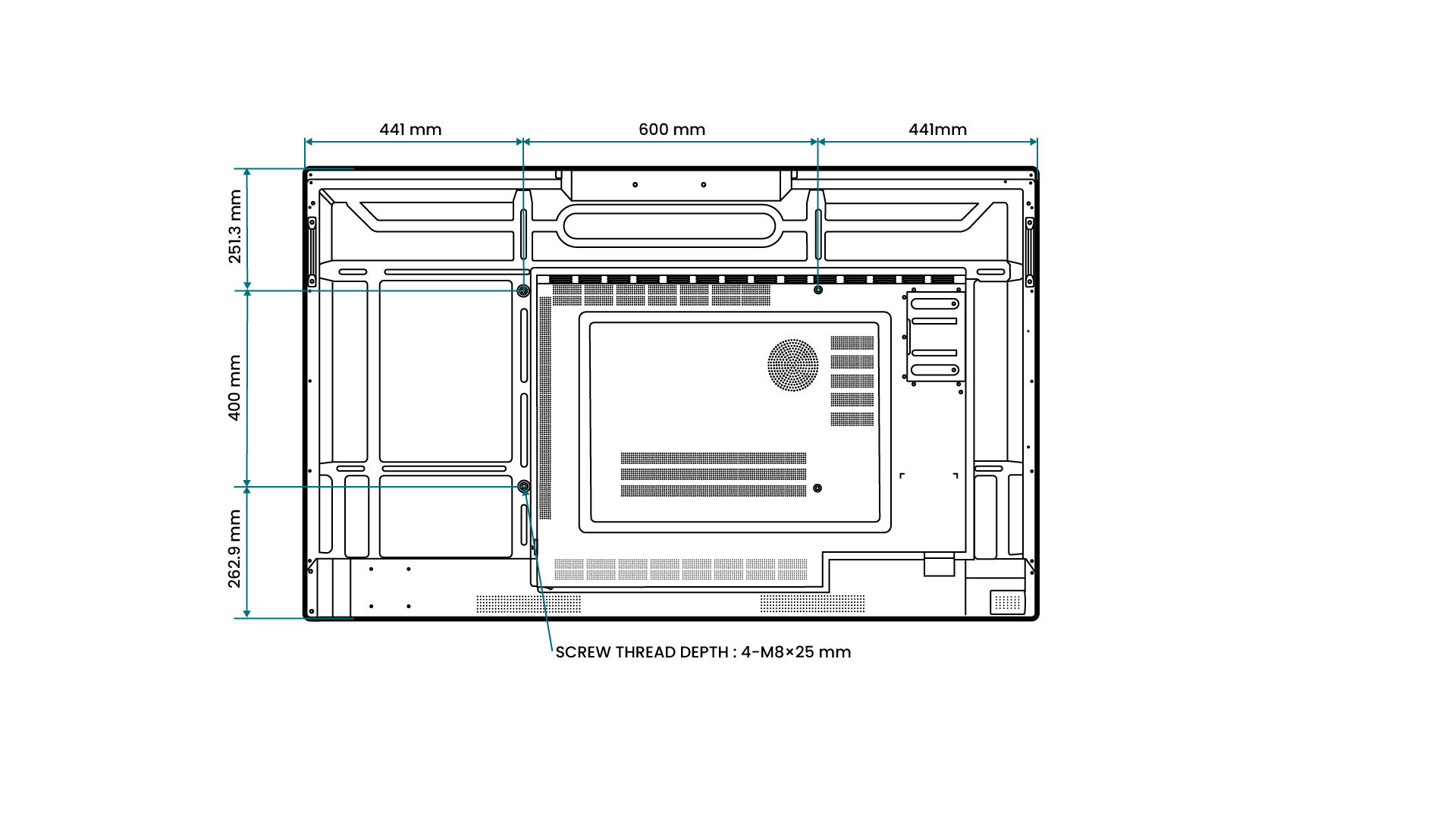

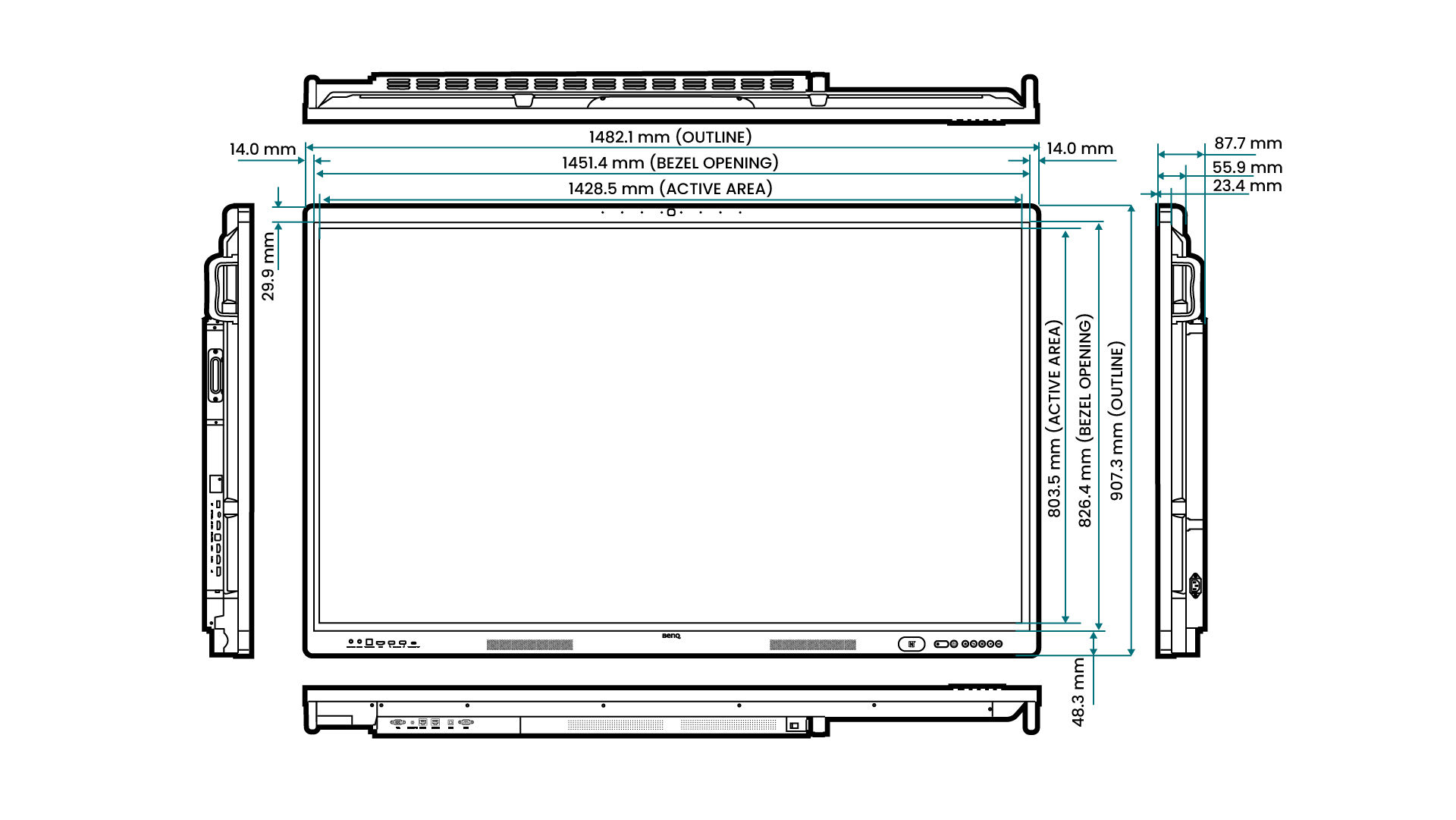

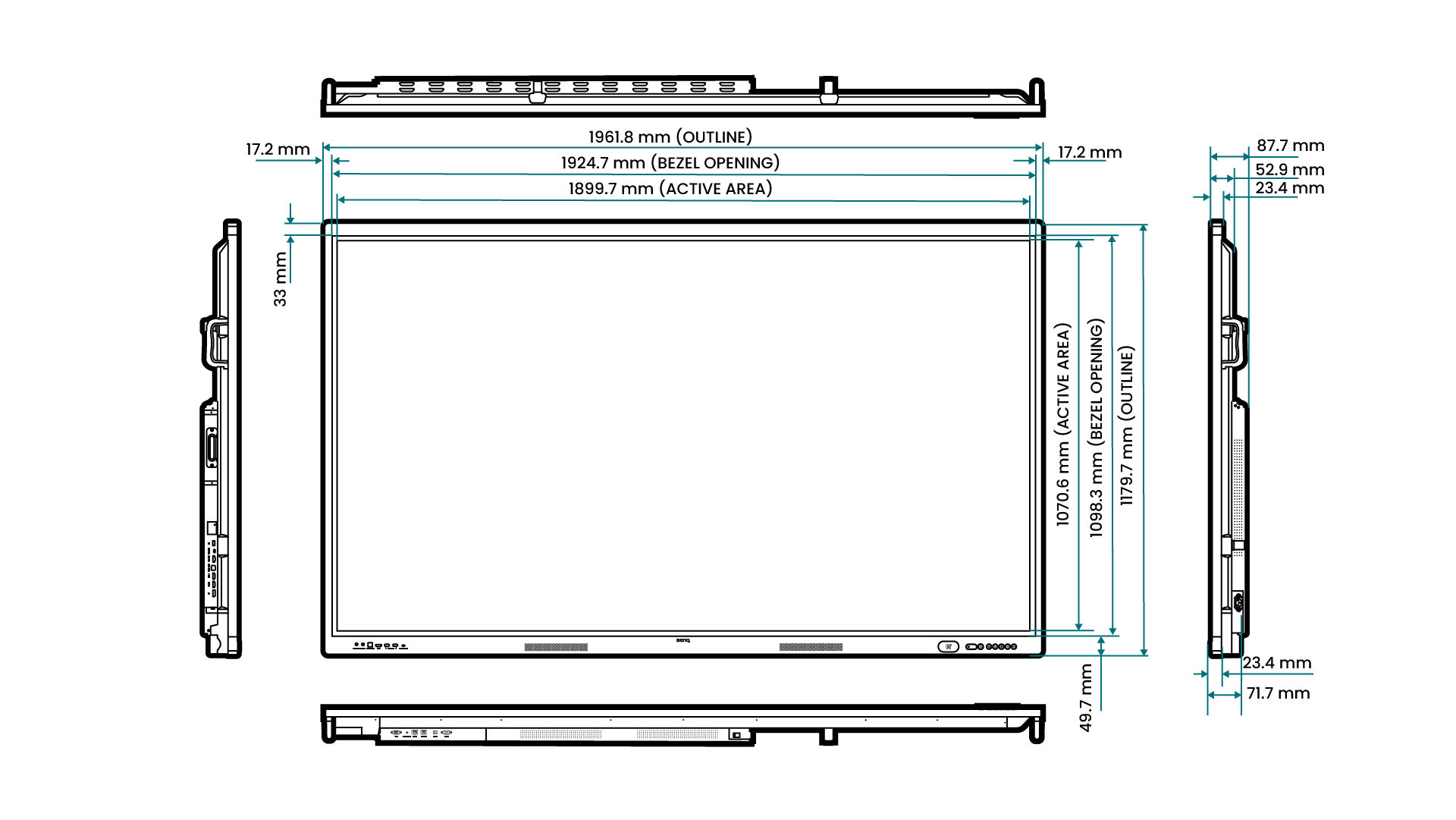

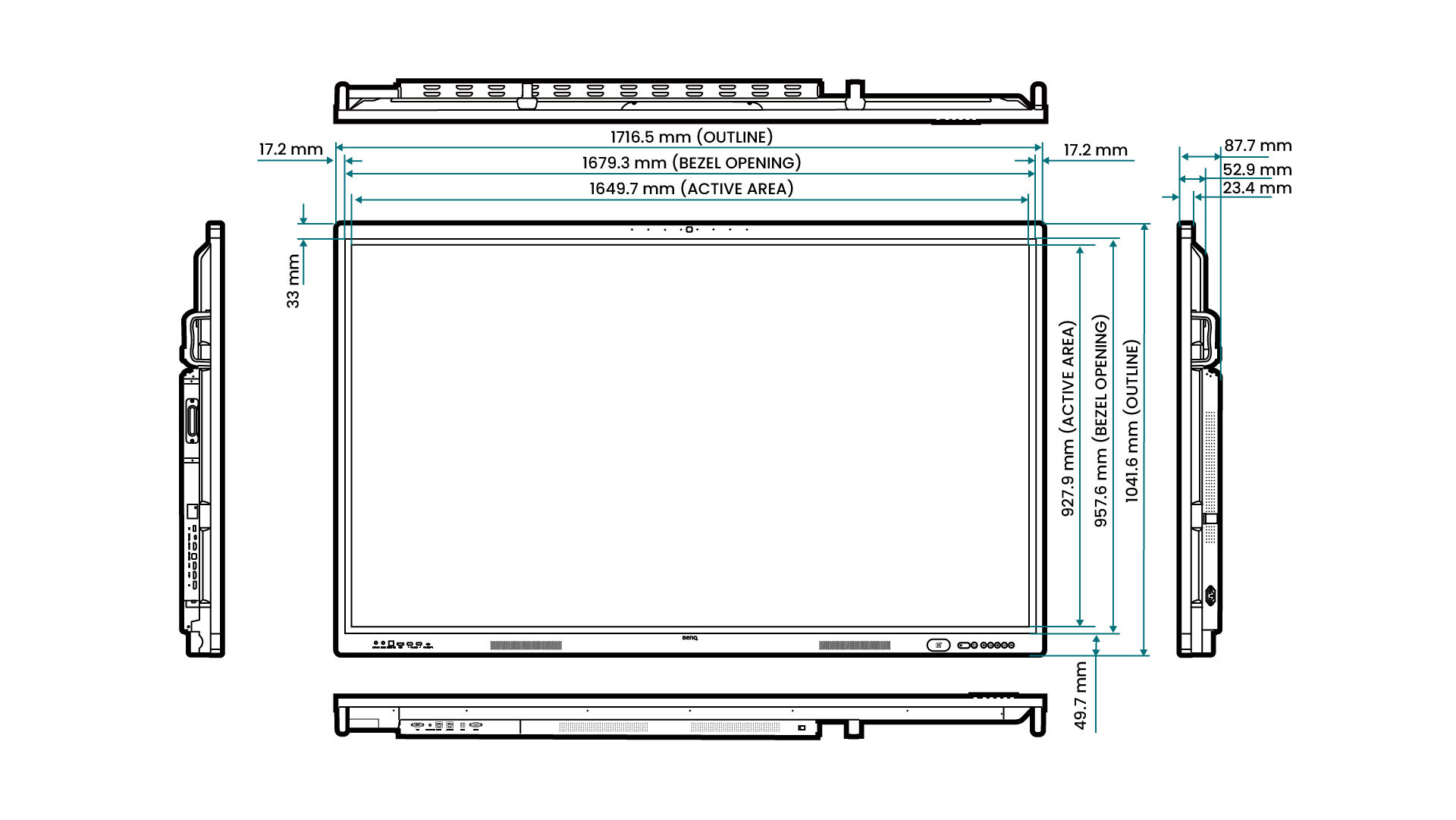

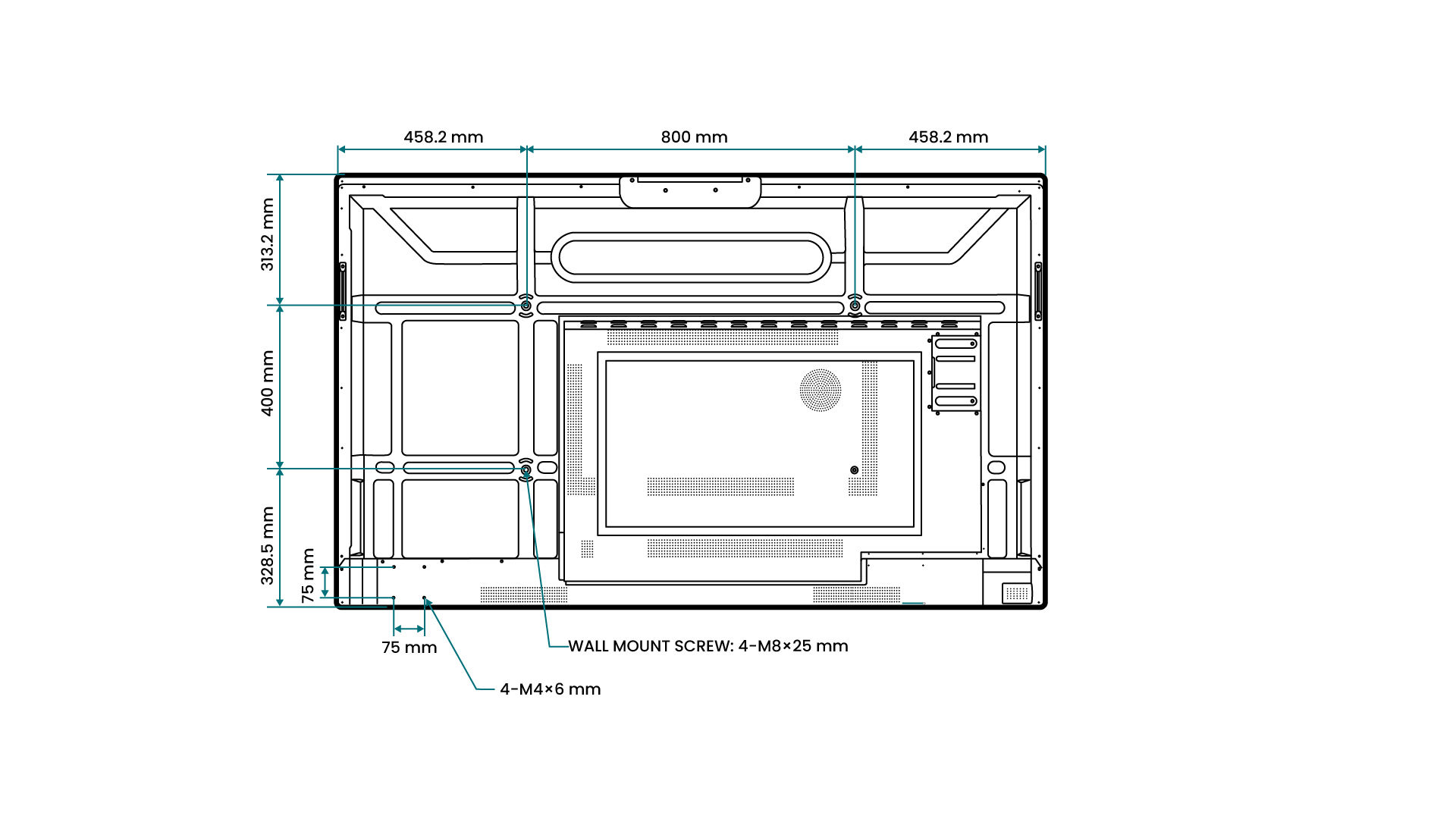

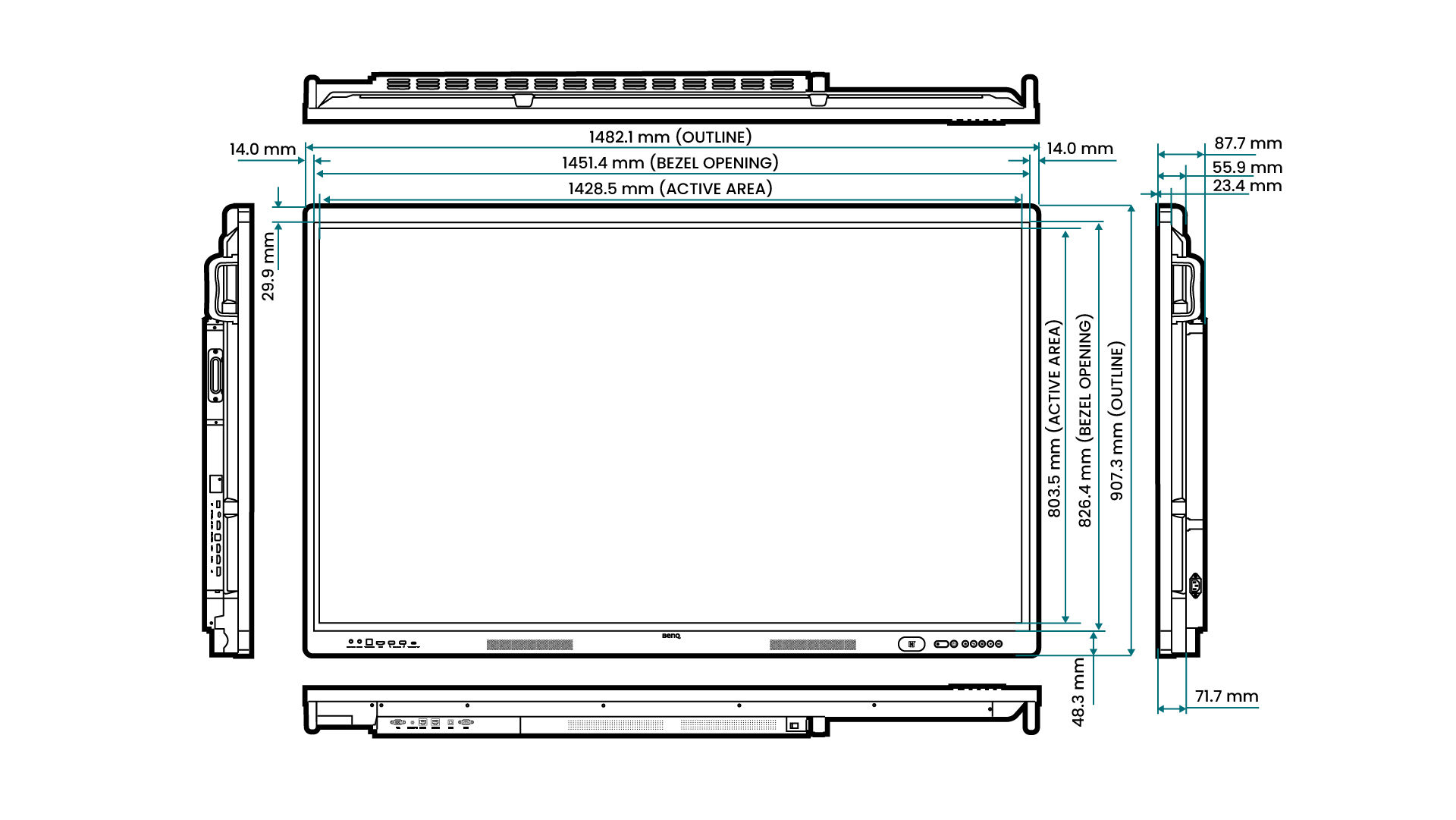

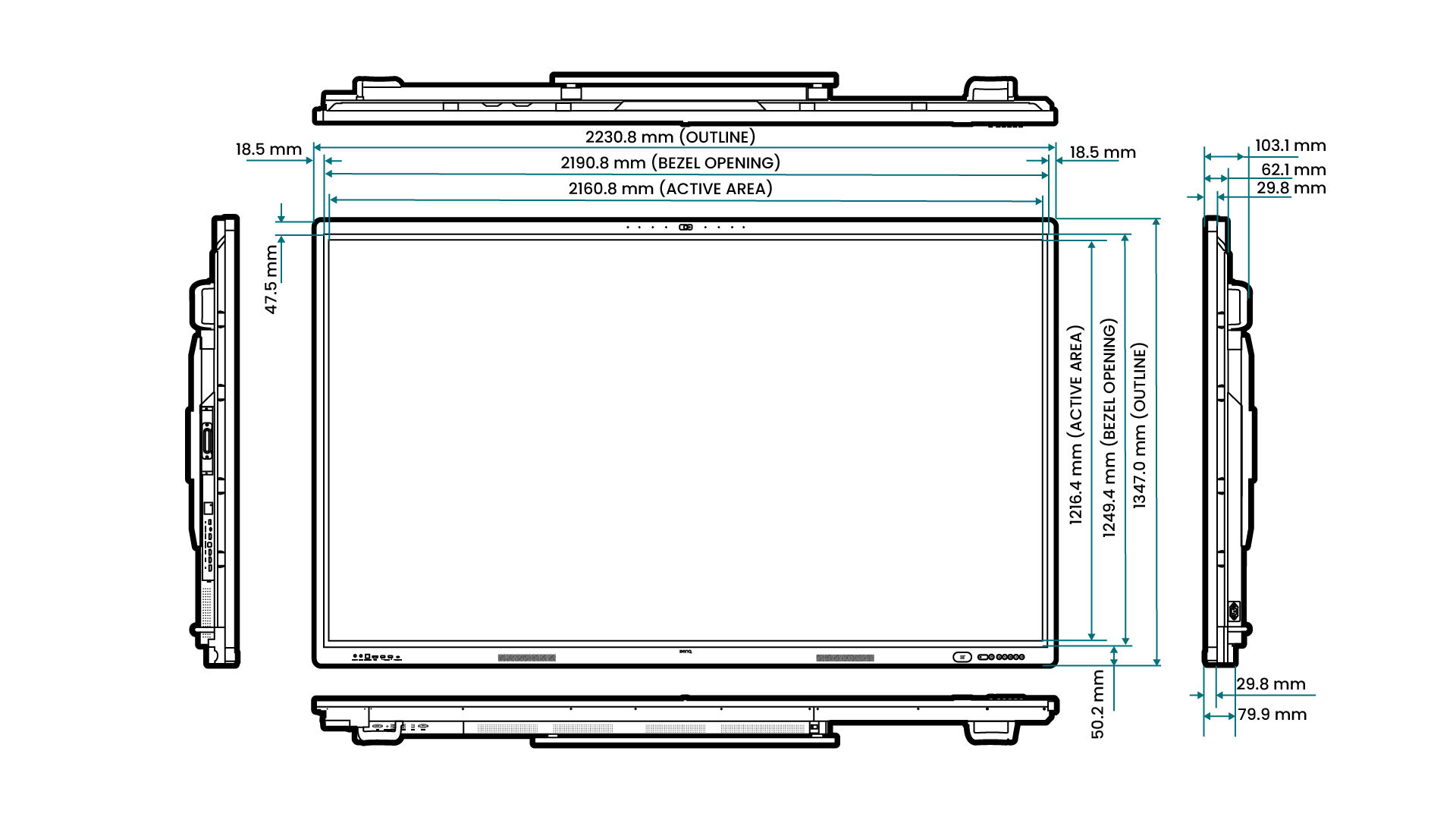

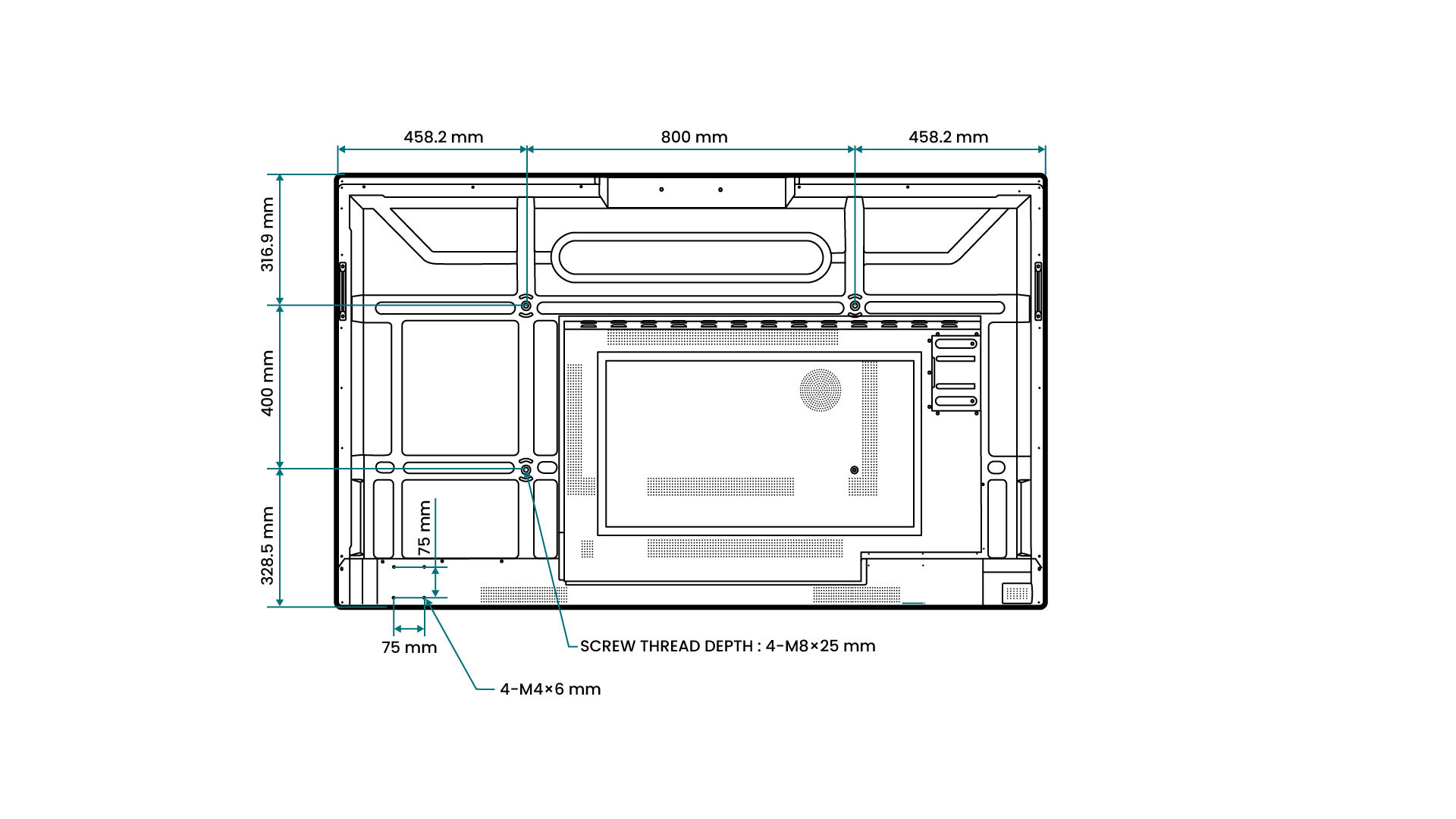

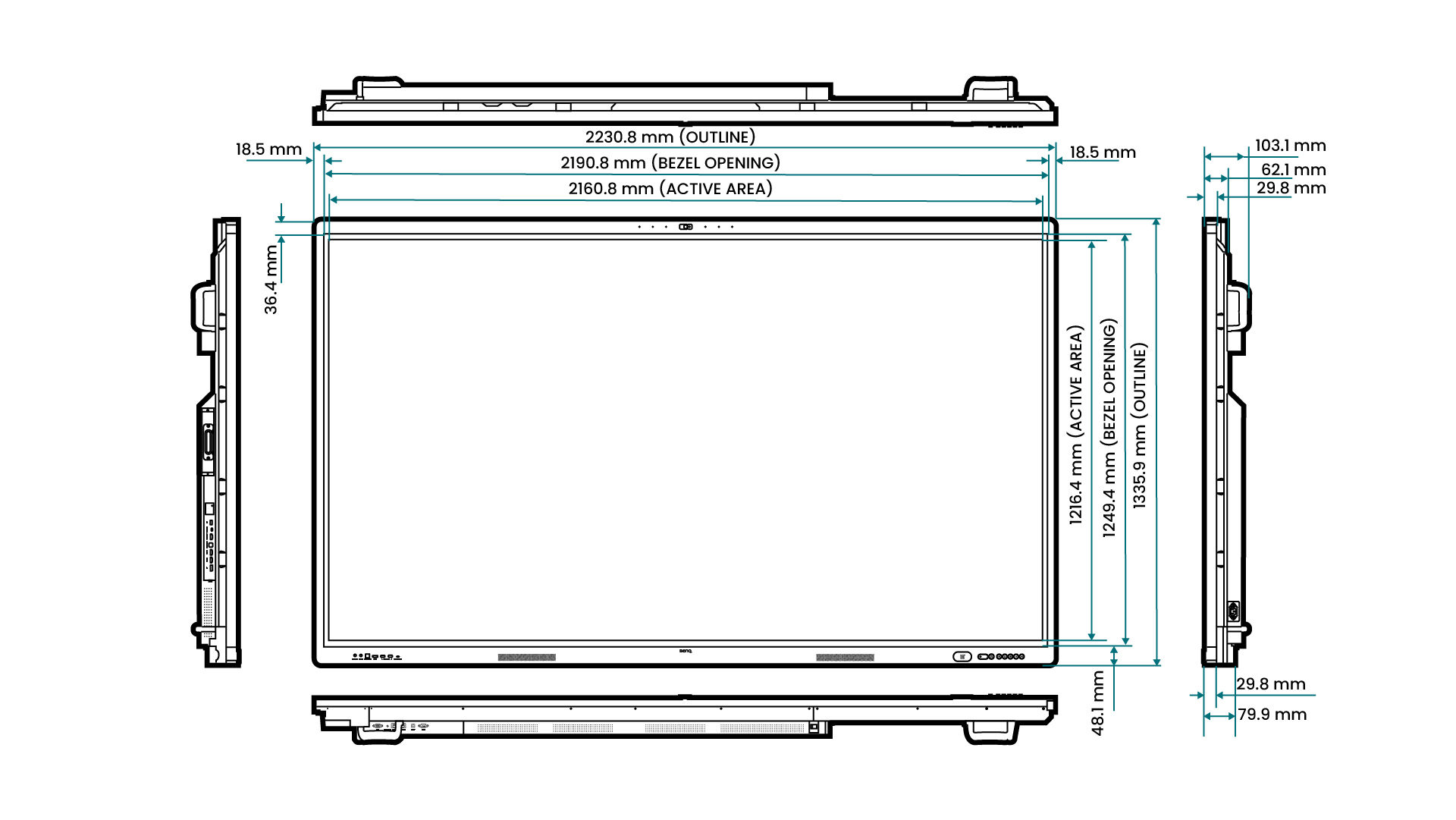

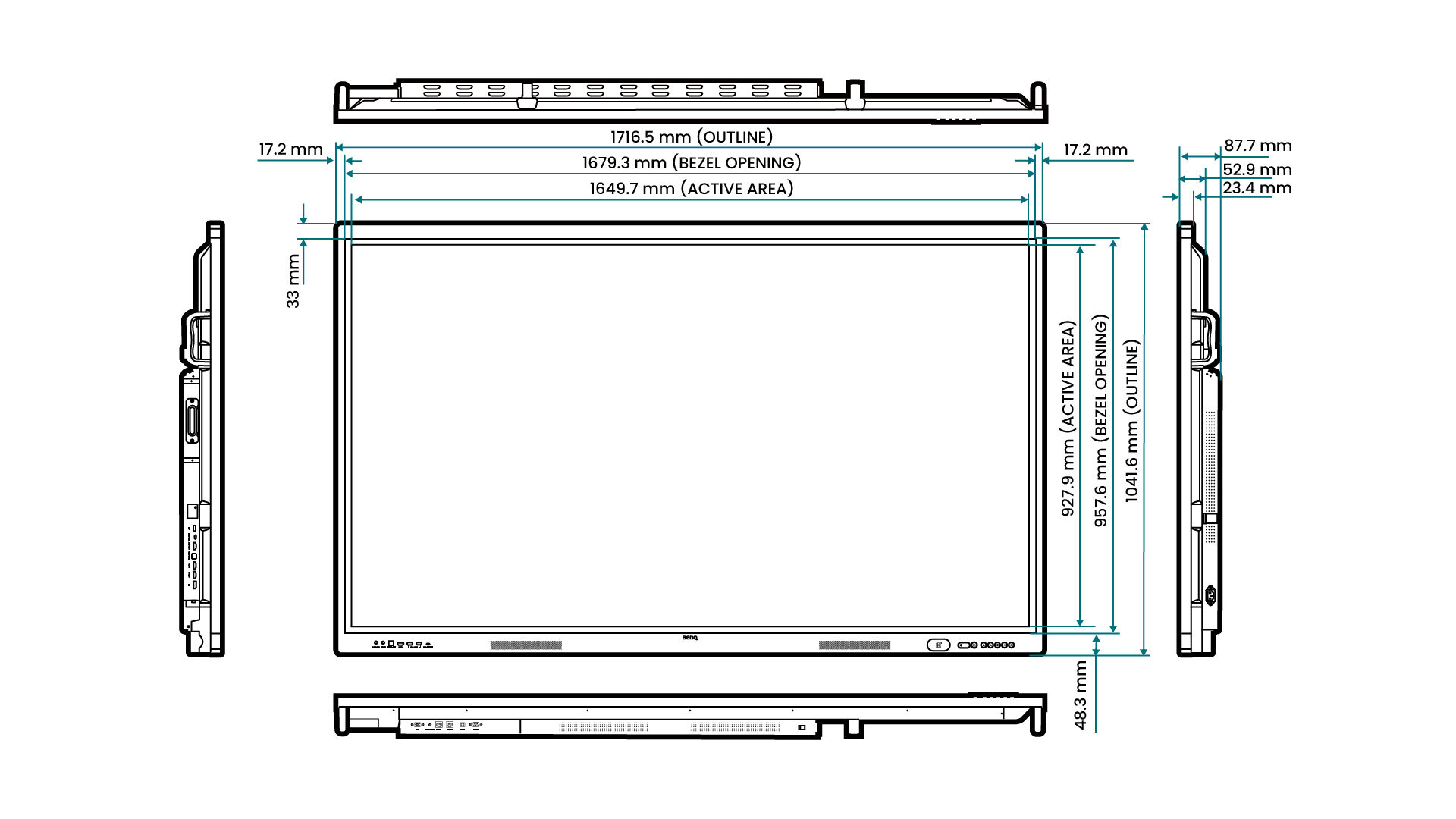

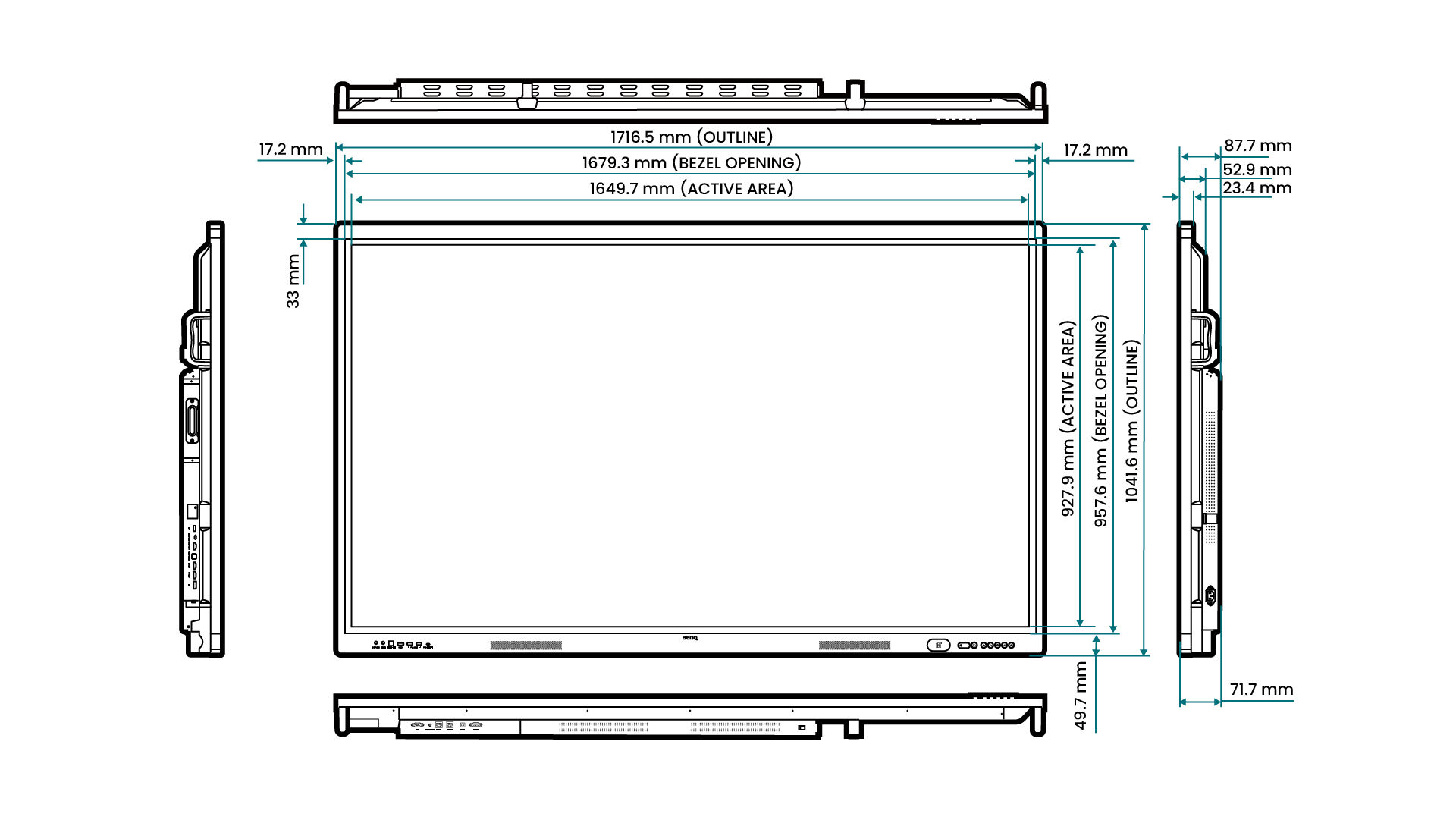

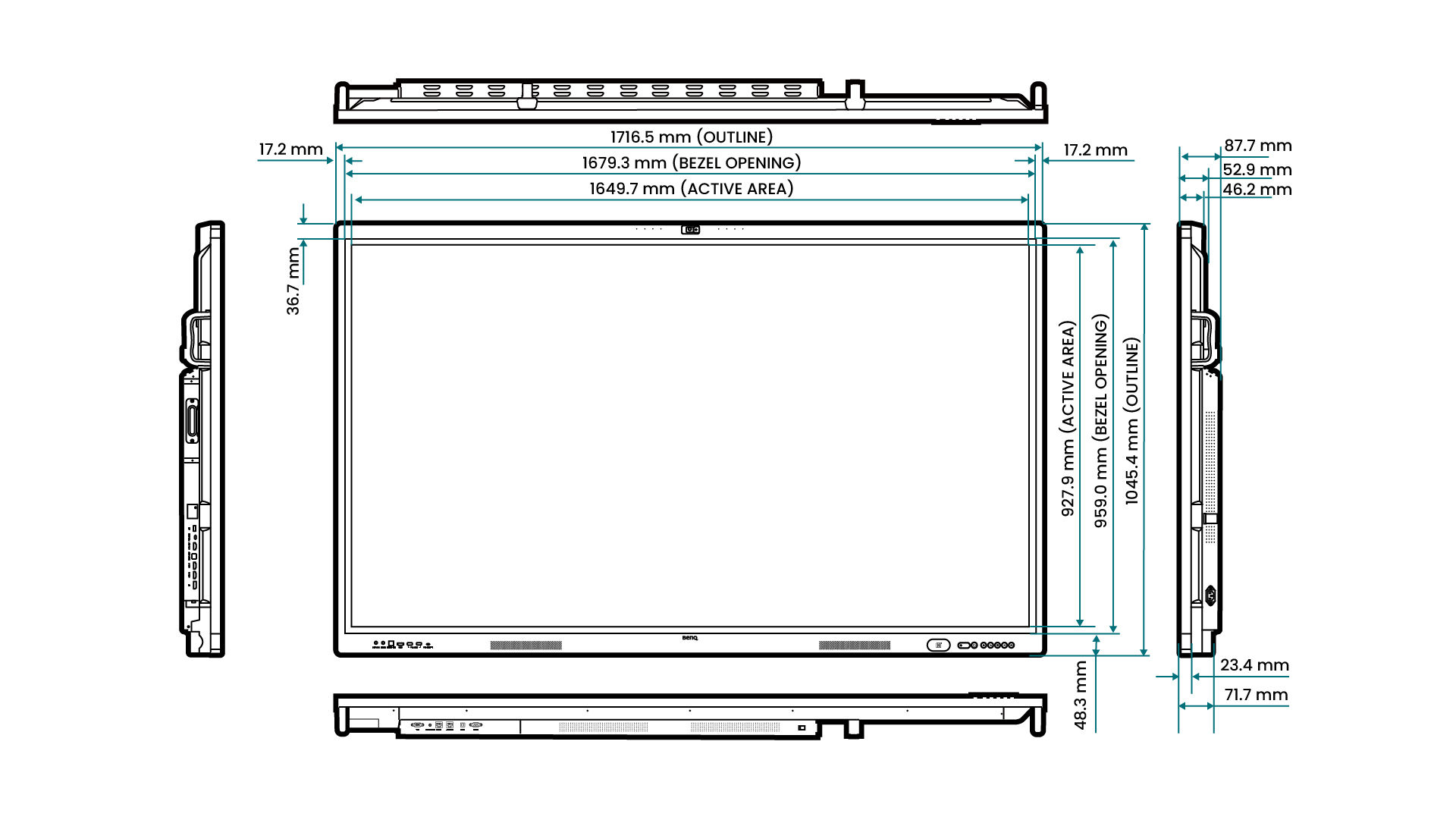

Dimensions
RE6504
RE7504
RE8604
RE6504F
RE7504F
RE8604F
RE6504FV
RE7504FV
RE8604FV
RE9804FV
RE6504FV2
RE7504FV2
RE8604FV2
RE9804FV2
Package contents
Verify all the contents after opening the package. If any item is missing or damaged, please contact your dealer immediately.
Interactive display
Touch pen
Remote control
Power cord*
USB Type-C cable
Touch USB cable
HDMI cable
VGA cable
Wall mount with screws
User documents
- Quick start guide
- Regulation sheets
Note
- * The type and quantity of power cord may differ depending on the region of purchase.
- Package contents and the pictures shown here may vary by region. Purchase these items separately if they are not included in the package.
Important
- Ensure that there are no accessories left inside the box before discarding the packaging.
- Do not leave plastic bags within reach of young children or babies.
- Dispose of packaging materials wisely. Consider recycling the cardboard carton or storing the package for future transport of the display.
Components

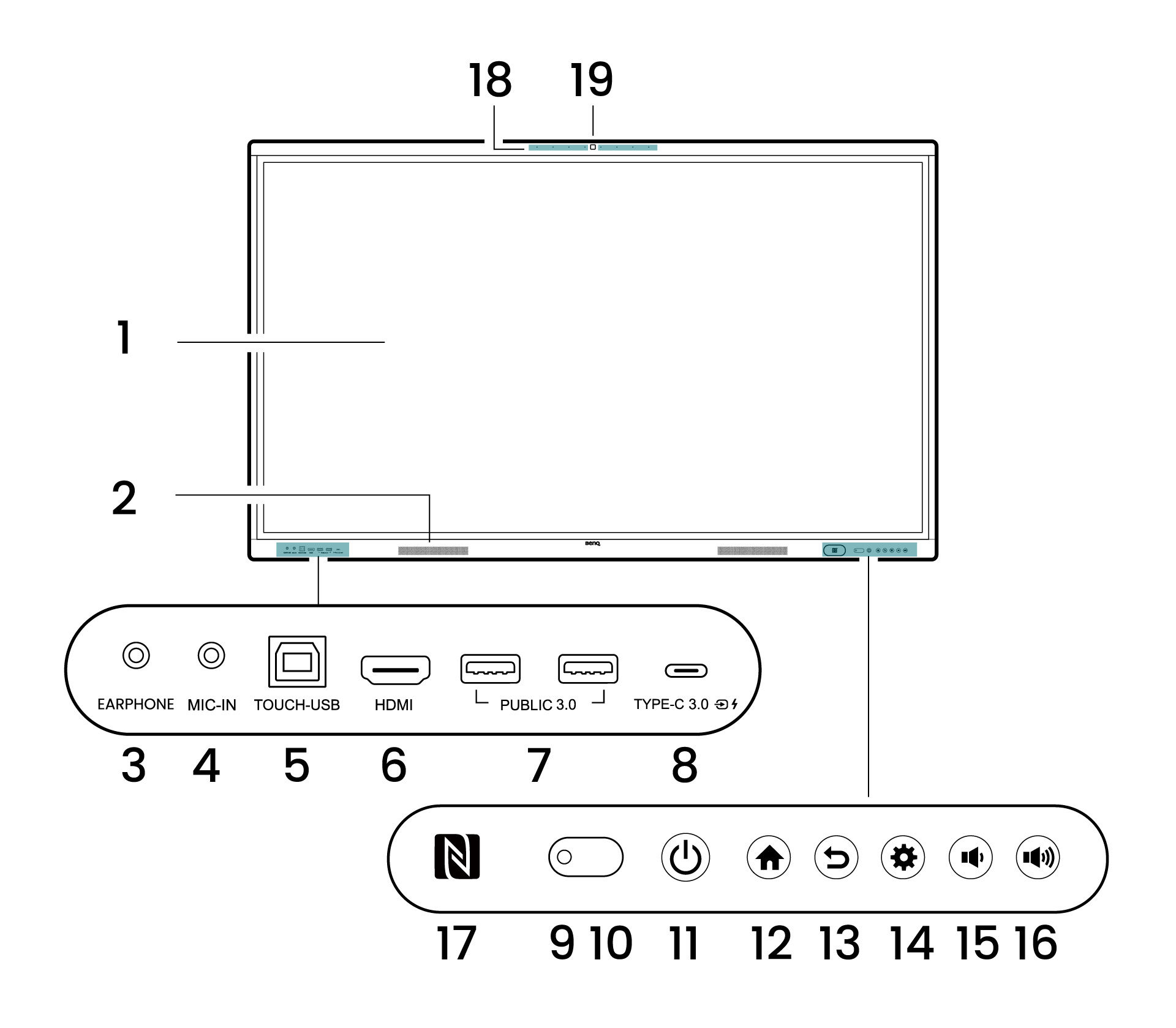

Front panel
Component
Component
1. Touchscreen
11. Power button
2. Soundbar
12. Home button
3. 3.5 mm audio out jack1
13. Back button
4. 3.5 mm microphone jack2
14. Settings button
5. Touch USB 3.0 Type-B port
15. Volume down button
6. HDMI in port
16. Volume up button
7. USB 3.0 Type A ports3
17. NFC sensor*
8. USB 3.0 Type-C port (PD 65 W)4
18. 8-microphone array**
9. Ambient light sensor
19. 4K camera**
10. IR sensor
Note
1 The 3.5 mm audio out jack does not support audio input, including microphone input from headset devices.
2 The 3.5 mm microphone jack only supports 3.5 mm TRS connectors.
3 The USB 3.0 Type-A ports function as USB passthrough ports. When a laptop is connected to the display as an input source, users can use these as extra data ports for their laptop.
4 The multi-purpose USB-C port can be used for data, video, and audio transmission, touchback, and 65-watt charging.
* For RE04F & RE04FV series only
** For RE04FV series only
- Regularly clean the input/output ports to prevent dust accumulation.

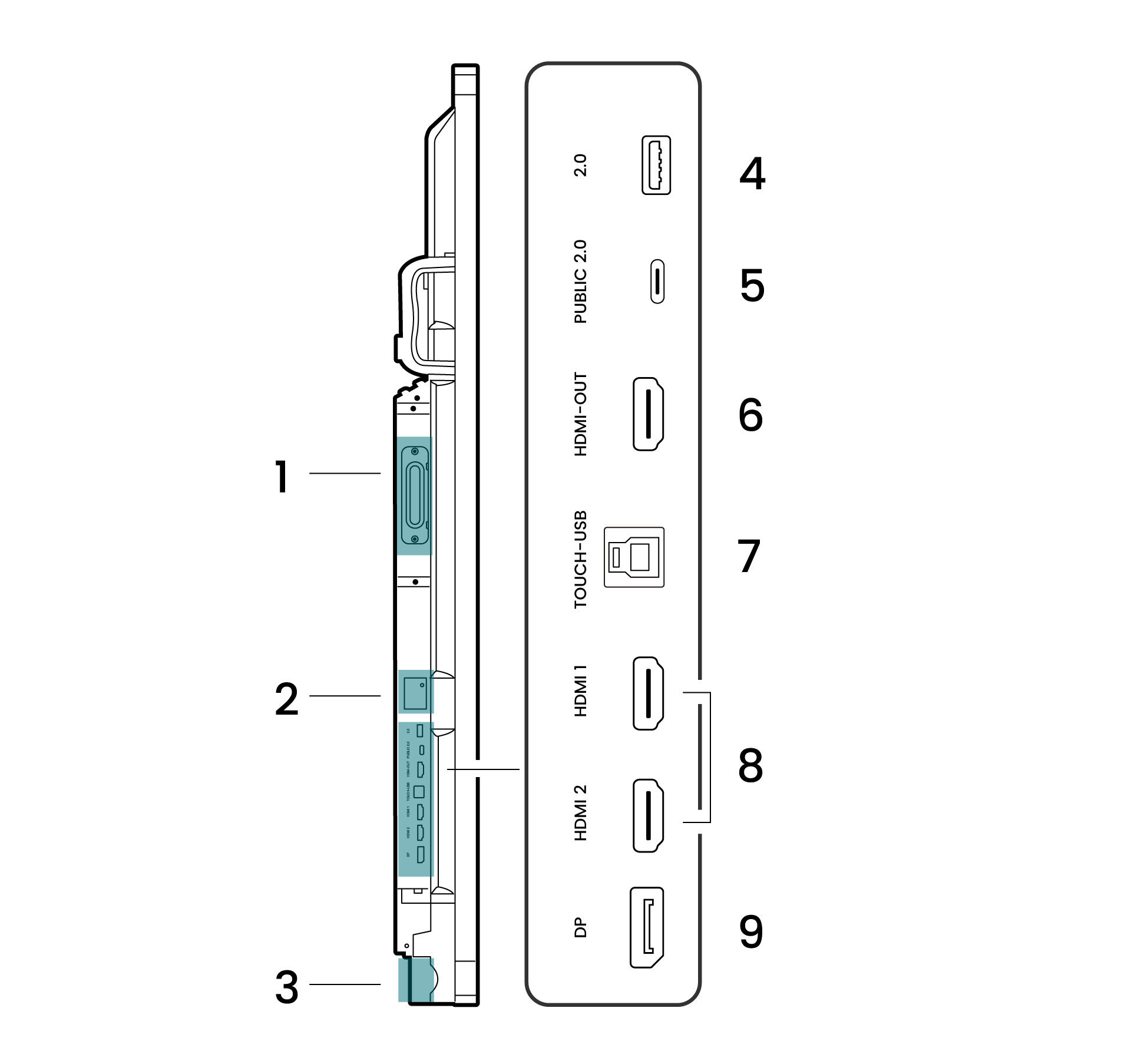

Left panel
Component
Component
1. OPS slot
6. HDMI out port
2. Micro SD reader
7. Touch USB 3.0 Type-B port
3. USB 2.0 Type-A port1
8. HDMI in ports3
4. USB 2.0 Type-A port
9. DisplayPort port
5. USB 2.0 Type-C port2
Note
1 The USB 2.0 Type-A port are dedicated for the Bluetooth Wi-Fi adapter.
2 The USB 2.0 Type-C port function as USB passthrough ports. When a laptop is connected to the display as an input source, users can use these as extra data ports for their laptop.
3 The HDMI1 port supports HDMI ARC. For details, see Output.
- Regularly clean the input/output ports to prevent dust accumulation.

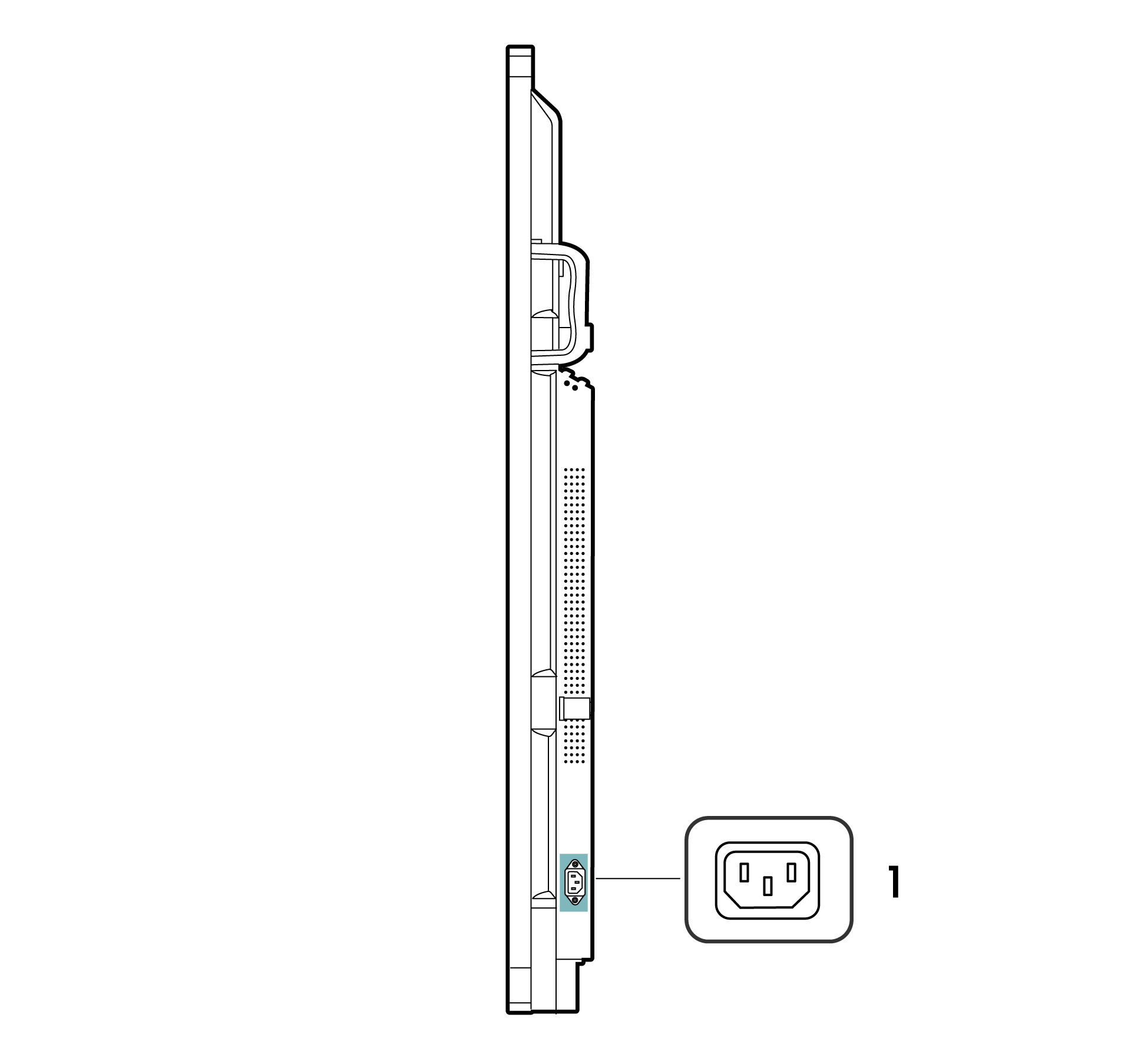

Right panel
Component
1. Power input

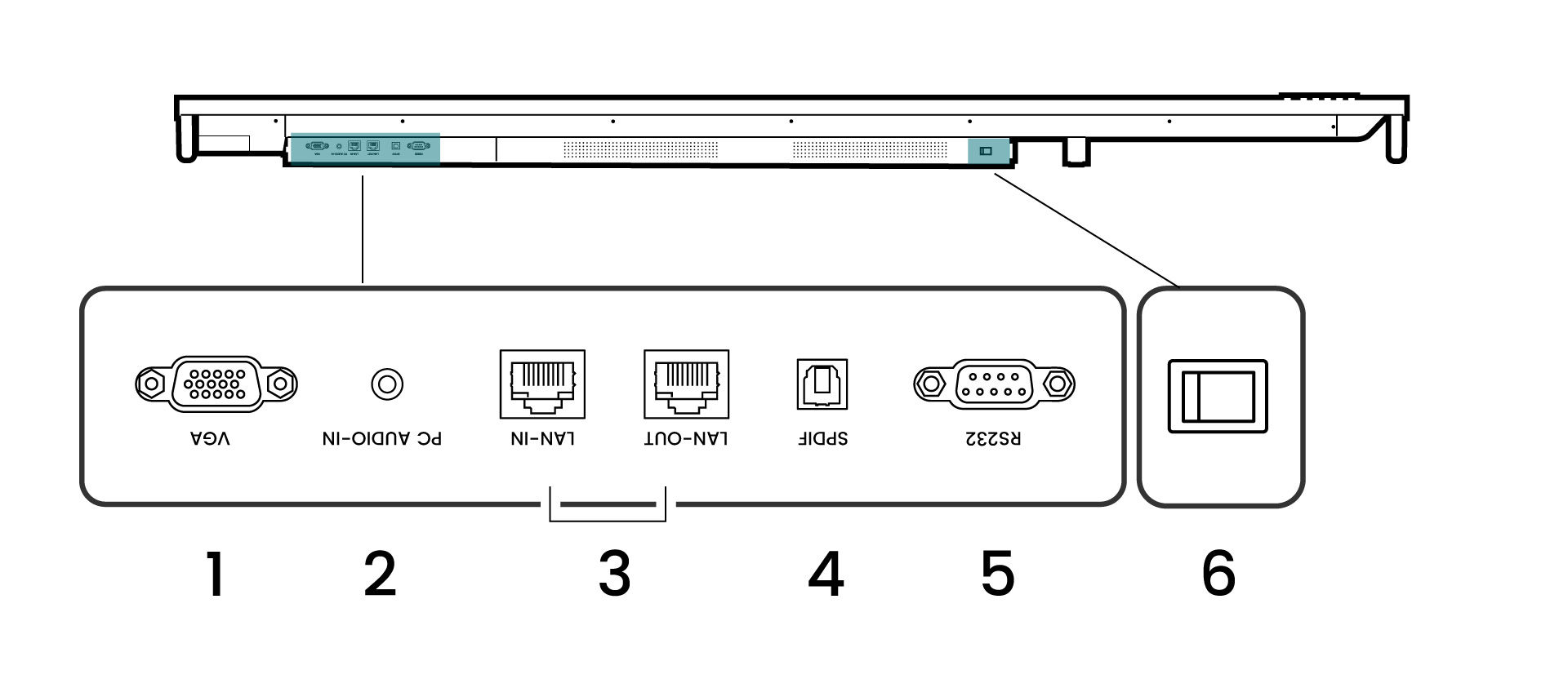

Bottom panel
Component
Component
1. VGA port
4. S/PDIF port
2. 3.5 mm audio jack1
5. RS-232 port
3. Gigabit Ethernet ports2
6. Power switch
Note
1 The 3.5 mm audio jack is dedicated for the VGA input.
2 The Gigabit Ethernet ports support data transfer speeds of 10/100/1000 Mbps.
- Regularly clean the input/output ports to prevent dust accumulation.

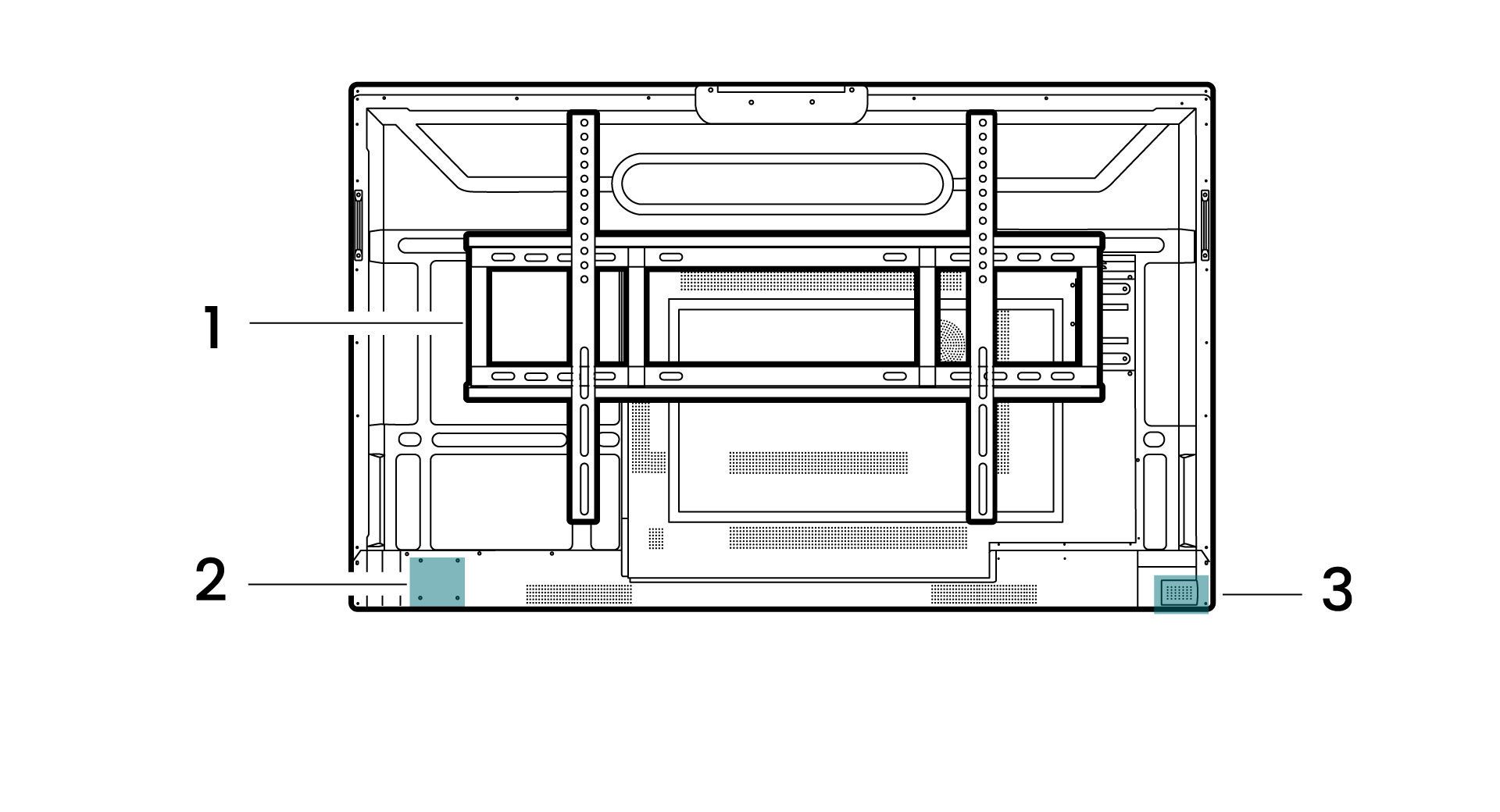

Rear panel
Component
Component
1. Wall mount (pre-installed)
3. USB slot security cover
2. Mini PC screw holes
Vesa specifications
Screw size:
- 65" - 86": M8 × 25 L
- 98": M8 × 20 L
Dimension
65"
75"
86"
98"
A
600 mm
800 mm
800 mm
800 mm
B
244.5 mm
313.2 mm
282.2 mm
361.1 mm
C
400 mm
400 mm
600 mm
600 mm
Installation requirements
Category
Item
Environment
- Room temperature: 0 to 40˚C (32 to 104˚F)
- Non-condensing relative humidity: 20 to 80%
- Flat, anti-static surface with no exposure to direct sunlight, liquids, and chemicals
Hardware and peripherals
Wireless USB adapter and/or Ethernet cable
Tools
- Scissors
- Phillips screwdriver
- Padding
- Anti-static wrist strap
Setting up the display
- Place the display in an environment that meets the requirements.
For details, see Installation requirements. - AAdd the display to DMS.
For details, see Adding the display to DMS. - Unbox the display.
For details, see Unboxing. - Mount the display.
For details, see Mounting. - Install any additional accessories and peripherals.
For details, see the following topics:
- Adapters
- External PCs - Connect the power cord and all applicable cables.
- Power on the display.
For details, see Powering on the display. - Set up BenQ Launcher.
For details, see Setting up BenQ Launcher. - Bind the display to AMS.
For details, see Binding the display to AMS.
