For wireless connectivity, secure two antennas to the front of the Chromebox.

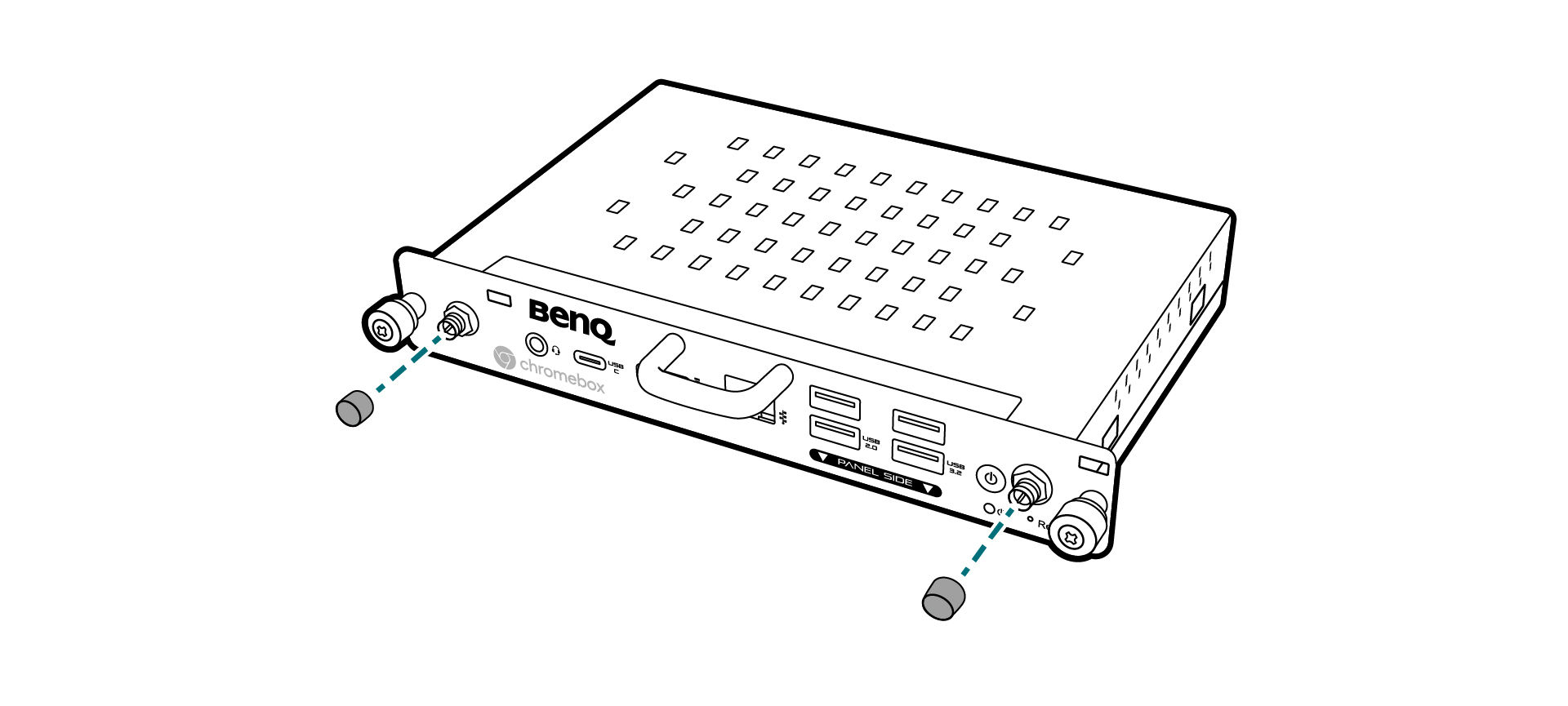

1. Remove the rubber caps from the antenna connectors.

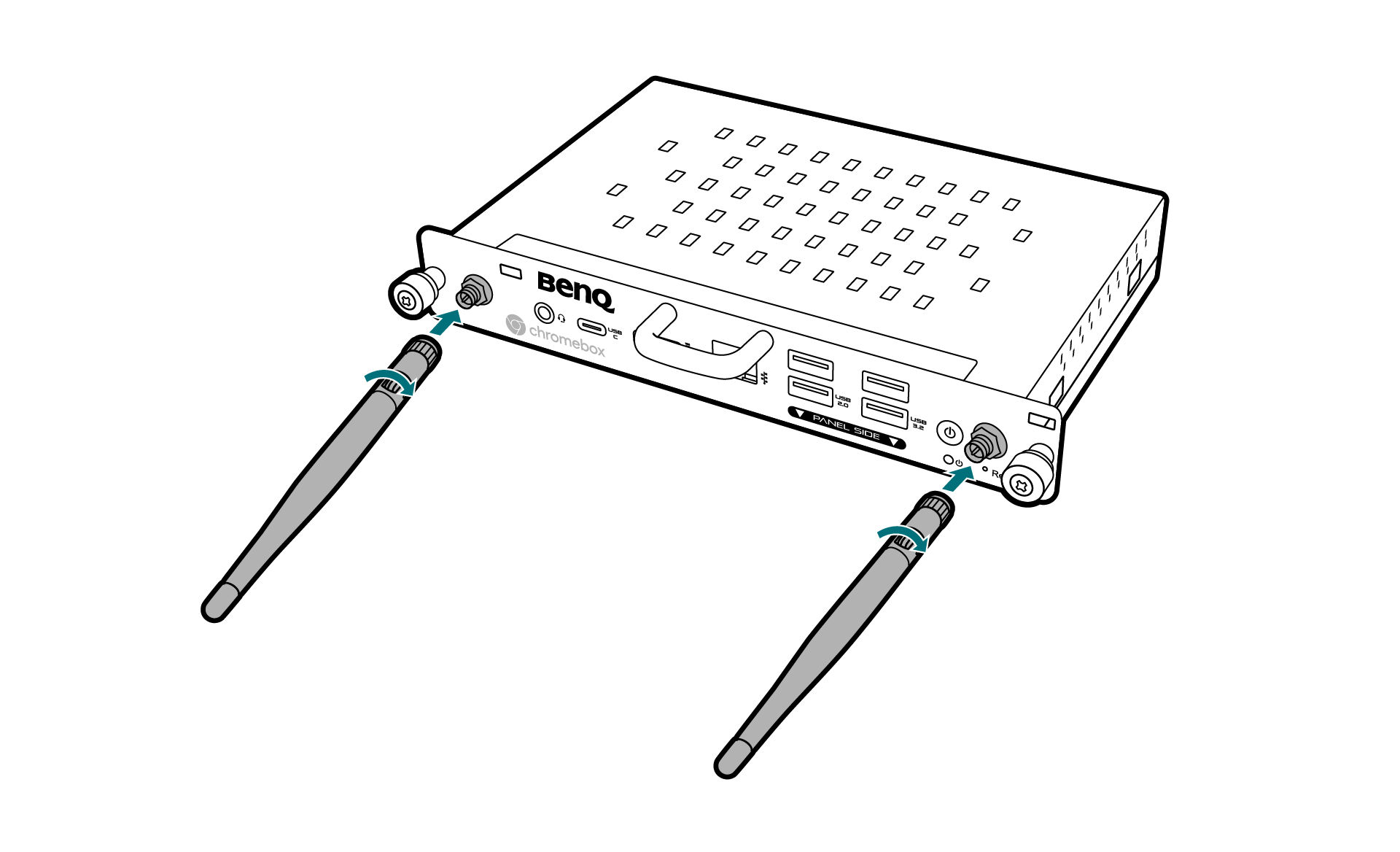

2. Firmly tighten the antennas to the connectors.

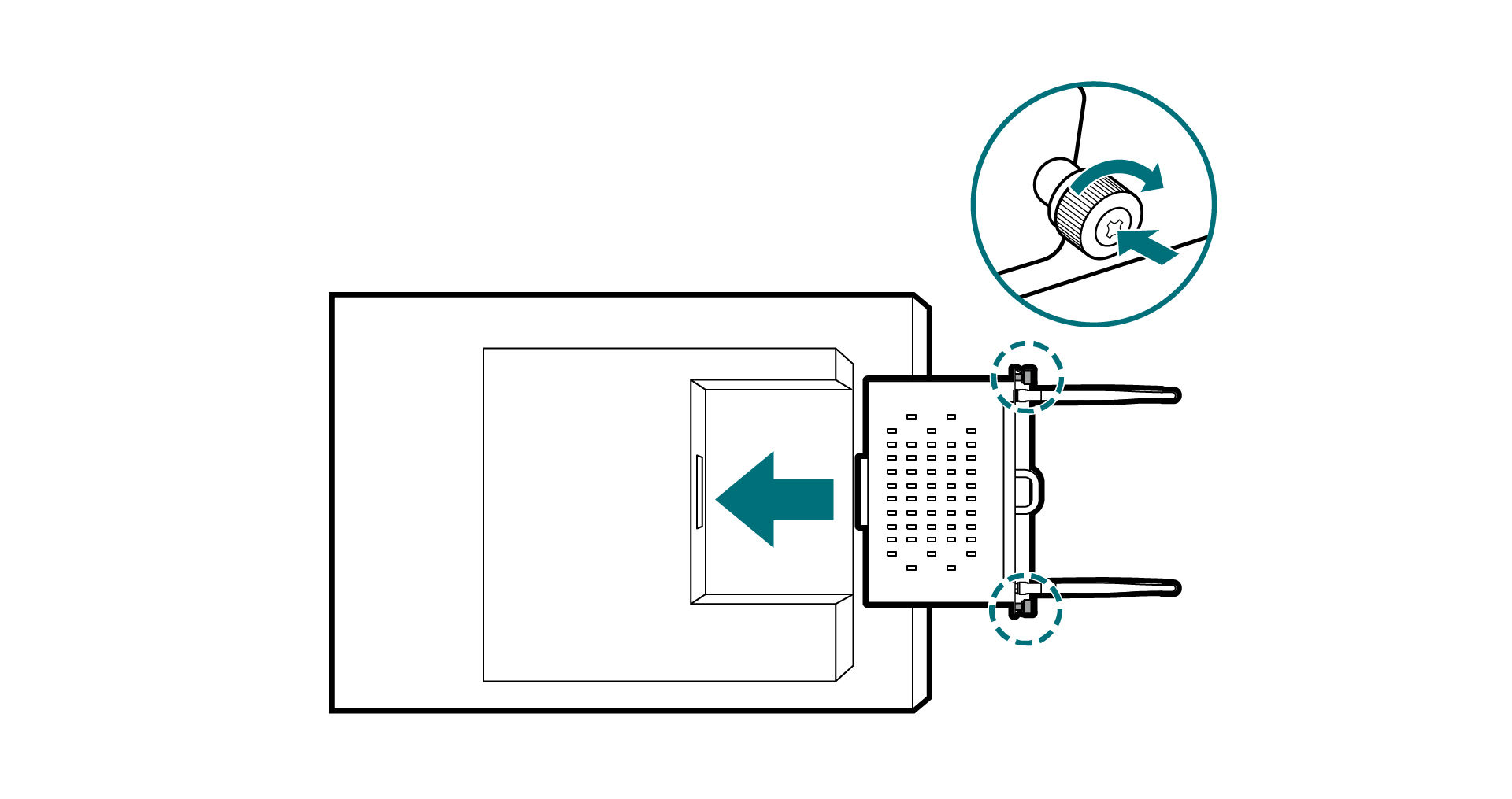

1. Insert the Chromebox into the OPS slot in your TV. Push on the module firmly until it is flush with the surface of the slot.
2. Secure the Chromebox to your TV by tightening the thumb screws.

Your Chromebox supports both wired and wireless mouse and keyboard.

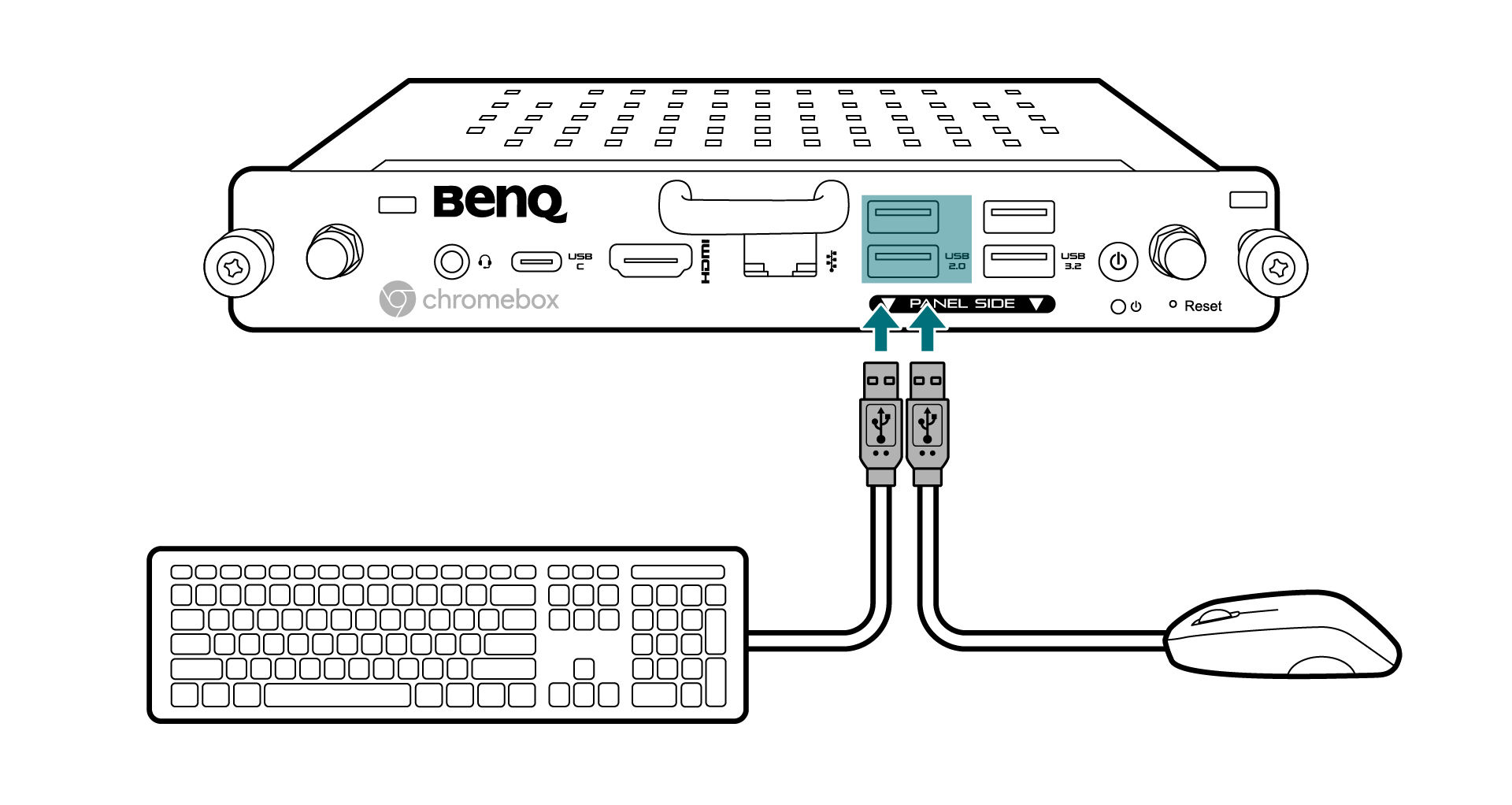

Connect the USB mouse and USB keyboard to the USB ports of your Chromebox.

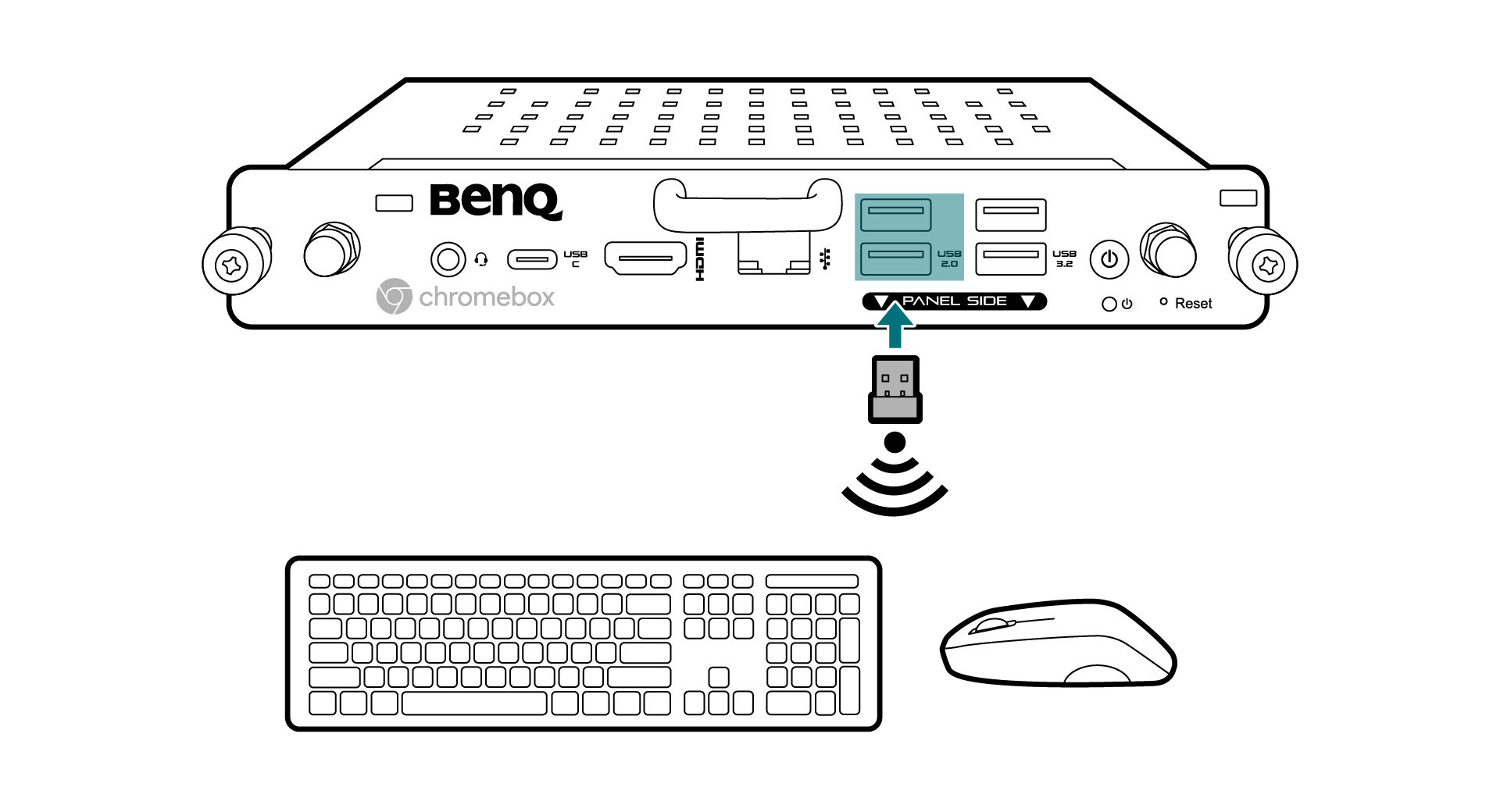

Connect the USB receiver that is supplied with your wireless mouse and keyboard to the USB port of your Chromebox.

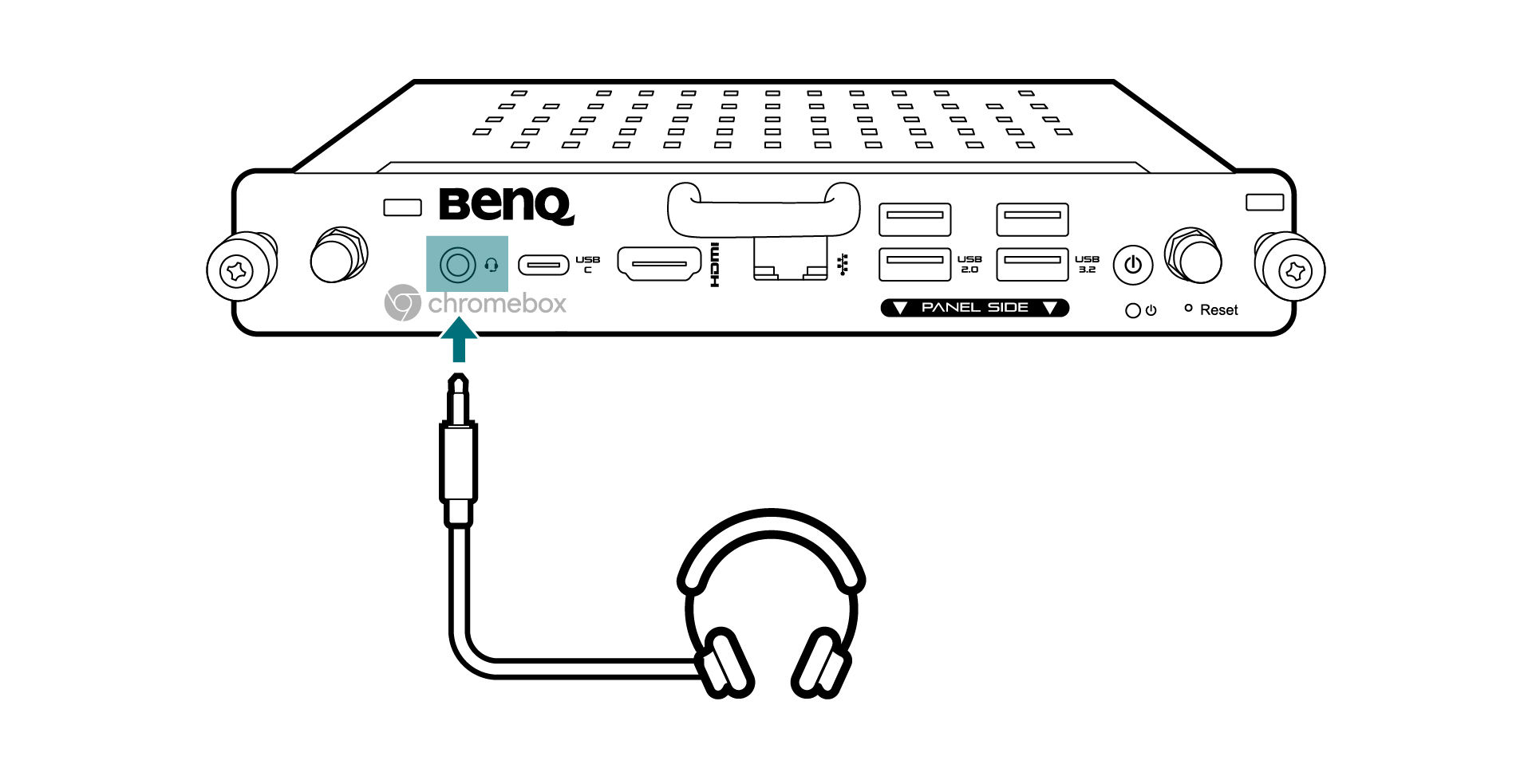

Connect the audio component into the audio jack of your Chromebox.

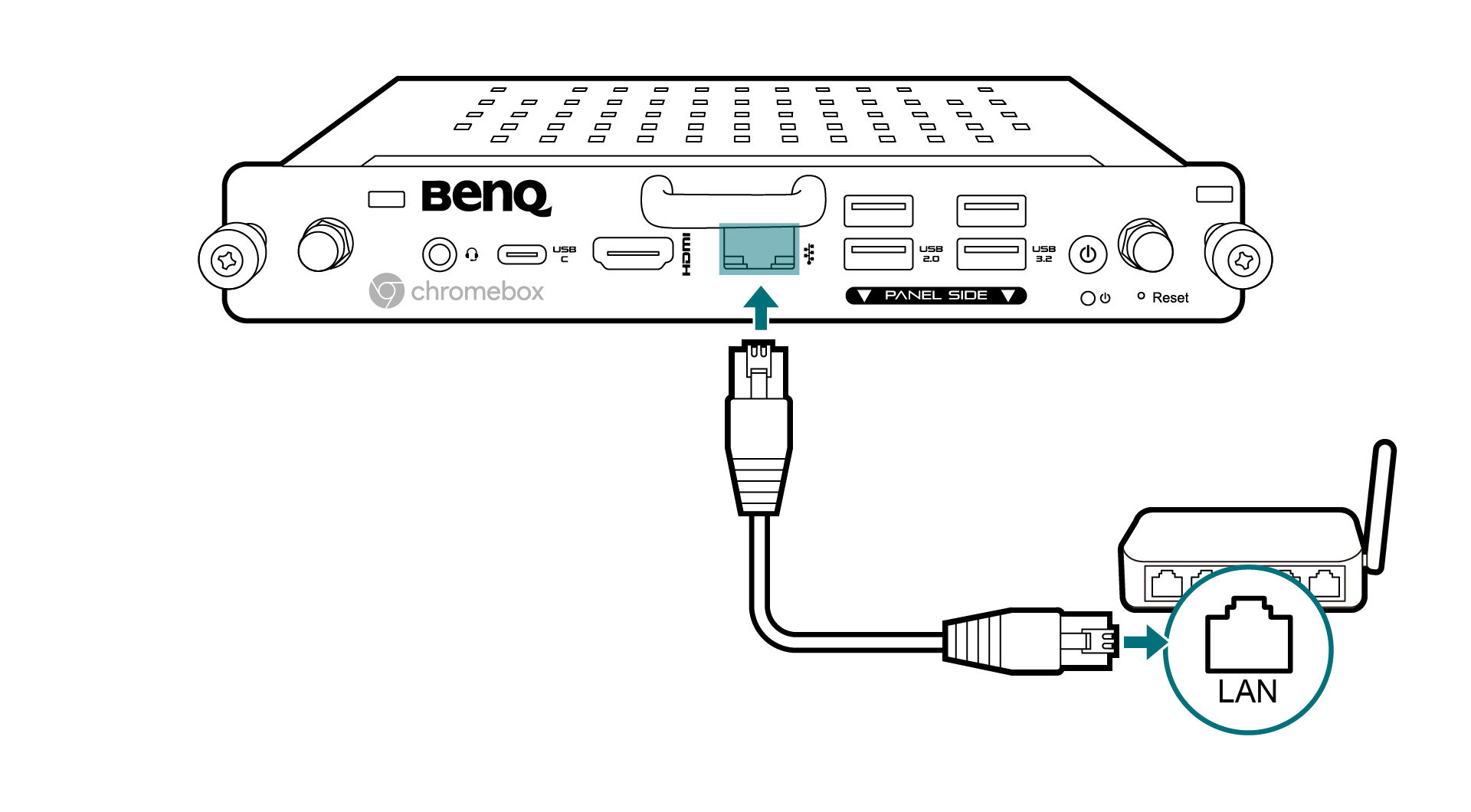

1. Connect one end of the RJ45 cable to the LAN port of your Chromebox.
2. Connect the other end of the RJ45 cable to a network connection device or a network wall connector.

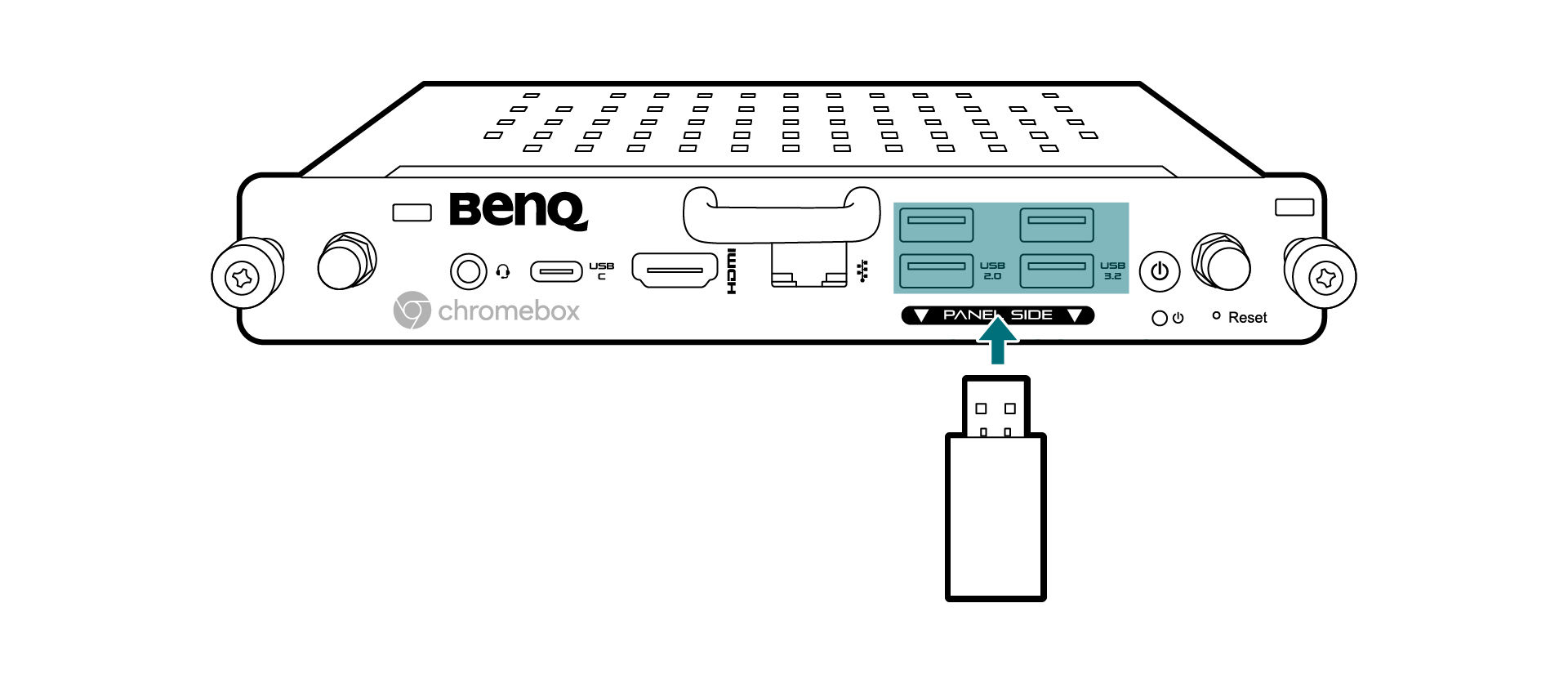

Depending on the supported USB type, connect the USB device to the respective USB port of your Chromebox.

• USB-A 3.2 compatible device connect to one of the following USB ports:

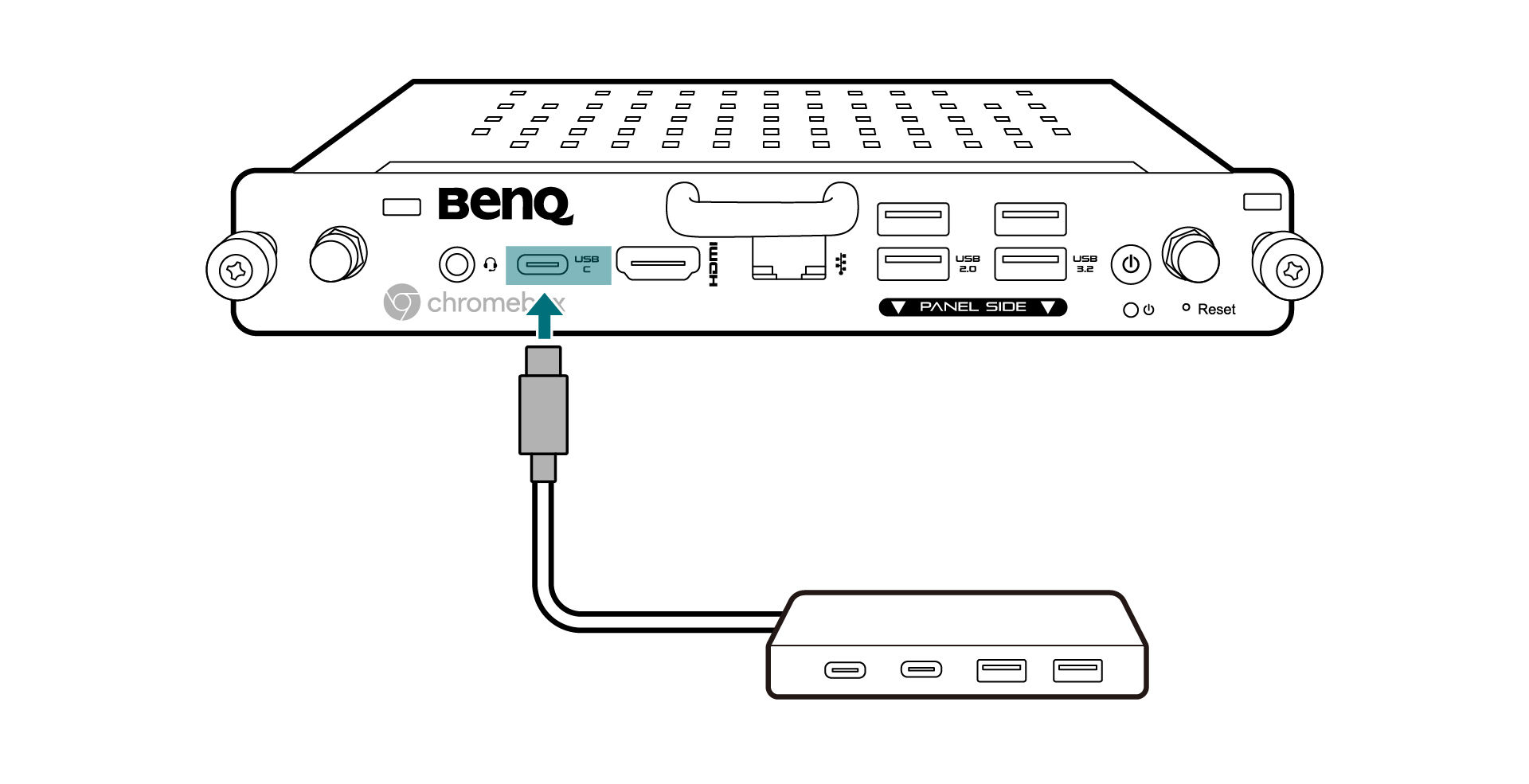

• USB-C compatible device connect to the following USB port:

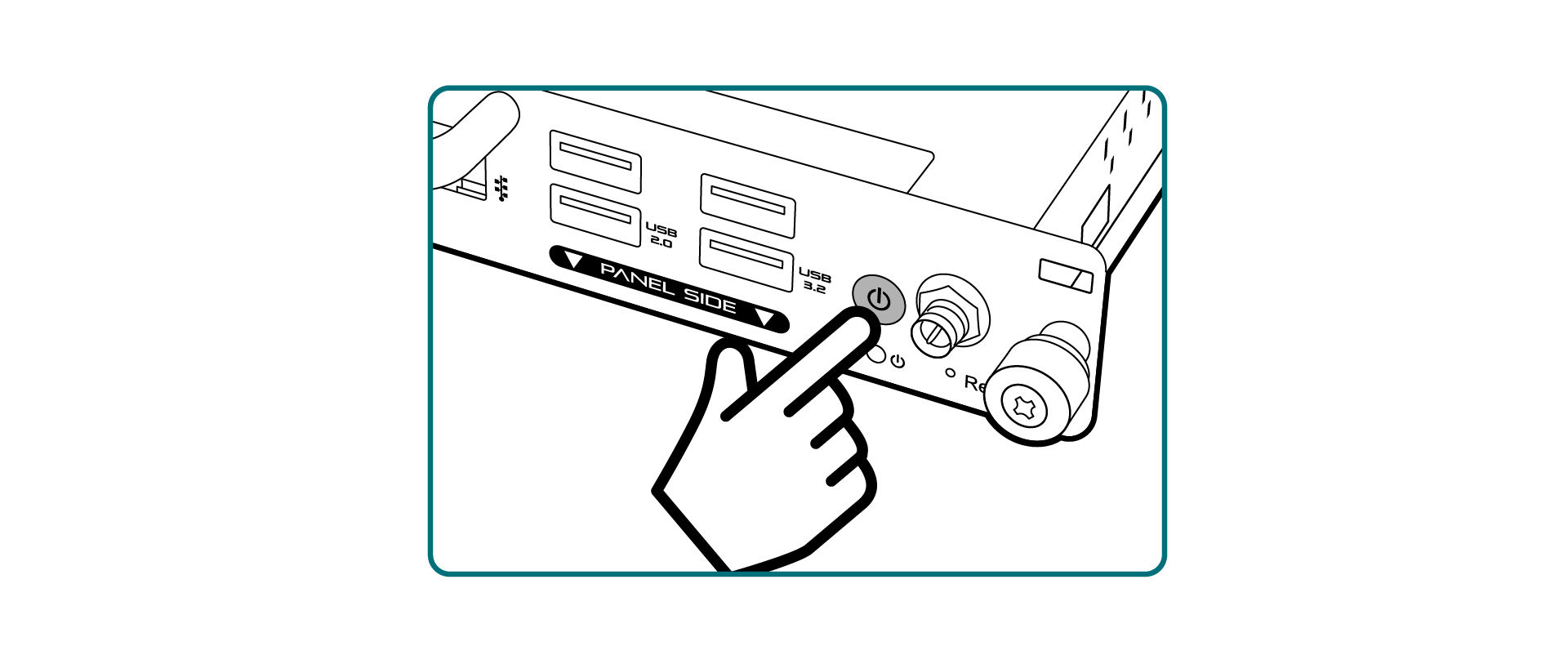

To power on your Chromebox, press the Power button on the front panel. The Power button LED lights solid blue.

After you power on the Chromebox for the first time, you are prompted to configure some device’s basic settings, such as set the language, configure accessibility options, connect to the network, and finally sign in to your Google account. Follow the on-screen instructions to complete the initial setup.
