All Specifications
| Panel | |||
|---|---|---|---|
|
Screen size
55''
|
Screen size
65''
|
Screen size
75''
|
|
|
Panel type
IPS
|
Panel type
IPS
|
Panel type
IPS
|
|
|
Active area
1209.6 × 680.4 mm
|
Active area
1428.5 × 803.5 mm
|
Active area
1649.7 × 927.9 mm
|
|
|
Aspect ratio
16:9
|
Aspect ratio
16:9
|
Aspect ratio
16:9
|
|
|
Resolution
UHD 3840 × 2160 pixels
|
Resolution
UHD 3840 × 2160 pixels
|
Resolution
UHD 3840 × 2160 pixels
|
|
|
Response time
8 ms
|
Response time
8 ms
|
Response time
8 ms
|
|
|
Color depth
10-bit
|
Color depth
10-bit
|
Color depth
10-bit
|
|
|
Orientation
Landscape and Portrait
|
Orientation
Landscape and Portrait
|
Orientation
Landscape and Portrait
|
|
|
Operation hours
24 hours / 7 days
|
Operation hours
24 hours / 7 days
|
Operation hours
24 hours / 7 days
|
|
|
Panel brightness (typical)
800 nits
|
Panel brightness (typical)
800 nits
|
Panel brightness (typical)
800 nits
|
|
|
Contrast ratio (typical)
1200:1
|
Contrast ratio (typical)
1200:1
|
Contrast ratio (typical)
1200:1
|
|
|
Color gamut
CIE 1976: 95% DCI-P3, 99% sRGB, 85% NTSC
|
Color gamut
CIE 1976: 95% DCI-P3, 99% sRGB, 85% NTSC
|
Color gamut
CIE 1976: 95% DCI-P3, 99% sRGB, 85% NTSC
|
|
|
Backlight life (typical)
50,000 hrs
|
Backlight life (typical)
50,000 hrs
|
Backlight life (typical)
50,000 hrs
|
|
| Glass | |||
|
Anti-glare
Yes
|
Anti-glare
Yes
|
Anti-glare
Yes
|
|
| System | |||
|
Memory | Storage
8 GB | 64 GB
|
Memory | Storage
8 GB | 64 GB
|
Memory | Storage
8 GB | 64 GB
|
|
|
OS
Android 13.0
|
OS
Android 13.0
|
OS
Android 13.0
|
|
|
GPU
G52 MP8
|
GPU
G52 MP8
|
GPU
G52 MP8
|
|
|
CPU
A73 × 4 + A53 × 4
|
CPU
A73 × 4 + A53 × 4
|
CPU
A73 × 4 + A53 × 4
|
|
| Connectivity | |||
|
HDMI (in | out)
2 × HDMI 2.0 | No
|
HDMI (in | out)
2 × HDMI 2.0 | No
|
HDMI (in | out)
2 × HDMI 2.0 | No
|
|
|
USB-A
2 × 2.0
|
USB-A
2 × 2.0
|
USB-A
2 × 2.0
|
|
|
Ethernet
10 / 100 Mbps (Android) × 1
|
Ethernet
10 / 100 Mbps (Android) × 1
|
Ethernet
10 / 100 Mbps (Android) × 1
|
|
|
RS-232
1 | 0
|
RS-232
1 | 0
|
RS-232
1 | 0
|
|
| Built-in peripherals | |||
|
IR sensor
Yes
|
IR sensor
Yes
|
IR sensor
Yes
|
|
|
Speaker
2 × 12 W
|
Speaker
2 × 12 W
|
Speaker
2 × 12 W
|
|
| Power | |||
|
ENERGY STAR®
Yes
|
ENERGY STAR®
Yes
|
ENERGY STAR®
Yes
|
|
|
Power
AC 100-240V 50/60Hz
|
Power
AC 100-240V 50/60Hz
|
Power
AC 100-240V 50/60Hz
|
|
|
Standby power consumption
<0.5 W
|
Standby power consumption
<0.5 W
|
Standby power consumption
<0.5 W
|
|
|
Typical power consumption
110.3 W
|
Typical power consumption
131.3 W
|
Typical power consumption
144.9 W
|
|
| Physical | |||
|

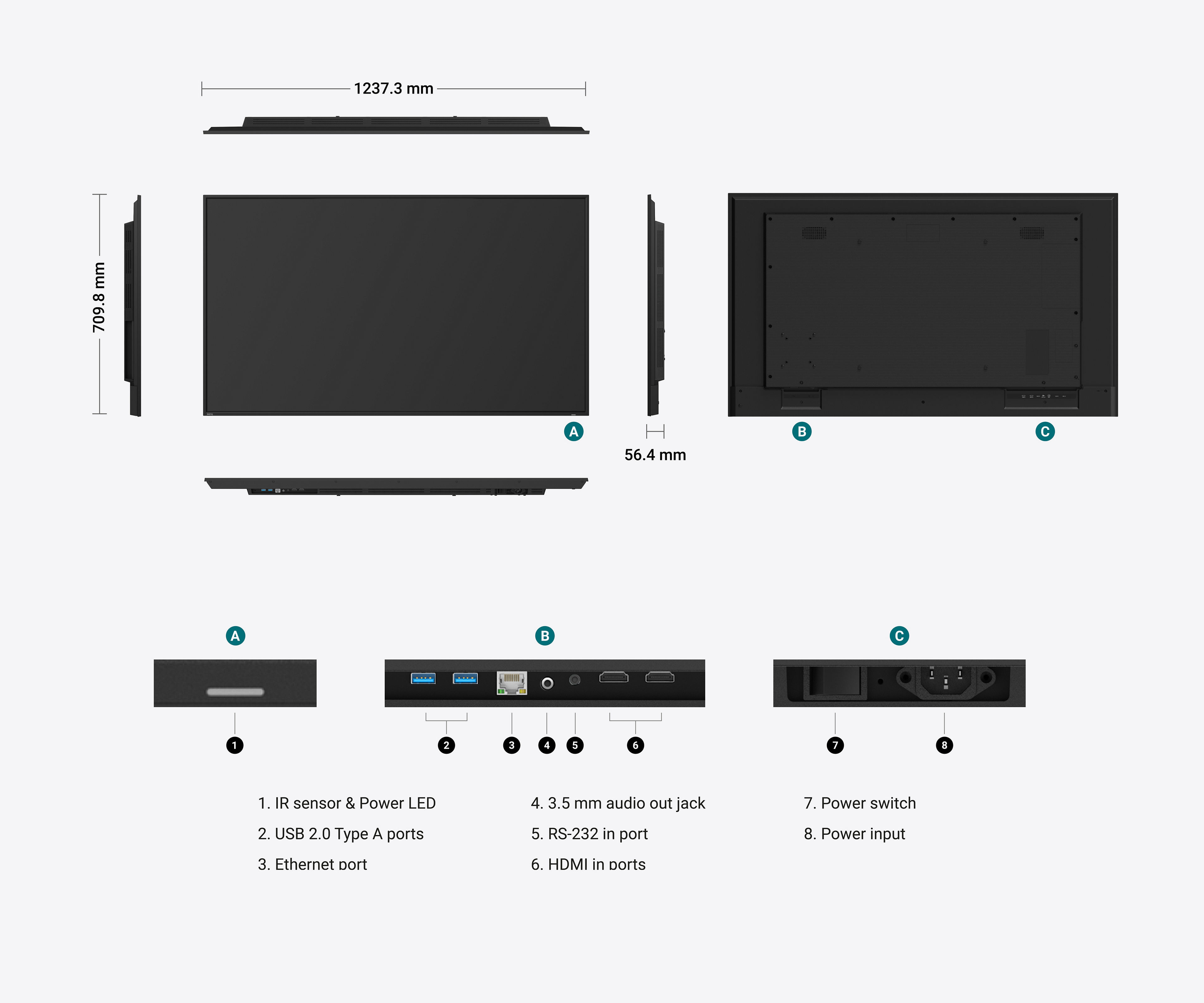

Dimensions (W x H x D)
1237.3 × 709.8 × 56.4 mm (48.7 × 27.9 × 2.2 inch)
|
Dimensions (W x H x D)
1456.4 × 833.7 × 57 mm (57.3 × 32.8 × 2.2 inch)
|
Dimensions (W x H x D)
1679.7 × 959 × 56.8 mm (66.1 × 37.8 × 2.2 inch)
|
|
|
Shipping dimensions (W x H x D)
1386 × 845 × 130 mm (54.6 × 33.3 × 5.1 inch)
|
Shipping dimensions (W x H x D)
1650 × 162 × 1016 mm (65 × 6.4 × 40 inch)
|
Shipping dimensions (W x H x D)
1883 × 186 × 1140 mm (74.1 × 7.3 × 44.9 inch)
|
|
|
Weight (product I shipping)
14.7 kg | 19.1 kg (32.4 lbs | 42.1 lbs)
|
Weight (product I shipping)
20.7kg | 28.7kg (45.6 lbs | 63.3 lbs)
|
Weight (product I shipping)
29kg | 40.5kg (63.9 lbs | 89.3 lbs)
|
|
|
Mount (screws)
VESA 400 × 400 mm (4 × M6 × 12L)
|
Mount (screws)
VESA 400 × 400 mm (4 × M8 × 16L)
|
Mount (screws)
VESA 600 × 400 mm (4 × M8 × 16L)
|
|
| Environment | |||
|
Operating temperature
0°C ~ 40°C | 32°F ~ 104°F
|
Operating temperature
0°C ~ 40°C | 32°F ~ 104°F
|
Operating temperature
0°C ~ 40°C | 32°F ~ 104°F
|
|
|
Storage temperature
-10°C ~ 60°C | 14°F ~ 140°F
|
Storage temperature
-10°C ~ 60°C | 14°F ~ 140°F
|
Storage temperature
-10°C ~ 60°C | 14°F ~ 140°F
|
|
|
Storage humidity
10% ~ 80% RH non-condensing
|
Storage humidity
10% ~ 80% RH non-condensing
|
Storage humidity
10% ~ 80% RH non-condensing
|
|
|
Operating humidity
10% ~ 80% RH non-condensing
|
Operating humidity
10% ~ 80% RH non-condensing
|
Operating humidity
10% ~ 80% RH non-condensing
|
|
| Software | |||
|
Wireless screen sharing
InstaShare 2
|
Wireless screen sharing
InstaShare 2
|
Wireless screen sharing
InstaShare 2
|
|
|
Device management
DMS
|
Device management
DMS
|
Device management
DMS
|
|
|
Account management
AMS
|
Account management
AMS
|
Account management
AMS
|
|
| Accessories | |||
|
Cables
1 × HDMI (1.5 m | 4.9 ft), 1 × RS232 (1.8 m | 5.9 ft)
|
Cables
1 × HDMI (1.5 m | 4.9 ft), 1 × RS232 (1.8 m | 5.9 ft)
|
Cables
1 × HDMI (1.5 m | 4.9 ft), 1 × RS232 (1.8 m | 5.9 ft)
|
|
|
Remote control
1
|
Remote control
1
|
Remote control
1
|
