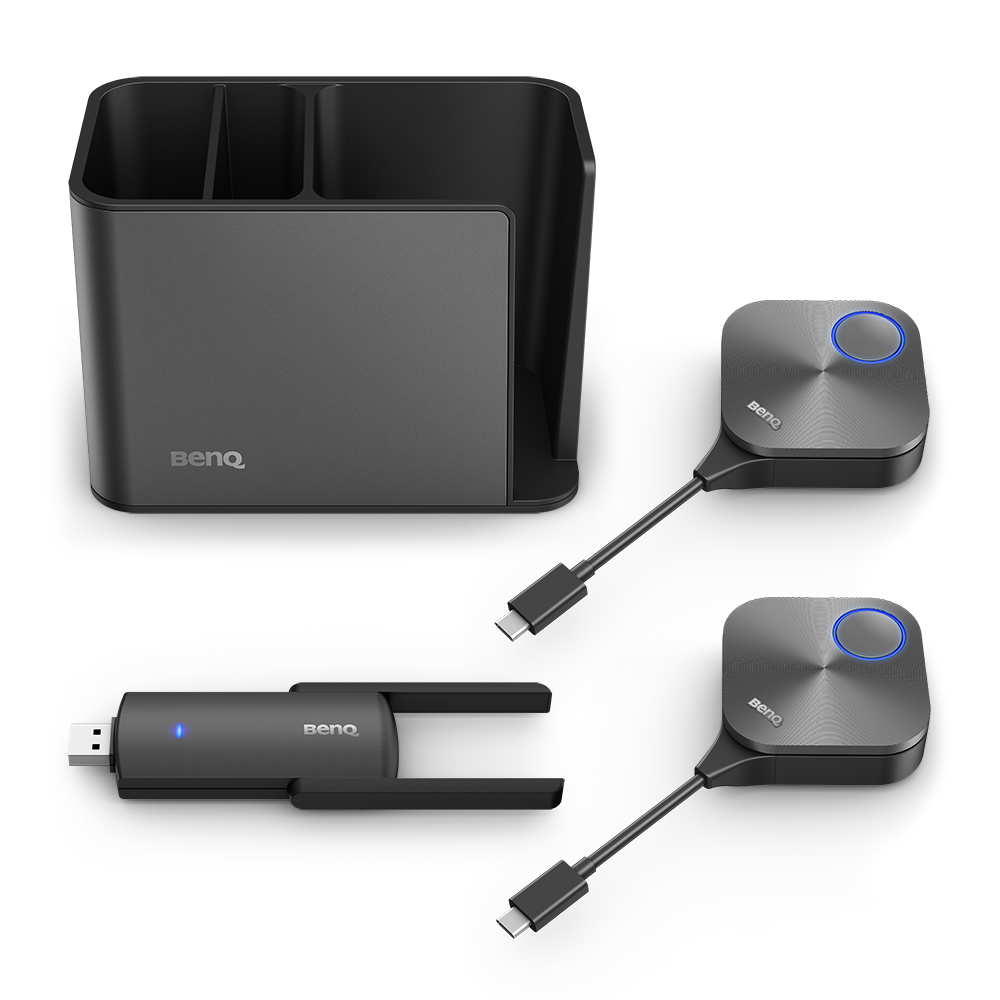

TZY31 InstaShare Button Solution
TZY31 InstaShare Button Solution
- Plug and click to instantly share your screen
- Side-by-side view of multiple screens
- Share entire screen, media files, or video feed
- No charging or batteries required
Engaging lessons are just one click away
Maximize engagement in the classroom by allowing teachers and students to wirelessly share their screen, camera feed, or a file on the display from anywhere in the room.
Sharing ideas has never been easier
Empower students and guests to share content on your BenQ Board without downloading additional software.
Display lesson content wirelessly
Wirelessly cast lesson materials onto the BenQ Board's from any notebook. Designed for teachers and students, the InstaShare Button Solution is compatible with Windows laptops, MacBooks, and Chromebooks.
Get the whole class involved
Increase student participation by presenting their work side by side. The InstaShare Button Solution works with InstaShare 2, a wireless screen sharing software that lets you select up to 9 devices from the class list to cast simultaneously on a BenQ Board.
Flexible content sharing
Easily switch between casting your entire screen or customizing the content youshow. With the InstaShare Button Solution, students can share photos, videos,audio, or their camera feeds for flexible classroom discussions.
-
Screen
-
-
Video
-
Camera
-
Microphone
Convenient connectivity
The USB Type-C connector enables a one-cable plug-and-play solution that works seamlessly with Windows notebooks, MacBooks, and Chromebooks. Just connect the InstaShare Button and start sharing content with a single click. USB-C to USB-A adapter required to pair RP02 and VC01A
Get everyone on the same page
Experience a new way to teach lessons and hold discussions. The button lets you cast the BenQ Board screen onto all connected devices to let everyone participate from their seats. With touchback, teachers can also control shared devices right from the display.
Industry-leading connection quality
Enjoy smooth classes without disruptions. The InstaShare Button Solution delivers industry-leading connection quality to ensure stable screen sharing no matter where you sit in the classroom.
Specifications
All Specifications
InstaShare Button
Color
Silver
Frame rate
Up to 60 FPS at 1080P/ Up to 30 FPS at 4K
Input resolution
4K UHD
Audio rate
Stereo 16-bit/48 kHz
Interface
USB Type-C
Wi-Fi standard
802.11ac
Wi-Fi frequency
Dual band: 2.4GHz and 5GHz, 2x2 MIMO
Wireless security
WPA2/3 Personal/ WPA2 Enterprise with AES-256 support
Wireless range
Up to 15 meters (49 feet)
Net weight
0.086 kg (0.19 lbs)
Power supply
DC 5V ± 10%, 0.9A min.
Power consumption
Maximum 4.5W
Dimensions (W x H x D)
67 mm × 67mm × 23.2 mm
Temperature range
Operation : 0℃ -~ 40℃ (32°F - 104°F)/ Storage : -40℃ -~ 70℃ (-10°F - 140°F)
Humidity range
Operating: 10% to 80% relative humidity/Storage: 5% to 90% relative humidity (non-condensing)
Compatibility
InstaShare 2: RM03, RP02, VC01A (with included USB adapter). BYOM: RP03 ; RP03A, RM03, RM03A, VC01A (Available in Q3 2023)
Wireless USB dongle
Color
Black
Interface
USB Type-A 3.0
Wi-Fi standard
802.11 a/b/g/n/ac
Wi-Fi frequency
Dual Band: 2.4GHz and 5GHz, MU-MIMU
Wi-Fi performance
2.4 GHz: up to 400 Mbps
/5 GHz: up to 867 Mbps
External antenna
2
Supported OS
Android
Range
Up to 15 meters (49 feet)
Security
WPA-PSK/WPA2-PSK WPA/WPA2/WEP
Power supply
DC 5V, 0.9A max.
Dimensions (W x H x D)
137 mm × 41mm × 12 mm
Net weight
0.055 kg (0.12 lbs)
Humidity range
Operating: 10% to 90% relative humidity/ Storage: 5% to 90% relative humidity (non-condensing)
Temperature range
Operation : 0℃ - 40℃ (32°F - 104°F)/Storage : -40℃ - 70℃ (-10°F - 140°F)
Compatibility
RM03, RP02, RE01, RM02K, RM02S, CP01K, CS01, SL02K, ST02, ST02S, IL01, BH01, BH01T, BH01N, BH01D, and VC01A
InstaShare Dock
Color
Black
Dimensions (W x H x D)
150 mm × 85 mm × 106 mm
Net weight
0.420 kg (0.93 lbs)
InstaShare Button storage capacity
4
Product material
PC+ABS, aluminum alloy 6063, and silica gel
