How BenQ Simulation Projectors Overcame Challenges in Taipei l0l's lmmersive Projection

  • 2025-03-18

Standing at 508 meters tall, the Taipei 101 tower is globally recognized as an iconic landmark of architectural and engineering excellence. At its core is the world's second-largest Tuned Mass Damper (TMD)-a remarkable 660-ton spherical structure designed to stabilize the skyscraper during strong winds and earthquakes.

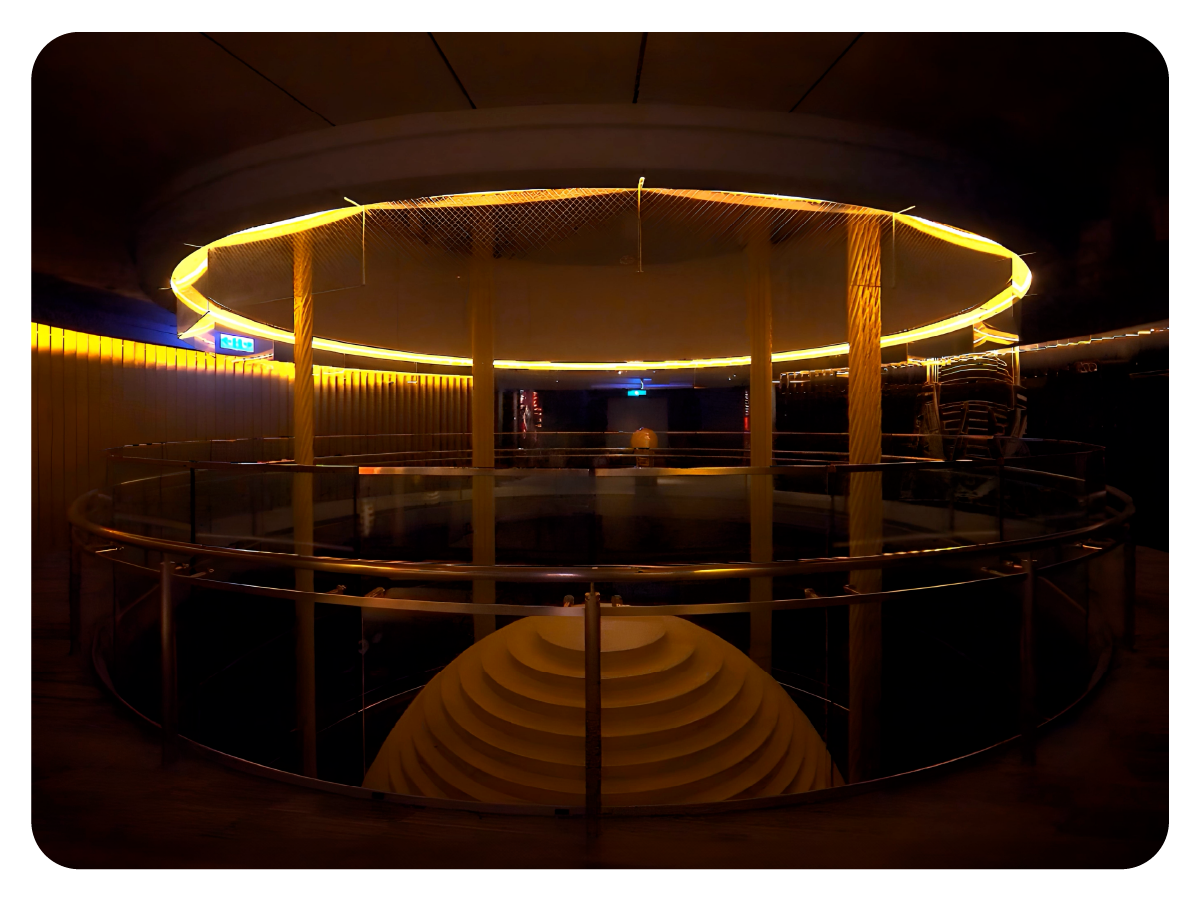

Taipei 101’s wind damper ball

This unique engineering structure was featured prominently during the "Dream High" exhibition, commemorating the historic "50 home runs, 50 stolen bases" MLB record set by Shohei Ohtani. For the first time, Taipei 101's wind damper ball was transformed into a giant baseball using advanced immersive projection technology.

Executing projection mapping onto such a challenging surface posed significant technical difficulties-including confined installation spaces, irregular spherical surfaces, structural cable interference, and ambient lighting from surrounding glass windows. BenQ Simulation Projectors provided targeted solutions for these complex issues, empowering system integrators with simplified installations, optimized visual quality, and reduced operational costs.

Optimized Visuals: Precision Projection for Irregular Surfaces

The Taipei 101 wind damper ball project required projecting a giant baseball onto the large, irregular spherical surface of the damper ball, with challenges from glass reflections and ambient light interference.

BenQ Simulation Projectors delivered exceptional results through advanced specifications tailored for complex immersive scenarios:

● Versatile Model Range:


Offers short-throw to standard-throw options, catering to diverse spatial needs with patented color accurate high-brightness laser technology and high resolution for detailed, lifelike visuals.

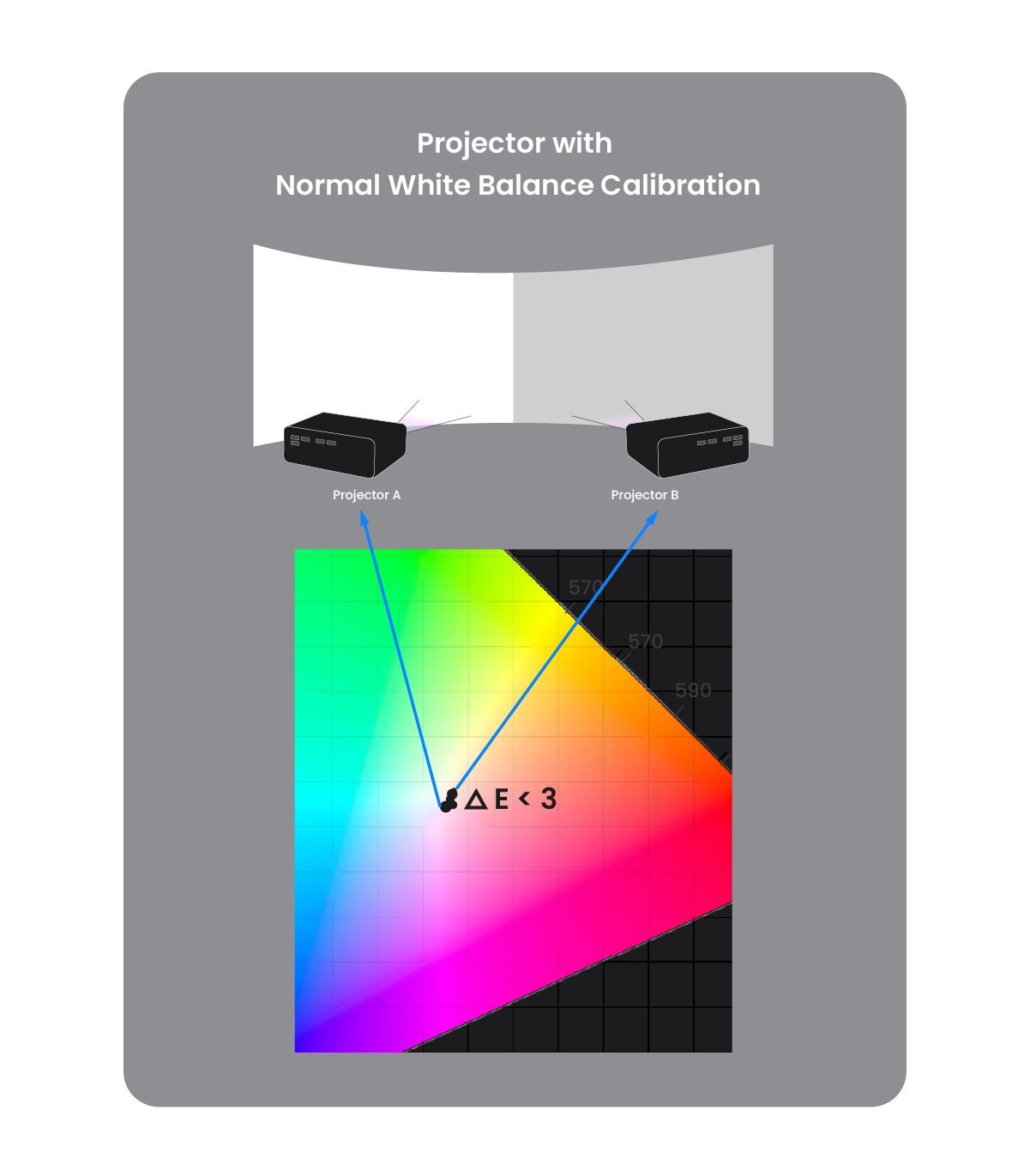

Color Consistency Amid Glass Challenges:


Glass surfaces and ambient light posed challenges to projection clarity. BenQ's proprietary White Balance Adjustment (WBA) technology ensured color consistency, even when projecting through glass, delivering a captivating immersive experience.

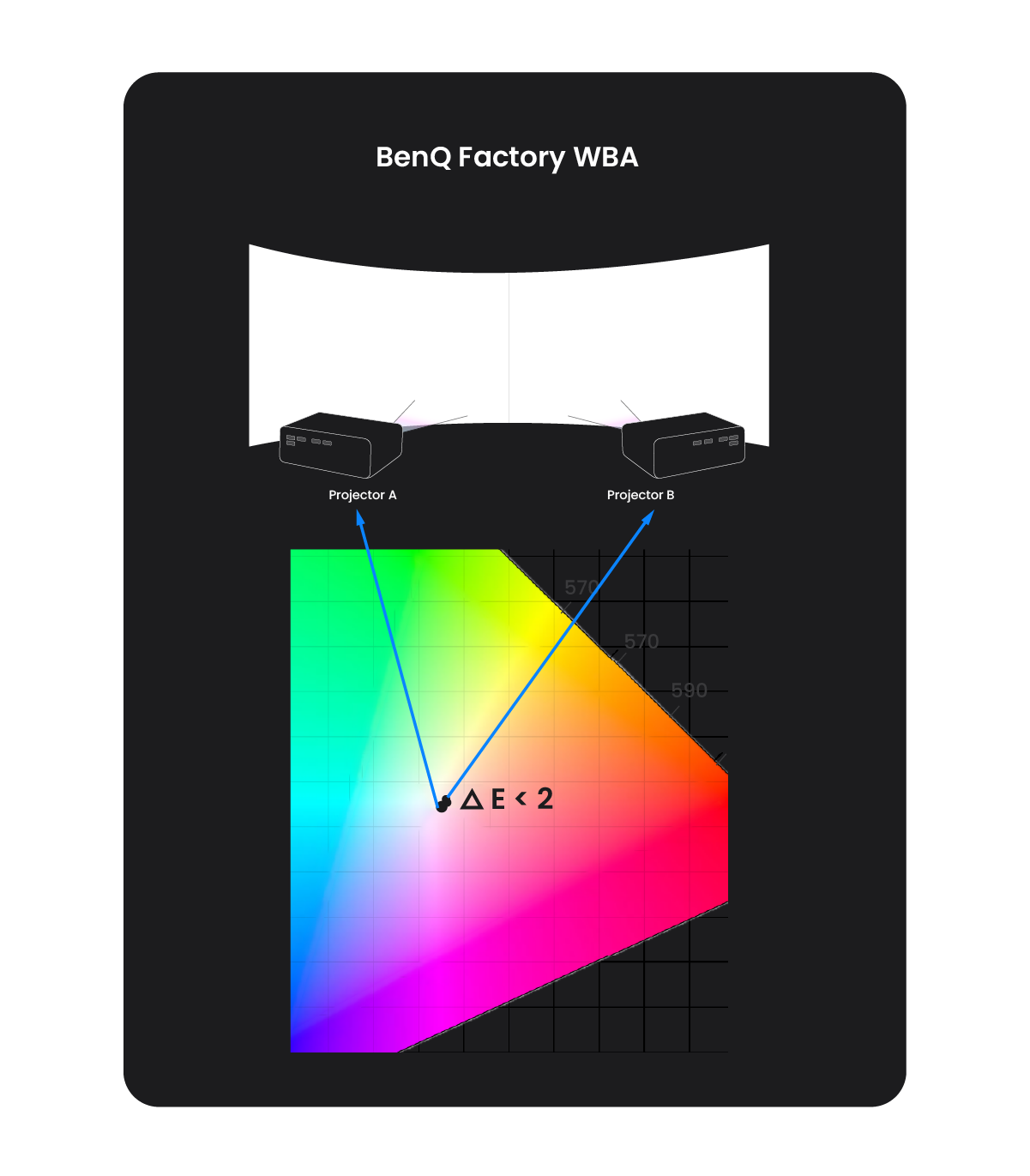

Efficient Calibration with WBA:


BenQ's Factory White Balance Adjustment (WBA) pre-calibrates projectors before shipment, ensuring consistent color accuracy across multiple devices. Achieving a Delta E of approximately 2, WBA significantly reduces on-site multi-projector calibration setup time by up to a full workday, depending on project scale.

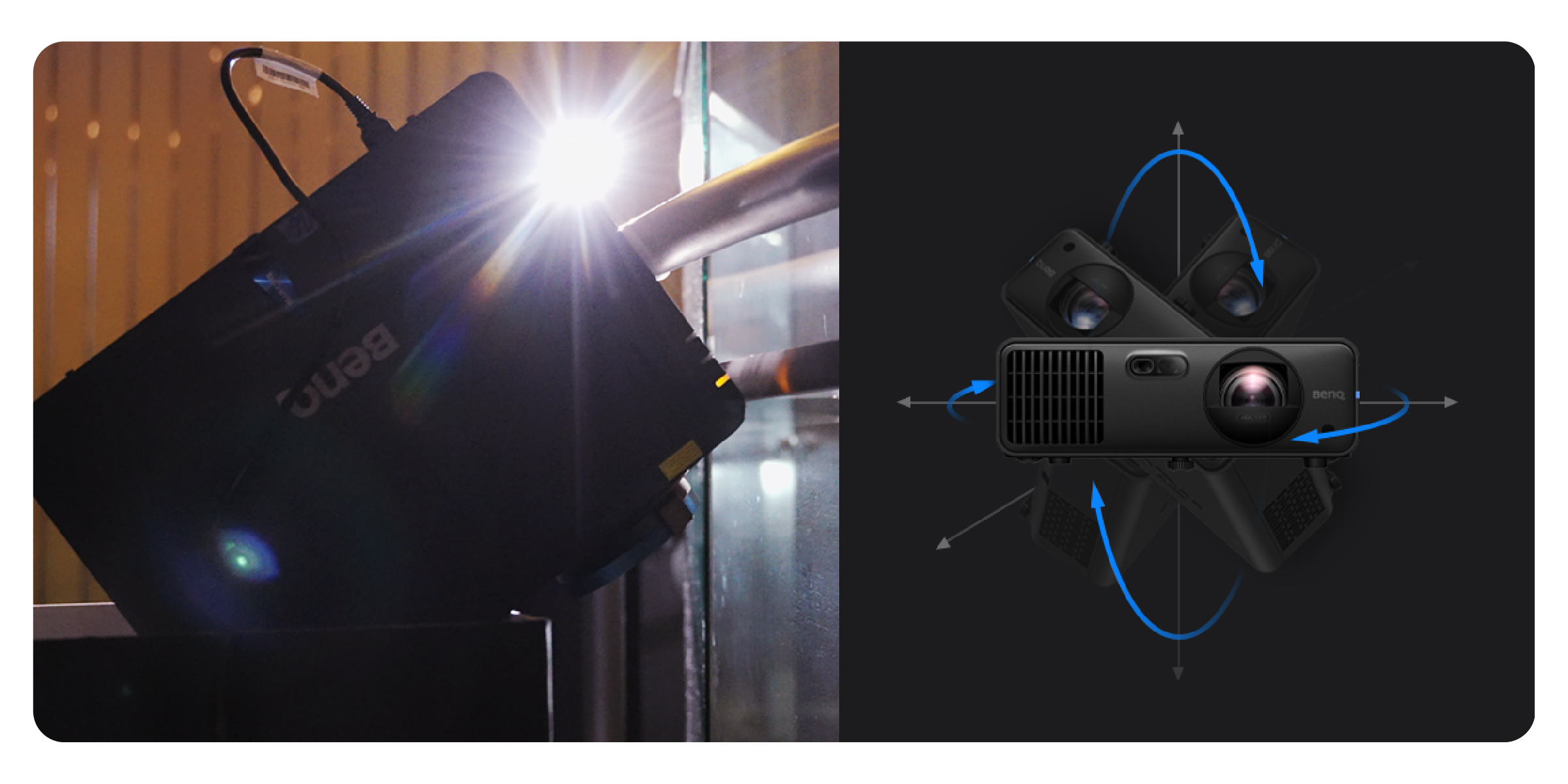

Flexible Multi-Angle Projection:


Supports 360° and portrait projection, simplifying alignment on the damper ball's suspended structure and eliminating extensive equipment repositioning.

These advanced specifications provide system integrators with the flexibility to address focal length and brightness requirements across museum exhibitions, commercial spaces, or architectural projections-meeting clients' creative demands with precision.

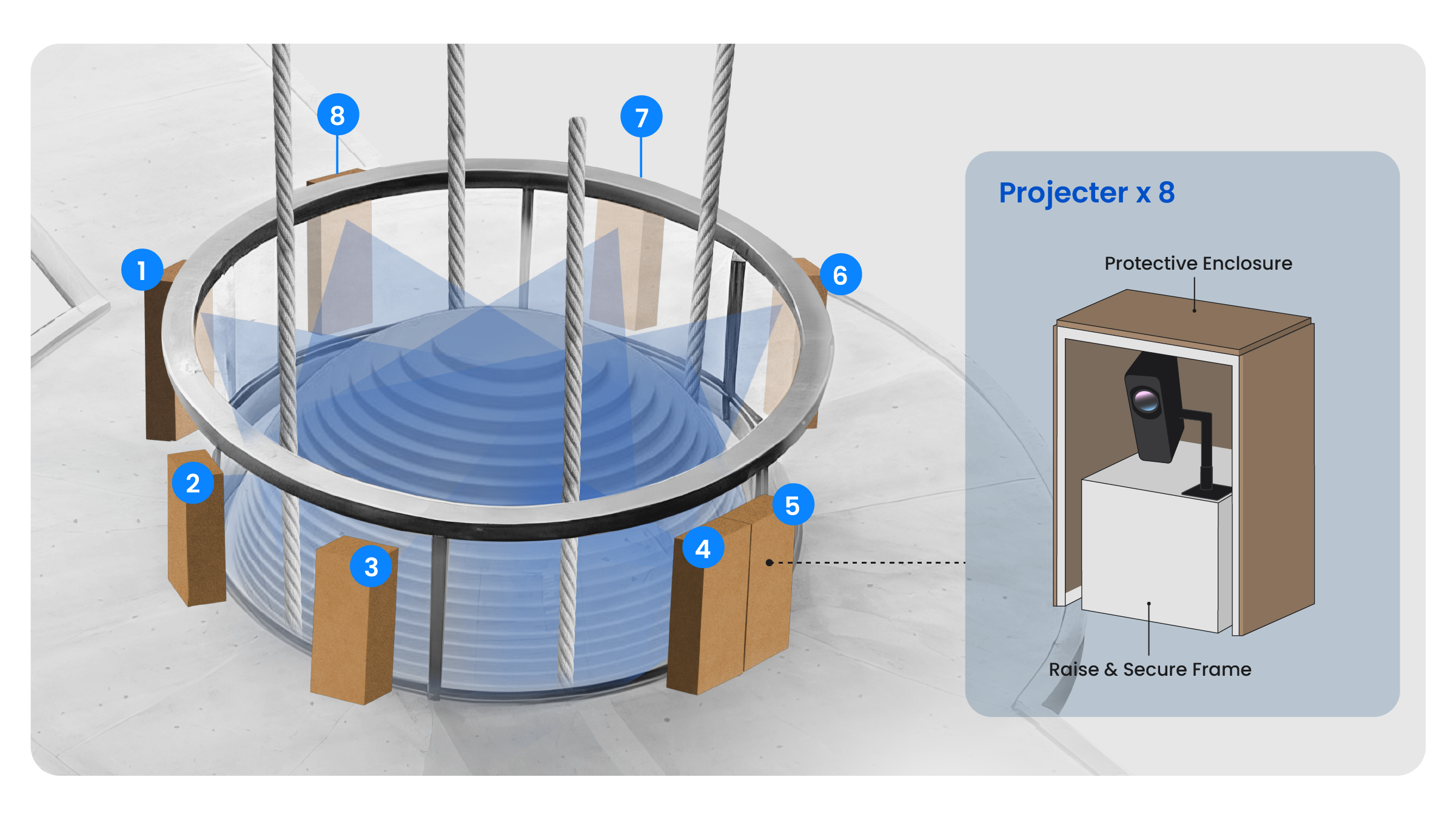

Seamless Setup: Overcoming Spatial & Structural Challenges

Seamless Setup: Overcoming Spatial & Structural Challenges

Severely Limited Space:


Restricted projector placement in a confined environment.

Steel Cable Interference:


Affected projection clarity and alignment.

Irregular Projection Surfaces:


Required precise mapping on the damper ball's stepped structure.

BenQ Simulation Projectors streamlined the installation process effectively. The compact design, including short·throw models like the LU935ST, enabled easy handling and installation by a single person, reducing manpower needs.

HEXOGON SOLUTION partnered with BenQ, applying advanced projection mapping for accurate rendering on irregular surfaces. Additionally, BenQ's 3D planning service provided precise simulations, ensuring rapid, high·quality setups and reducing unforeseen installation challenges.

Effortless Control: Simplifying Operations with Smart Device Management

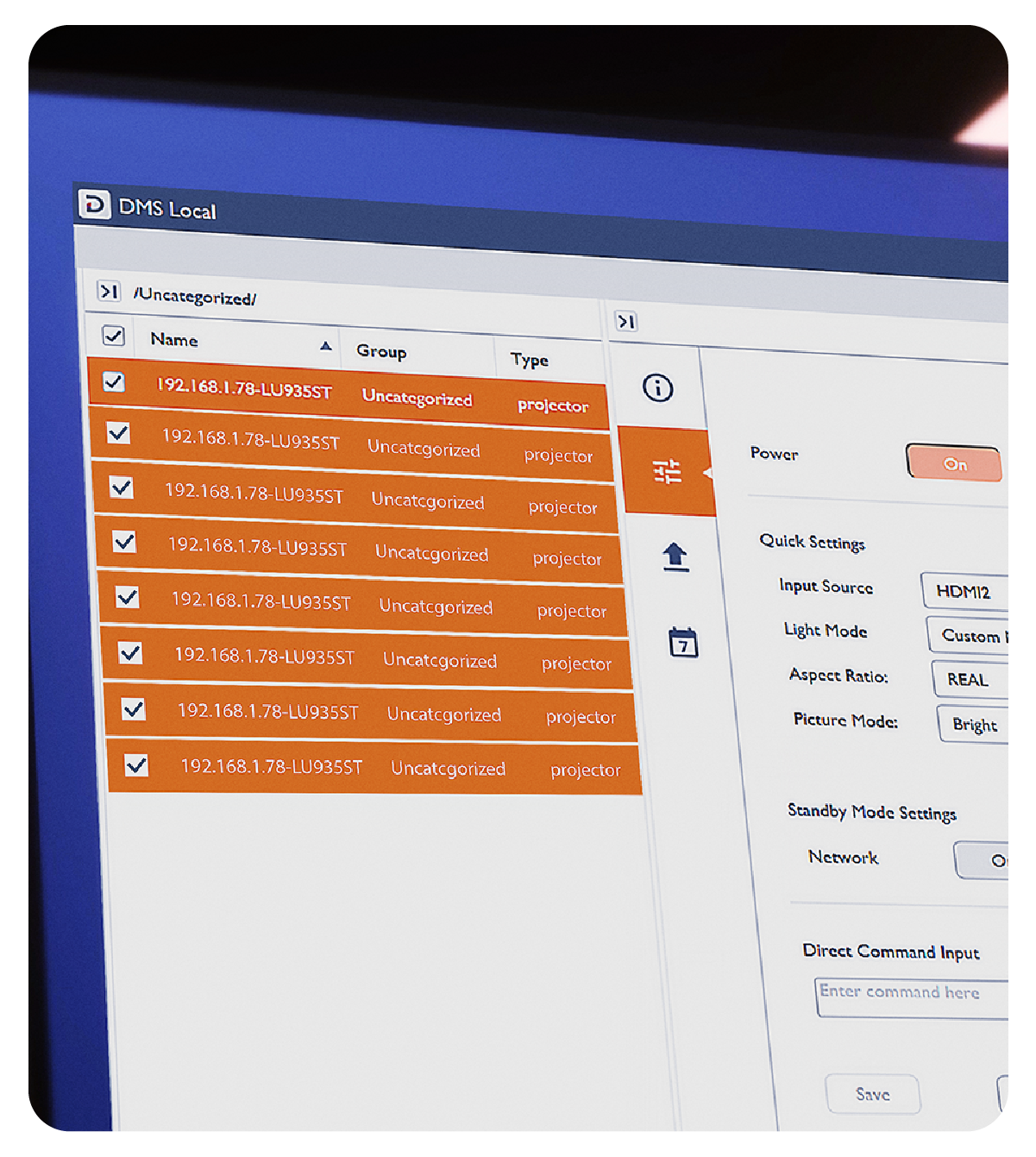

Ensuring stable and efficient long-term operation became essential after the installation was complete given the high-traffic environment of Taipei 101. The constant flow of international visitors placed significant demands on the projection system's reliability to ensure the projection mapping was operating correctly all the time. BenQ Simulation Projectors feature the Device Management System (DMS), offering a smart solution to maintain performance with minimal disruption.larly in the high-traffic environment of Taipei 101, where international visitors placed significant demands on the projection system’s reliability due to continuous visitor traffic and operational intensity. BenQ Simulation Projectors feature the Device Management System (DMS), offering a smart solution to maintain performance with minimal disruption.

DMS empowers system integrators with the following features and benefits:

Remote Monitoring and Diagnostics:


Allows the operator to check device status and diagnose issues from a distance, eliminating the need for frequent on-site visits.

Automated Firmware Updates:


Detects and applies updates automatically, unlike traditional manual methods via USB, reducing maintenance downtime.

Elimination of Physical Dismantling:


Simplifies updates by avoiding the need to physically dismantle devices, streamlining the process.

Focus on Creativity:


Frees personnel from routine maintenance tasks, enabling them to concentrate on delivering innovative project outcomes.

Enhanced Reliability:


Ensures consistent system performance in demanding environments like Taipei 101, supporting long-term operation with ease.

This streamlined approach minimizes operational disruptions, ensuring maximum reliability while allowing Sis to prioritize creativity over routine maintenance.oritize creativity over routine maintenance.

Shaping the Future of lmmersive Projection

The Taipei 101 damper ball project demonstrates the practical value of integrating advanced projection technology into complex immersive installations. BenQ Simulation Projectors delivered stunning visuals, streamlined installations, and efficient device management, clearly highlighting the comprehensive benefits available to system integrators. BenQ is a reliable technology partner for immersive projection projects.

Now system integrators can confidently apply BenQ's advanced specifications, flexible installation options, pre-calibrated white points, and advanced device management systems in the most challenging installations ranging from museums and theme parks to architectural and commercial applications. Moreover, BenQ's customized 3D planning service further ensures seamless execution and predictable success.

Partnering with BenQ for Projection Excellence

Through integrated advantages, BenQ empowers integrators to overcome challenges and achieve your client goals. With BenQ's expertise, you can seamlessly transform your creativity into successful immersive projects for your valued customers.
