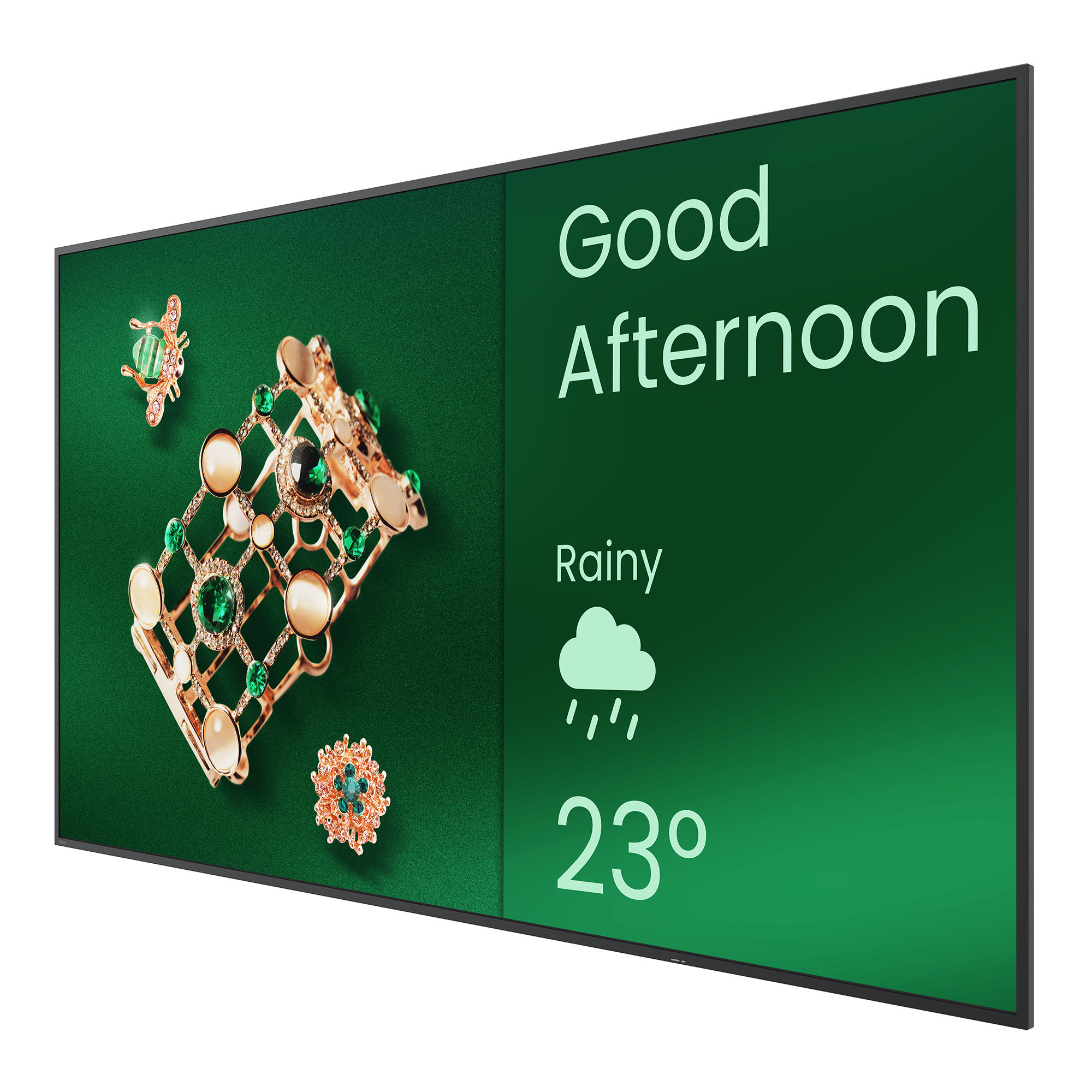

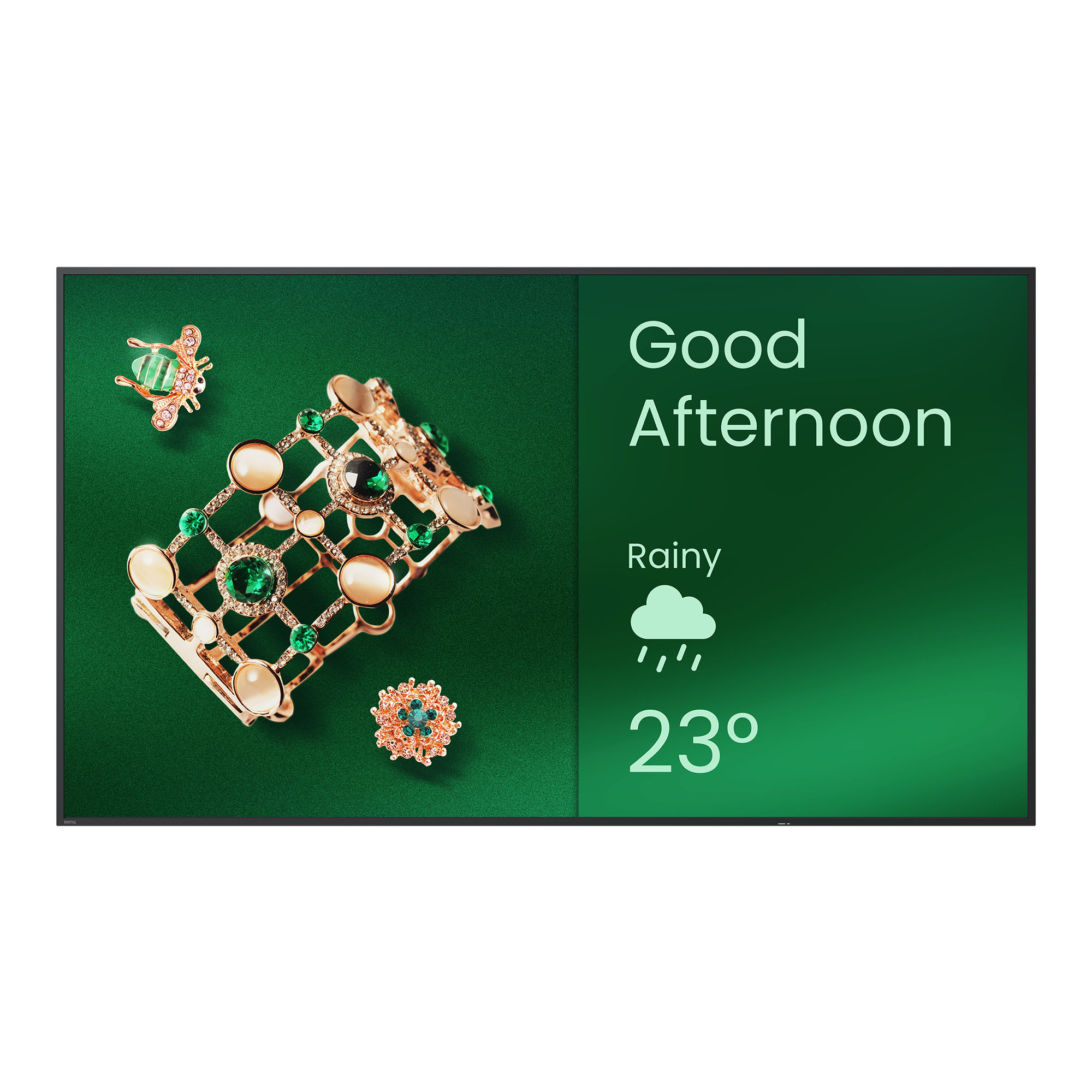

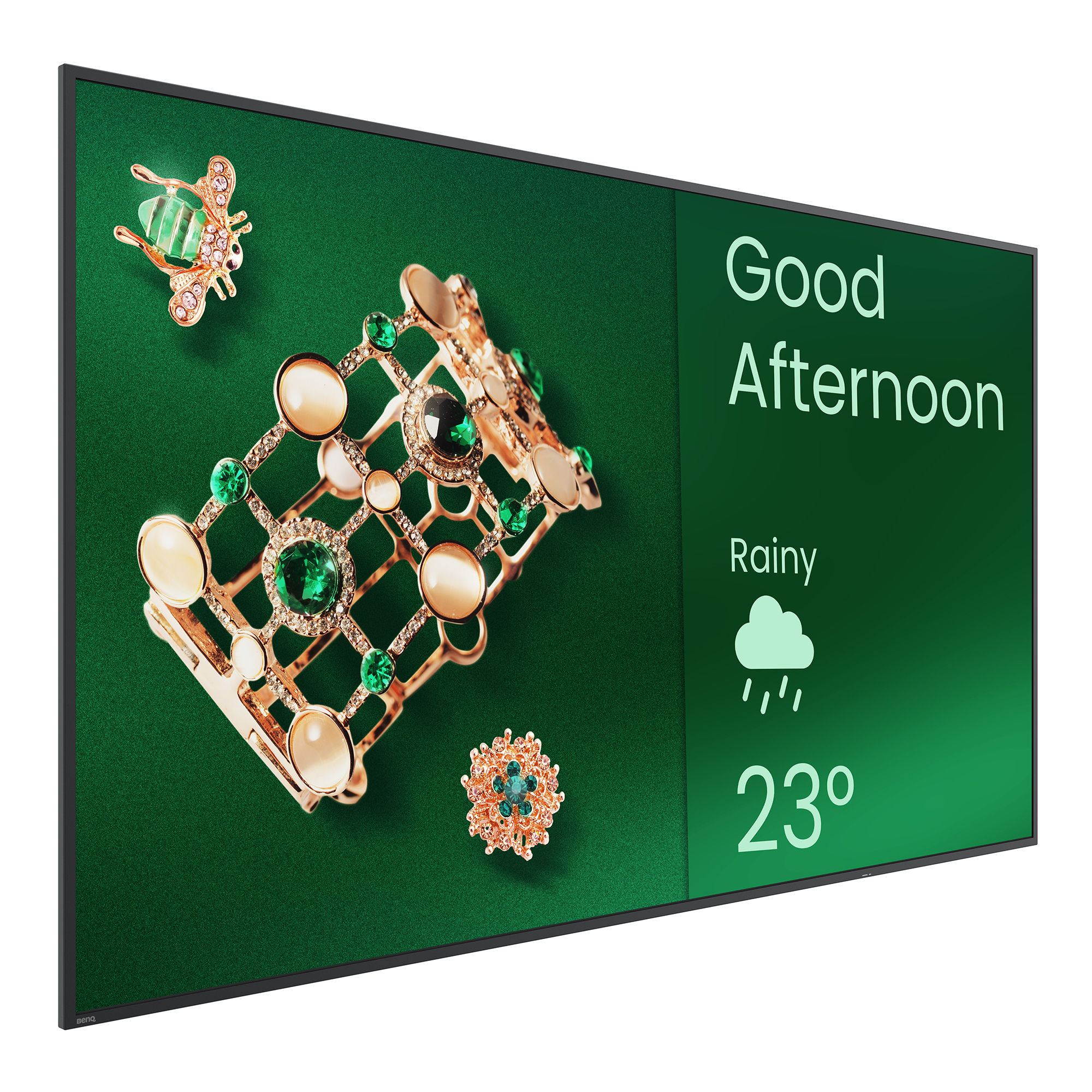

4K Smart Signage | ST5504
- 4K resolution with flexible portrait or landscape mounting
- Supports Android 14 for the latest apps and security updates
- Anti-glare screen with a 25% haze value improves clarity and reduces eye strain in bright environments
- Centralized, group-based management for effortless content delivery, remote control, and updates via X-Sign and DMS
- Enterprise-grade security via advanced software- and hardware-level protection
4K Smart Signage | ST5504
- 4K resolution with flexible portrait or landscape mounting
- Supports Android 14 for the latest apps and security updates
- Anti-glare screen with a 25% haze value improves clarity and reduces eye strain in bright environments
The requested qty is not available
The requested qty exceeds the maximum qty allowed in shopping cart
Product that you are trying to add is not available.
All Specifications
Panel
Screen size
55''
Panel type
ADS
Active area
1209.6 × 680.4 mm
Aspect ratio
16:9
Resolution
UHD 3840 × 2160 pixels
Response time
8 ms
Color depth
10-bit
Orientation
Landscape and Portrait
Operation hours
18 hours / 7 days
Panel brightness (typical)
350 nits
Contrast ratio (typical)
1200:1
Color gamut
CIE 1976: 99% sRGB, 72% NTSC
Backlight life (typical)
30,000 hrs
GPU
G52 MC1
CPU
A73 × 4
Memory | Storage
4GB I 32GB
OS
Android 14.0

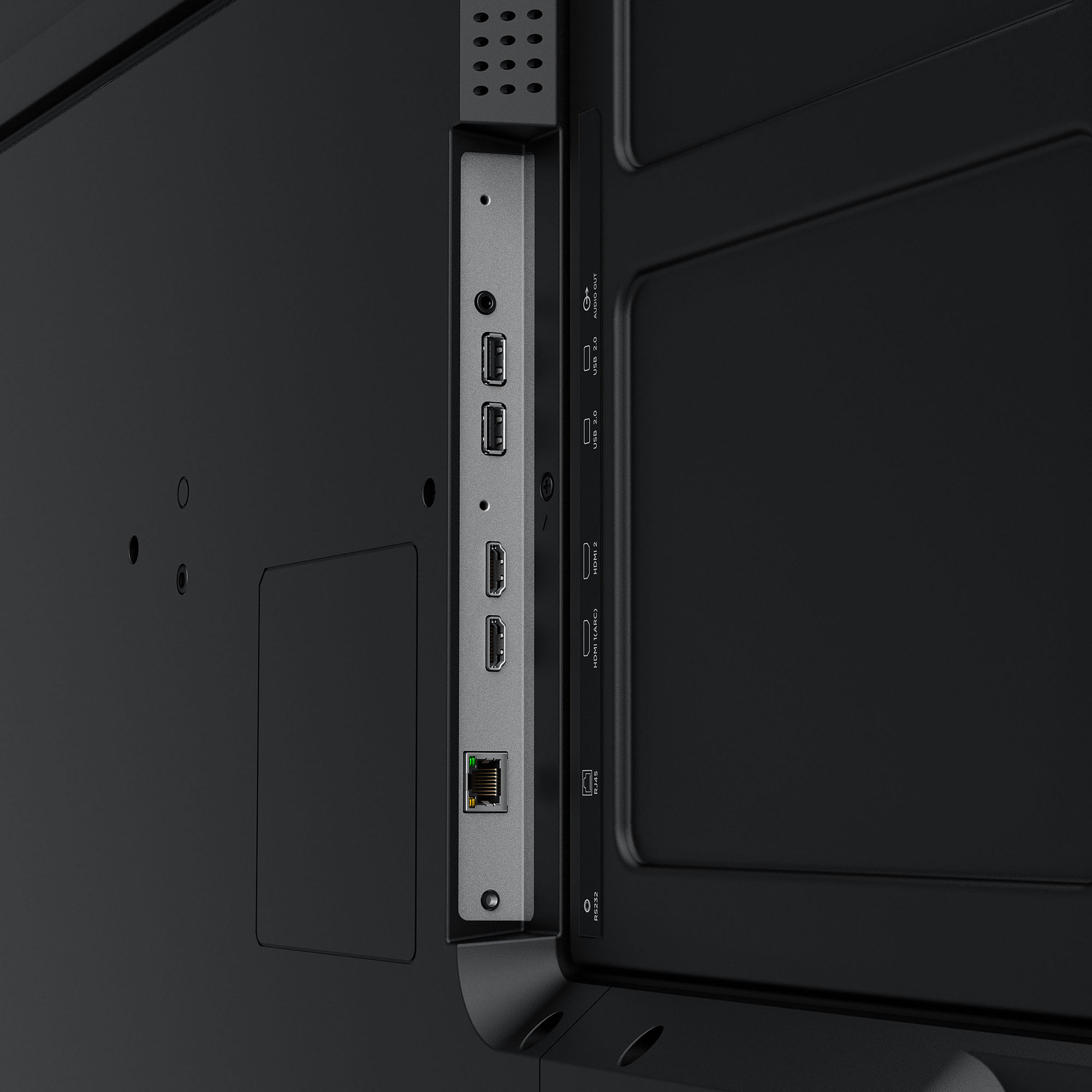

HDMI (in | out)
2 × HDMI 2.0 | No
USB-A
2 × 2.0
3.5 mm Line out
Earphone × 1
Ethernet
10 / 100 Mbps (Android) × 1
RS-232
1 | 0
IR sensor
Yes
Speaker
2 × 12 W
ENERGY STAR®
Yes
Power
AC 100-240V 50/60Hz
Standby power consumption
<0.5 W
Typical power consumption
71 W
Dimensions (W x H x D)
1234.2 × 706.7 × 58.9 mm(48.6 × 27.8 × 2.3 inch)
Shipping dimensions (W x H x D)
1386 × 845 × 140 mm (54.6 × 33.3 × 5.5 inch )
Weight (product I shipping)
12 kg | 17.4 kg (26.5 lbs | 38.4 lbs)

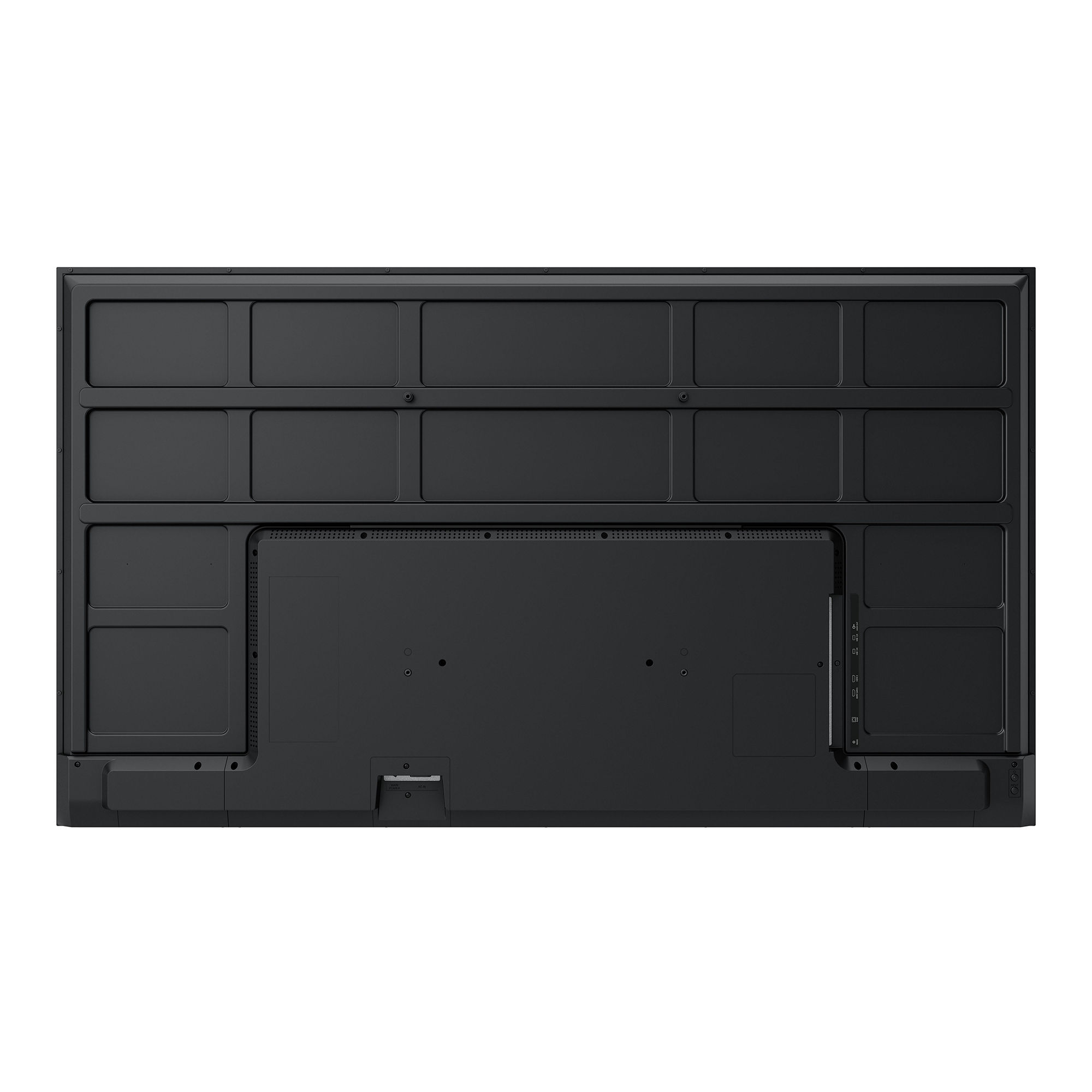

Mount (screws)
VESA 400 × 200 mm (4 × M6 × 15L)
Operating temperature
0°C ~ 40°C | 32°F ~ 104°F
Storage temperature
-10°C ~ 60°C | 14°F ~ 140°F
Storage humidity
10% ~ 80% RH non-condensing
Operating humidity
10% ~ 80% RH non-condensing
Wireless screen sharing
InstaShare 2
Device management
DMS
Broadcast system
X-Sign
Cables
1 × HDMI (1.5 m | 4.9 ft), 1 × RS232 (1.8 m | 5.9 ft)
Remote control
1
