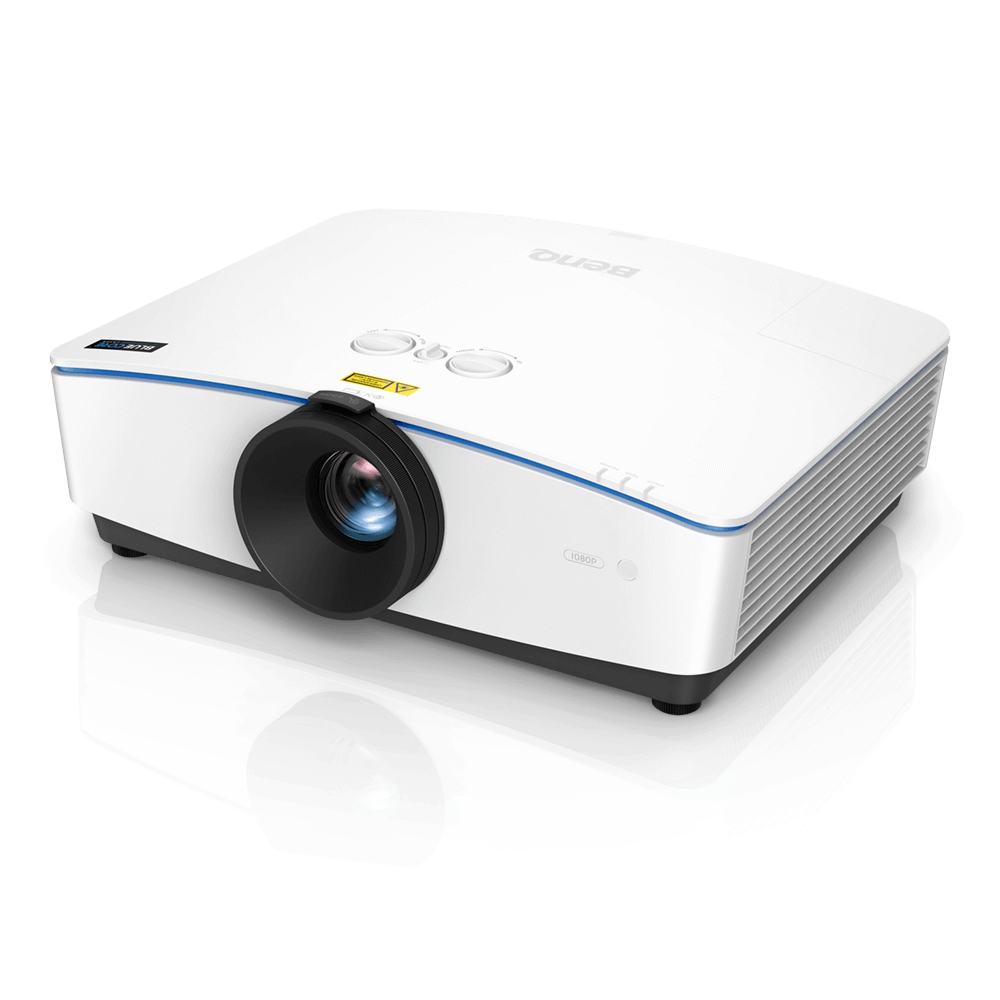

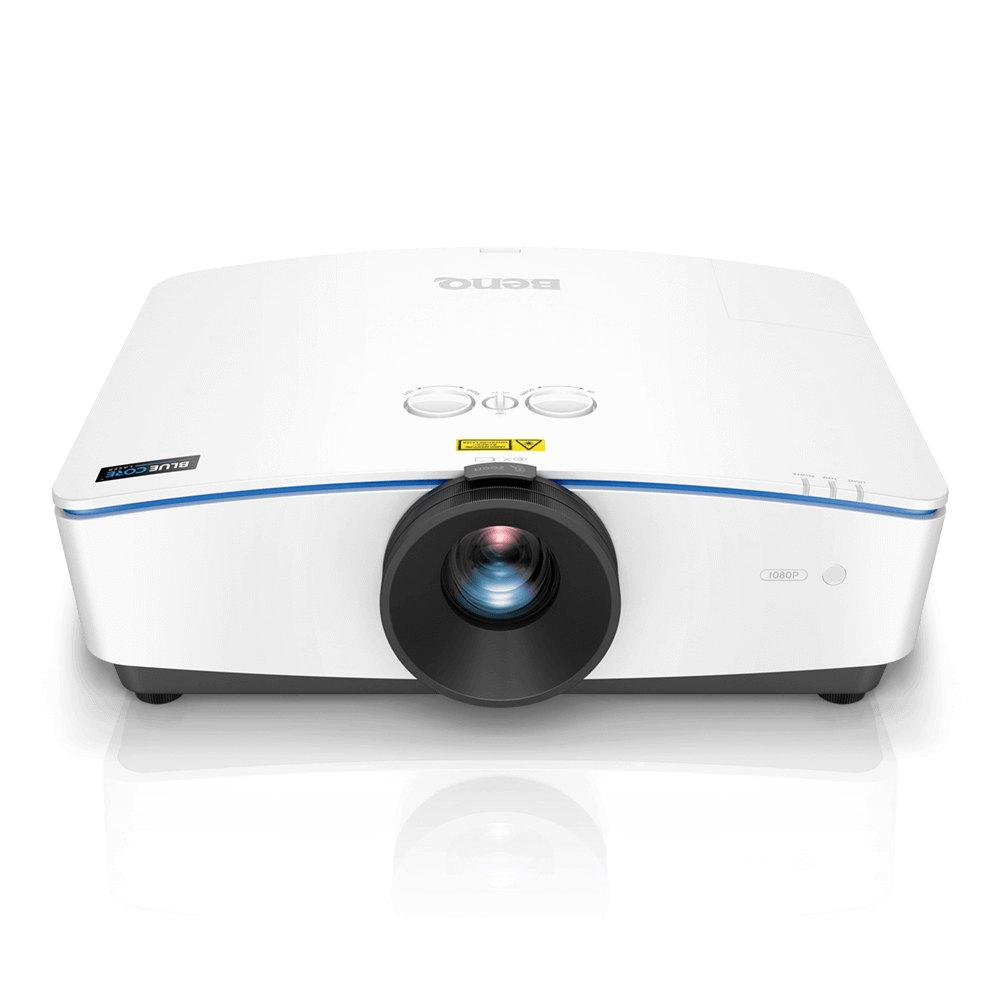

LH770 Refurbished 5000lms 1080P Conference

Let Your Innovation Shine through Accurate True Color

3,000,000:1 contrast ratio

95% Rec.709 color coverage
IP5X dustproof mechanism reducing maintenance costs

Contact Us

LH770 Refurbished 5000lms 1080P Conference Let Your Innovation Shine through Accurate True Color

3,000,000:1 contrast ratio

95% Rec.709 color coverage
IP5X dustproof mechanism reducing maintenance costs

Overview Specifications Q&A Downloads Video

All Specifications

Projection System

Projection System

DLP

Display

Brightness (ANSI lumens)

5000

Native Resolution

1080P (1920x1080)

Native Aspect Ratio

16:9

Contrast Ratio (FOFO)

3000000:1

Display Color

30-bit (1.07 billion colors)

Light Source

Laser

Light Source Life

a. Normal 20000 hrs

Optical

Throw Ratio

1.38~2.13

Zoom Ratio

1.5x

Lens

F /#= 2.42-2.98, f = 20.77 - 31.13 (mm)

Projection Offset (Full-Height)

125.7%

Keystone Adjustment

2D, Vertical ± 30 degrees; Horizontal ± 30 degrees

Lens Shift Vertical

Vertical: 125.7% +/-7.9%Horizontal: 0% +/-4.8%

Compatibility

Input Lag

51 ms (1080p@60Hz)

Resolution Support

VGA(640 x 480) to WUXGA_RB(1920 x 1200) *RB=Reduced blanking

Horizontal Frequency

15K~102KHz

Vertical Scan Rate

23~120KHz

I/O Interface

PC in (D-sub 15pin)

(x2)

Monitor out (D-sub 15pin)

(x1)

Composite Video in (RCA)

(x1)

S-Video in (Mini DIN 4pin)

(x1)

HDMI in

(x2) ,HDMI-1 (1.4a/HDCP1.4) ,HDMI-2 (1.4a/HDCP1.4/MHL)

LAN (RJ46)

(x1)

USB Type A

(x1) ,USB Type A-1 (2.0/Power Supply1.5A)

USB Type Mini B

(x1) ,USB Type Mini B-1(service)

RS232 in (DB-9pin)

(x1)

DC 12V Trigger (3.5mm Jack)

(x1)

Audio

Speaker

(x1) ,10W

Audio in (3.5mm Mini Jack)

(x1) ,1

Audio out (3.5mm Mini Jack)

(x1) ,1

Microphone in (Mini Jack)

(x1) ,1

Environment

Power Supply

AC 100 to 240 V, 50/60 Hz

Typical Power Consumption (110V)

540

Acoustic Noise (Typ./Eco.)(dB)

35/32

Operating Temperature

0~40℃

Accessories

Remote Control w/ Battery

RCS011

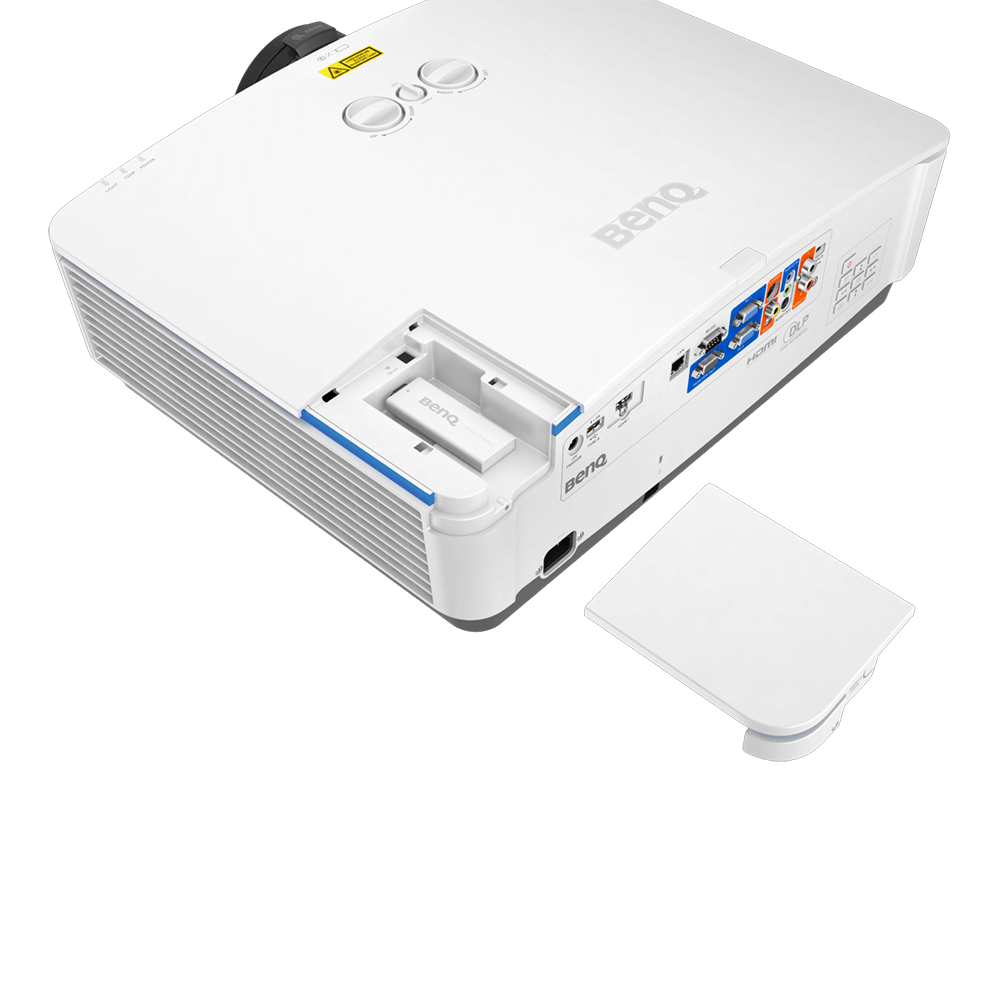

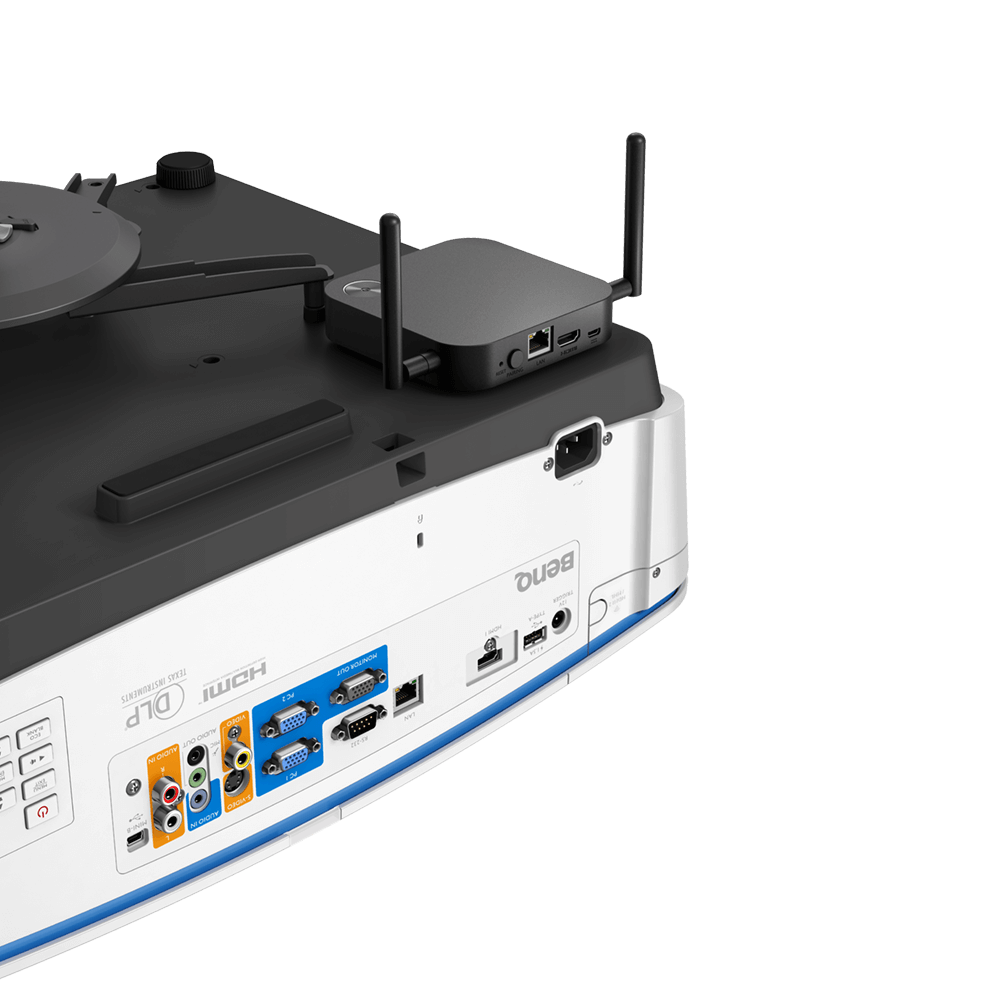

InstaShow Package

Quick Start Guide

1 (18L)

InstaShow Host

LAN (RJ46)

(x1)

Dimension & Weight

Dimensions (WxHxD) (mm)

538 x184 x400

Net Weight (kg)

13.8
