What is CalMAN Verified?

BenQ Color Technology Lab
2019/11/01

In this article, an overview of Portrait Displays, the company that developed CalMAN, is provided, and different versions of CalMAN are also briefly introduced as background information. The article will also describe how to utilize the test project to complete CalMAN Verified validation scheme during the process.

There are different versions of CalMAN software.

Figure 1: Different Versions of CalMAN Software

CalMAN Ultimate is the master product of all other CalMAN software combined and has the most workflows and most extensive hardware support of any CalMAN software. CalMAN Video Pro is for professional home theater calibrators and installers. This software is for the projector and flat-panel calibrations and includes three licenses for computer monitor calibrations CalMAN Video Pro also supports a variety of professional hardware and allows users to generate custom reports for each calibration. CalMAN Studio is SpectraCal’s complete calibration suite for studio professionals. Capable of calibrating Grade-1 reference monitors, computer monitors, and client-viewing flat panels or projectors.

Analysis and Validation by CalMAN

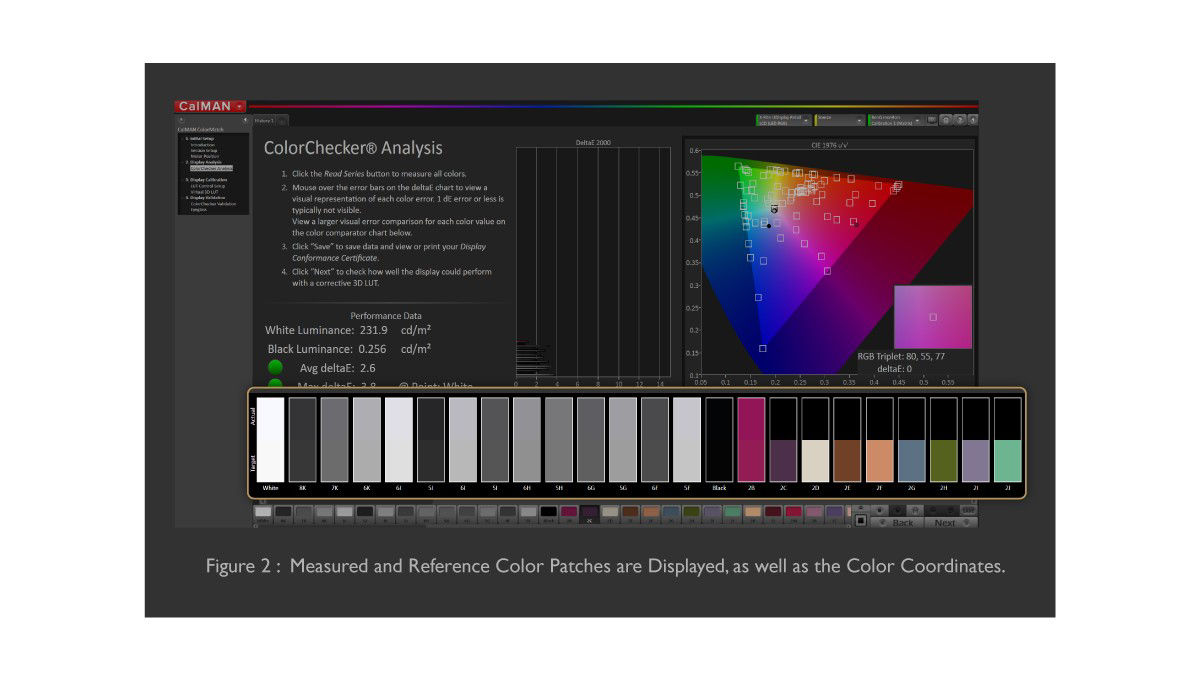

CalMAN guides the users step-by-step through their easy-to-use workflow. Even if you haven't used CalMAN software before or don't use CalMAN software very often, you can find the directions in the software narrative page. In addition, during the process of calibration, CalMAN will display the currently measured color patches and the reference color patches, and also mark the color coordinates of the measured values, as shown in Figure 2.

CalMAN will display the currently measured color patches and the reference color patches, and also mark the color coordinates of the measured values during the process of calibration.

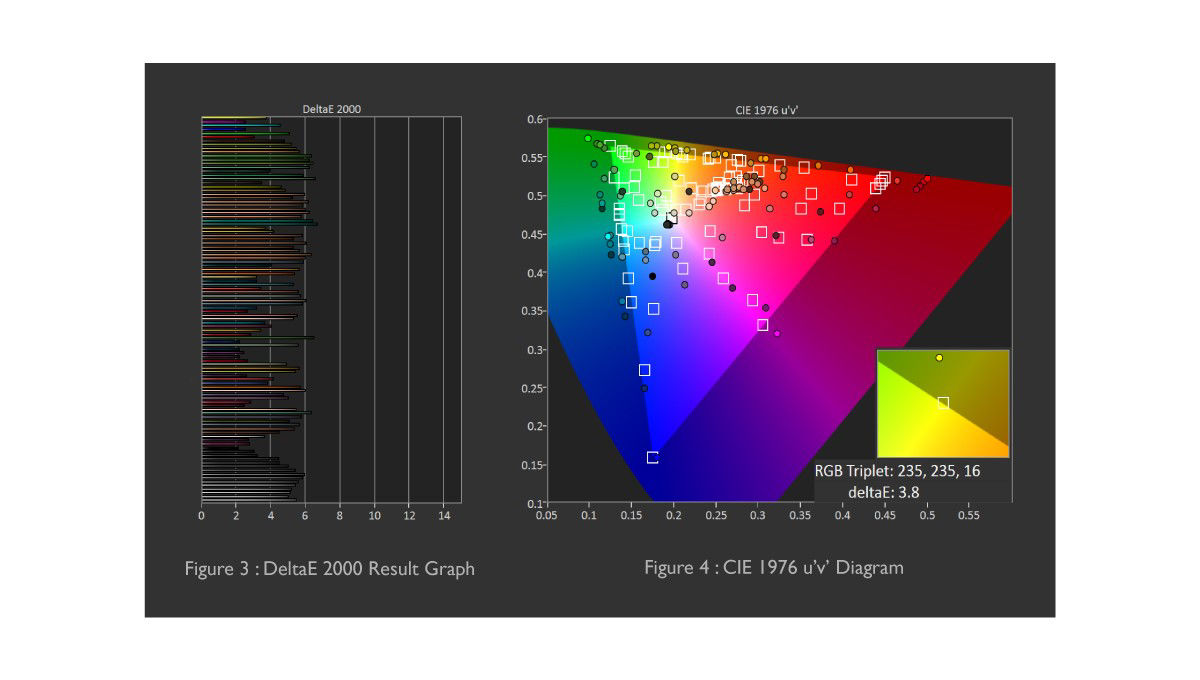

The upper side of each color patch is the data that the calibrator reads. The lower side is the reference data. And after each color patch is measured, the measurement results of the corresponding color patch appear on DeltaE 2000 result graph, as shown in Figure 3, and CIE 1976 u’v’ diagram on the screen, as shown in Figure 4.

This is the DeltaE 2000 result graph that shows CIE 1976 u’v’ diagram.

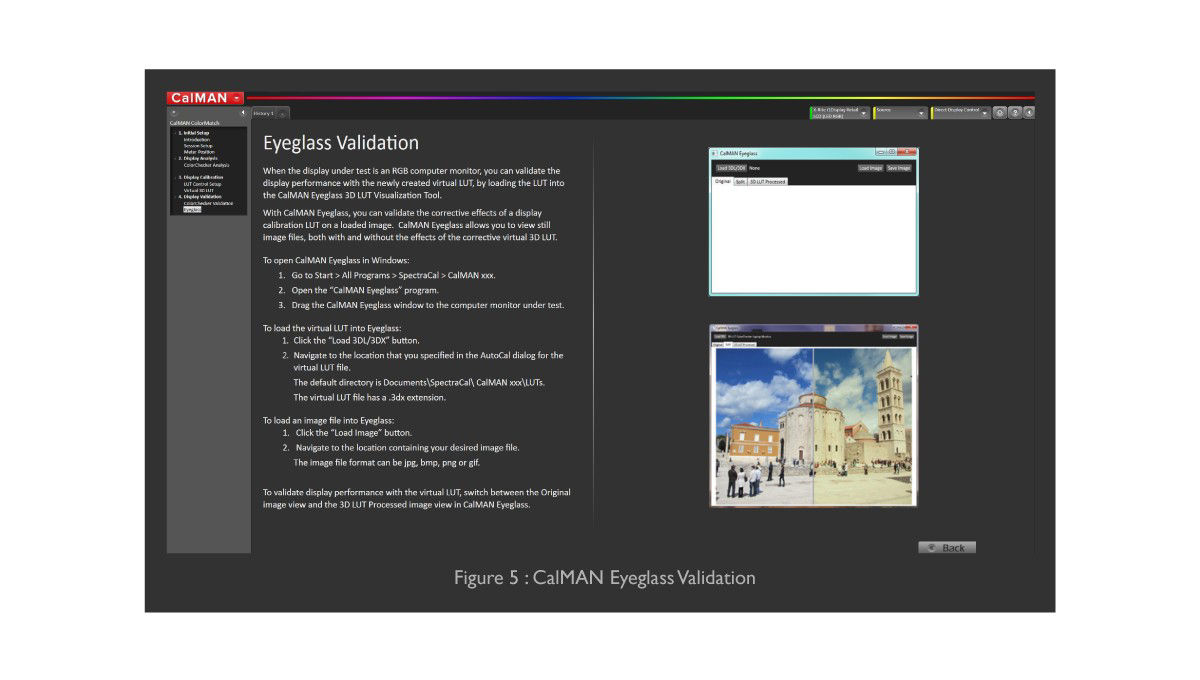

CalMAN suggests to check the picture before and after with CalMan Eyeglass by eyes, as shown in Figure 5. Open CalMAN Eyeglass program and load your preferred image. With CalMAN Eyeglass, you can compare both with and without the corrective effects of a monitor calibration LUT on a loaded image. You can switch between the Original image view and the 3D LUT Processed image view in CalMAN Eyeglass. Or you can click the split bottom to validate both on one image.

It shows the CalMAN eyeglass program.

CalMAN also provides a verification report. The items of verification tests include Illuminance, DeltaE Max, DeltaE Avg, Gamma, and Correlated Color Temperature. The test results are shown in a color chart with a red or green light to indicate whether the result is passed or failed.

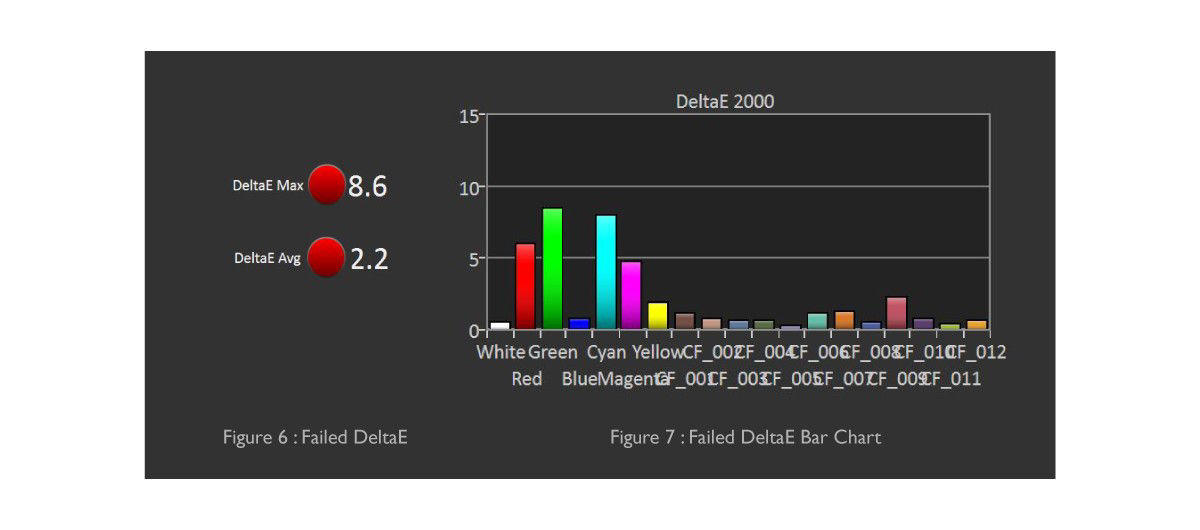

A failed case is illustrated in below. The maximum and average DeltaE indicates success or failure with a red or green light, as shown in Figure 6. And the DeltaE values of different colors are displayed in a bar chart, as shown in Figure 7.

The test results of the illuminance, DeltaE MaX, DeltaE Avg, Gamma, and Correlated color temperature in a bar chart.

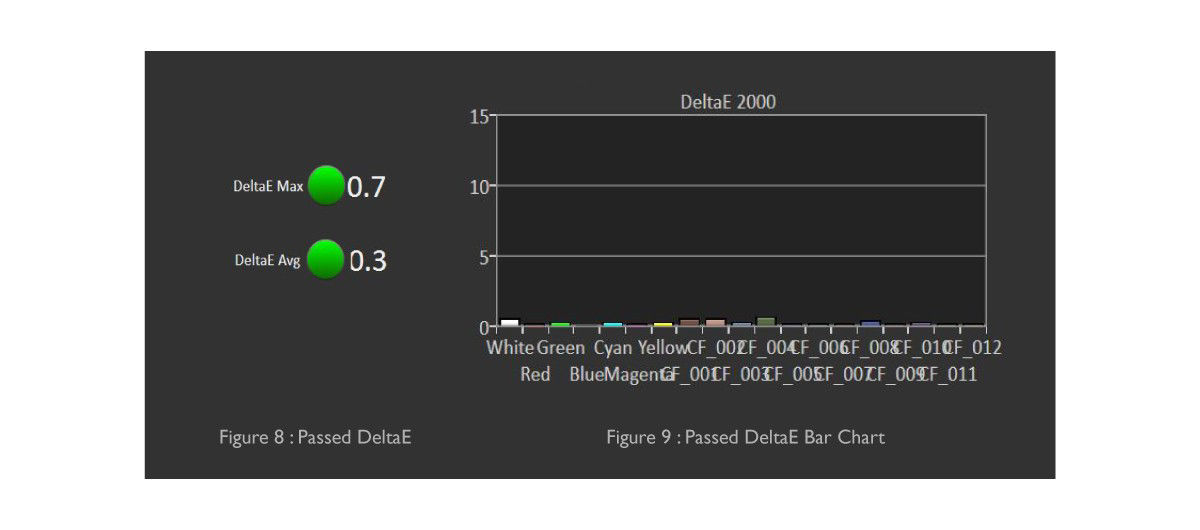

The passed case shows the green light, as shown in Figure 8 and Figure 9.

This is a passed DeltaE bar chart.

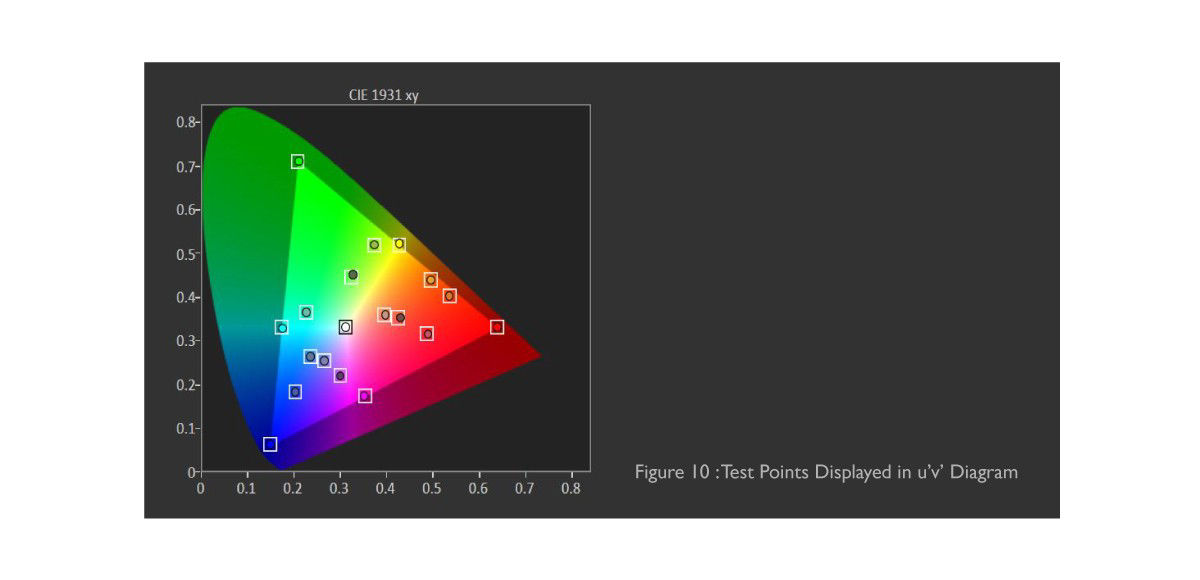

The verification report displays the position of the 19 test points in the CIE1931 chromaticity diagram to help the end-user to visualize the current test situation, as shown in Figure 10.

This is the verification report that displays the position of the 19 test points in the CIEI1931 chromaticity diagram to help the end-user to visualize the current test situation ].

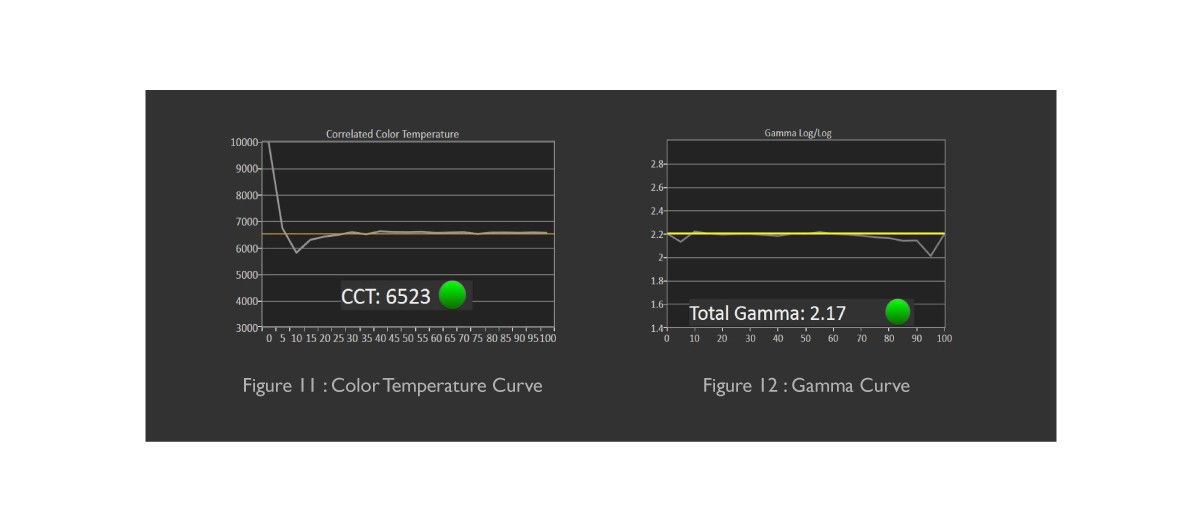

CalMAN also shows the color temperature and gamma curve Figure 11 and Figure 12.

CalMAN shows the color temperature and gamma curve.

CalMAN also shows the color temperature and gamma curve Figure 11 and Figure 12.A brief introduction to CalMAN's workflow and verification process can help to understand that the monitor can be verified by CalMAN software to certify that the monitor has achieved a certain level of color and grayscale correctness. CalMAN Verified certification is a certification program developed by Portrait Displays Inc., using CalMAN software to evaluate whether a display has met the criteria for video post-production editing and reviewing purposes. The certification evaluates color temperature, gamma curve, and delta E. The criteria of the color difference between the test data of 19 colors and the reference color is less than 2. BenQ Professional Monitors, for example, PV270, SW270C, SW321C, SW271, PD3220U, PD2720U, PD2700U and extra, have been awarded the “CalMAN Verified” certification to ensure out-of-the-box color accuracy. It certifies BenQ Professional Monitors’ ability to exhibit the exact color and grayscale level as defined by signal sent to the monitor.

In this article, we have briefly introduced the company owns CalMAN software, Portrait Displays Inc., and the video post-production workflow management software, CalMAN. We also introduced the workflow of the CalMAN software and explained the different components along the workflow. Finally, we introduced Verified by CalMAN certification program, and both BenQ PV270 and SW270C have been awarded to ensure upmost color accuracy.

*The images are from CalMAN Ultimate software UI
