Monitor base is designed to take up less space while maintaining the same stability. This allows gamers more space in their setup for in-game movements and allows them the flexibility to make adjustments and play comfortably.

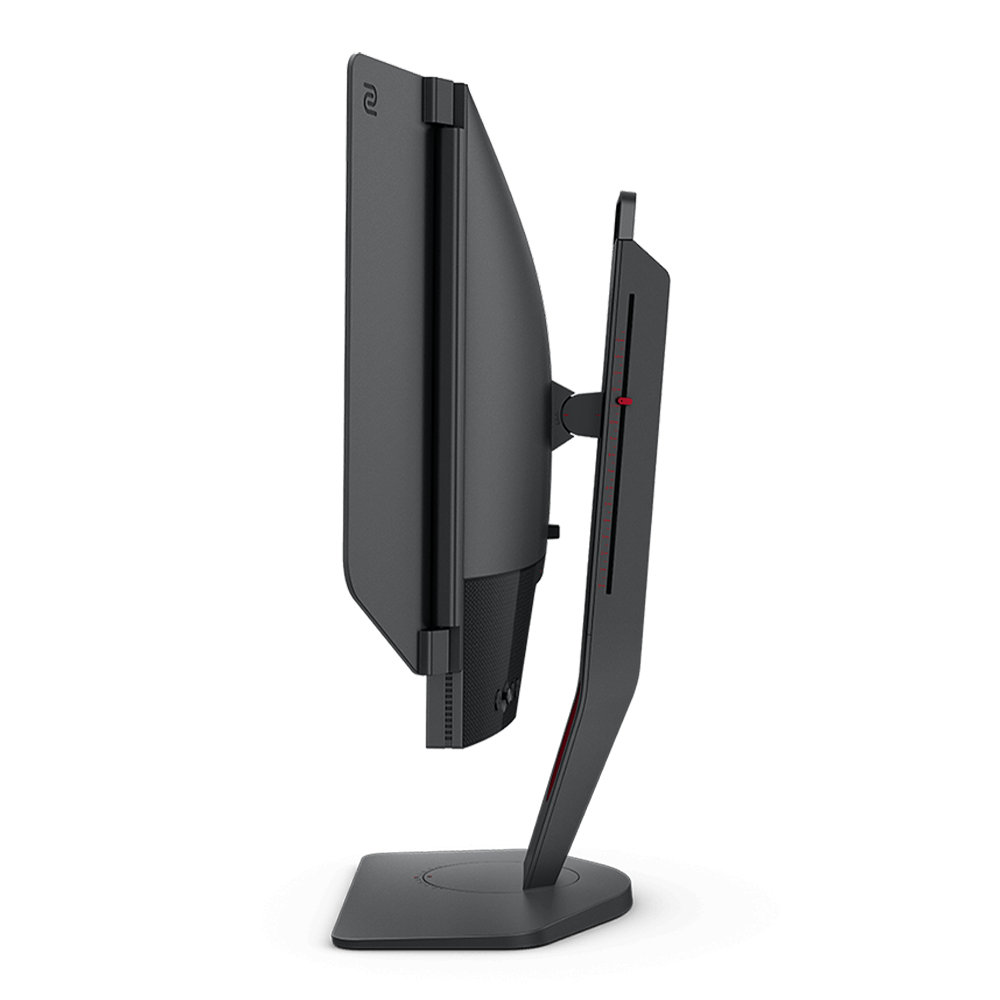

We understand that each player has his/her own unique combination of monitor height and angle adjustment. With height adjustment & free tilt, players are able to setup quickly and conveniently resulting in a more comfortable playing environment.
During the design process, durability was not sacrificed for aesthetics. The LCD panel is better protected through a frame design that provides added resistance on the sides. This is especially useful when transporting the monitors to LAN events or BYOC's.
Share your own settings with a teammate, friend, or your fans. Save video profiles quickly and share conveniently through a simple user interface.
The change to the user interface and the new 5-way S Switch is more than just cosmetic. The redesigned interface provides you the ability to customize which FPS settings you would like to access quickly via quick menu, and then allows you to access them with one-touch. Setting up before games or during rounds is now much more convenient.

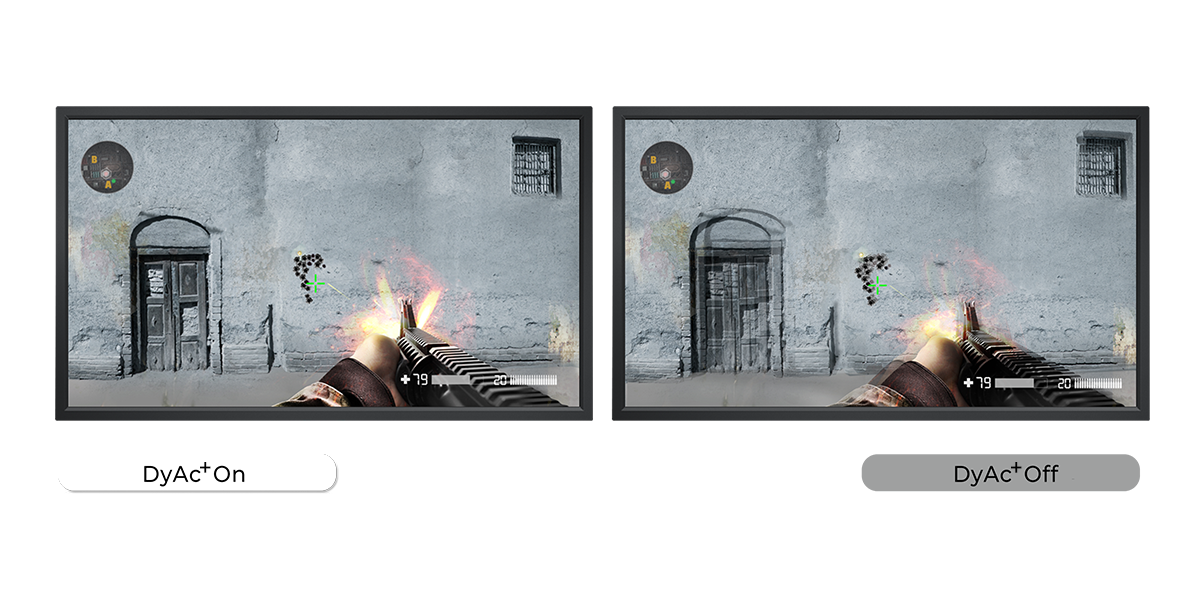

DyAc™/DyAc⁺™ makes vigorous in-game actions such as spraying less blurry. This allows gamers to see the position of crosshair and impact points more clearly which can help with recoil control. DyAc⁺™ is based on this same technology and through panel optimization, provides gamers with a different option for actions such as spray control.
A: The DyAc™/DyAc⁺™ won't add input lag, since it doesn't add any extra loading to the image processing to the monitor nor to the computer.
A: The response time test result will be different because of the test method. Also, there’s a lack of standard of industry measurement. That is why we don’t claim response time as avoid any misunderstanding from now on.
Regarding the response time of XL2546K, we have implemented the fast liquid crystal solution in the panel which made this panel a bit faster than the previous series in native response time and optimize it as to fully leverage the panel capacity and also fine-tune it for the optimal in-game experience.
A: The panel of XL2546K is the same as XL2546S. Both of them are TN panel with fast liquid crystal material.
A: Yes, this monitor is compatible with Xbox Series X and PS5 at 120Hz.
|
Display
|
|
|---|---|
|
LCD size (inch) |
24.5" |
|
Aspect Ratio |
16:9 |
|
Max. resolution (PC/Laptop) |
1920 x 1080 at 240Hz (HDMI 2.0, DP) |
|
Max. resolution (Console) |
1920 x 1080 at 120Hz for PS5 / Xbox series X (HDMI2.0) |
|
Refresh rate |
240Hz |
|
Display area (mm) |
543.744 x 302.616 |
|
Pixel pitch (mm) |
0.28 |
|
Typ. brightness (cd/㎡) |
320 |
|
Typ. contrast |
1000:1 |
|
Panel type |
TN |
|
Fast liquid crystal |
Yes |
|
Connectivity
|
|
|---|---|
|
Input/Output connector |
HDMI 2.0 x3 / DP 1.2 / headphone jack |
|
Electricity
|
|
|---|---|
|
Power Supply |
Built-in |
|
Voltage rating |
100-240V |
|
Power consumption (On mode) |
<40W |
|
Size & Weight
|
|
|---|---|
|
Dimensions (HxWxD mm) |
521 (Highest) / 366 (Lowest) x 571 x 200 |
|
Net weight (kg) |
6.2 |
|
Gross weight (kg) |
9.5 |
|
Stand
|
|
|---|---|
|
VESA wall mounting 100x100 mm |
V |
|
Pivot 90° |
V |
|
Swivel (left/right, °) |
45 / 45 |
|
Tilt (°) |
-5~23 |
|
Height adjustment (mm) |
155 |
|
Features
|
|
|---|---|
|
Dynamic Accuracy |
V (DyAc⁺™) |
|
XL Setting to Share |
V |
|
Shield |
V |
|
S Switch |
V |
|
Black eQualizer |
V |
|
Color Vibrance |
V |
|
Low Blue Light |
V |
|
Flicker-Free |
V (DyAc⁺™ off) |
|
K Locker |
V |
|
Variable Refresh Rate |
V (DyAc⁺™ off) |
|
Accessories included in the box
|
|
|---|---|
|
S Switch |
V (5-way) |
|
Shield |
V |
|
Video cable |
DP1.2 (1.8m) |
|
Power cable |
V (1.8m) |
|
Dust cover |
V |
