จอมอนิเตอร์ / จอสำหรับแต่งภาพ PhotoVue / SW321C / สเปค

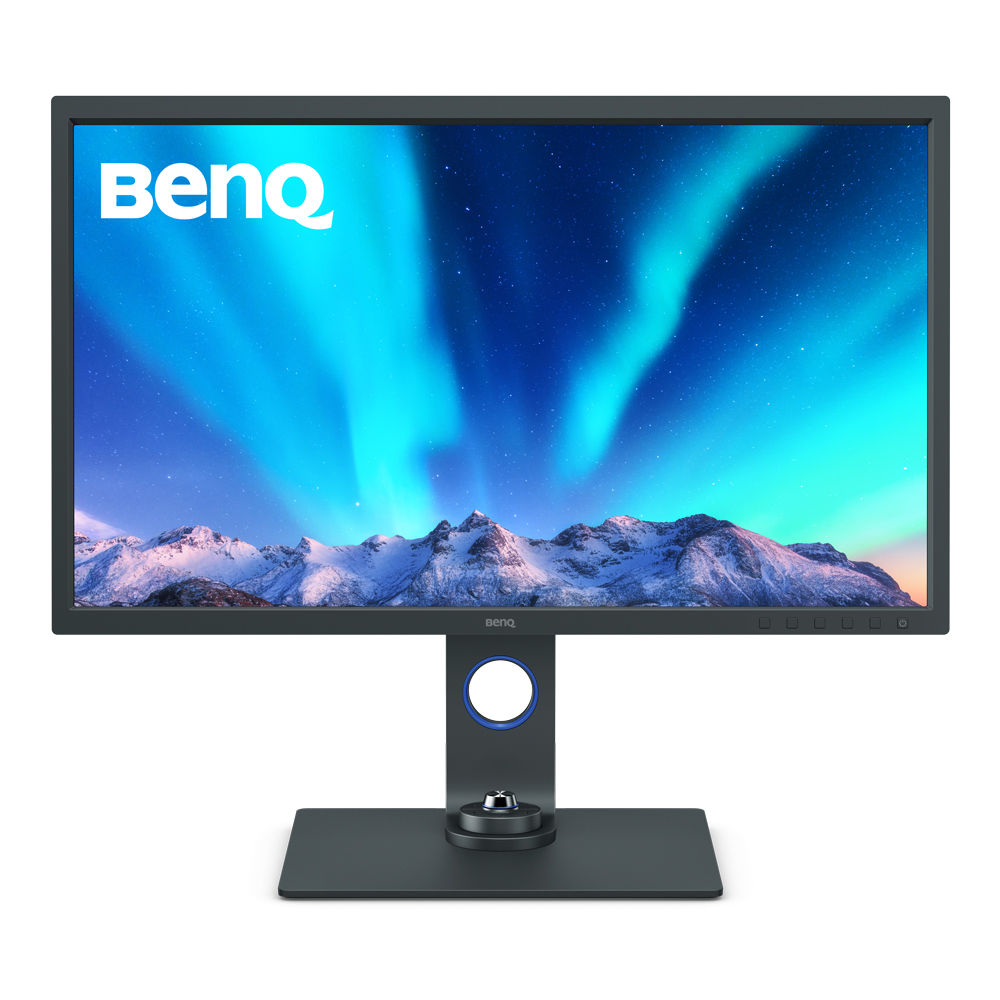

จอแต่งภาพ วิดีโอ ขนาด 32” 4K | SW321C


  • จอคอมแต่งภาพ AdobeRGB AQCOLOR ให้สีตรง พร้อมพอร์ต USB-C

  • ได้รับรางวัล Best Professional Photo Monitor 2020 - TIPA (Technical Image Press Association)

  • มาพร้อม Uniformity Technology และฟีเจอร์จำลองการพิมพ์ Paper Color Sync Software

สเปค

We will notify you when we have more.

* Required. Invalid email format.

We will send you an email once the product become available.Your email will not be shared with anyone else.

Sorry, our store is currently down for maintenance.We should be back shortly. Thank you for your patience!

ซื้อสินค้าได้ที่
คุณสามารถซื้อได้ที่นี่เช่นกัน
ค้นหาร้านค้า
ข้อมูลหลัก
Screen Size

31.5

Resolution (max.)

3840 x 2160

ข้อมูลสเปคทั้งหมด
Display
Screen Size

31.5

Panel Type

IPS

Backligh Technology

LED backlight

Resolution (max.)

3840 x 2160

Brightness (typ.)
250nits
HDR
HDR10,HLG
Native Contrast(typ.)

1000:1*

Viewing Angle (L/R;U/D) (CR>=10)

178 / 178

Response Time

5 ms (GtG)

Refresh Rate

60Hz

Aspect Ratio

16:9

Display Colors

1.07 billion colors

Color Gamut

99% AdobeRGB, 95% P3, 100% sRGB

Display Area(mm)

708.48 x 398.52

Pixel Pitch (mm)

0.1845

PPI

137

DCR (Dynamic Contrast Ratio) (typ.)

20M:1

Audio
Headphone Jack

Yes

Monitor
Segment

Photographer

Product Color

Gray

Color Mode

Adobe RGB / sRGB / Rec.709 / DCI-P3 / Display P3 / M-book / B+W / HDR / Calibration 1 / Calibration 2 / Calibration 3 / Custom / Paper Color Sync / DICOM

HDR

HDR10 / HLG

Display Mode

Full, Aspect Ratio,  1:1

Color Temperature

5000°K / 6500°K/ 9300°K /  Custom / User Defined

Gamma

1.6 - 2.6, sRGB

K Locker

Yes

OSD Language

18 Languages (English / Francais / Deutsch / Italiano / Espanol /  Polish / Czech / Hungarian /  Romanian / Dutch / Russian / Swedish / Protuguese / Japanese / Chinese / S-Chinese / Arabic/Korean)

PIP/PBP

Yes

HDCP

2.2

VESA Wall Mount

100x100mm

AMA

Yes

Display Screen Coating

Anti-Glare / Anti-Reflection

Professional
3D-LUT

16 bit

Delta E

≦ 2 (average)

Hardware Calibration

Yes

Video Format Support

Yes

Gamut Duo

Yes

Black & White mode

Yes

Black Level

Yes

Factory Calibration Report

Yes

Connectivity
HDMI

HDMI (v2.0) x 2

DisplayPort

DisplayPort (v1.4)

USB Type-C

Yes (PD60W, DP Alt mode, Data)

Card Reader

SD/MMC type

Support Format: SD/SDHC/SDXC/MMC

Power
Voltage Rating

100~240V

Power Supply

Built-in

Power Consumption (on mode.)

170W

Power Consumption (based on Energy Star)

52W

Power Consumption (stand by mode)

0.5W‎

Power Consumption (sleep mode)

0.5W

Dimension and Weight
Dimensions (HxWxD mm) (w/o Base) (with shading hood)

453.45 x 759.4 x 257.89

Dimensions(HxWxD mm) (without shading hood)

Landscape: 502.25-652.25 x 747.2 x 223.61

Pivot: 798.6 x 448.15 x 223.61

Dimensions (HxWxD mm) (w/o Base)

448.15 x 747.2 x 77.82

Dimensions (HxWxD mm)

Landscape: 513.65-663.65 x 759.4 x 340.53

Pivot: 811.5 x 460.35 x 340.53

Net Weight (kg) (without shading hood)

11.8

Net Weight (kg) (without stand)

Landscape: 9.1

Pivot: 9.4

Net Weight (kg)

Landscape: 13.2

Pivot: 13.5

Gross Weight (kg)

25.6

Tilt (down/up)

-5˚/- 20˚

Swivel (left/right)

45/45

Pivot

90˚

Height Adjustment (mm)

150mm

Software
Palette Master Element

Yes

Support Calibrator

X-Rite il Display Pro / il Pro /il Pro 2 /il Studio/ ColorMunki Photo, Datacolor Spyder 4/ Spyder 5/ Spyder X



* Note. MacOS 10.15 update:

(a) Spyder 4 / il Display 2 not supported by macOS 10.15

(b) Spyder 5 will be supported macOS 10.15 in future PME software update

Video Signal Data
Hor. Frequency (KHz)

27~140Khz

Ver. Frequency (Hz)

24~76Hz

Video Bandwidth (MHZ)

600M Hz

Included Accessories
Other Accessories

Shading hood, QSG, Factory Calibration Report ,Hotkey Puck G2

Power Cable

Yes(1.8m)

Signal Cable

USB type-C cable(1m), mDP to DP cable (1.8m), HDMI 2.0 cable (1.8m), USB 3.1 cable (Gen 1)(1.8m)

Reliability
MTBF(hr, exclude backlight)

60000

Operating Temperatur

0˚C - 40˚C

Operating Humidity (non-condensing)

10% - 90%

Backlight Life (hr) Typical

30000

การCertification
Mac Compatible

Yes

Windows® Compatible

Windows®10, Windows®8.1, Windows®8, Windows®7

*If you’d like to have highest contrast ratio, go to: Picture Mode > User Mode
