How do I install the BenQ Laptop Tray on my BenQ Ergo Arm?

10-15-2025

To install the BenQ Laptop Tray on your BenQ Ergo Arm, please follow these steps:

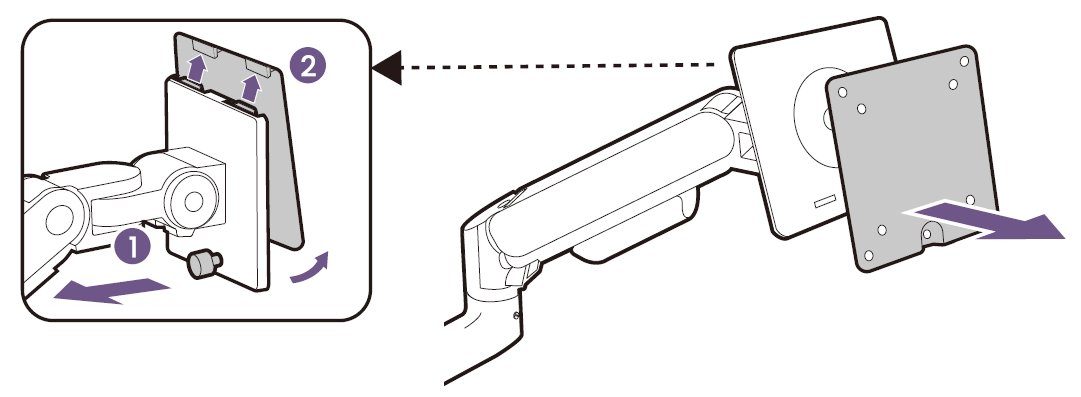

1. Remove the VESA Quick-Release Plate: Take the VESA quick-release plate

    from your BenQ Ergo Arm. The Laptop Tray does not include its own plate,

    so this step is essential.

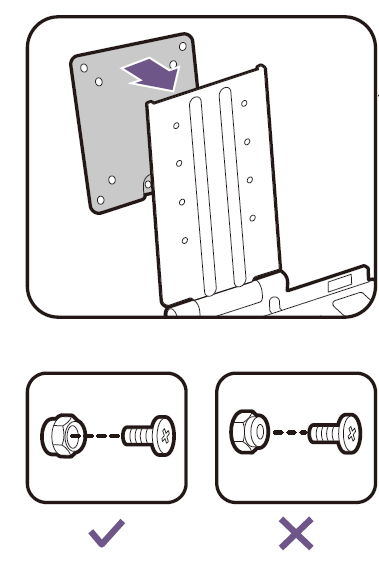

2. Attach the Laptop Tray: Align the Laptop Tray with the VESA quick-release

    plate you removed from the BenQ Ergo Arm. Ensure that all mounting holes

    are properly aligned.

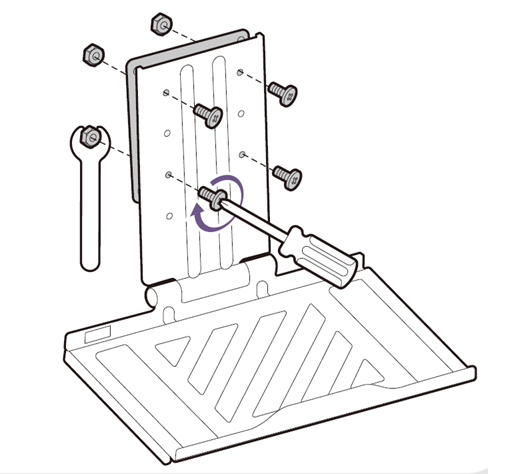

3. Secure the Connection: Use the screws provided with your BenQ Ergo Arm

    to secure the Laptop Tray to the quick-release plate. Make sure the screws

    are tightened adequately to ensure a stable connection.

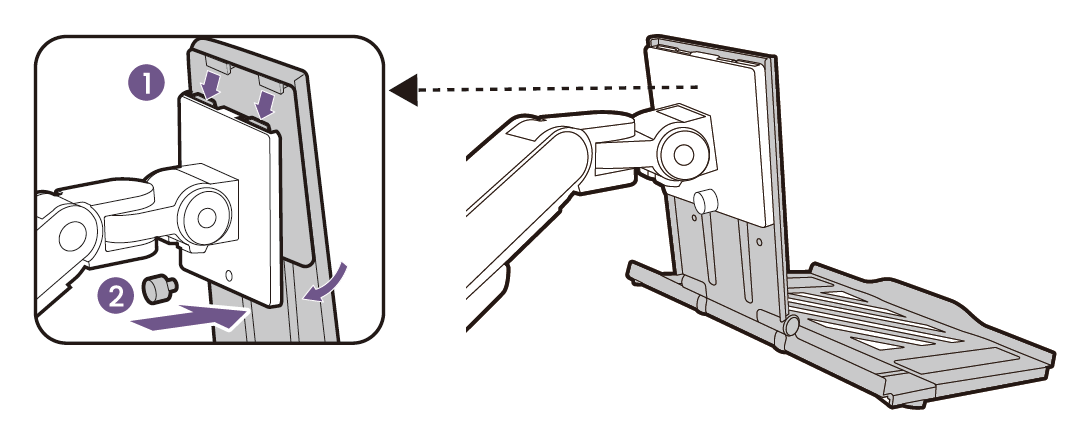

4. Reattach to the BenQ Ergo Arm: Once the Laptop Tray is securely attached

    to the quick-release plate, reattach the plate to the BenQ Ergo Arm.

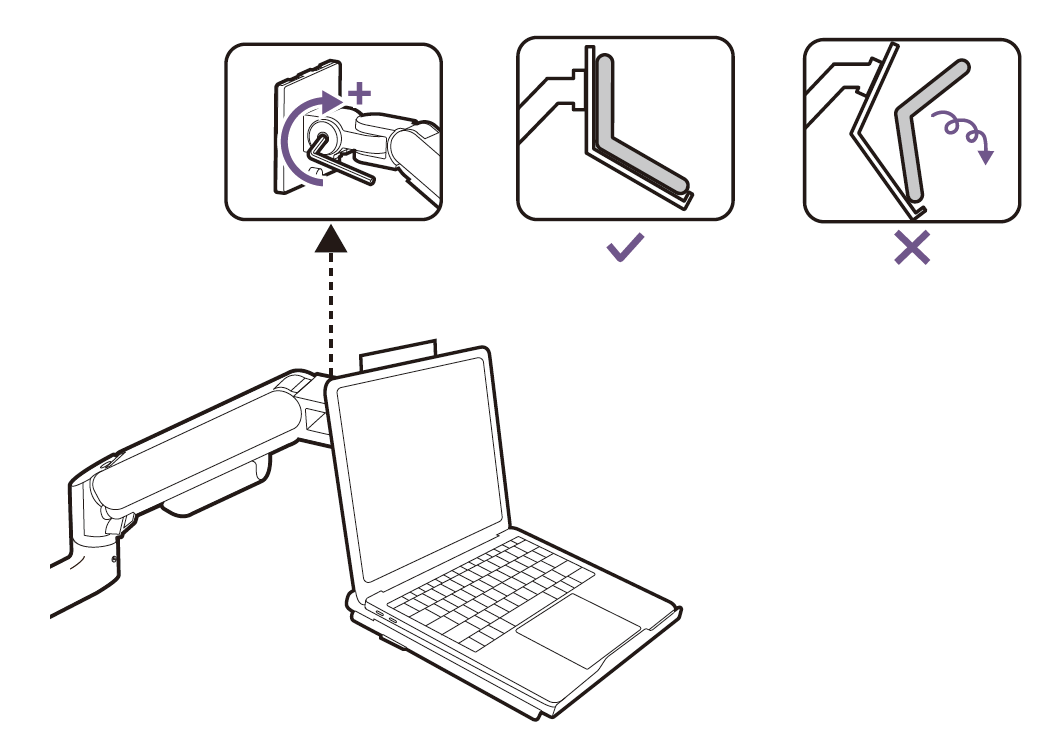

5. Adjust Position:

    After installation, adjust the height and viewing angle of the Laptop Tray

    using the monitor arm’s tilt and extension adjustments.



Note: The BenQ Laptop tray itself has a fixed opening angle of 130°.
