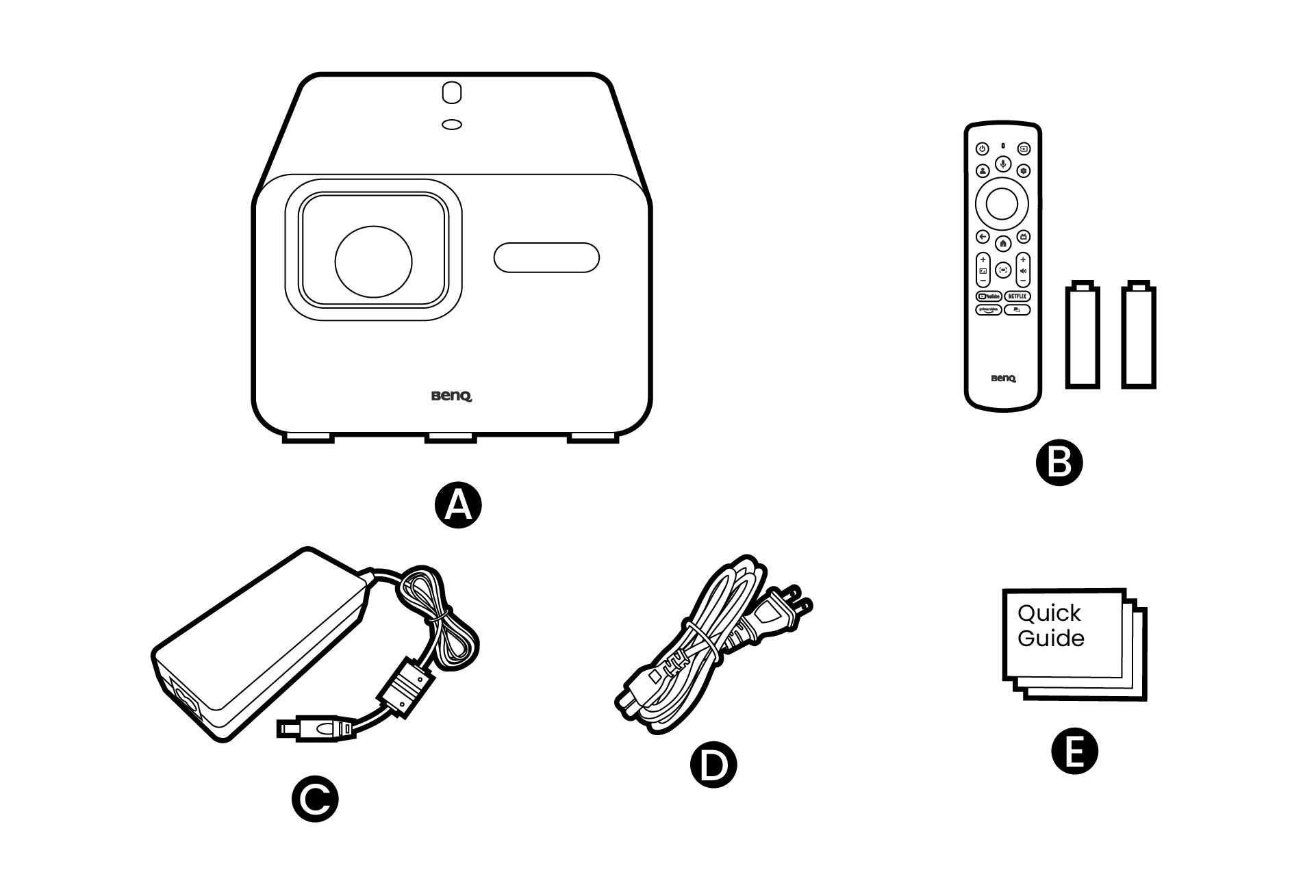

A. Projector｜B. Remote control (battery availability may vary by region)

C. Power adapter｜D. Power cord｜E. User documents

Illustration of package contents
Illustration of package contents

備註

The images shown here may differ from the actual contents and the product supplied for your region.

內容
Setup
Helpful app
Video connection
Upside down projection
Ceiling mounting
Setup
Helpful app
Video connection
Upside down projection
Ceiling mounting

Setup

1.

(Battery availability may vary by region)

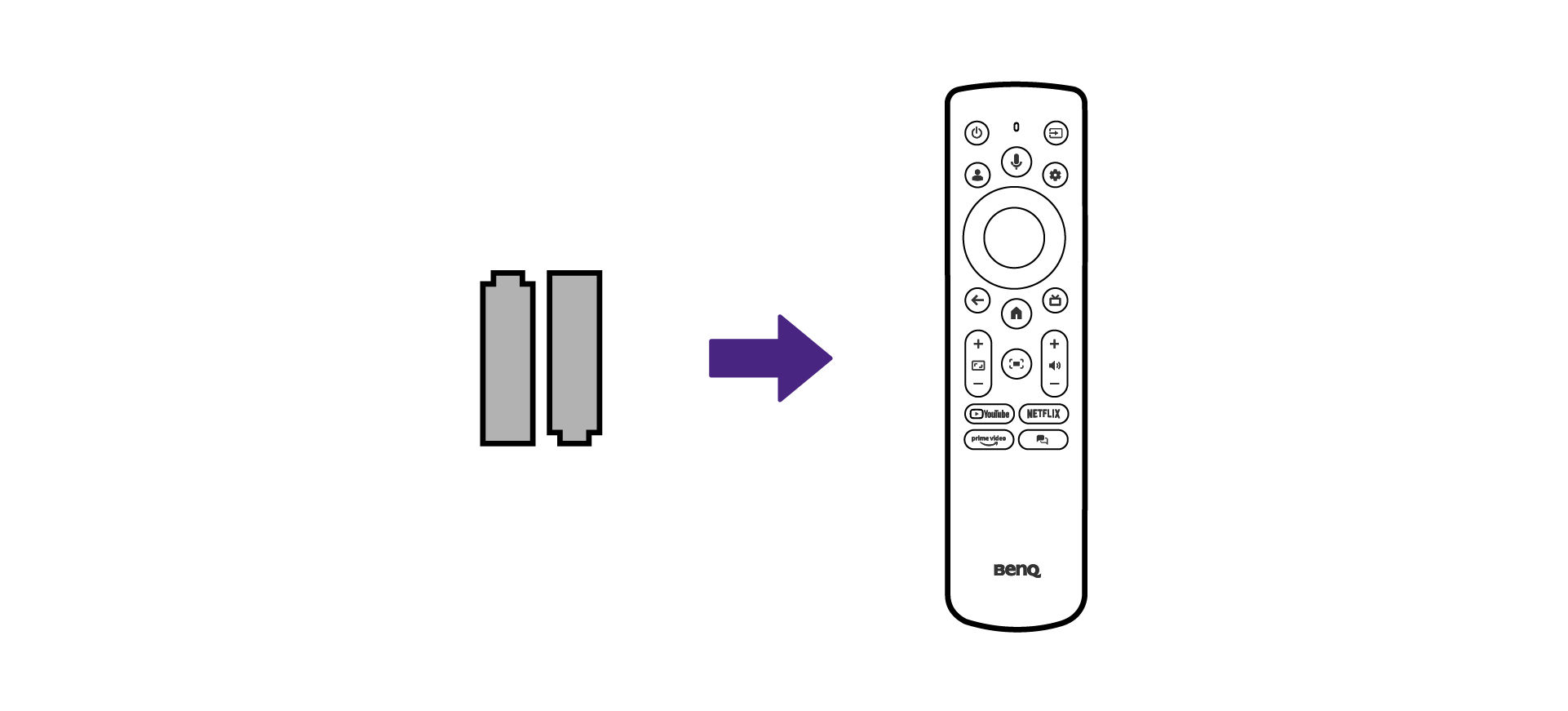

Install the remote control's batteries.
Install the remote control's batteries.

2.

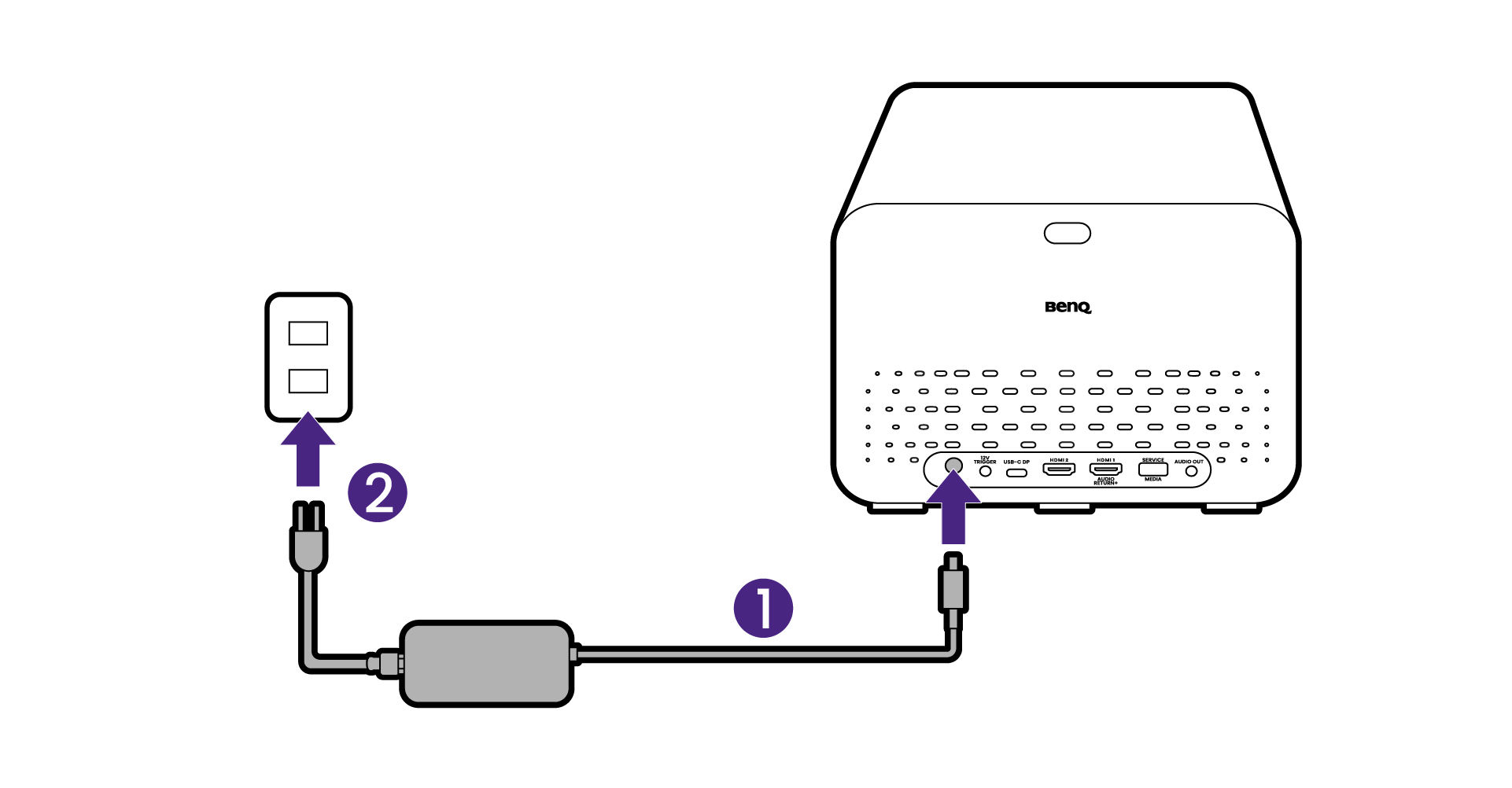

Connect power to the projector.
Connect power to the projector.

3.

Press and hold the power button on the projector for 1 second or press the power button on the remote control.
Press and hold the power button on the projector for 1 second or press the power button on the remote control.

4.

Complete setup

(Screen images may vary by region)

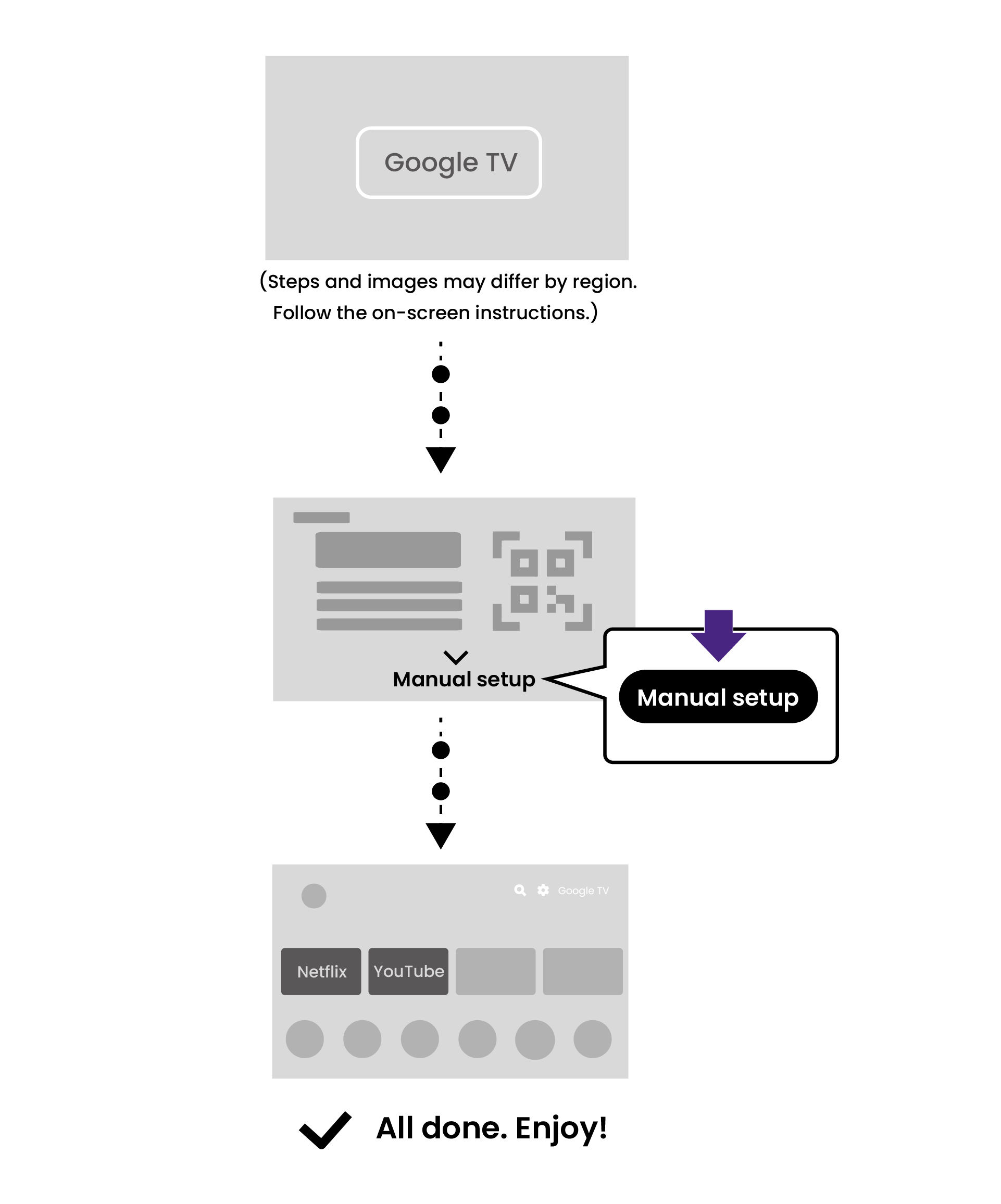

Complete the initial setup.
Complete the initial setup.

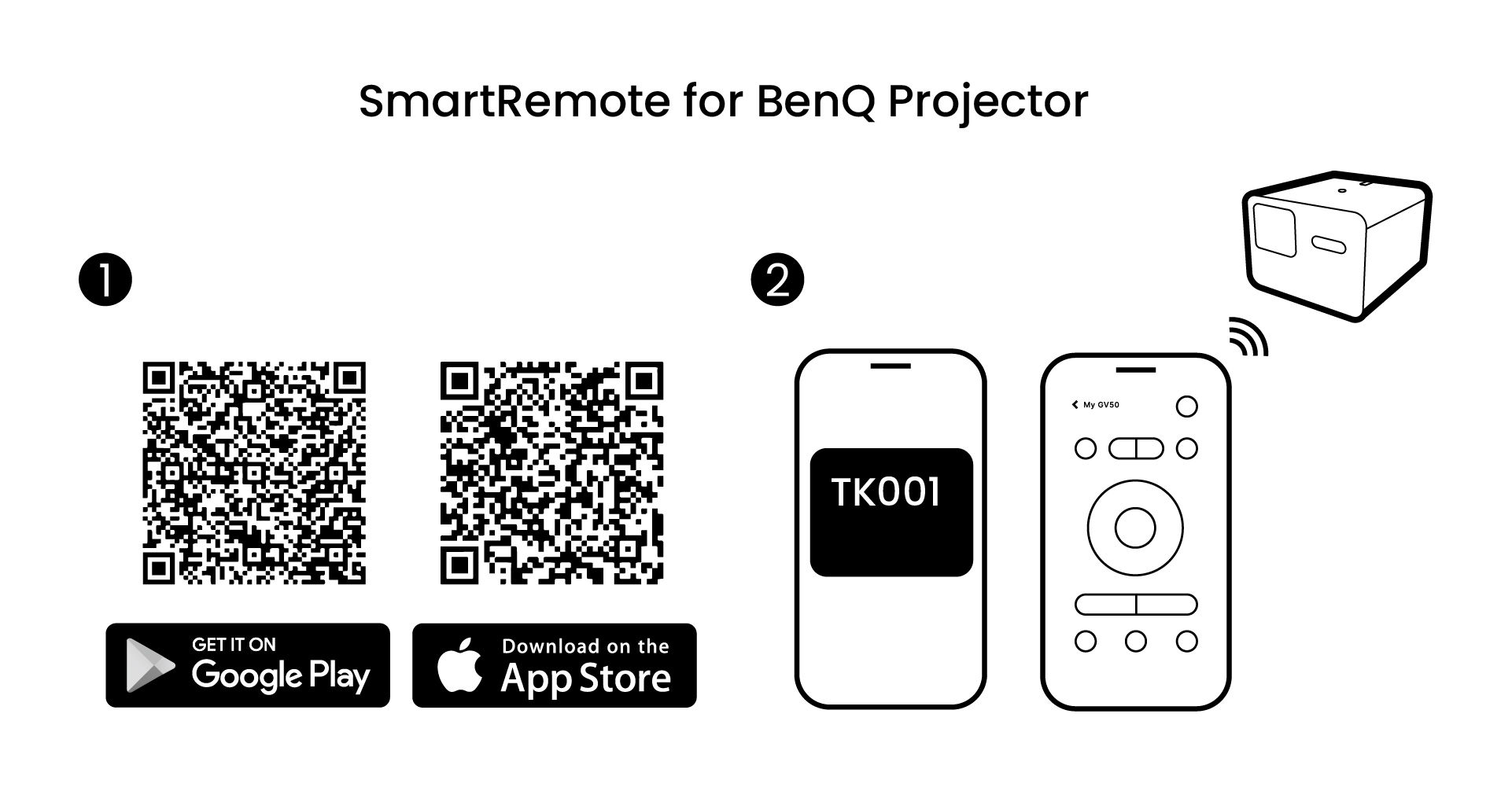

Helpful app

Download SmartRemote for BenQ Projector app to your mobile device.
Download SmartRemote for BenQ Projector app to your mobile device.

Video connection

1.

(Video cables purchased separately)

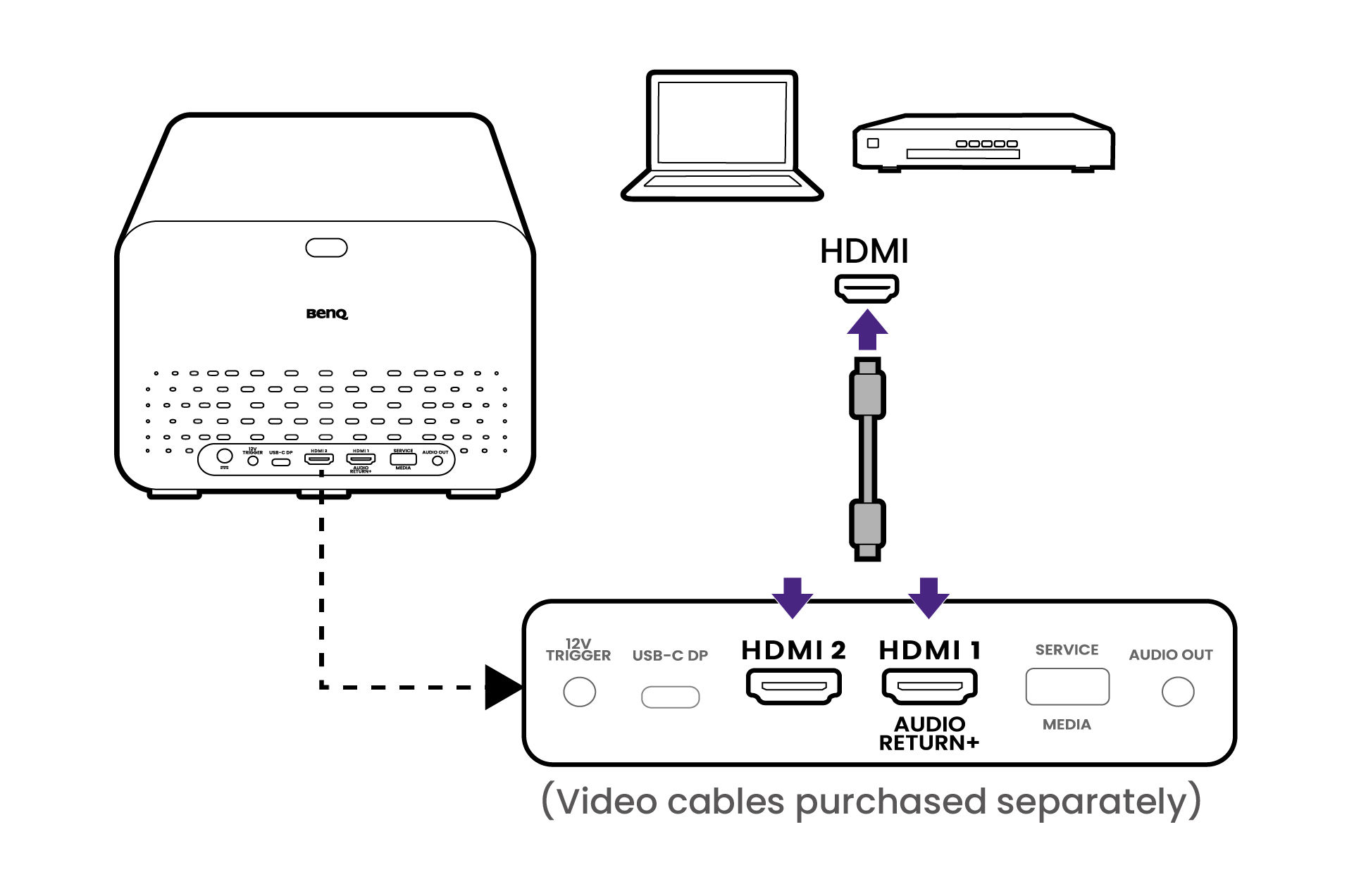

Connect video source to the projector via HDMI.
Connect video source to the projector via HDMI.

2.

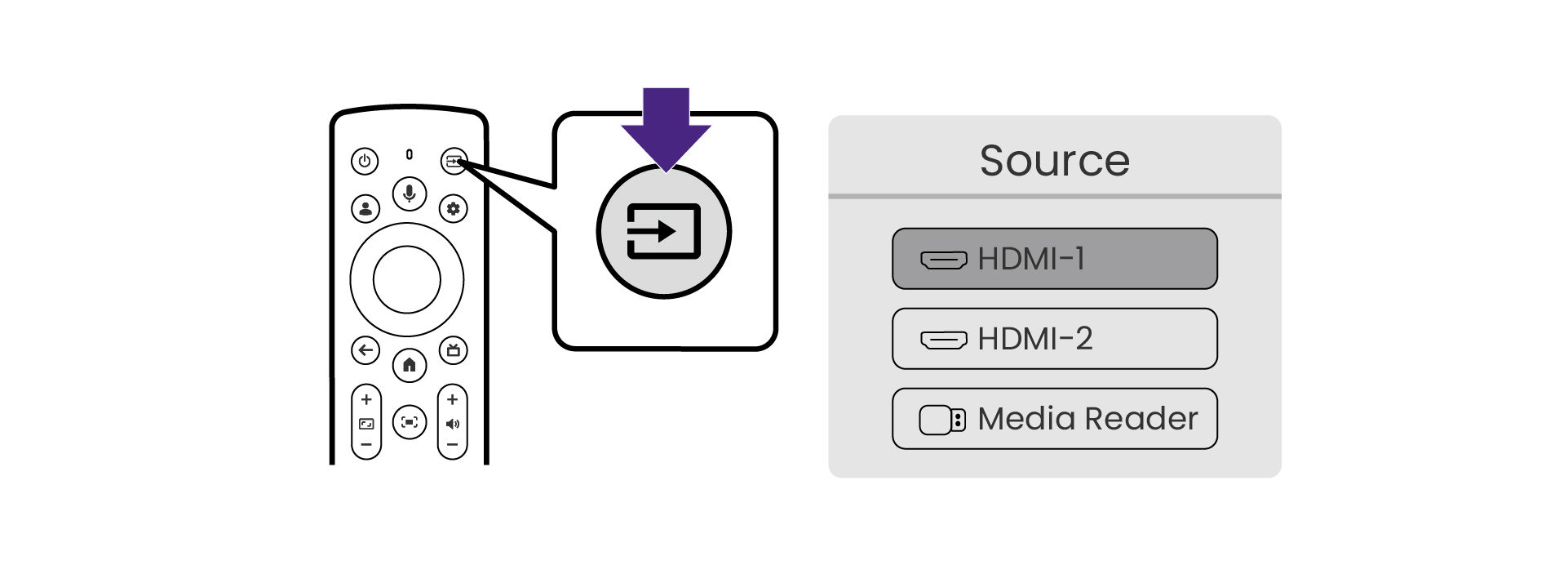

Press the source key on the remote control to switch to the connected video source.
Press the source key on the remote control to switch to the connected video source.

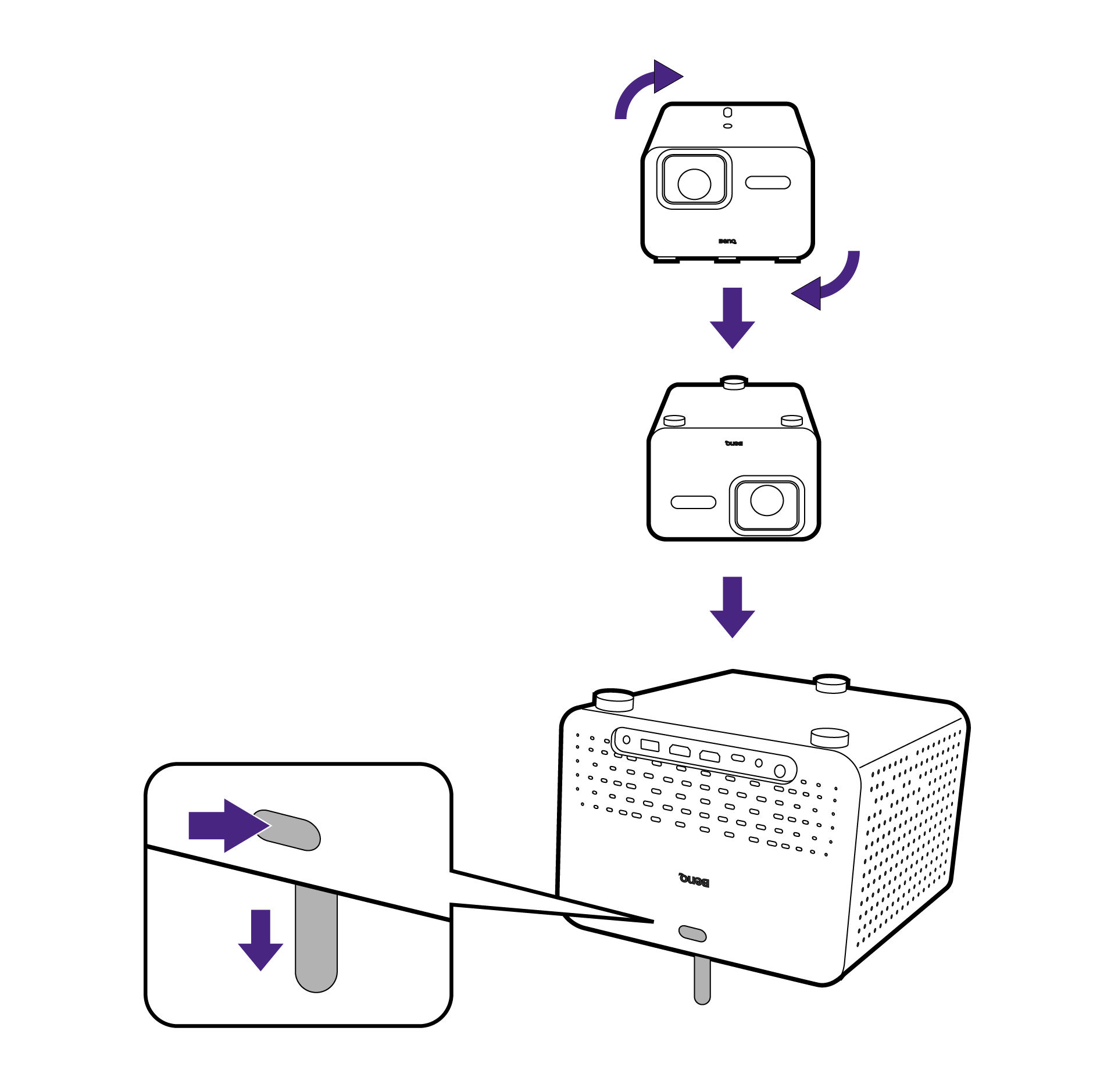

Upside down projection

(with built-in adjustable foot)

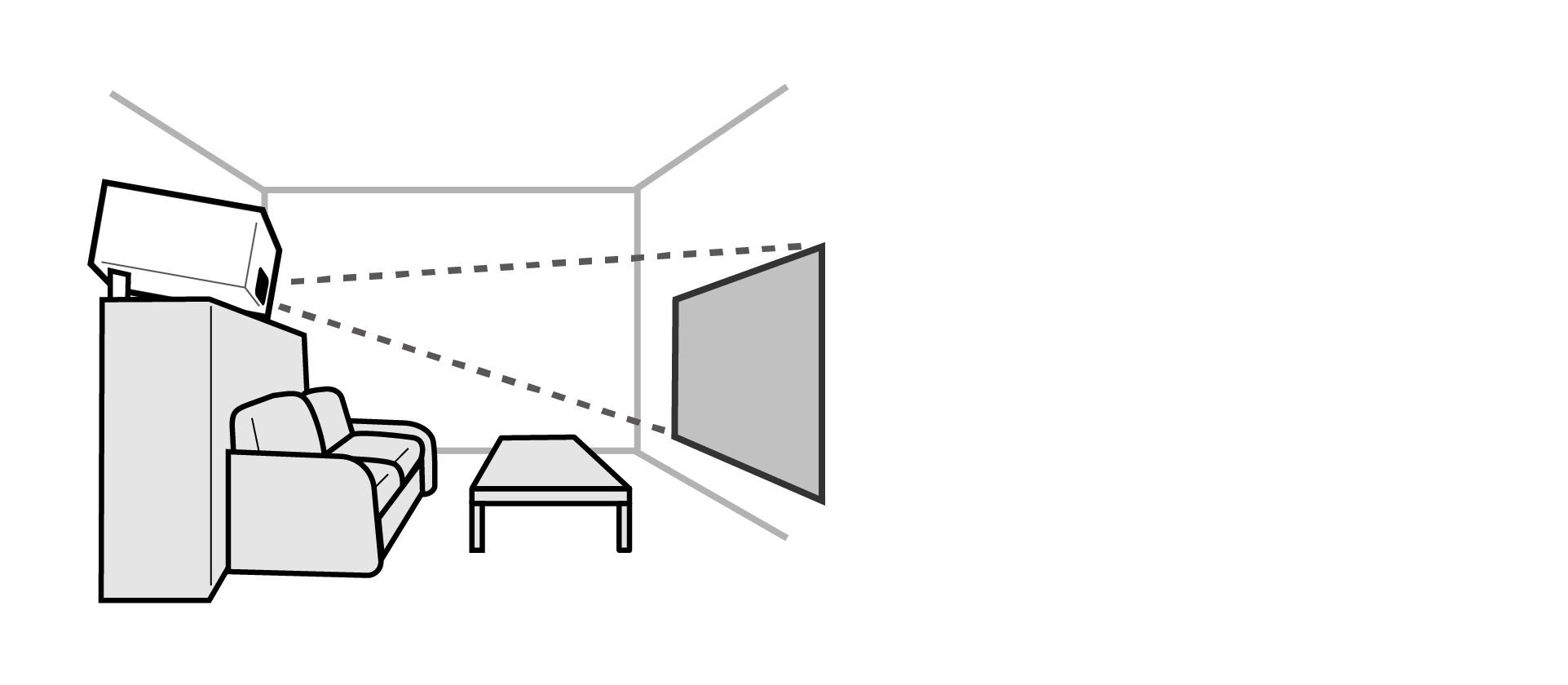

Upside down projection with the built-in adjustable foot.
Upside down projection with the built-in adjustable foot.

Place the projector upside down and push the adjustable foot button.
Place the projector upside down and push the adjustable foot button.

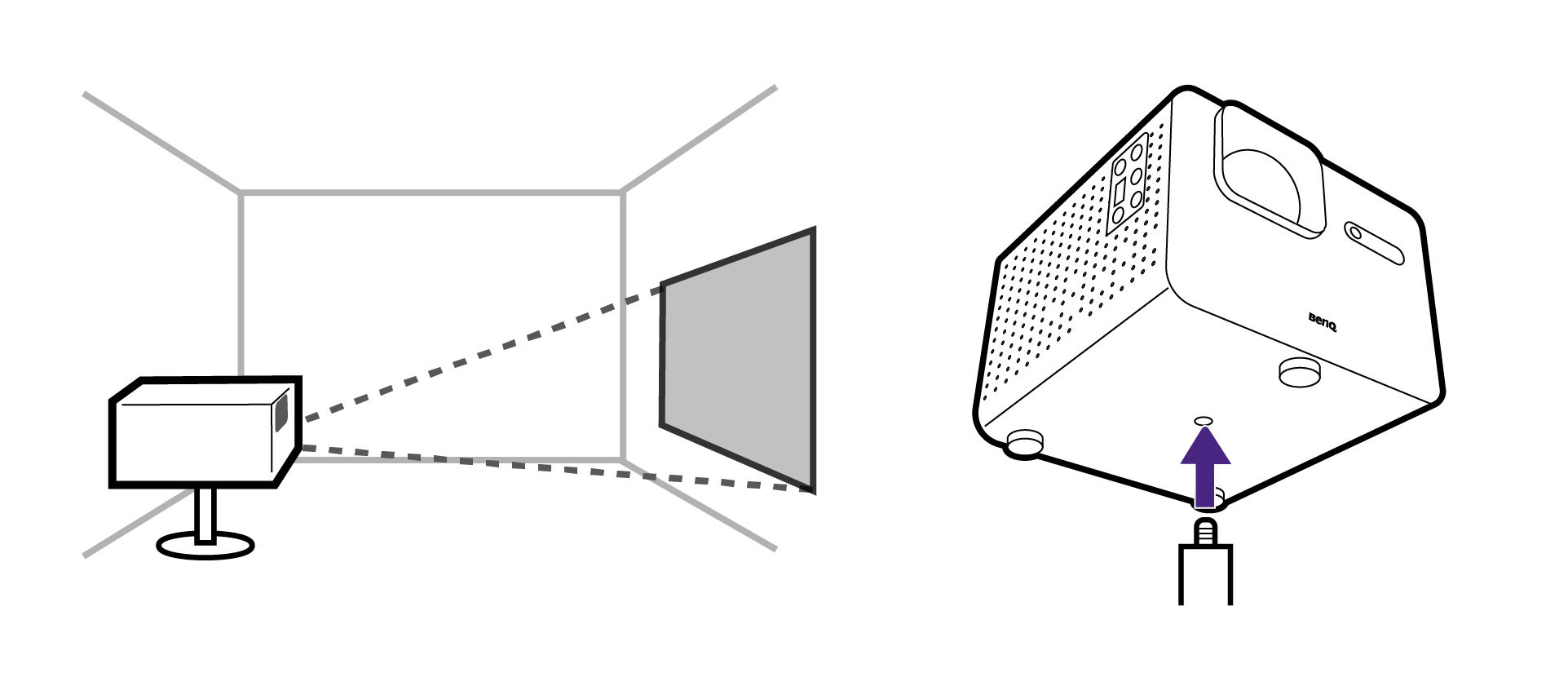

Front projection

Screw type: 1/4"

Front projection with a tripod or projector stand purchased separately.
Front projection with a tripod or projector stand purchased separately.

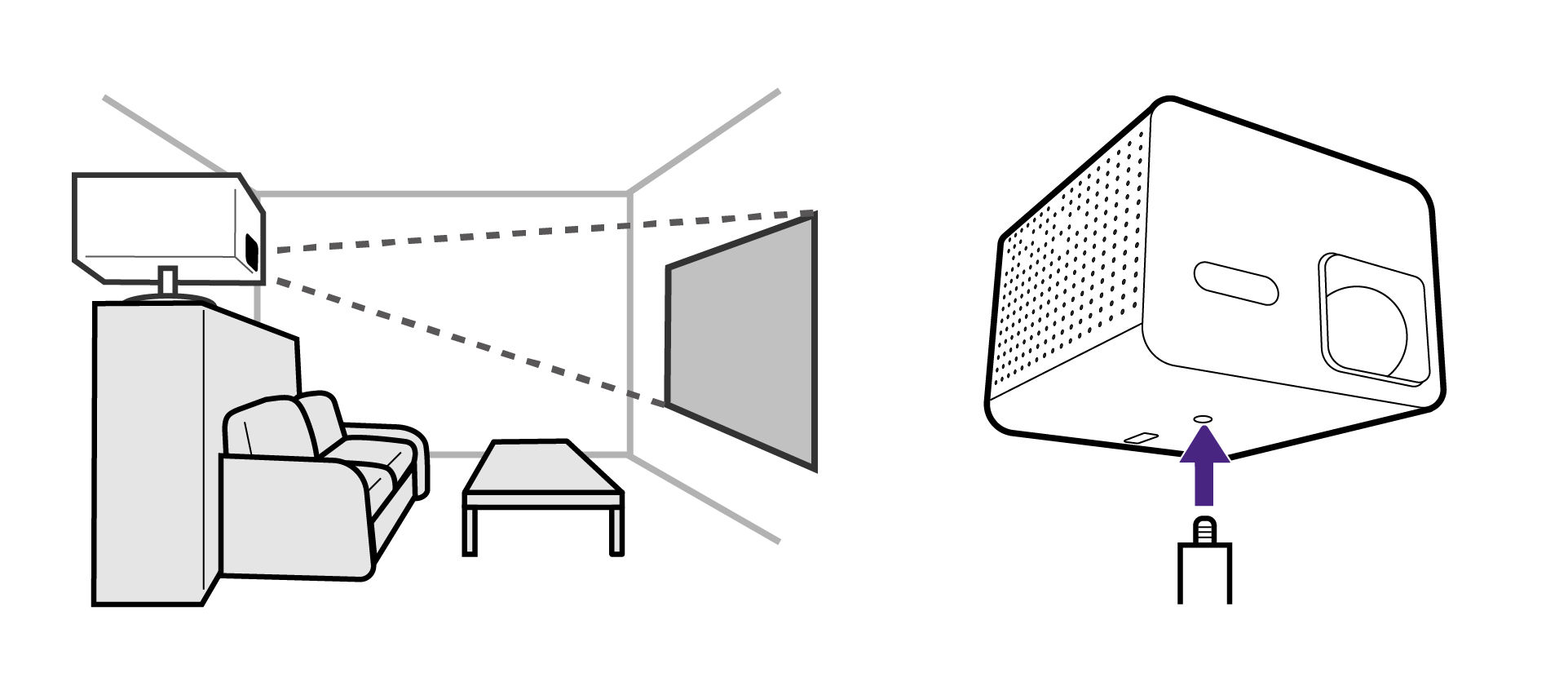

Upside down projection (with projector stand)

Screw type: 1/4"

Upside down projection with a tripod or projector stand purchased separately.
Upside down projection with a tripod or projector stand purchased separately.

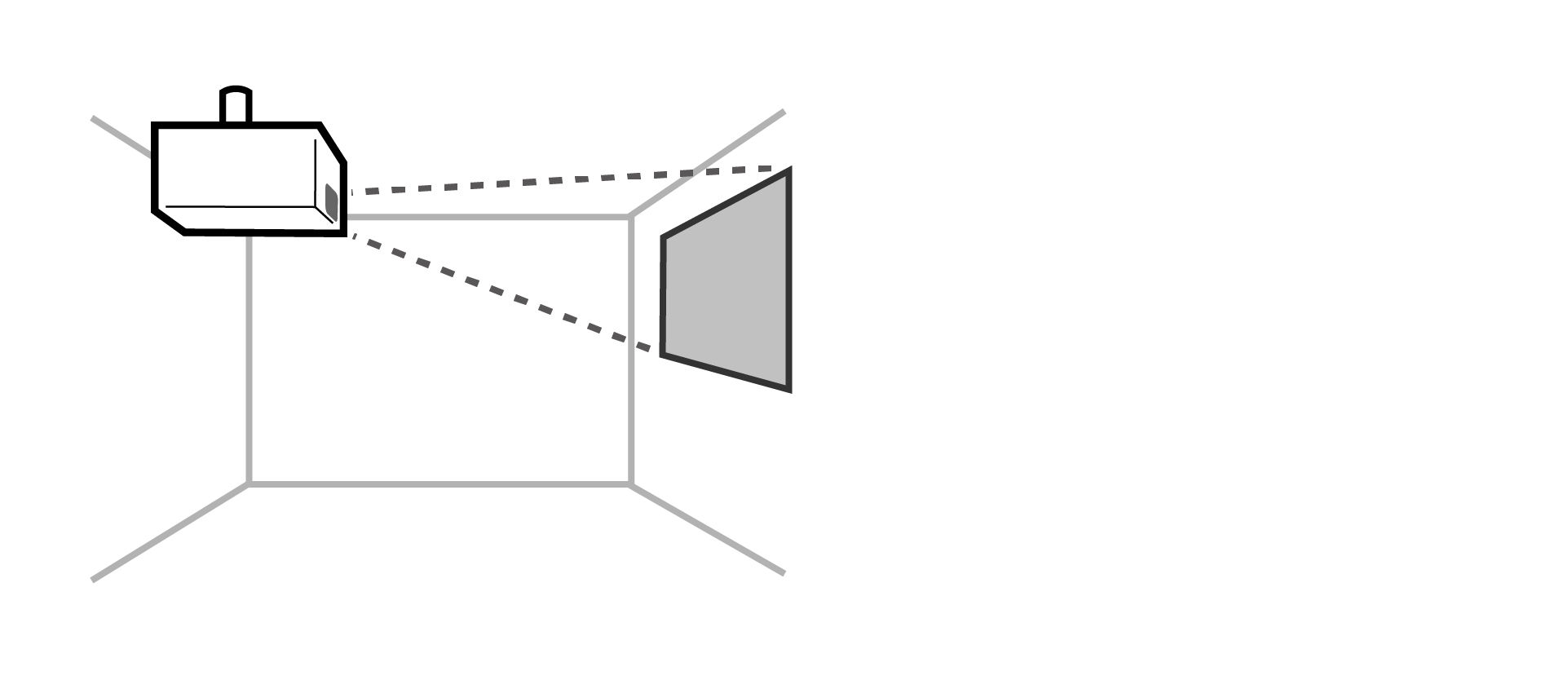

Ceiling mounting

Screw type: M4

Compatible BenQ ceiling mount: CM00G3

The projector can be ceiling mounted.
The projector can be ceiling mounted.

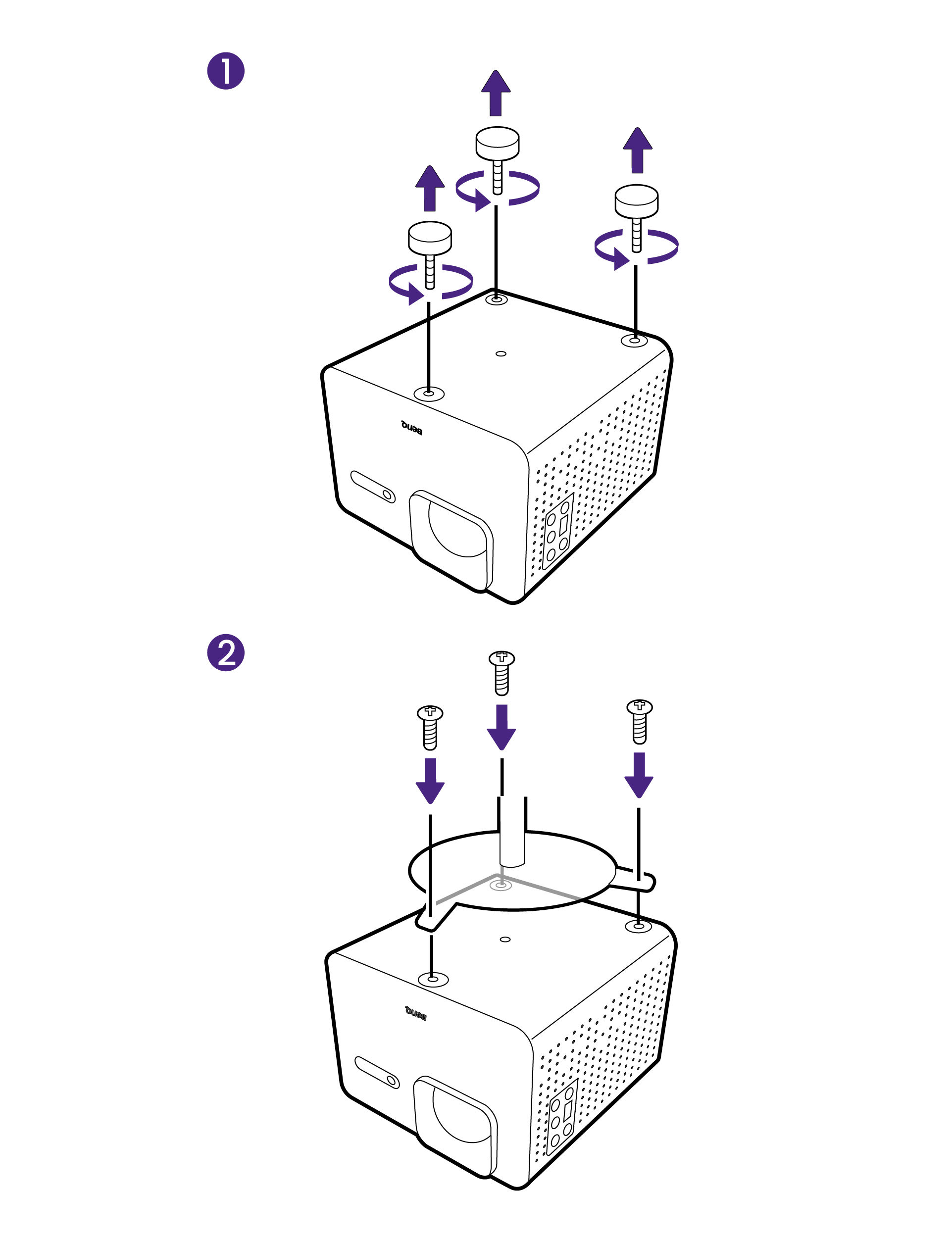

Release the adjsutable feet on the bottom ot the projector to access the ceiling mount screw holes. Install the projector onto a ceiling mount.
Release the adjsutable feet on the bottom ot the projector to access the ceiling mount screw holes. Install the projector onto a ceiling mount.
