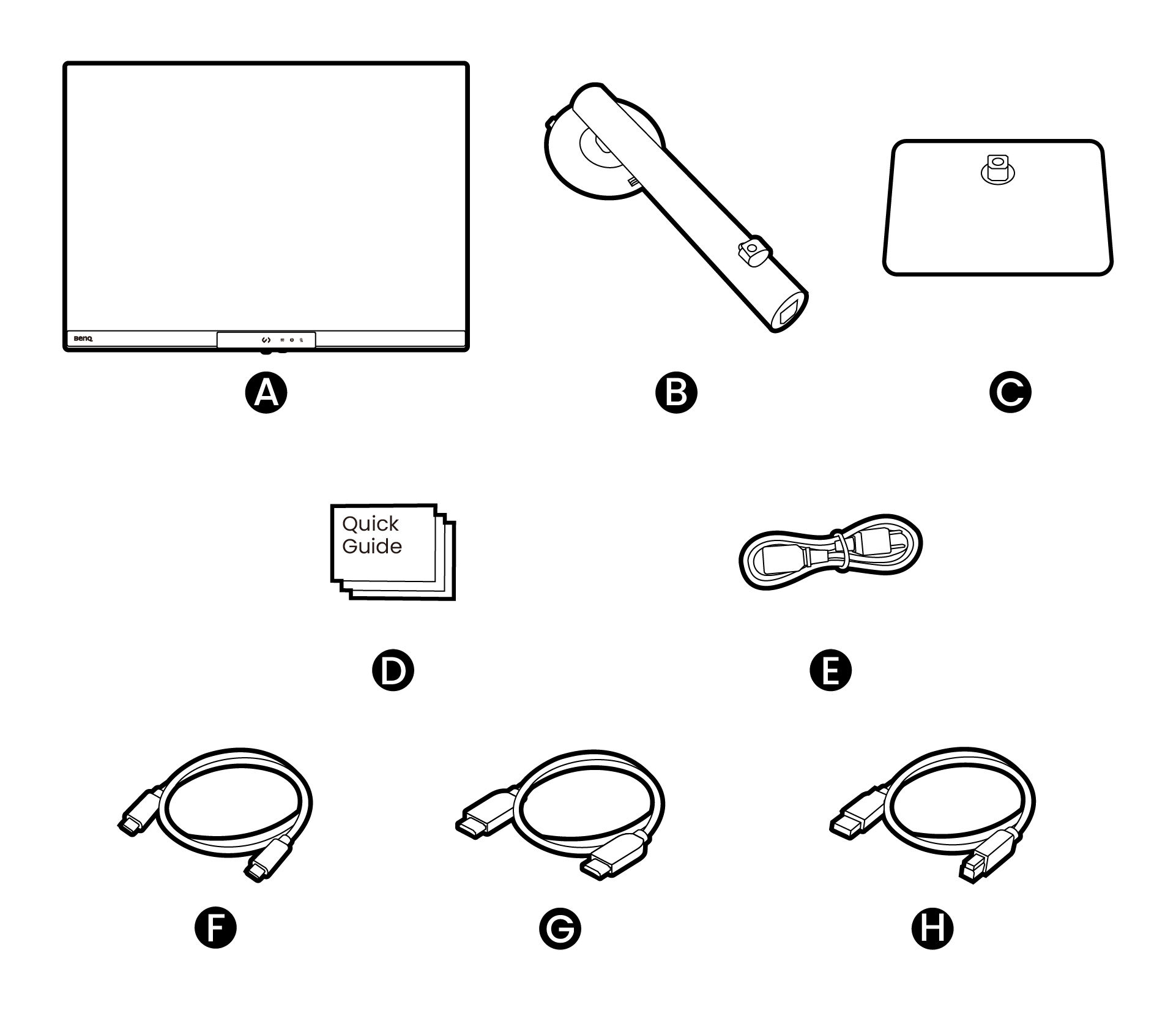

A. LCD 顯示器｜B. 顯示器支架｜C. 底座

D. 使用說明文件｜E. 電源線

F. USB-C™ 傳輸線｜G. HDMI 傳輸線 G3｜H. USB-B 傳輸線

Illustration of package contents
Illustration of package contents

備註

本頁顯示圖片僅供參考，實際內容與供應產品可能因地區而異。

內容
安裝設定
Programming 系列
角度調整
Display Pilot 2 安裝
多螢幕串接設定 (Daisy Chain)
單組鍵盤滑鼠操控多組輸入 (KVM 轉變)
安裝設定
Programming 系列
角度調整
Display Pilot 2 安裝
多螢幕串接設定 (Daisy Chain)
單組鍵盤滑鼠操控多組輸入 (KVM 轉變)

安裝設定

1.

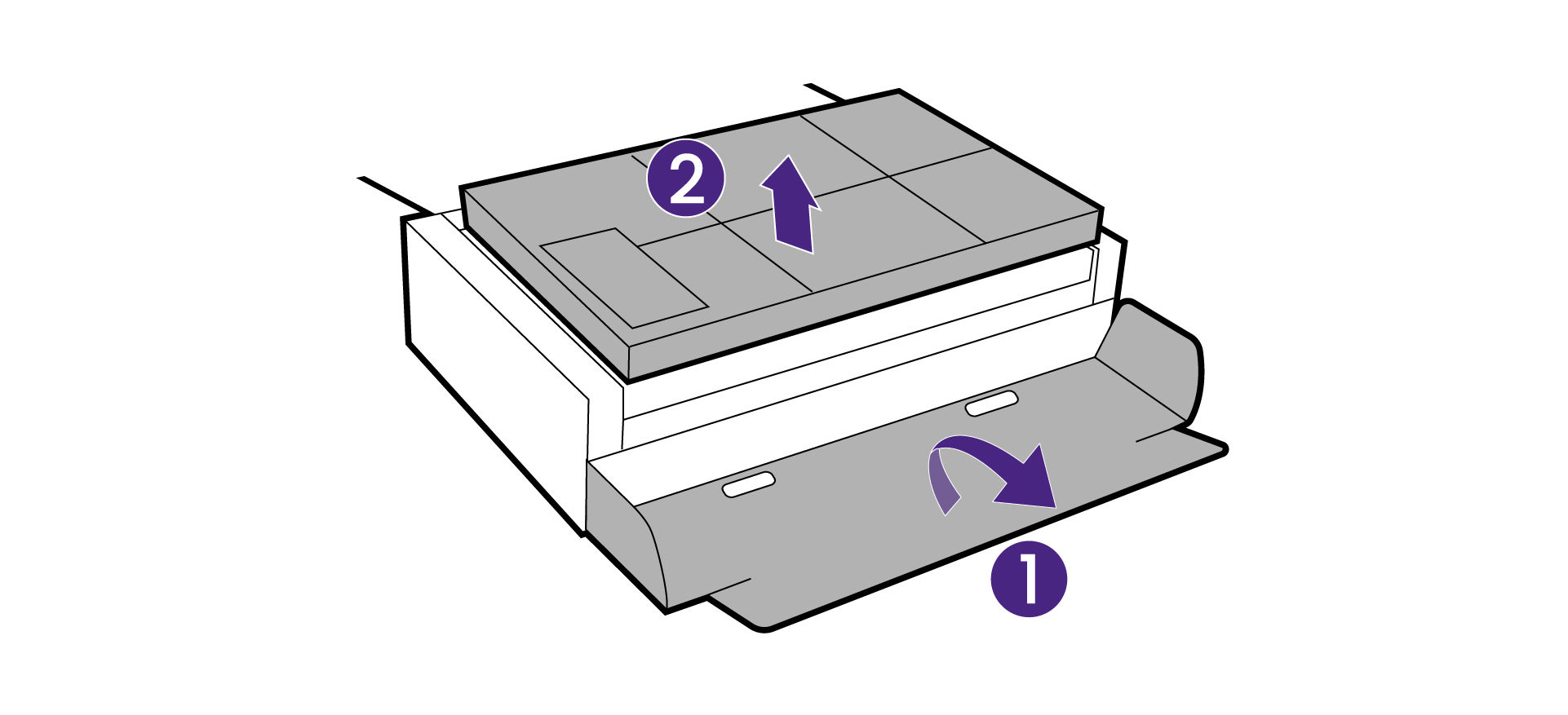

Open the box, unfold the front side of the box as illustrated to leave some room for stand and base attachment.
Open the box, unfold the front side of the box as illustrated to leave some room for stand and base attachment.

2.

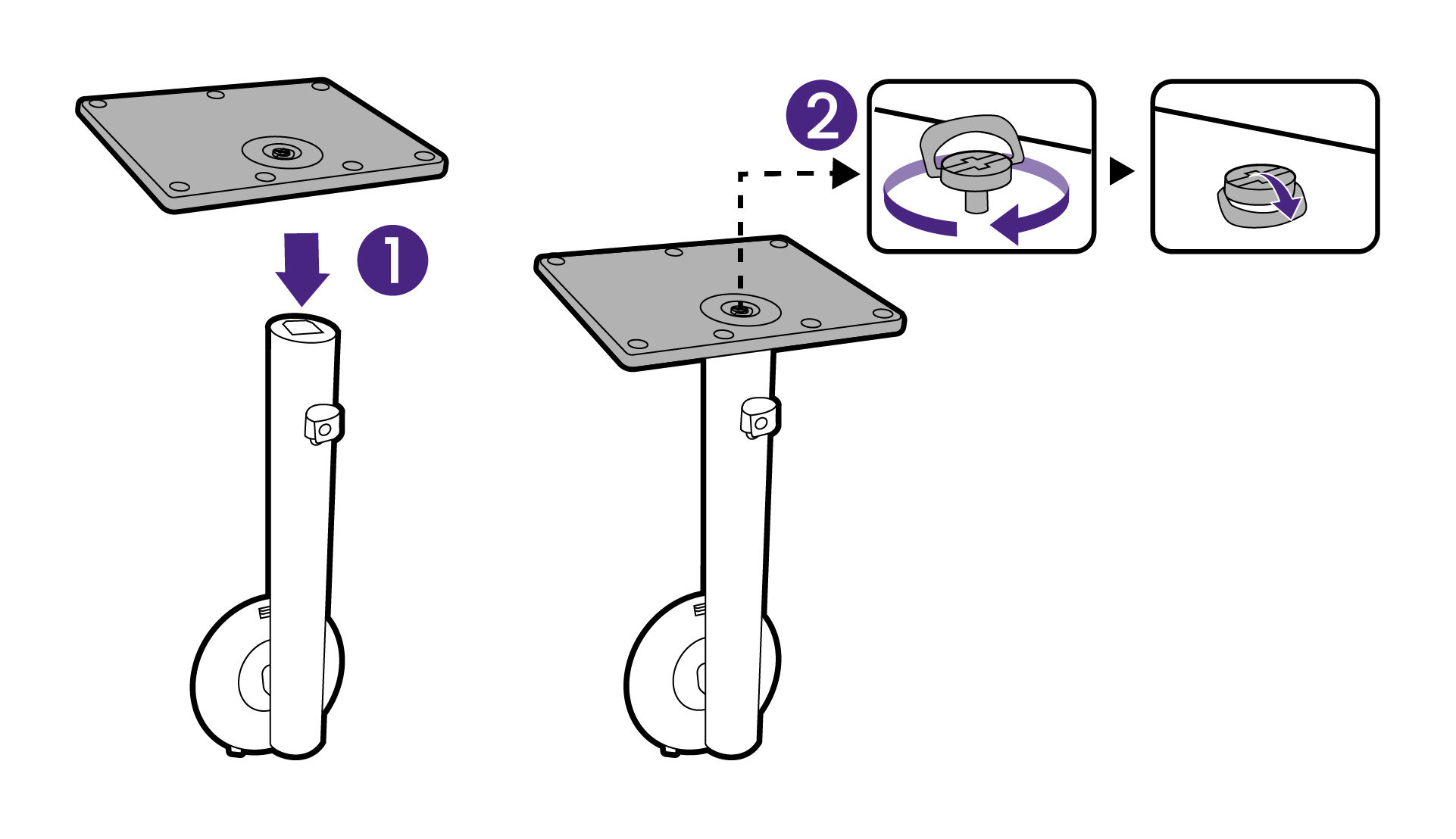

Attach the monitor stand to the monitor base as illustrated. Raise the thumbscrew lid and tighten the thumbscrew as illustrated. Then push the lid back.
Attach the monitor stand to the monitor base as illustrated. Raise the thumbscrew lid and tighten the thumbscrew as illustrated. Then push the lid back.

3.

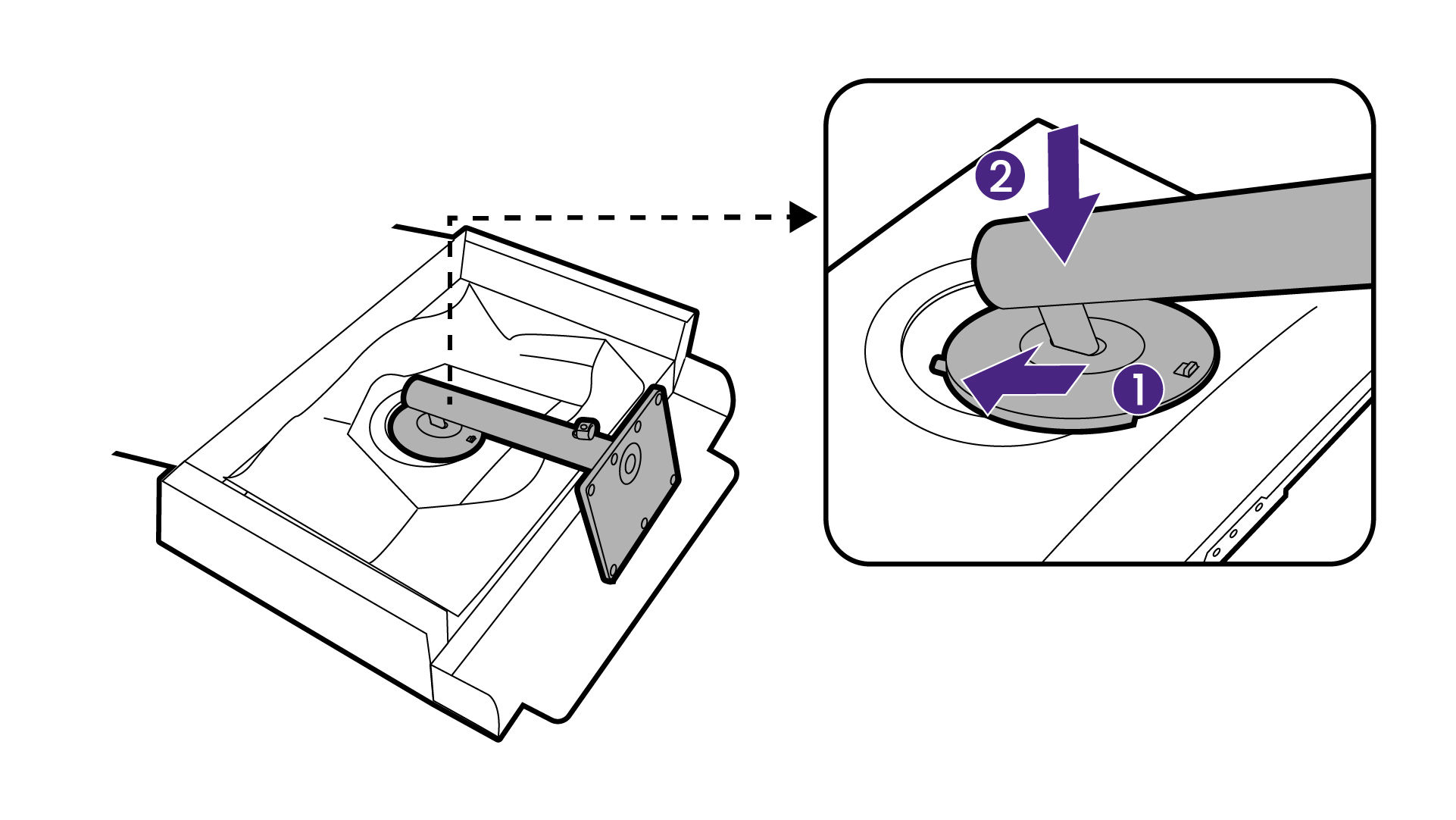

Orient and align the stand arm with the monitor, then push them together until they click and lock into place.
Orient and align the stand arm with the monitor, then push them together until they click and lock into place.

4.

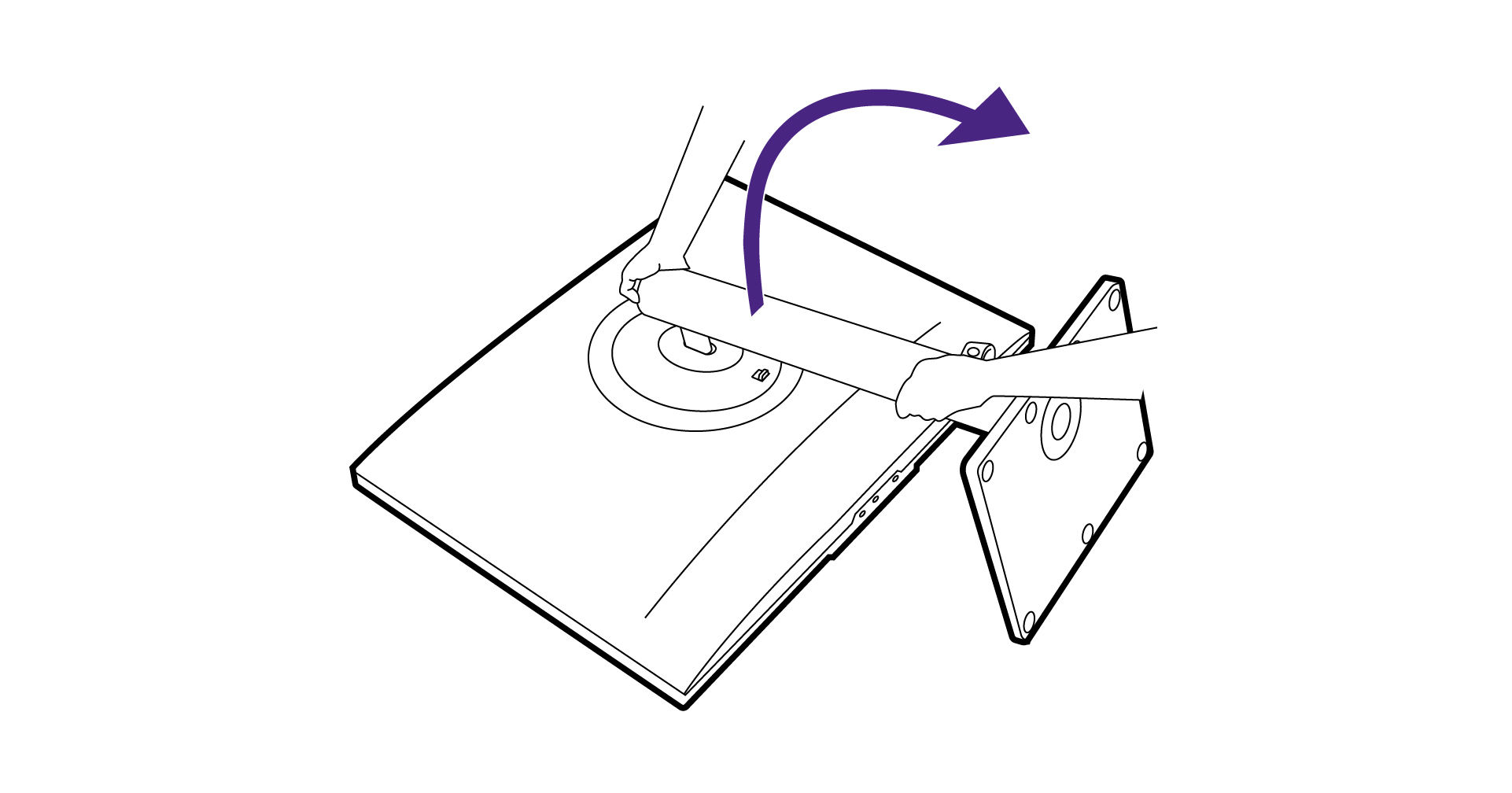

Carefully lift the monitor, turn it over and place it upright on its stand on a flat even surface.
Carefully lift the monitor, turn it over and place it upright on its stand on a flat even surface.

5.

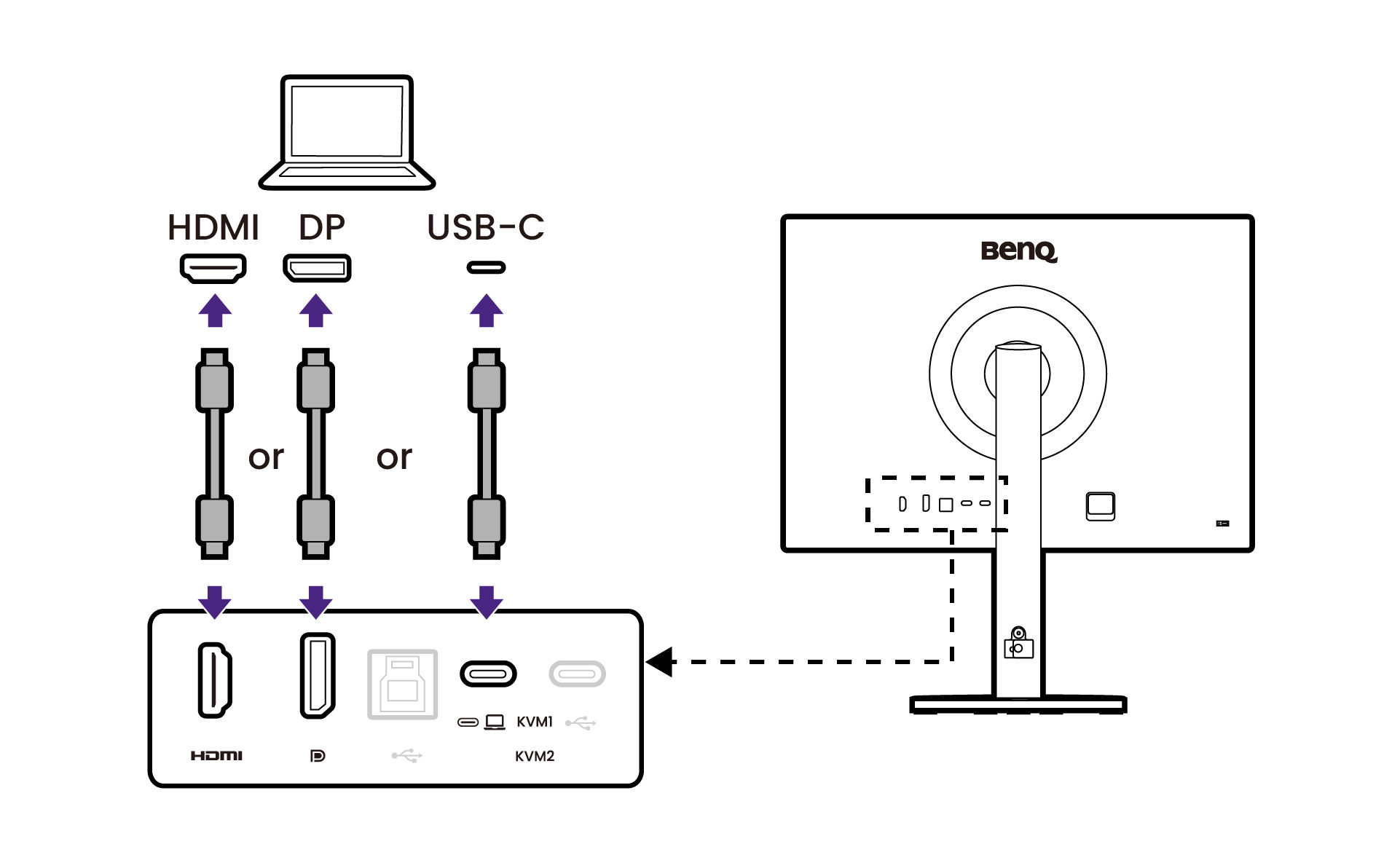

Connect the PC video cable.
Connect the PC video cable.

6.

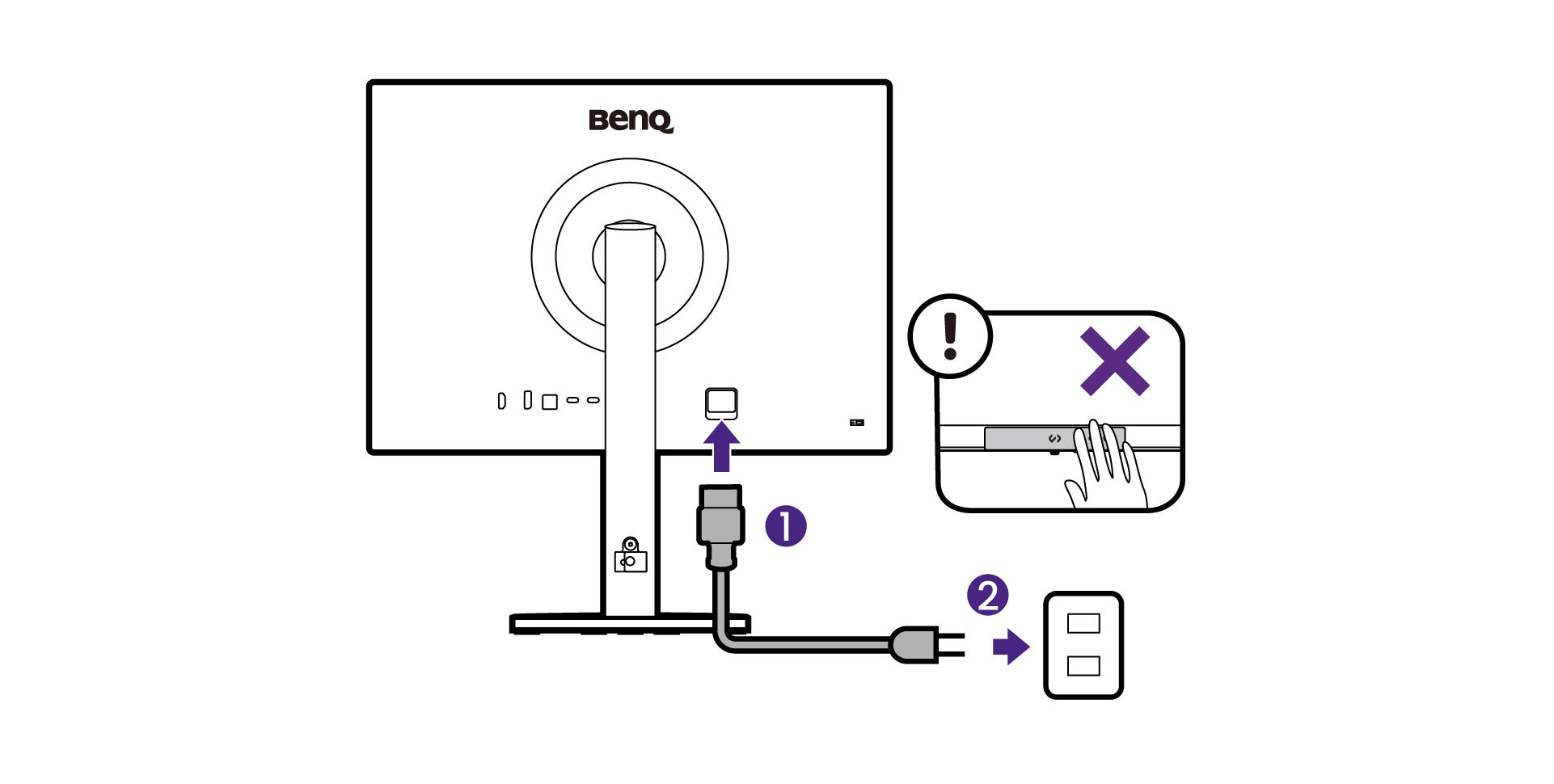

Connect the power.
Connect the power.

7.

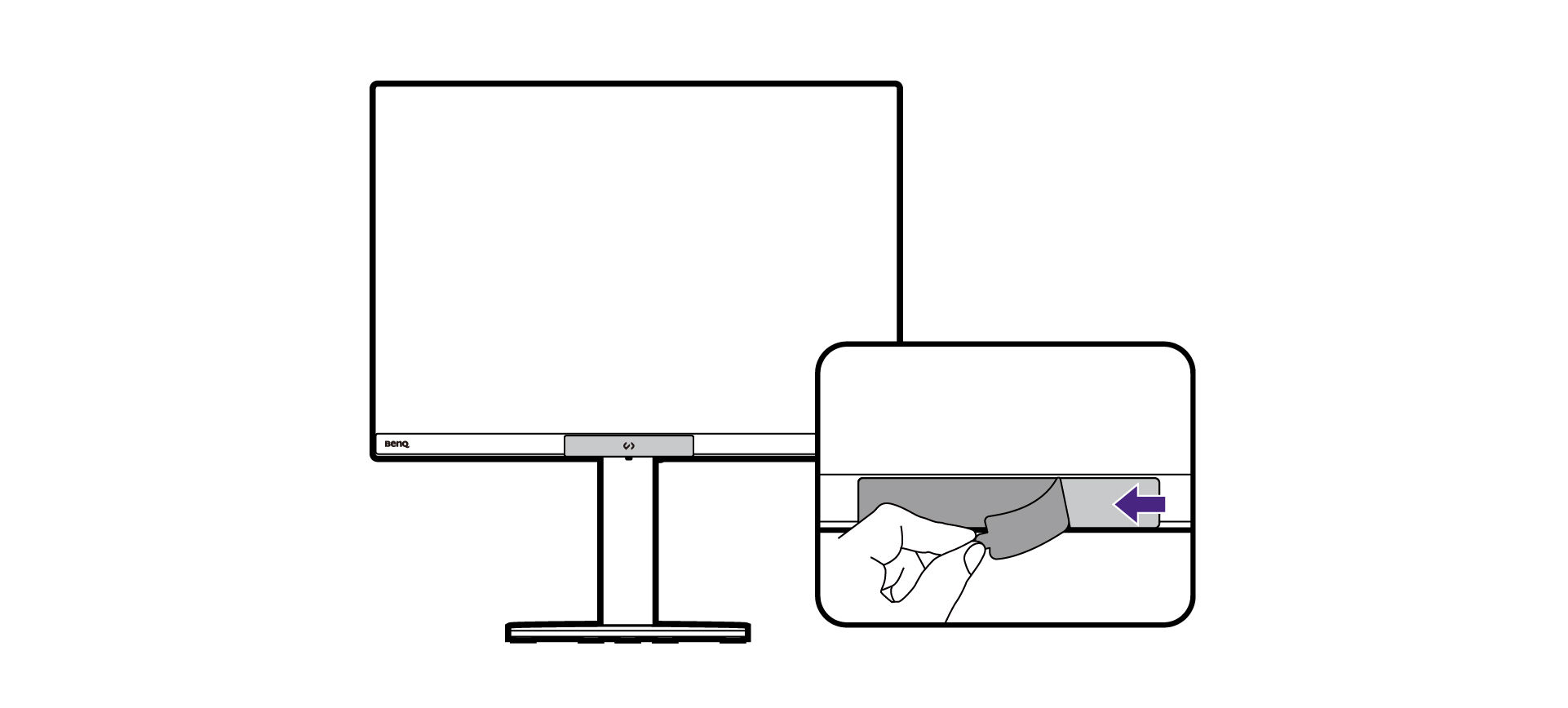

Remove the protective film.
Remove the protective film.

8.

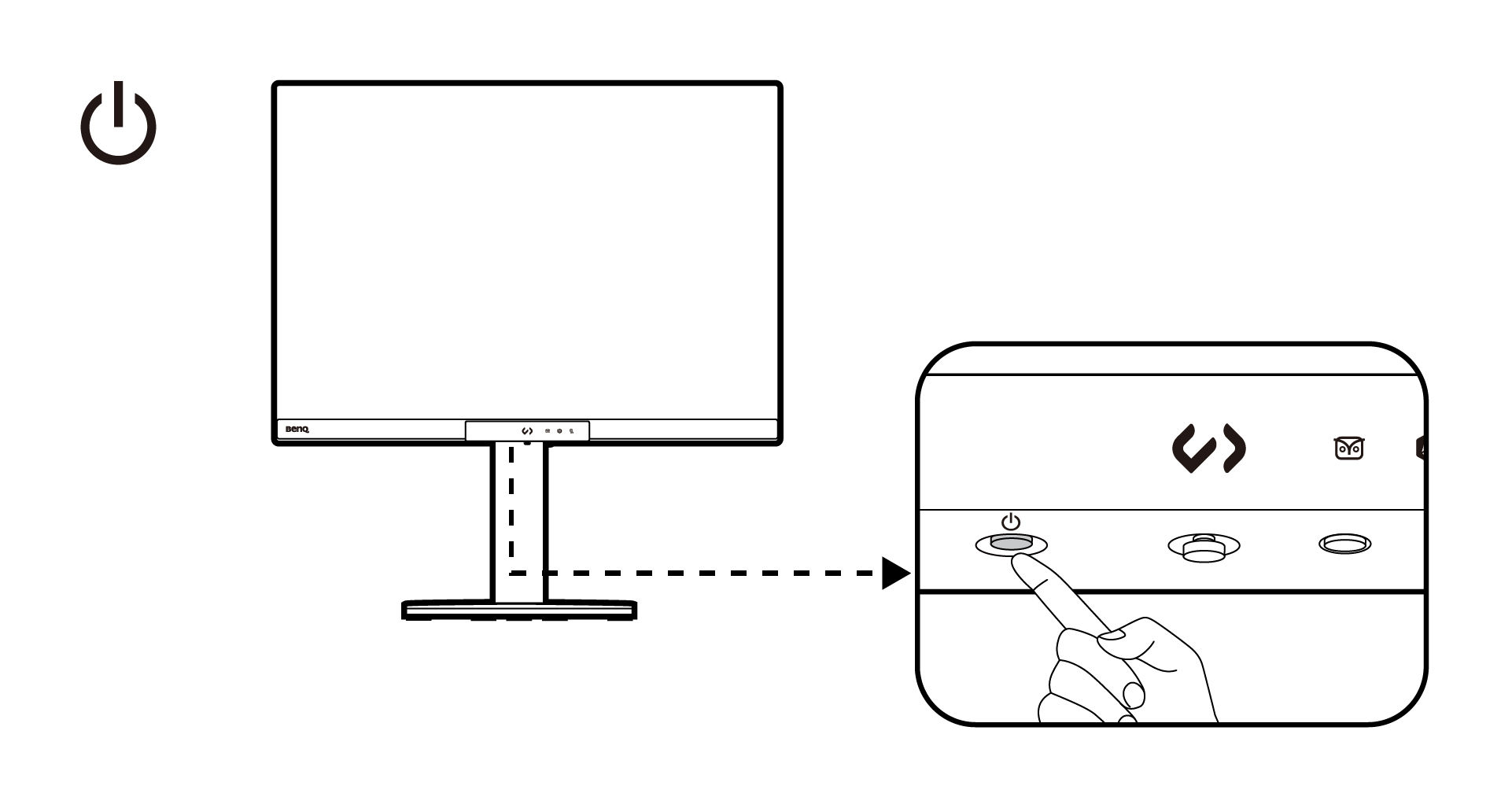

Turn-on the power.
Turn-on the power.

Programming 系列

極致寫程效率

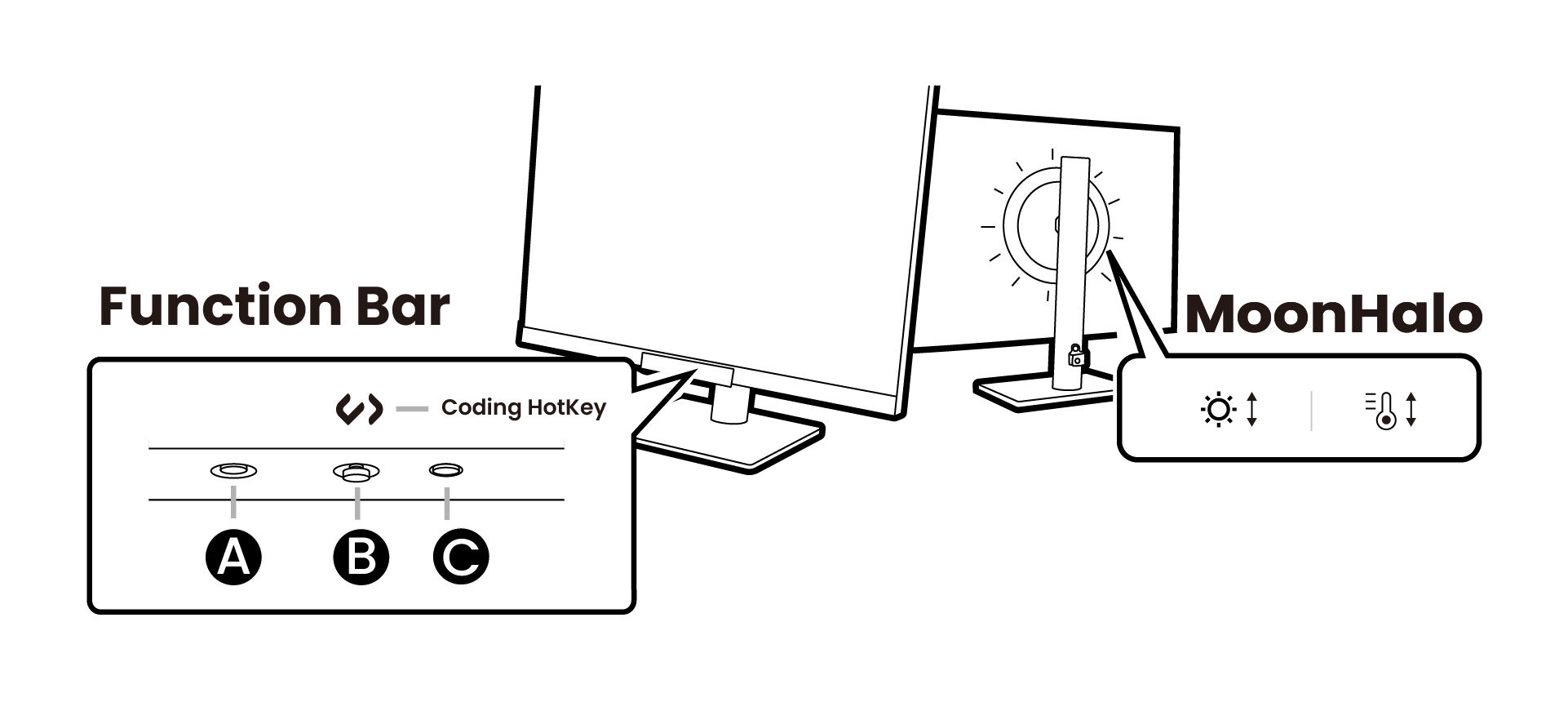

功能列：A. 電源鍵｜B. 五向搖桿｜C. 功能鍵

MoonHalo：使用五向搖桿快速啟動 MoonHalo 選單

Promanning Series Monitor Features: Function Bar and MoonHalo
Promanning Series Monitor Features: Function Bar and MoonHalo

角度調整

Adjust the viewing angle.
Adjust the viewing angle.

Display Pilot 2 安裝

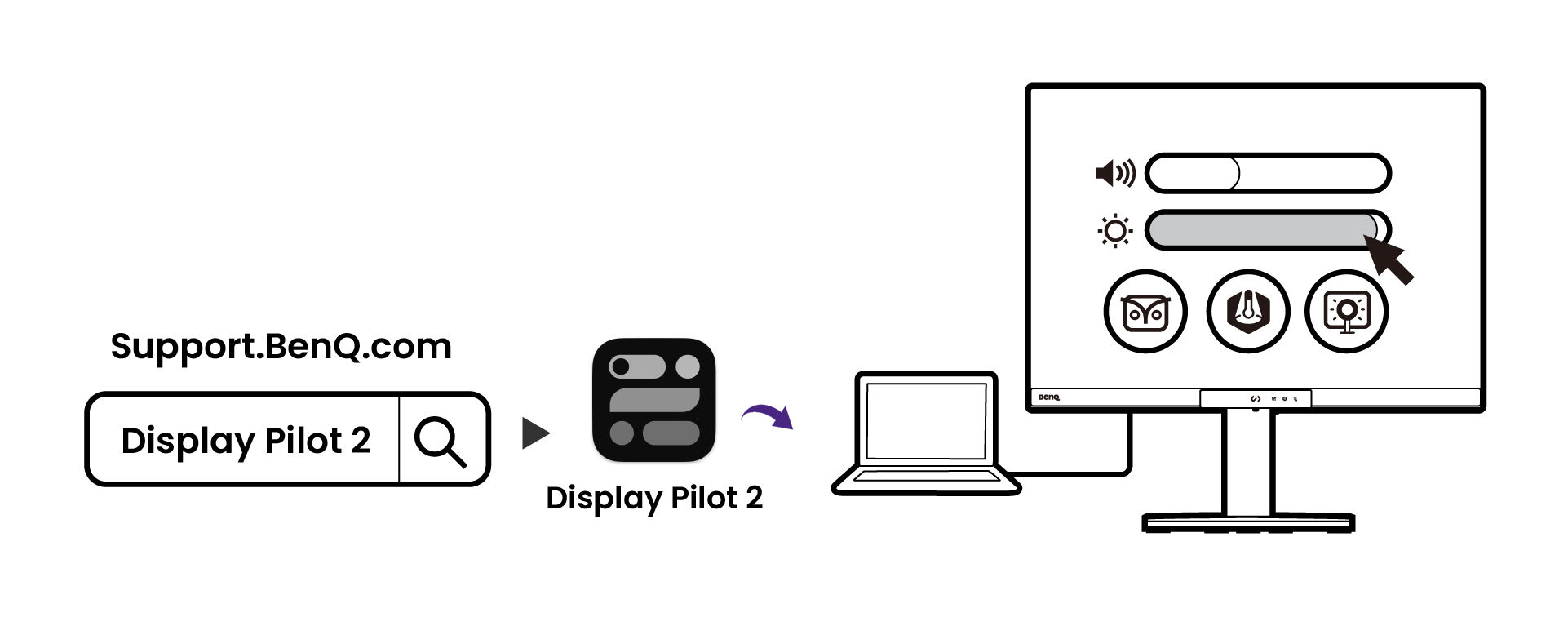

高效管理您的顯示設定。(下載到 PC)

Display Pilot 2 software features
Display Pilot 2 software features

多螢幕串接設定 (Daisy Chain)

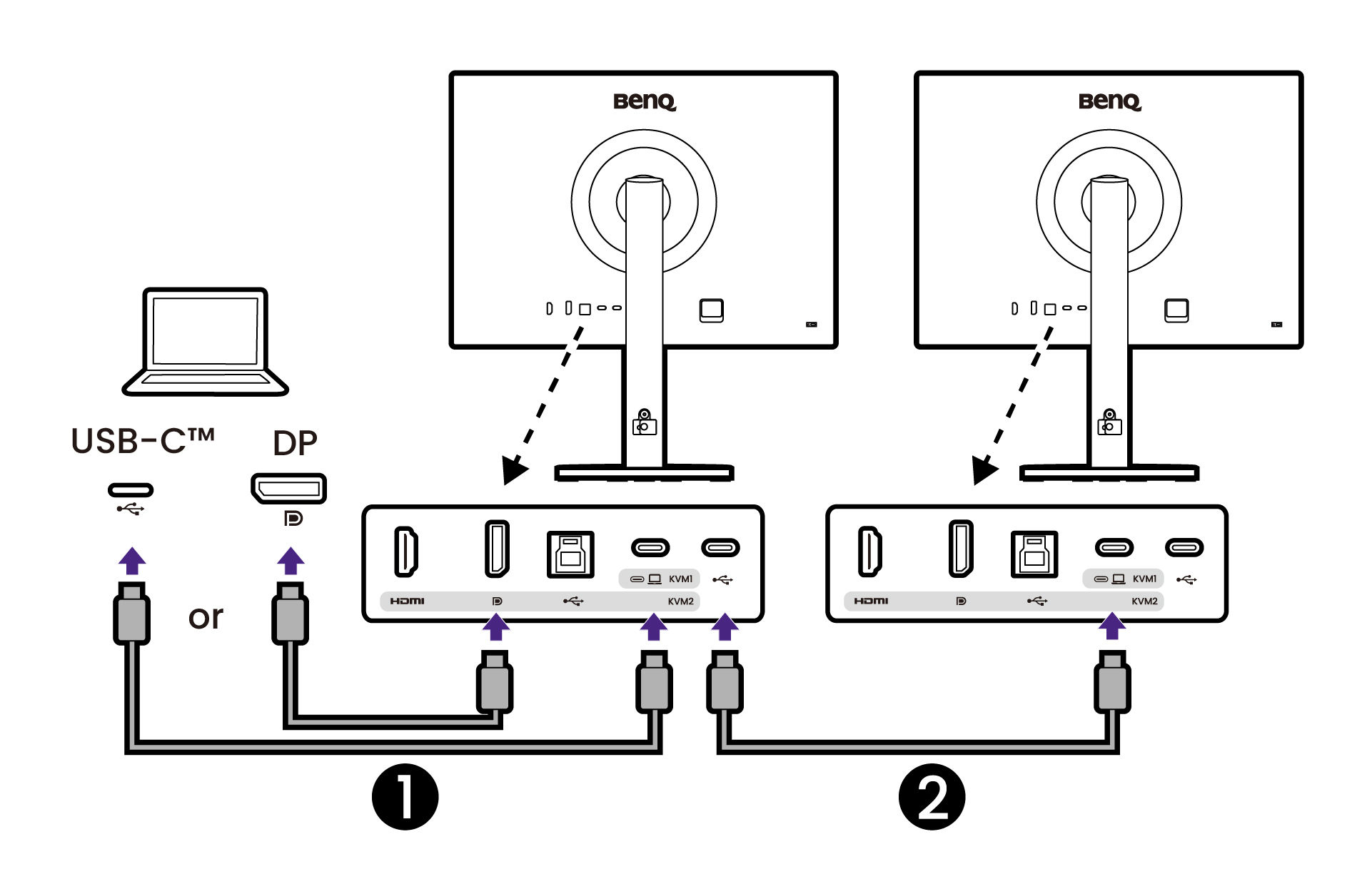

Connect your laptop to the USB-C™ / DP port on the monitor using a USB-C™ / DP cable, then connect the second monitor to the first one using a USB-C™ cable.
Connect your laptop to the USB-C™ / DP port on the monitor using a USB-C™ / DP cable, then connect the second monitor to the first one using a USB-C™ cable.

單組鍵盤滑鼠操控多組輸入 (KVM 轉變)

聯繫

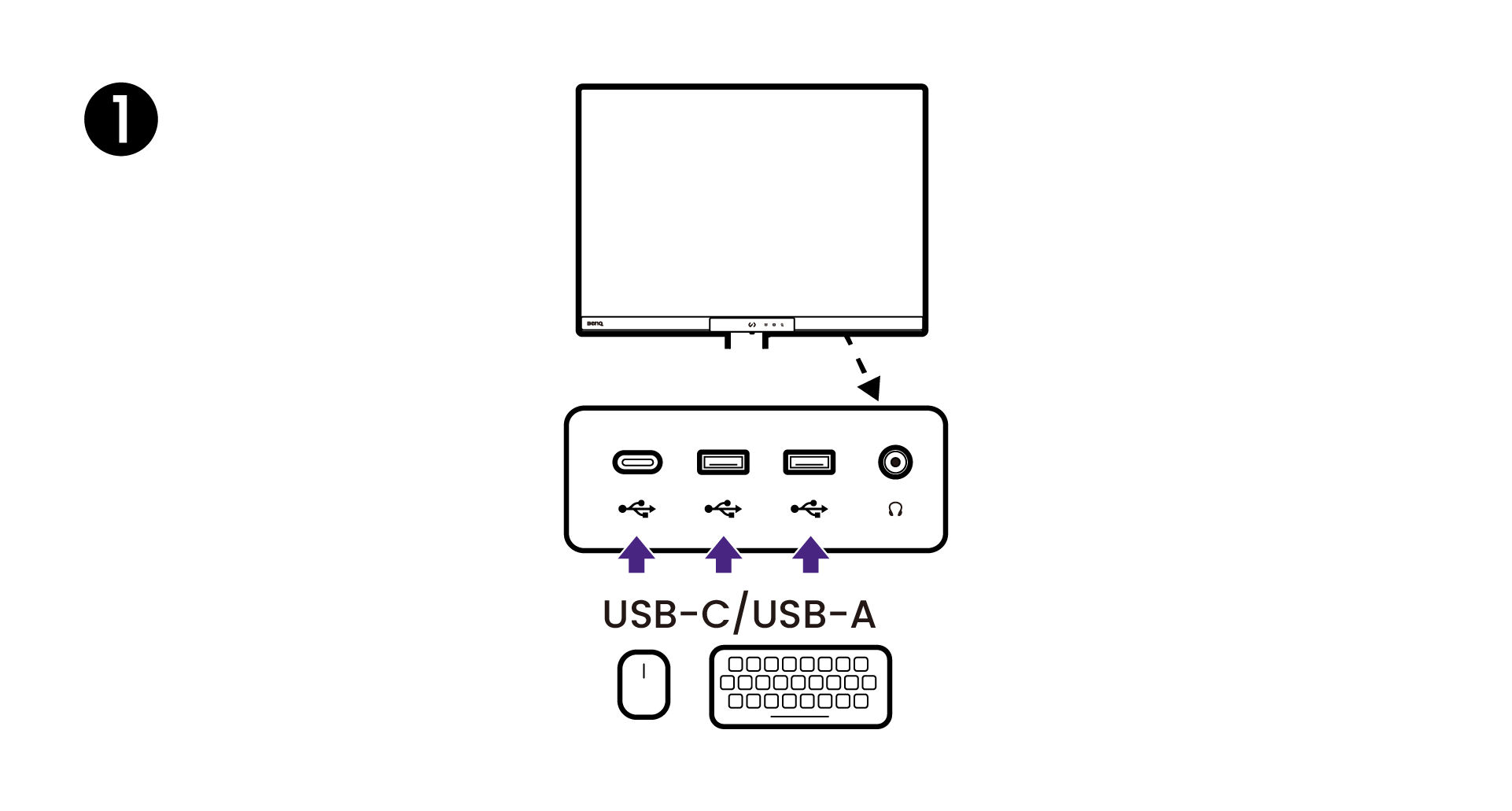

Connect the control devices and other USB peripherals to the USB ports on the monitor.
Connect the control devices and other USB peripherals to the USB ports on the monitor.

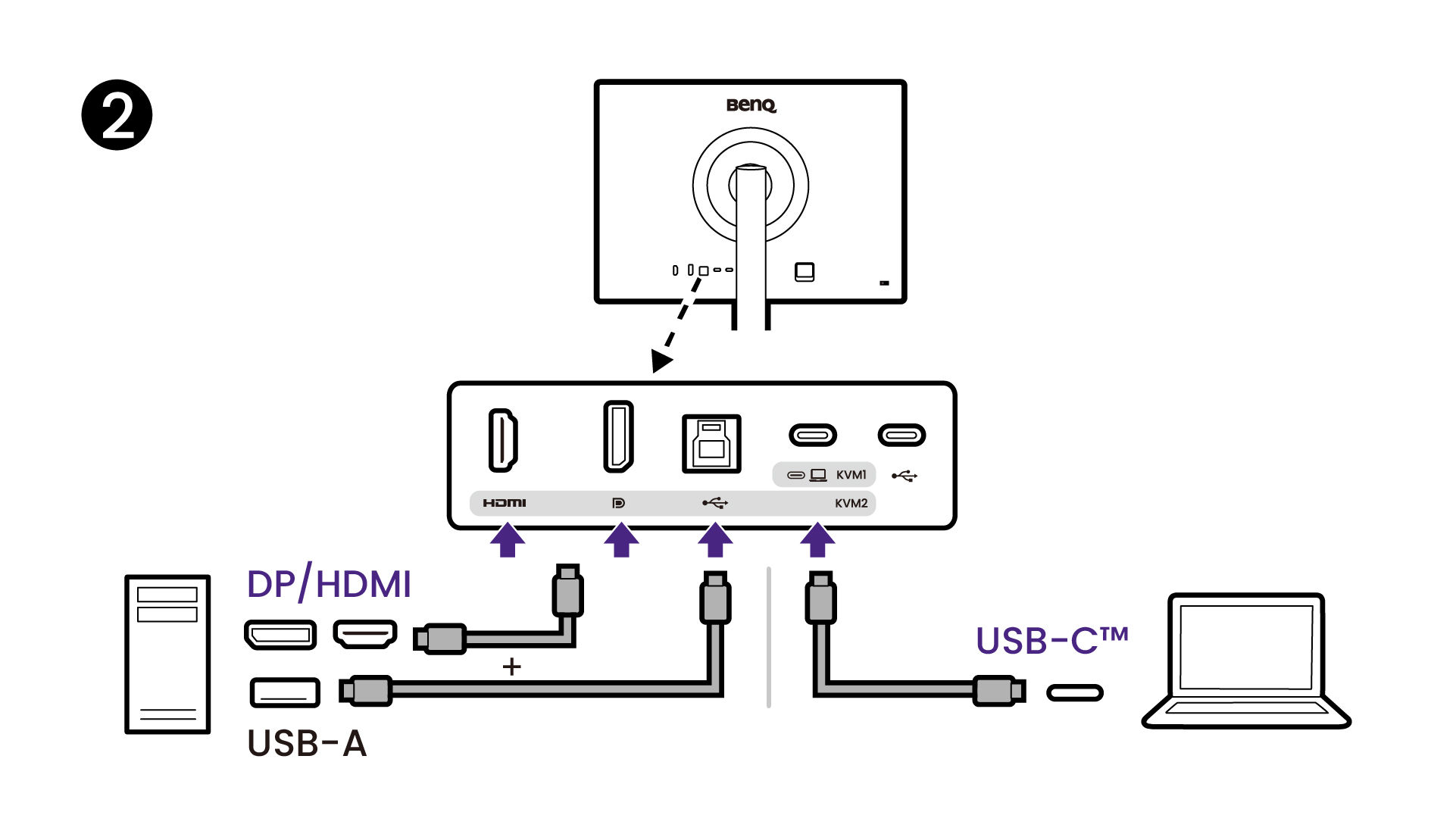

Connect at least two video sources to the monitor.
Connect at least two video sources to the monitor.

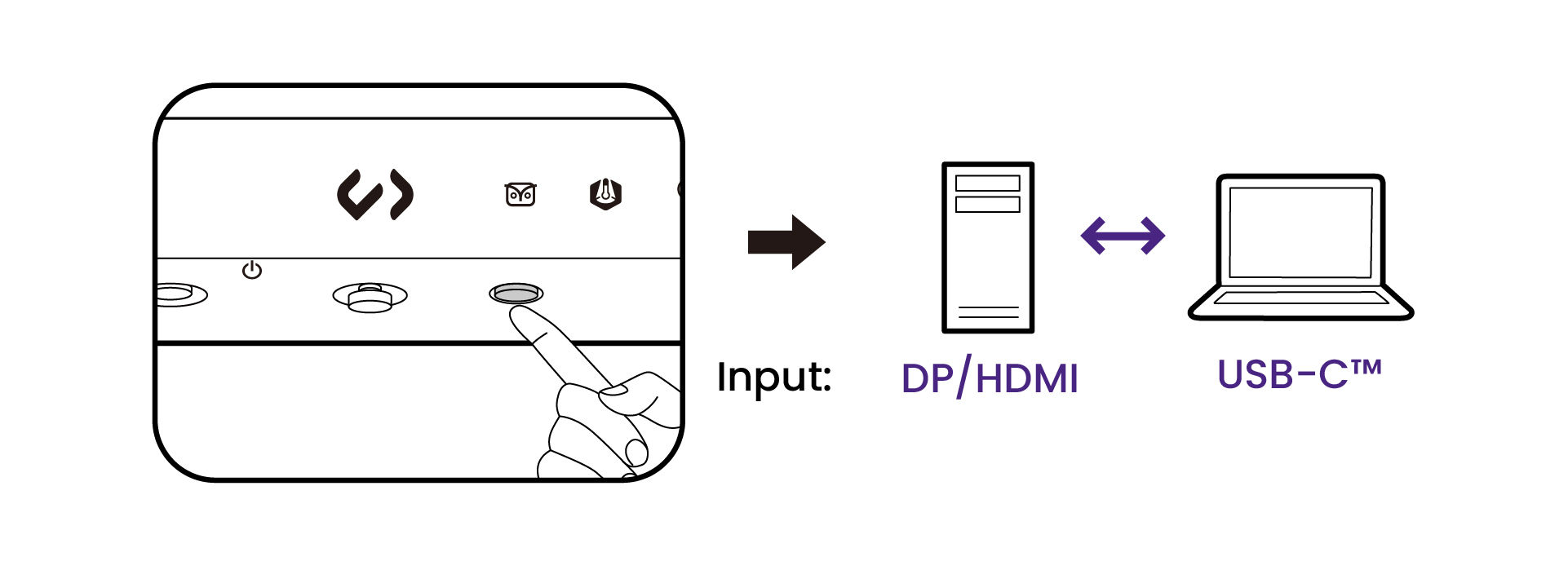

Once the KVM connections have been made properly, you can press the Function Key to cycle through available KVM sources.
Once the KVM connections have been made properly, you can press the Function Key to cycle through available KVM sources.
