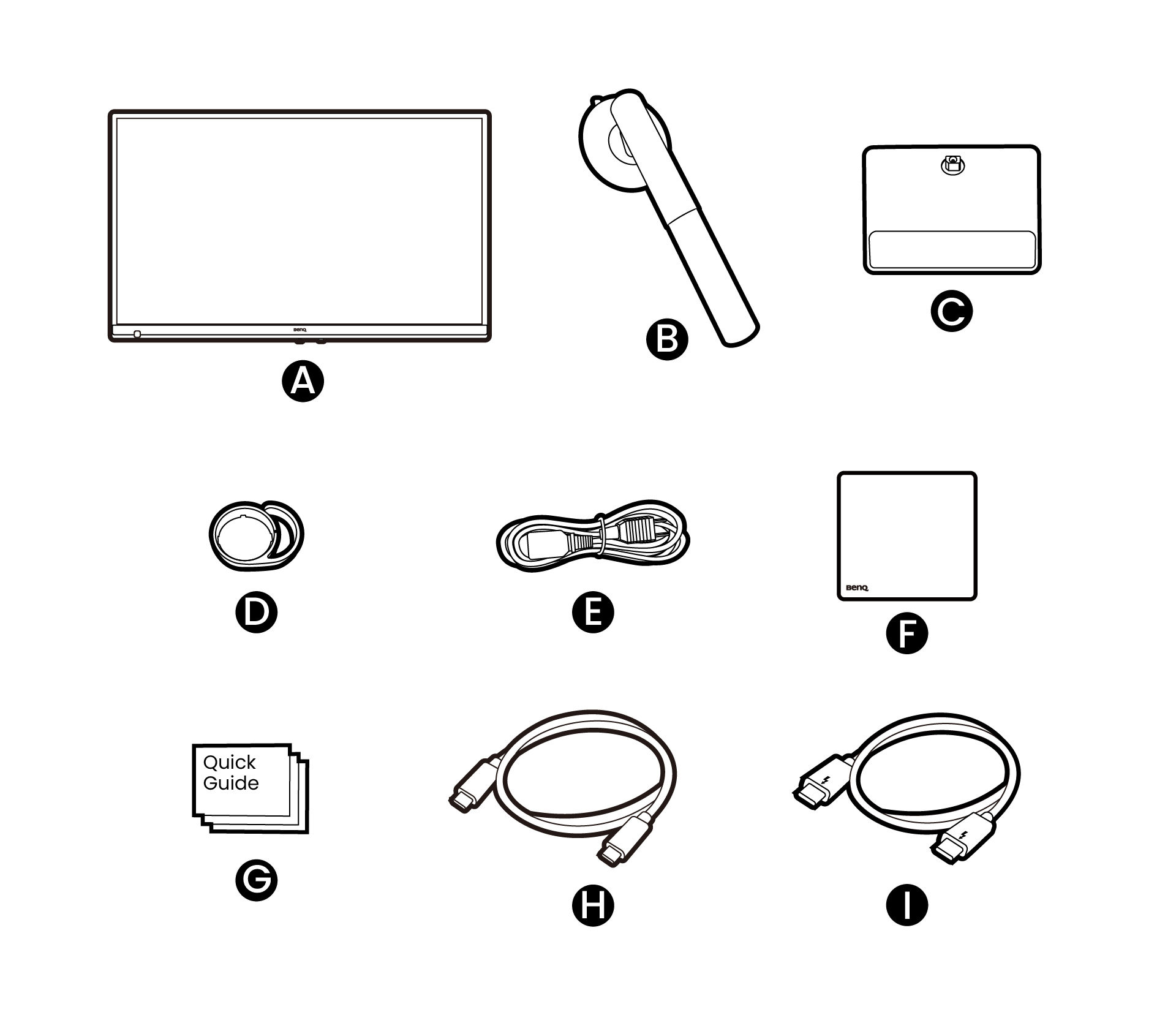

A. LCD 顯示器｜B. 顯示器支架｜C. 顯示器底座

D. 線材固定夾｜E. 電源線｜F. 清潔布

G. 使用手冊｜H. USB-C™ 傳輸線｜I. Thunderbolt™ 傳輸線

Illustration of package contents
Illustration of package contents

備註

此處所示圖片僅供參考，實際內容物與配件會依各地區供應產品略有不同。

內容
安裝步驟
安裝軟體
角度調整
安裝步驟
安裝軟體
角度調整

安裝步驟

1.

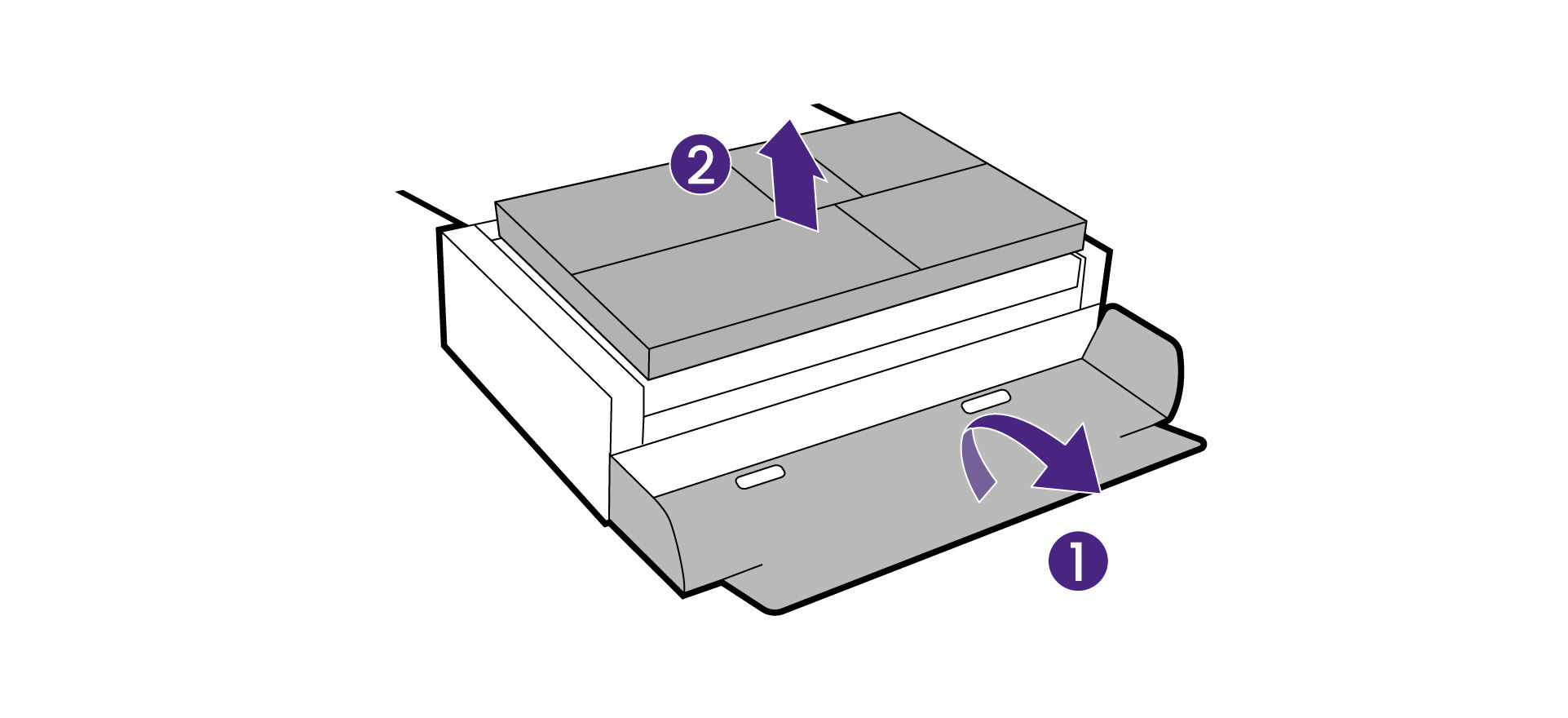

Open the box, unfold the front side of the box as illustrated to leave some room for stand and base attachment.
Open the box, unfold the front side of the box as illustrated to leave some room for stand and base attachment.

2.

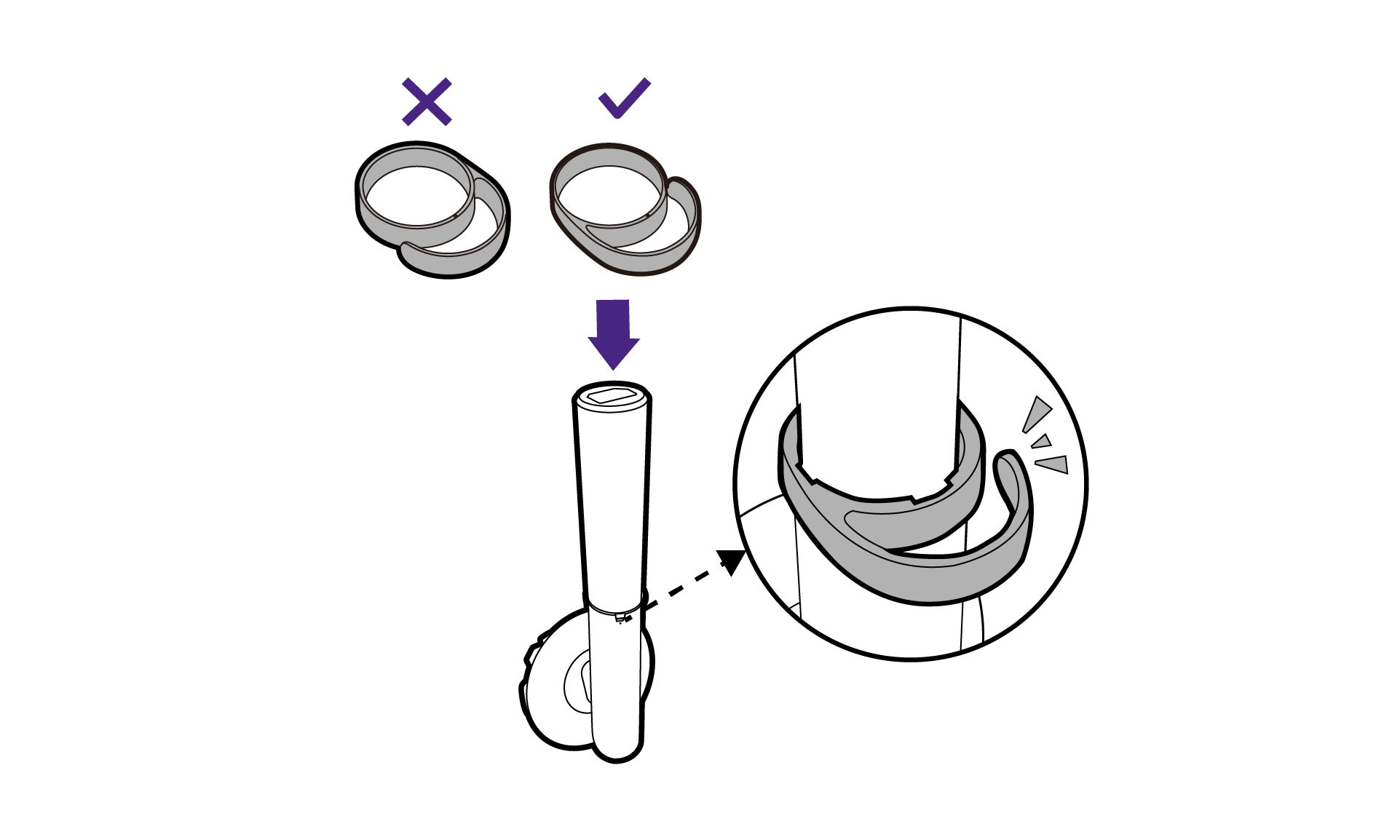

Attach the cable holder to the monitor stand.
Attach the cable holder to the monitor stand.

3.

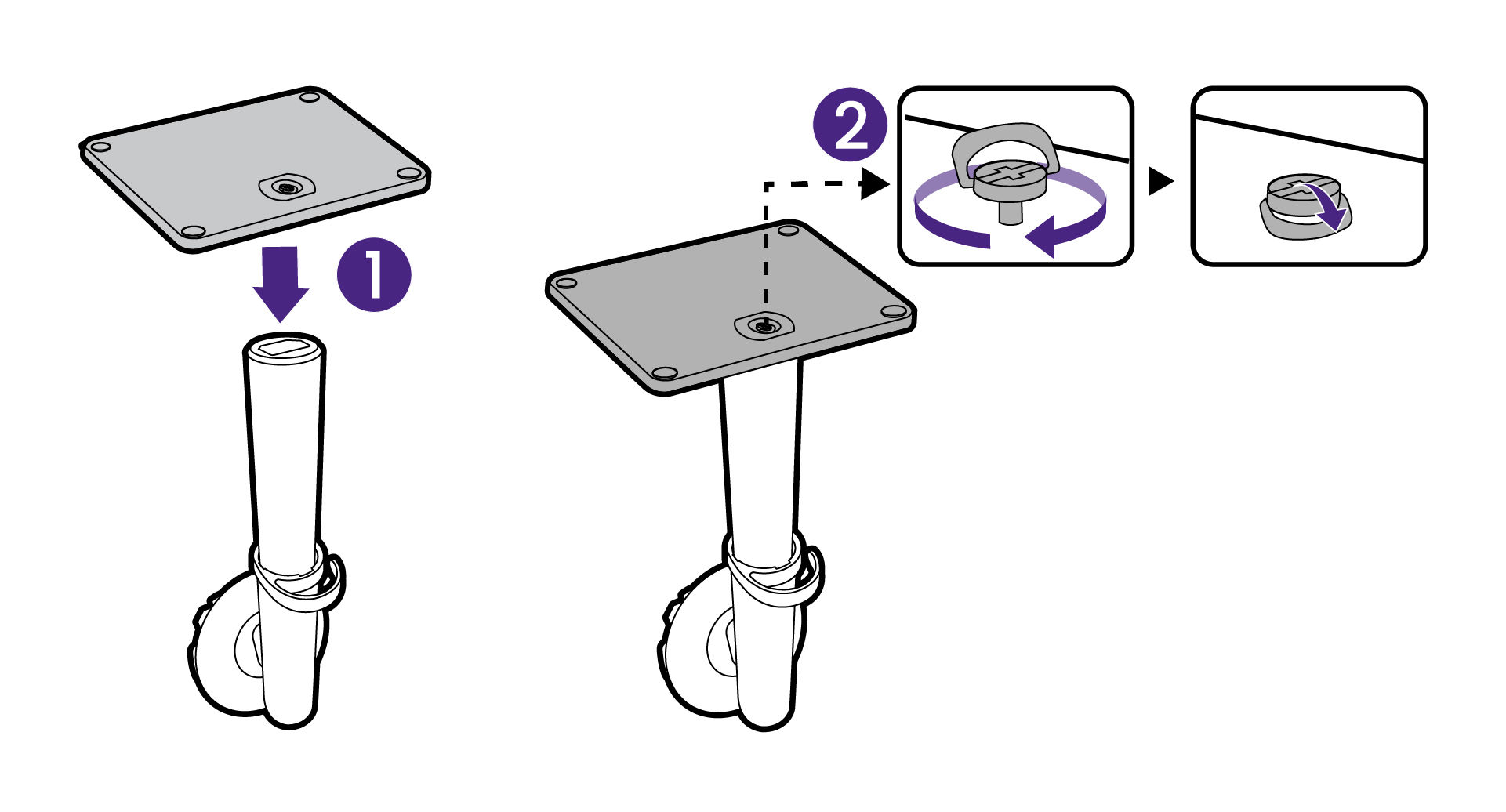

Attach the monitor stand to the monitor base as illustrated. Raise the thumbscrew lid and tighten the thumbscrew as illustrated. Then push the lid back.
Attach the monitor stand to the monitor base as illustrated. Raise the thumbscrew lid and tighten the thumbscrew as illustrated. Then push the lid back.

4.

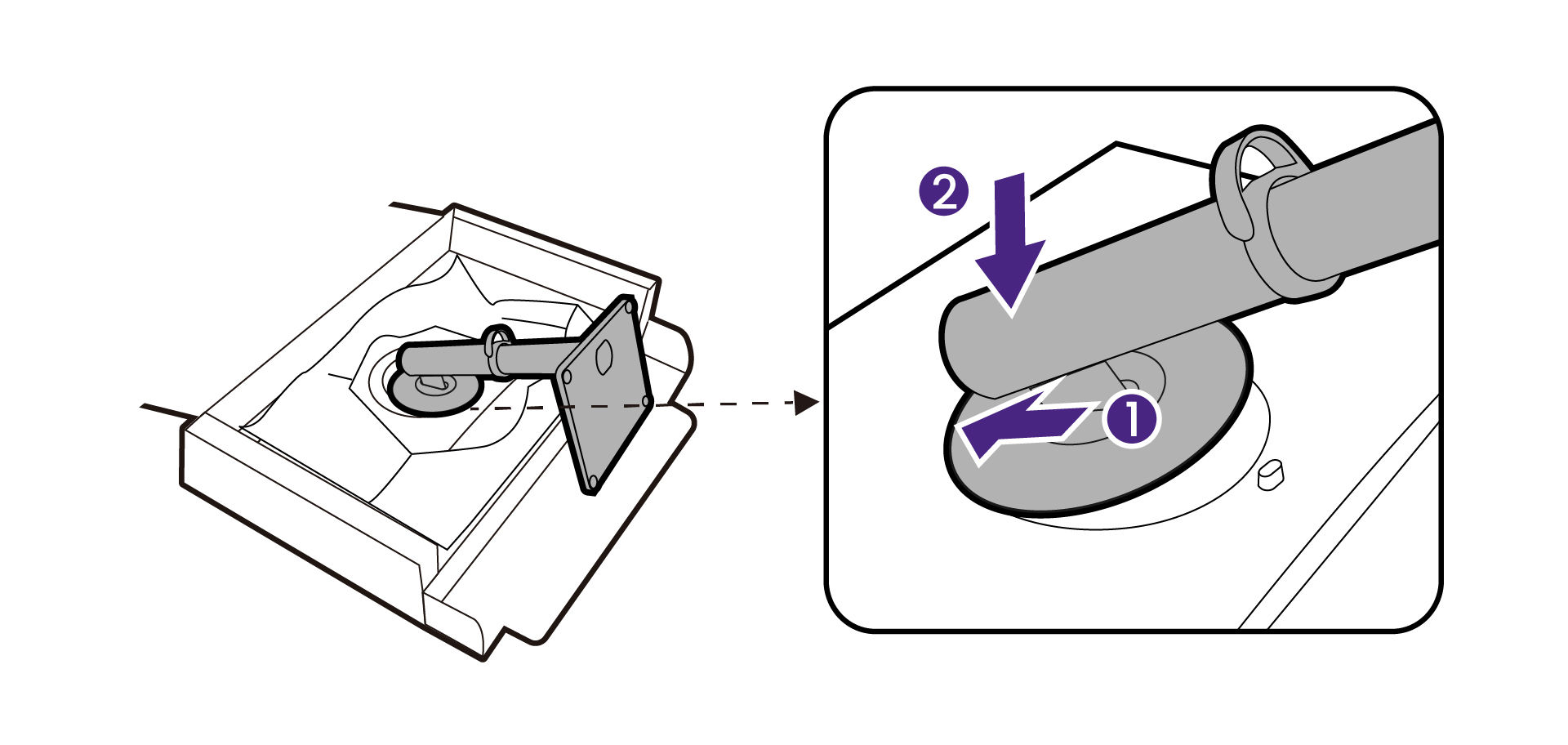

Orient and align the stand arm with the monitor, then push them together until they click and lock into place.
Orient and align the stand arm with the monitor, then push them together until they click and lock into place.

5.

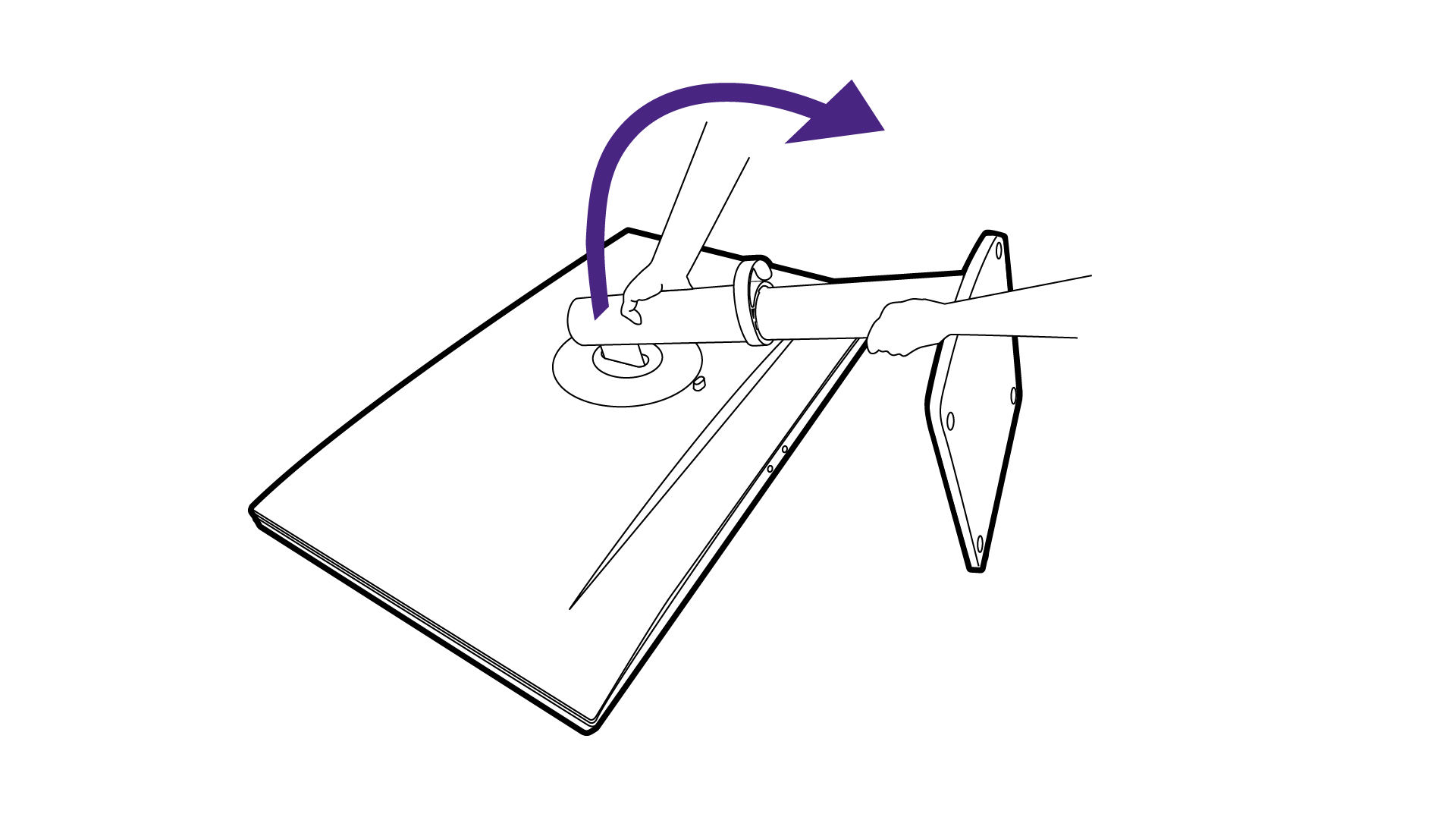

Carefully lift the monitor, turn it over and place it upright on its stand on a flat even surface.
Carefully lift the monitor, turn it over and place it upright on its stand on a flat even surface.

6.

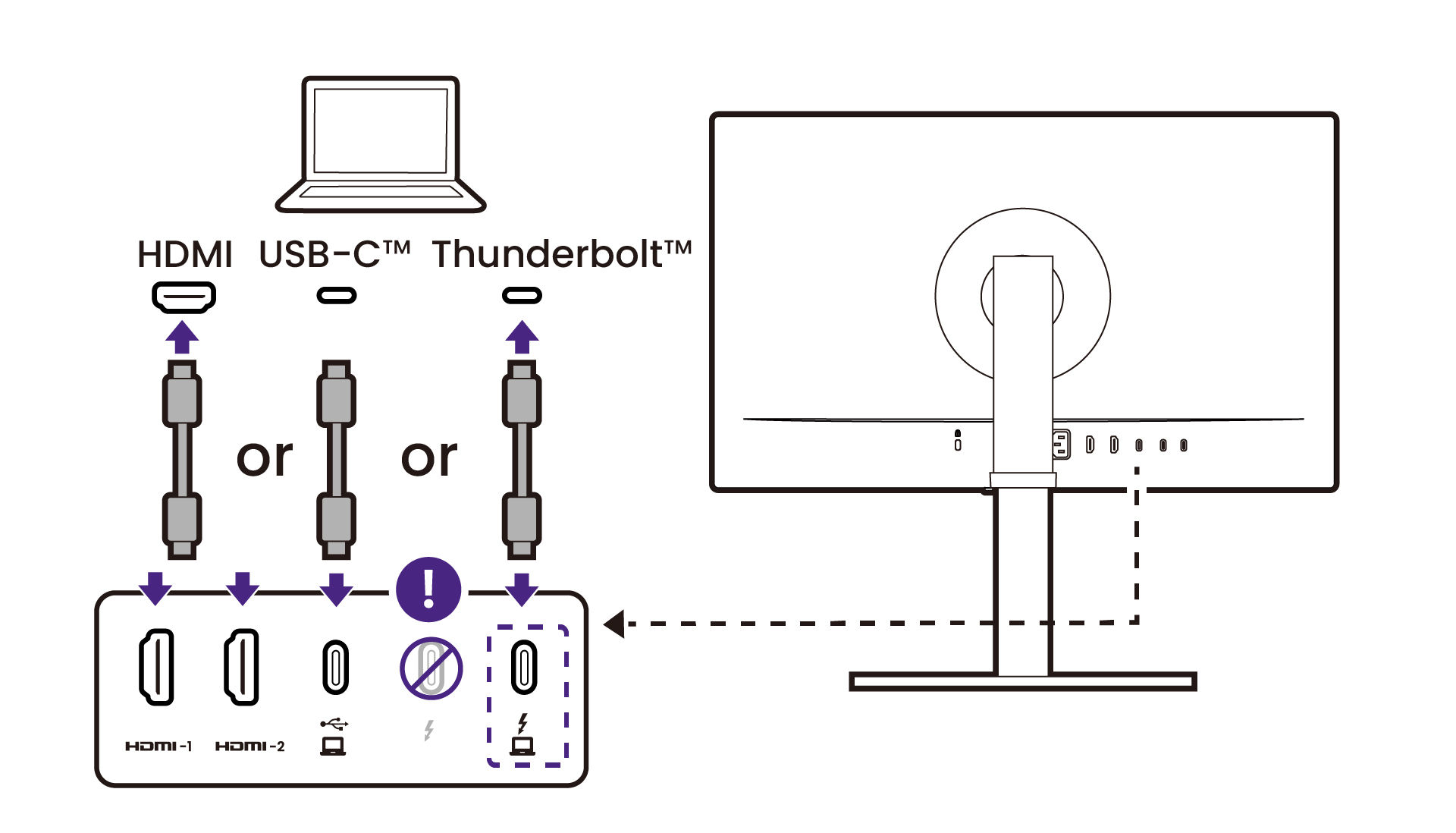

Connect the PC video cable.
Connect the PC video cable.

7.

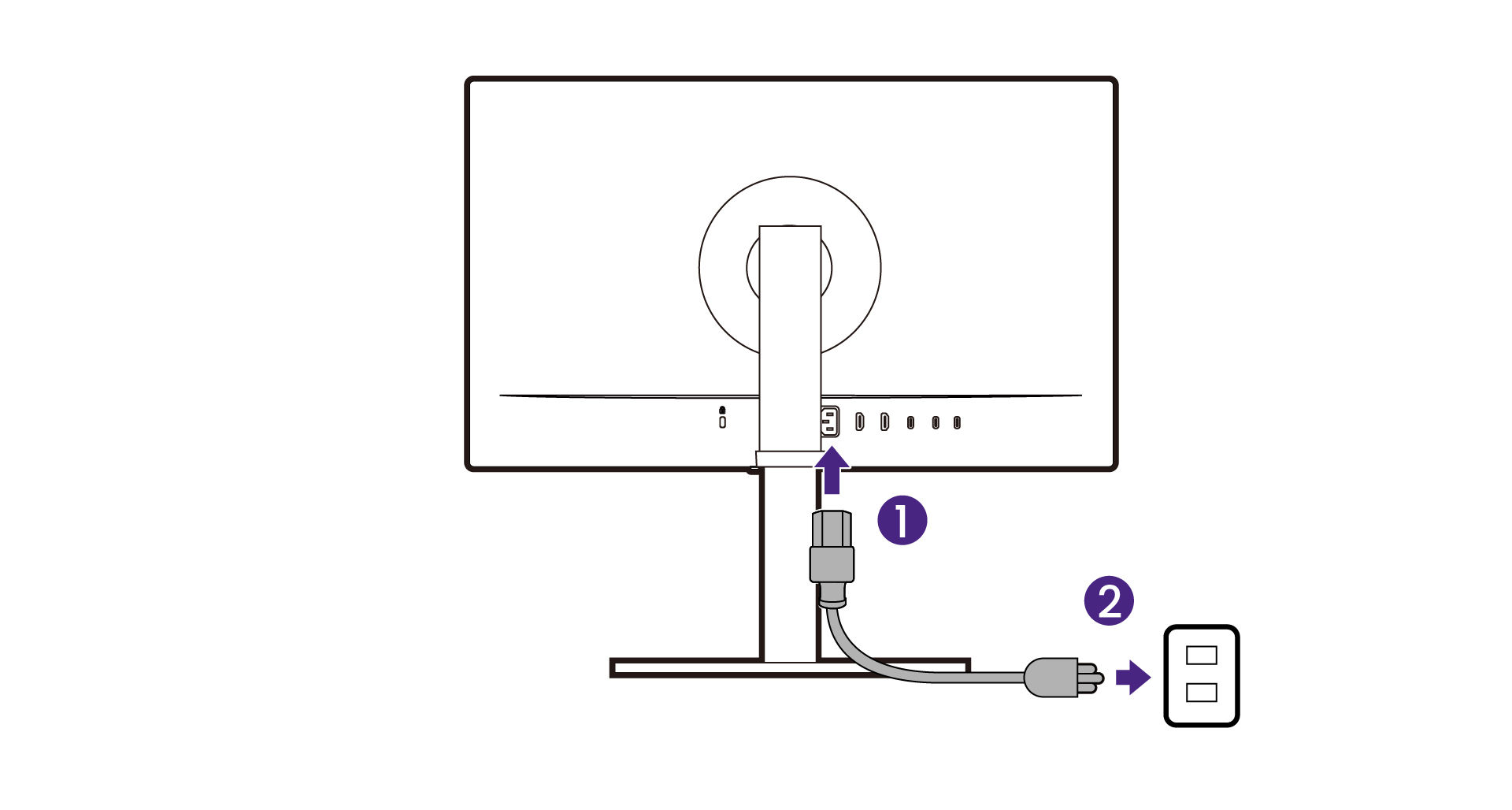

Connect the power.
Connect the power.

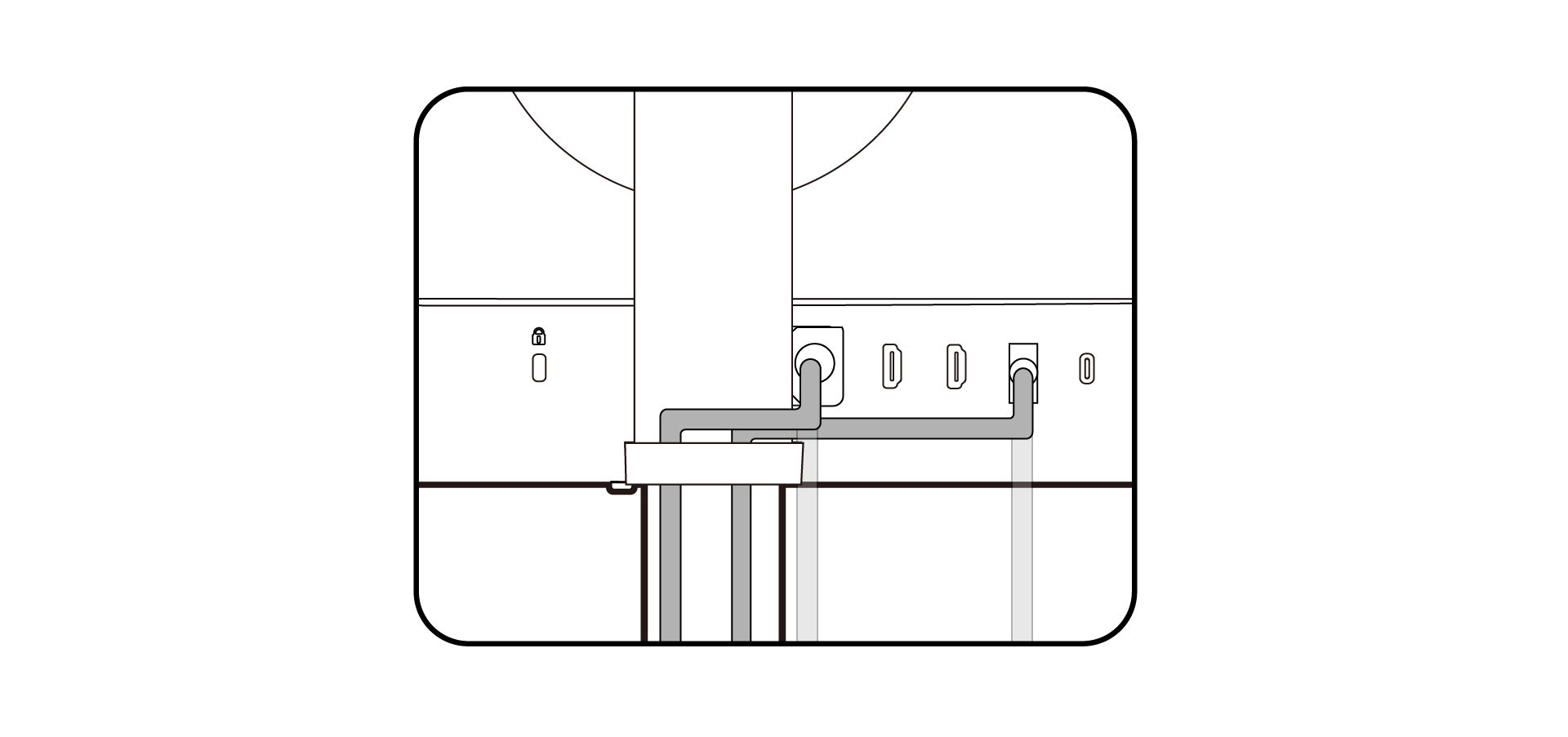

8.

Route the cables.
Route the cables.

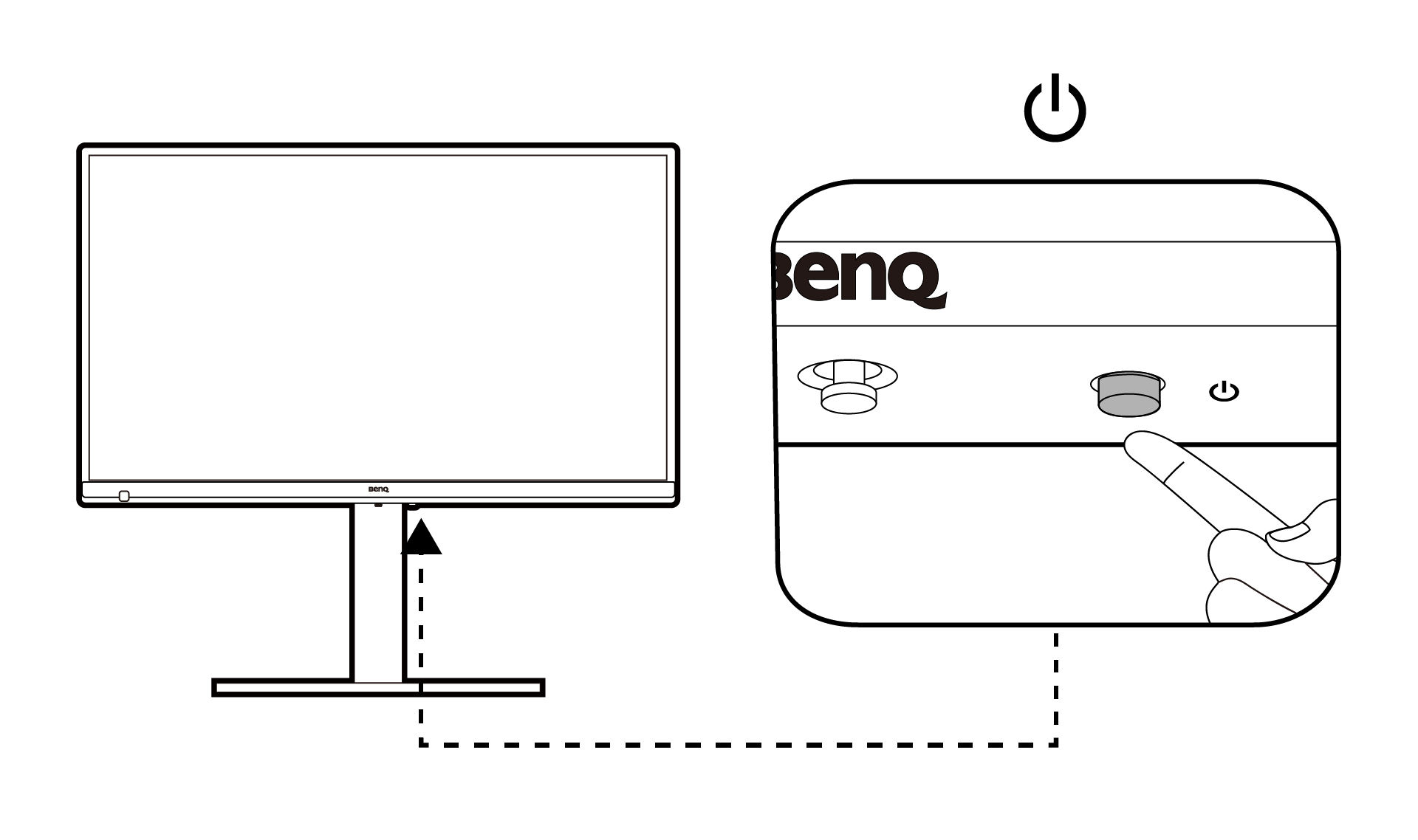

9.

Turn-on the power.
Turn-on the power.

安裝軟體

Display Pilot 2：輕鬆管理您的顯示設定（立即下載到 PC）

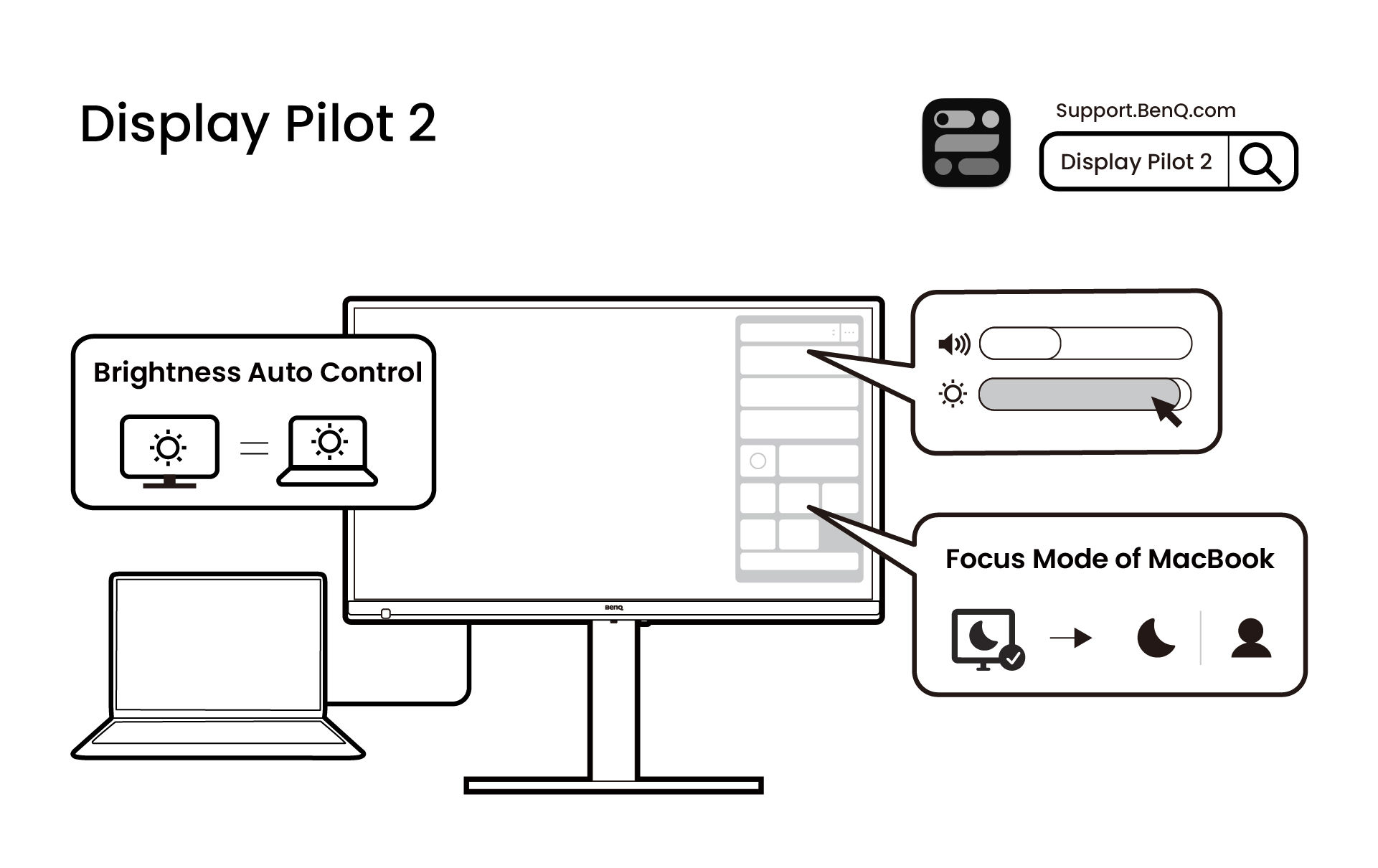

Download and install the software Display Pilot 2 from BenQ website to the computer.
Download and install the software Display Pilot 2 from BenQ website to the computer.

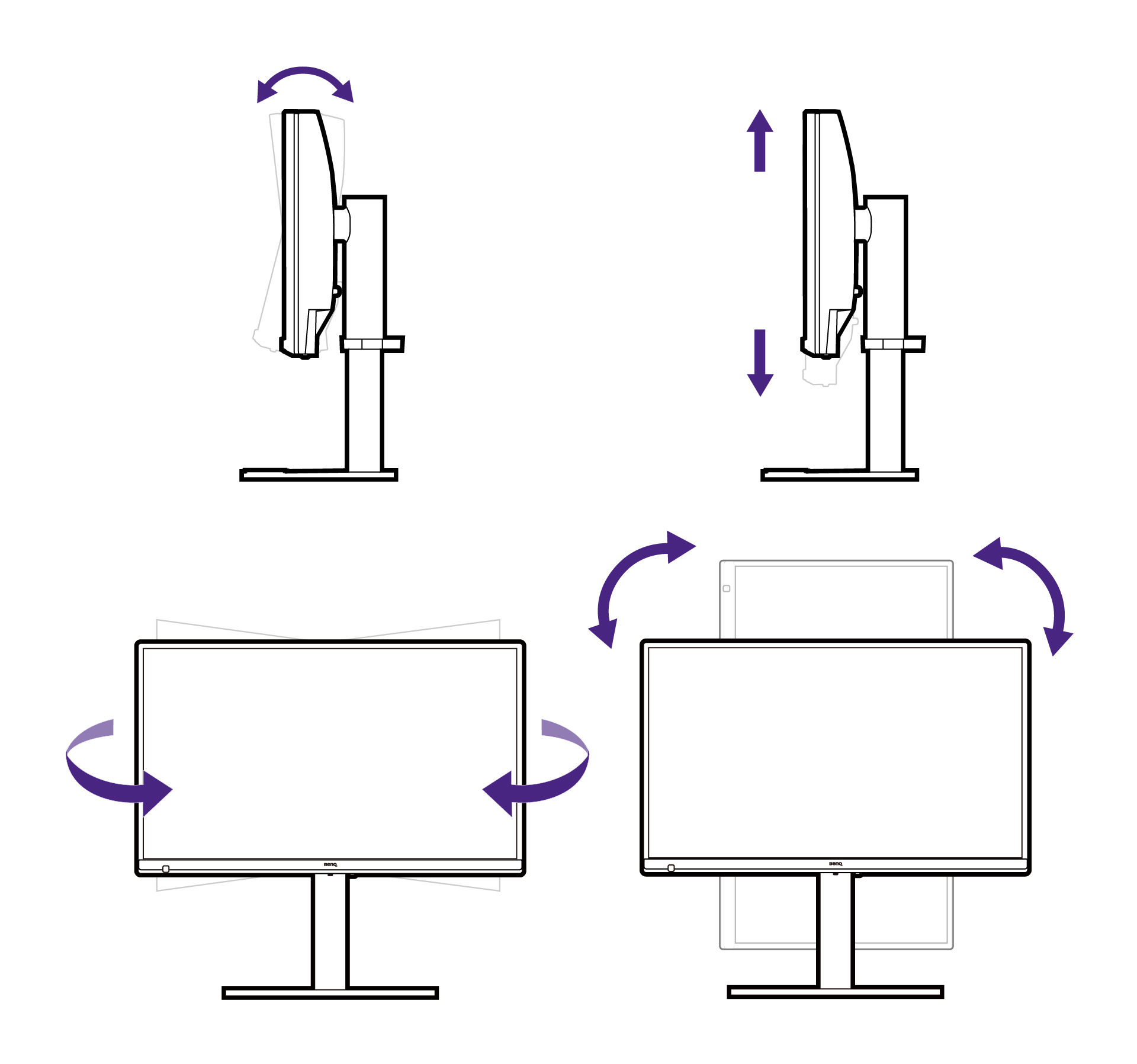

角度調整

Adjust the viewing angle.
Adjust the viewing angle.
