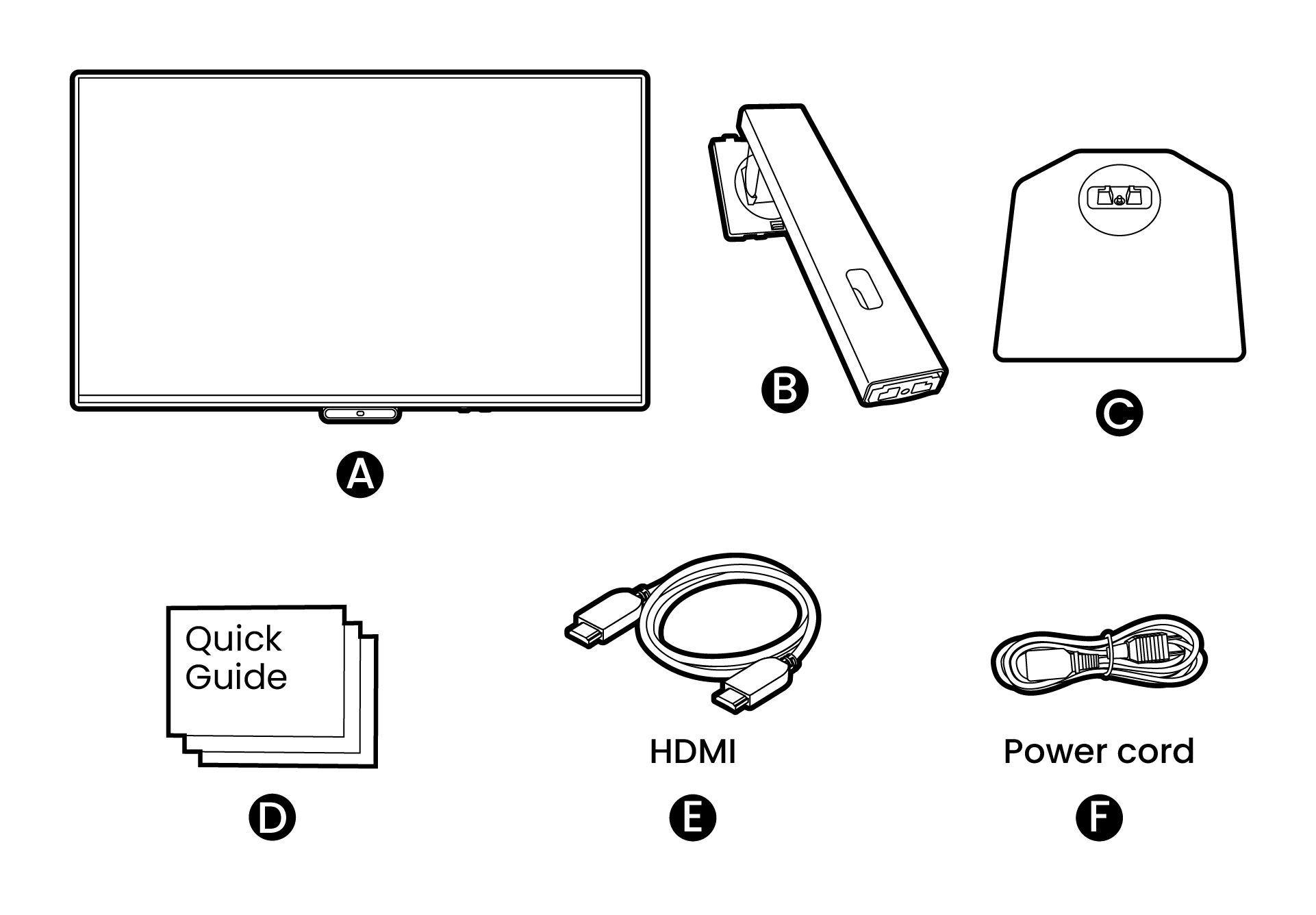

A. 液晶螢幕｜B. 螢幕支架｜C. 螢幕底座

D. 使用文件｜E. HDMI 線｜F. 電源線

Illustration of package contents
Illustration of package contents

備註

本說明中所示圖片僅供參考，實際內容與產品以您地區供應為準。

內容
安裝步驟
快速鍵（V. O. 快速鍵）
角度調整
安裝軟體
安裝步驟
快速鍵（V. O. 快速鍵）
角度調整
安裝軟體

安裝步驟

1.

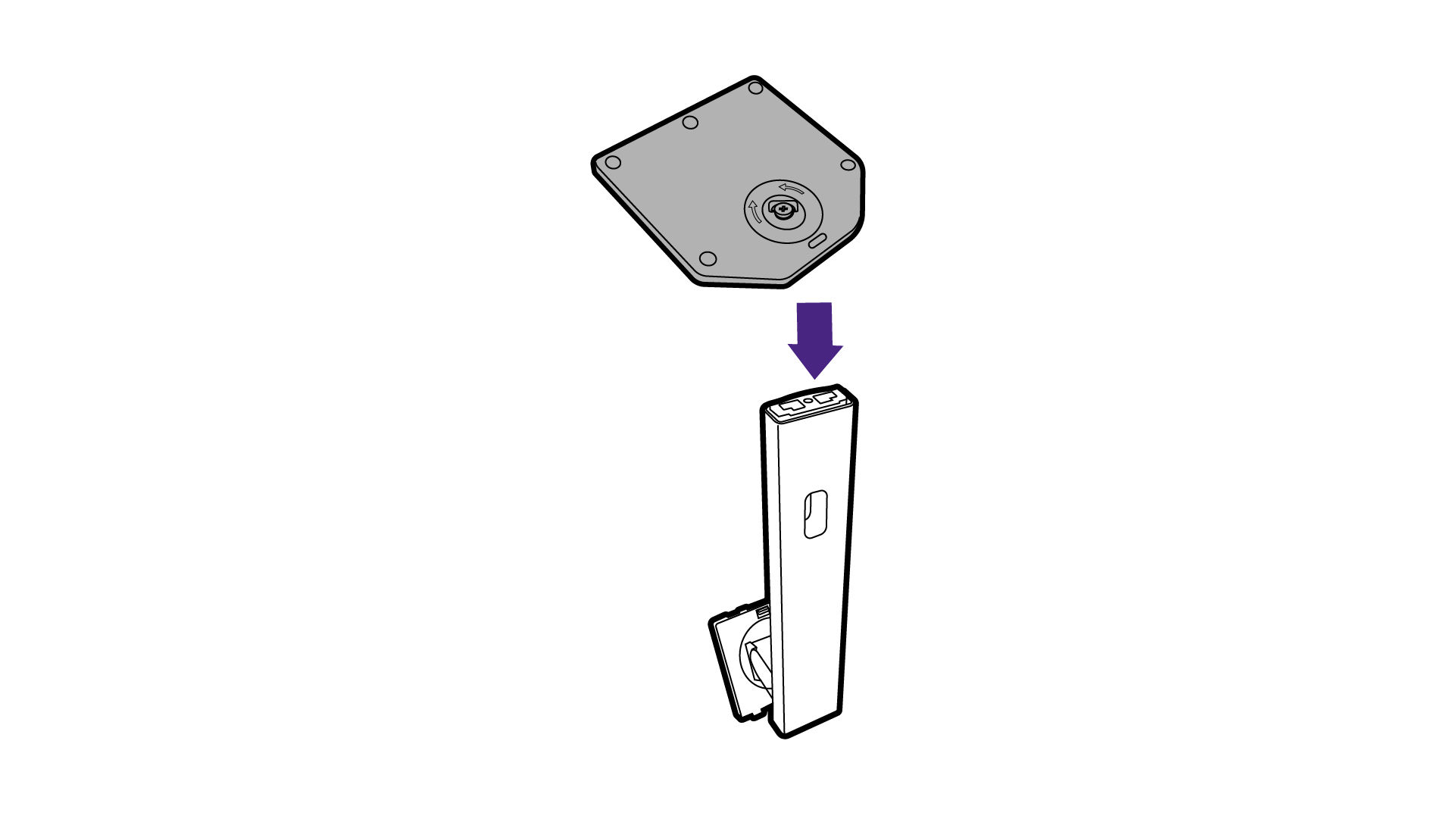

Attach the monitor stand to the monitor base as illustrated.
Attach the monitor stand to the monitor base as illustrated.

2.

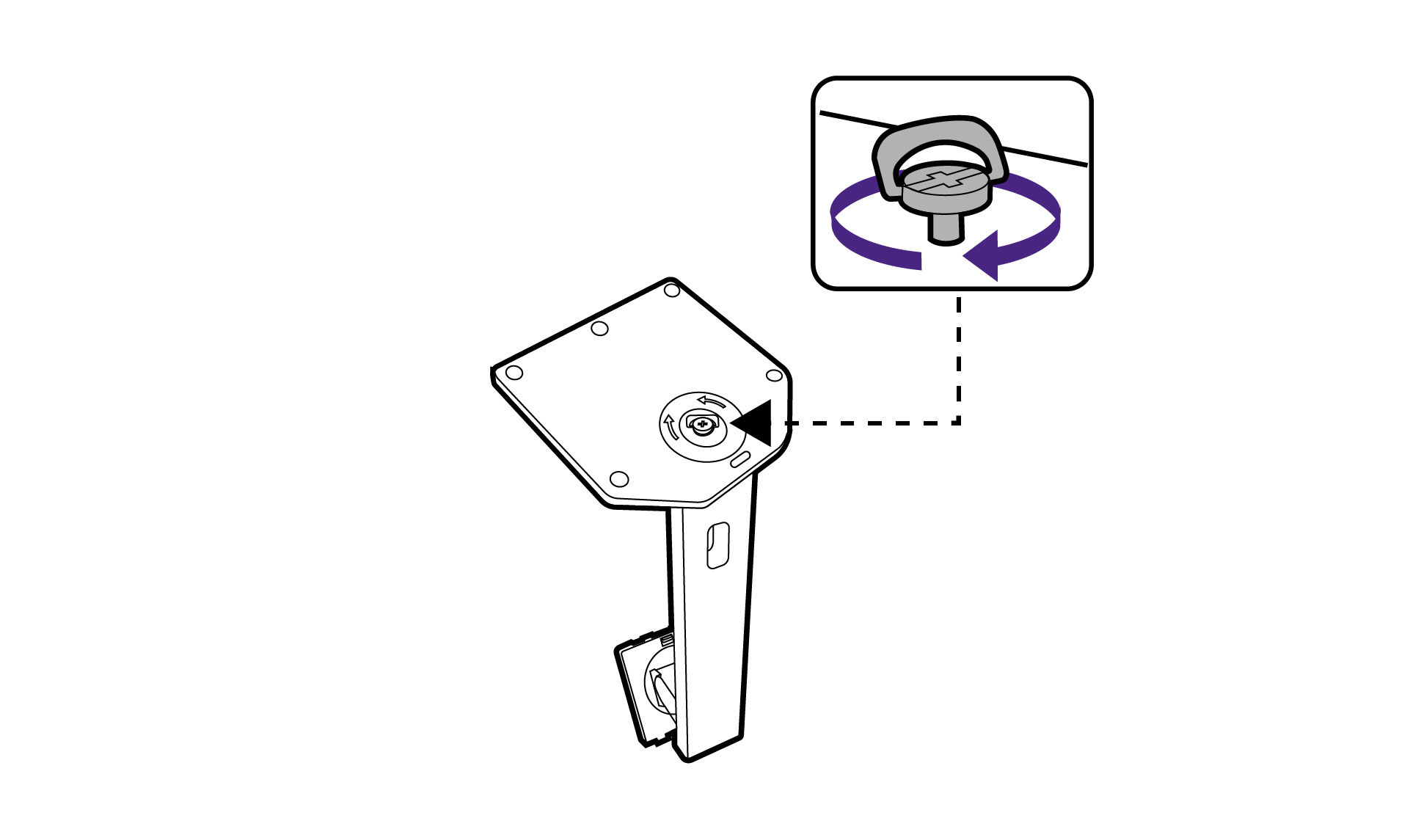

Raise the thumbscrew lid and tighten the thumbscrew as illustrated. Then push the lid back.
Raise the thumbscrew lid and tighten the thumbscrew as illustrated. Then push the lid back.

3.

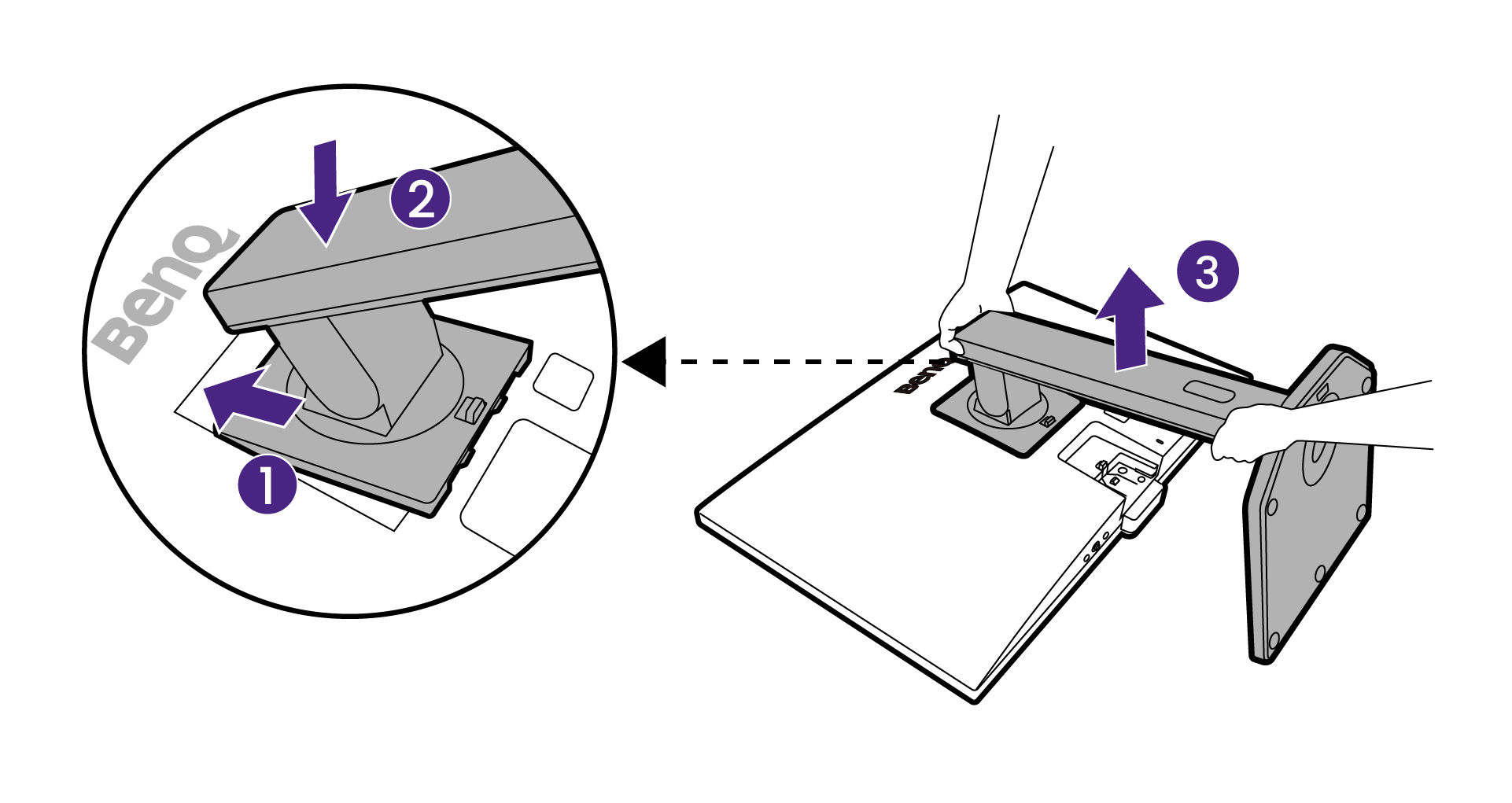

Orient and align the stand arm with the monitor, then push them together until they click and lock into place. Carefully lift the monitor, turn it over and place it upright on its stand on a flat even surface.
Orient and align the stand arm with the monitor, then push them together until they click and lock into place. Carefully lift the monitor, turn it over and place it upright on its stand on a flat even surface.

4.

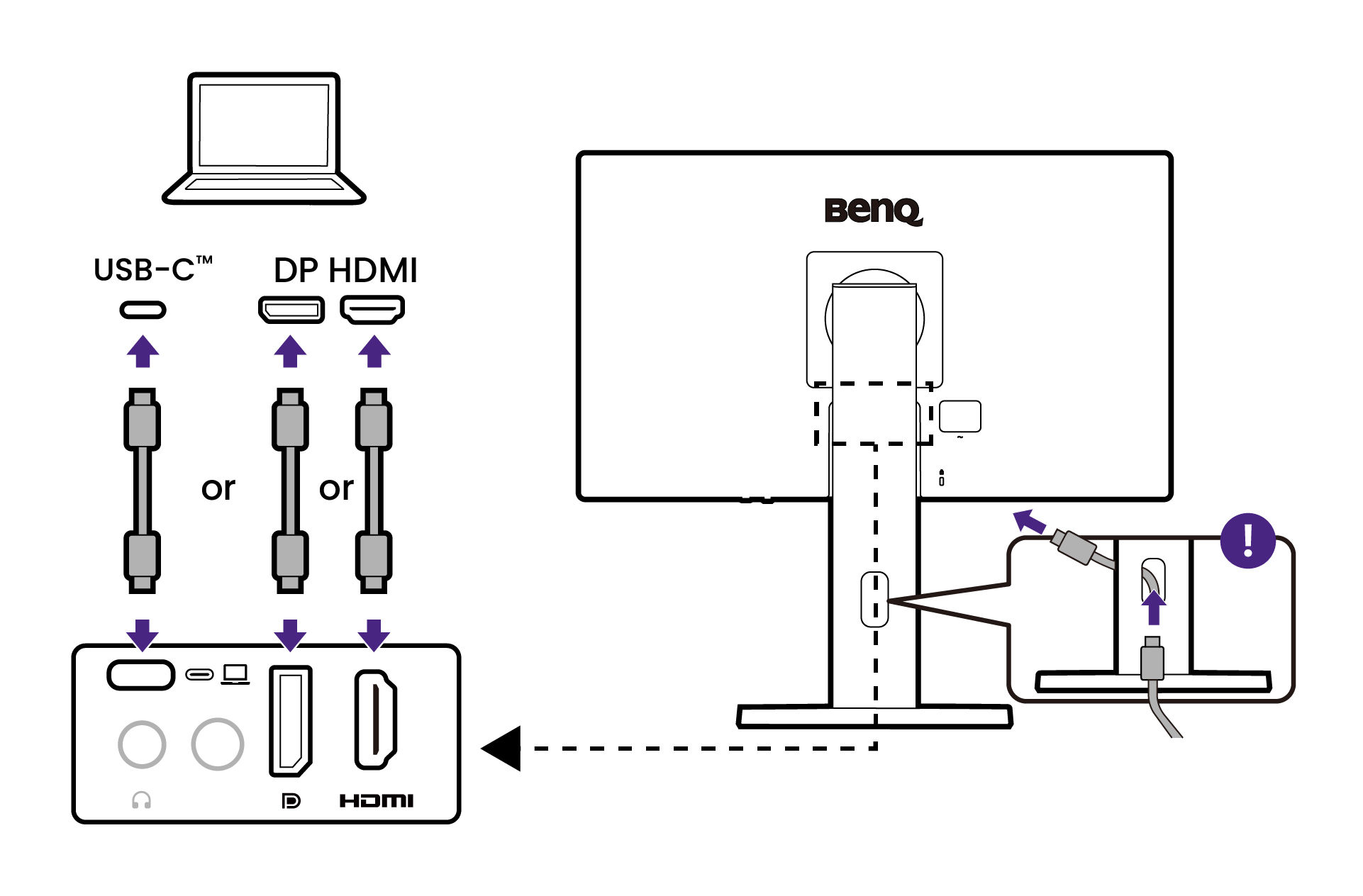

Connect the PC video cable.
Connect the PC video cable.

5.

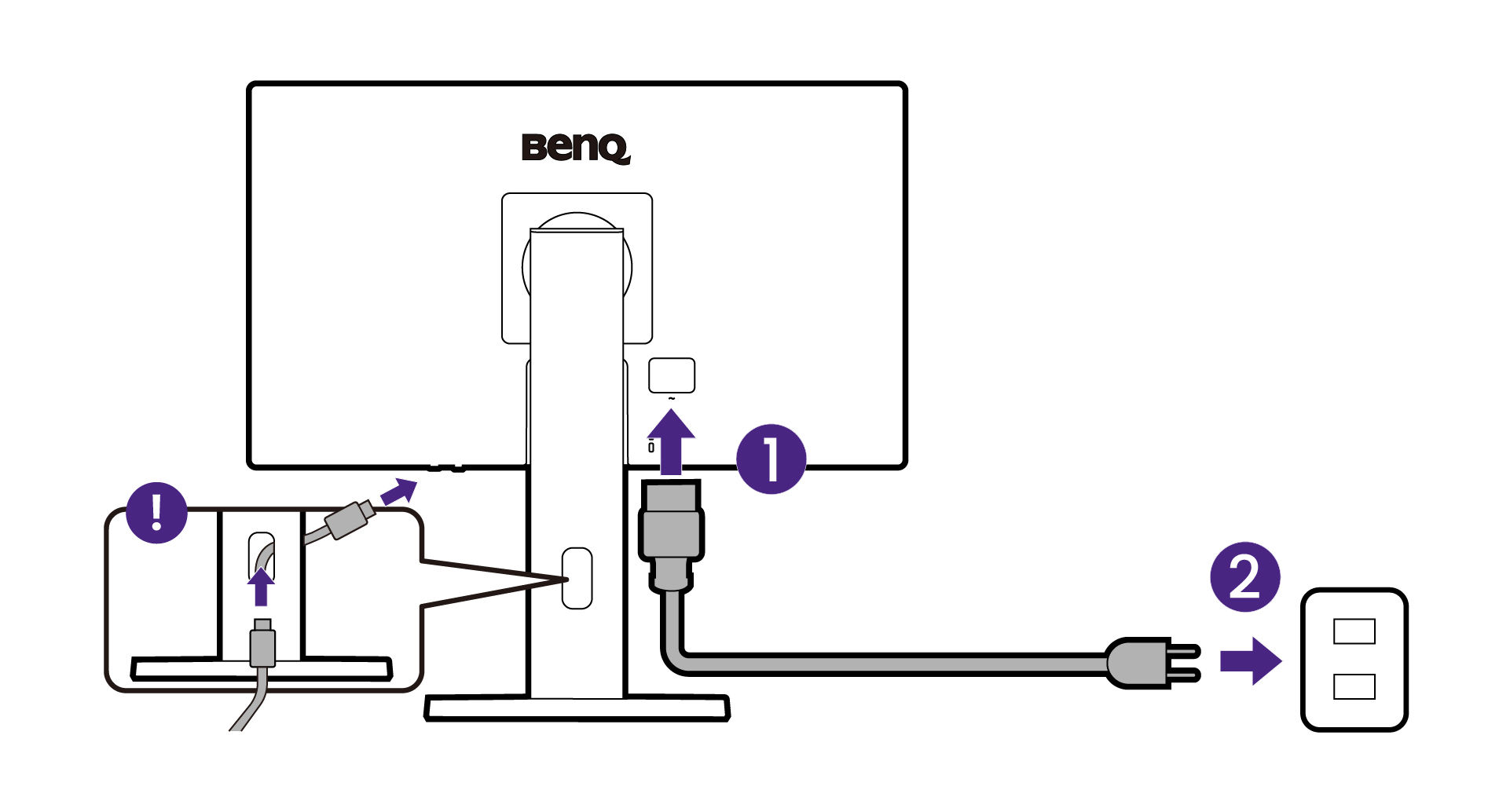

Connect the power.
Connect the power.

6.

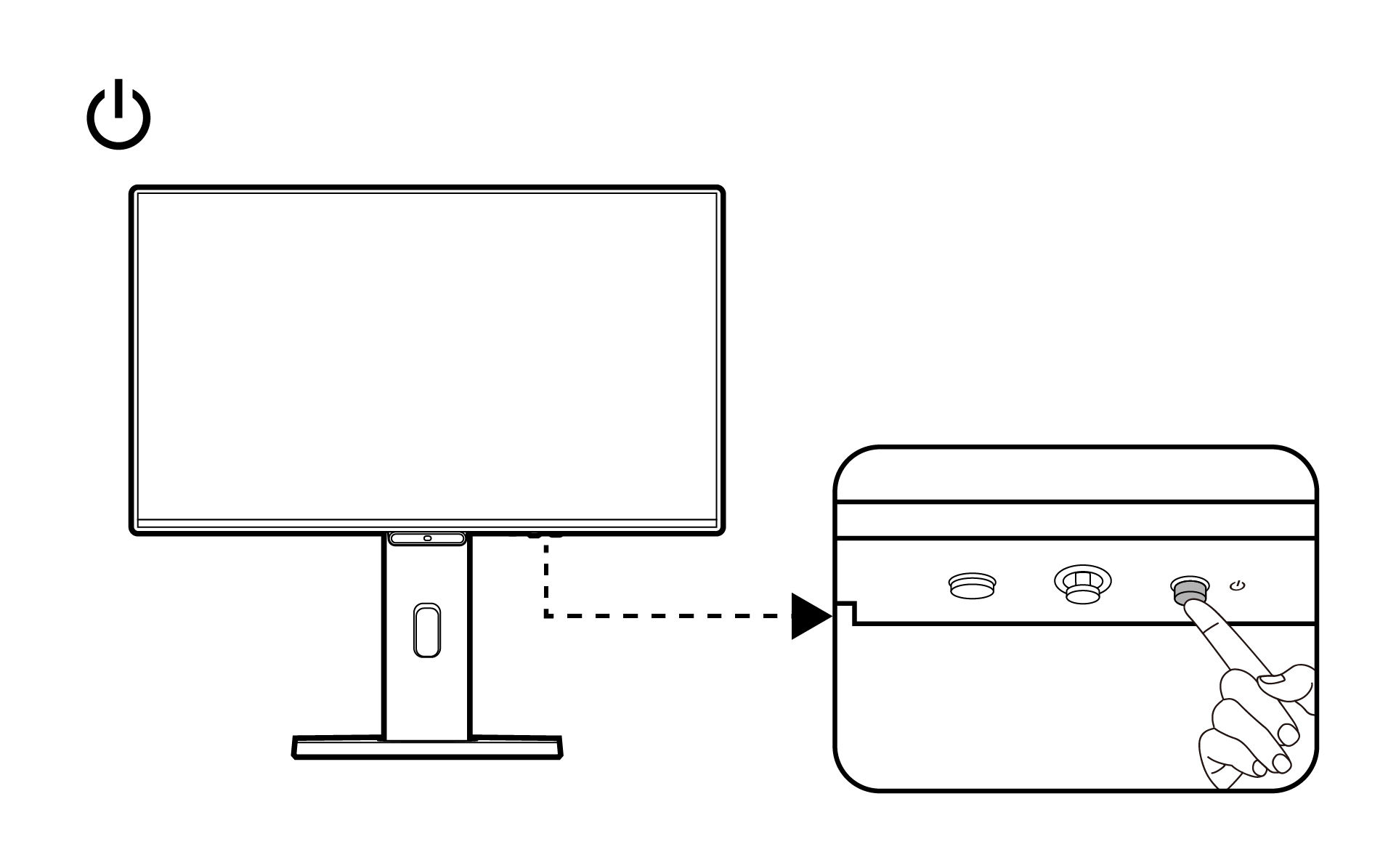

Turn-on the power.
Turn-on the power.

快速鍵（V. O. 快速鍵）

全天候護眼舒適工作

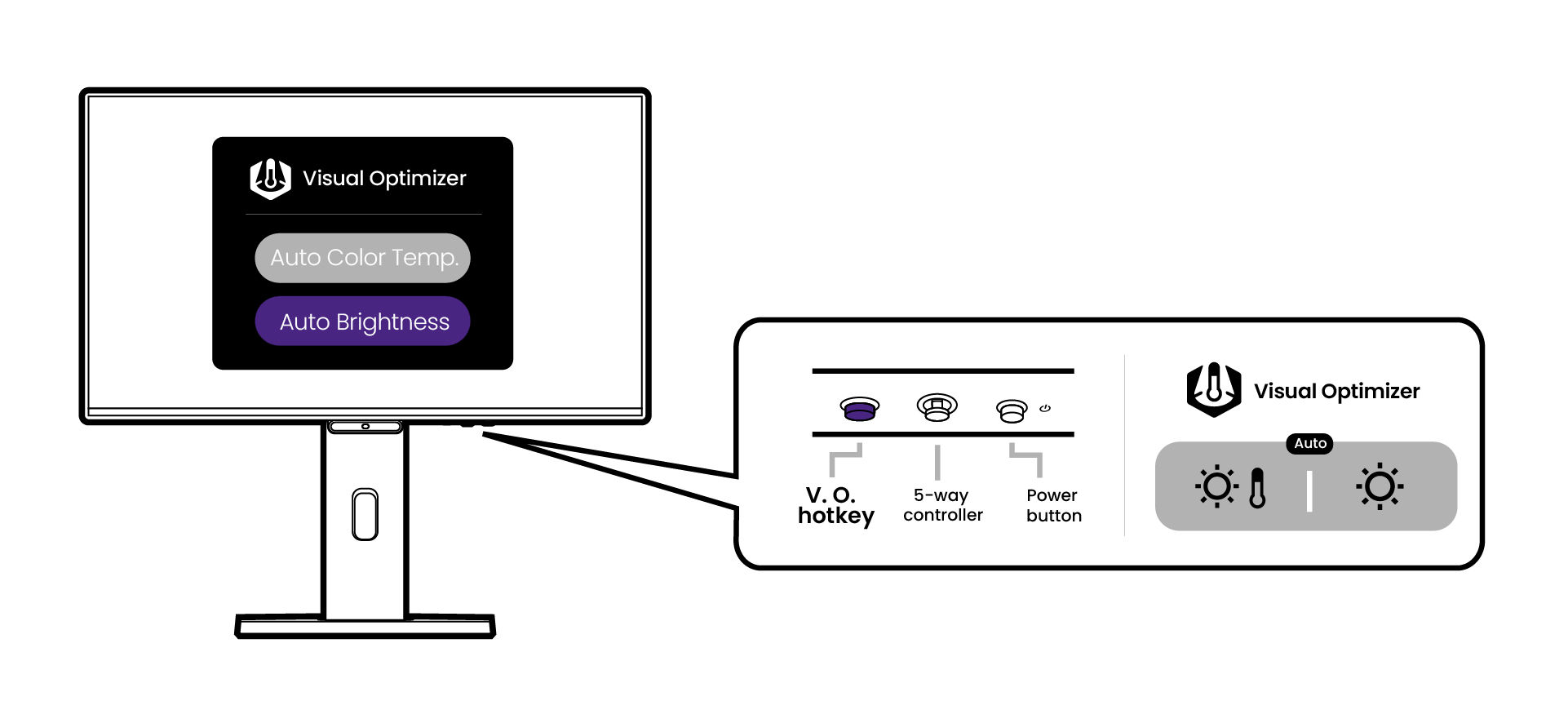

Press the V. O. Hotkey to adjust brightness and color temperature automatically.
Press the V. O. Hotkey to adjust brightness and color temperature automatically.

角度調整

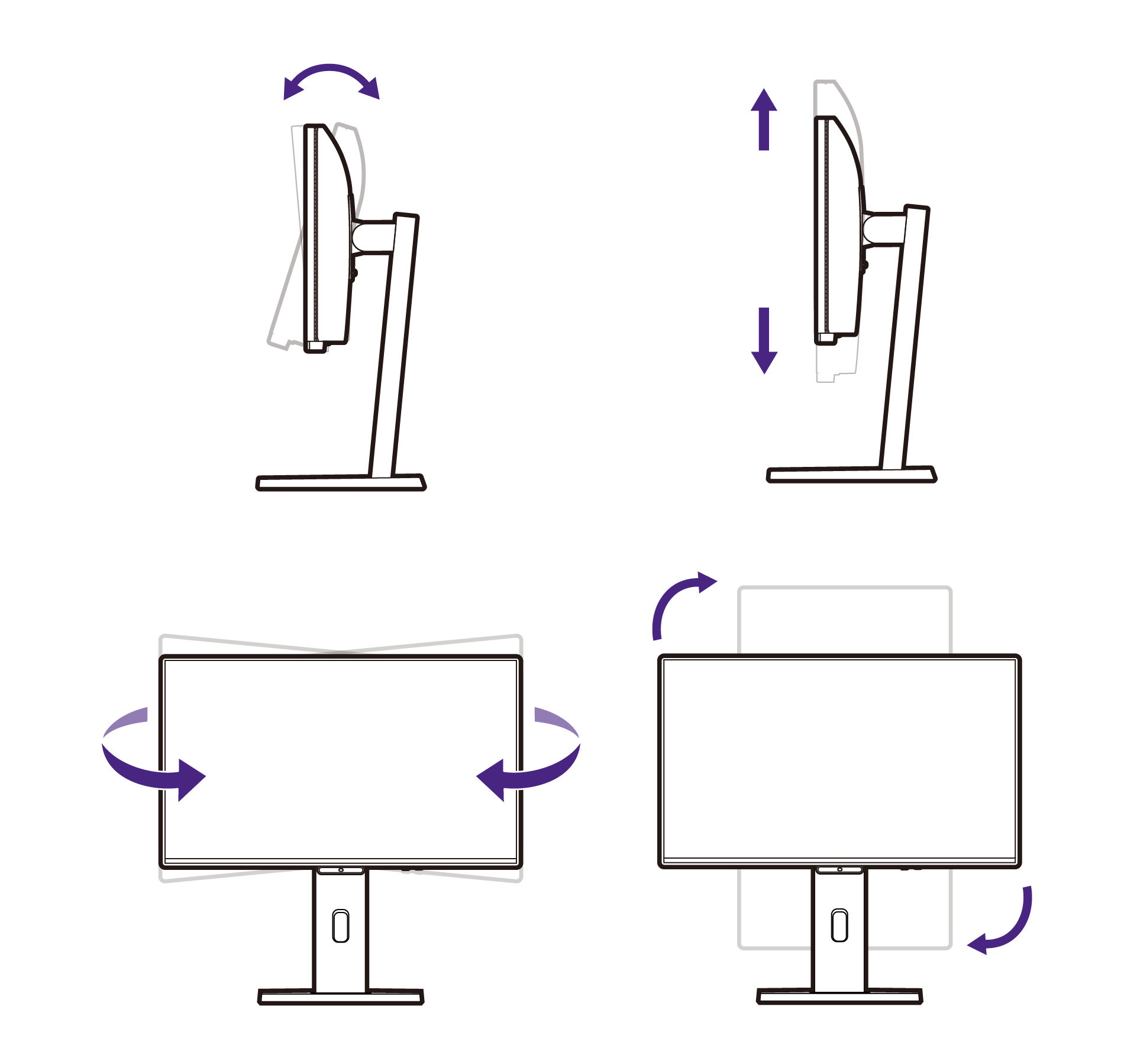

Adjust the viewing angle.
Adjust the viewing angle.

安裝軟體

護眼小怪獸軟體：隨時守護您的雙眼（Download to PC）

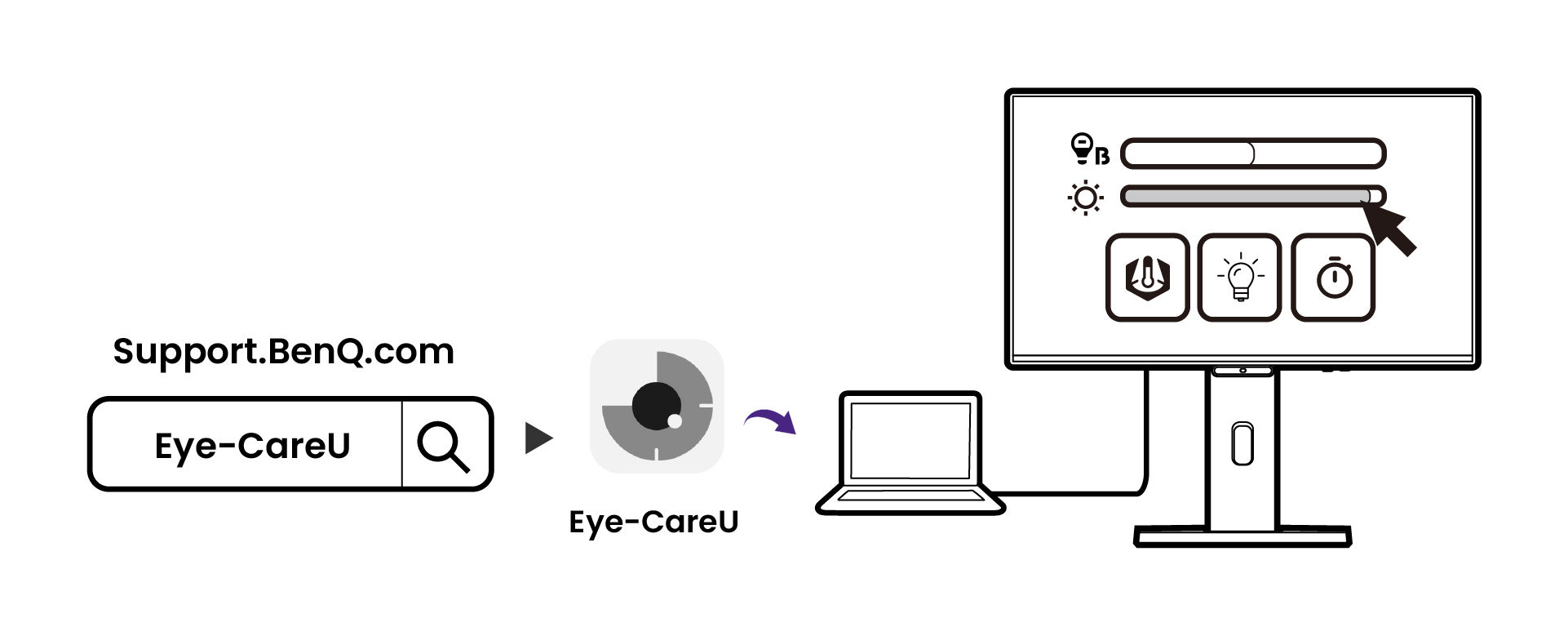

Download and install the software Eye-CareU from BenQ website to the computer.
Download and install the software Eye-CareU from BenQ website to the computer.
