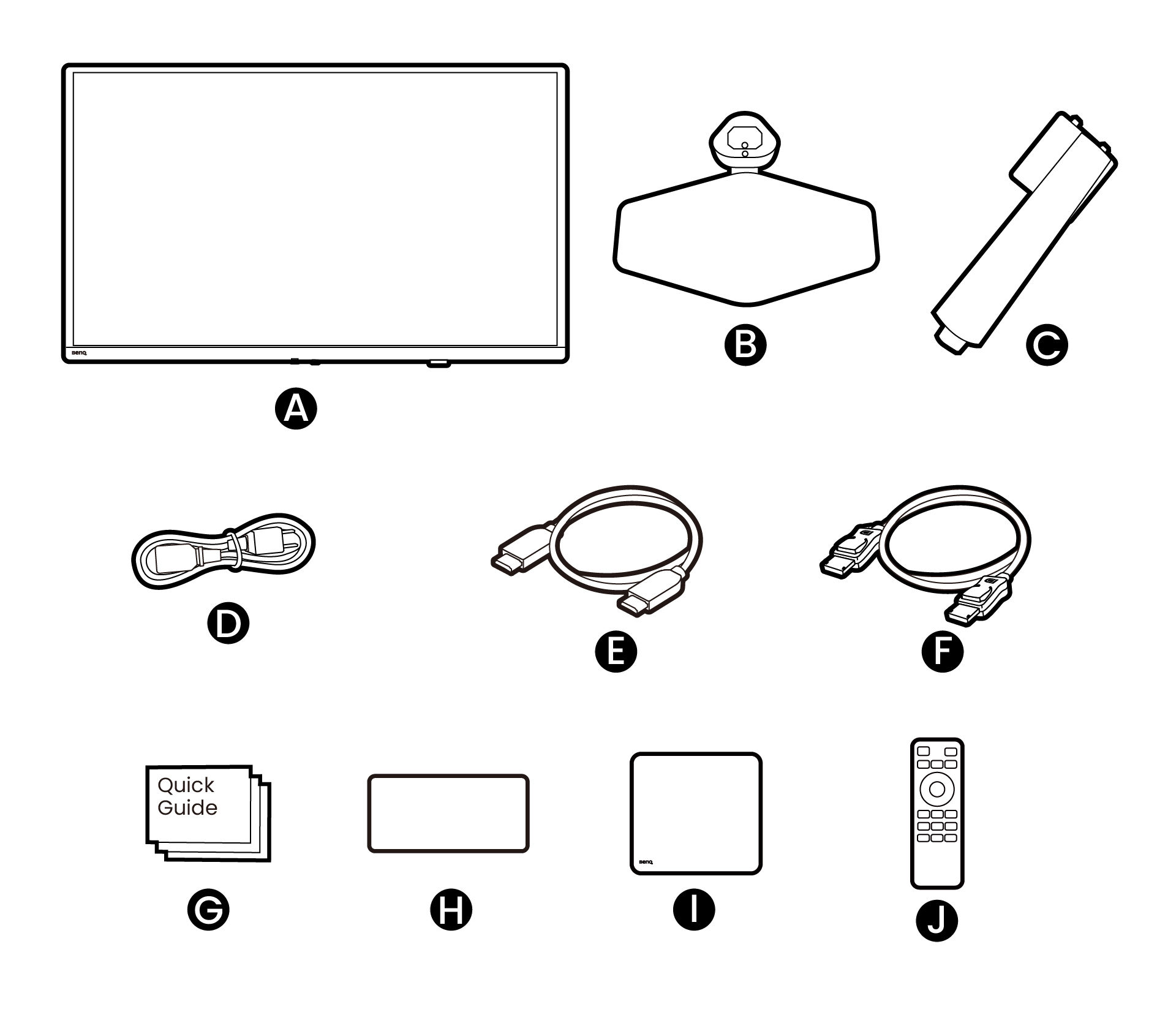

A. LCD monitor｜B. Monitor base｜C. Monitor stand

D. Power cord｜E. HDMI cable｜F. DP cable

G. User documents｜H. Calibration report｜I. Cleaning cloth

J. Remote control

Illustration of package contents
Illustration of package contents

備註

The images shown here may differ from the actual contents and the product supplied for your region.

內容
Setup
Angle adjustment
Installing software
Remote control
Setup
Angle adjustment
Installing software
Remote control

Setup

1.

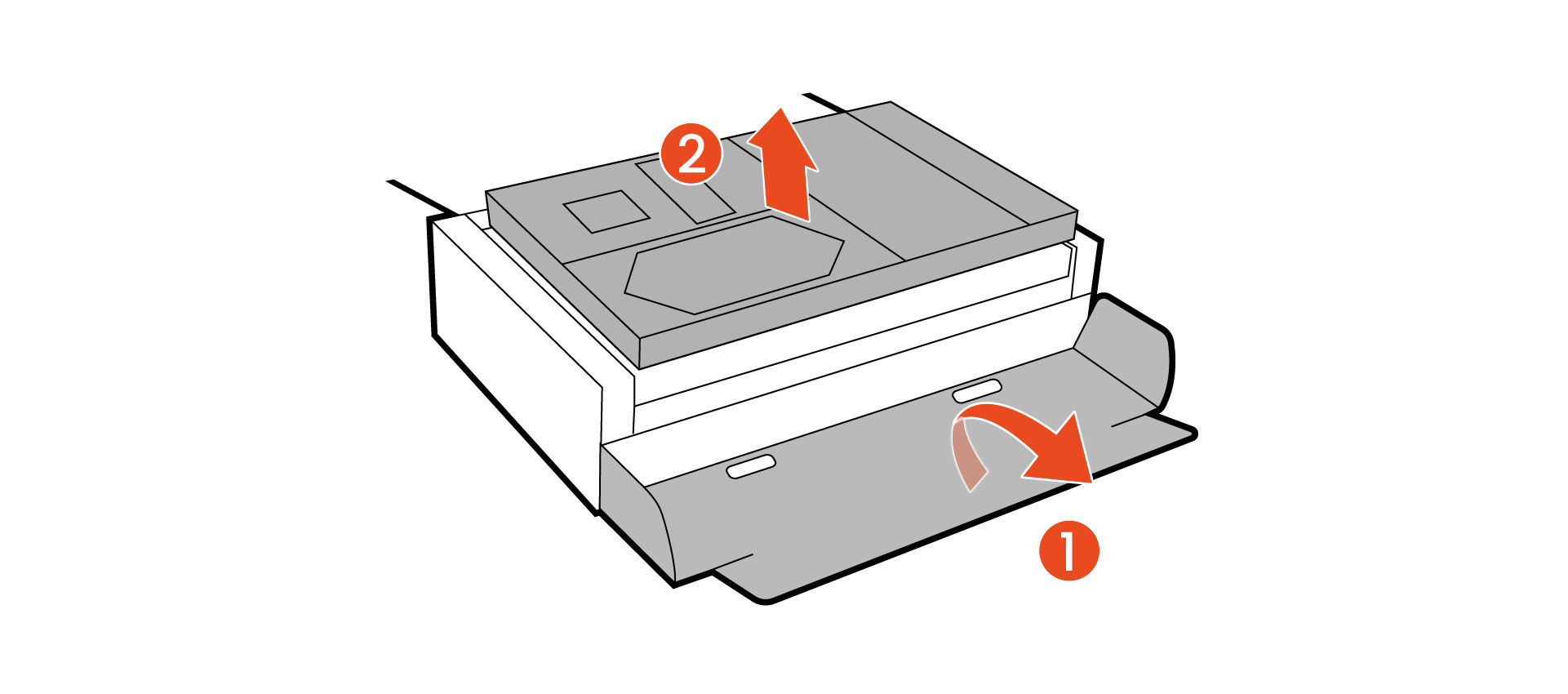

Open the box, unfold the front side of the box as illustrated to leave some room for stand and base attachment.
Open the box, unfold the front side of the box as illustrated to leave some room for stand and base attachment.

2.

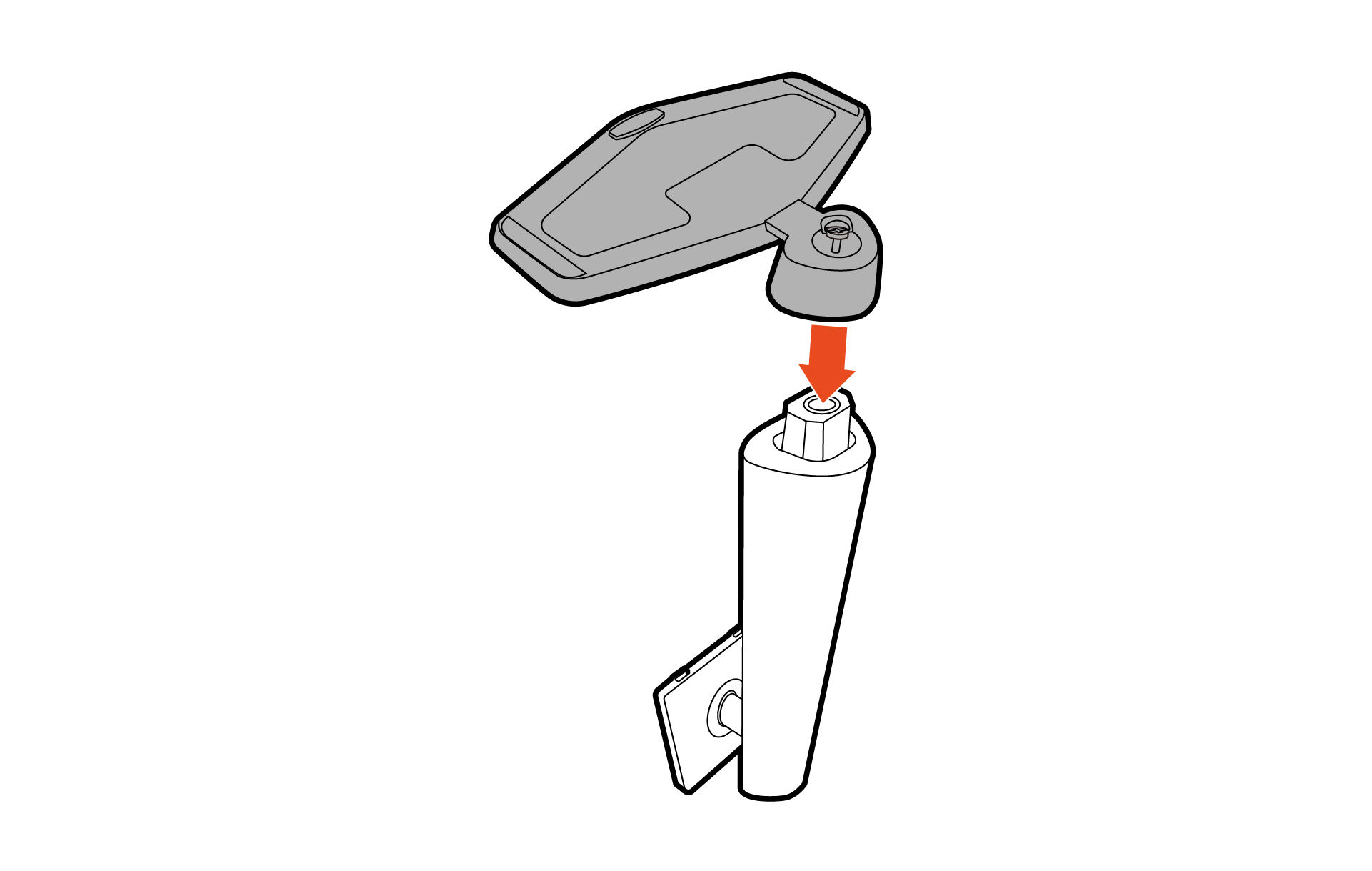

Attach the cable holder to the monitor stand.
Attach the cable holder to the monitor stand.

3.

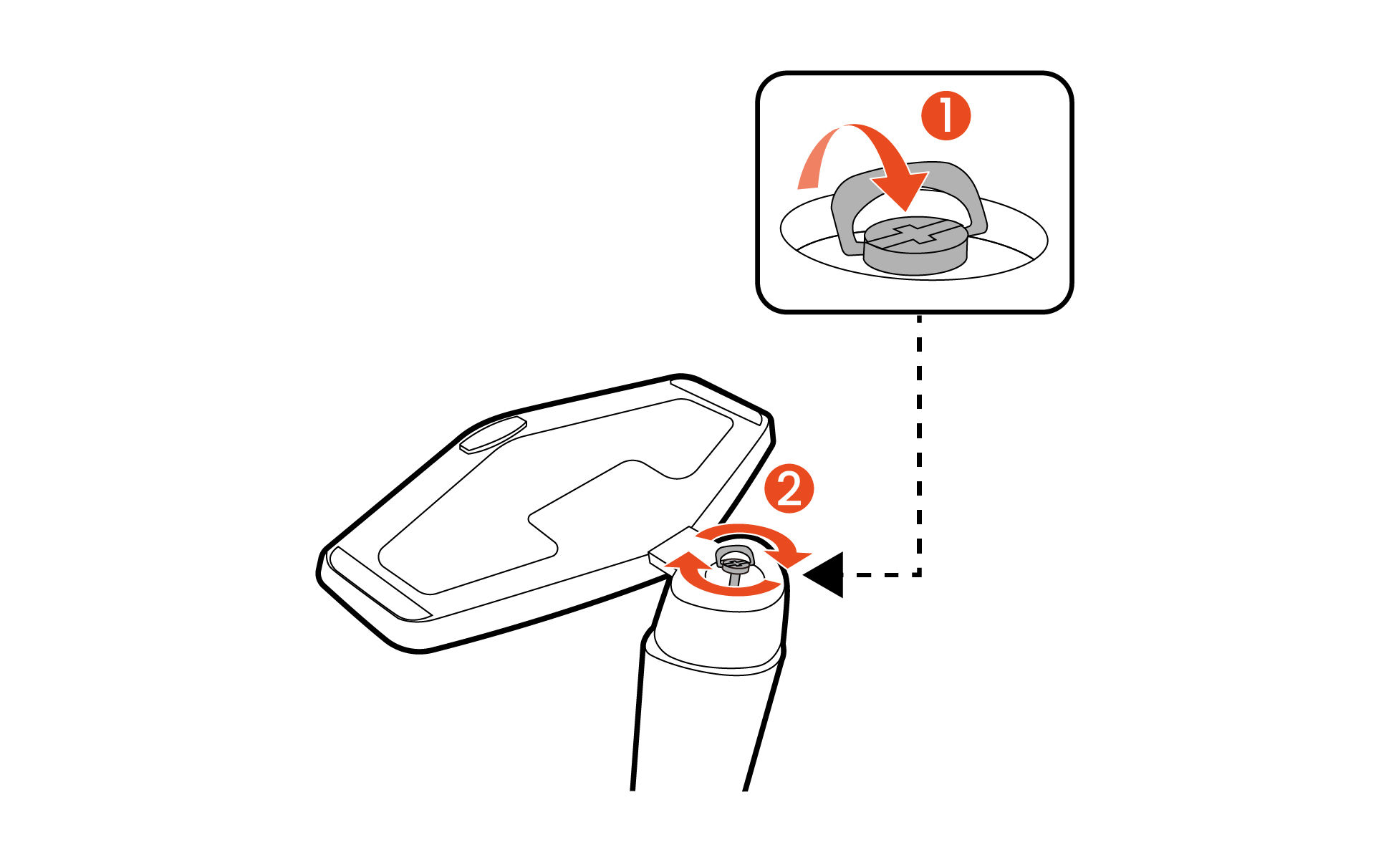

Raise the thumbscrew lid and tighten the thumbscrew. Then push the lid back.
Raise the thumbscrew lid and tighten the thumbscrew. Then push the lid back.

4.

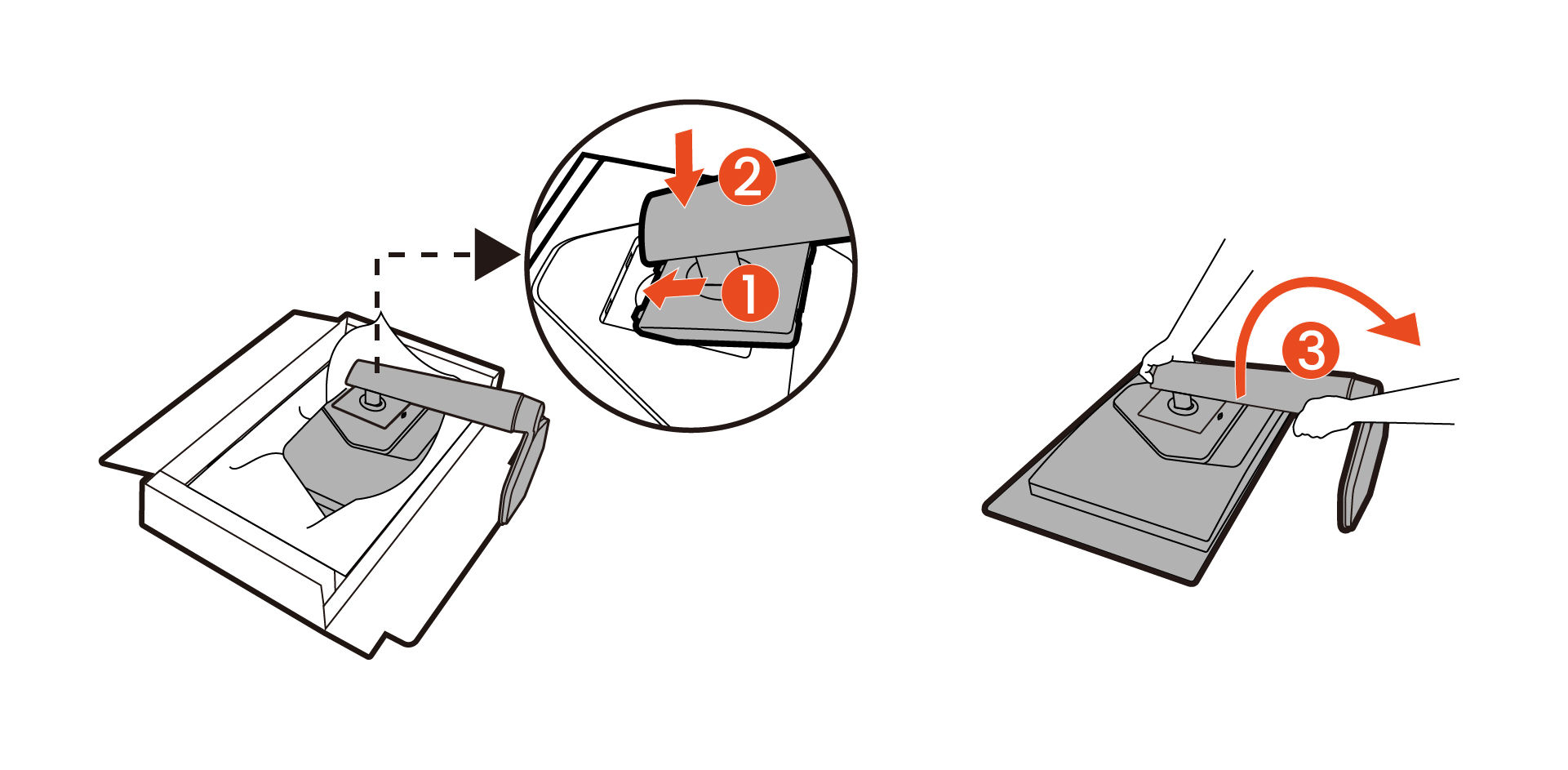

Orient and align the stand arm with the monitor, then push them together until they click and lock into place. Carefully lift the monitor, turn it over and place it upright on its stand on a flat even surface.
Orient and align the stand arm with the monitor, then push them together until they click and lock into place. Carefully lift the monitor, turn it over and place it upright on its stand on a flat even surface.

5.

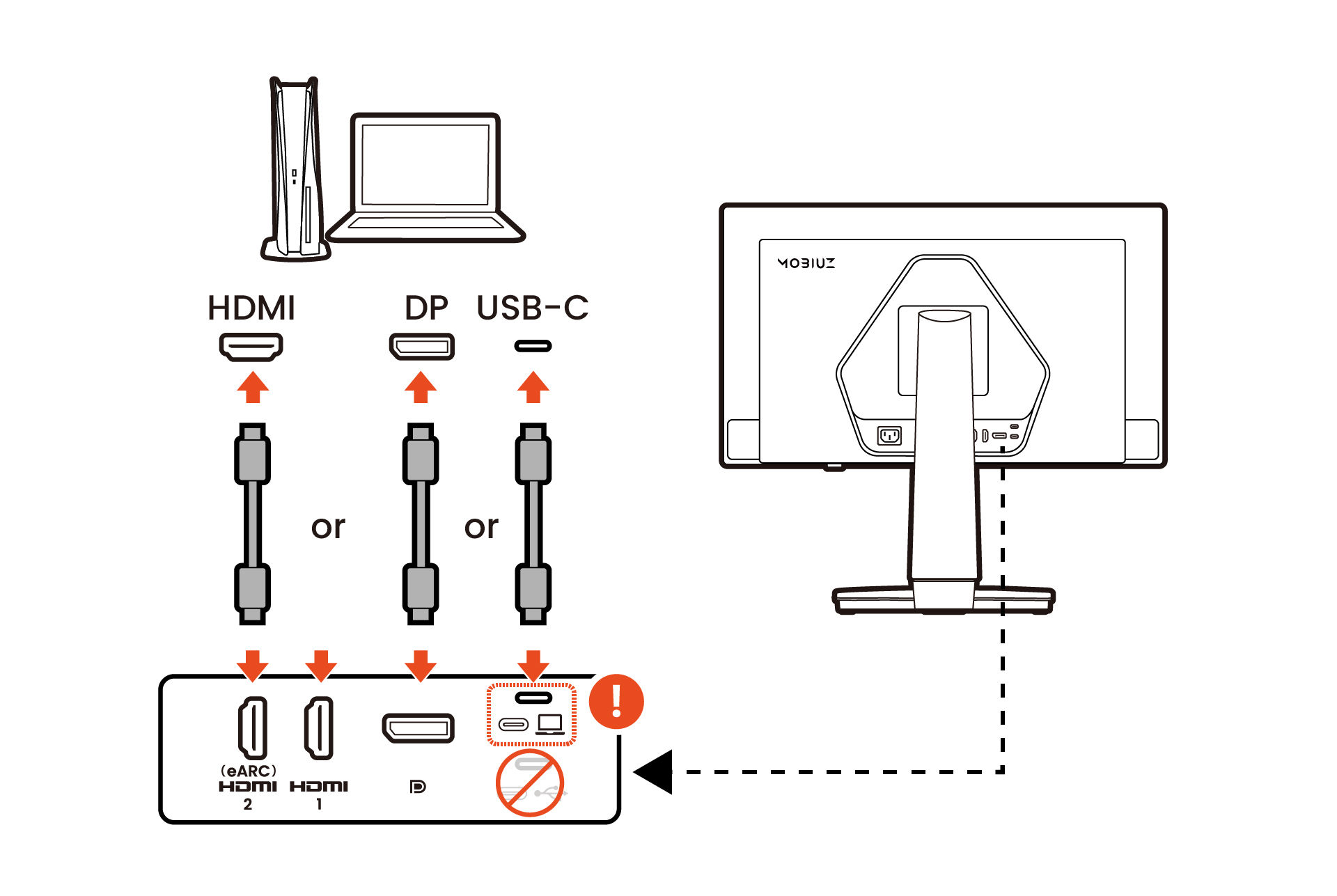

Connect the PC video cable.
Connect the PC video cable.

6.

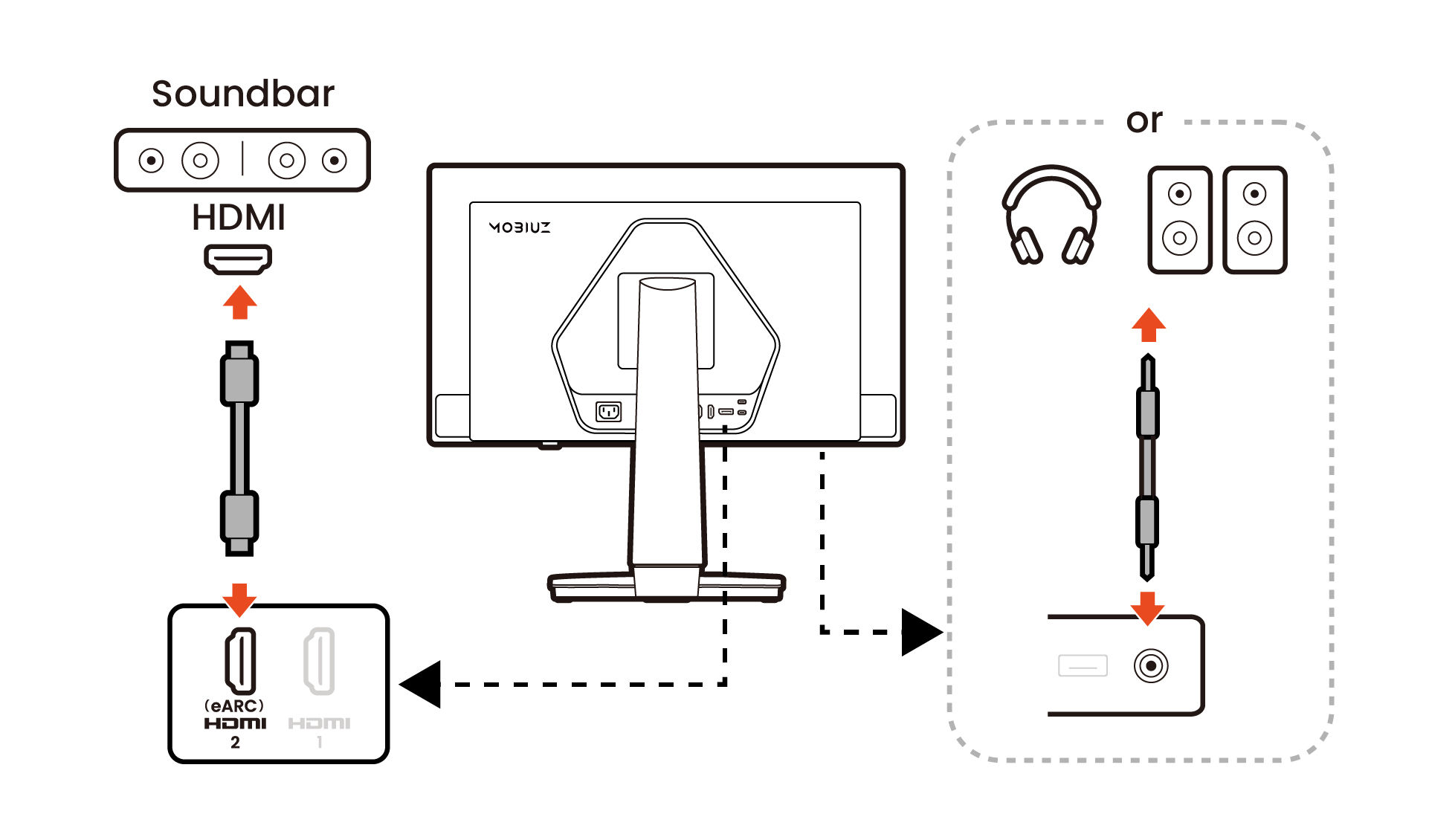

Connect the audio cable.
Connect the audio cable.

7.

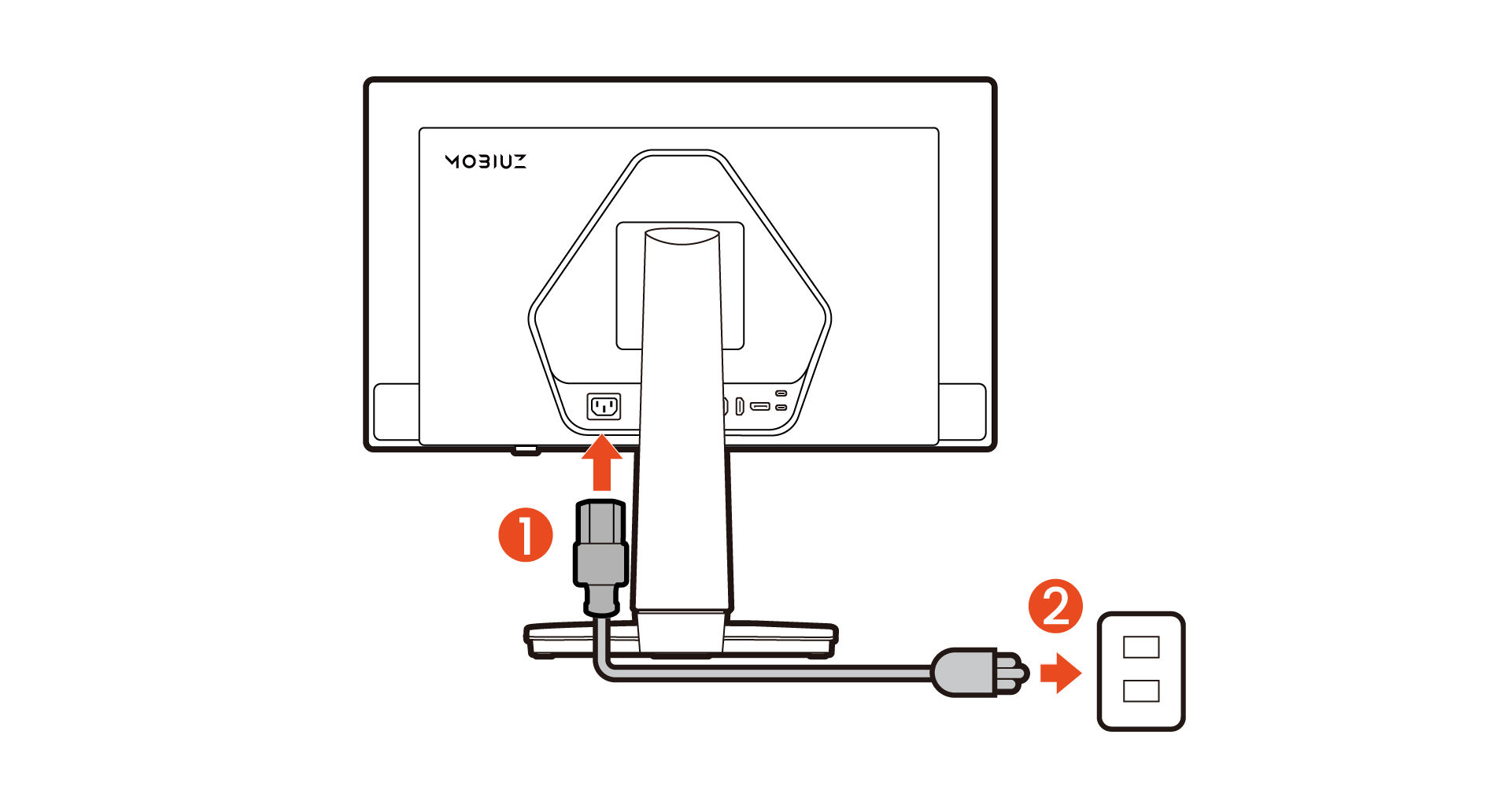

Connect the power.
Connect the power.

8.

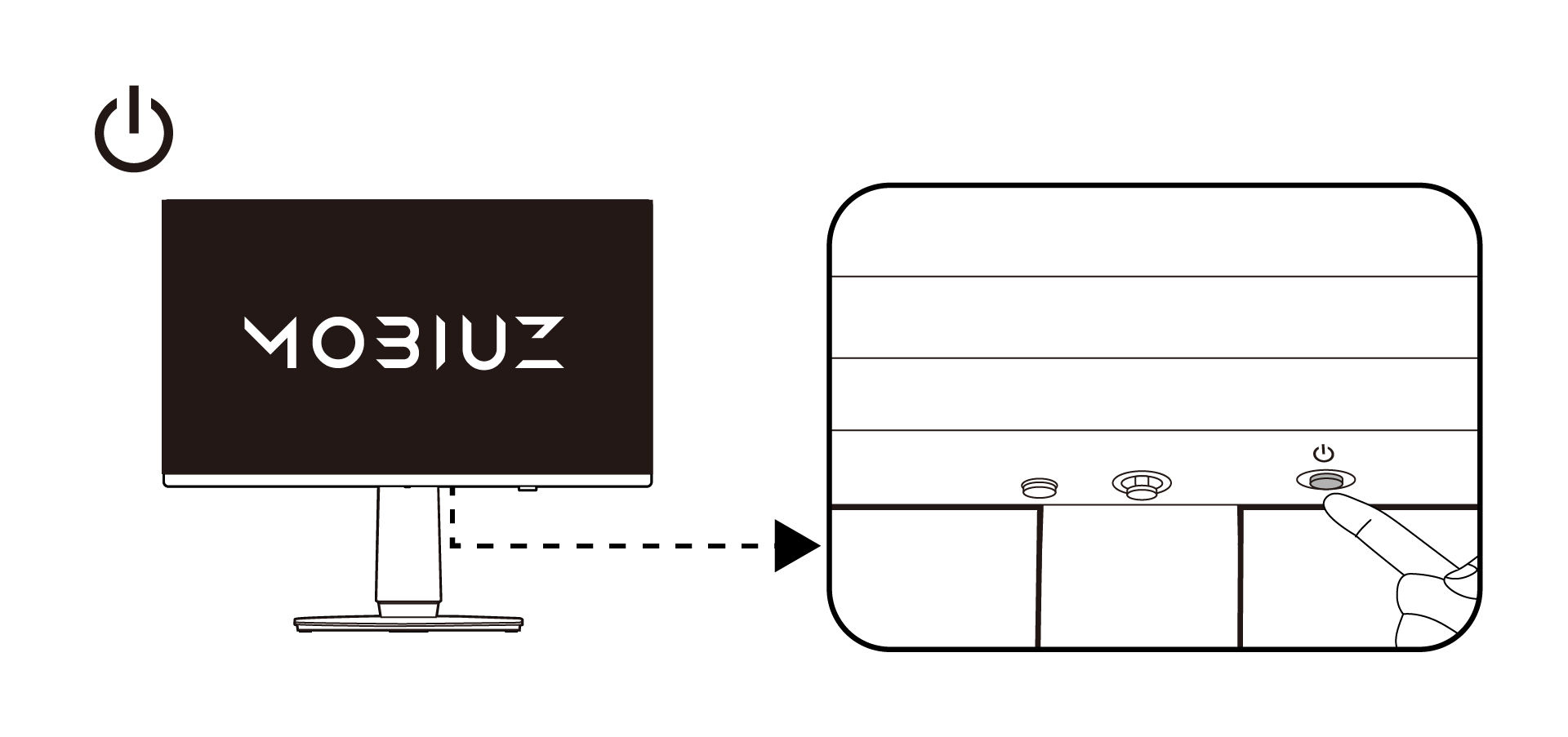

Turn-on the power.
Turn-on the power.

Angle adjustment

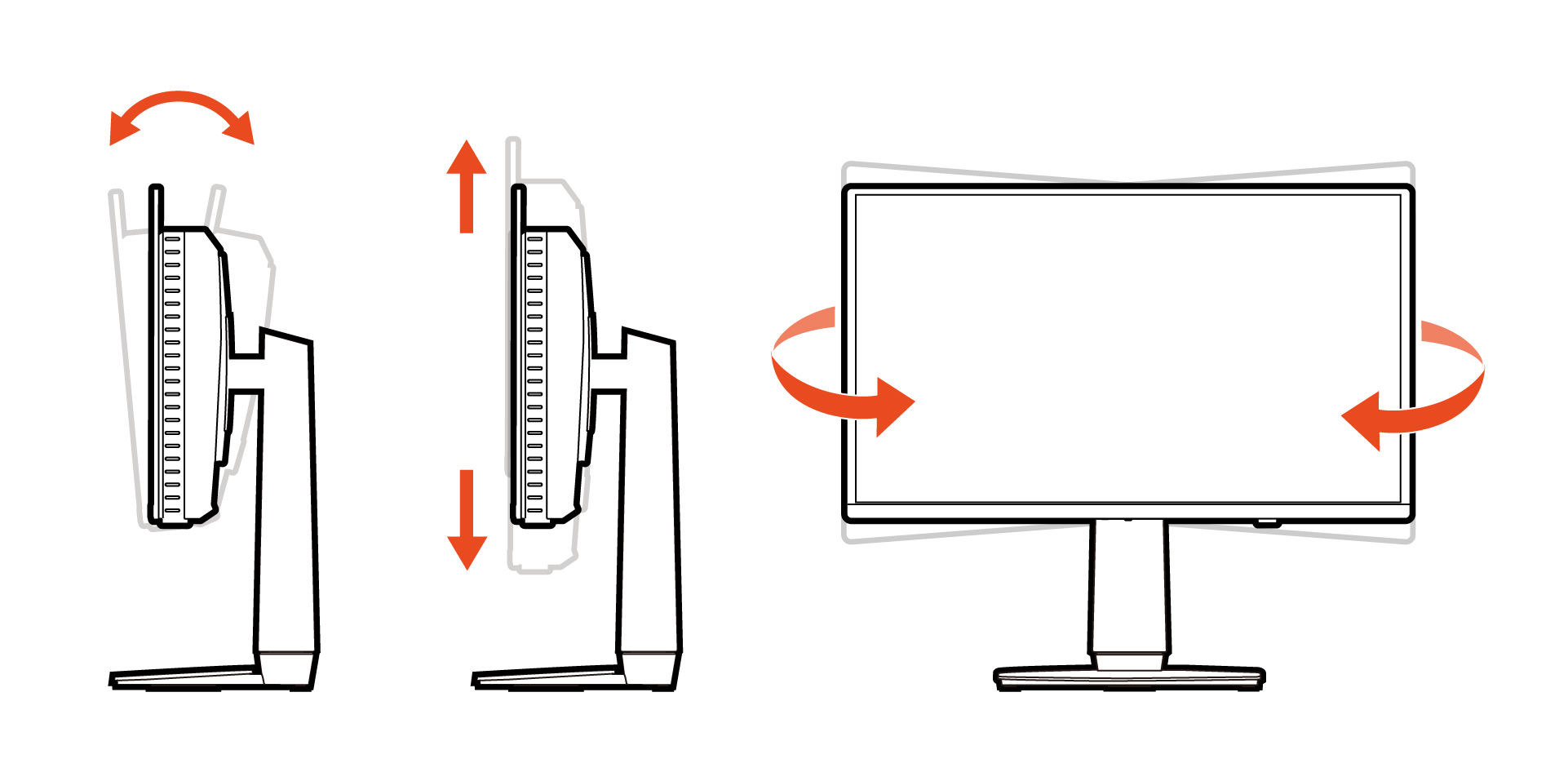

Adjust the viewing angle.
Adjust the viewing angle.

Installing software

Color Shuttle: Easily download, manage, and share color modes for game titles. (Download to PC)

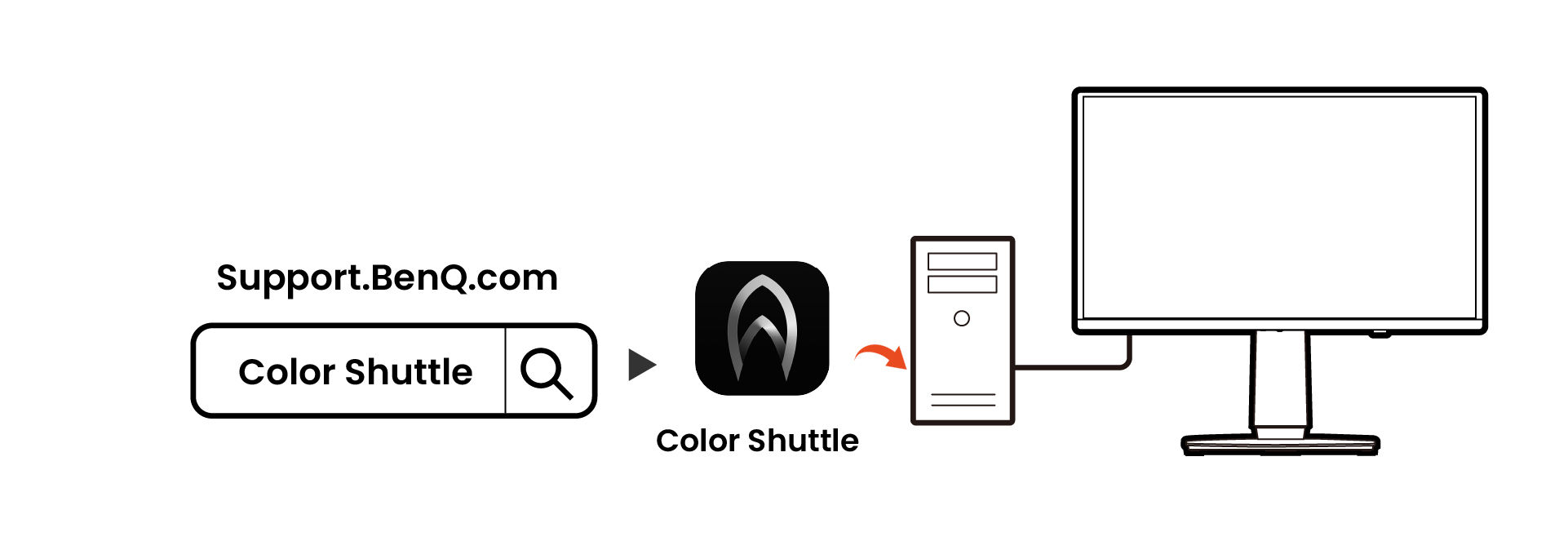

Download and install the software Color Shuttle from BenQ website to the computer.
Download and install the software Color Shuttle from BenQ website to the computer.

Remote control

(AAA batteries. Purchased separately.)

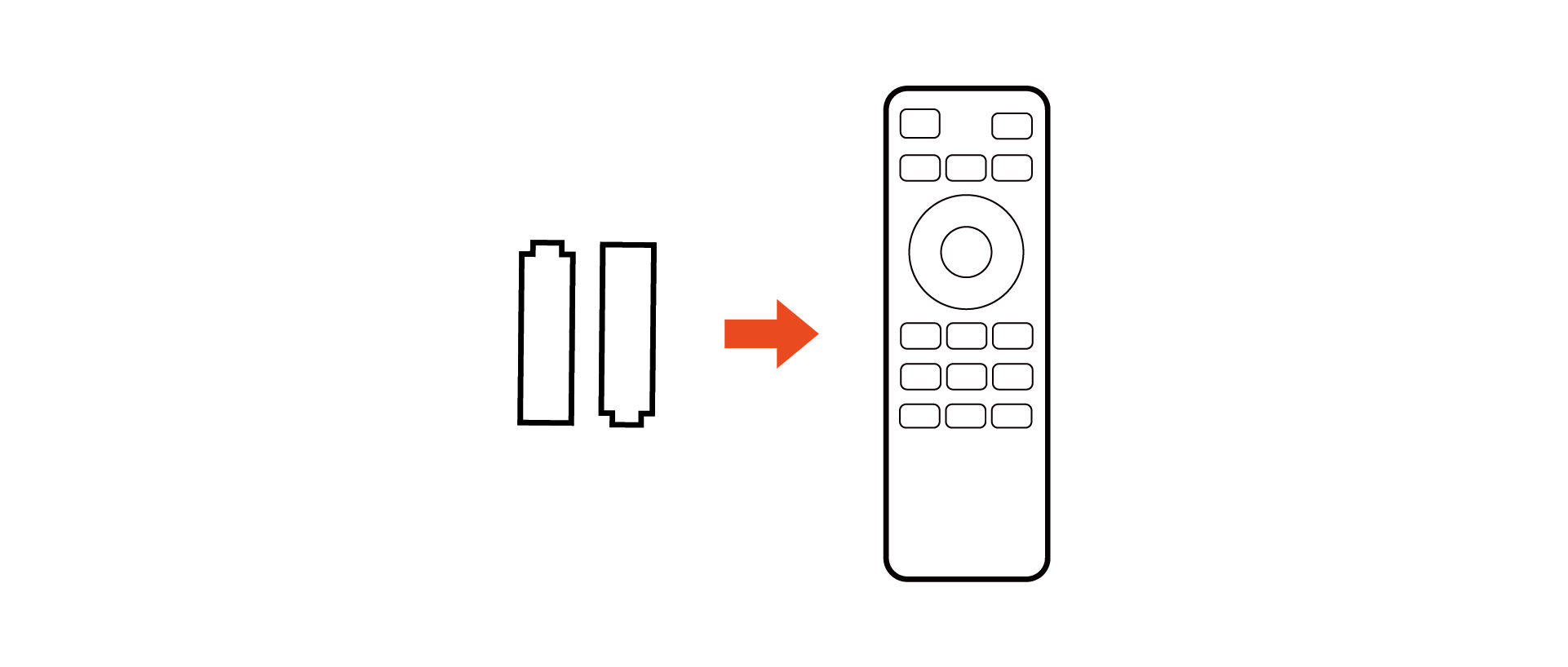

Install the remote control's batteries.
Install the remote control's batteries.

Effective range

Adjust the viewing angle.
Adjust the viewing angle.
