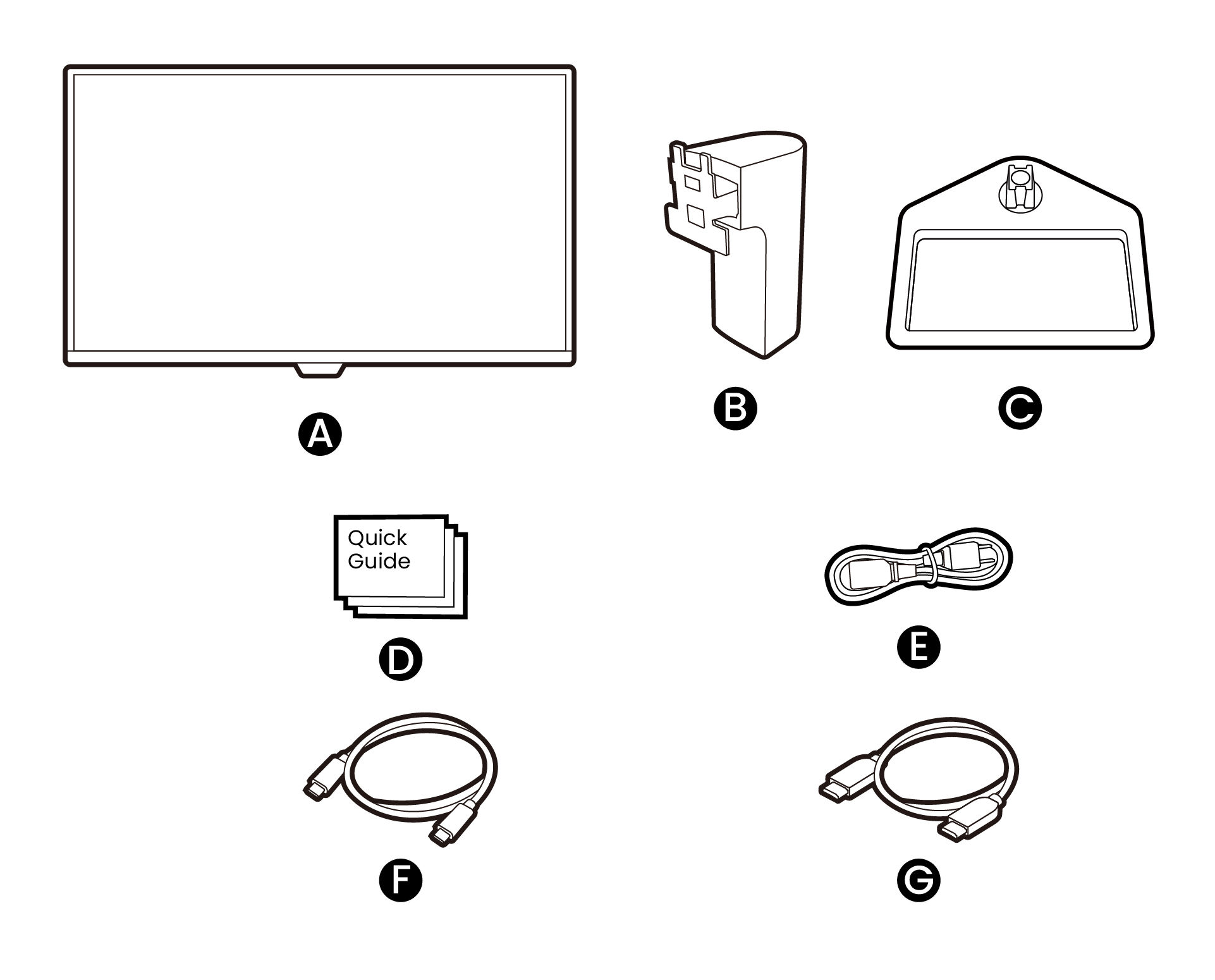

A. 顯示器｜B. 螢幕支架｜C. 螢幕底座

D. 說明文件｜E. 電源線｜F. USB-C™ 傳輸線

G. HDMI 傳輸線

Illustration of package contents
Illustration of package contents

備註

此處展示的圖示僅供參考，實際內容與提供產品會因地區而異。

內容
安裝說明
傾角調整
安裝軟體
快捷鍵
安裝說明
傾角調整
安裝軟體
快捷鍵

安裝說明

1.

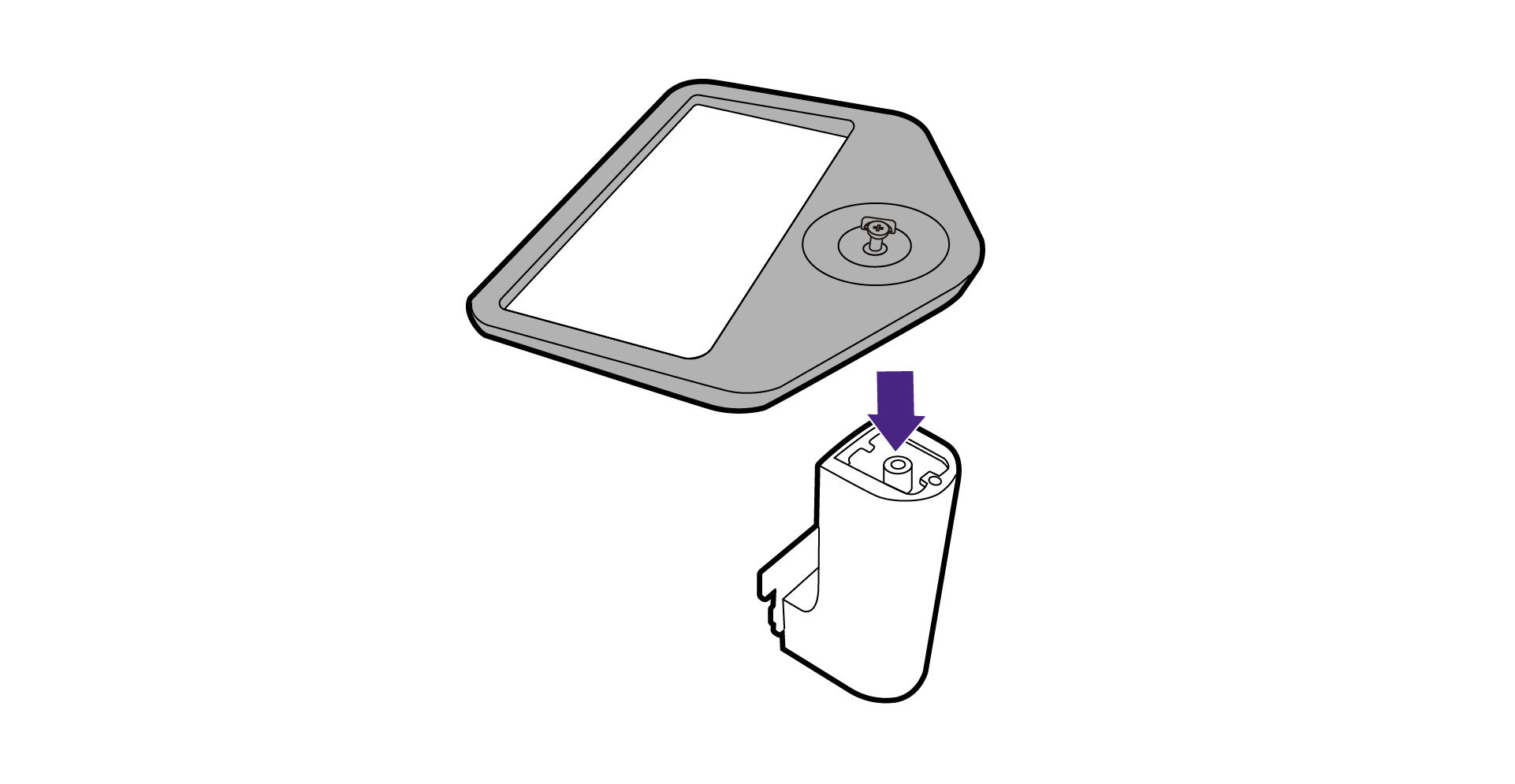

Attach the monitor base to the monitor stand.
Attach the monitor base to the monitor stand.

2.

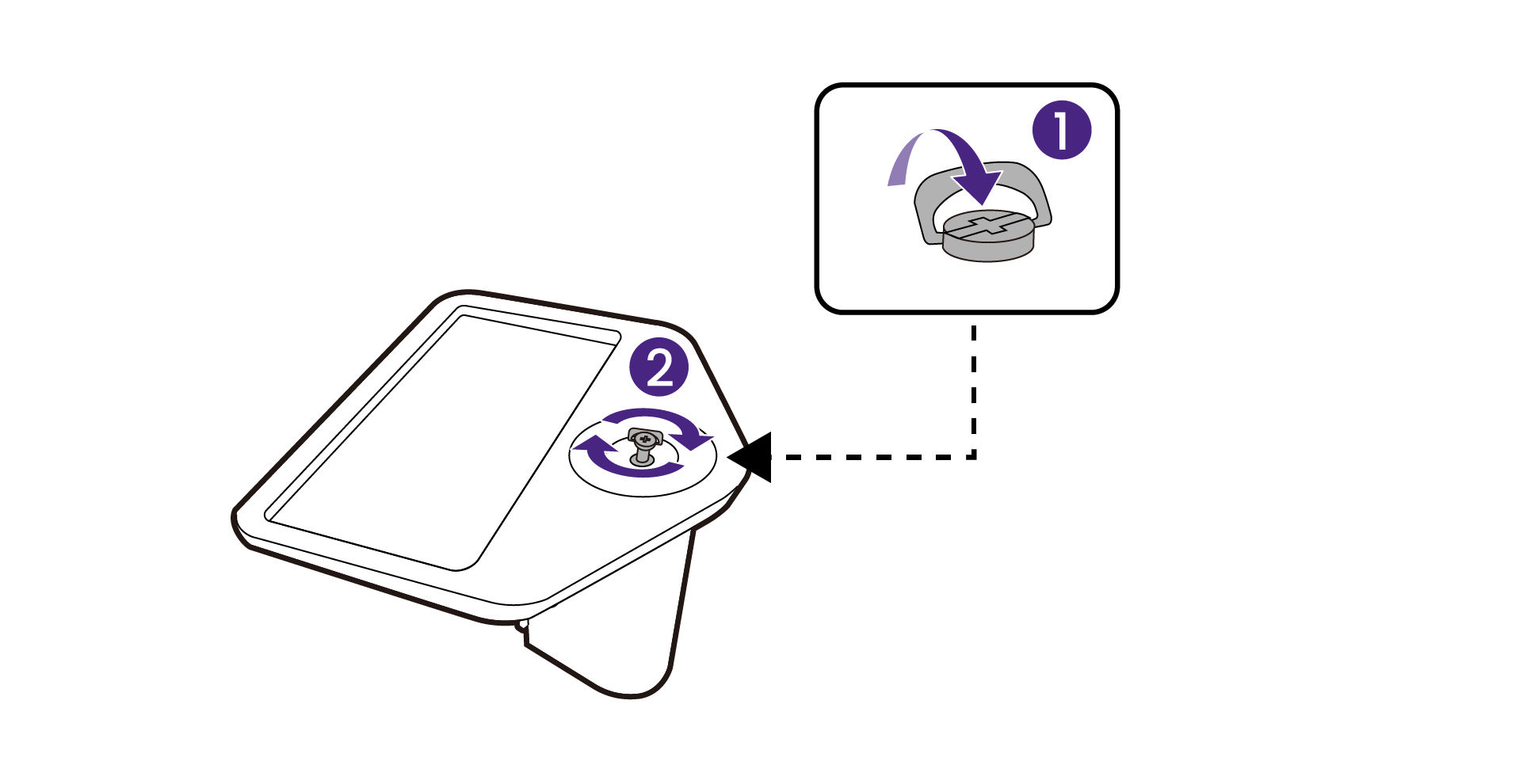

Raise the thumbscrew lid and tighten the thumbscrew. Then push the lid back.
Raise the thumbscrew lid and tighten the thumbscrew. Then push the lid back.

3.

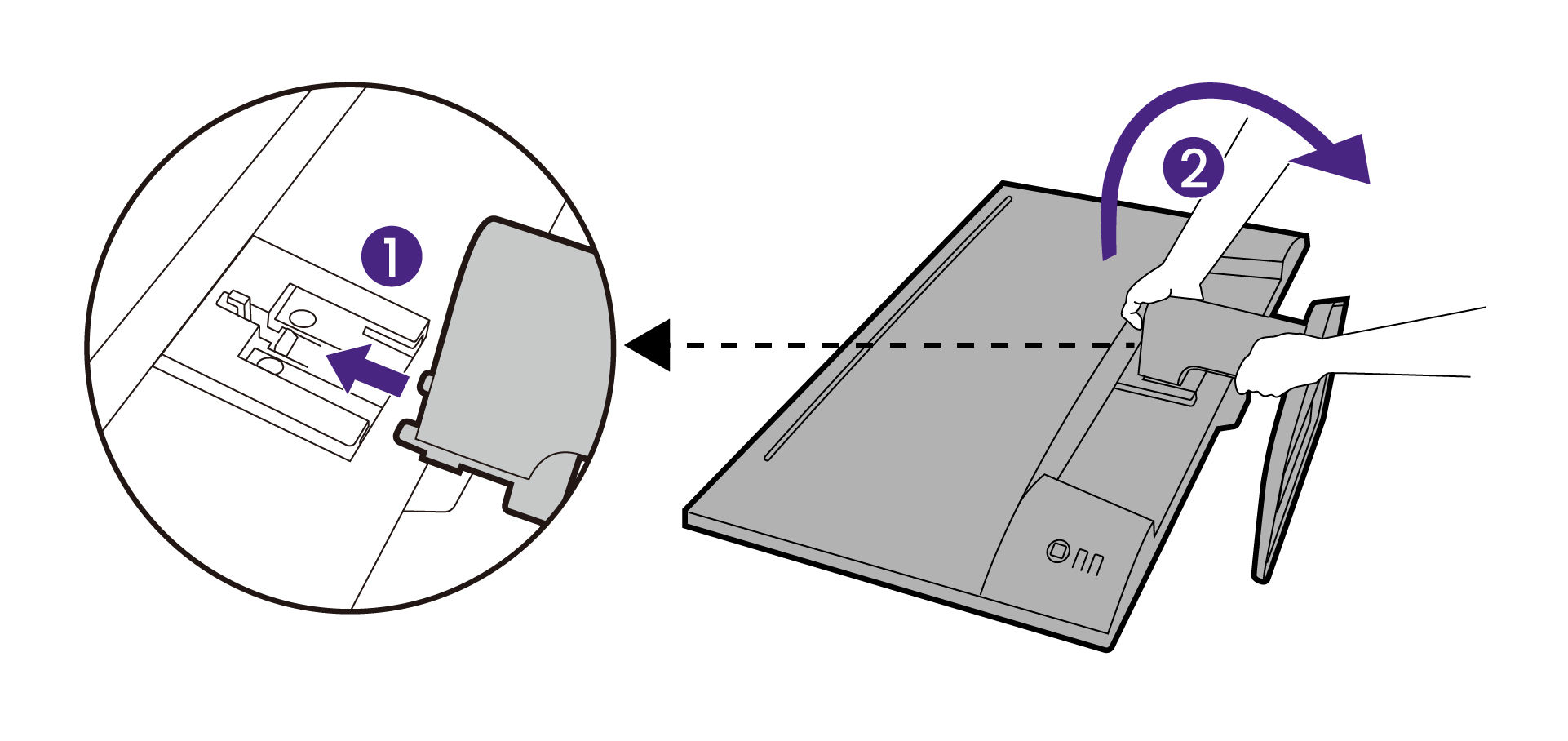

Orient and align the stand arm with the monitor, then push them together until they click and lock into place. Carefully lift the monitor, turn it over and place it upright on its stand on a flat even surface.
Orient and align the stand arm with the monitor, then push them together until they click and lock into place. Carefully lift the monitor, turn it over and place it upright on its stand on a flat even surface.

4.

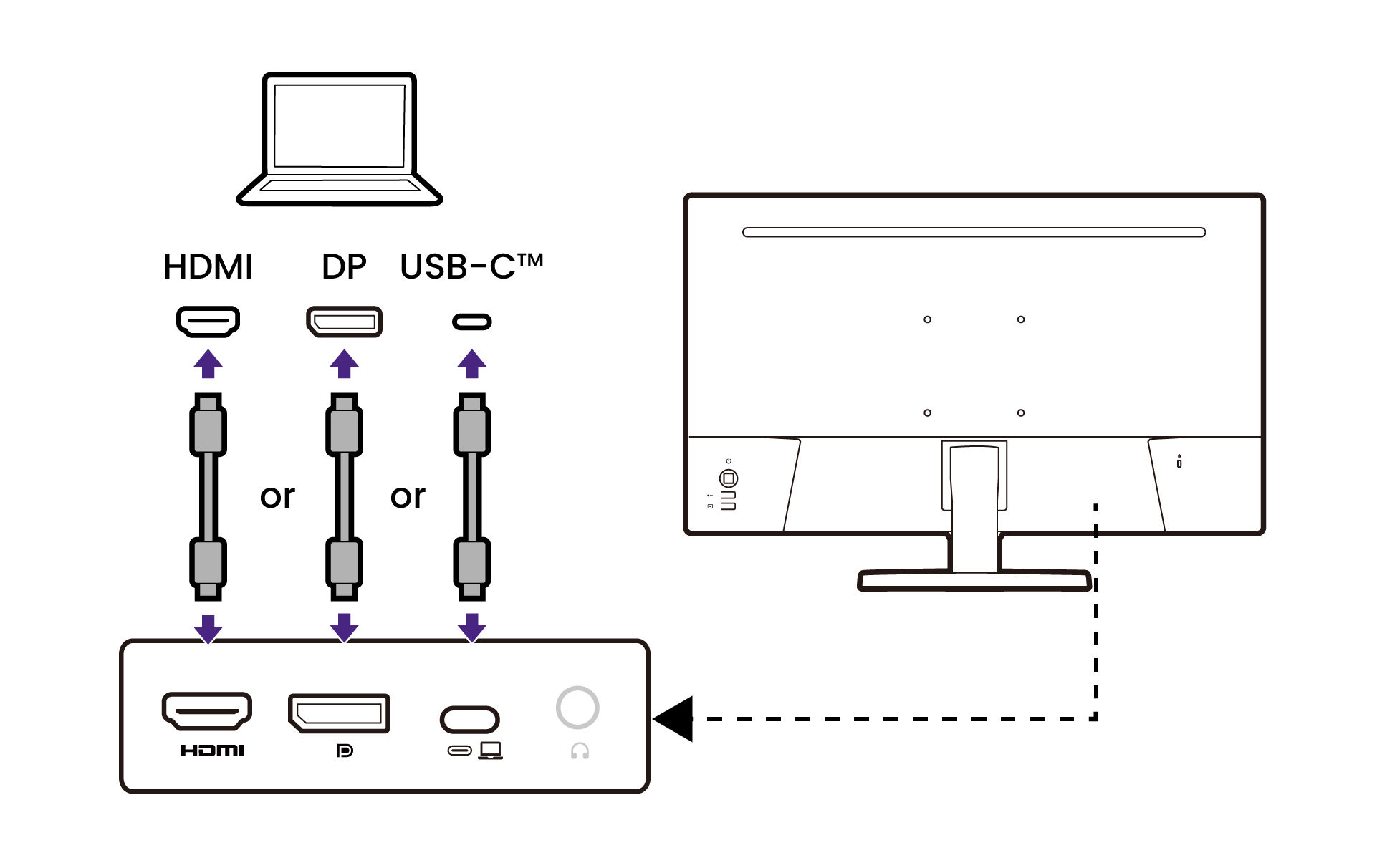

Connect the PC video cable.
Connect the PC video cable.

5.

Connect the audio cable.
Connect the audio cable.

6.

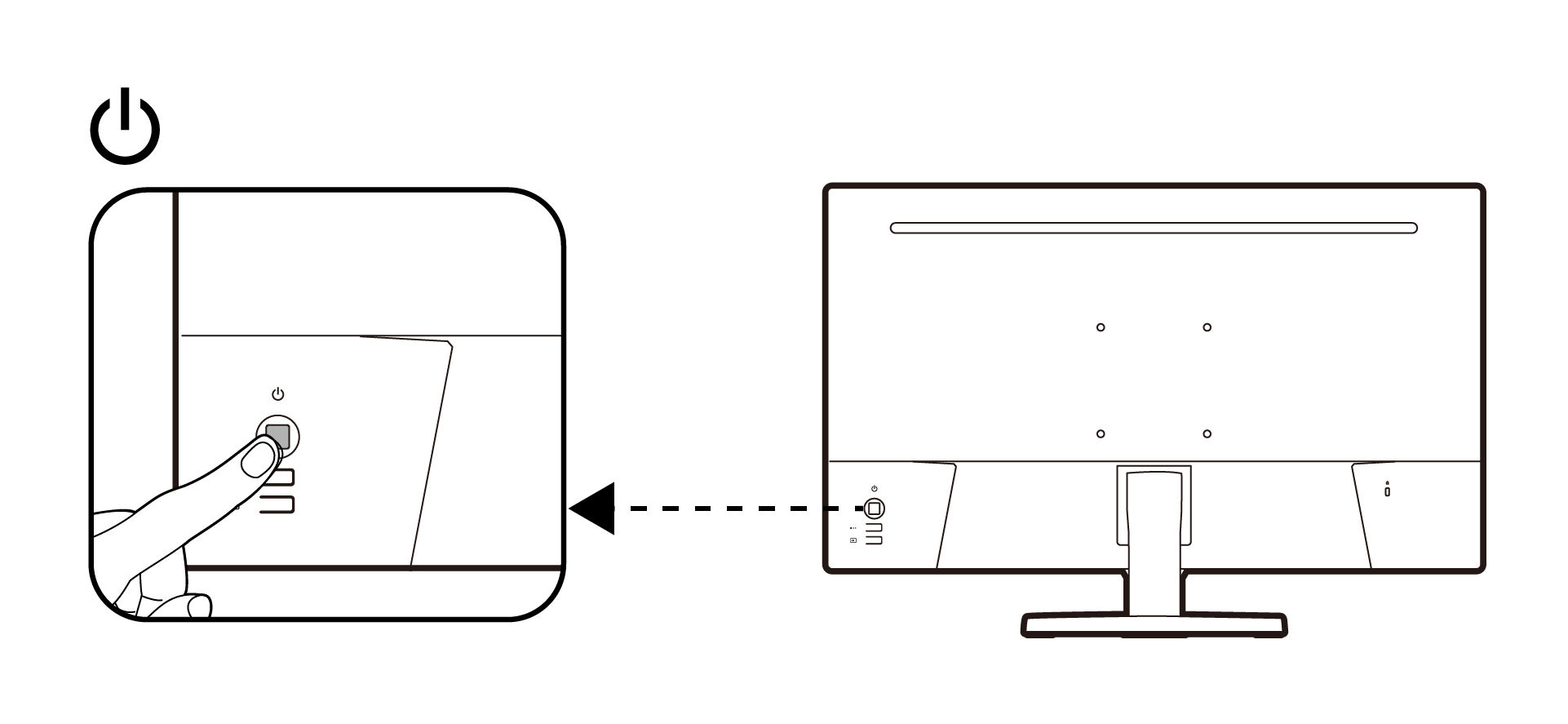

Turn-on the power.
Turn-on the power.

傾角調整

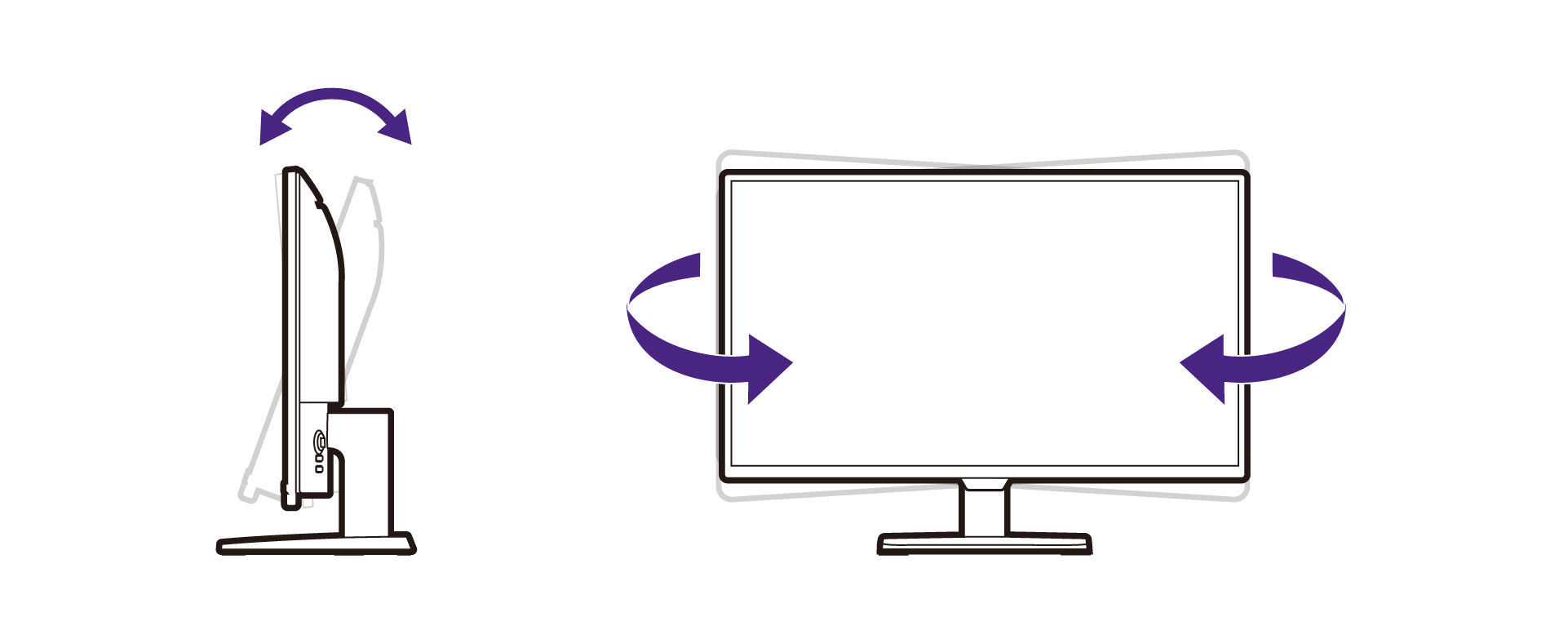

Adjust the viewing angle.
Adjust the viewing angle.

安裝軟體

Display Pilot 2：高效管理您的顯示設定 (立即下載到電腦)

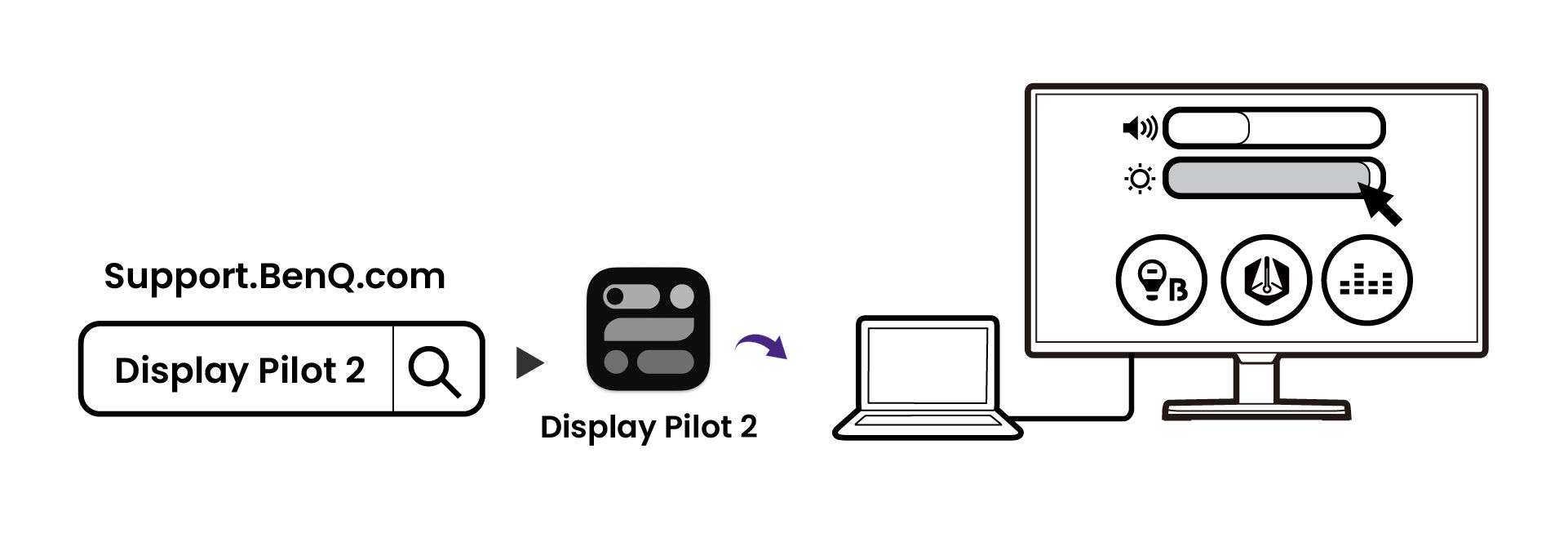

Download and install the software Display Pilot 2 from BenQ website to the computer.
Download and install the software Display Pilot 2 from BenQ website to the computer.

快捷鍵

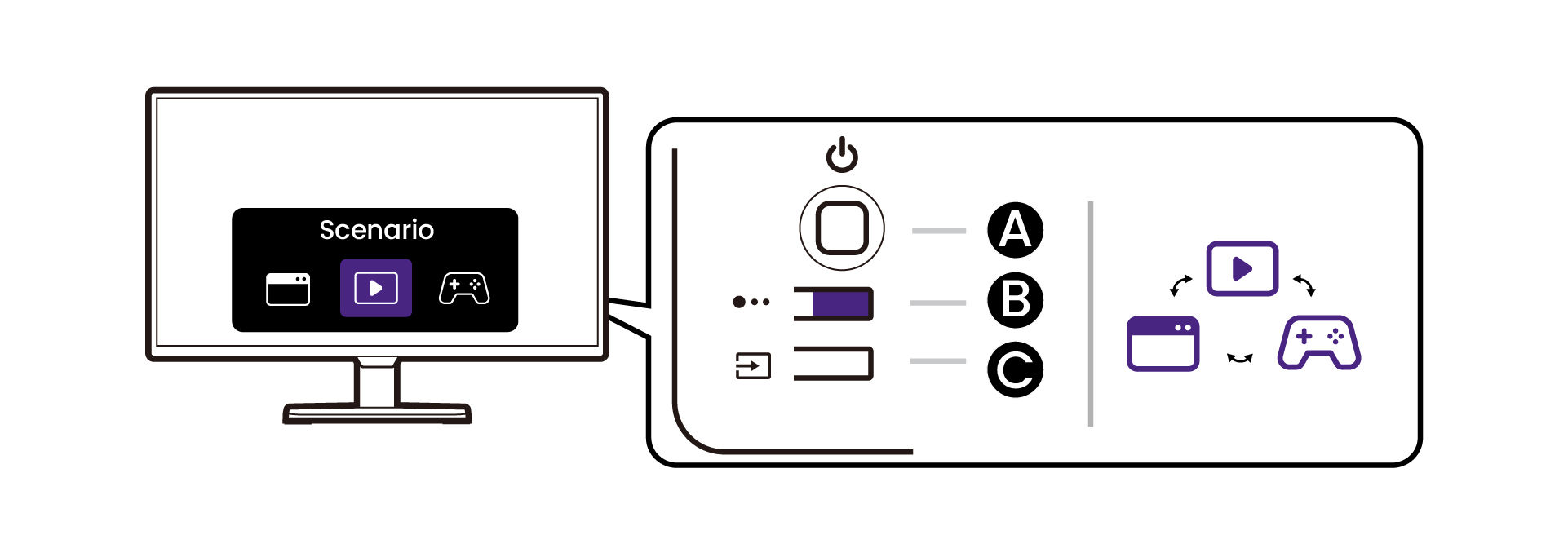

A. 五向控制鍵｜B. 情境熱鍵｜C. 輸入訊號

'Hotkey features
'Hotkey features
