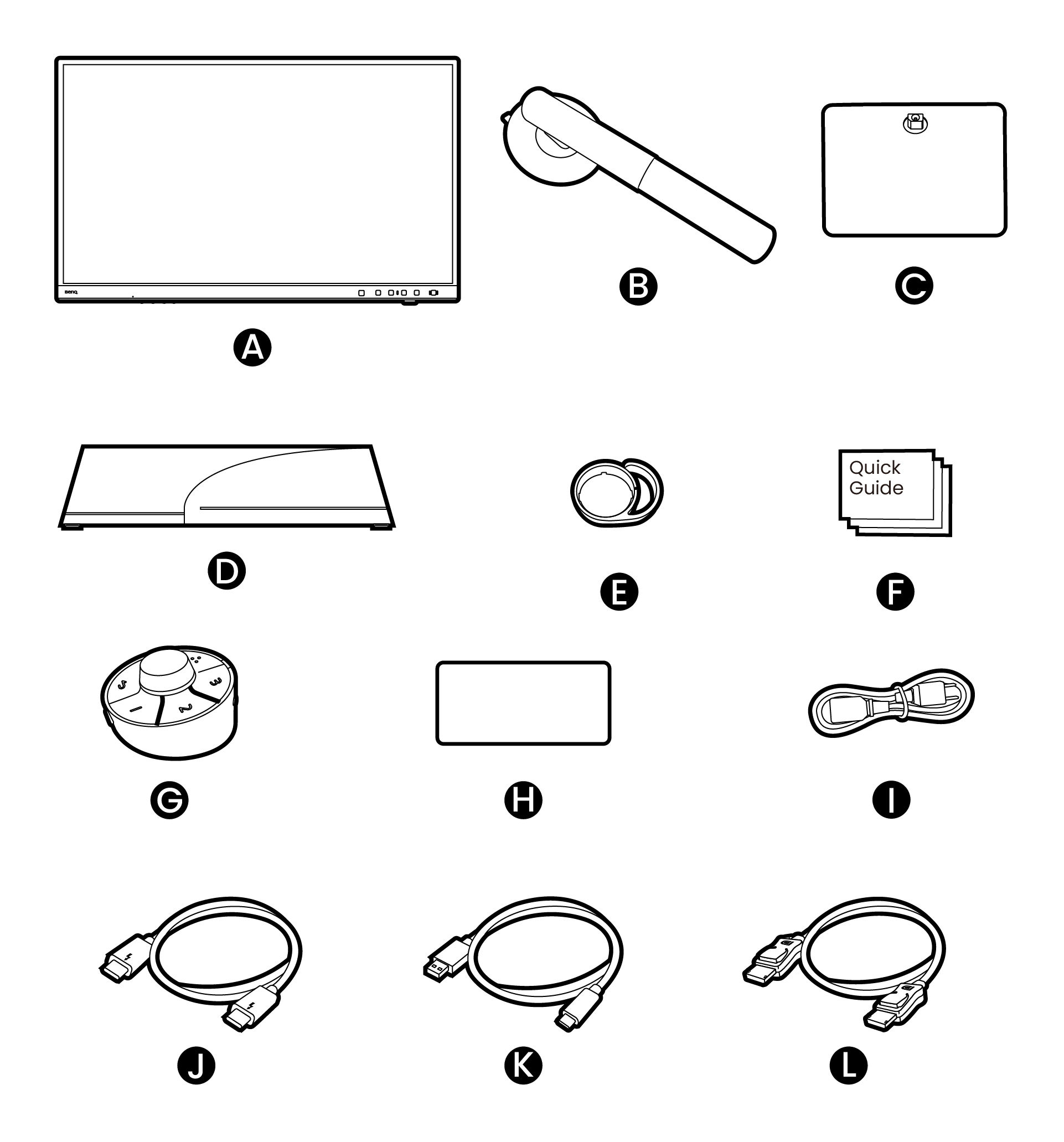

A. LCD monitor｜B. Monitor stand｜C. Monitor base

D. Shading hood｜E. Cable holder｜F. User documents

G. Hotkey Puck G4｜H. Calibration report｜I. Power cord

J. Thunderbolt™ cable｜K. USB-A to USB-C™ cable｜L. DP cable

PV3250U_online QSG_Final
PV3250U_online QSG_Final

Note

The images shown here may differ from the actual contents and the product supplied for your region.

Content
Setup
Remote control (Hotkey Puck G4)
Installing color management software
Installing Display Pilot 2
Installing the shading hood (optional step)
Angle adjustment
Setup
Remote control (Hotkey Puck G4)
Installing color management software
Installing Display Pilot 2
Installing the shading hood (optional step)
Angle adjustment

Setup

1.

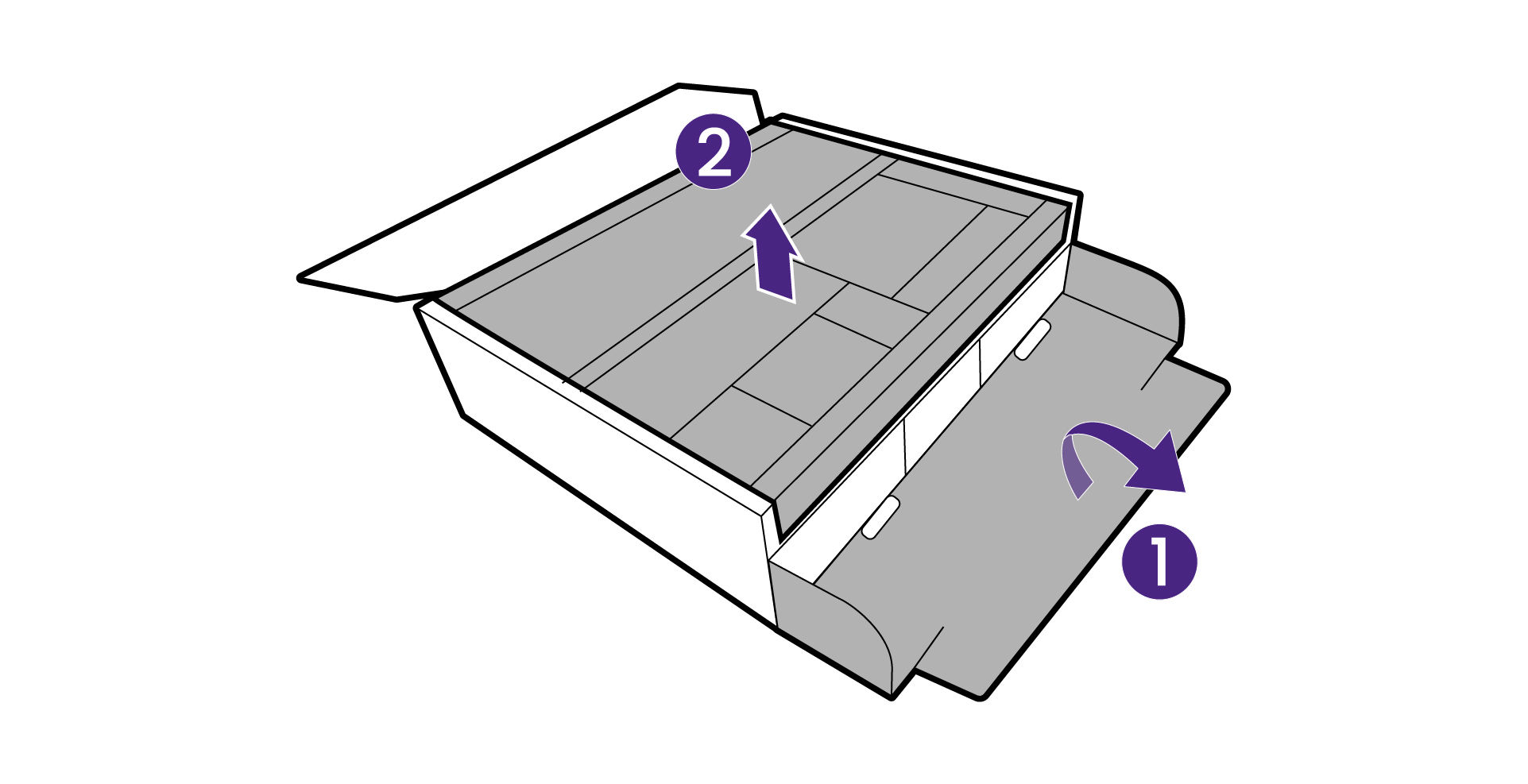

Open the box, unfold the front side of the box as illustrated to leave some room for stand and base attachment.
Open the box, unfold the front side of the box as illustrated to leave some room for stand and base attachment.

2.

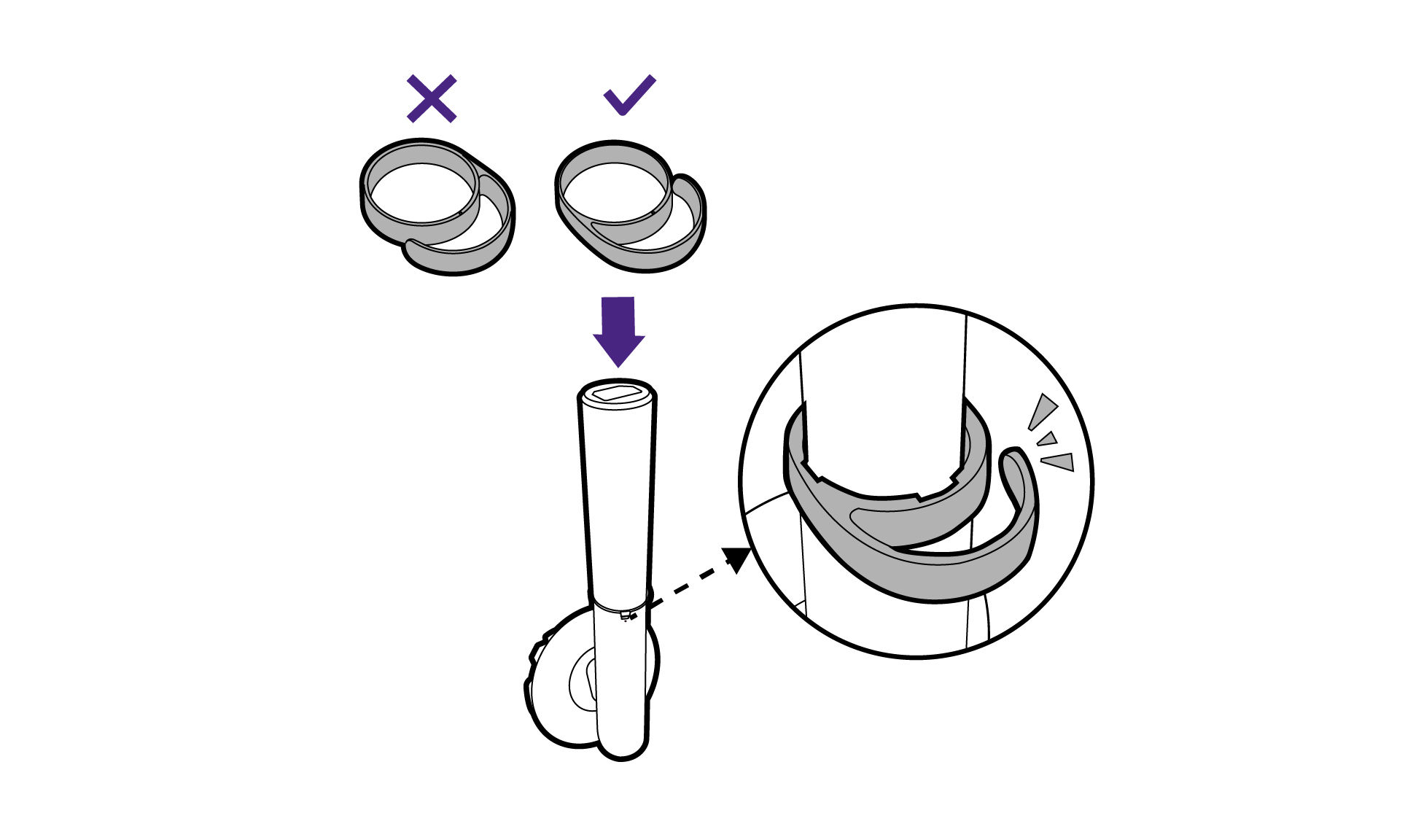

Attach the cable holder to the monitor stand.
Attach the cable holder to the monitor stand.

3.

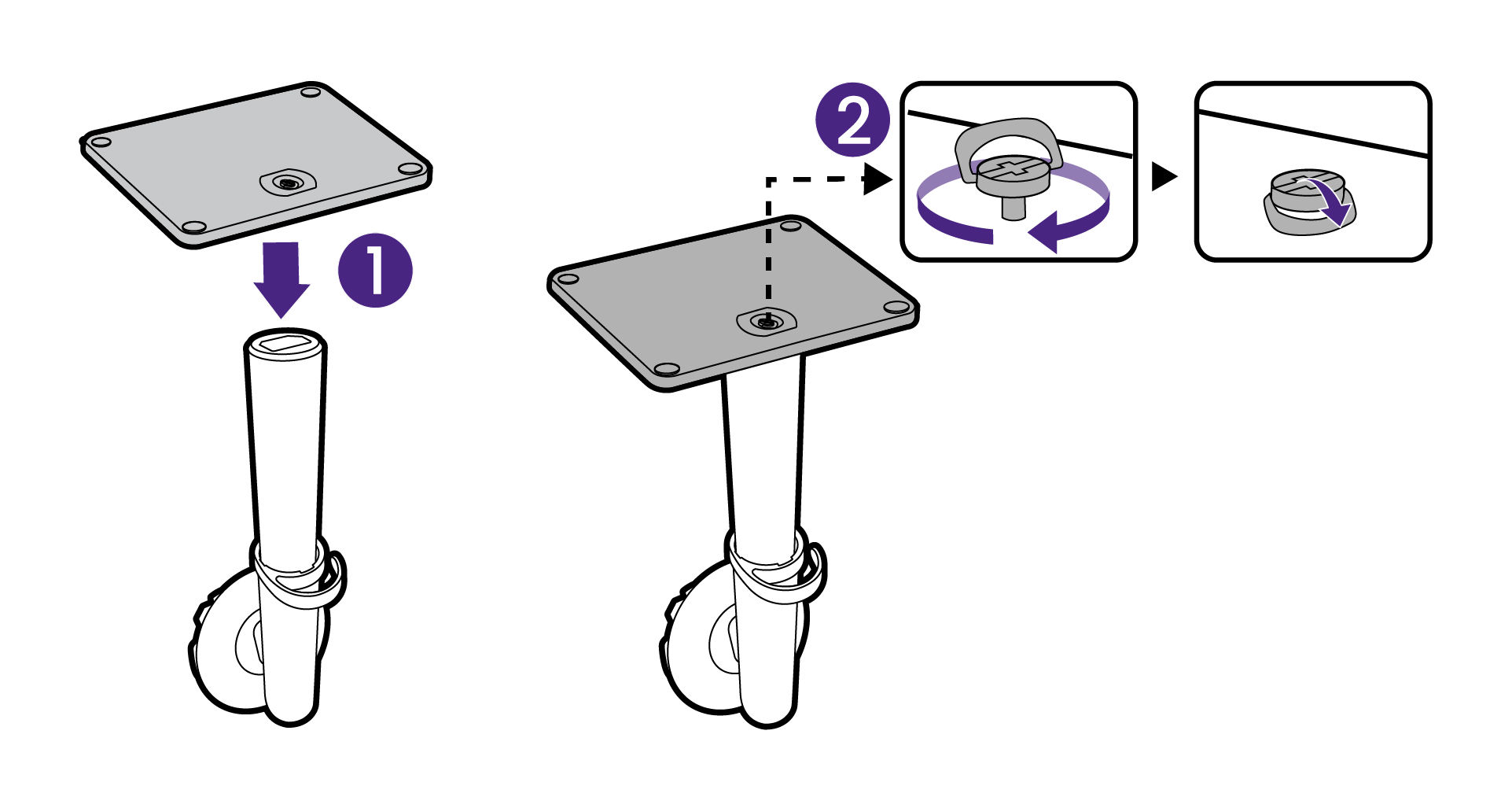

Attach the monitor stand to the monitor base as illustrated. Raise the thumbscrew lid and tighten the thumbscrew as illustrated. Then push the lid back.
Attach the monitor stand to the monitor base as illustrated. Raise the thumbscrew lid and tighten the thumbscrew as illustrated. Then push the lid back.

4.

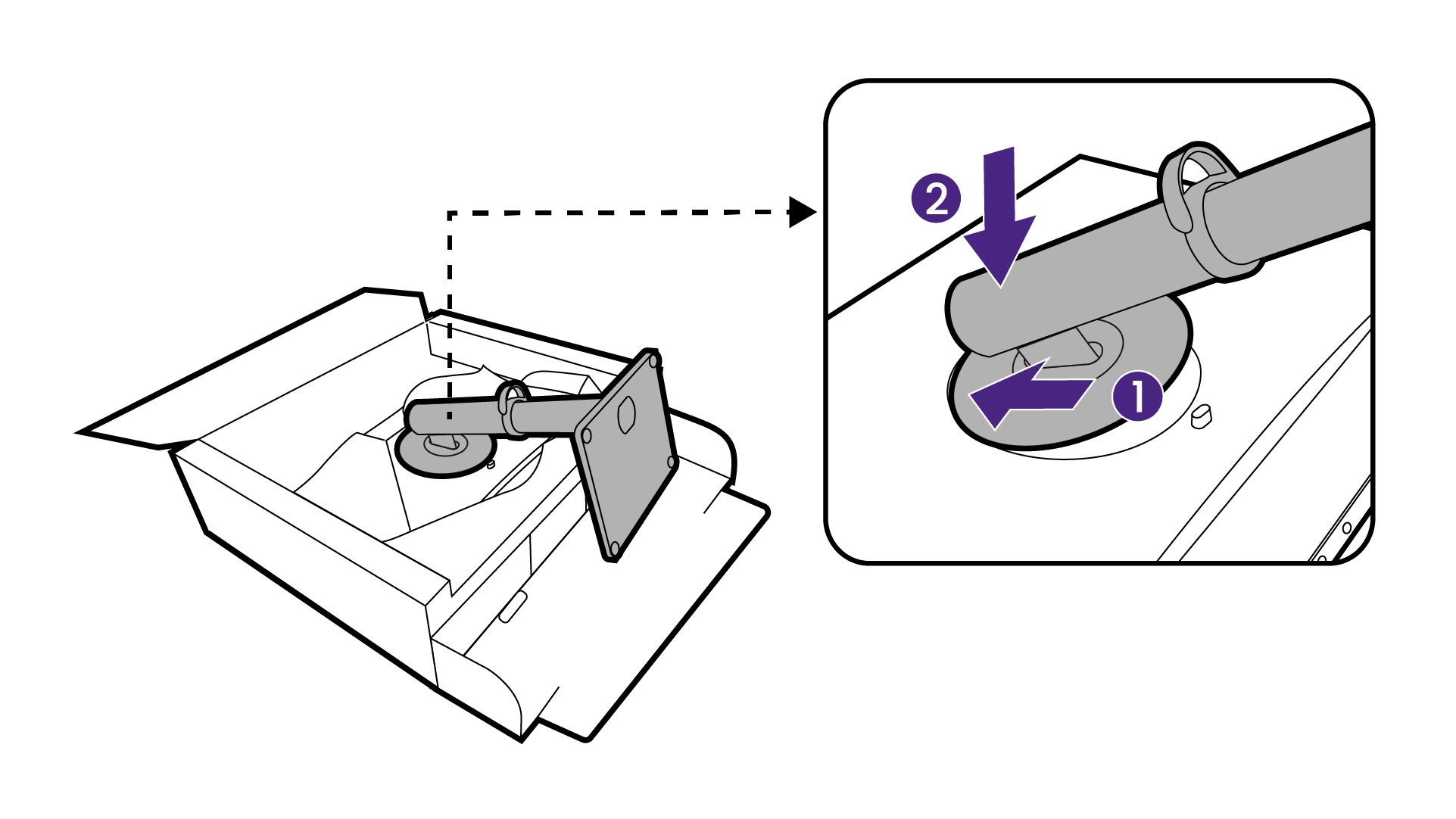

Orient and align the stand arm with the monitor, then push them together until they click and lock into place.
Orient and align the stand arm with the monitor, then push them together until they click and lock into place.

5.

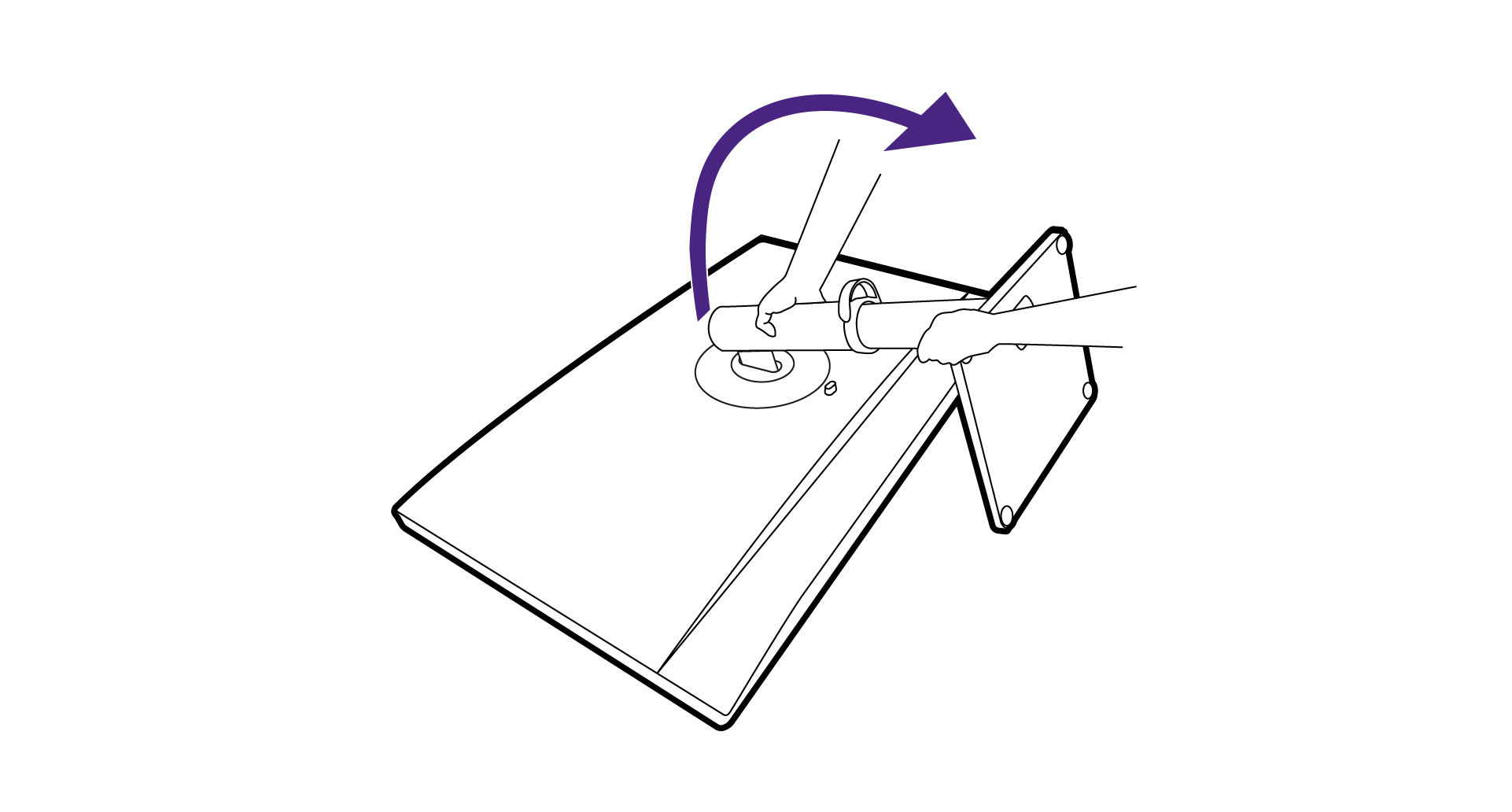

Carefully lift the monitor, turn it over and place it upright on its stand on a flat even surface.
Carefully lift the monitor, turn it over and place it upright on its stand on a flat even surface.

6.

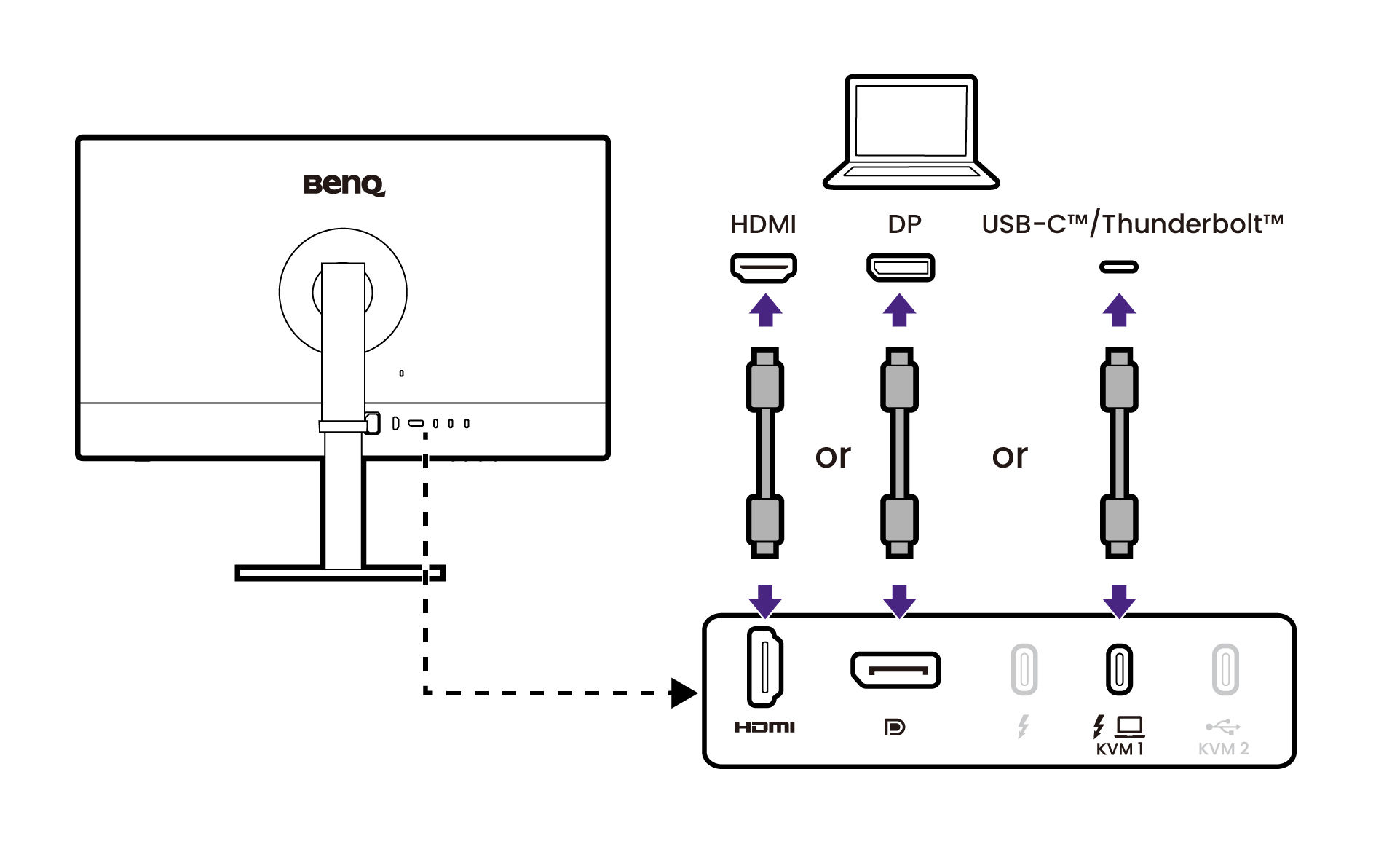

Connect the PC video cable.
Connect the PC video cable.

7.

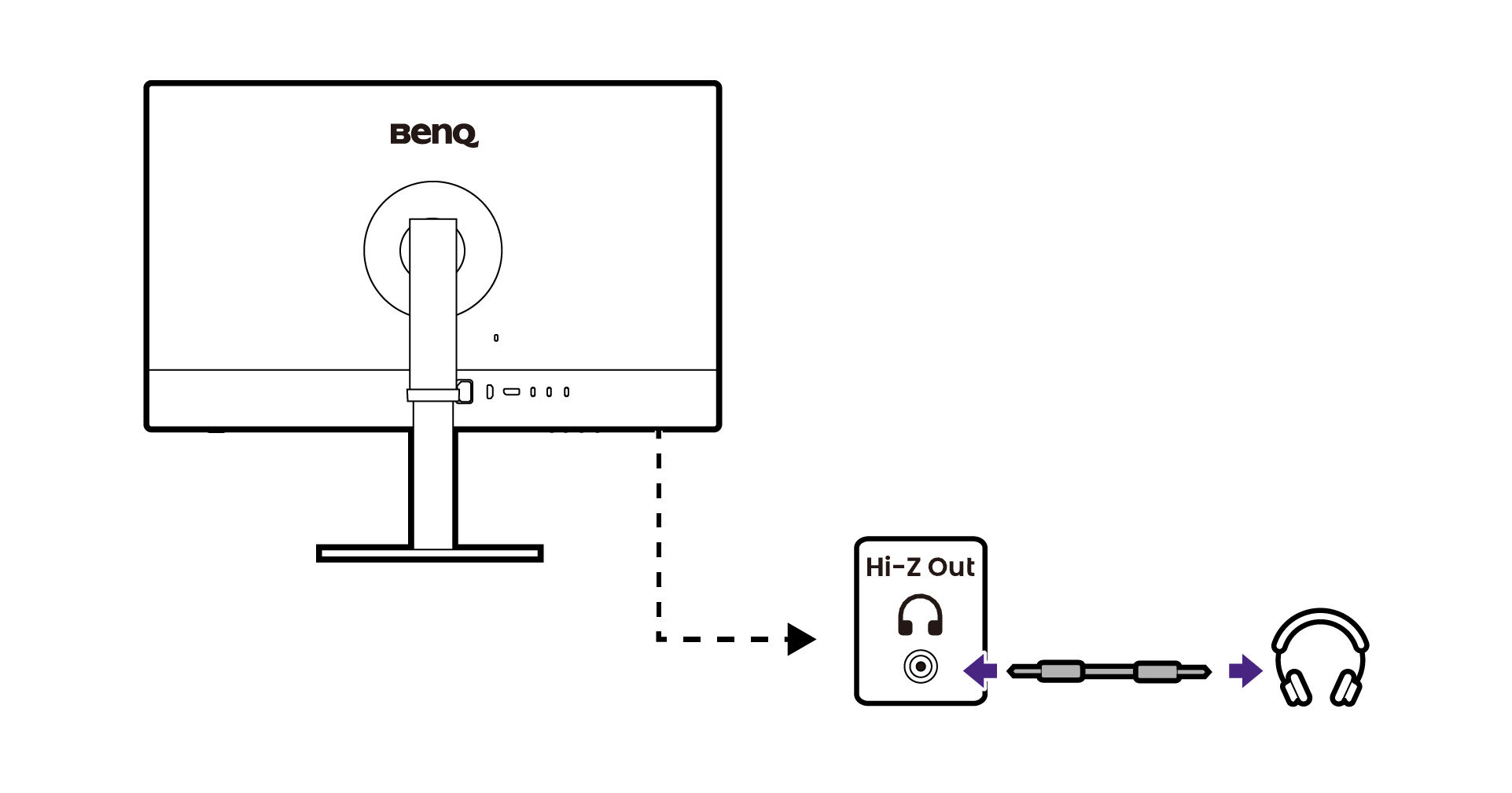

Connect the headphone.
Connect the headphone.

8.

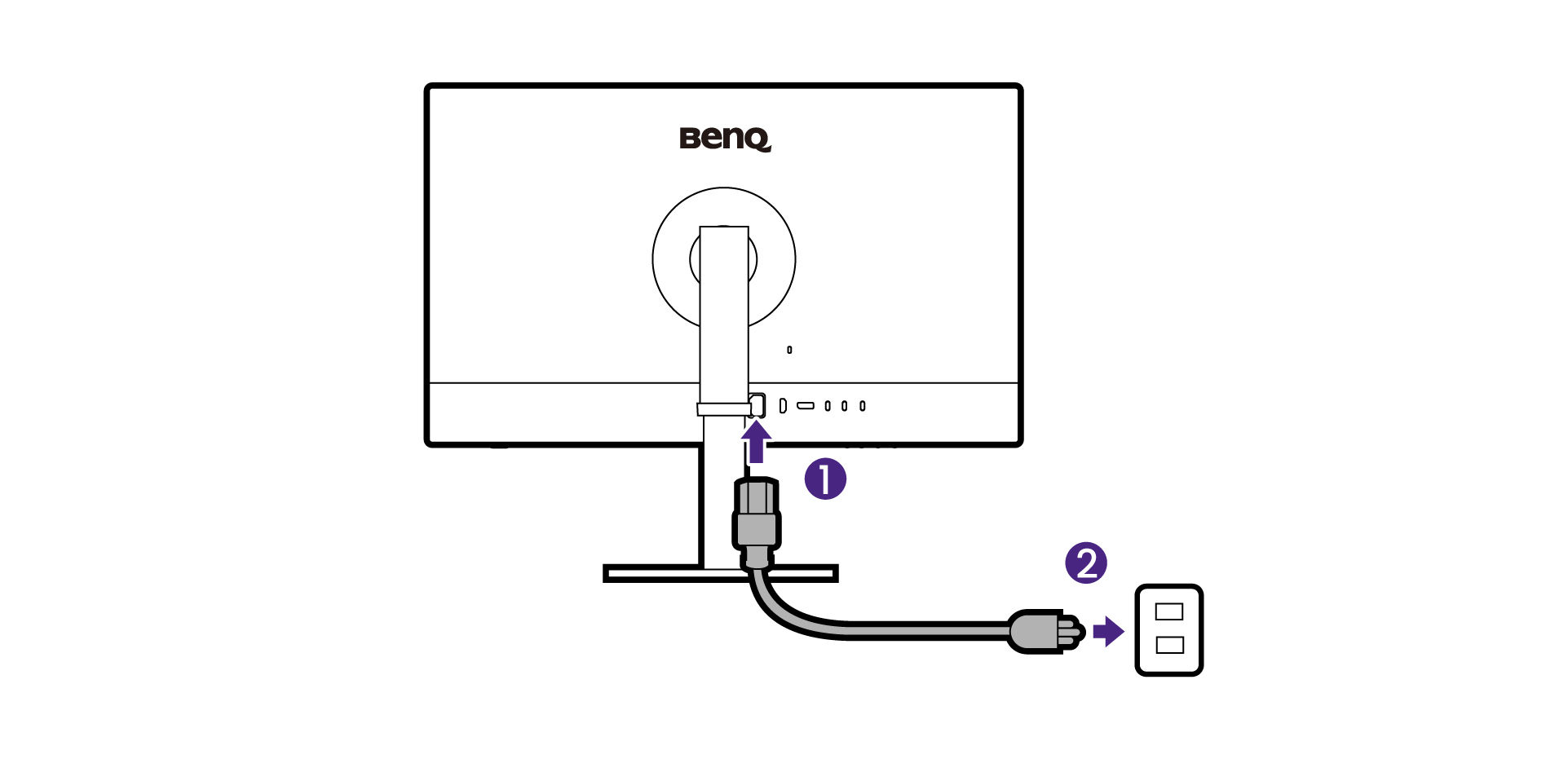

Connect the power.
Connect the power.

9.

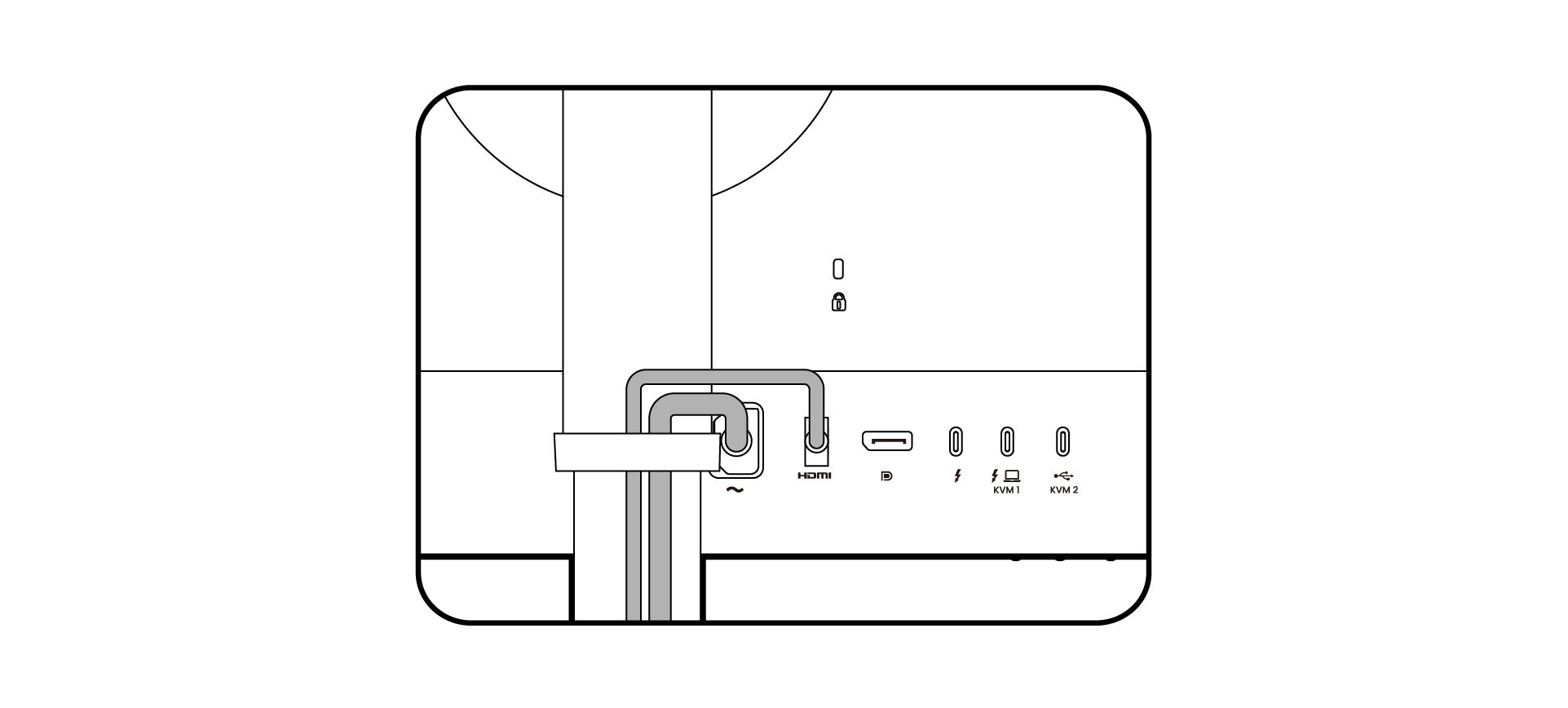

Route the cables.
Route the cables.

10.

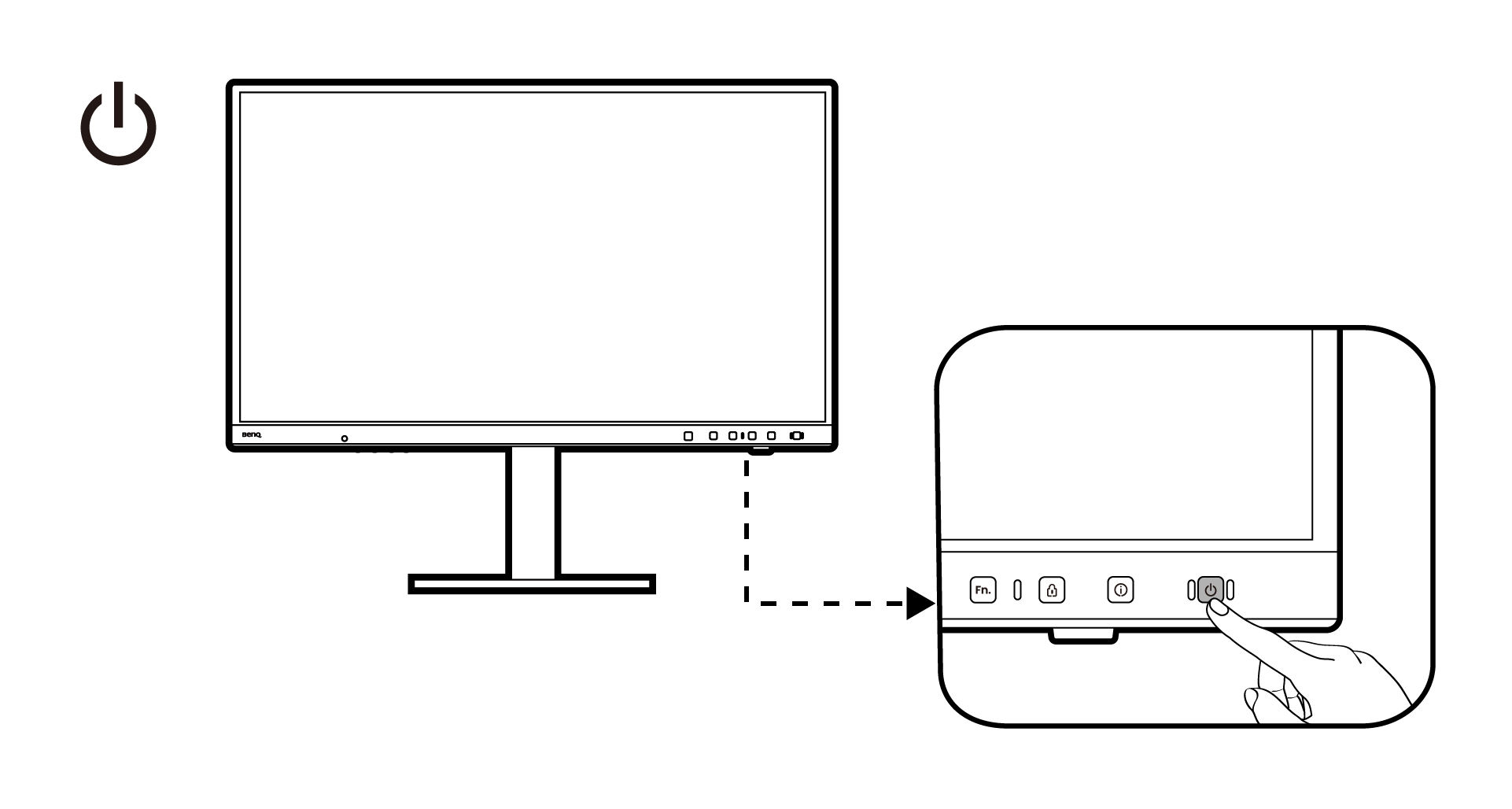

Turn-on the power.
Turn-on the power.

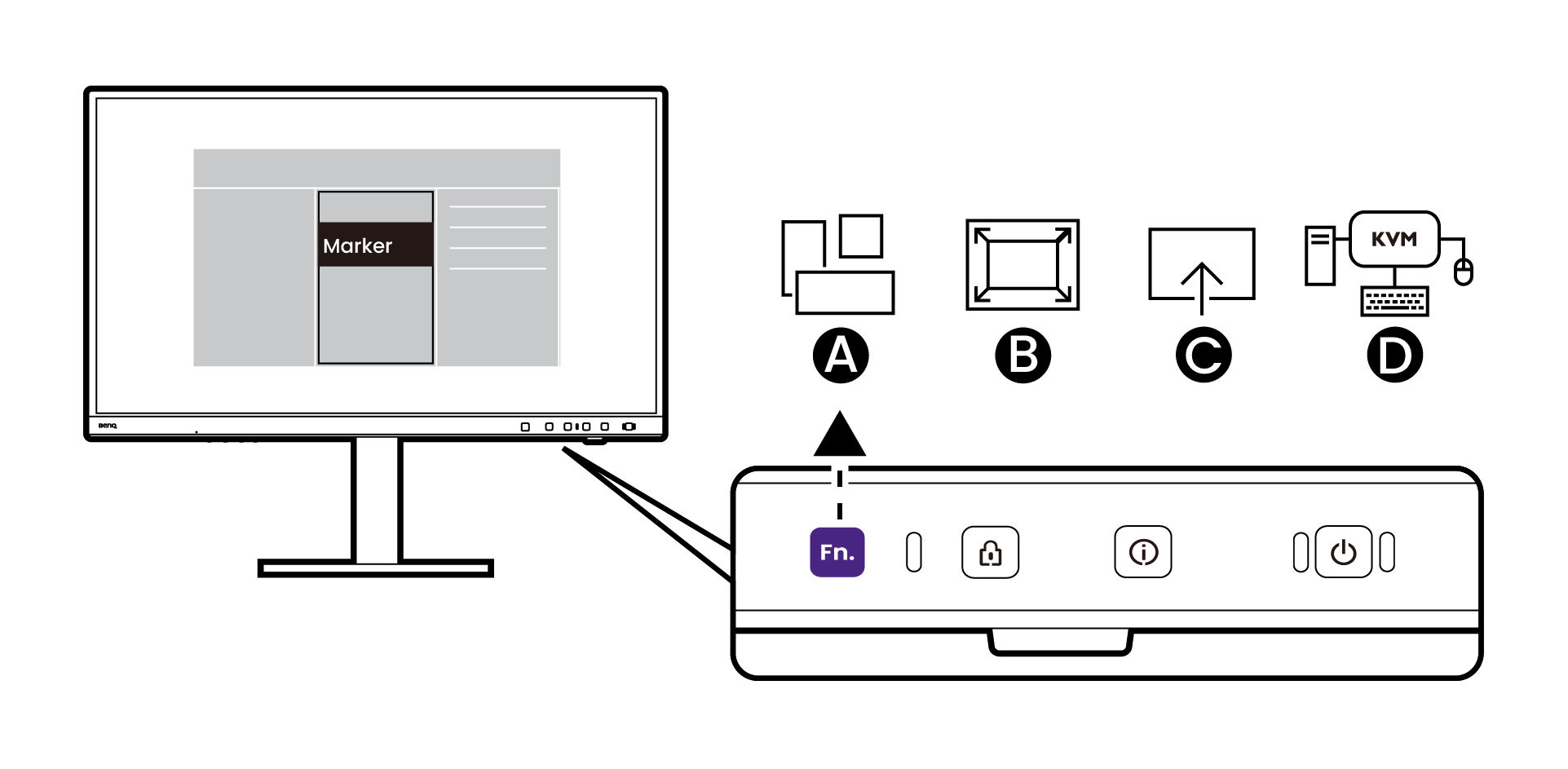

Front access control

Function key options

A. Maker (default)｜B. Area Zoom｜C. Input

D. KVM Switch

Function key options.
Function key options.

Remote control (Hotkey Puck G4)

Purchase AAA batteries separately.

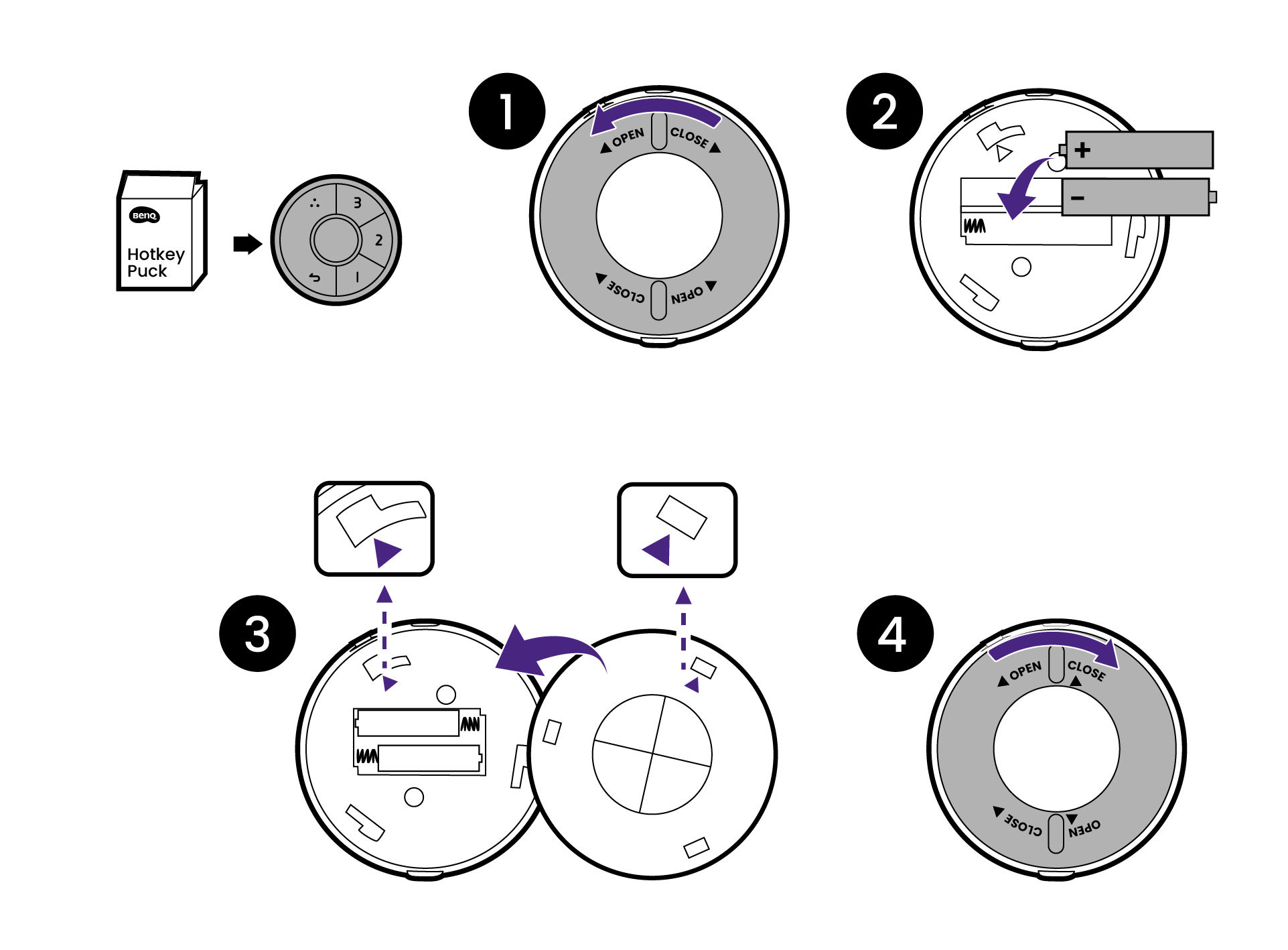

Install AAA batteries to Hotkey Puck G4.
Install AAA batteries to Hotkey Puck G4.

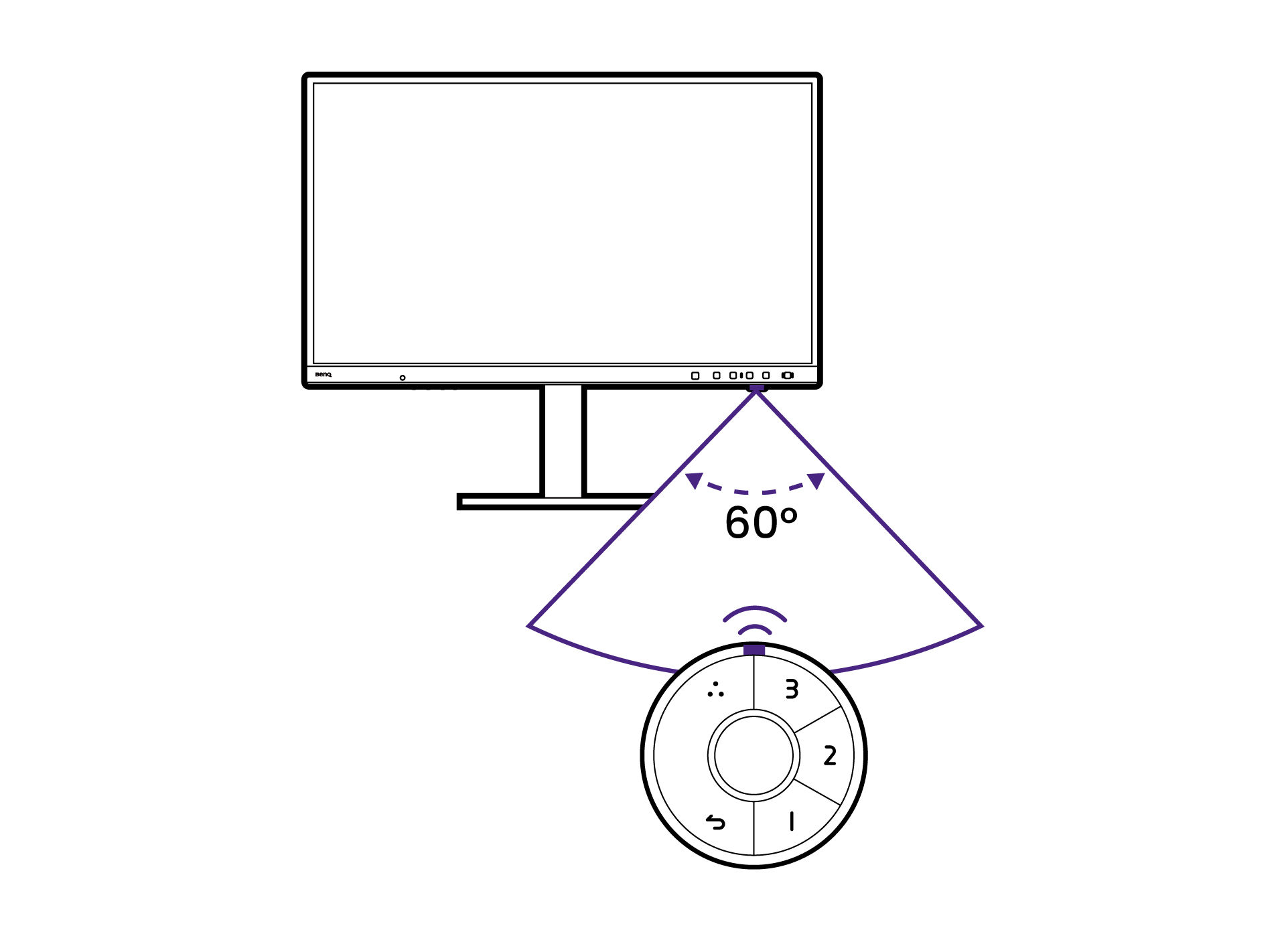

Effective range of Hotkey Puck G4.
Effective range of Hotkey Puck G4.

Installing color management software

AQCOLOR Pilot : exclusive calibration and convenient color management (Download to PC)

Requires a calibrator (purchased separately).

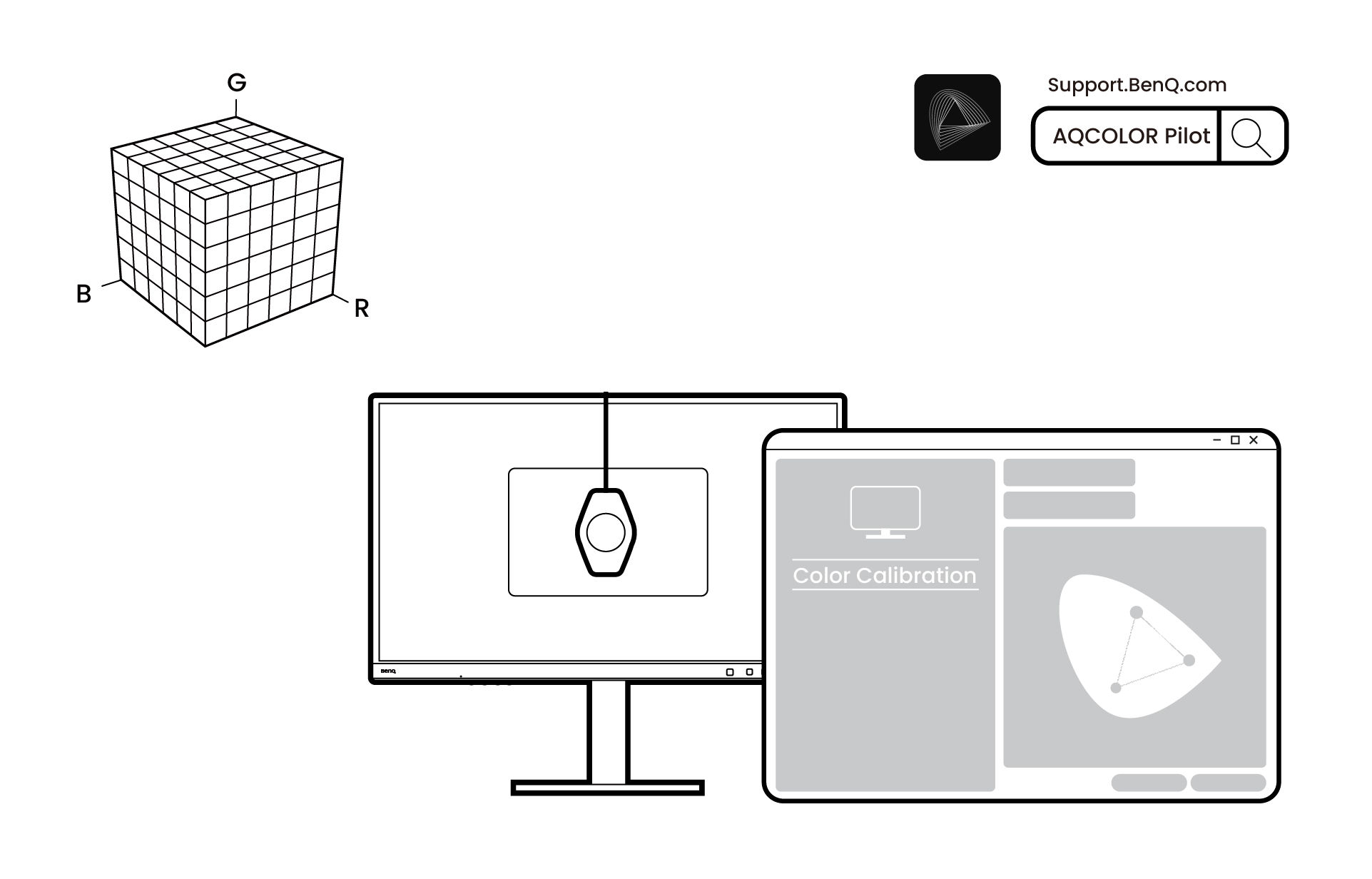

Download and install the software AQCOLOR Pilot from BenQ website to the computer.
Download and install the software AQCOLOR Pilot from BenQ website to the computer.

Installing Display Pilot 2

Efficiently manage your display settings (Download to PC)

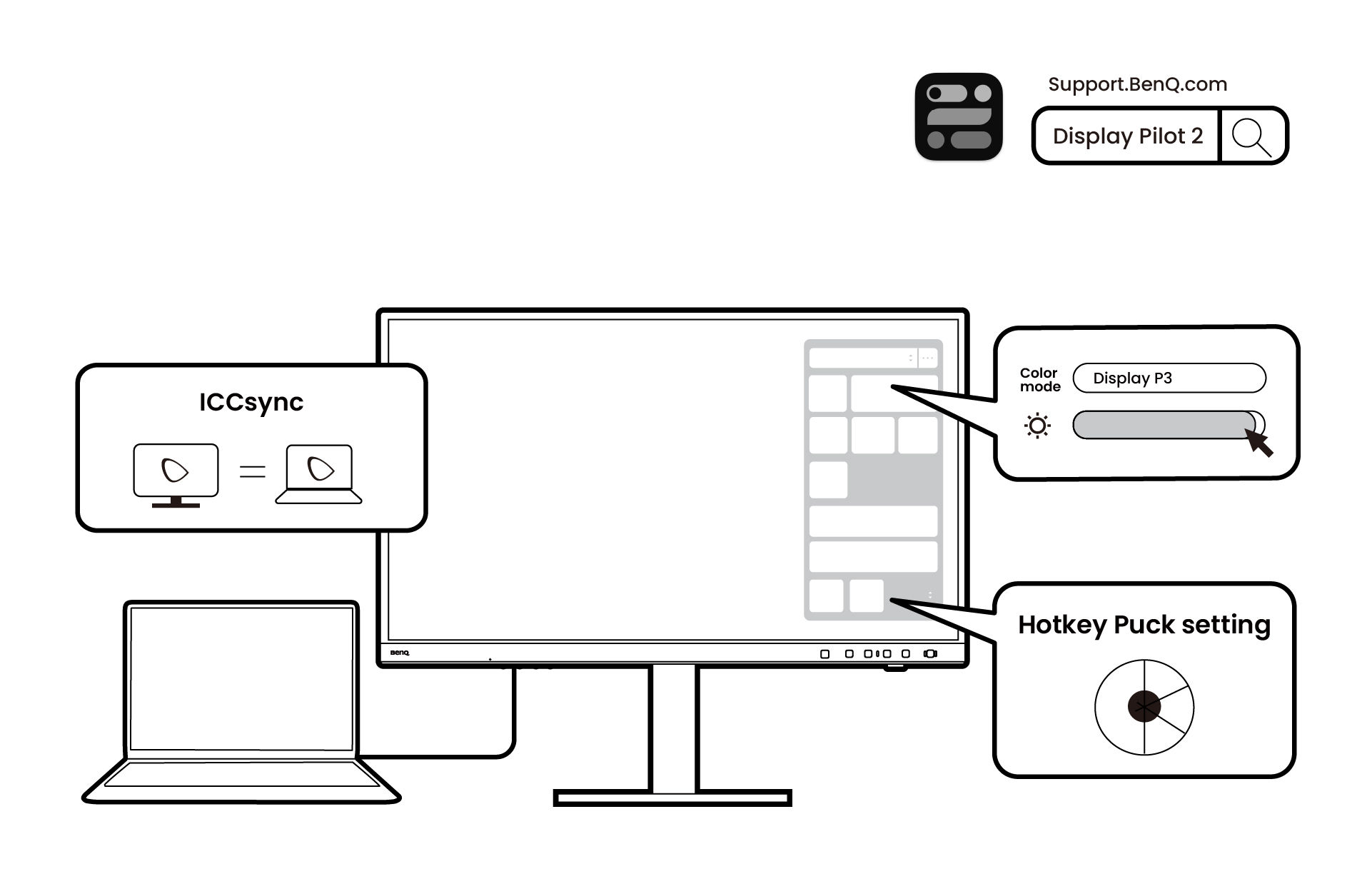

Display Pilot 2 software features
Display Pilot 2 software features

Installing the shading hood (optional step)

1.

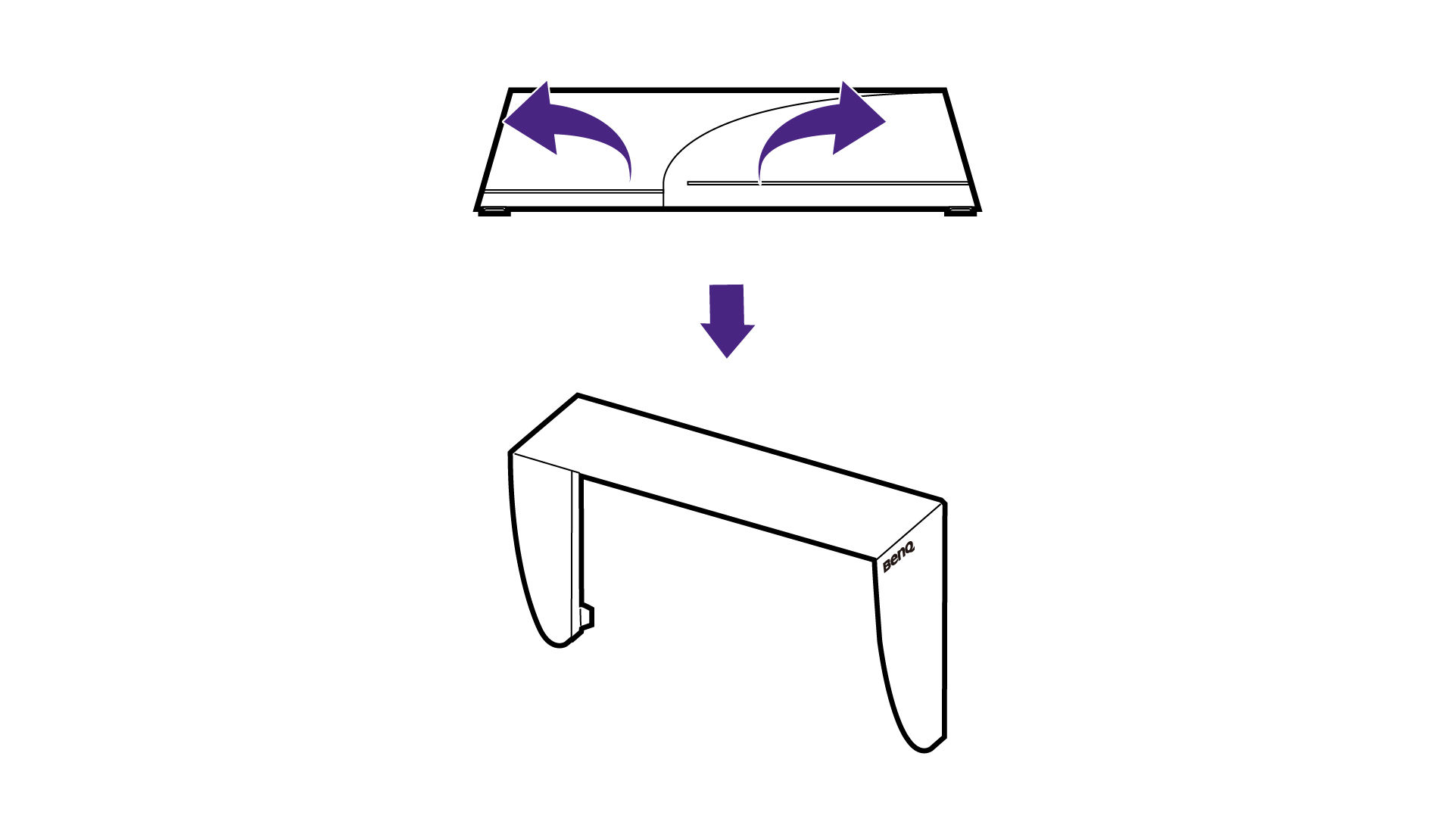

Unfold the shading hood.
Unfold the shading hood.

2.

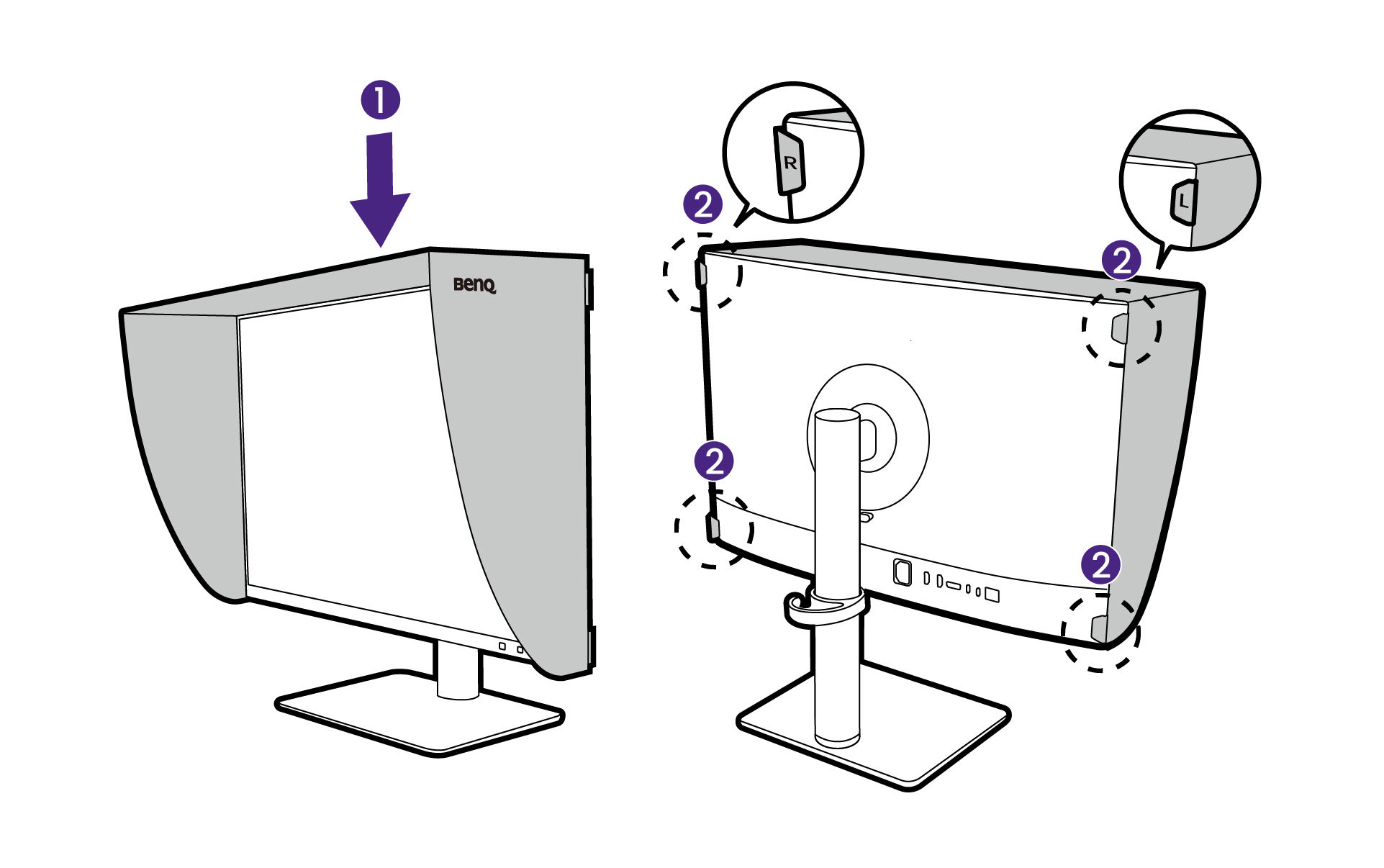

Place the shading hood on top of the monitor. Make sure it is properly attached.
Place the shading hood on top of the monitor. Make sure it is properly attached.

Angle adjustment

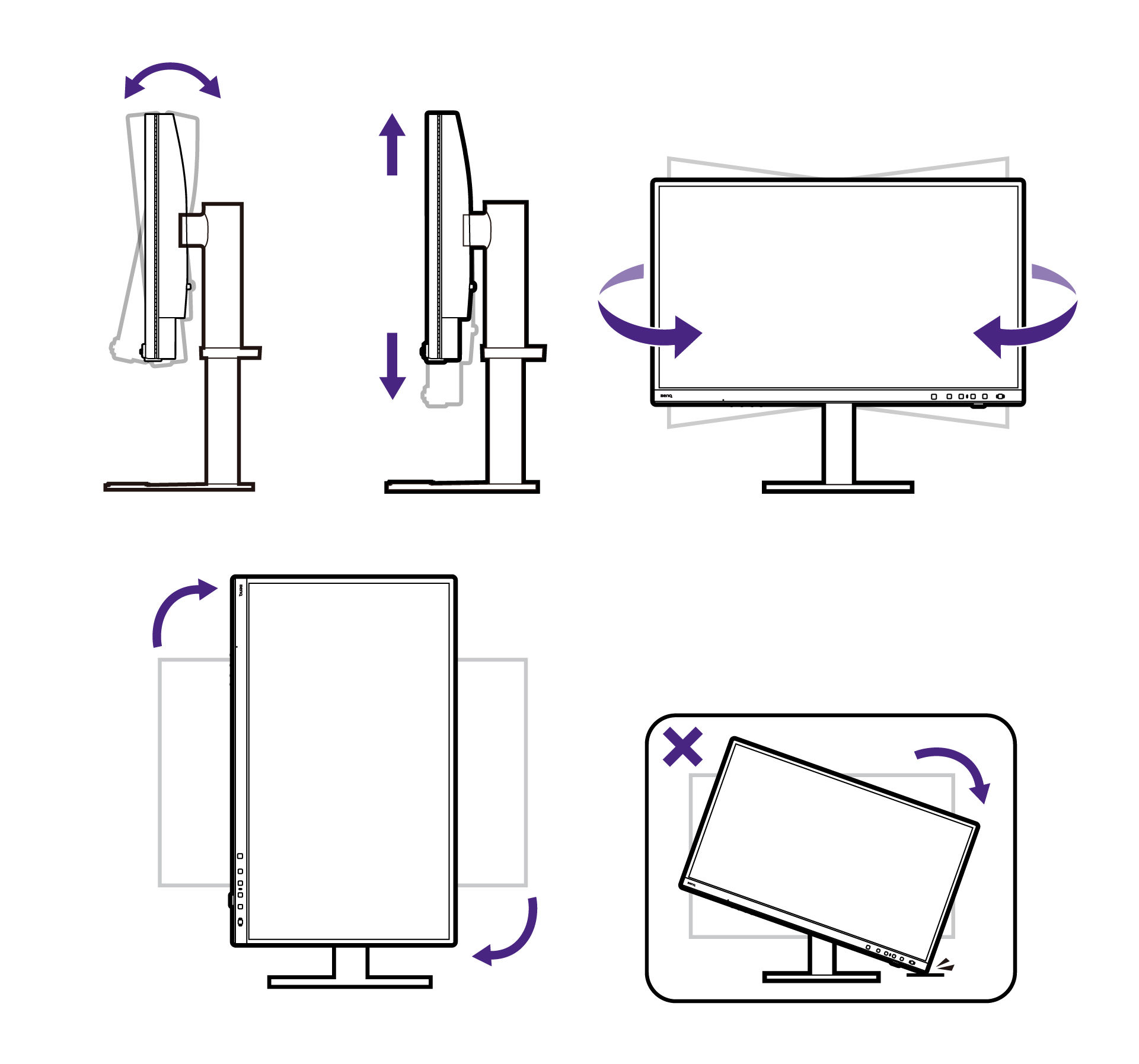

Adjust the viewing angle.
Adjust the viewing angle.
