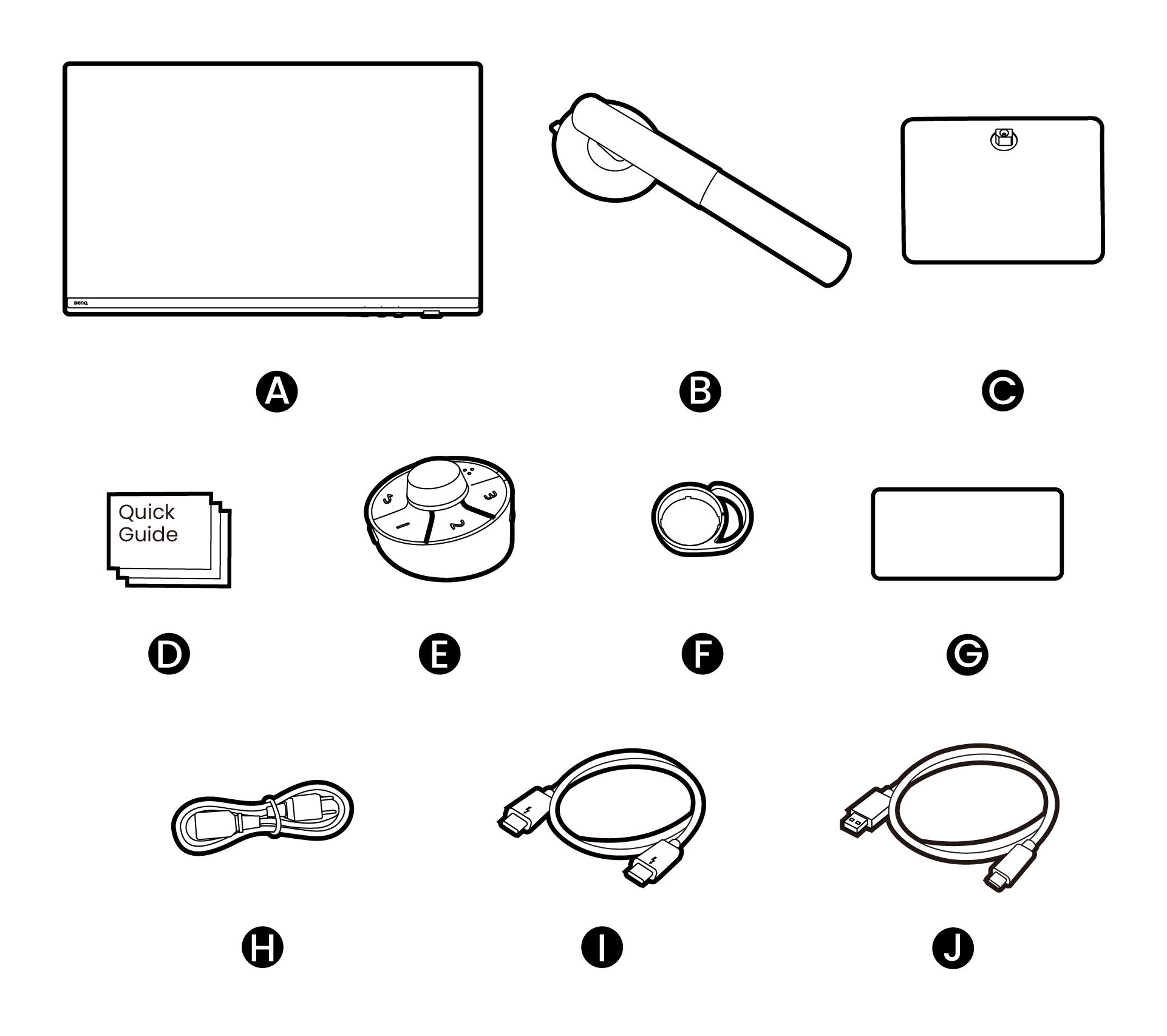

A. LCD monitor｜B. Monitor stand｜C. Monitor base

D. User documents｜E. Hotkey Puck G3｜F. Cable holder

G. Calibration report｜H. Power cord｜I. Thunderbolt™ cable

J. USB-A to USB-C™ cable

Illustration of package contents
Illustration of package contents

Note

The images shown here may differ from the actual contents and the product supplied for your region.

Content
Setup
Remote control (Hotkey Puck G3)
Installing Display Pilot 2
Installing color management software
Angle adjustment
Setup
Remote control (Hotkey Puck G3)
Installing Display Pilot 2
Installing color management software
Angle adjustment

Setup

1.

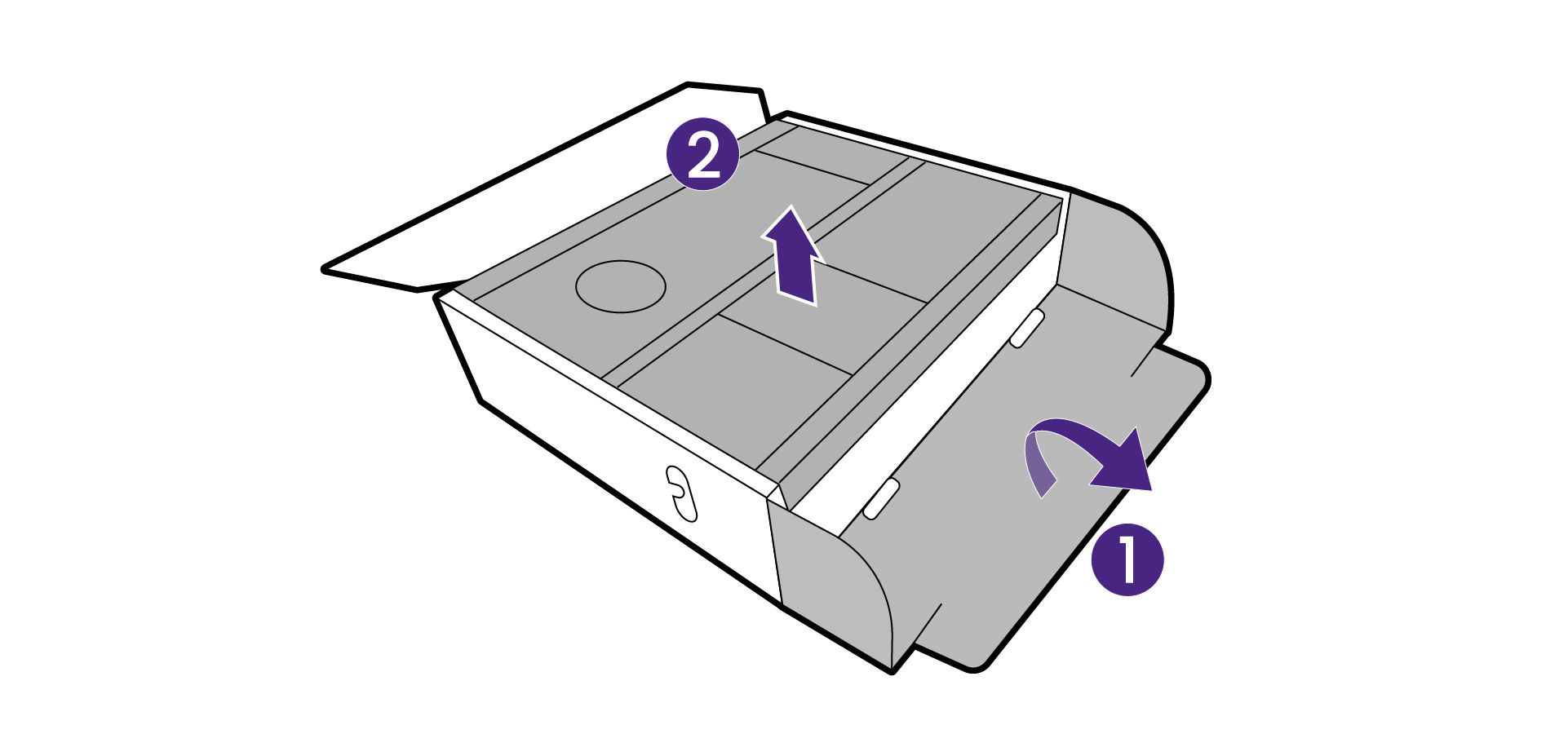

Open the box, unfold the front side of the box as illustrated to leave some room for stand and base attachment.
Open the box, unfold the front side of the box as illustrated to leave some room for stand and base attachment.

2.

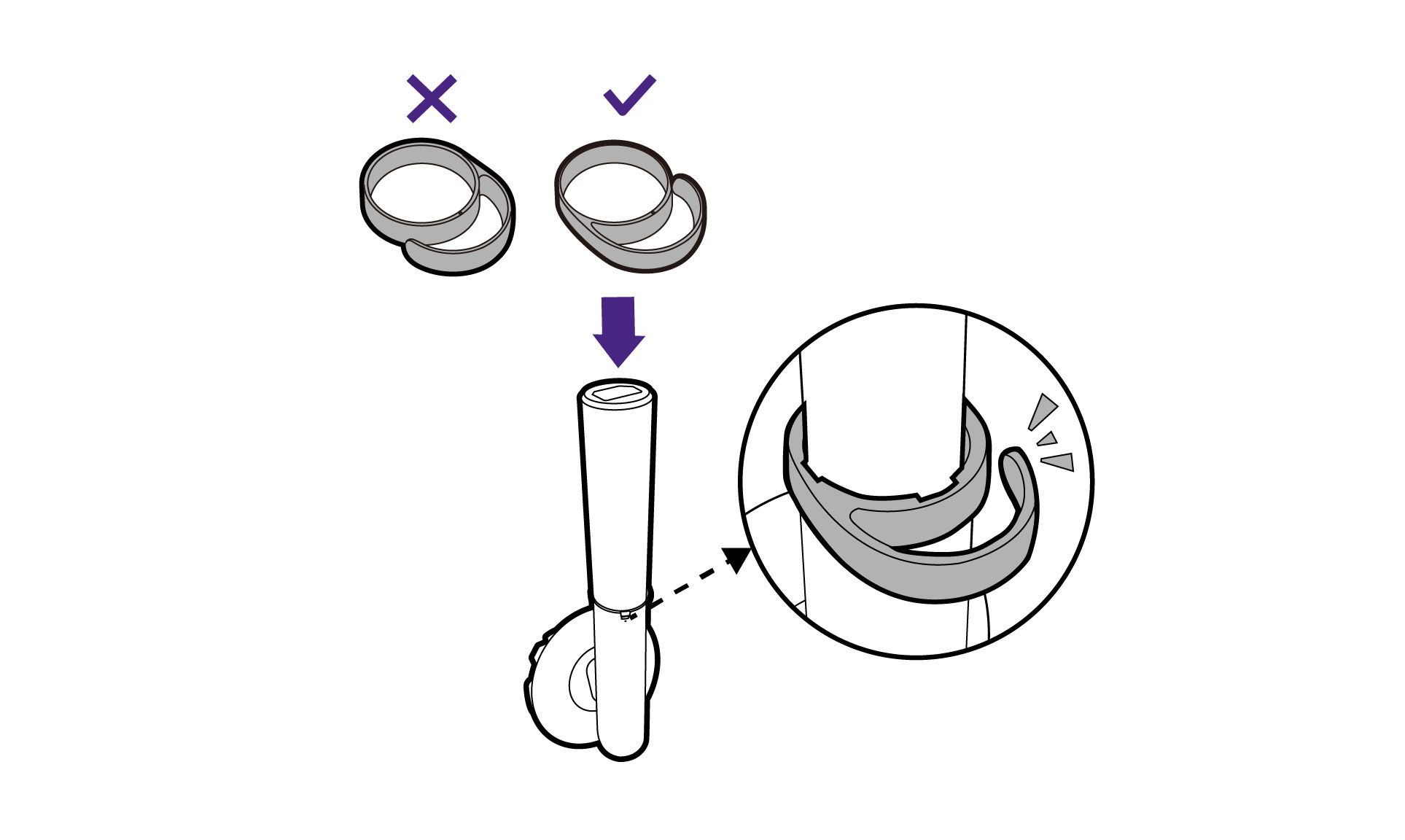

Attach the cable holder to the monitor stand.
Attach the cable holder to the monitor stand.

3.

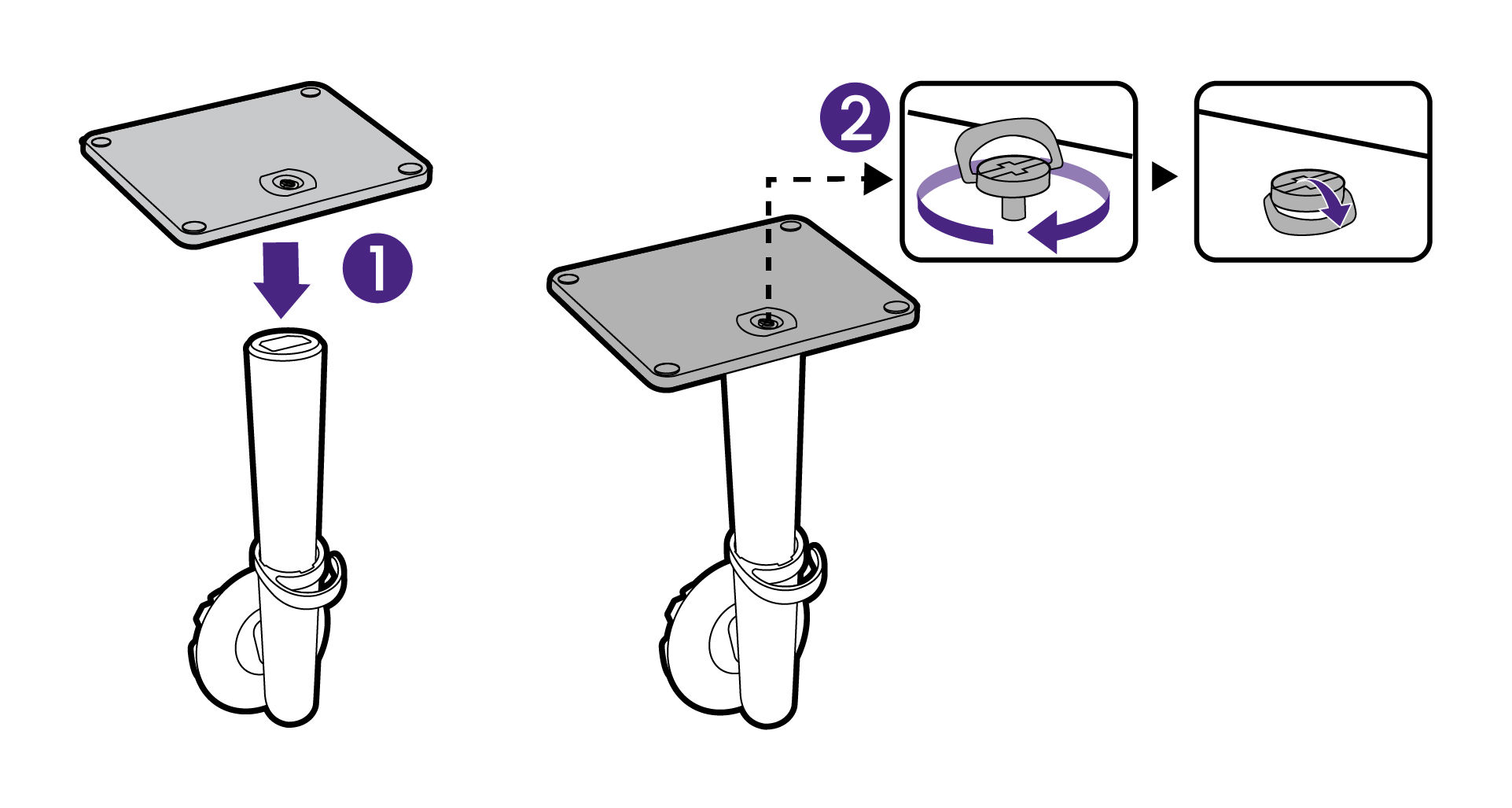

Attach the monitor stand to the monitor base as illustrated. Raise the thumbscrew lid and tighten the thumbscrew as illustrated. Then push the lid back.
Attach the monitor stand to the monitor base as illustrated. Raise the thumbscrew lid and tighten the thumbscrew as illustrated. Then push the lid back.

4.

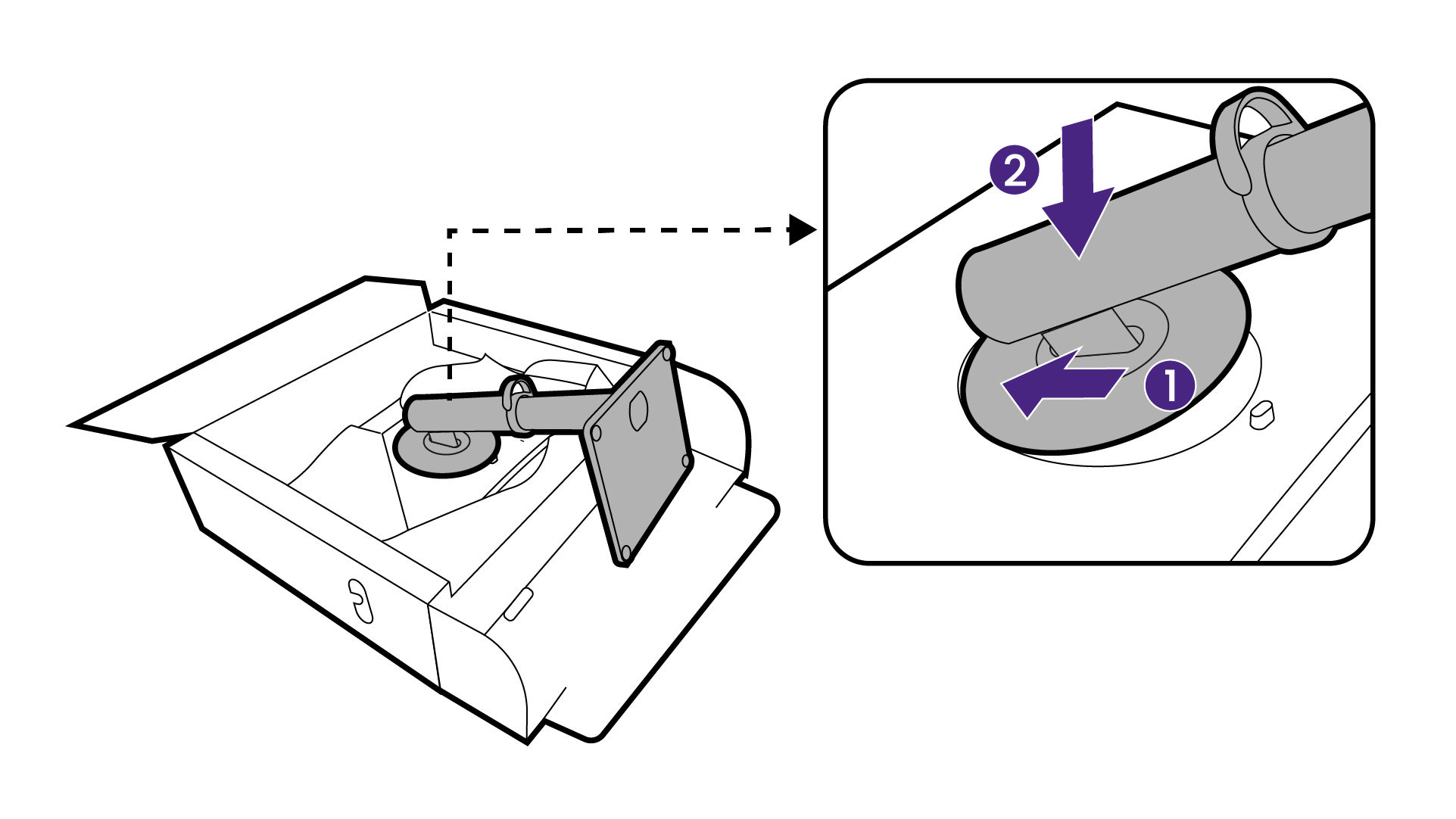

Orient and align the stand arm with the monitor, then push them together until they click and lock into place.
Orient and align the stand arm with the monitor, then push them together until they click and lock into place.

5.

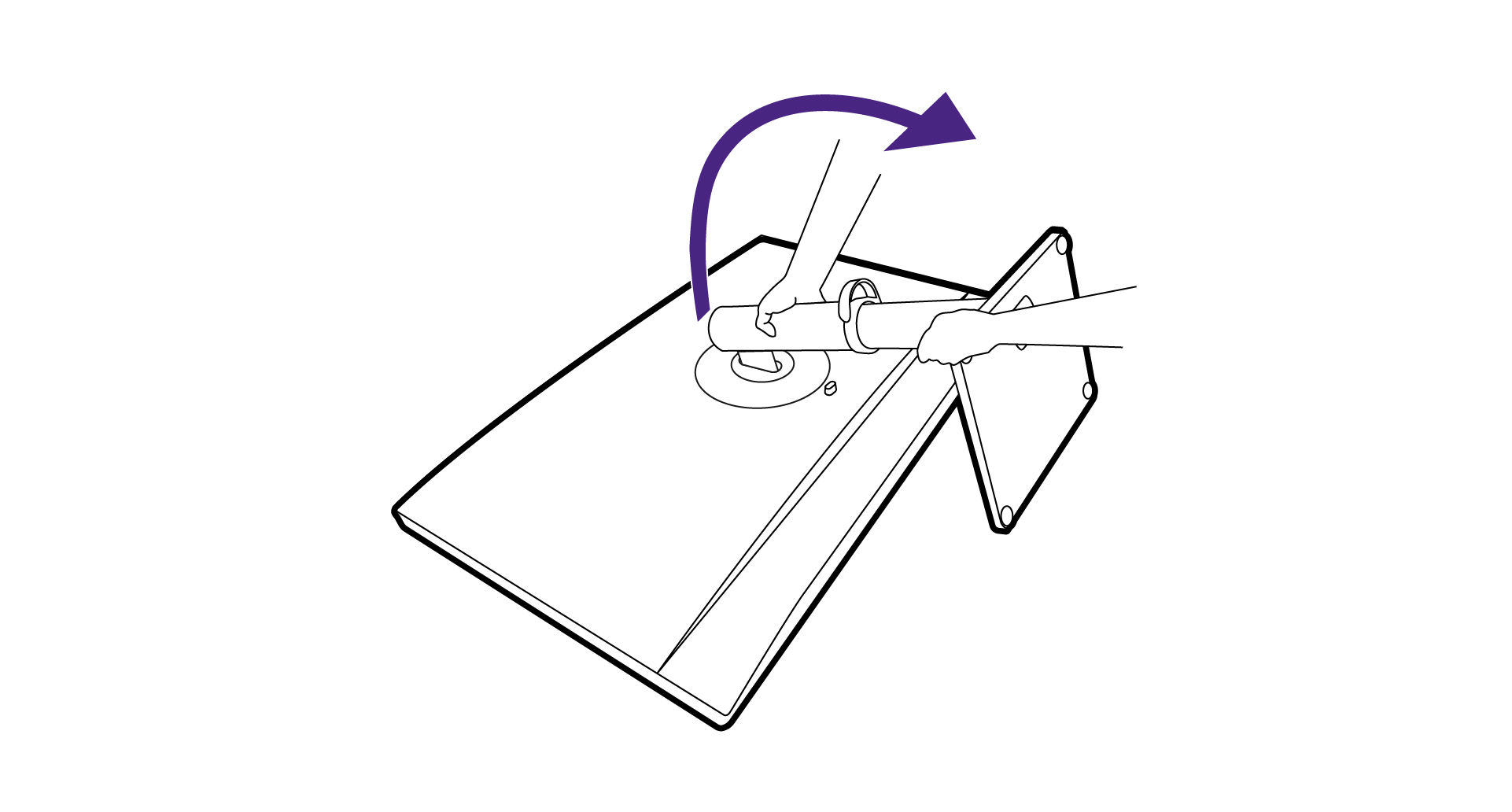

Carefully lift the monitor, turn it over and place it upright on its stand on a flat even surface.
Carefully lift the monitor, turn it over and place it upright on its stand on a flat even surface.

6.

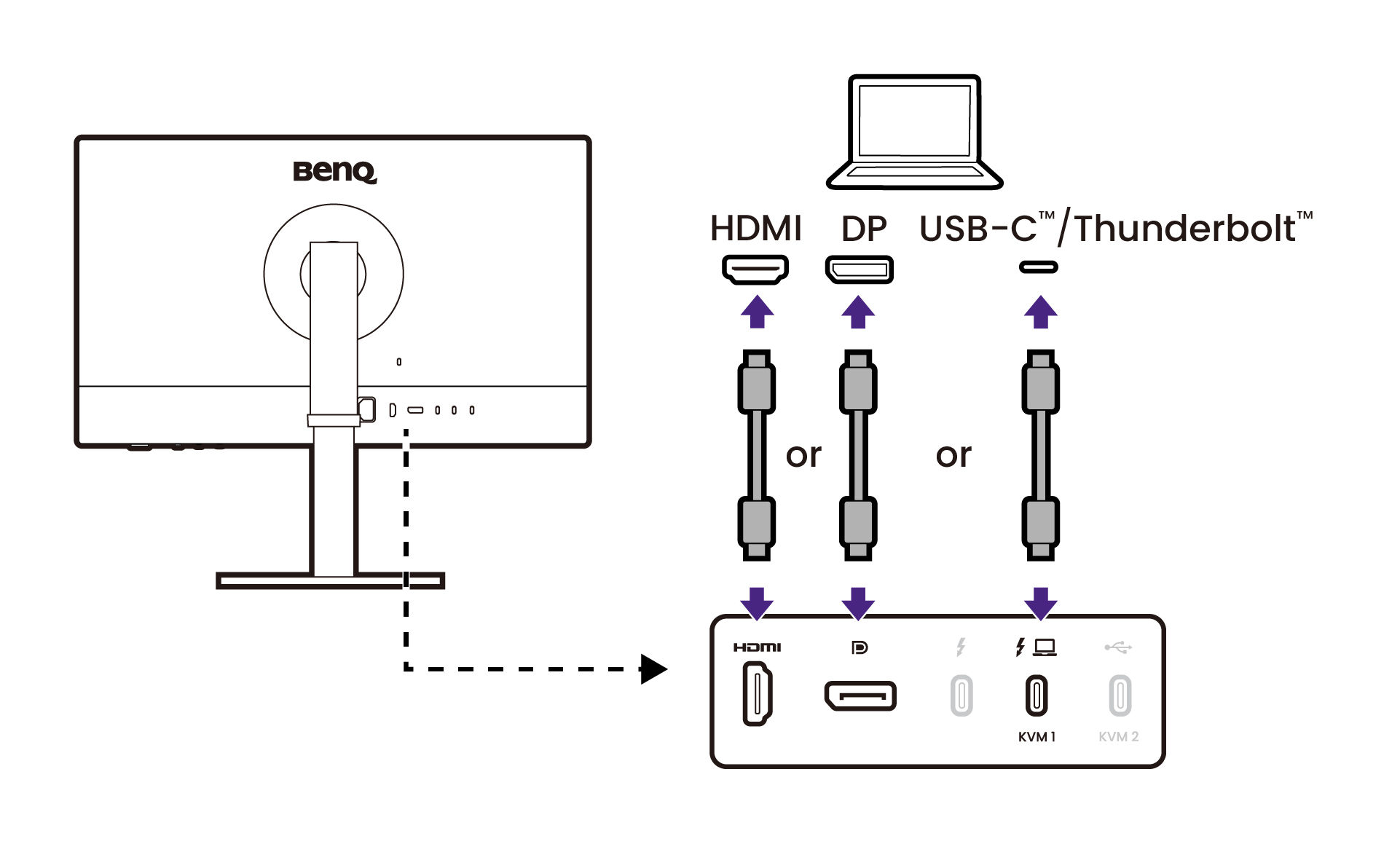

Connect the PC video cable.
Connect the PC video cable.

7.

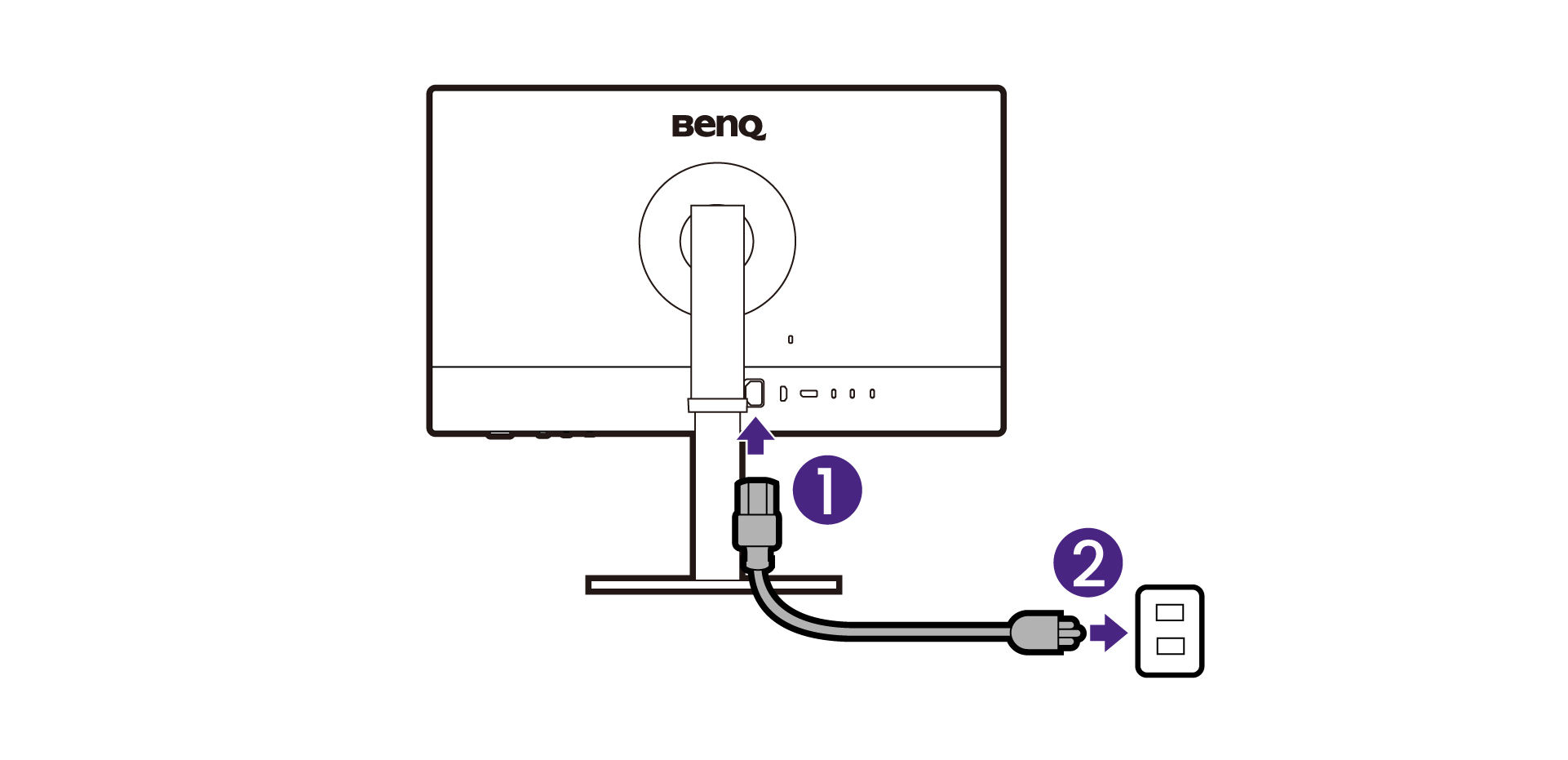

Connect the power.
Connect the power.

8.

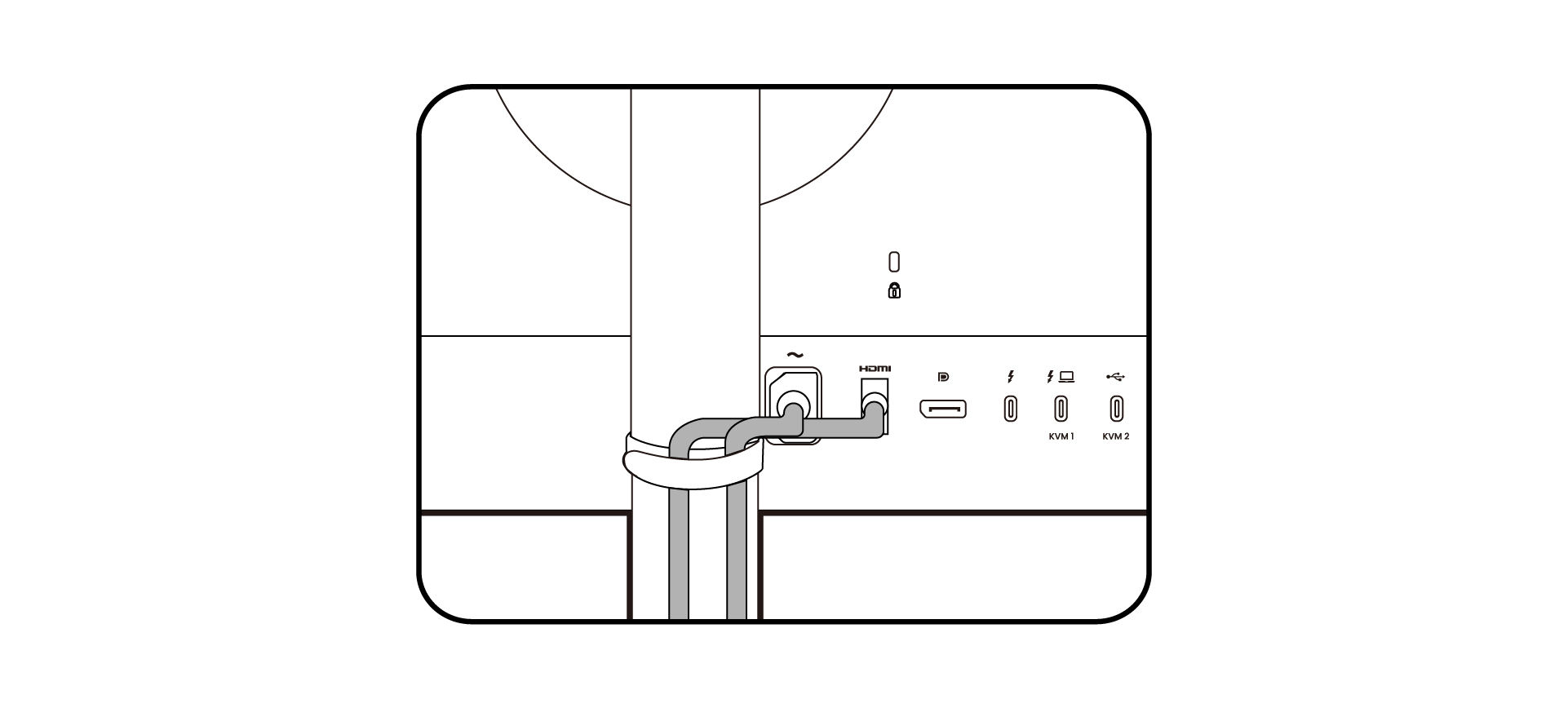

Route the cables.
Route the cables.

9.

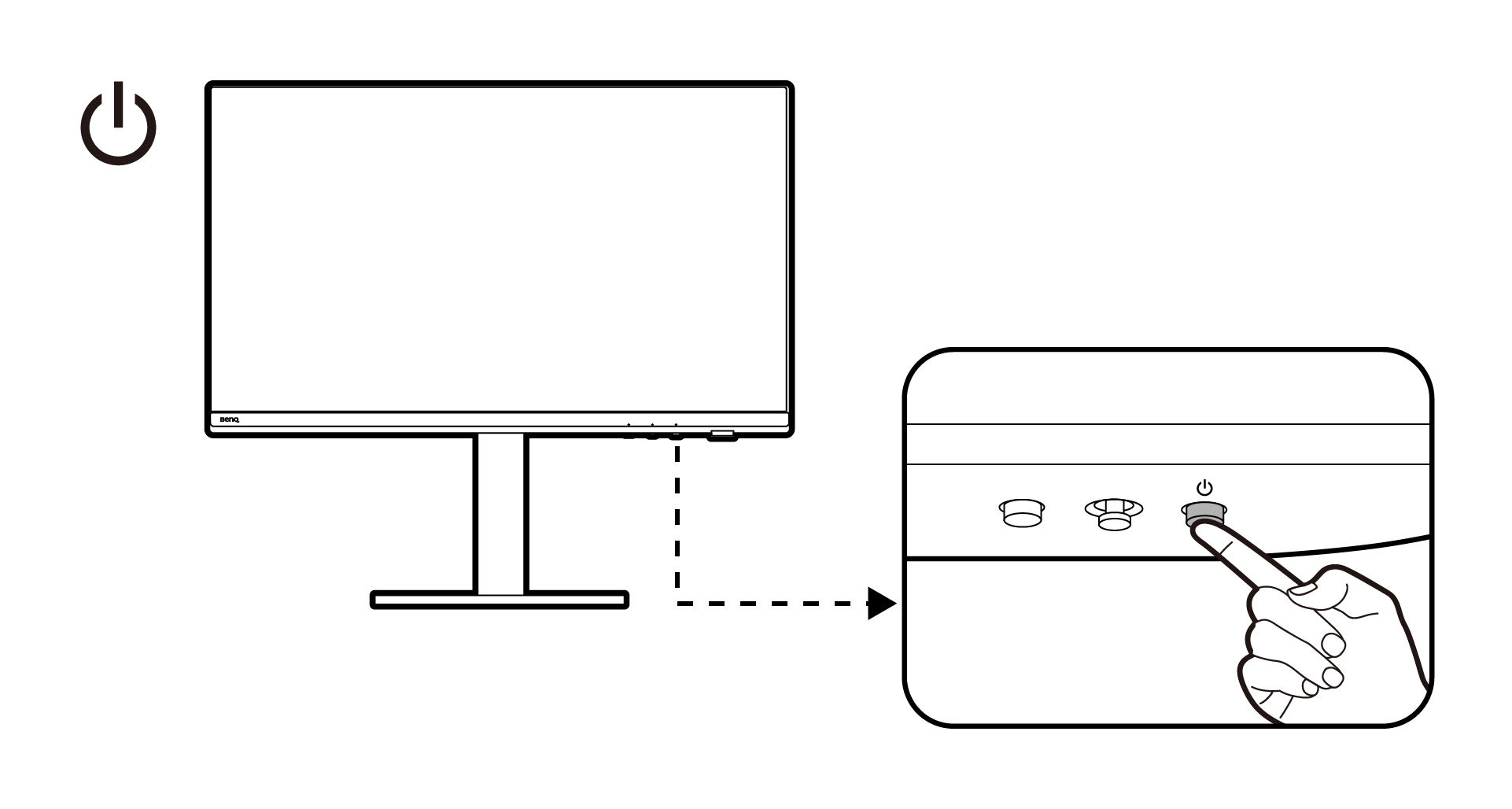

Turn-on the power.
Turn-on the power.

Remote control (Hotkey Puck G3)

Purchase AAA batteries separately.

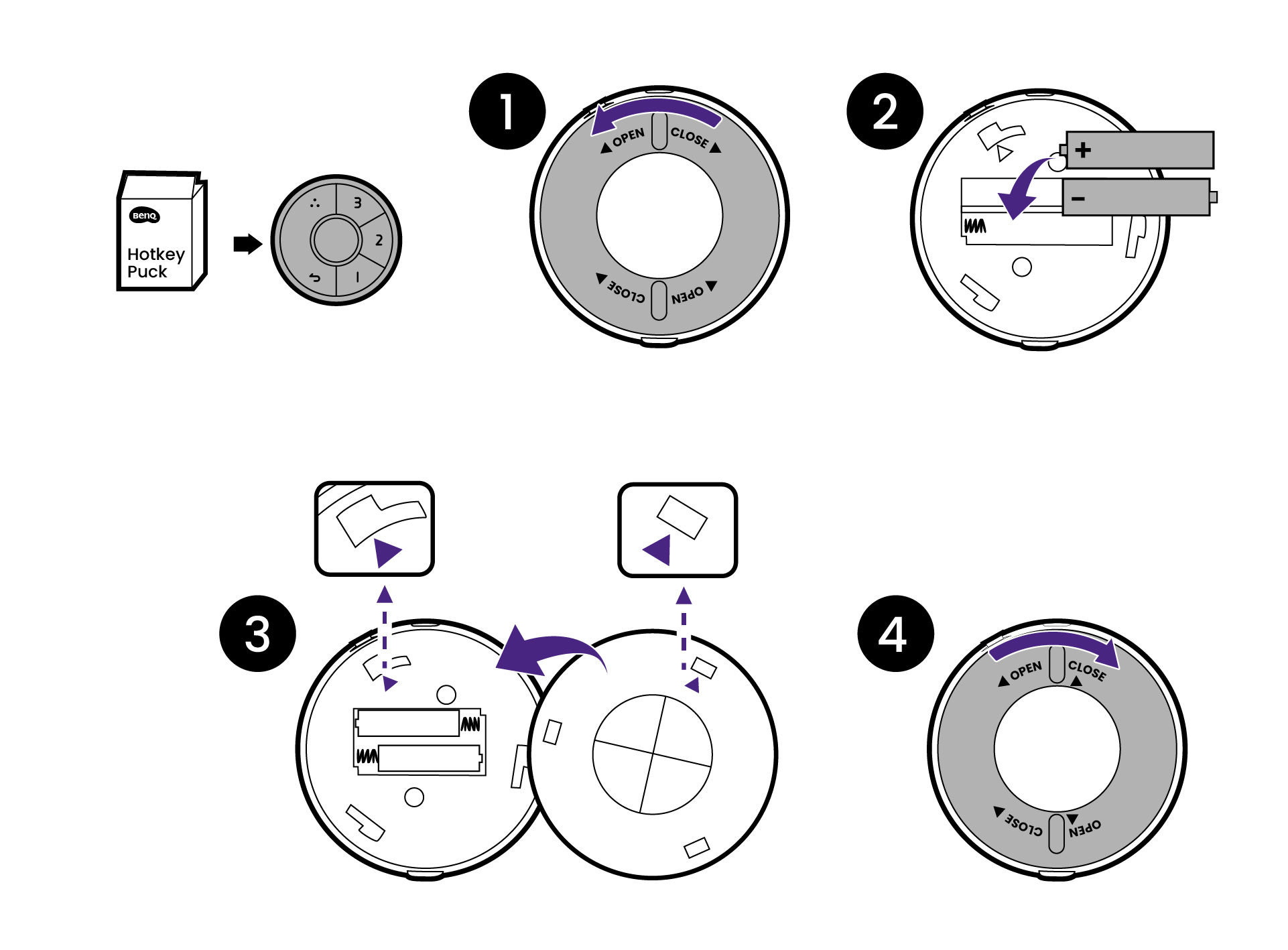

Install AAA batteries to Hotkey Puck G3.
Install AAA batteries to Hotkey Puck G3.

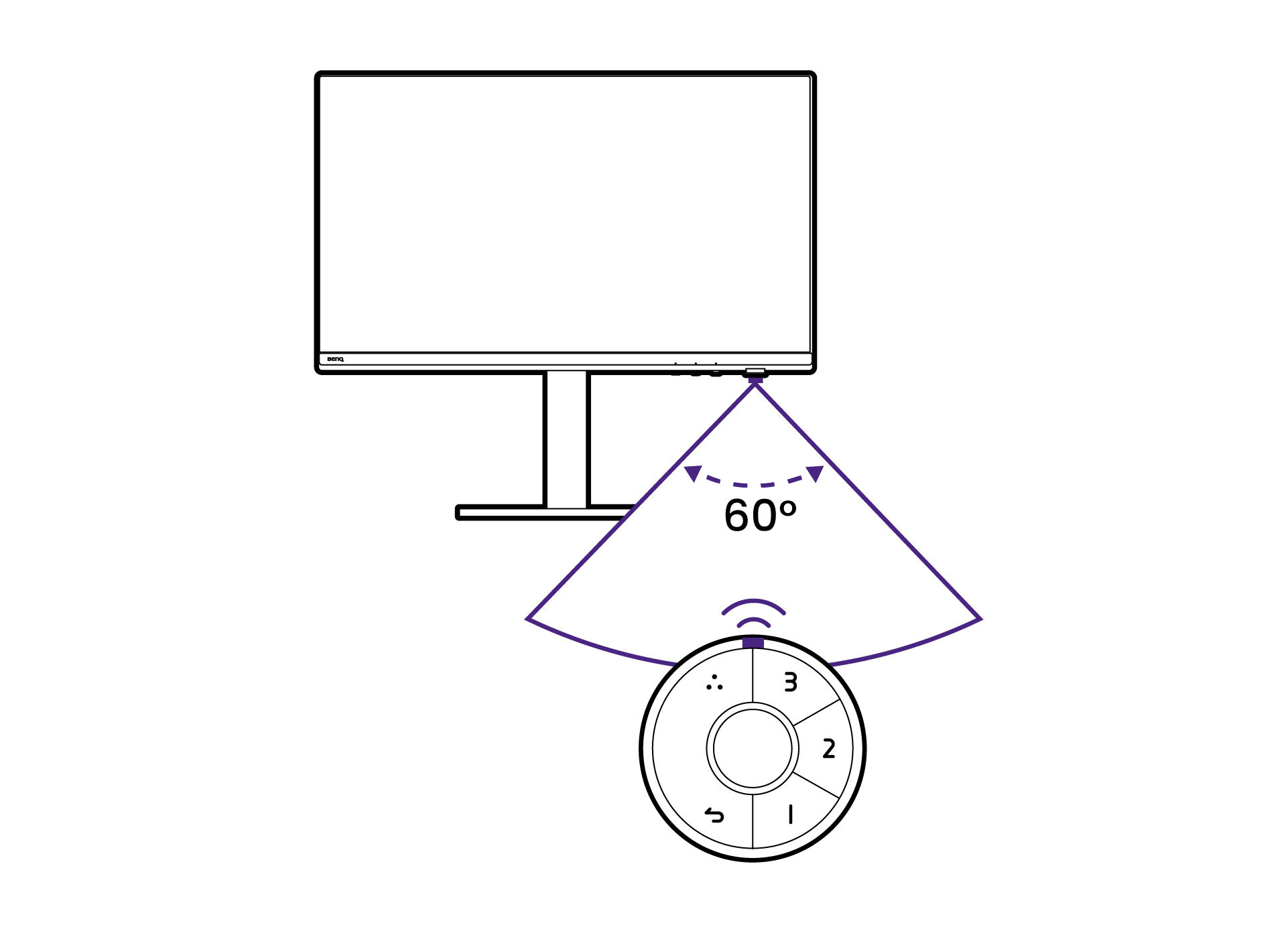

Effective range of Hotkey Puck G3.
Effective range of Hotkey Puck G3.

Installing Display Pilot 2

Efficiently manage your display settings. (Download to PC)

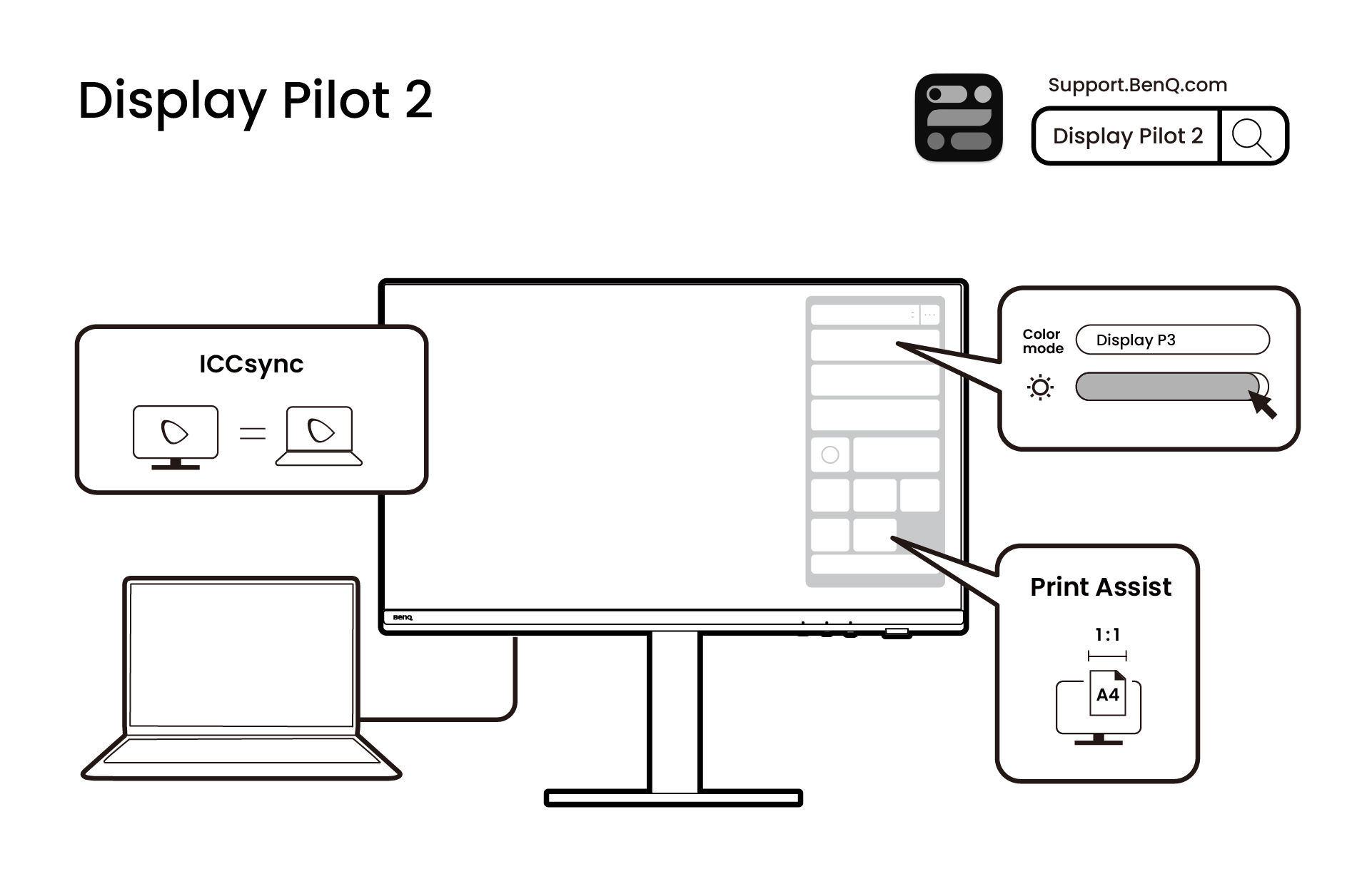

Display Pilot 2 software features
Display Pilot 2 software features

Installing color management software

AQCOLOR Pilot : exclusive calibration and convenient color management (Download to PC)

*Check the website for software availability and feature support for your model.

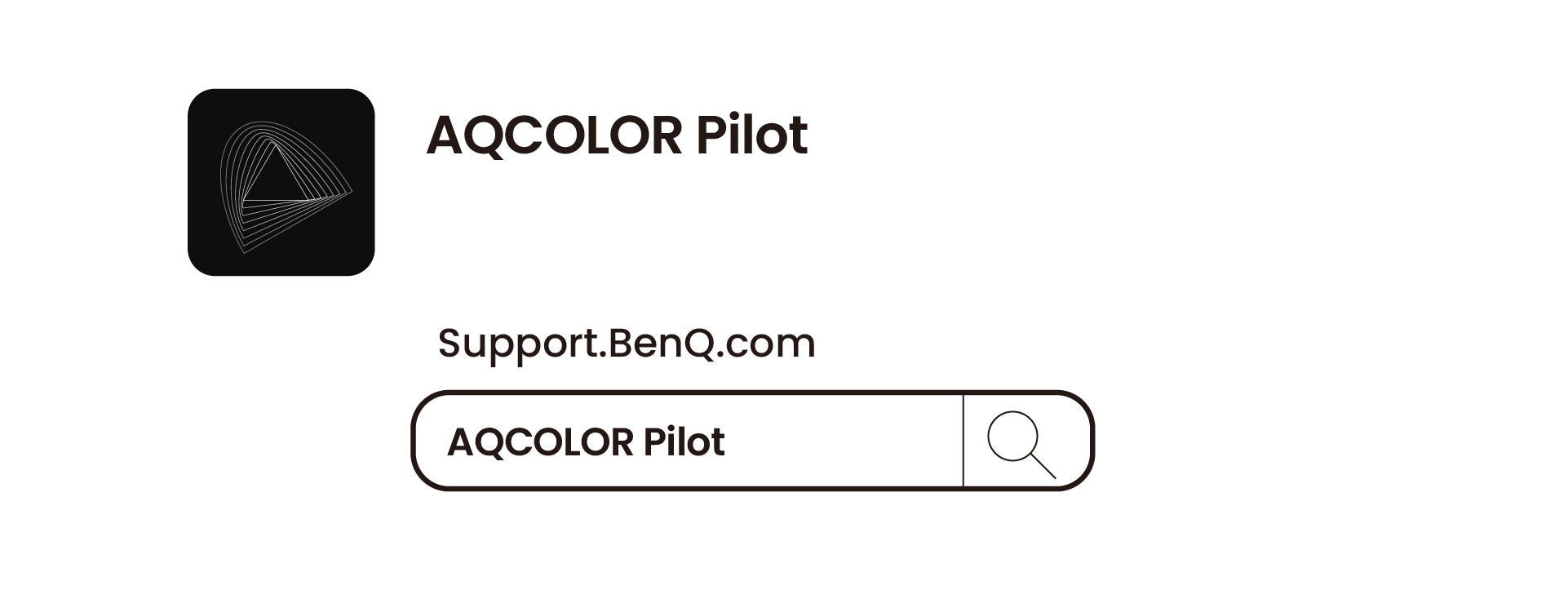

Download and install the software AQCOLOR Pilot from BenQ website to the computer.
Download and install the software AQCOLOR Pilot from BenQ website to the computer.

Display ColorTalk : sync colors across monitors. (Download to PC)

*Check the website for software availability and feature support for your model.

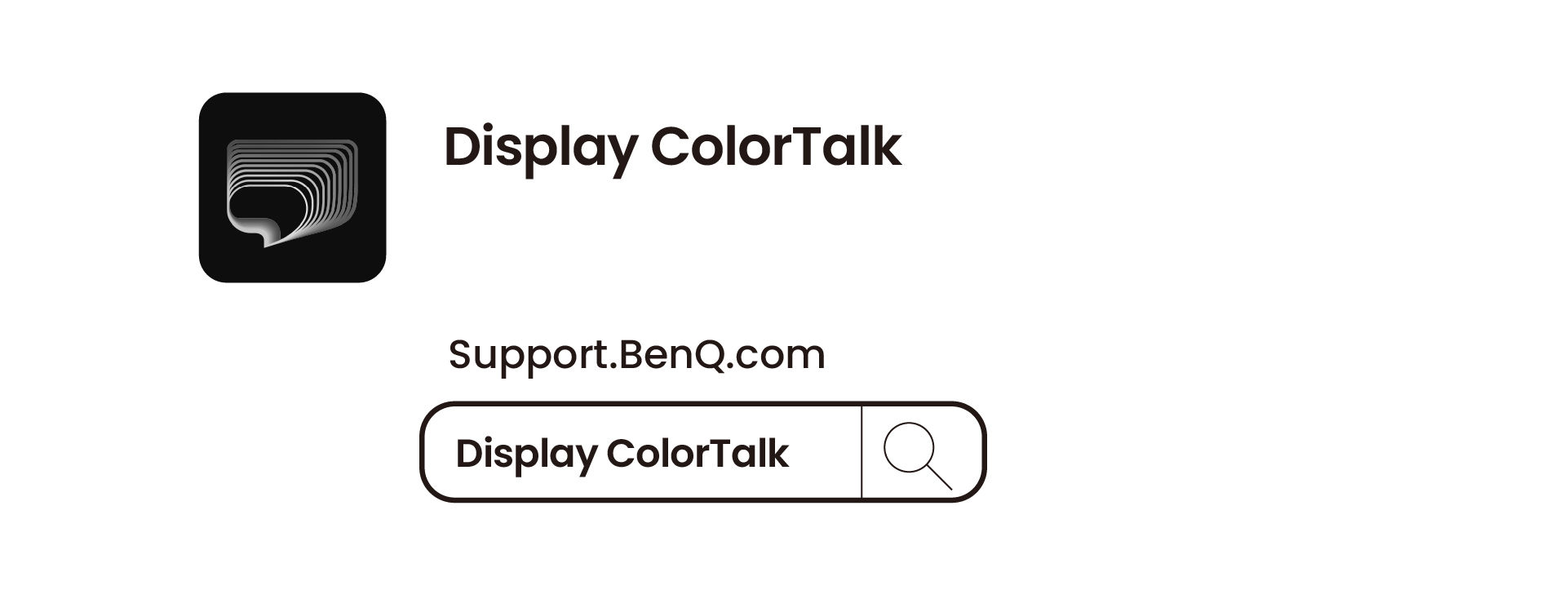

Download and install the software Display ColorTalk from BenQ website to the computer.
Download and install the software Display ColorTalk from BenQ website to the computer.

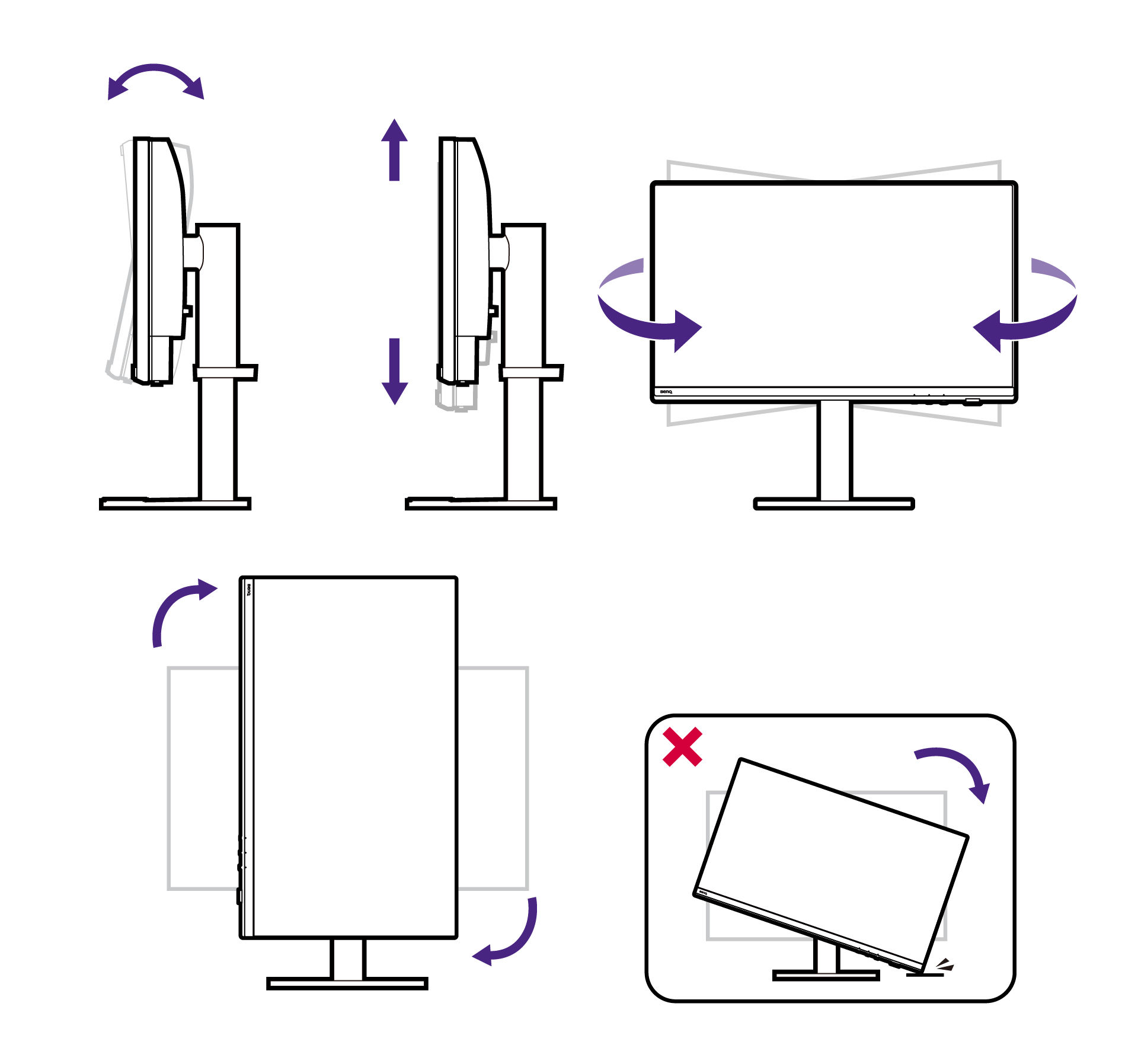

Angle adjustment

Adjust the viewing angle.
Adjust the viewing angle.
