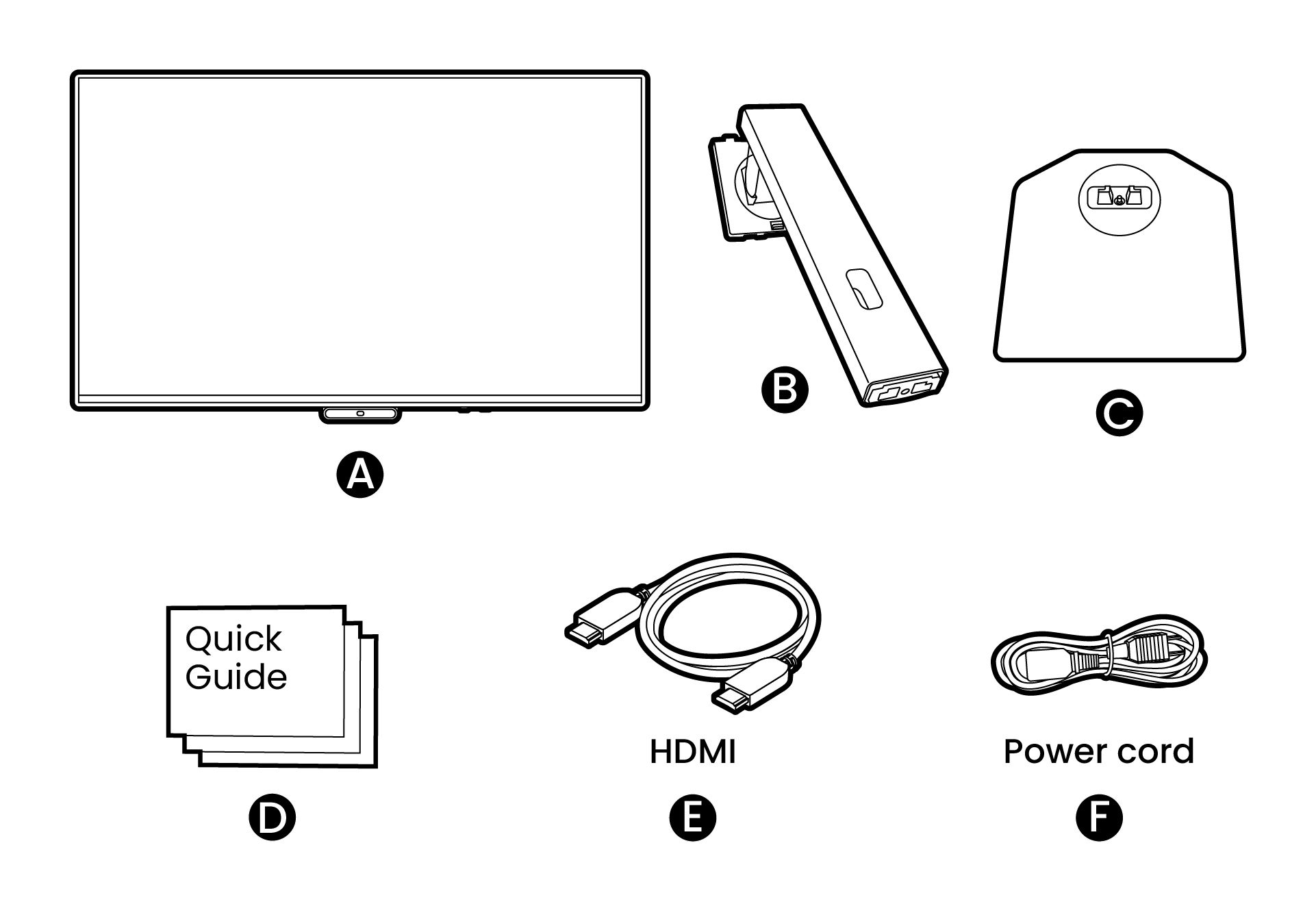

A. LCD monitor｜B. Monitor stand｜C. Monitor base

D. User documents｜E. HDMI cable｜F. Power cord

Illustration of package contents
Illustration of package contents

Note

The images shown here may differ from the actual contents and the product supplied for your region.

Content
Setup
Hotkey (V. O. Hotkey)
Angle adjustment
Installing software
Setup
Hotkey (V. O. Hotkey)
Angle adjustment
Installing software

Setup

1.

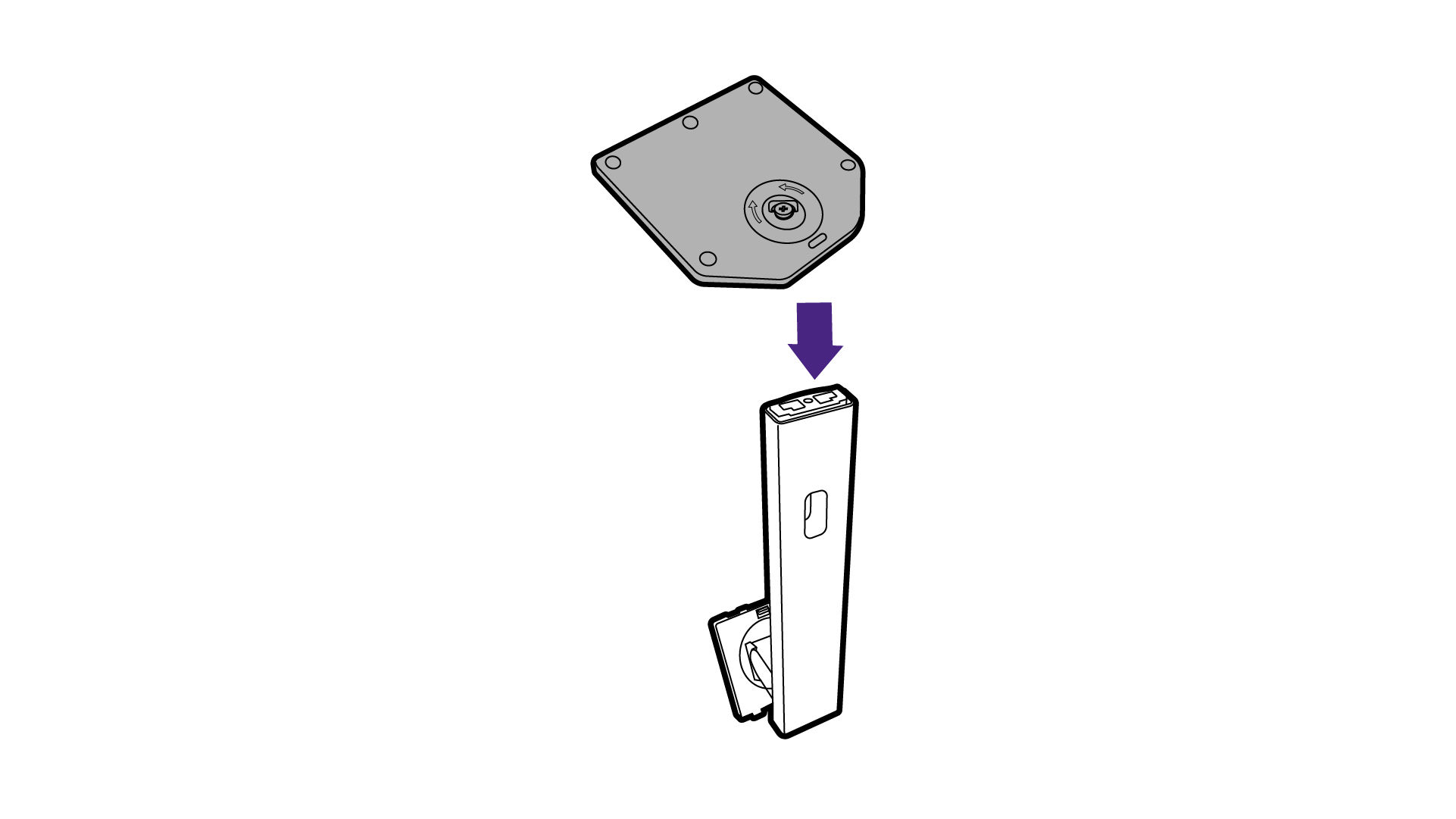

Attach the monitor stand to the monitor base as illustrated.
Attach the monitor stand to the monitor base as illustrated.

2.

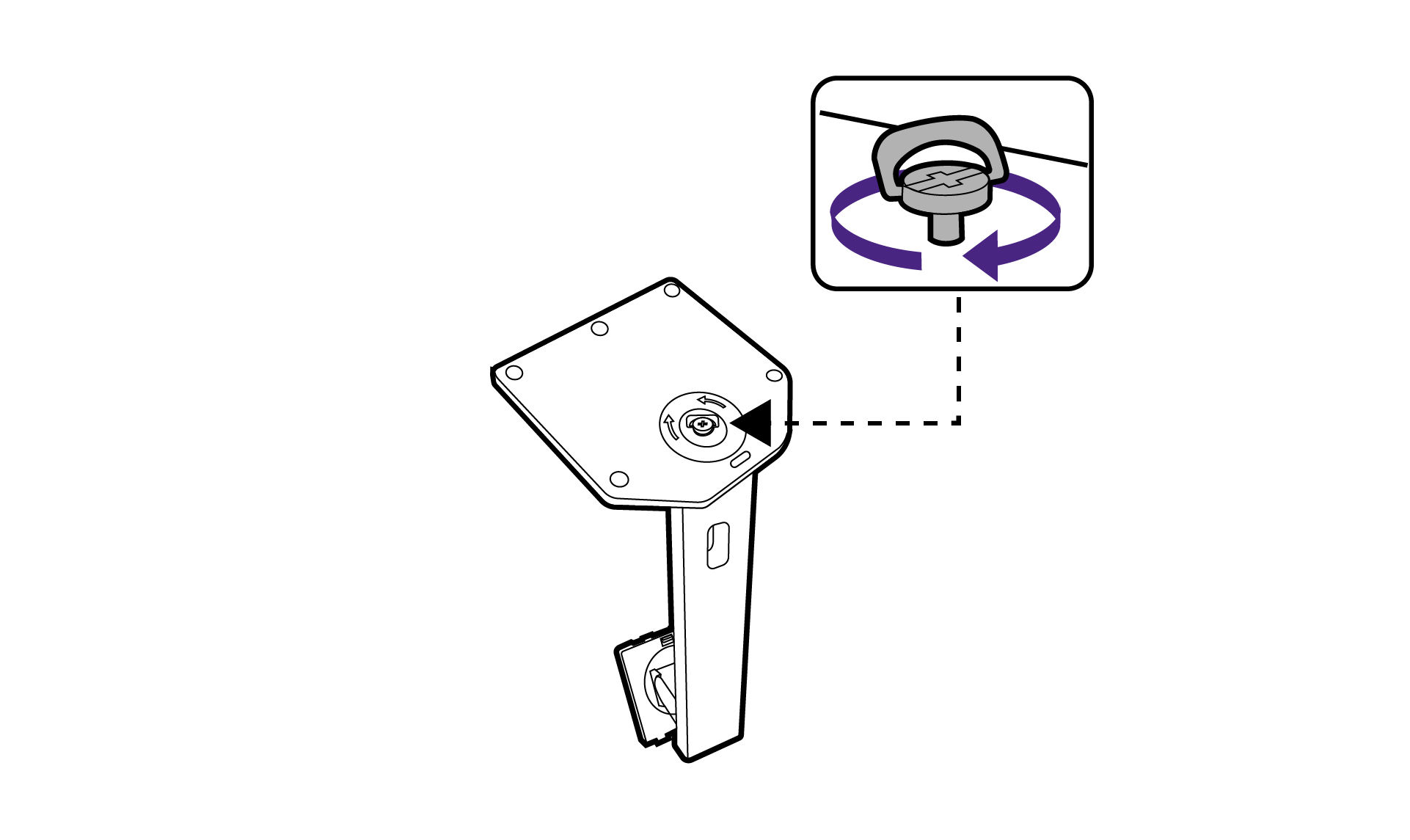

Raise the thumbscrew lid and tighten the thumbscrew as illustrated. Then push the lid back.
Raise the thumbscrew lid and tighten the thumbscrew as illustrated. Then push the lid back.

3.

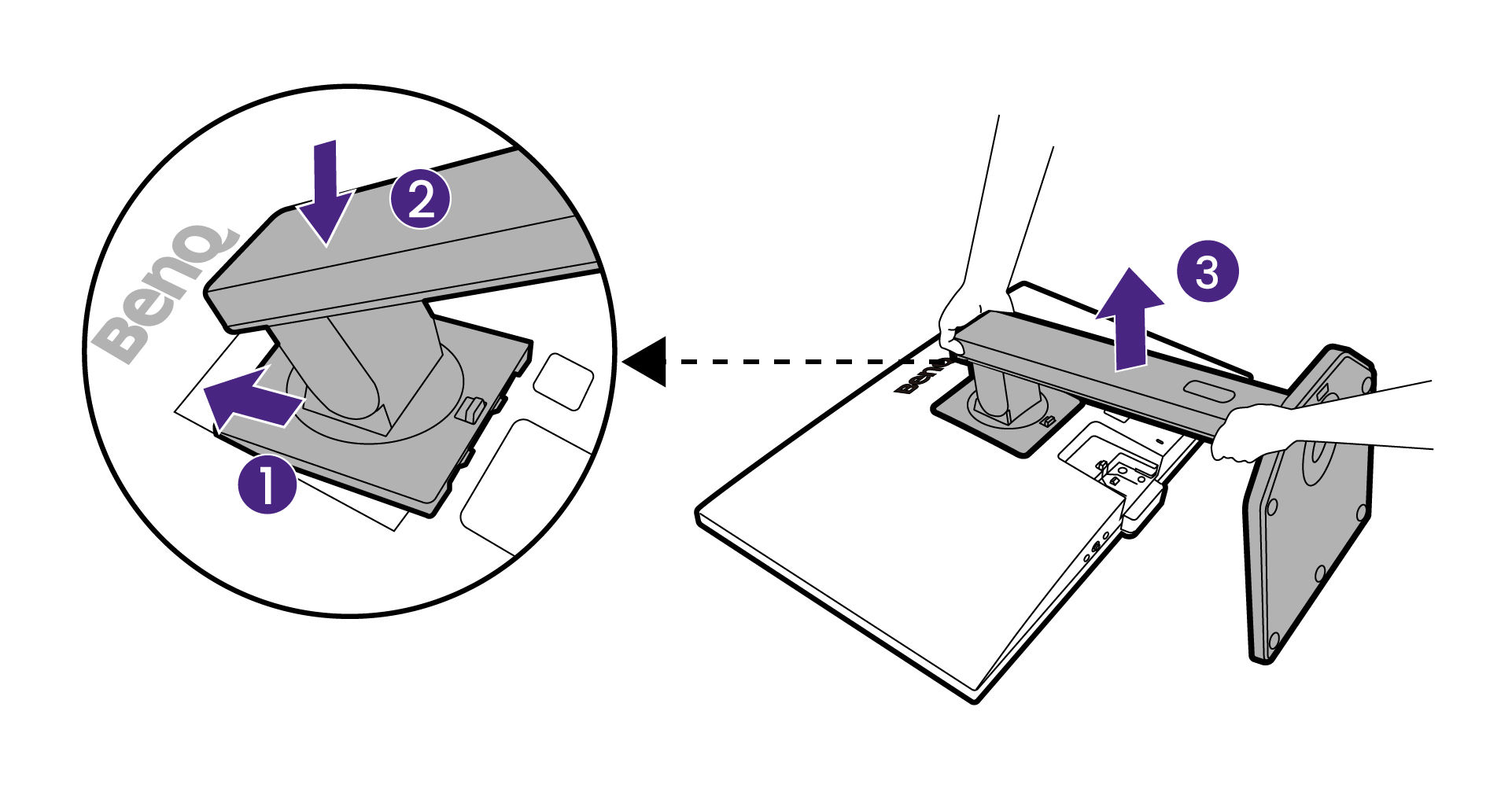

Orient and align the stand arm with the monitor, then push them together until they click and lock into place. Carefully lift the monitor, turn it over and place it upright on its stand on a flat even surface.
Orient and align the stand arm with the monitor, then push them together until they click and lock into place. Carefully lift the monitor, turn it over and place it upright on its stand on a flat even surface.

4.

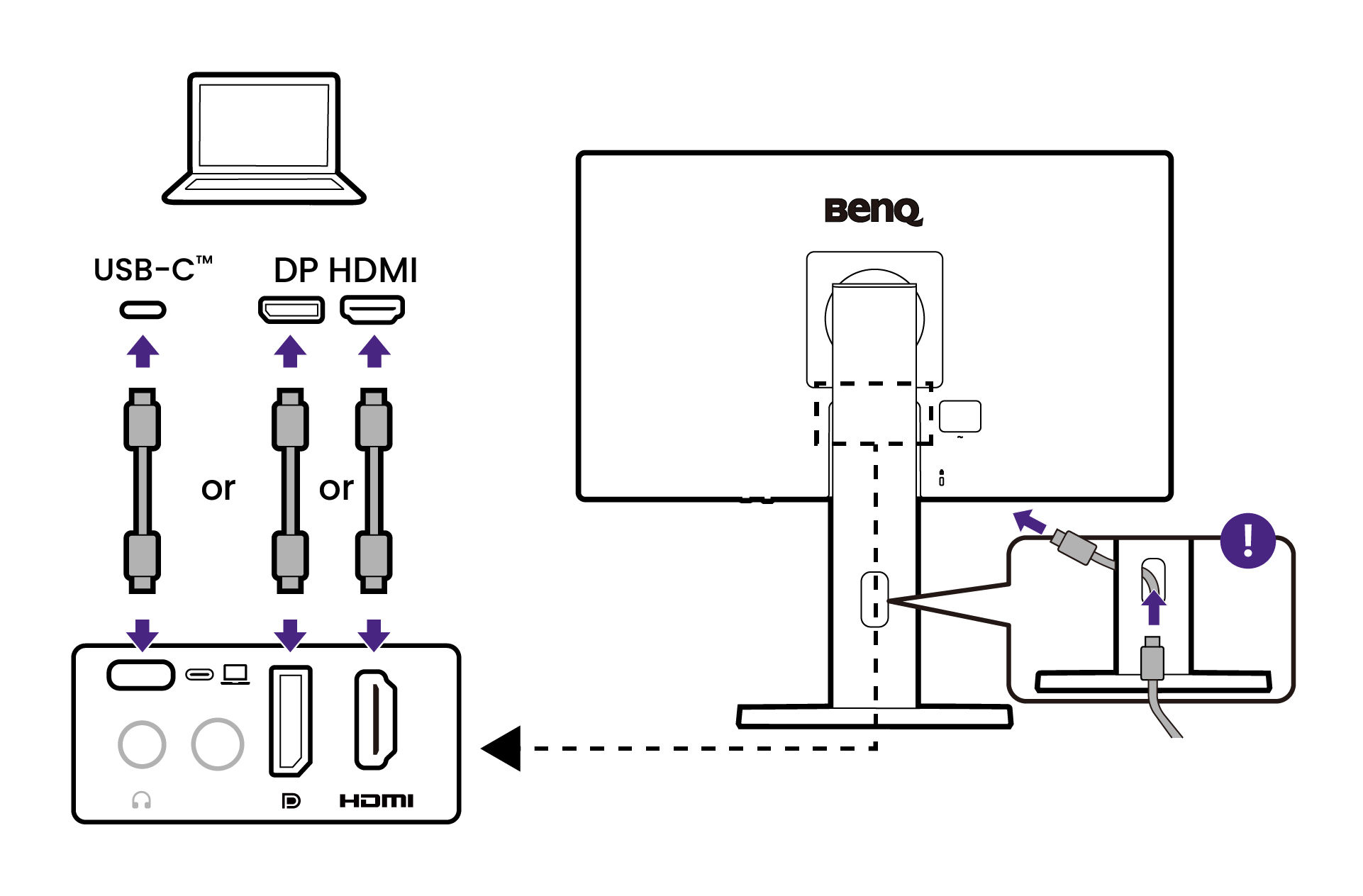

Connect the PC video cable.
Connect the PC video cable.

5.

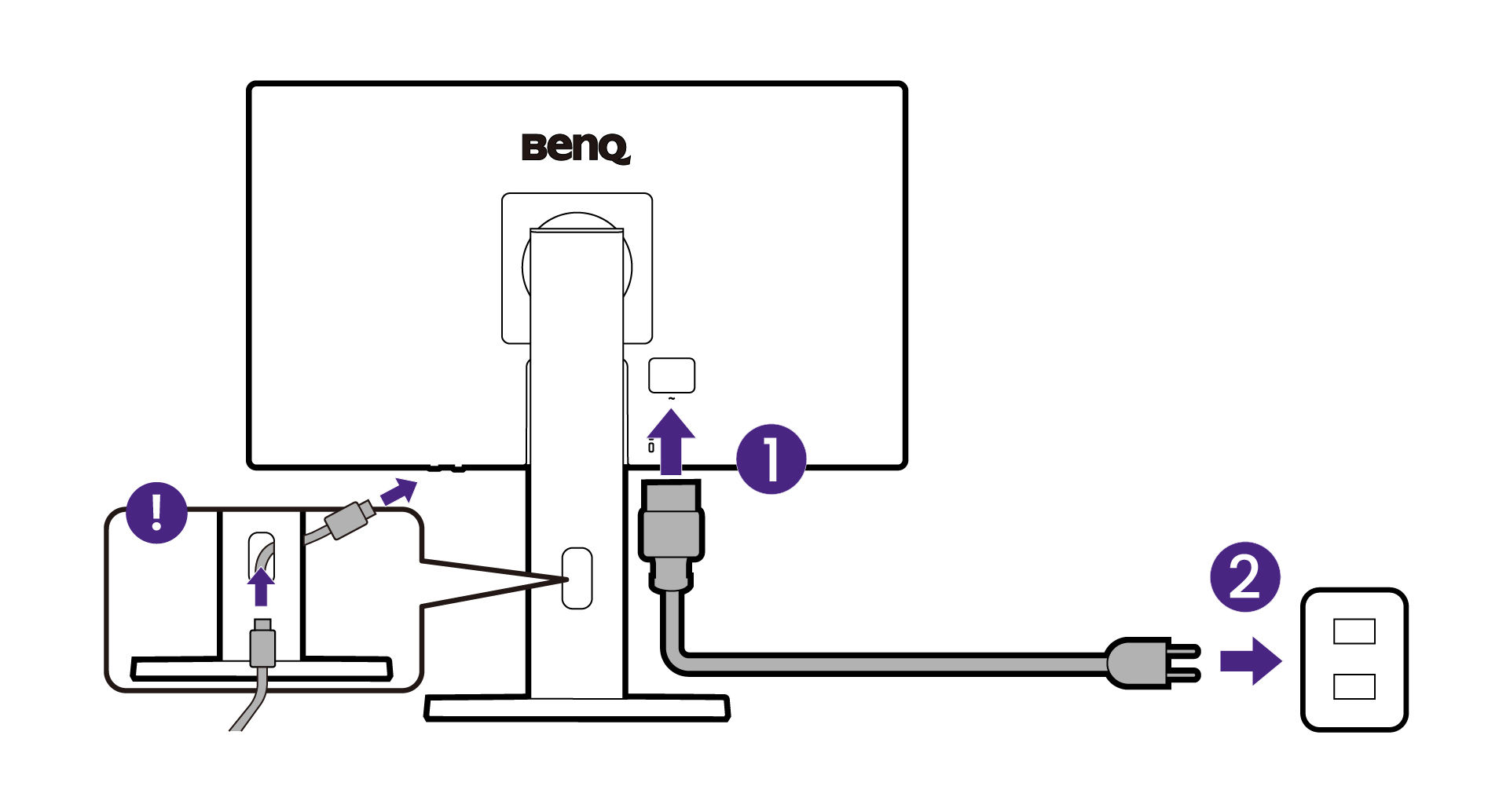

Connect the power.
Connect the power.

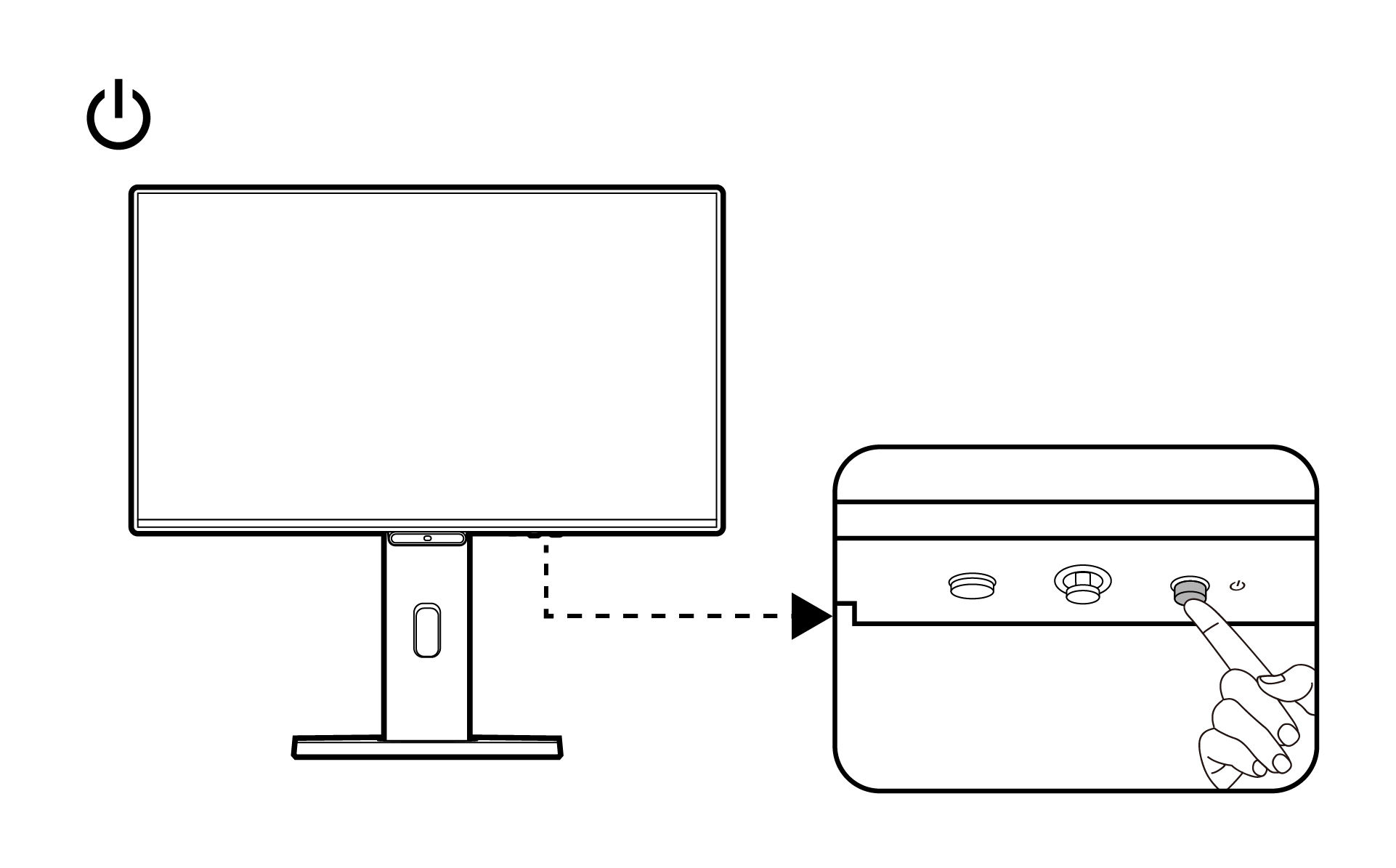

6.

Turn-on the power.
Turn-on the power.

Hotkey (V. O. Hotkey)

Work with All-Day Eye Comfort

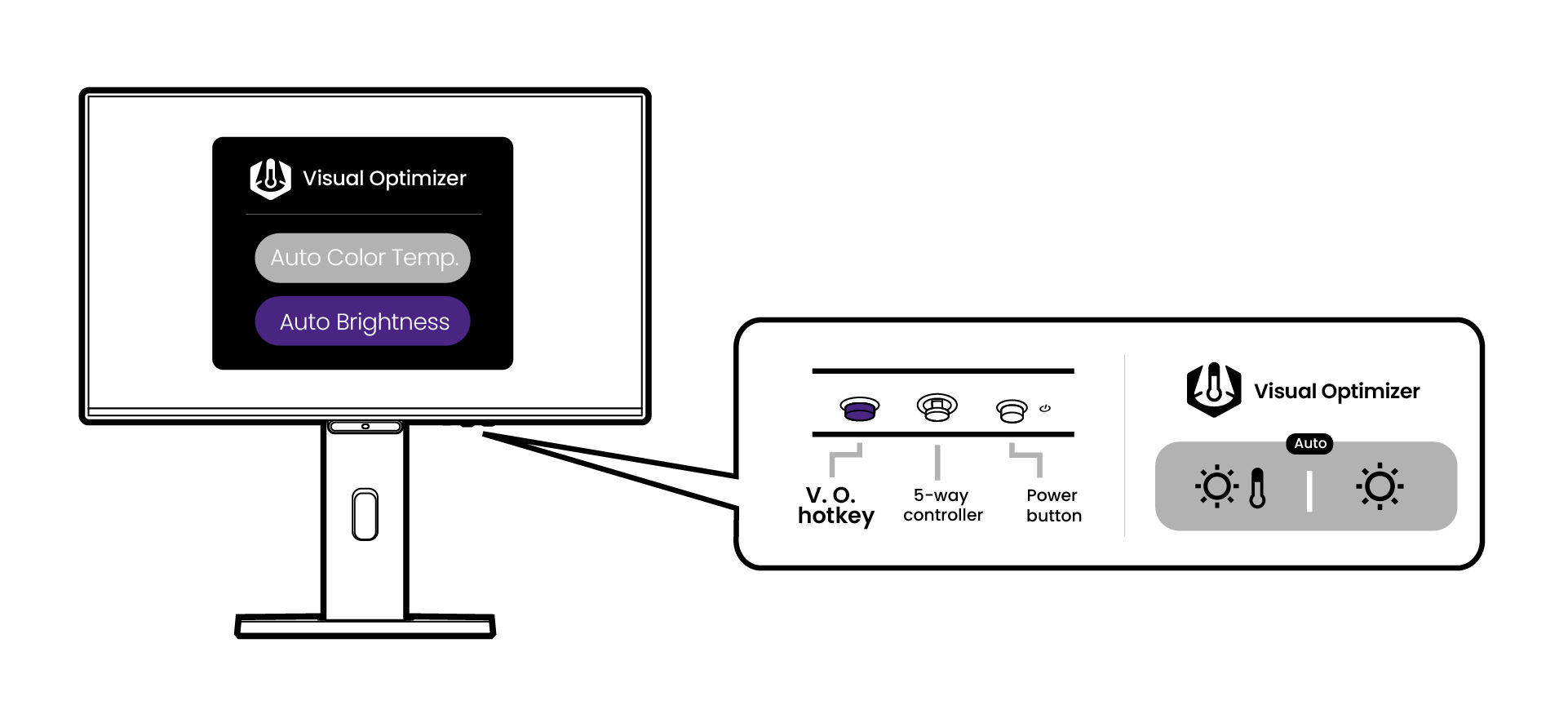

Press the V. O. Hotkey to adjust brightness and color temperature automatically.
Press the V. O. Hotkey to adjust brightness and color temperature automatically.

Angle adjustment

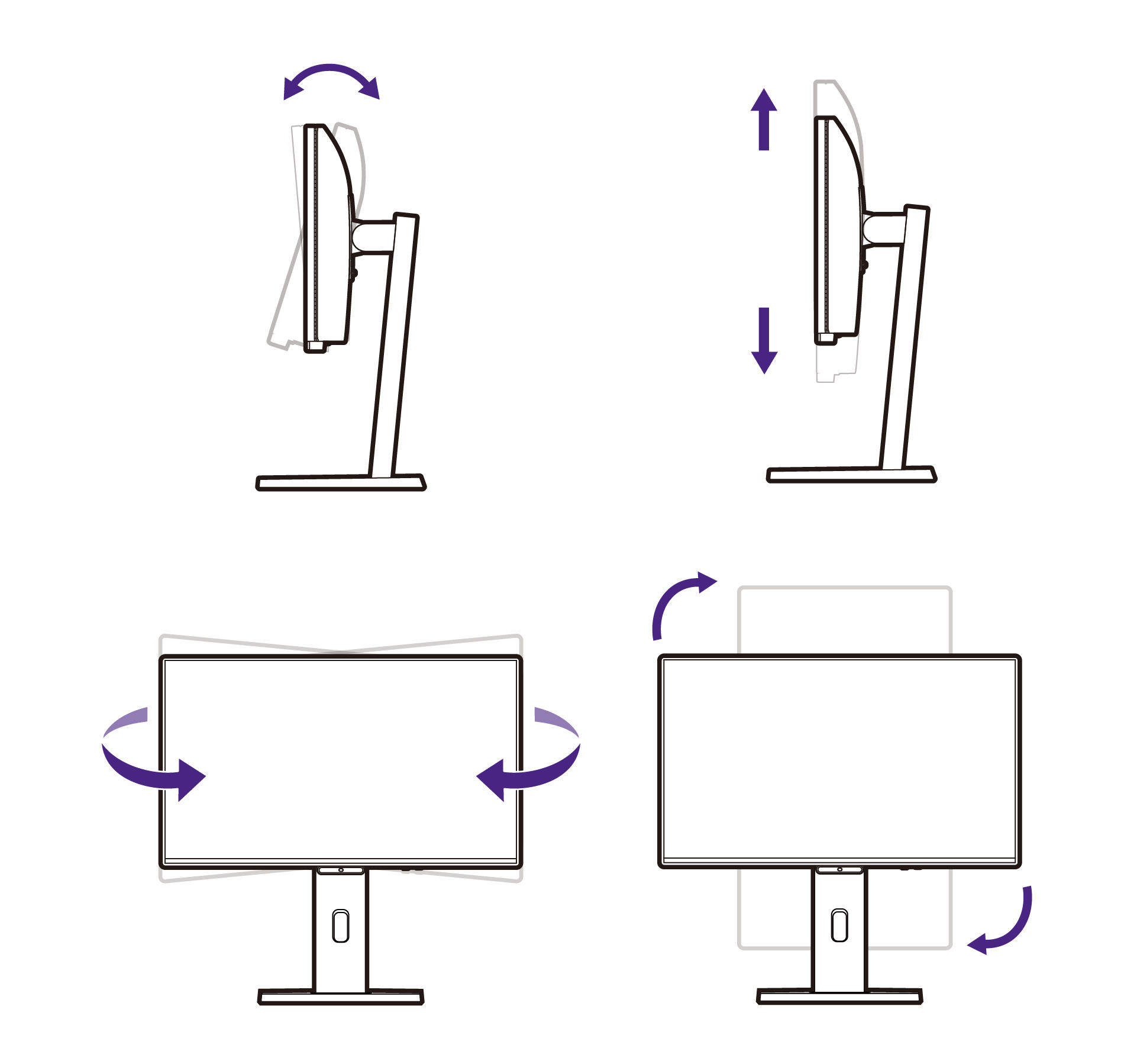

Adjust the viewing angle.
Adjust the viewing angle.

Installing software

Eye-CareU: Safeguard Your Eyes Effectively (Download to PC)

Download and install the software Eye-CareU from BenQ website to the computer.
Download and install the software Eye-CareU from BenQ website to the computer.
