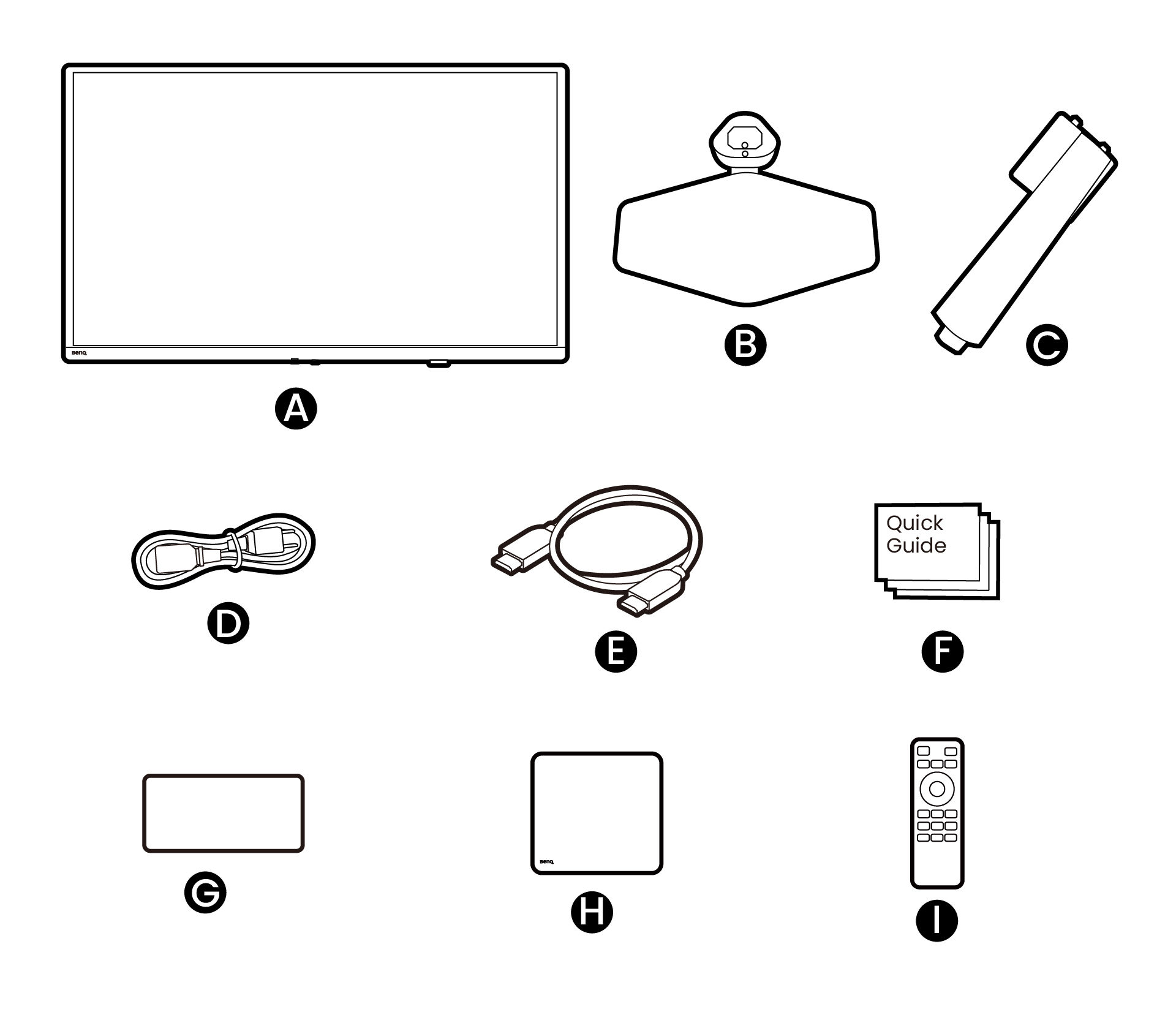

A. LCD monitor｜B. Monitor base｜C. Monitor stand

D. Power cord｜E. HDMI cable｜F. User documents

G. Calibration report｜H. Cleaning cloth｜I. Remote control

Illustration of package contents
Illustration of package contents

Note

The images shown here may differ from the actual contents and the product supplied for your region.

Content
Setup
Angle adjustment
Installing software
Remote control
Setup
Angle adjustment
Installing software
Remote control

Setup

1.

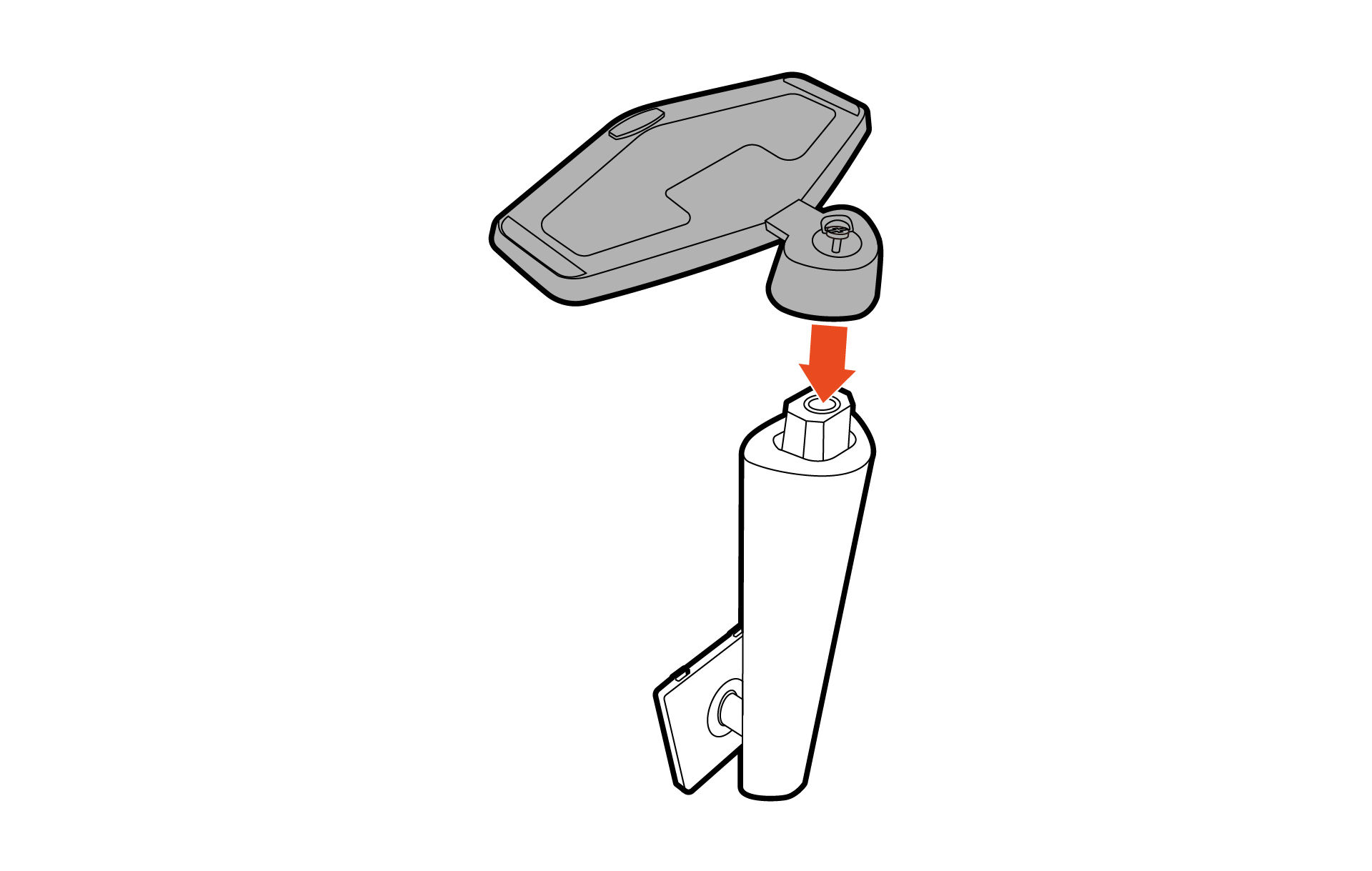

Attach the monitor base to the monitor stand.
Attach the monitor base to the monitor stand.

2.

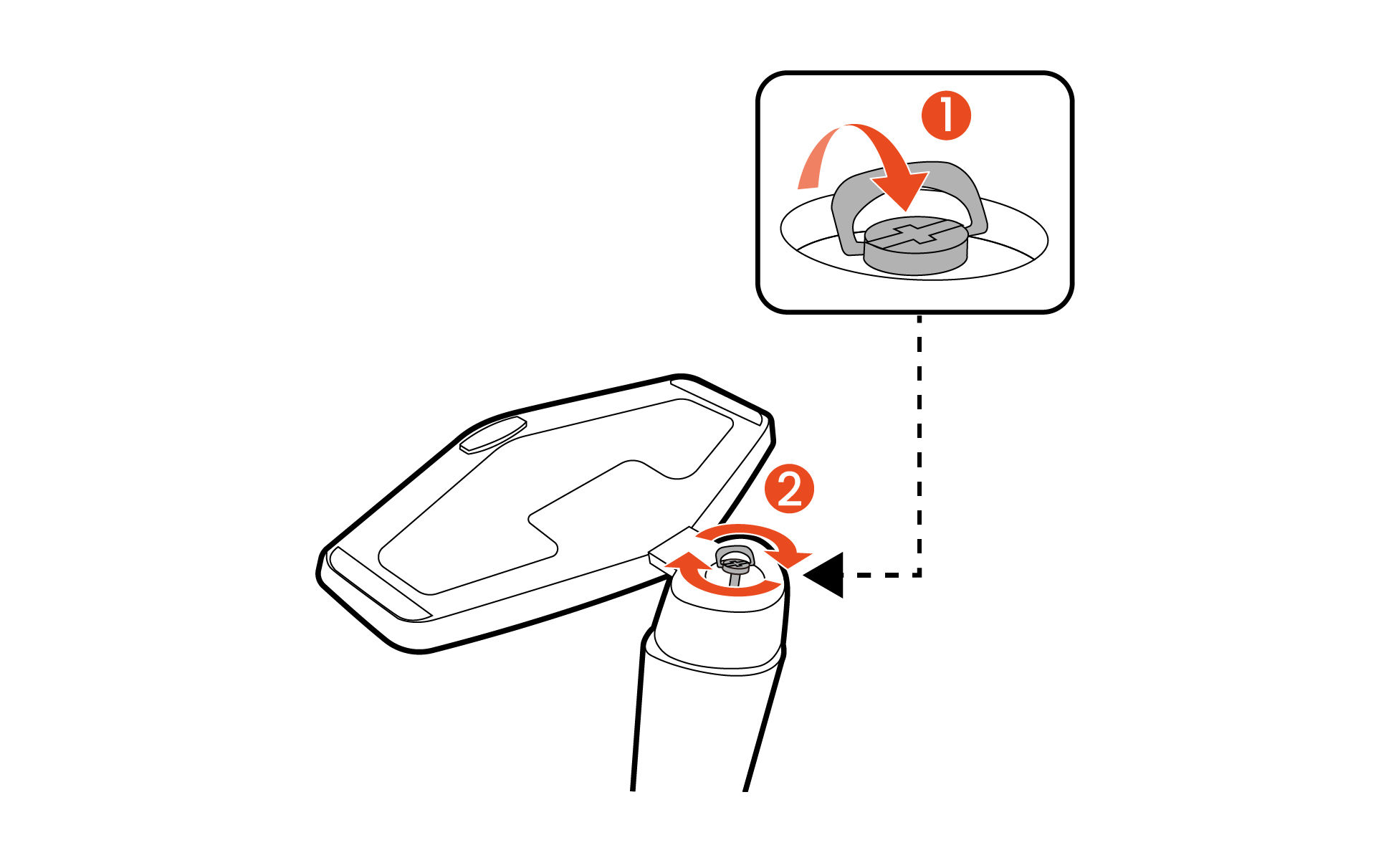

Raise the thumbscrew lid and tighten the thumbscrew. Then push the lid back.
Raise the thumbscrew lid and tighten the thumbscrew. Then push the lid back.

3.

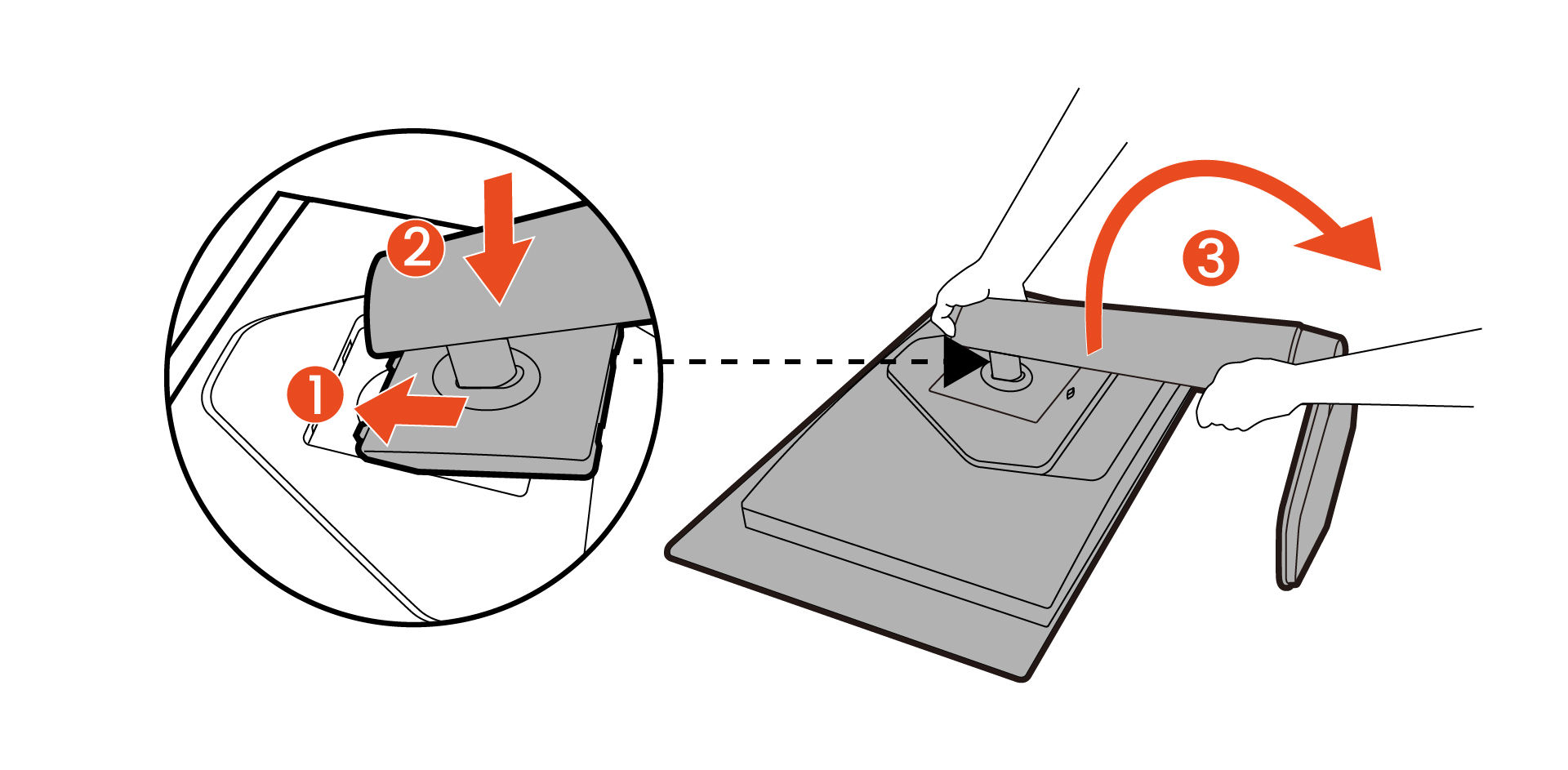

Orient and align the stand arm with the monitor, then push them together until they click and lock into place. Carefully lift the monitor, turn it over and place it upright on its stand on a flat even surface.
Orient and align the stand arm with the monitor, then push them together until they click and lock into place. Carefully lift the monitor, turn it over and place it upright on its stand on a flat even surface.

4.

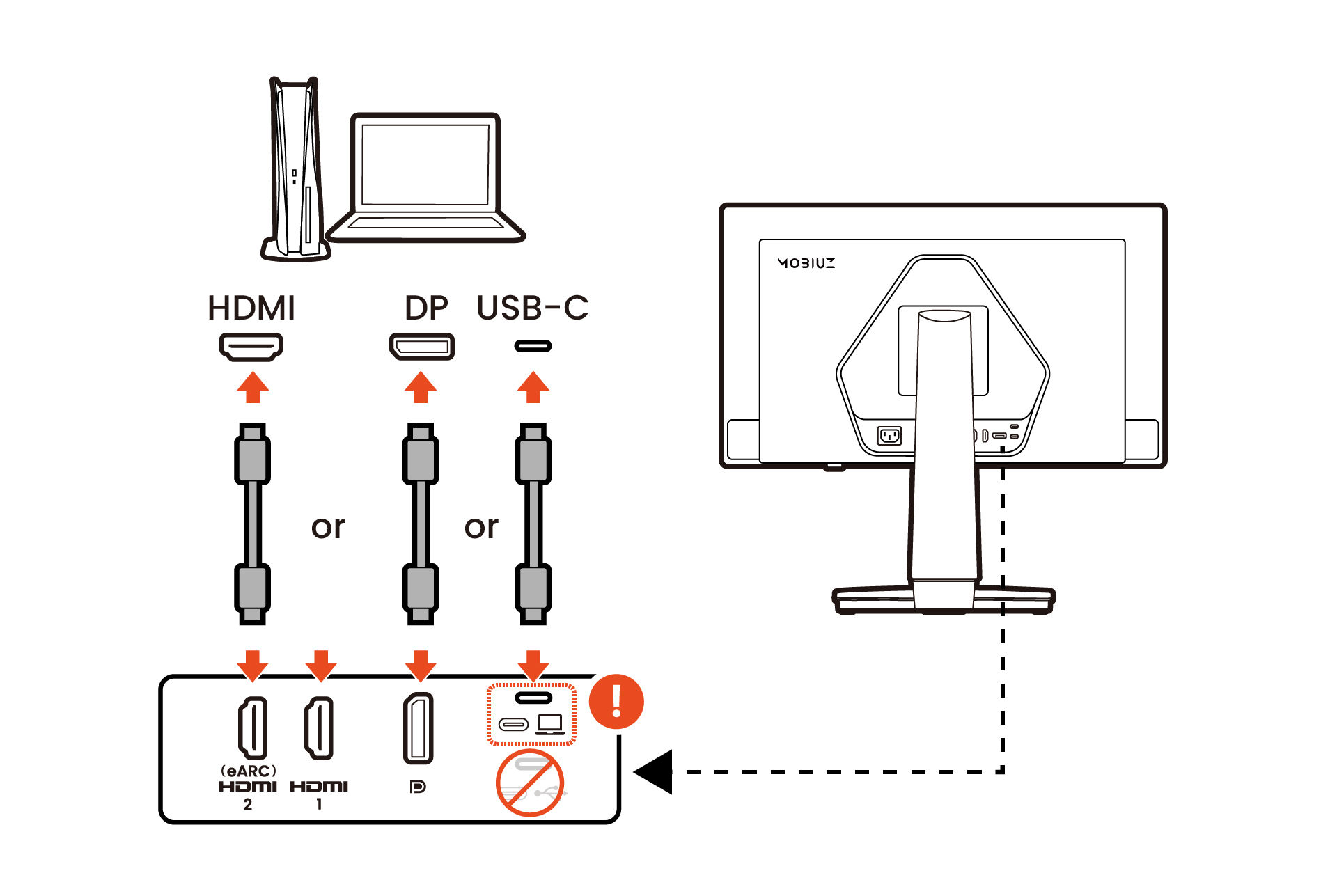

Connect the PC video cable.
Connect the PC video cable.

5.

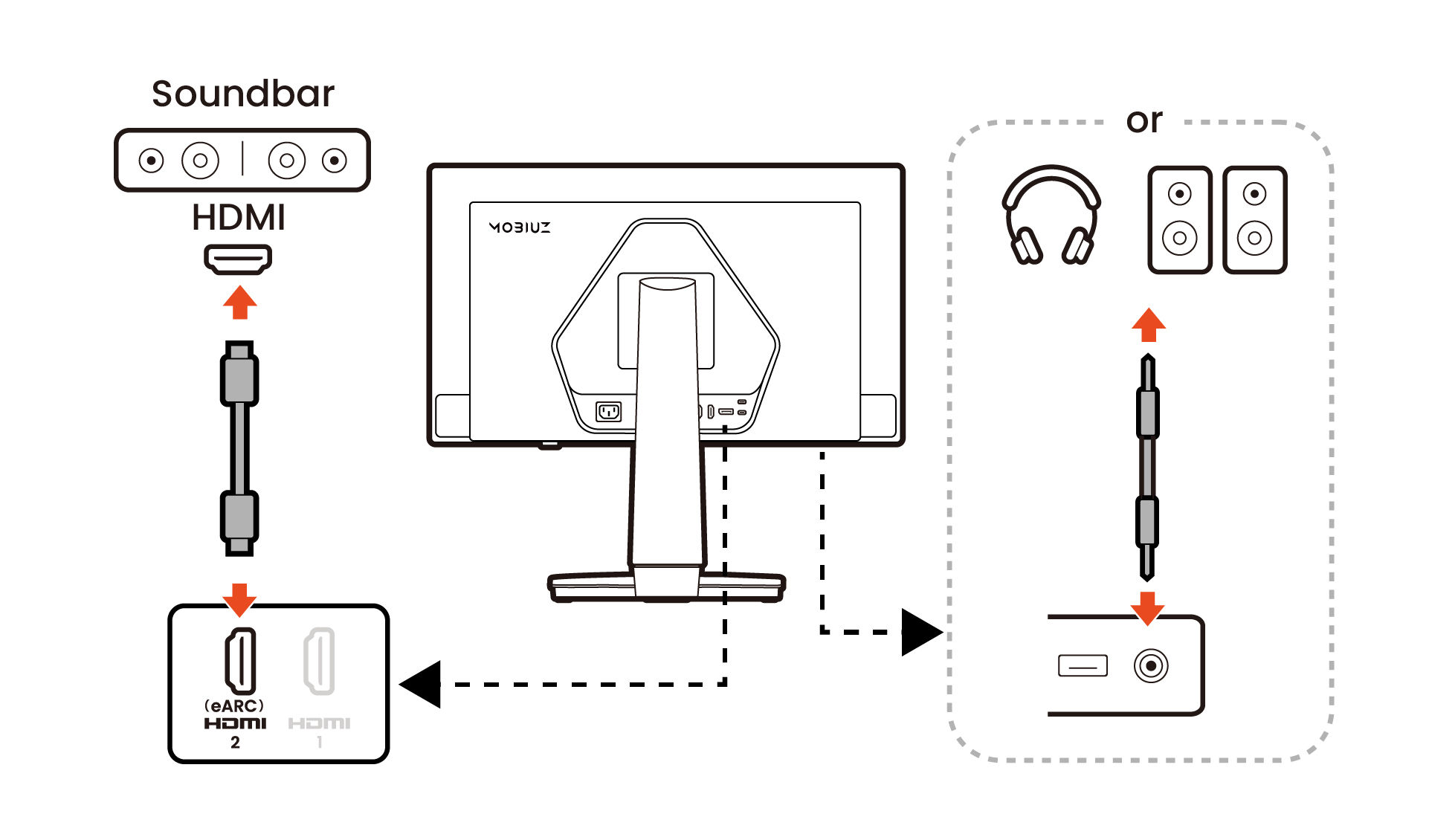

Connect the audio cable.
Connect the audio cable.

6.

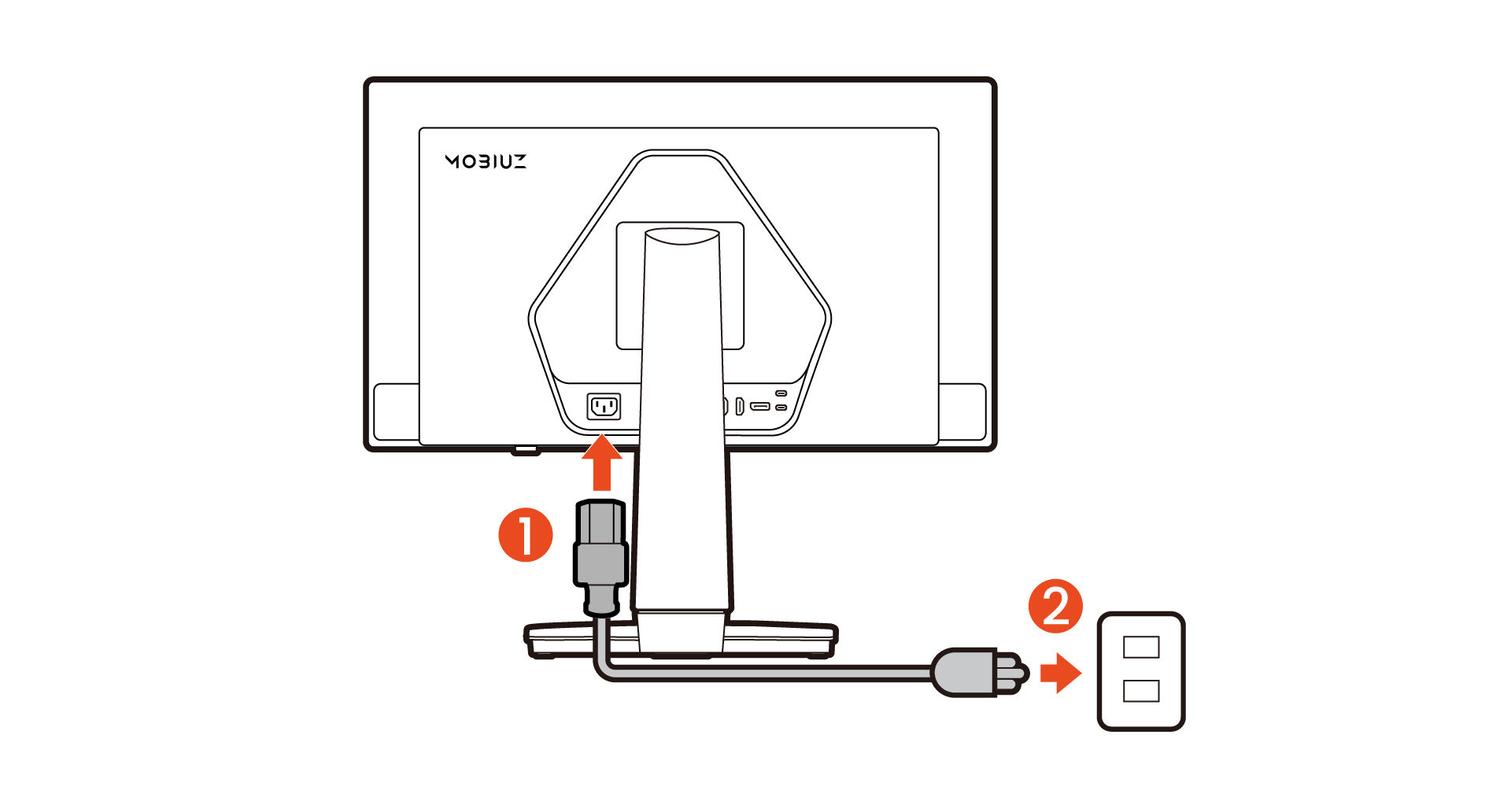

Connect the power.
Connect the power.

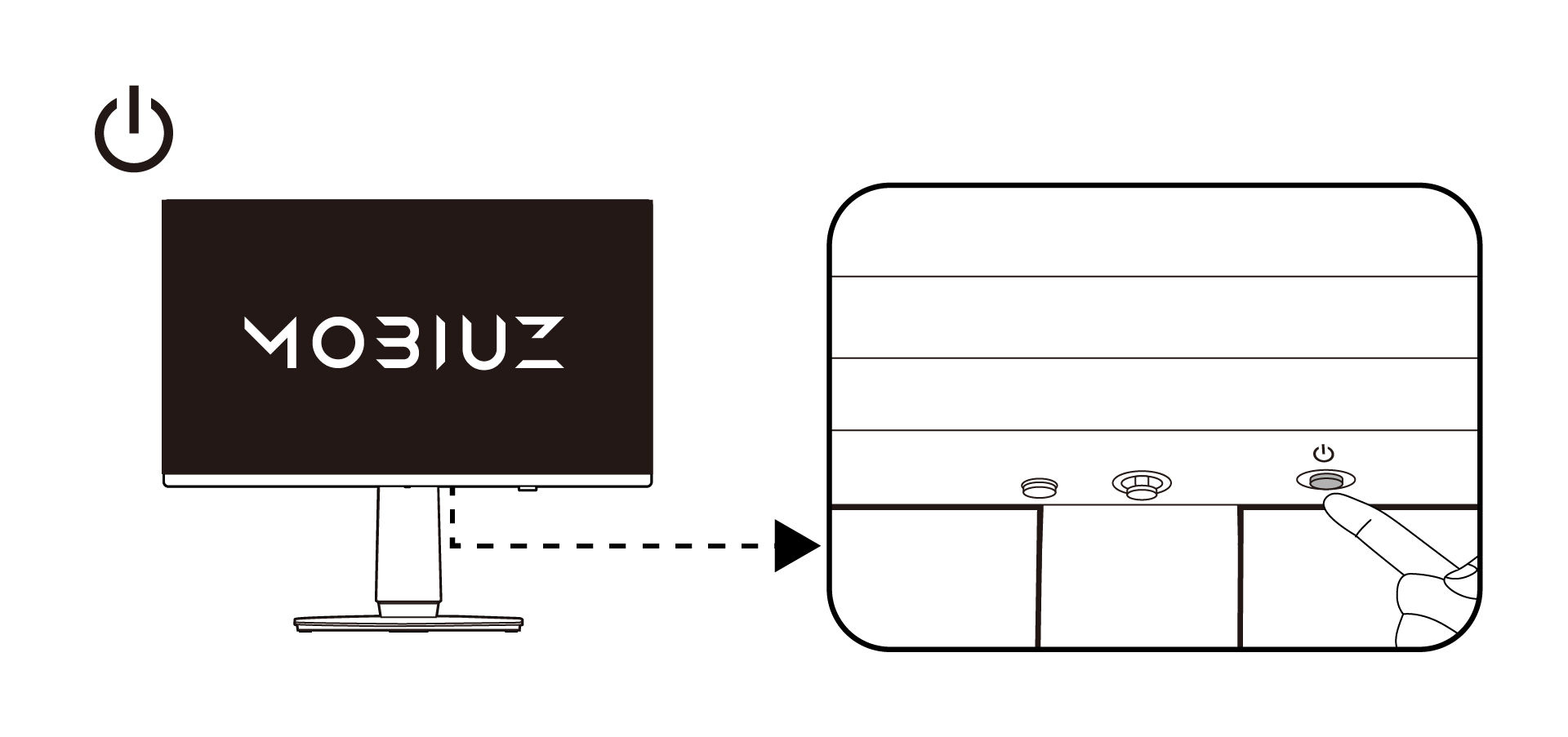

7.

Connect the power.
Connect the power.

Angle adjustment

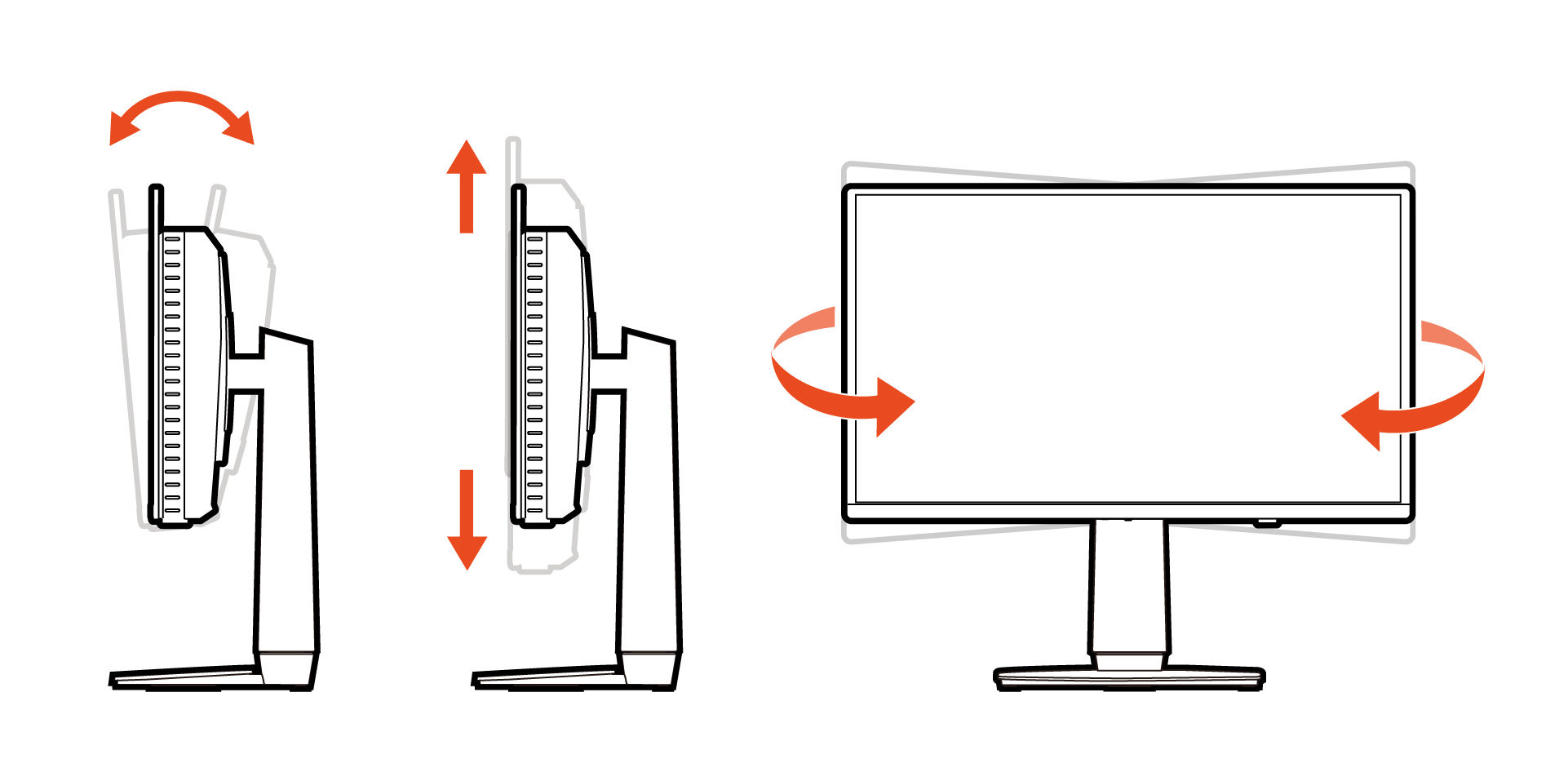

Adjust the viewing angle.
Adjust the viewing angle.

Installing software

Color Shuttle: Easily download, manage, and share color modes for game titles. (Download to PC)

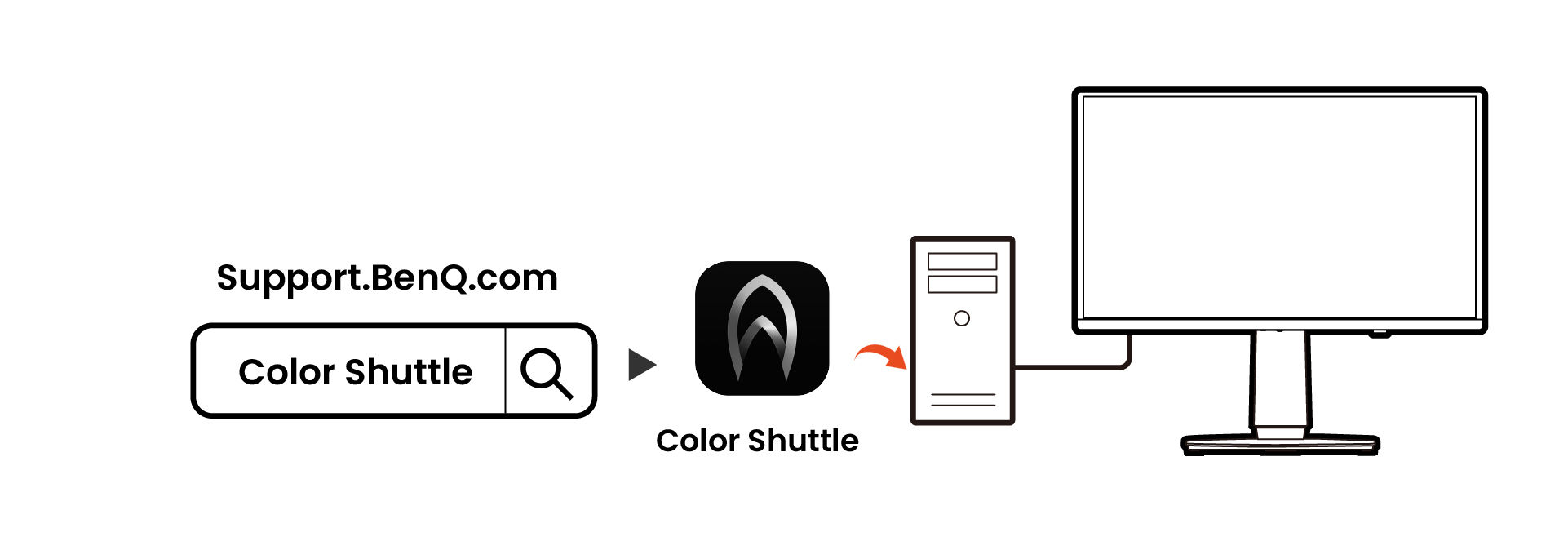

Download and install the software Color Shuttle from BenQ website to the computer.
Download and install the software Color Shuttle from BenQ website to the computer.

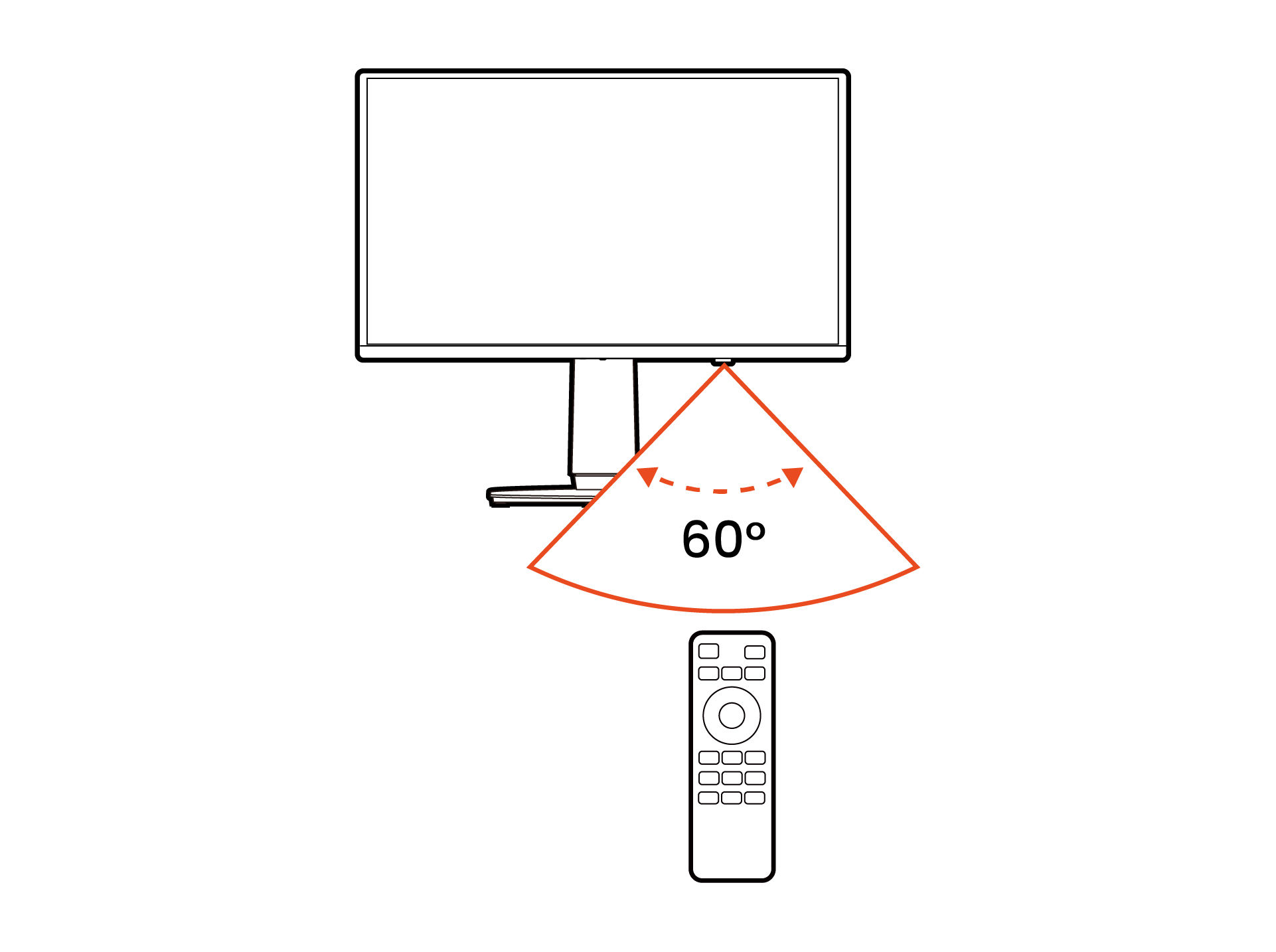

Remote control

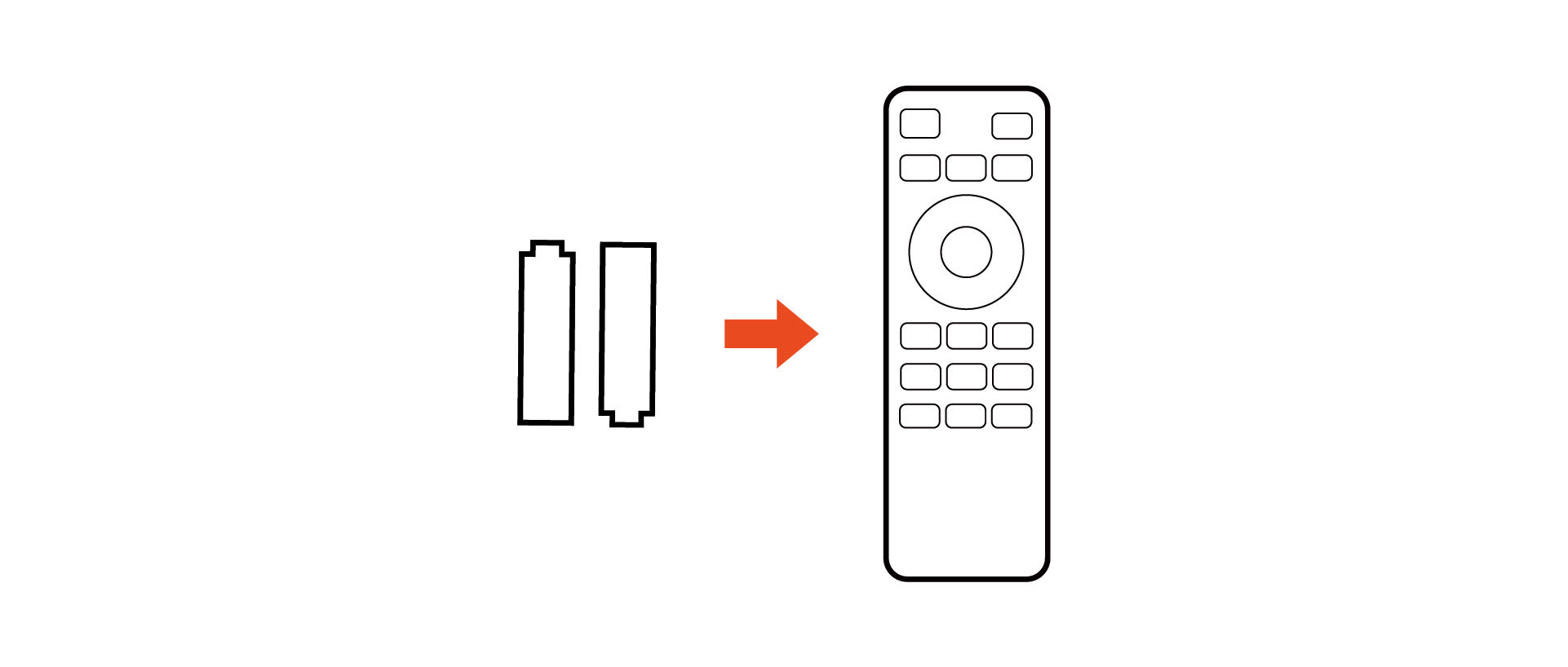

Install the remote control's batteries.
Install the remote control's batteries.

Install the remote control's batteries.
Install the remote control's batteries.
