Simmersion: How Curved Screens Create Greater Golf Simulator Immersion

Curved displays work best when their shape complements the way people use them. A television typically accommodates viewers sitting farther away and in different seating positions, while a monitor is generally designed around a single user sitting closer to the center of a wide display. RTINGS notes that under these conditions, curvature brings the outer edges closer to the viewer’s field of vision, contributing to more immersive viewing experiences. They also find curvature can become advantageous for TVs when viewed at close range, such as when used as monitors. Curved projection screens for golf simulators apply that same viewer-centric concept on a much larger scale.

Immersion is the biggest reason why - wrapping the sides of a wide image toward the viewer allows more of the visual environment to extend into peripheral vision, helping it feel less like a picture being viewed and more like a space surrounding the user. This remains the defining appeal of curved ultrawide displays: TechRadar’s 2026 coverage repeatedly highlights the immersive, wraparound experience of large curved screens for gaming and expansive visual workspaces.

Research supports these experiential benefits as well, as an Applied Ergonomics Journal study found that curved displays can create a stronger feeling of immersiveness, while human-factors research has examined how curvature and screen size affect visual search, viewing comfort, and fatigue.

Golf simulation combines these advantages with physical interaction. Like the user of a curved ultrawide monitor, a golfer occupies a predictable position near the center of an expansive image, and also scans the virtual course, chooses a target, aligns and swings toward it, then immediately sees the result play out onscreen. The projection surface becomes part of a spatially interactive environment, not simply a display.

Beyond just heightening immersion, a curved screen allows golfers to track their shot direction and ball flight much more naturally. As the fairway landscape wraps into your peripheral vision, it becomes far more intuitive to gauge target lines and landing spots, ultimately elevating both the realism and the training value of your simulator experience."

At simulator scale, curvature can also improve the visual geometry itself, bringing the sides of an extremely wide screen toward the hitting position, placing more of the projected course within the golfer’s natural field of view, and reducing the stretched appearance and visual blind spots that can occur toward the edges of a large flat image. Both deeper immersion and distortion reduction are central benefits of curved golf simulator screens.

The payoff is a more enveloping, natural-feeling simulation experience. However, there are challenges - screen curvature, hitting position, projector placement, throw distance, and image geometry all working together - making proper curved-screen installation and calibration considerably more demanding than a conventional flat-screen setup.

One option is to hire professional installation, with experienced teams handling measurement, mounting, geometry, and calibration, but this also requires cost, scheduling, and coordination. For DIY installations, planning starts with the room(space). Width and height are only part of the equation; available depth, ceiling height, screen curvature, hitting position, projector throw distance, and mounting location all influence the final geometry.

Before diving into the planning process, we highly recommend visiting the BenQ Golf Sim Planner website. Inputting your room dimensions and desired screen size early on will provide a solid baseline for your initial setup.

BenQ 3D Planner

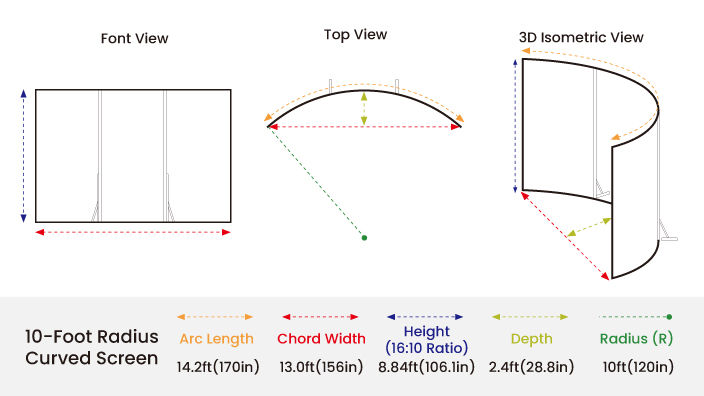

Curved screens in the US are most commonly defined by their radius in feet—typically a 10-foot or 13-foot radius (often seen in tech specs as 3000R or 4000R). A smaller radius, like 10 feet, creates a tighter curve that wraps more deeply around your hitting bay, whereas a 13-foot radius produces a gentler curvature. This radius determines how far the screen's edges extend toward the golfer and directly impacts the required spatial relationship between the screen and your projector.

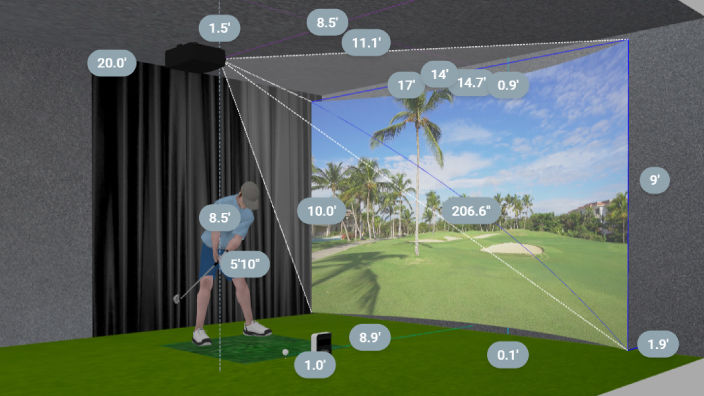

The golfer’s position matters just as much, and the focal center of the curved screen should align with the golfer’s striking center. The projector must then fit around that geometry while staying clear of the swing trajectory and avoiding problematic off-axis projection angles. The goal is not simply to make an image fit a screen. The screen, golfer, room, launch monitor(simulator) and projector must be planned as one system.

A curved-screen simulation projector needs both strong image quality and installation flexibility to accommodate these demands:

• Brightness and Ambient Light: Golf simulator bays are not always completely dark, due to ambient light introduced by high-speed cameras, tracking sensors, safety lighting, and general room usage. BenQ recommends at least 4,000+ ANSI lumens for these environments so the projected course retains clarity and visual impact. A laser light source also provides advantages in operating life and energy efficiency for frequently used simulators.


• 4K Resolution and Aspect-Ratio Flexibility: Because large screens make image detail more visible, 4K resolution helps preserve textures across turf, fairways, bunkers, and other course elements when the image is expanded across a curved surface. Screen proportions matter as well; simulator installations may use custom ultrawide formats such as 16:5 in addition to 16:9 and 16:10. The projector and golf simulation software must support outputs appropriate for the usable screen area without unwanted stretching, distortion, or black bars.


• Short Throw and Motorized Zoom: Projector placement is especially important in golf simulation because the projector shares space with a moving golfer. Short-throw projection creates large images from short distances, reducing shadows while keeping clear of the swing area. A wide, precise motorized zoom range also gives installers greater flexibility when matching image size to the screen after mounting.


• Wide Lens Shift: Ceiling structures and mounting constraints can hinder projector installation at the ideal position. Four-way lens shift repositions the projected image optically for more precise alignment without relying on digital correction.


• Robust Geometric Correction: Critical for curved screens, these capabilities enable the projector to compensate for curved-surface distortion and precisely align the projected image to the non-flat surface.

BenQ AK900ST and AK800ST golf projectors go far beyond conventional manual correction with Smart Setup powered by AI Sim Sense and Auto Screen Fit 2.0, designed to automate this complex calibration process.

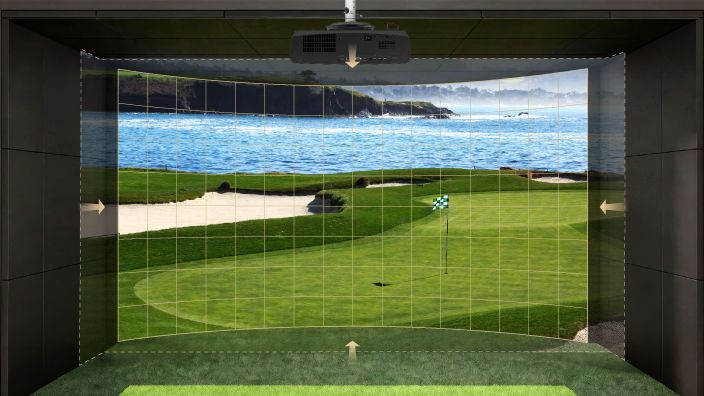

Beginning with projector placement, the ceiling-mount position must keep the projector safely outside the golfer’s swing path while maintaining suitable projection geometry. Then comes warping; projecting a rectangular image onto a curved surface naturally creates pincushion or barrel distortion. Traditional correction requires adjusting different areas of the image until straight lines appear straight and the picture follows the physical screen boundary. Tools such as Corner Fit and multipoint grid warping can provide 3x3, 5x5, 9x9, or similarly detailed control grids. Instead of moving only four corners, the installer may need to reposition numerous individual points, repeatedly checking the image across the entire screen.

For situations that still require detailed manual adjustment, BenQ’s new warping interface uses optimized control-point logic and a more intuitive visual UI. Control points can be added progressively as finer adjustments are needed, making detailed calibration more approachable. Golf simulation software can simplify setup from the source side as well. Common platforms allow users to configure output resolution to better match the screen’s intended aspect ratio, while BenQ’s projector tools handle the geometric shaping needed for the curved surface itself. Together, these capabilities reduce the amount of manual correction required to fit the image cleanly to the screen.

Beyond manual adjustment with the remote control, control points can also be adjusted with a mouse for a faster and more intuitive setup experience. This makes warping easier and helps golfers complete the setup more efficiently.

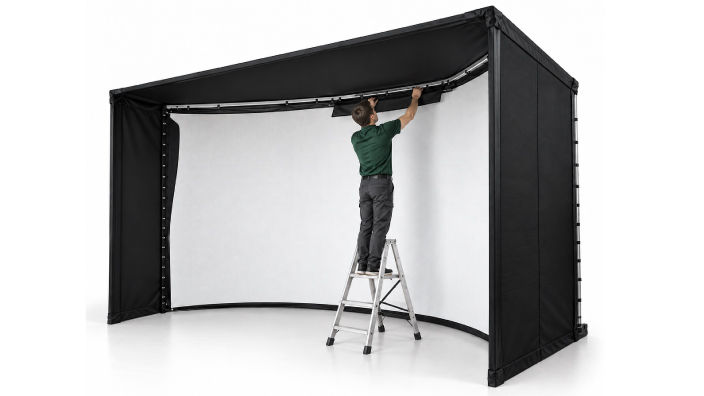

Physical screen installation begins with assembling and leveling the curved frame. The focal center of the frame curvature should align with the golfer’s striking center so the physical screen geometry matches the intended viewing and hitting position.

The impact screen is then hung loosely from the upper frame, with its center aligned to the frame centerline before full tension is applied. Tensioning proceeds outward from the center using bungee cords or spring hooks. BenQ recommends diagonal cross-tensioning to distribute force evenly across the screen and help prevent localized wrinkles or ripples that could interfere with image sharpness and screen longevity.

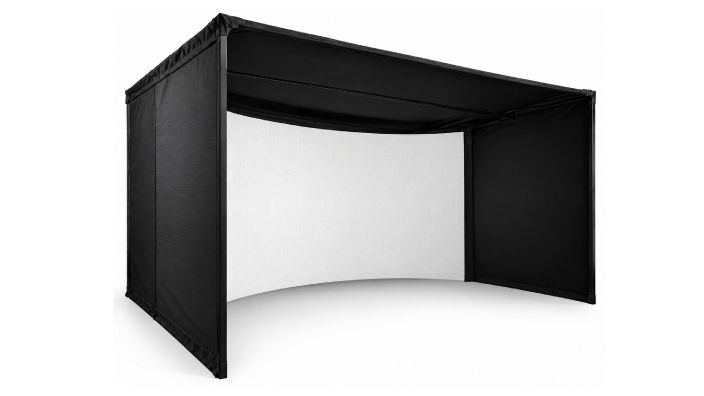

Protective perimeter padding can then conceal mounting hardware and bungees. Black light-absorbing material around the edges also helps control projection spillover, improve perceived contrast, and create a cleaner finished appearance. Once the screen has reached its final shape, final edge and geometry calibration can be performed accurately.

AK900ST and AK800ST feature Auto Screen Fit 2.0 as part of Smart Setup powered by BenQ AI Sim Sense. Combining TOF sensors with camera technology to automatically detect screen corners and curvature, Auto Screen Fit 2.0 adapts the projected geometry to fit the physical screen. Instead of manually repositioning a massive grid of warping points, users can complete full calibration with a single click in under 25 seconds.

For home users, that makes premium curved golf simulation attainable without specialized projection-calibration expertise, while commercial operators can reduce setup and recalibration work across multiple simulator bays. BenQ also offers an optimized manual curve-adjustment feature for specific room conditions and curved-screen requirements, so any additional fine-tuning can be completed in just minutes.

Easily Set Up Your Home Golf-Sim Projector: BenQ Auto Screen Fit 2.0

Curved golf simulator screens deliver their biggest benefit through deeper immersion. By wrapping more of the virtual course around the golfer’s field of view while reducing edge distortion across an extremely wide image, curvature can transform the projection surface from something the golfer looks at into a more enveloping environment to play within.

Traditionally, creating that experience required careful space planning, projector positioning, screen installation, and painstaking geometric calibration.

With AK900ST and AK800ST, BenQ AI Sim Sense and Auto Screen Fit 2.0 are designed to simplify the most technically demanding part of that process, helping make premium curved-screen golf immersion significantly more practical to bring to life.

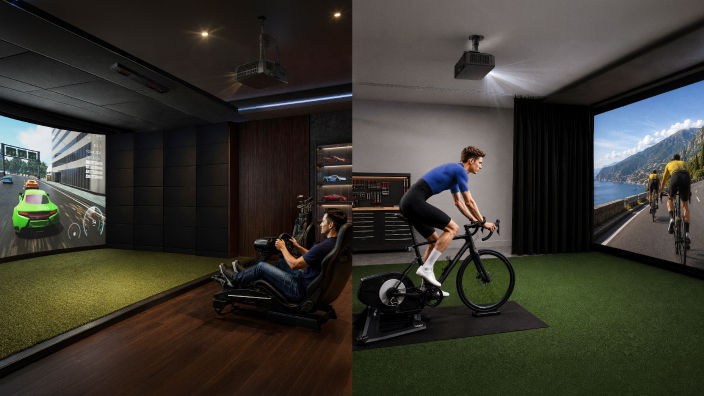

"For players building a hybrid golf and home entertainment space, a curved screen elevates other visually demanding simulations—like sim racing and virtual cycling—taking the overall immersive experience to the next level."
