DVY23PTZ4K | 4K Streaming Camera
DVY23PTZ4K | 4K UHD Streaming Camera
DVY23PTZ4K | 4K UHD Streaming Camera
- 20x optical and 16x digital zoom: With high optical zoom, capture expansive areas in great detail ensuring sharp and clear visuals without pixelation, ideal for capturing distance subject or objects.
- Pan: ±170° | Tilt: -30° to +90° : Wide pan range of ±170° and a tilt range from -30° to +30°, ensuring full-room coverage, whether you're capturing a lecture, tutorial, or live session.
- Video outputs: USB 3.0, HDMI, PoE: Experience exceptional connectivity with simultaneous output of 3 4K video streams through USB3.0, HDMI, & network interfaces for seamless integration.
- Streaming: NDI, RTSP and RTMP, Control Ports: RS232, RS485, LAN, and Remote Control: Supports multiple simultaneous streams for live streaming, recording, and monitoring, with remote control via RS232, network, or USB and up to 255 preset positions.
Simplify Live Streaming with Cutting-Edge PTZ Camera
State-of-the-art 4 K UHD PTZ Camera, designed for unparalleled video quality and versatility in various applications for live streaming and recording with 20x optical zoom, effectively reducing the image noise under low illumination with excellent low light performance, and multiple control interfaces.
-
4K UHD Video
-
20x Optical Zoom
-
Power Over Ethernet
-
Dual Streaming
-
Multiple Interfaces
-
Wide Field Angle
-
AI Auto Framing
-
Streaming: RTSP & RTMP

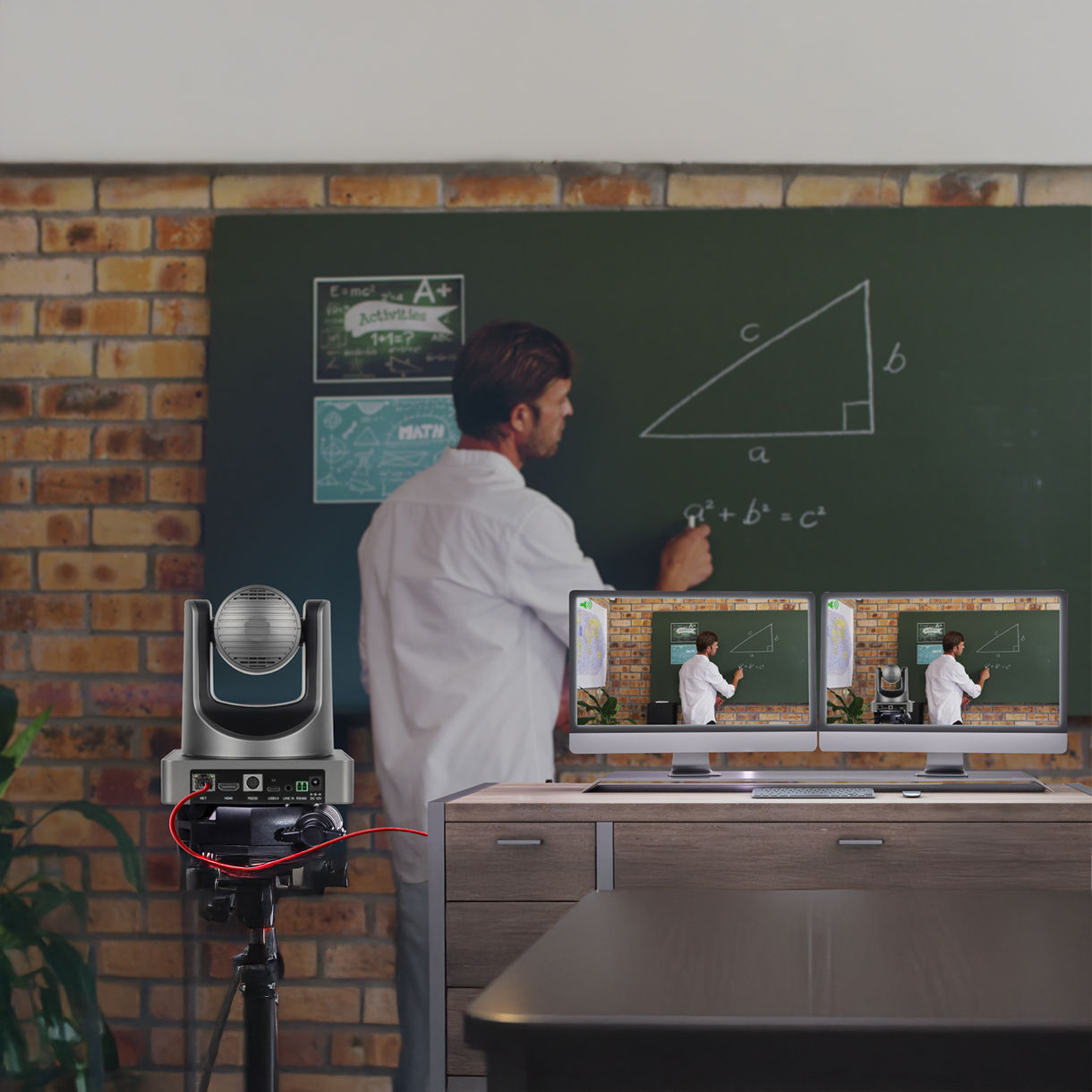

Take Your Coaching to Next Level
Designed for effective communication, the DVY23PTZ4K is the best camera for mentors looking to deliver dynamic lessons.
4K UHD Resolution
The 4K resolution allows for greater precision and zoom capabilities without compromising on image clarity, ideal for live streaming, and recording.
Ultra-detailed 20x Optical Zoom | 16x Digital Zoom
With a powerful 20x optical zoom and 16x digital zoom, instructors can effortlessly highlight complex visuals, diagrams, or live demonstrations. Whether you're teaching in a classroom or streaming a live session, capture crystal-clear close-ups without moving the camera.

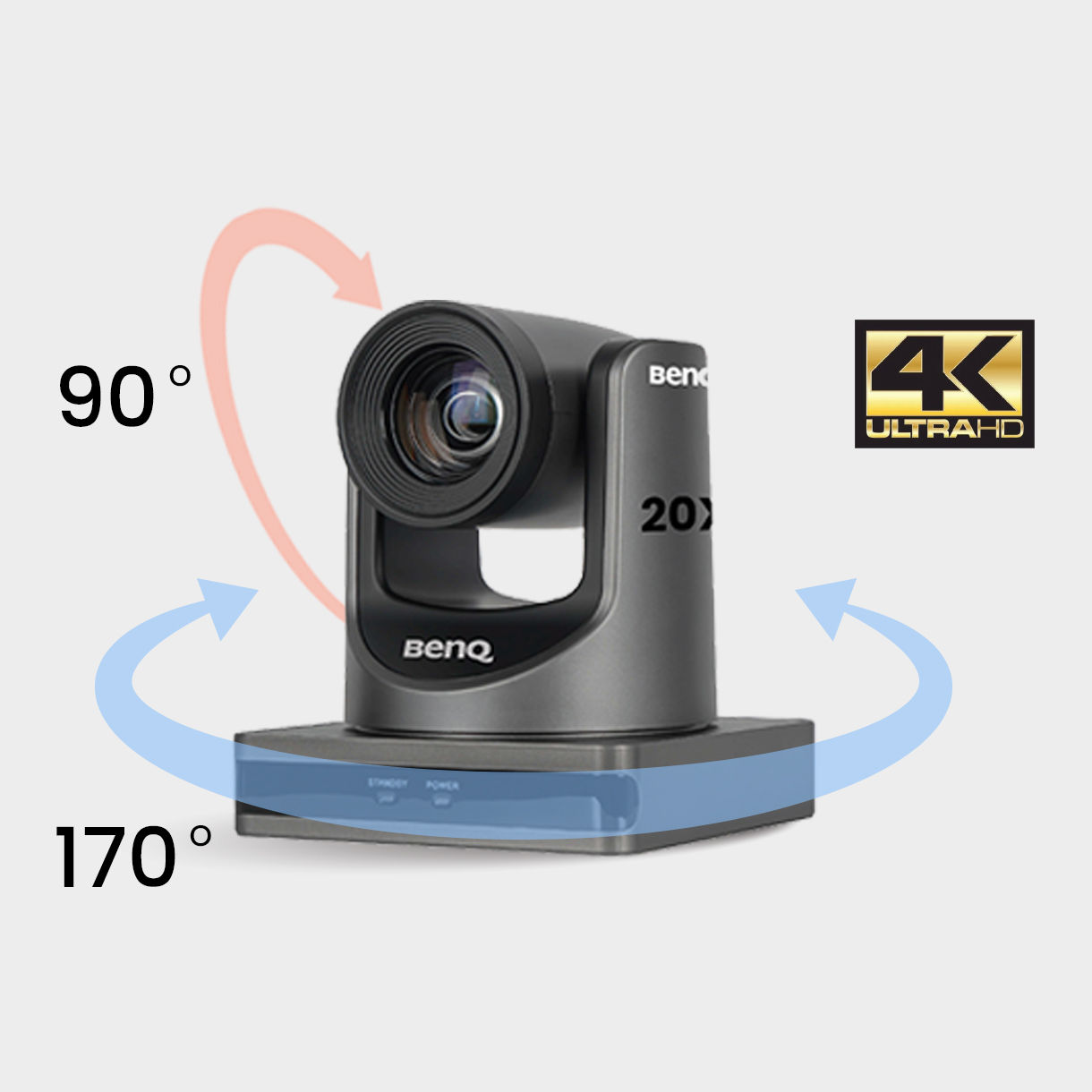

Pan-Tilt-Zoom with Remote Control
Easily frame the perfect shot with a wide pan range of ±170° and a tilt range from -30° to +30°, ensuring full-room coverage. Whether you're capturing a lecture, tutorial, or live session, remote control via RS232, network, or USB gives you seamless command..
Multiple stream and Outputs
DVY23PTZ4K enable multiple streams enable simultaneous outputs to different platforms, such as live streaming to YouTube while recording in high definition for archival purposes.
Specifications
All Specifications
Camera
Sensor
1/1.8 inches, CMOS, Effective Pixels:8.42 Megapixels
Lens
20x Optical zoom, f = 6.25mm ~ 125mm, F1 .58 - F3.95
Horizontal FOV
60° - 3.5°
Vertical FOV
35.7° - 2.0°
Video Format
YUY2: Max. 1080P30 ; MPEG: Max. 2160P30 ; H.264 AVC: Max. 2160P30 ; only vxn UVS Support 14.264 SVC: Max. 2160P30
Signal System
4KP30, 4KP25, 1080P30, 1080P25
Scanning Mode
Progressive
Digital Zoom
16x
Minimum Illumination
0.5Lux @ (F1 .8, AGC ON)
Shutter
1/30s - 1/10000s
White Balance
Auto, Indoor, Outdoor, One Push, Manual, VAR
Backlight Compensation
Support
Digital Noise Reduction
2D&3D Digital Noise Reduction
SNR
≥55dB
Pan Speed
2.7° ~ 35.7°/s
Tilt Speed
2.7° ~ 31.5°/s
Image Flip
Support
Preset Position
255
Preset Accuracy
0.1°
Dimension
144mm (W) x 144mm (D) x 168.3mm (H)
Input / Output Interface
USB Interfaces
1 x USB 3.0: Type-C
HD Output
1 x HDMI 1.4b 1
Network Interface
1 x RJ45: 10M / 100M adaptive Ethernet;
Audio Interface
1 x LINE In: 3.5mm Jack
Control Interface
"1 x RS485 IN(Optional): 2pin phoenix port, Max Distance: 1200m, Protocol: VISCA / Pelco-D / Pelco-P 1 x RS232 IN: 8pin Mini DIN, Max Distance: 30m, Protocol: VISCA / Pelco-D / Pelco-P"
Power Interface
JEITA type (DC IN 12V)
Network features
Video Compression
H.264 / MJEPG
Video Stream
First Stream, Second Stream
First Stream Resolution
3840x2160, 1920x1080, 1280x720 etc.
Second Stream Resolution
1920x1080, 1280x720, 1024x576 etc.
Video Bit Rate
32kbps~20480kbps
Bit Rate Control
VBR, CBR
Frame Rate
50Hz: 1fps ~ 25fps, 60Hz: 1fps ~ 30fps
Audio Compression
AAC
Audio Bit Rate
96Kbps, 128Kbps, 256Kbps
Protocols
NDI®|HX2, TCP/IP, HTTP, RTSP, RTMP(s), Onvif, DHCP, SRT, GB/T 28181, Multicast etc.
USB features
Operating System Supported
Windows 8 and above version, MacOS 10.5 and above version, Linux 2.4.6 and above version, Android needs to include the version of UVC-related drivers
Color System / Compression
YUY2 / MJPEG / H.264
USB Video
Support
USB Video Communication Protocol
UVC 1.1-1.5
UVC PTZ Control
Support
Power and Mechanical Specifications
Input Voltage
DC 12V / PoE(802.3af)
Input Current
12V 1.0A (Max.)
Operating Temperature
-10°C - 40°C
Storage Temperature
-40°C ~ 60°C
Power Consumption
12W (Max.)
Net Weight
1.41kg
