All Specifications
| Panel | |||
|---|---|---|---|
|
Screen size
43''
|
Screen size
55''
|
Screen size
65''
|
|
|
Panel type
ADS
|
Panel type
ADS
|
Panel type
ADS
|
|
|
Active area
941.2 × 529.4 mm
|
Active area
1209.6 × 680.4 mm
|
Active area
1428.5 × 803.5 mm
|
|
|
Aspect ratio
16:9
|
Aspect ratio
16:9
|
Aspect ratio
16:9
|
|
|
Resolution
UHD 3840 × 2160 pixels
|
Resolution
UHD 3840 × 2160 pixels
|
Resolution
UHD 3840 × 2160 pixels
|
|
|
Response time
8 ms
|
Response time
8 ms
|
Response time
8 ms
|
|
|
Color depth
10-bit
|
Color depth
10-bit
|
Color depth
10-bit
|
|
|
Orientation
Landscape and Portrait
|
Orientation
Landscape and Portrait
|
Orientation
Landscape and Portrait
|
|
|
Operation hours
18 hours / 7 days
|
Operation hours
18 hours / 7 days
|
Operation hours
18 hours / 7 days
|
|
|
Panel brightness (typical)
350 nits
|
Panel brightness (typical)
350 nits
|
Panel brightness (typical)
350 nits
|
|
|
Contrast ratio (typical)
1200:1
|
Contrast ratio (typical)
1200:1
|
Contrast ratio (typical)
1200:1
|
|
|
Dynamic contrast ratio
N/A
|
Dynamic contrast ratio
N/A
|
Dynamic contrast ratio
N/A
|
|
|
Color gamut
CIE 1976: 99% sRGB, 72% NTSC
|
Color gamut
CIE 1976: 99% sRGB, 72% NTSC
|
Color gamut
CIE 1976: 99% sRGB, 72% NTSC
|
|
|
Backlight life (typical)
30,000 hrs
|
Backlight life (typical)
30,000 hrs
|
Backlight life (typical)
30,000 hrs
|
|
| Glass | |||
|
Germ-resistant technology
N/A
|
Germ-resistant technology
N/A
|
Germ-resistant technology
N/A
|
|
|
Anti-glare
N/A
|
Anti-glare
N/A
|
Anti-glare
N/A
|
|
|
Hardness
N/A
|
Hardness
N/A
|
Hardness
N/A
|
|
| Touch screen | |||
|
Touch technology
N/A
|
Touch technology
N/A
|
Touch technology
N/A
|
|
|
Touch points
N/A
|
Touch points
N/A
|
Touch points
N/A
|
|
|
Touch response time
N/A
|
Touch response time
N/A
|
Touch response time
N/A
|
|
| System | |||
|
Memory | Storage
4GB I 32GB
|
Memory | Storage
4GB I 32GB
|
Memory | Storage
4GB I 32GB
|
|
|
OS
Android 14.0
|
OS
Android 14.0
|
OS
Android 14.0
|
|
|
GPU
G52 MC1
|
GPU
G52 MC1
|
GPU
G52 MC1
|
|
|
CPU
A73 × 4
|
CPU
A73 × 4
|
CPU
A73 × 4
|
|
| Connectivity | |||
|
VGA
N/A
|
VGA
N/A
|
VGA
N/A
|
|
|
HDMI (in | out)
2 × HDMI 2.0 | No
|
HDMI (in | out)
2 × HDMI 2.0 | No
|
HDMI (in | out)
2 × HDMI 2.0 | No
|
|
|
DisplayPort
N/A
|
DisplayPort
N/A
|
DisplayPort
N/A
|
|
|
USB-A
2 × 2.0
|
USB-A
2 × 2.0
|
USB-A
2 × 2.0
|
|
|
USB-C
N/A
|
USB-C
N/A
|
USB-C
N/A
|
|
|
USB-B (for touch)
N/A
|
USB-B (for touch)
N/A
|
USB-B (for touch)
N/A
|
|
|
3.5 mm Line in (1)
N/A
|
3.5 mm Line in (1)
N/A
|
3.5 mm Line in (1)
N/A
|
|
|
3.5 mm Line out
Earphone × 1
|
3.5 mm Line out
Earphone × 1
|
3.5 mm Line out
Earphone × 1
|
|
|
OPS slot (for slot-in PC)
N/A
|
OPS slot (for slot-in PC)
N/A
|
OPS slot (for slot-in PC)
N/A
|
|
|
Micro SD reader
N/A
|
Micro SD reader
N/A
|
Micro SD reader
N/A
|
|
|
Wi-Fi
N/A
|
Wi-Fi
N/A
|
Wi-Fi
N/A
|
|
|
Bluetooth®
N/A
|
Bluetooth®
N/A
|
Bluetooth®
N/A
|
|
|
S/PDIF out
N/A
|
S/PDIF out
N/A
|
S/PDIF out
N/A
|
|
|
Ethernet
10 / 100 Mbps (Android) × 1
|
Ethernet
10 / 100 Mbps (Android) × 1
|
Ethernet
10 / 100 Mbps (Android) × 1
|
|
|
3.5 mm Line in (2)
N/A
|
3.5 mm Line in (2)
N/A
|
3.5 mm Line in (2)
N/A
|
|
|
RS-232
1 | 0
|
RS-232
1 | 0
|
RS-232
1 | 0
|
|
| Built-in peripherals | |||
|
NFC sensor
N/A
|
NFC sensor
N/A
|
NFC sensor
N/A
|
|
|
Ambient light sensor
N/A
|
Ambient light sensor
N/A
|
Ambient light sensor
N/A
|
|
|
IR sensor
Yes
|
IR sensor
Yes
|
IR sensor
Yes
|
|
|
Motion sensor
N/A
|
Motion sensor
N/A
|
Motion sensor
N/A
|
|
|
Microphone
N/A
|
Microphone
N/A
|
Microphone
N/A
|
|
|
Speaker
2 × 12 W
|
Speaker
2 × 12 W
|
Speaker
2 × 12 W
|
|
|
Camera
N/A
|
Camera
N/A
|
Camera
N/A
|
|
|
Air sensor
N/A
|
Air sensor
N/A
|
Air sensor
N/A
|
|
|
Subwoofer
N/A
|
Subwoofer
N/A
|
Subwoofer
N/A
|
|
|
Air Ionizer
N/A
|
Air Ionizer
N/A
|
Air Ionizer
N/A
|
|
| Power | |||
|
ENERGY STAR®
Yes
|
ENERGY STAR®
Yes
|
ENERGY STAR®
Yes
|
|
|
Power
AC 100-240V 50/60Hz
|
Power
AC 100-240V 50/60Hz
|
Power
AC 100-240V 50/60Hz
|
|
|
Standby power consumption
<0.5 W
|
Standby power consumption
<0.5 W
|
Standby power consumption
<0.5 W
|
|
|
Typical power consumption
60 W
|
Typical power consumption
71 W
|
Typical power consumption
76 W
|
|
| Physical | |||
|
Dimensions (W x H x D)

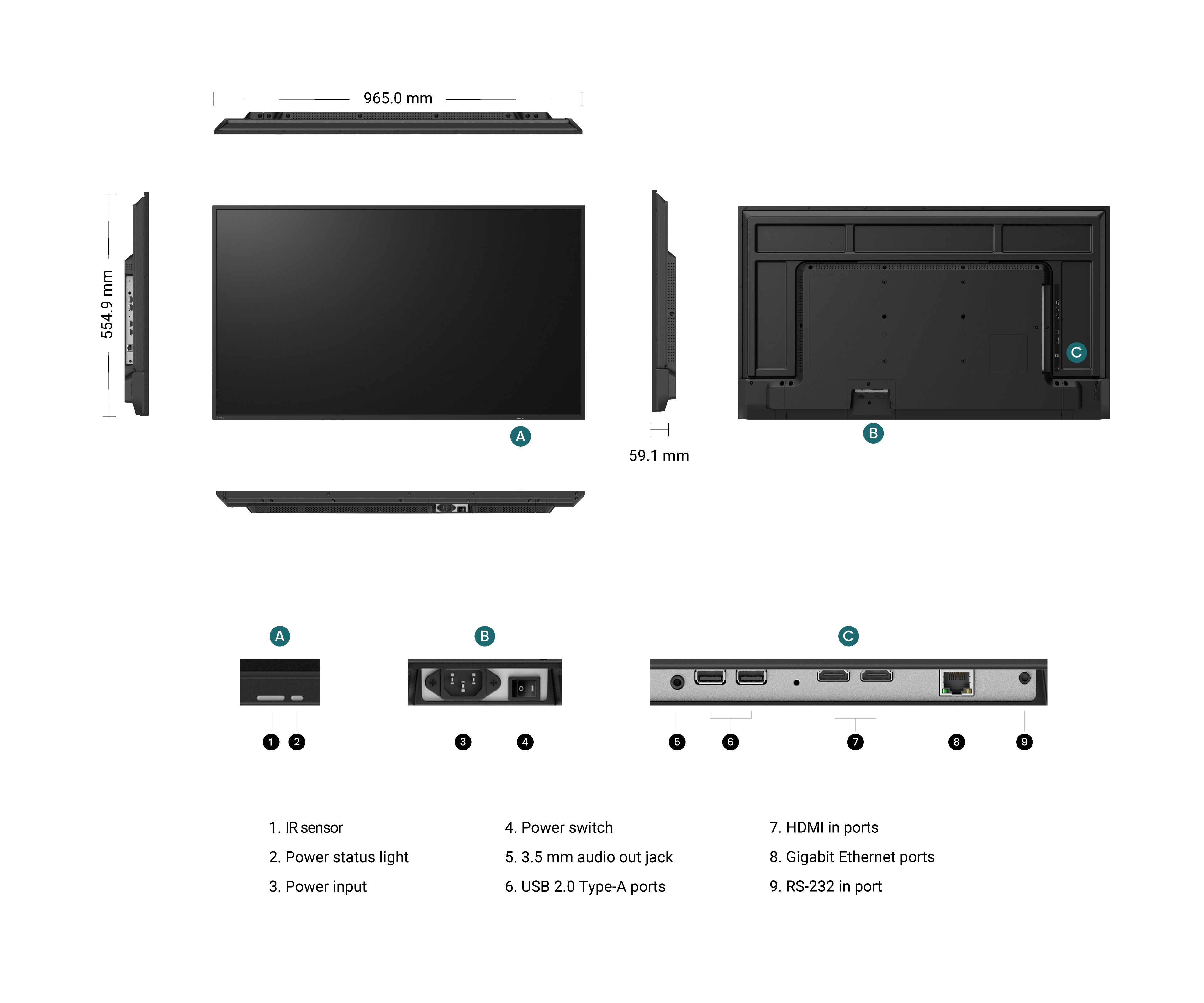

965 × 554.9 × 59.1 mm (38 × 21.9 × 2.3 inch)
|
Dimensions (W x H x D)

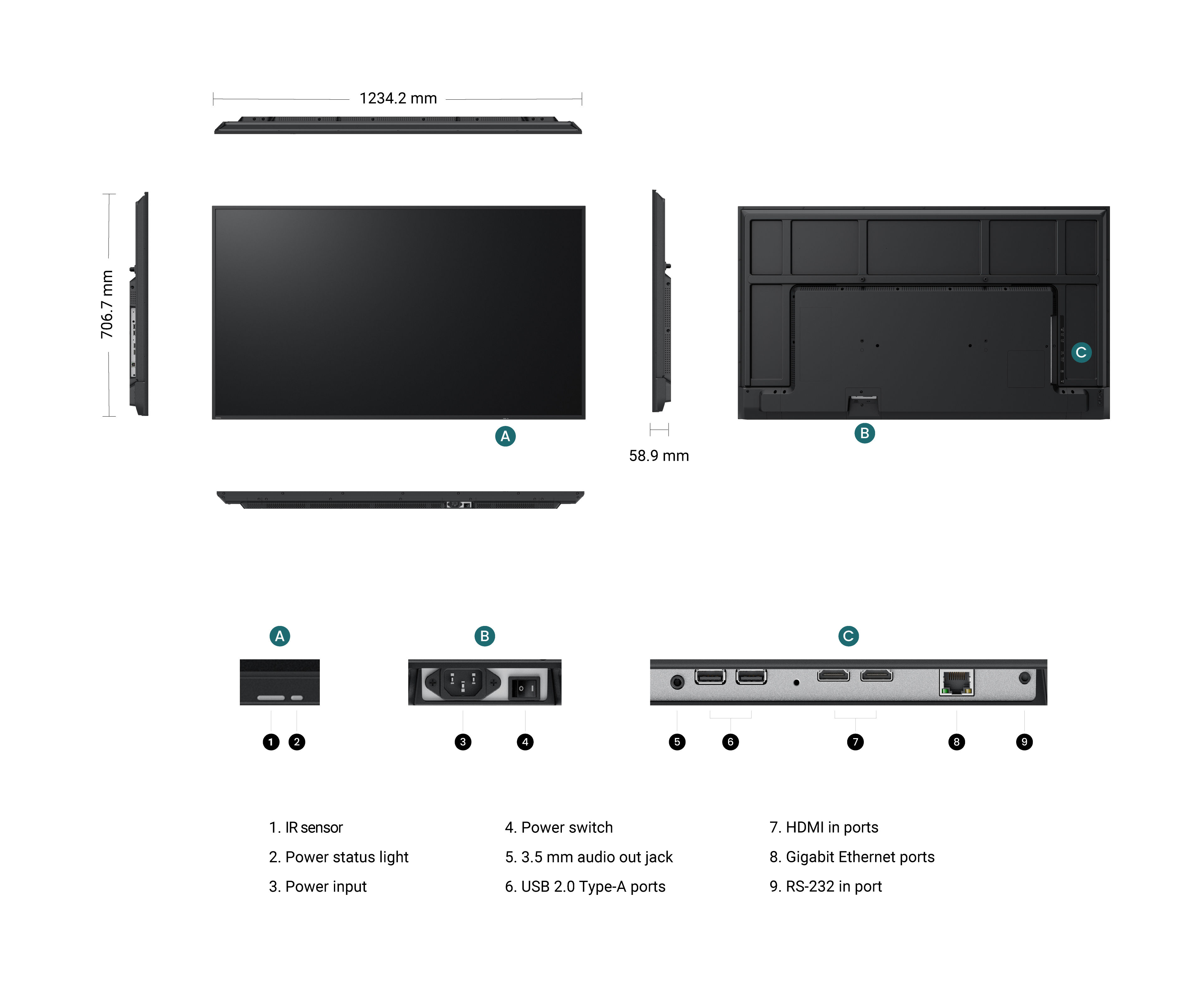

1234.2 × 706.7 × 58.9 mm(48.6 × 27.8 × 2.3 inch)
|
Dimensions (W x H x D)
1452.9 × 829.2 × 59.7 mm(57.2 × 32.7 × 2.4 inch)
|
|
|
Shipping dimensions (W x H x D)
1075 × 683 × 137 mm (42.3 × 26.9 × 5.4 inch )
|
Shipping dimensions (W x H x D)
1386 × 845 × 140 mm (54.6 × 33.3 × 5.5 inch )
|
Shipping dimensions (W x H x D)
1635 × 987 × 159 mm(64.4 × 38.9 × 6.3 inch)
|
|
|
Weight (product I shipping)
7.9 kg | 11.3 kg (17.4 lbs | 24.9 lbs)
|
Weight (product I shipping)
14.7 kg | 19.9 kg (32.4 lbs | 43.9 lbs)
|
Weight (product I shipping)
16.5 kg | 21.8 kg (36.4 lbs | 77.4 lbs)
|
|
|
Mount (screws)
VESA 200 × 200 mm (4 × M6 × 15L)
|
Mount (screws)
VESA 400 × 200 mm (4 × M6 × 15L)
|
Mount (screws)
VESA 400 × 400 mm (4 × M6 × 15L)
|
|
|
Pen Tray
N/A
|
Pen Tray
N/A
|
Pen Tray
N/A
|
|
| Environment | |||
|
Operating temperature
0°C ~ 40°C | 32°F ~ 104°F
|
Operating temperature
0°C ~ 40°C | 32°F ~ 104°F
|
Operating temperature
0°C ~ 40°C | 32°F ~ 104°F
|
|
|
Storage temperature
-10°C ~ 60°C | 14°F ~ 140°F
|
Storage temperature
-10°C ~ 60°C | 14°F ~ 140°F
|
Storage temperature
-10°C ~ 60°C | 14°F ~ 140°F
|
|
|
Storage humidity
10% ~ 80% RH non-condensing
|
Storage humidity
10% ~ 80% RH non-condensing
|
Storage humidity
10% ~ 80% RH non-condensing
|
|
|
Operating humidity
10% ~ 80% RH non-condensing
|
Operating humidity
10% ~ 80% RH non-condensing
|
Operating humidity
10% ~ 80% RH non-condensing
|
|
| Software | |||
|
Whiteboarding
N/A
|
Whiteboarding
N/A
|
Whiteboarding
N/A
|
|
|
Wireless screen sharing
InstaShare 2
|
Wireless screen sharing
InstaShare 2
|
Wireless screen sharing
InstaShare 2
|
|
|
Device management
DMS
|
Device management
DMS
|
Device management
DMS
|
|
|
Account management
N/A
|
Account management
N/A
|
Account management
N/A
|
|
|
Quick access tool
N/A
|
Quick access tool
N/A
|
Quick access tool
N/A
|
|
|
Broadcast system
X-Sign
|
Broadcast system
X-Sign
|
Broadcast system
X-Sign
|
|
|
Flicker Free
N/A
|
Flicker Free
N/A
|
Flicker Free
N/A
|
|
|
Low Blue Light
N/A
|
Low Blue Light
N/A
|
Low Blue Light
N/A
|
|
| Accessories | |||
|
Cables
1 × HDMI (1.5 m | 4.9 ft), 1 × RS232 (1.8 m | 5.9 ft)
|
Cables
1 × HDMI (1.5 m | 4.9 ft), 1 × RS232 (1.8 m | 5.9 ft)
|
Cables
1 × HDMI (1.5 m | 4.9 ft), 1 × RS232 (1.8 m | 5.9 ft)
|
|
|
Wall mount
N/A
|
Wall mount
N/A
|
Wall mount
N/A
|
|
|
Pen
N/A
|
Pen
N/A
|
Pen
N/A
|
|
|
Remote control
1
|
Remote control
1
|
Remote control
1
|
