I. Upper arm｜II. Lower arm｜III. Mount base

IV. Display bracket｜V. C-clamp

A. 5 mm Allen key｜B. Screw for clamp x 1 (M8 x 90)｜C. Screw for grommet x 1 (M8 x 130)

D. Hinge washer x 2｜E. Hinge joint｜F. 3 mm Allen key

G. Hinge screw (M5 x 30)｜H. Screw x 4 (M4 x 12)｜I. Washer x 4 (D5)

J. Spare parts

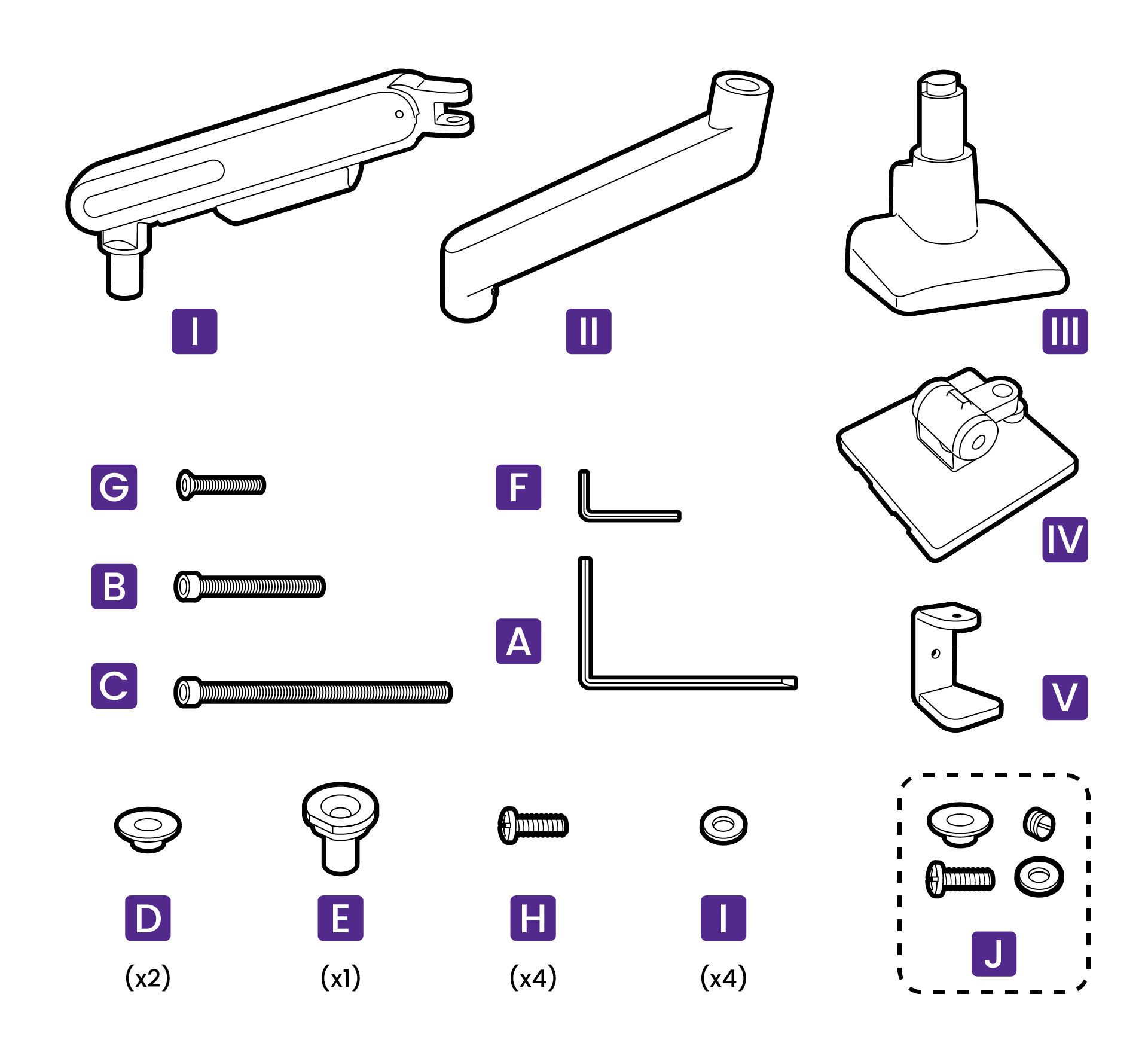

Illustration of package contents
Illustration of package contents

Note

The images shown here may differ from the actual contents and the product supplied for your region.

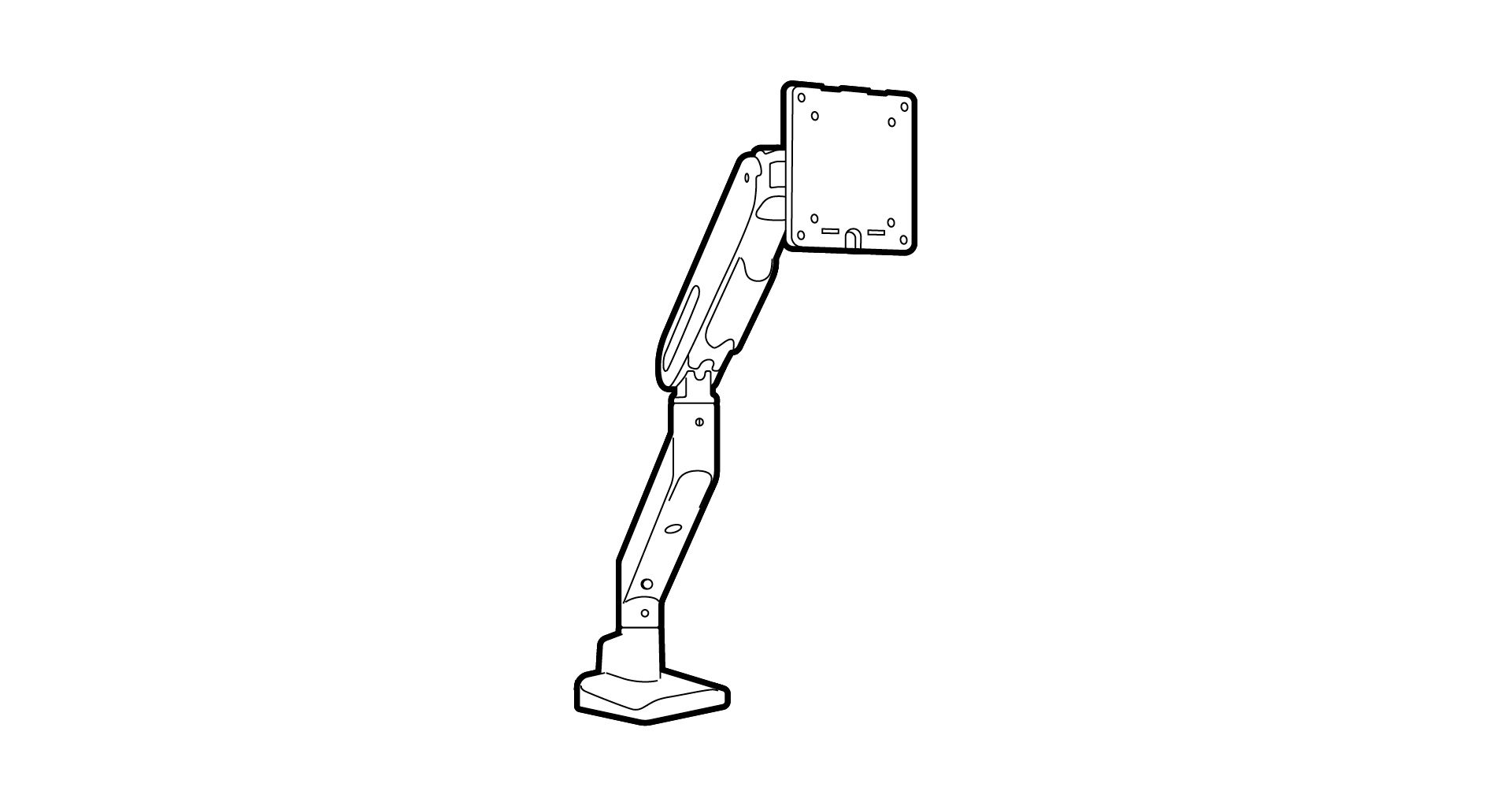

Product overview

Product overview
Product overview
Content
1. Mounting options
2-A. Installing mount base - Clamp
2-B. Installing mount base - Grommet
3. Installing lower arm
4. Installing display braket and upper arm
5. Installing a monitor
6. Tension adjustments
7. Cable management (optional)
1. Mounting options
2-A. Installing mount base - Clamp
2-B. Installing mount base - Grommet
3. Installing lower arm
4. Installing display braket and upper arm
5. Installing a monitor
6. Tension adjustments
7. Cable management (optional)

1. Mounting options

A. Clamp

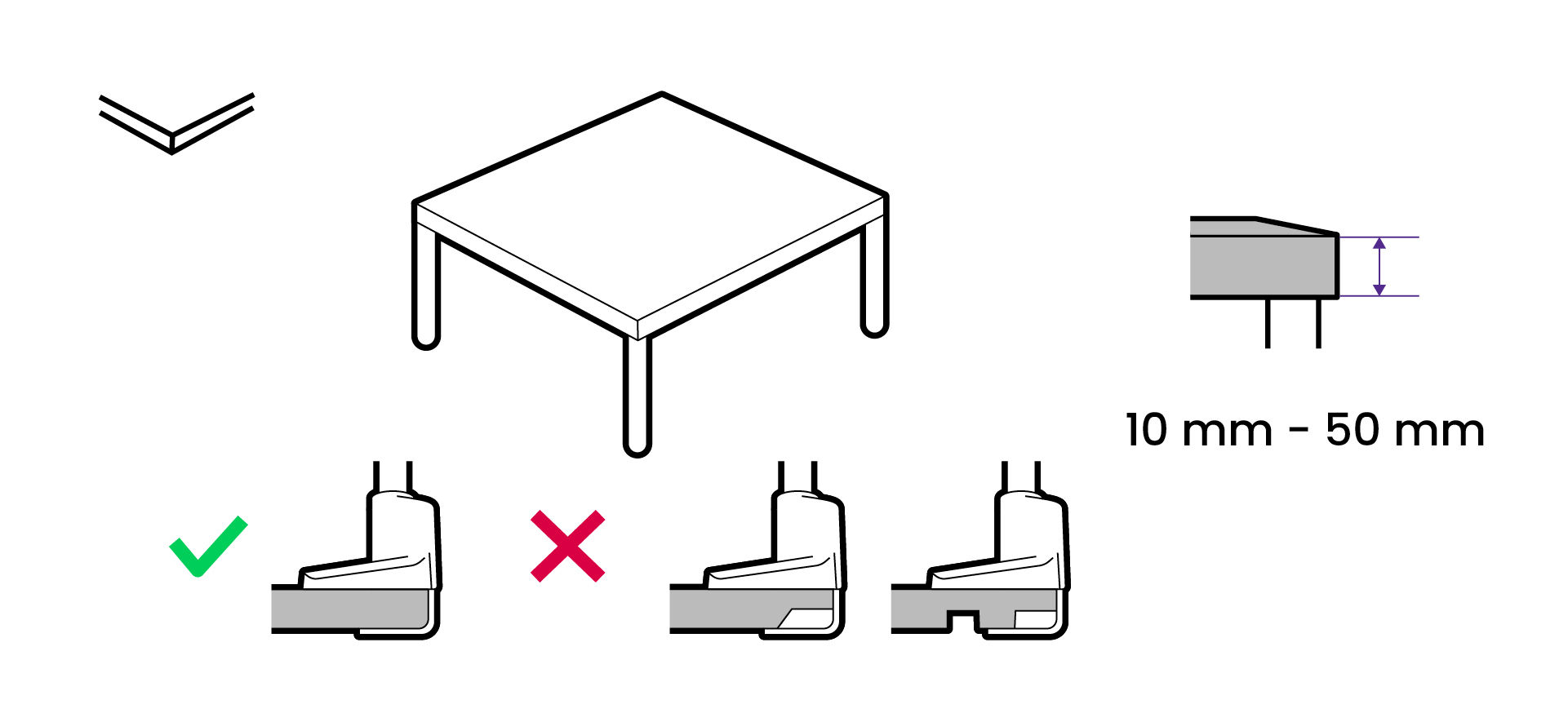

Clamp mounting environment.
Clamp mounting environment.

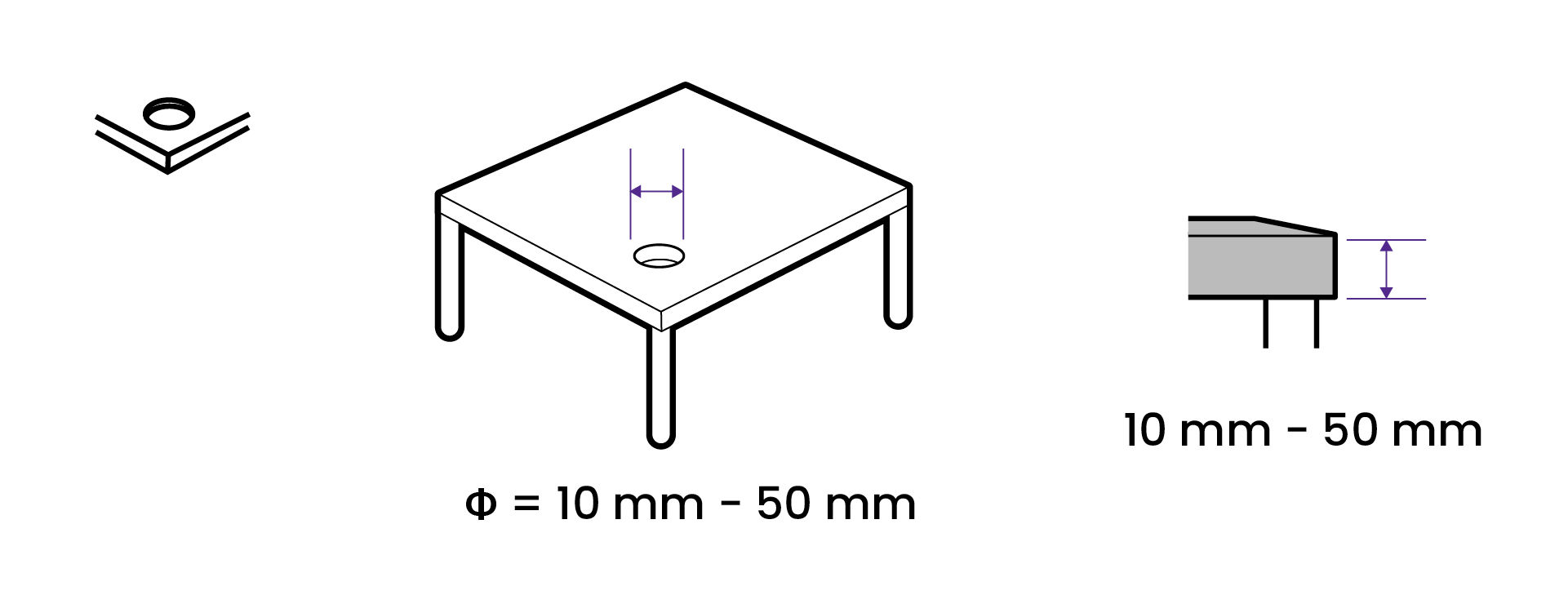

B. Grommet

Grommet mounting environment.
Grommet mounting environment.

2-A. Installing mount base - Clamp

1.

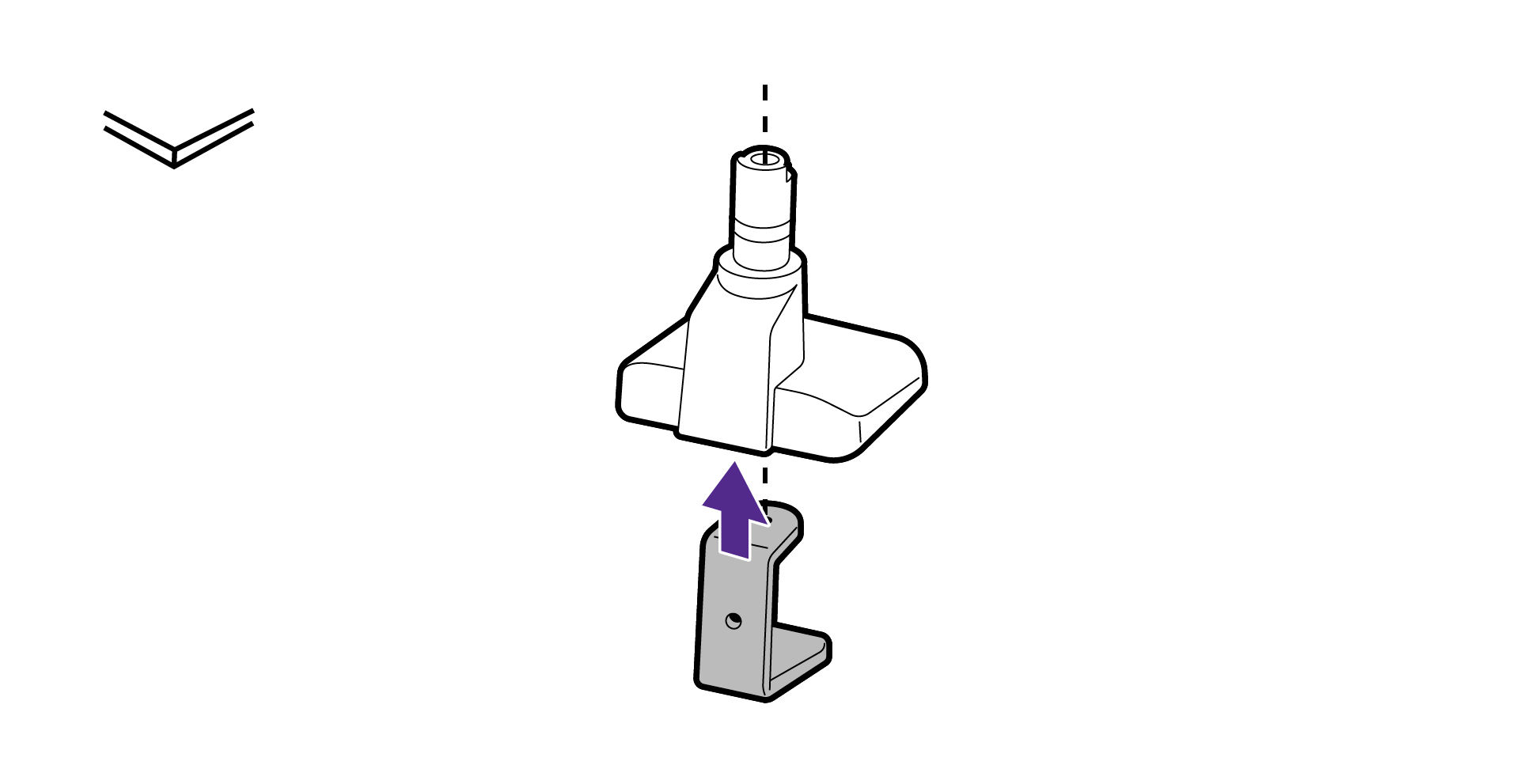

Attach c-clamp to the mount base.
Attach c-clamp to the mount base.

2.

Tighten the screw halfway.

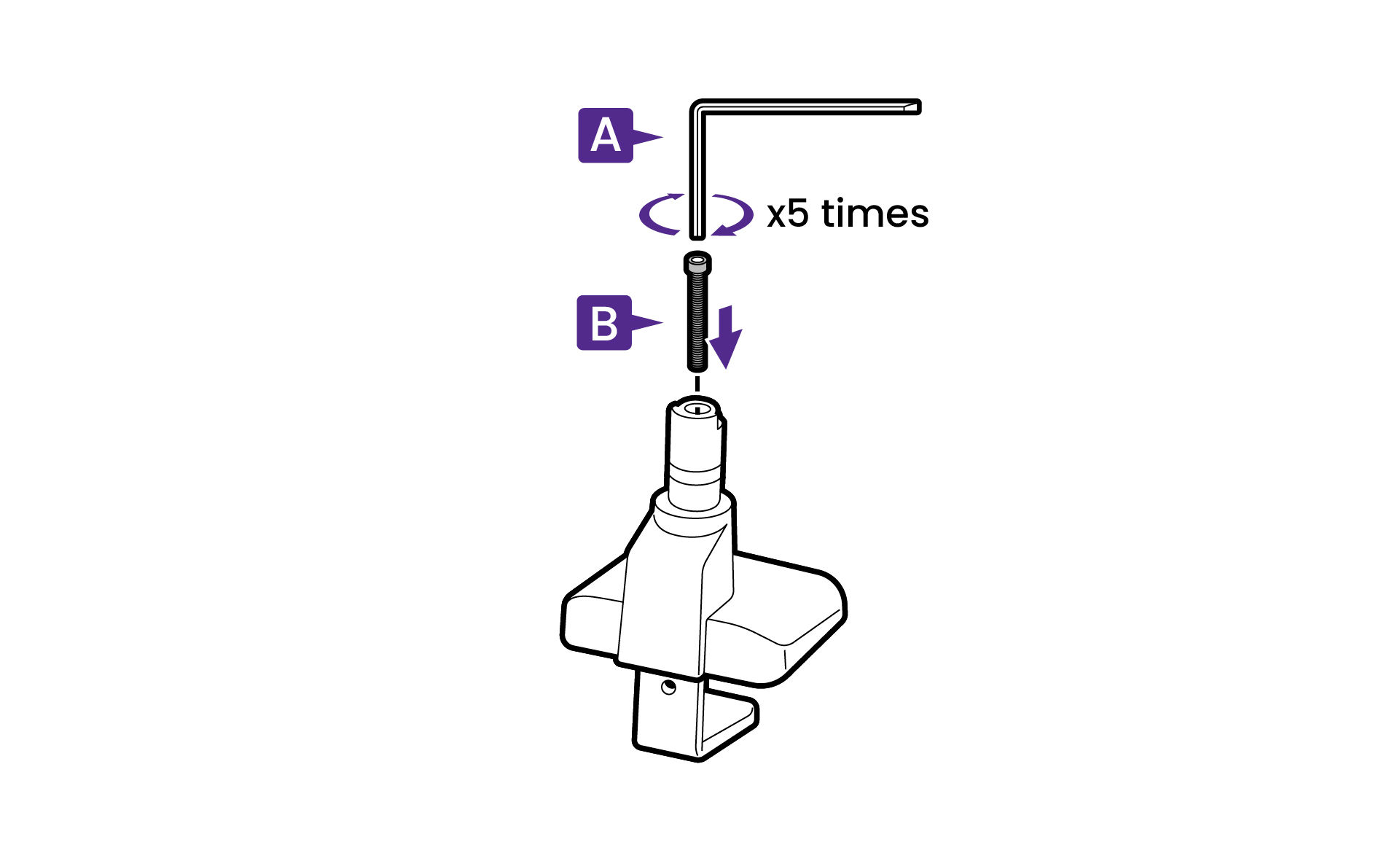

Fix c-clamp and the mount base with the clamp screw and the 5 mm Allen key. Do not tighten the screw all the way down at this moment.
Fix c-clamp and the mount base with the clamp screw and the 5 mm Allen key. Do not tighten the screw all the way down at this moment.

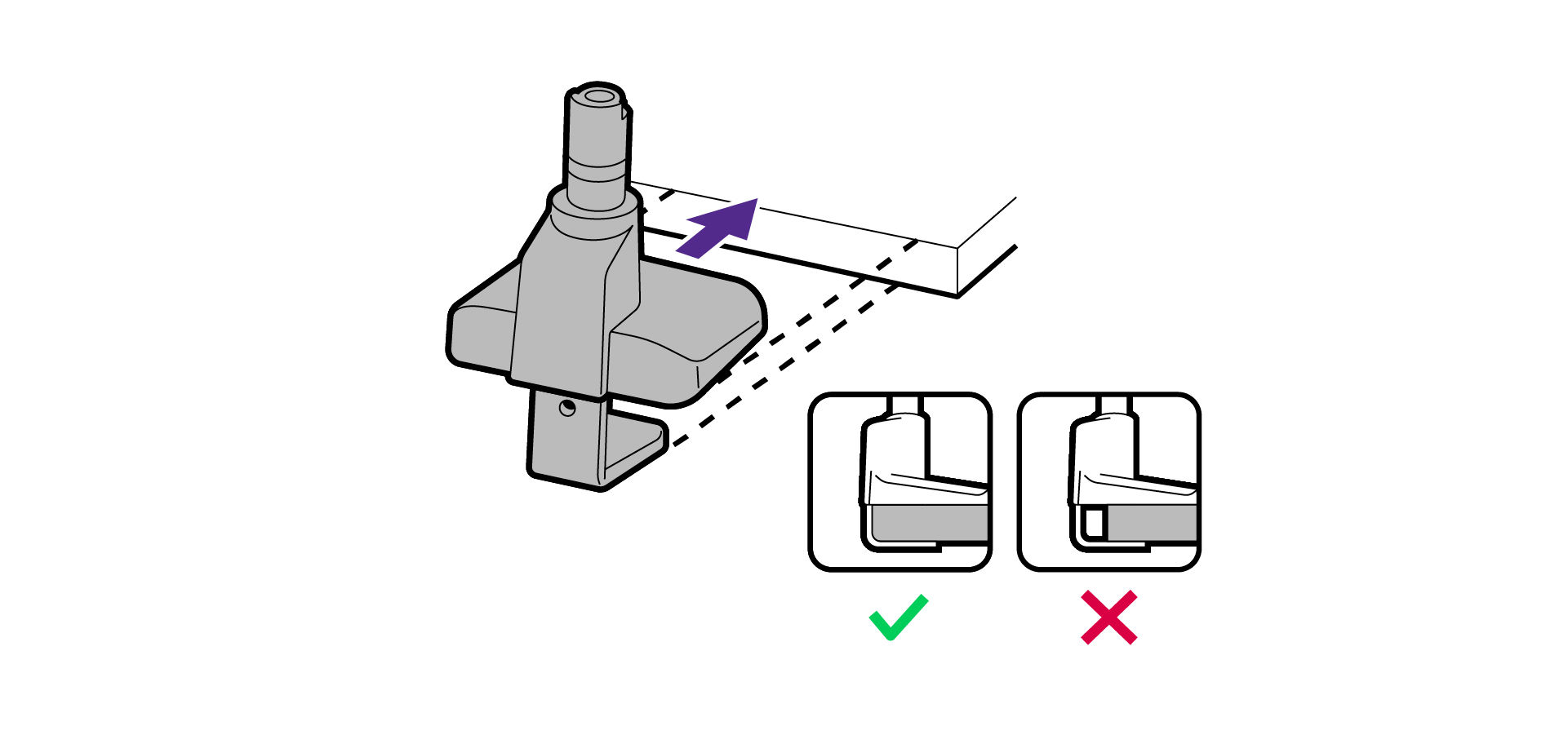

3.

Hold the parts carefully and keep them from falling.

Attach the mount base together with the c-clamp to your desk. Hold the parts carefully and keep them from falling.
Attach the mount base together with the c-clamp to your desk. Hold the parts carefully and keep them from falling.

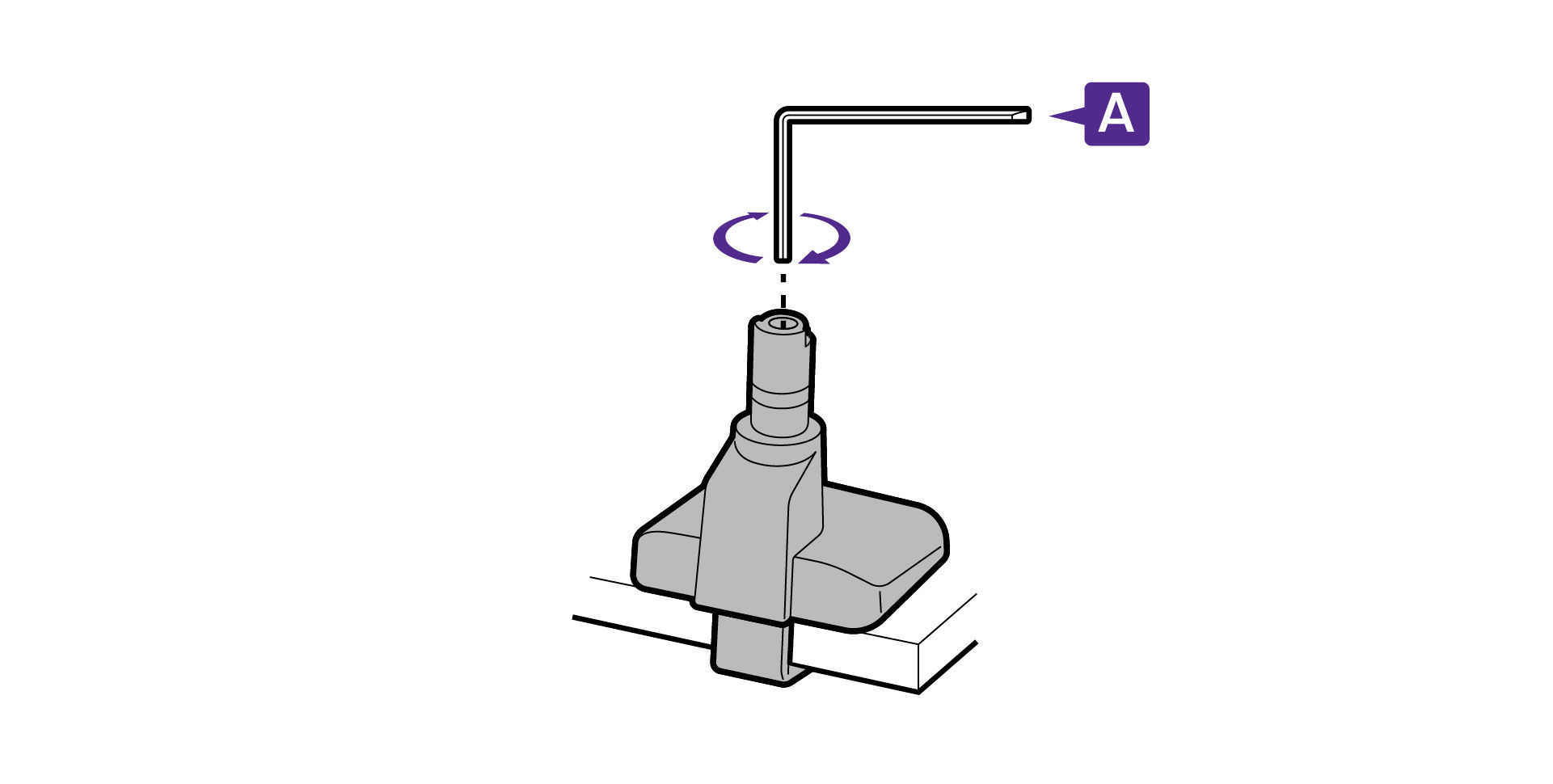

4.

Tighten the screw.

Fully tighten the screw to secure all parts together by the 5 mm Allen key.
Fully tighten the screw to secure all parts together by the 5 mm Allen key.

2-B. Installing mount base - Grommet

Align the holes properly.

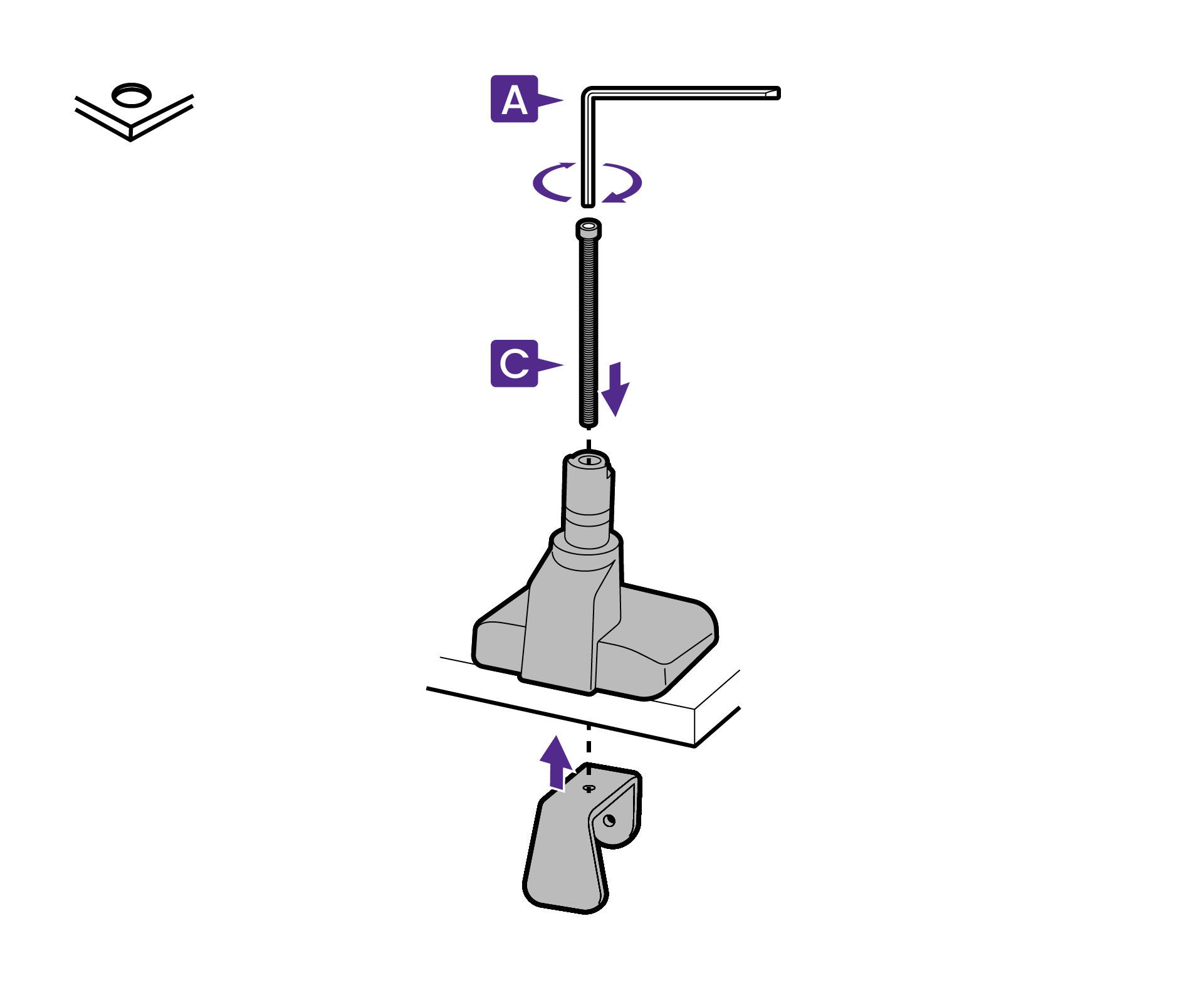

Turn the c-clamp and fix it and the mount base with the grommet screw and the 5 mm Allen key.
Turn the c-clamp and fix it and the mount base with the grommet screw and the 5 mm Allen key.

3. Installing lower arm

1.

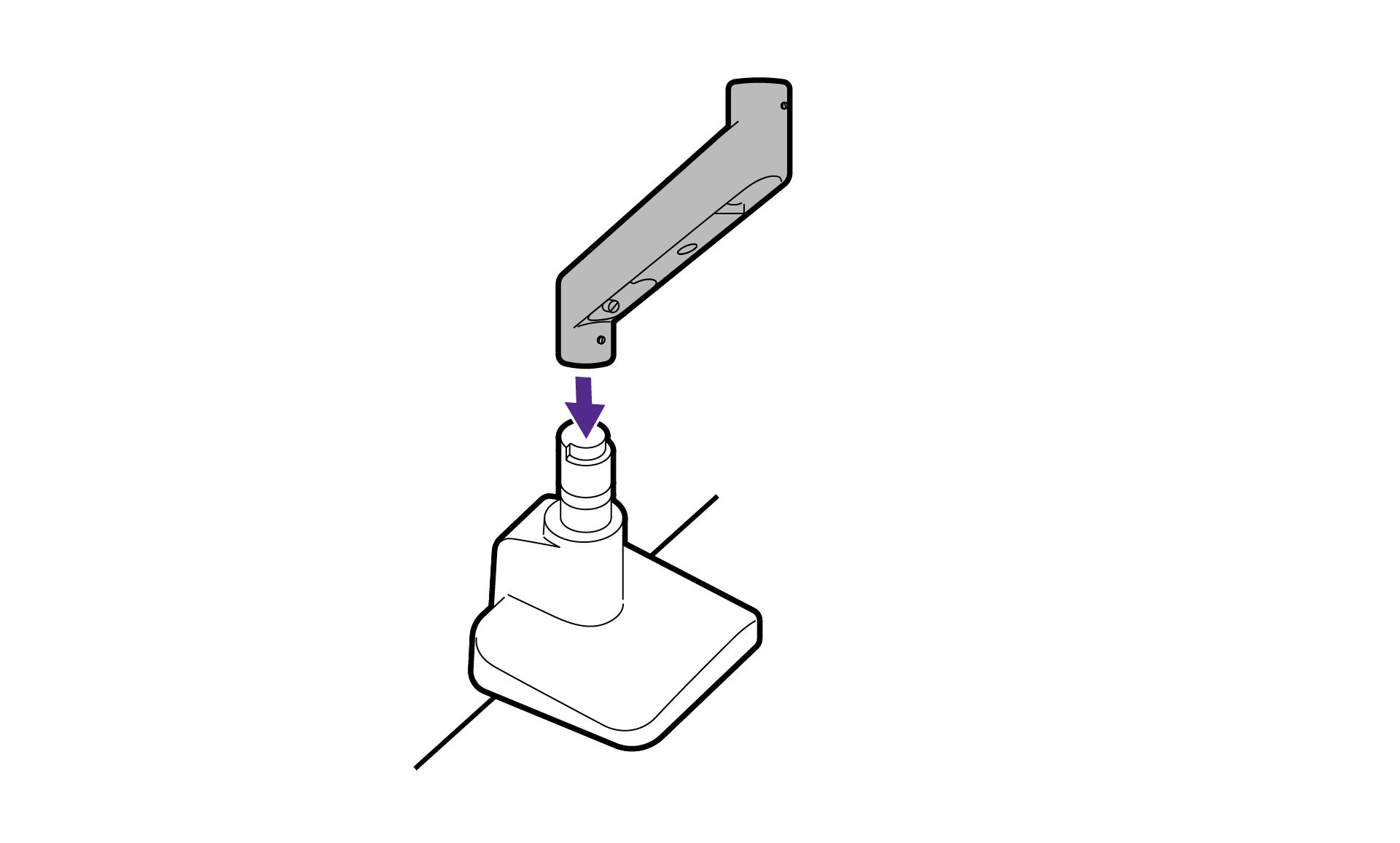

Align the lower arm with the mount base and place it properly without the metal part being seen.
Align the lower arm with the mount base and place it properly without the metal part being seen.

2.

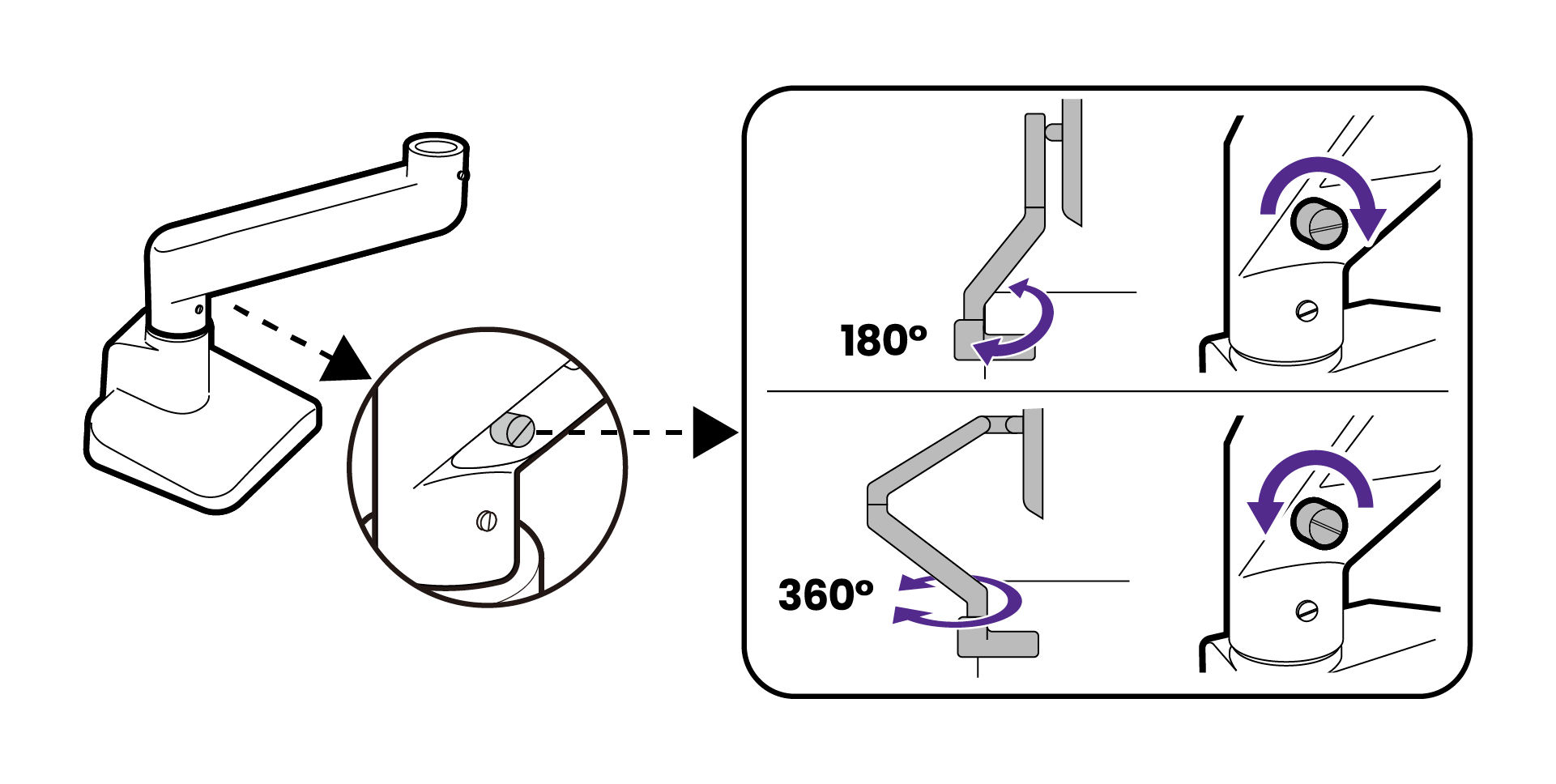

Decide the swivel range by the thumbscrew on the inner side of the lower arm.
Decide the swivel range by the thumbscrew on the inner side of the lower arm.

3.

Do not overtighten the screw.

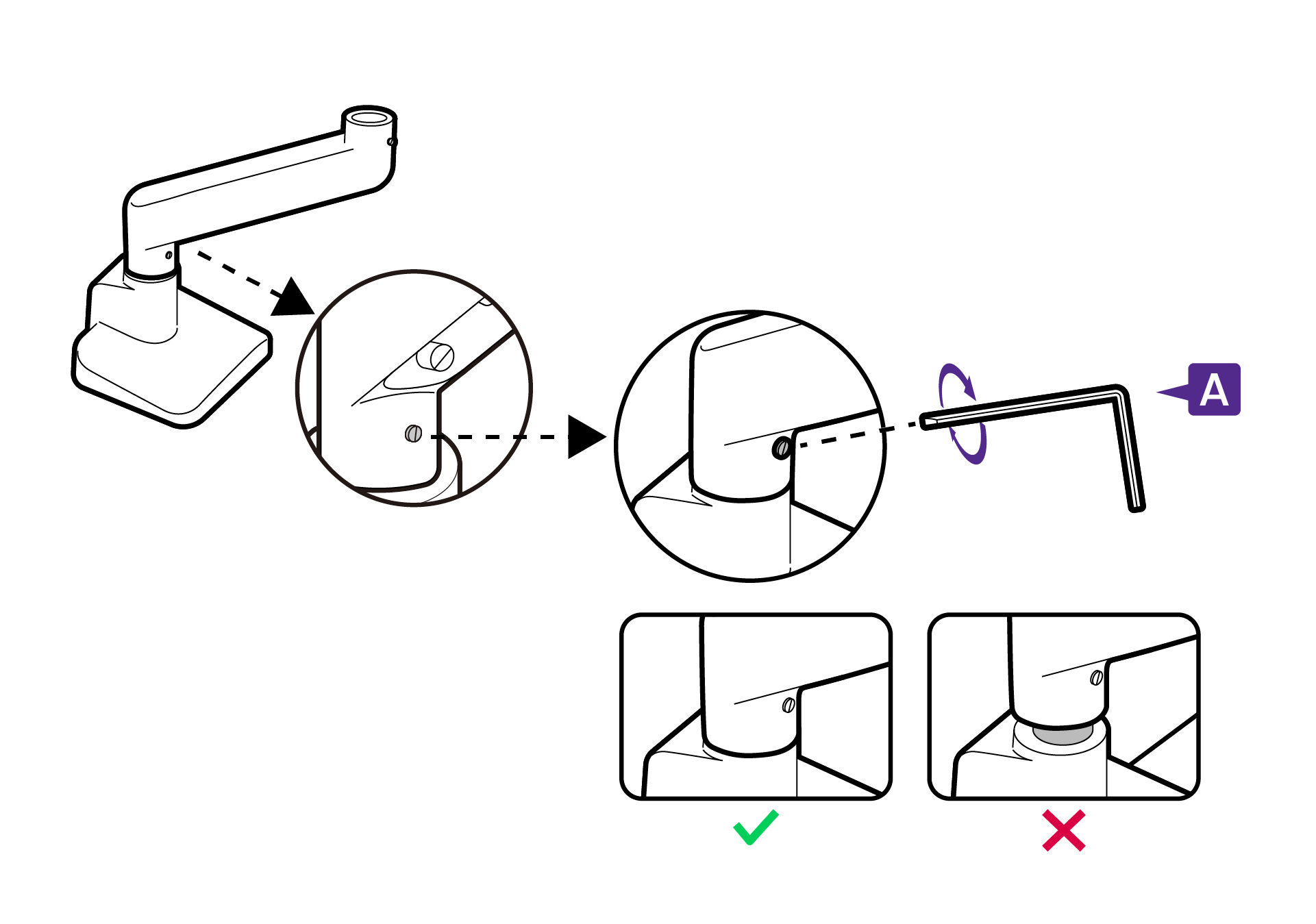

Use the 5 mm Allen key to secure the lower arm and the mount base by the stop screw.
Use the 5 mm Allen key to secure the lower arm and the mount base by the stop screw.

4. Installing display braket and upper arm

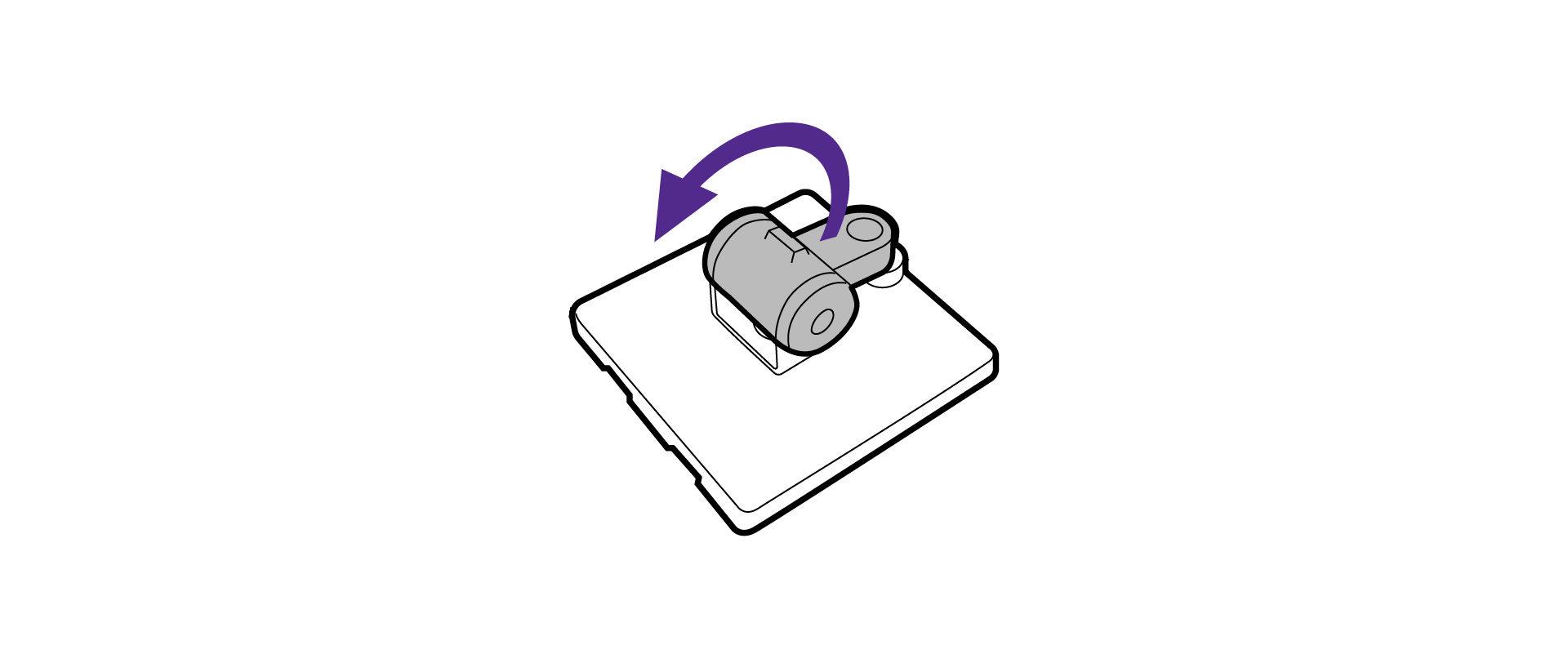

1.

Move the hinge on the display bracket away from the thumbscrew.
Move the hinge on the display bracket away from the thumbscrew.

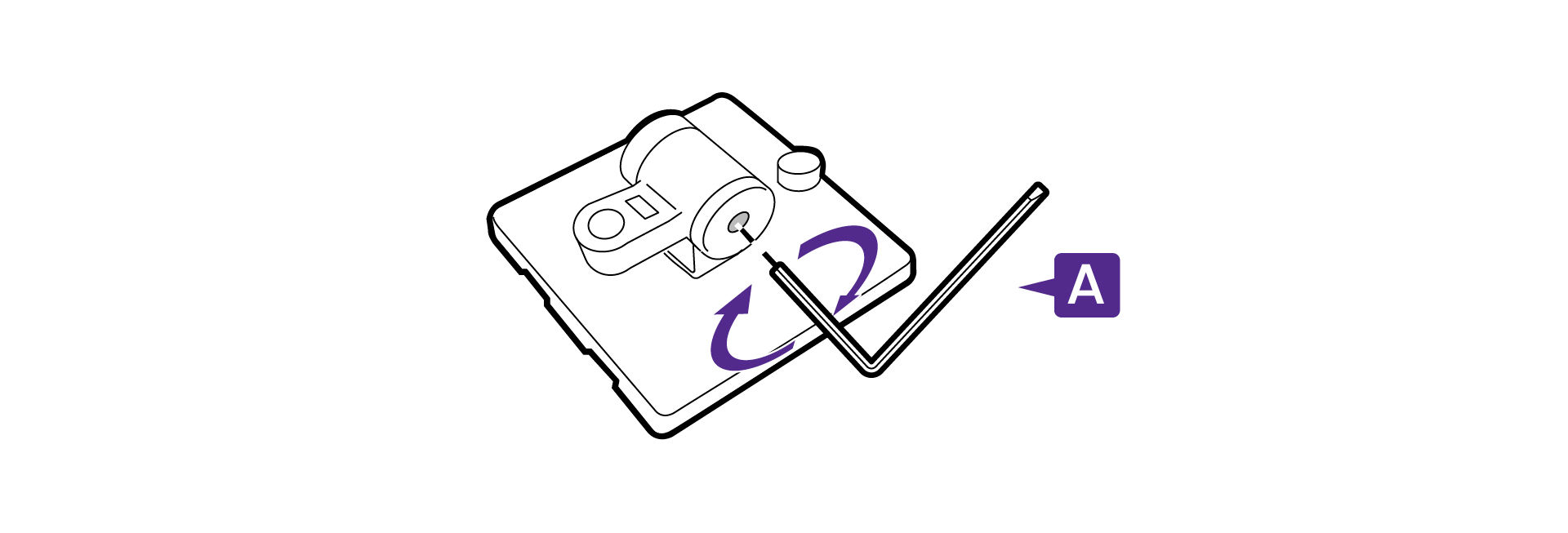

2.

Tighten the screw.

Secure the hinge with the display bracket using the 5 mm Allen key.
Secure the hinge with the display bracket using the 5 mm Allen key.

3.

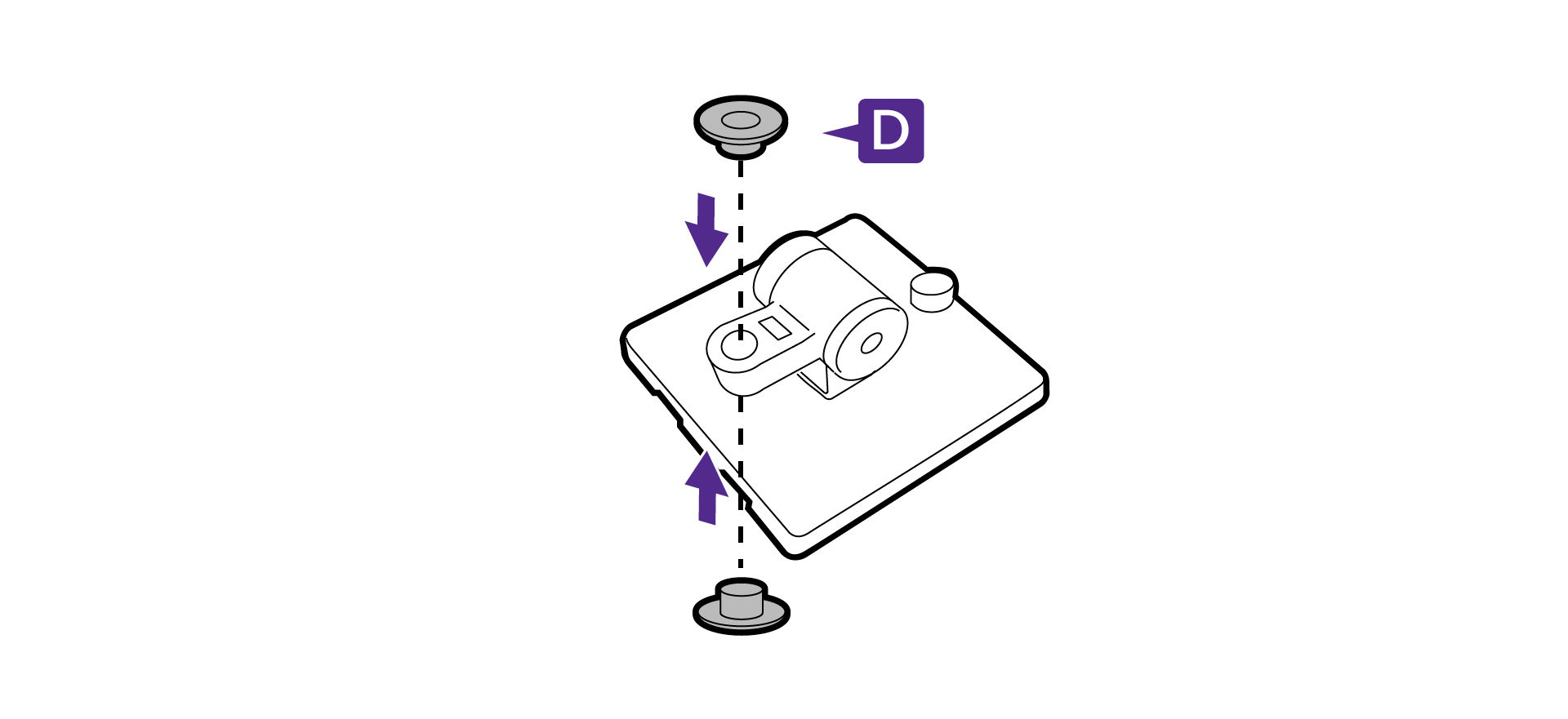

Insert the hinge washers to the display bracket.
Insert the hinge washers to the display bracket.

4.

Align the holes properly.

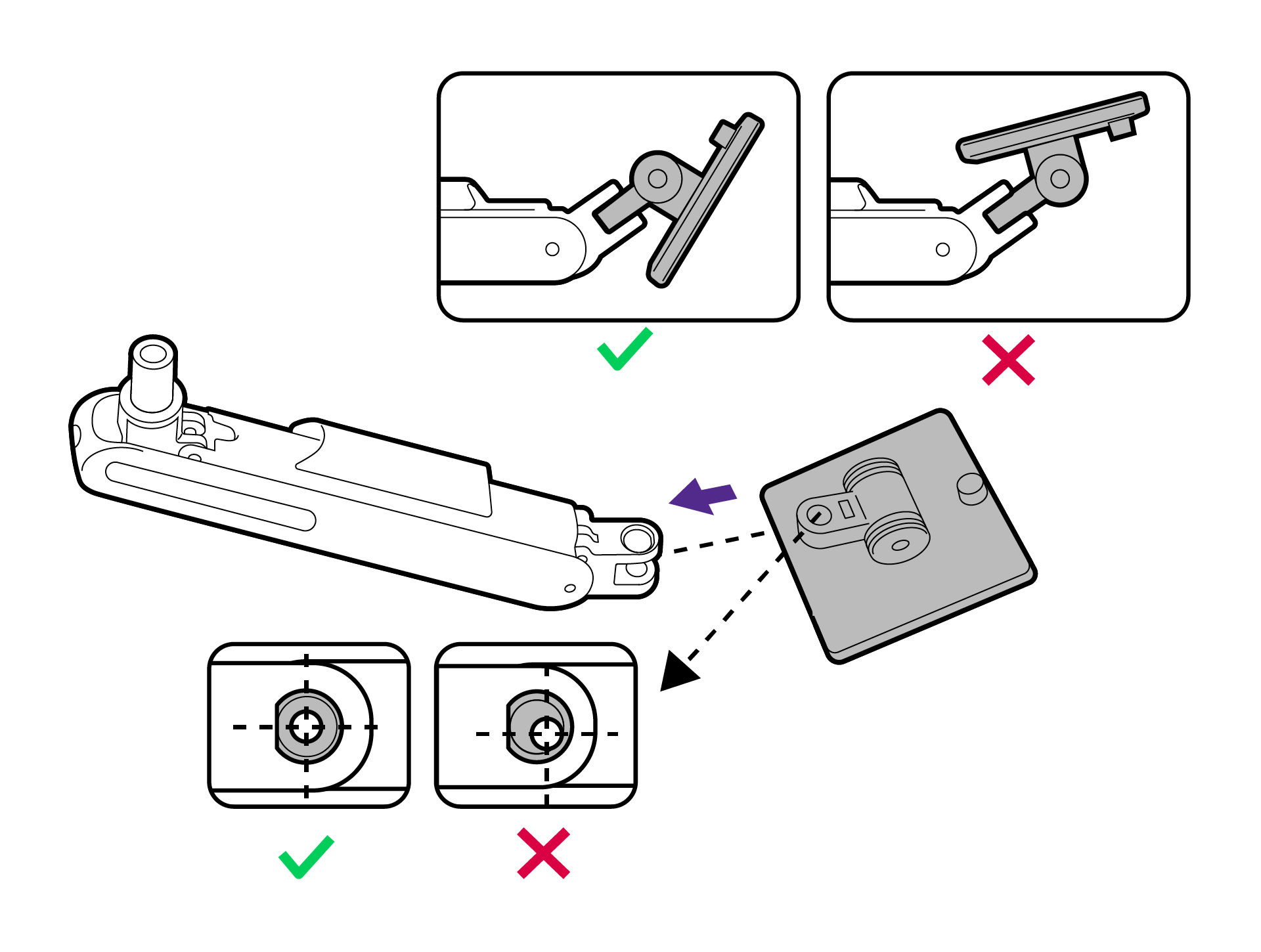

Attach the display bracket to the upper arm. Align the holes properly.
Attach the display bracket to the upper arm. Align the holes properly.

5.

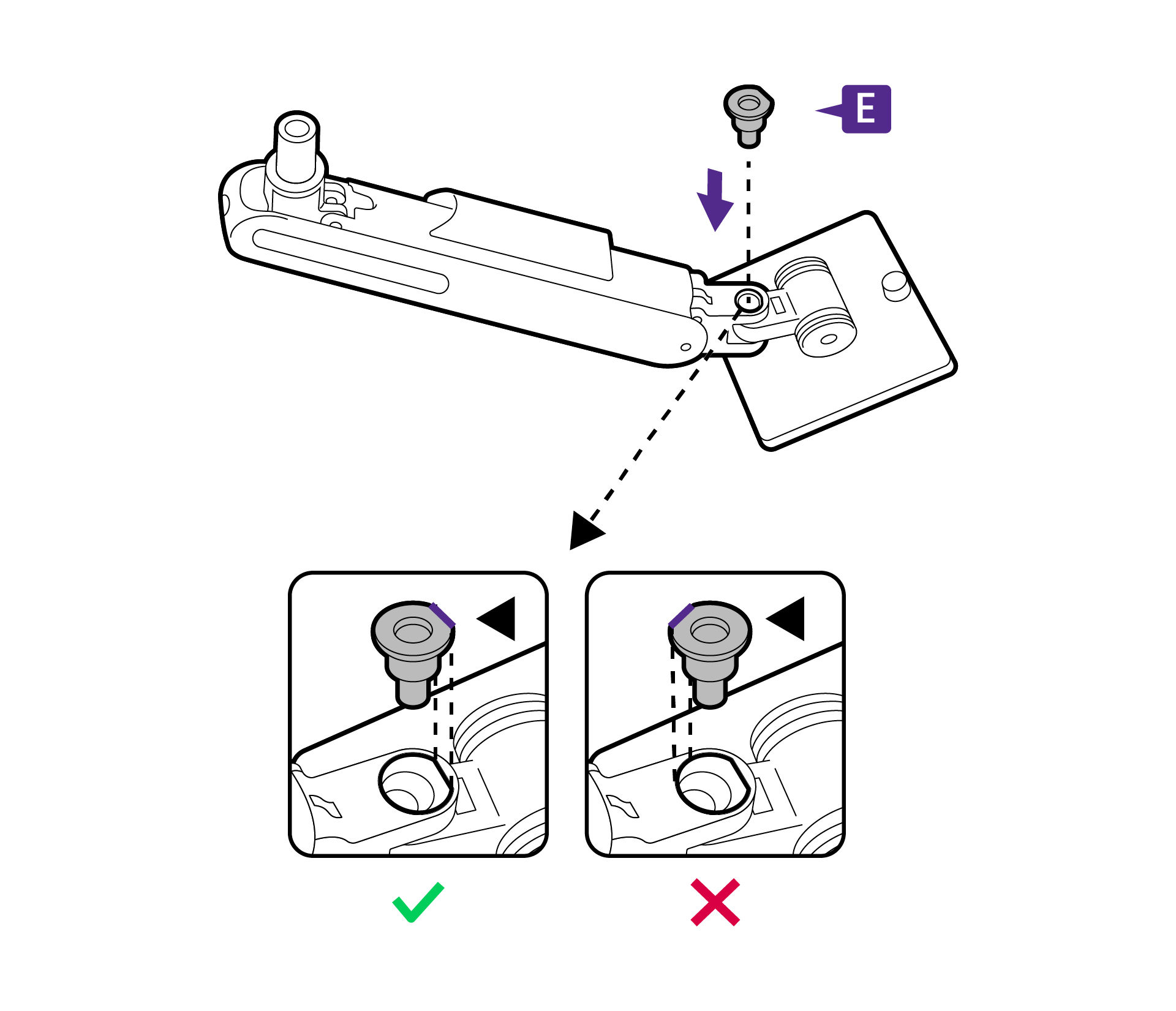

Align the hinge joint with the holes properly.
Align the hinge joint with the holes properly.

6.

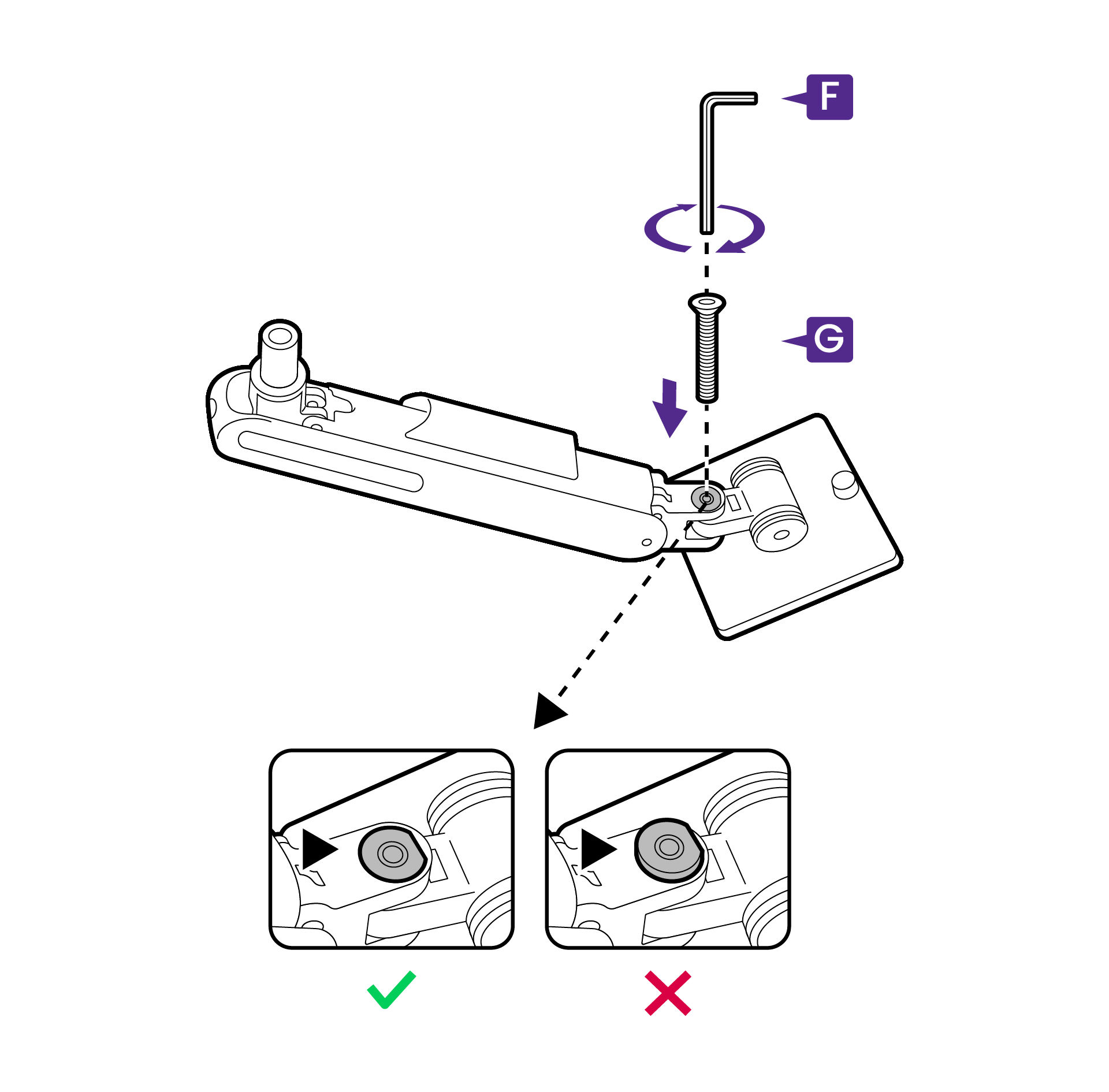

Fasten the hinge joint with the hinge screw. The hinge joint and its screw should be flat without protrusions.
Fasten the hinge joint with the hinge screw. The hinge joint and its screw should be flat without protrusions.

7.

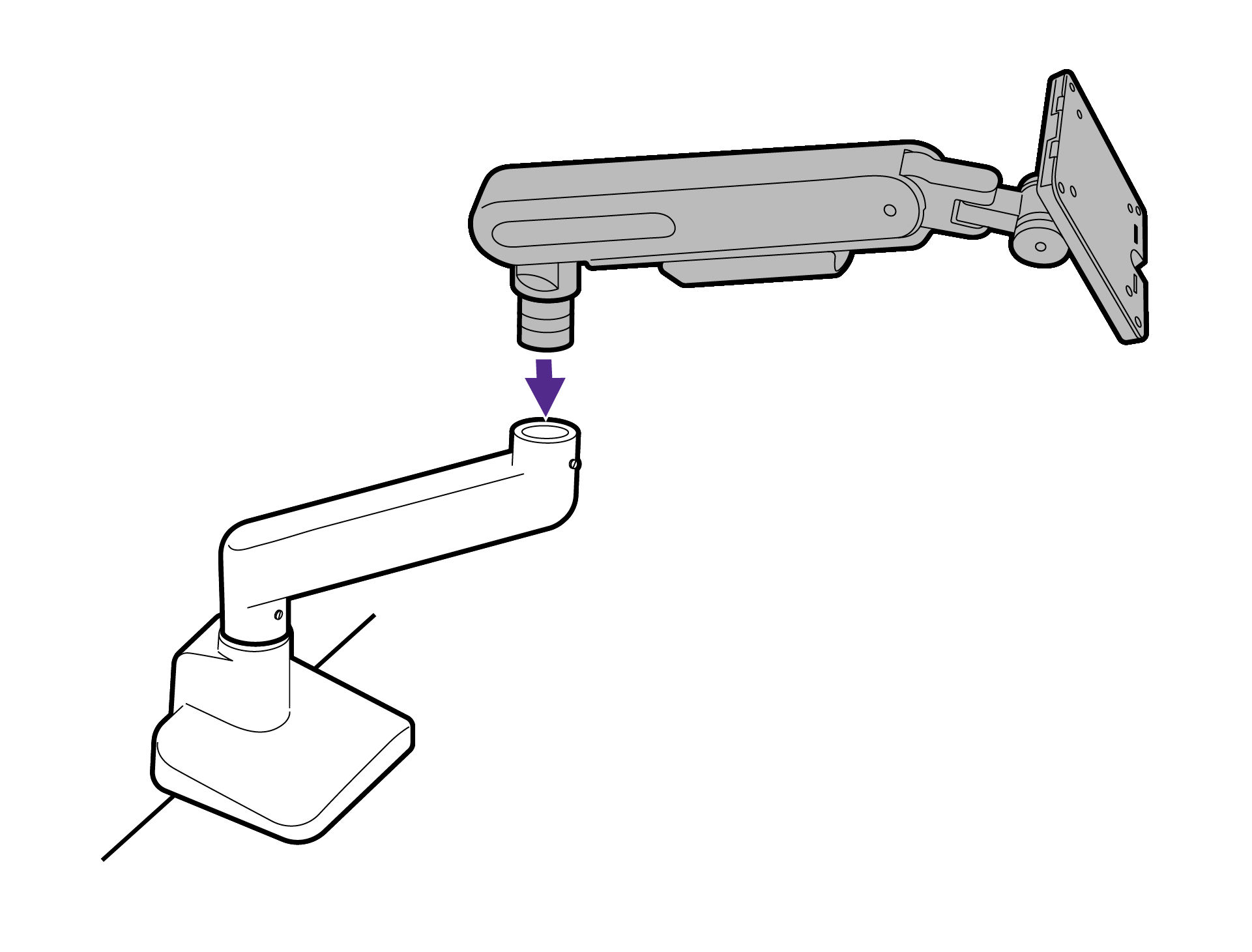

Align the upper arm with the lower arm and place it properly without the metal part being seen.
Align the upper arm with the lower arm and place it properly without the metal part being seen.

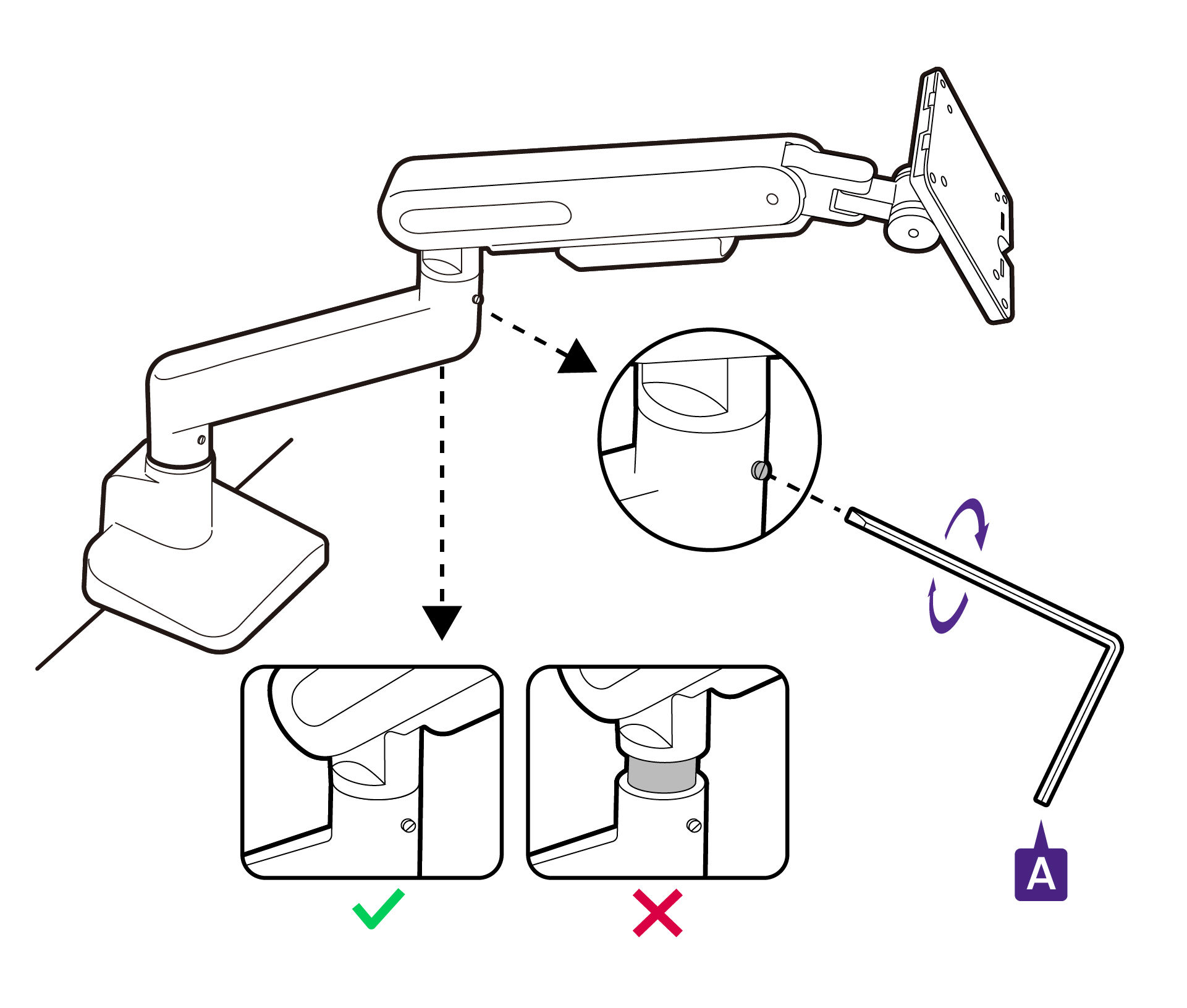

8.

Do not overtighten the screw.

Use the 5 mm Allen key to secure the arm by the stop screw. Do not overtighten the screw.
Use the 5 mm Allen key to secure the arm by the stop screw. Do not overtighten the screw.

5. Installing a monitor

1.

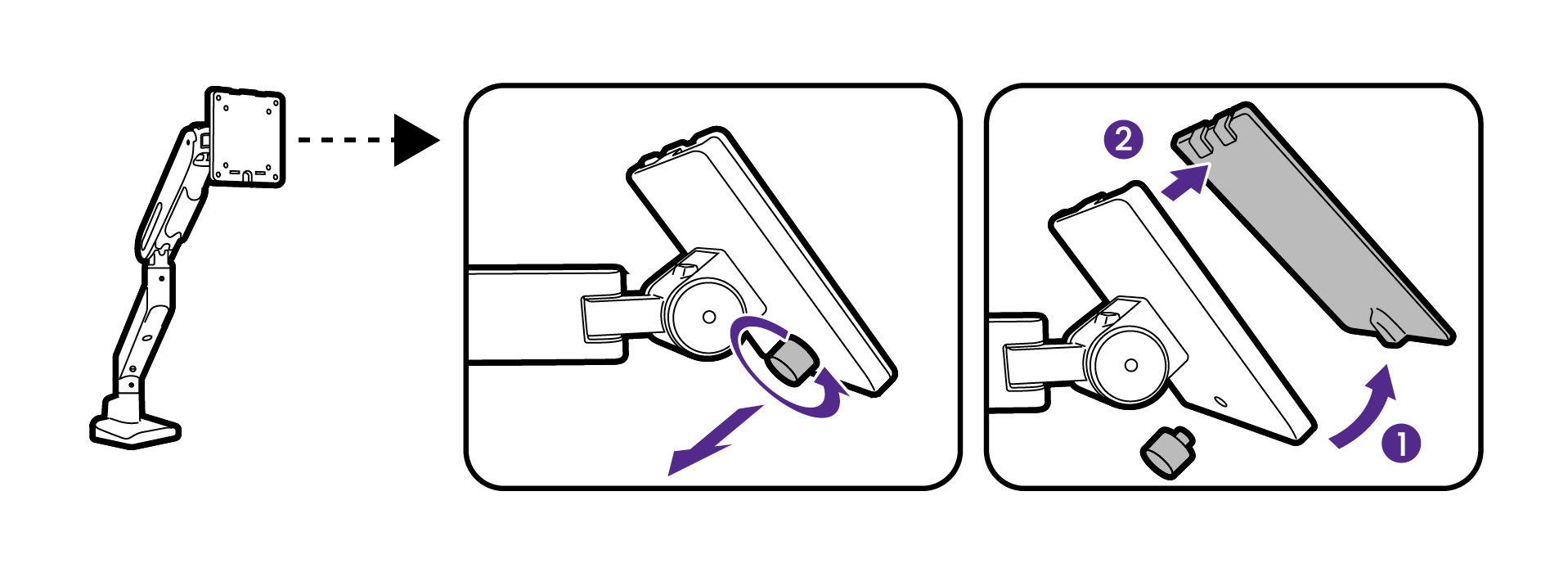

Release the thumbscrew on the display bracket and detach the VESA plate.
Release the thumbscrew on the display bracket and detach the VESA plate.

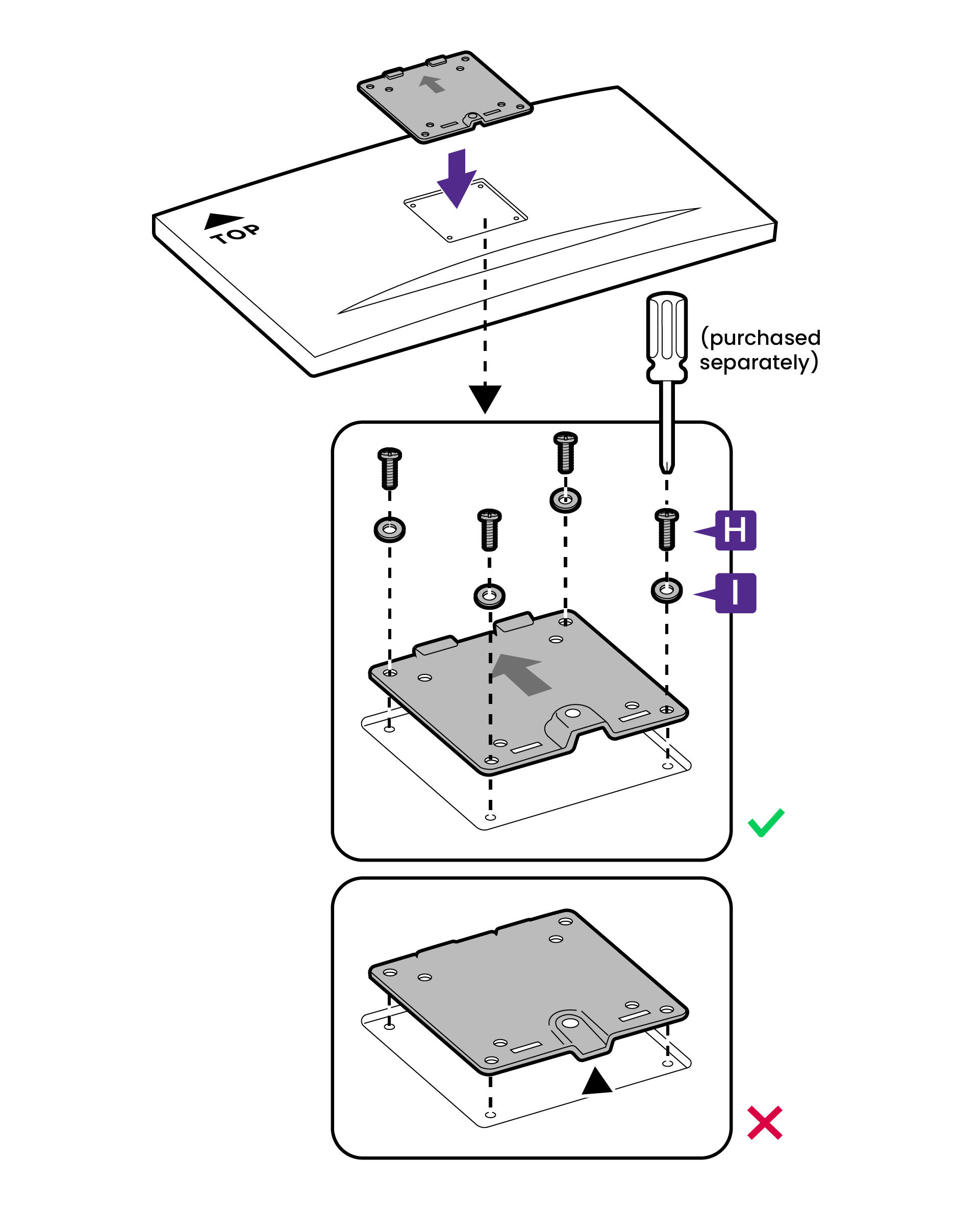

2.

Fix the screws and washers by a cross-head screwdriver (not included in the package).

Attach the VESA plate to the VESA holes on the rear of your VESA-compliant monitor and fasten it with washers and screws.
Attach the VESA plate to the VESA holes on the rear of your VESA-compliant monitor and fasten it with washers and screws.

3.

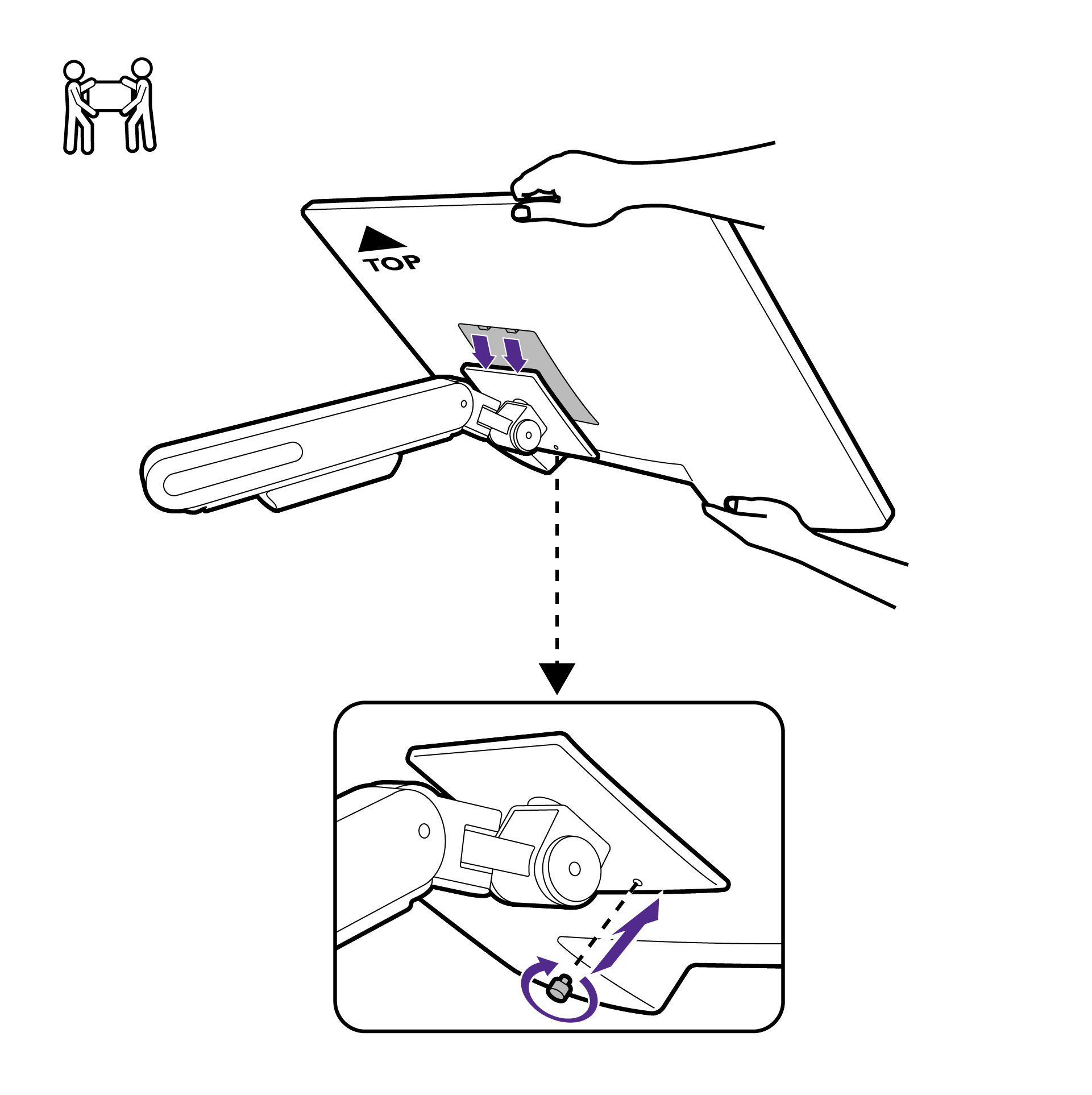

Align to hook the monitor up on the display bracket. Secure the monitor and the bracket with the thumbscrew while holding the monitor with another hand.
Align to hook the monitor up on the display bracket. Secure the monitor and the bracket with the thumbscrew while holding the monitor with another hand.

6. Tension adjustments

Try to lift, lower, or tilt the monitor. If it does not stay at the preferred height/angle, make adjustment as illustrated.

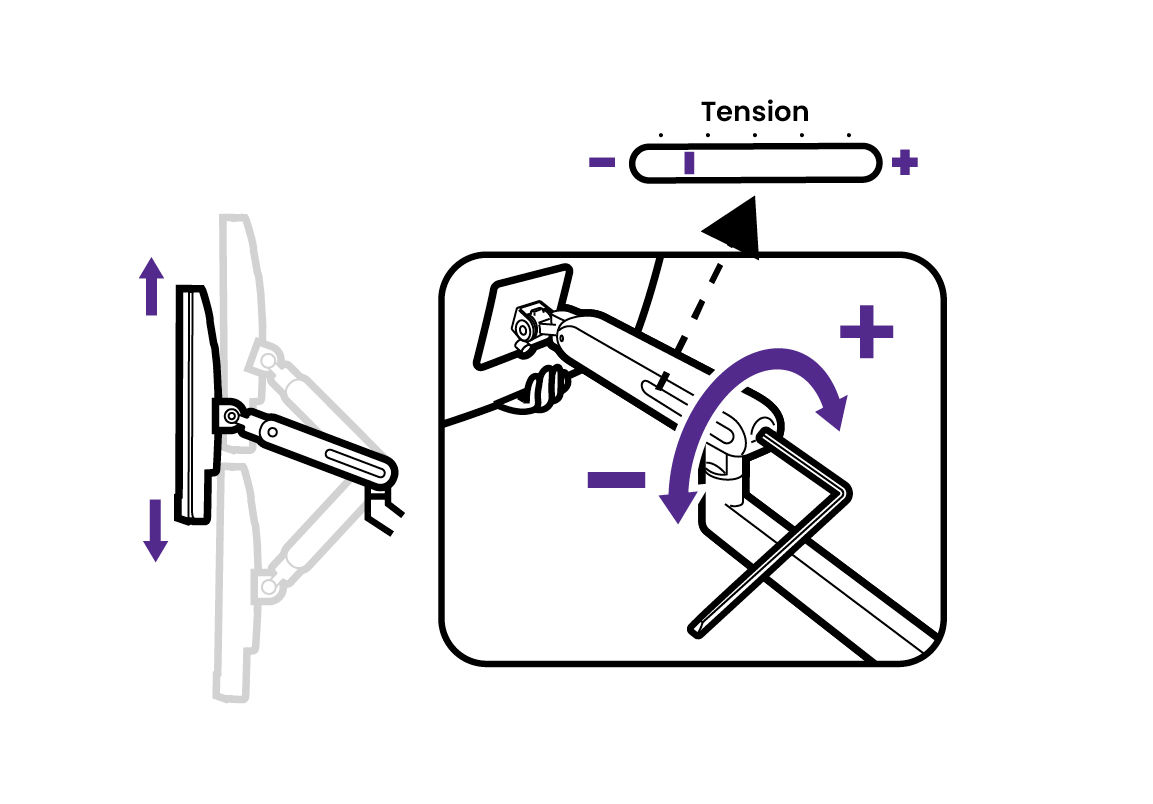

Adjust lift strength.

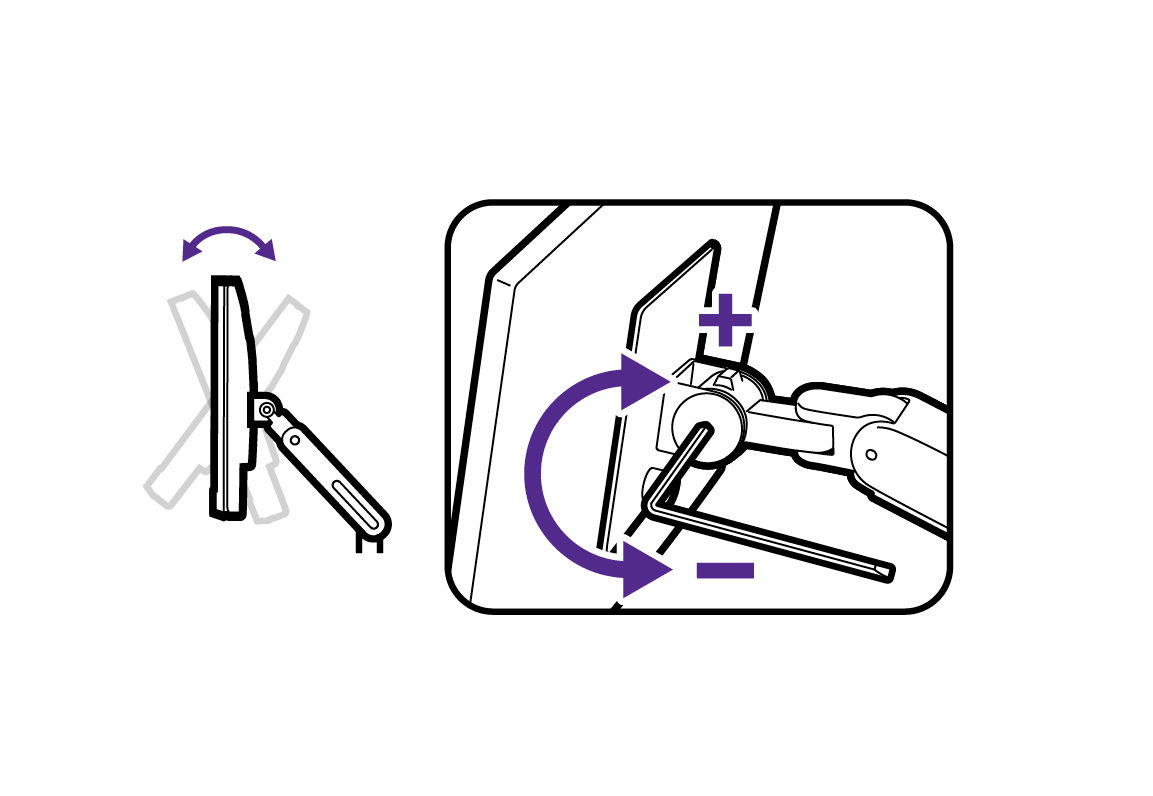

Adjust tilt strength.
Adjust lift strength.
Adjust tilt strength.

7. Cable management (optional)

1.

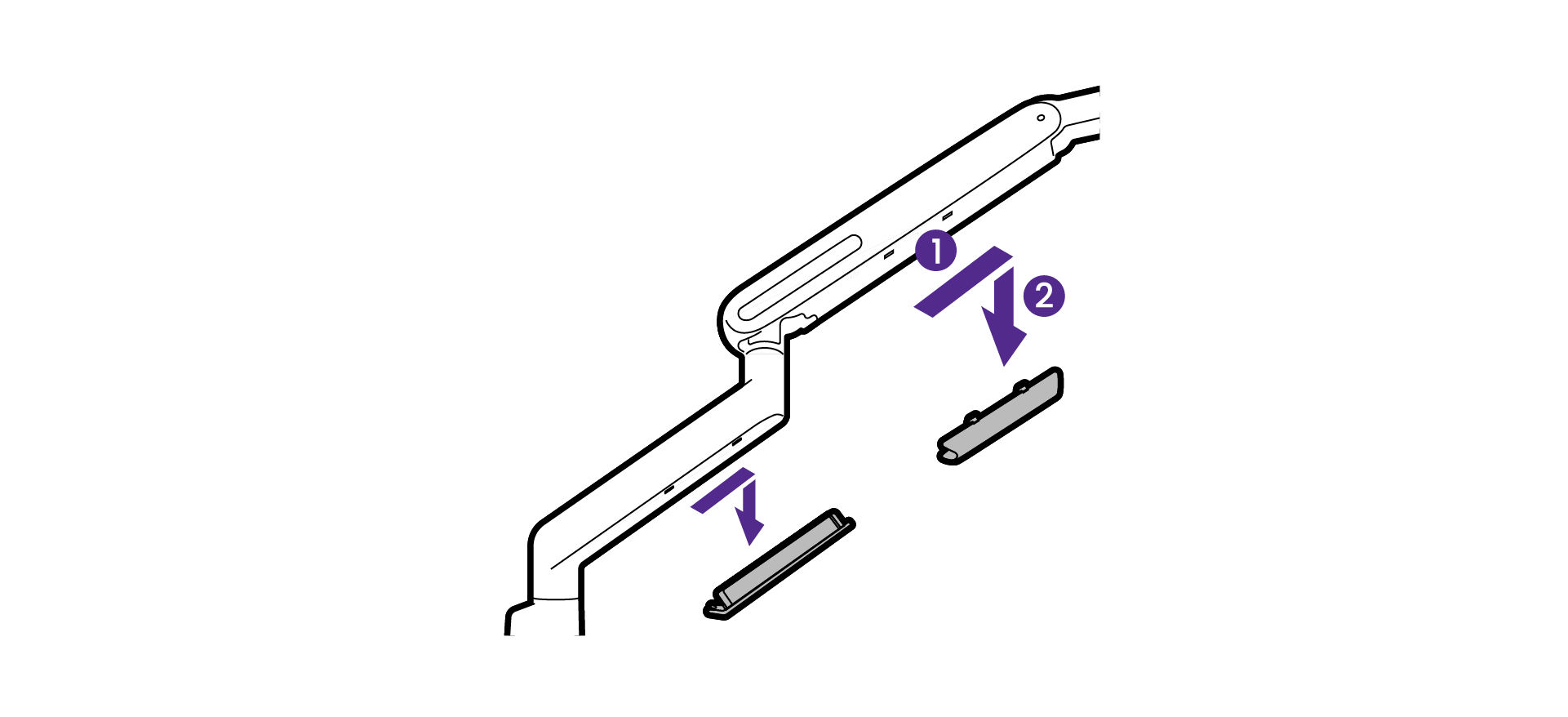

Remove the cable covers on the arm.
Remove the cable covers on the arm.

2.

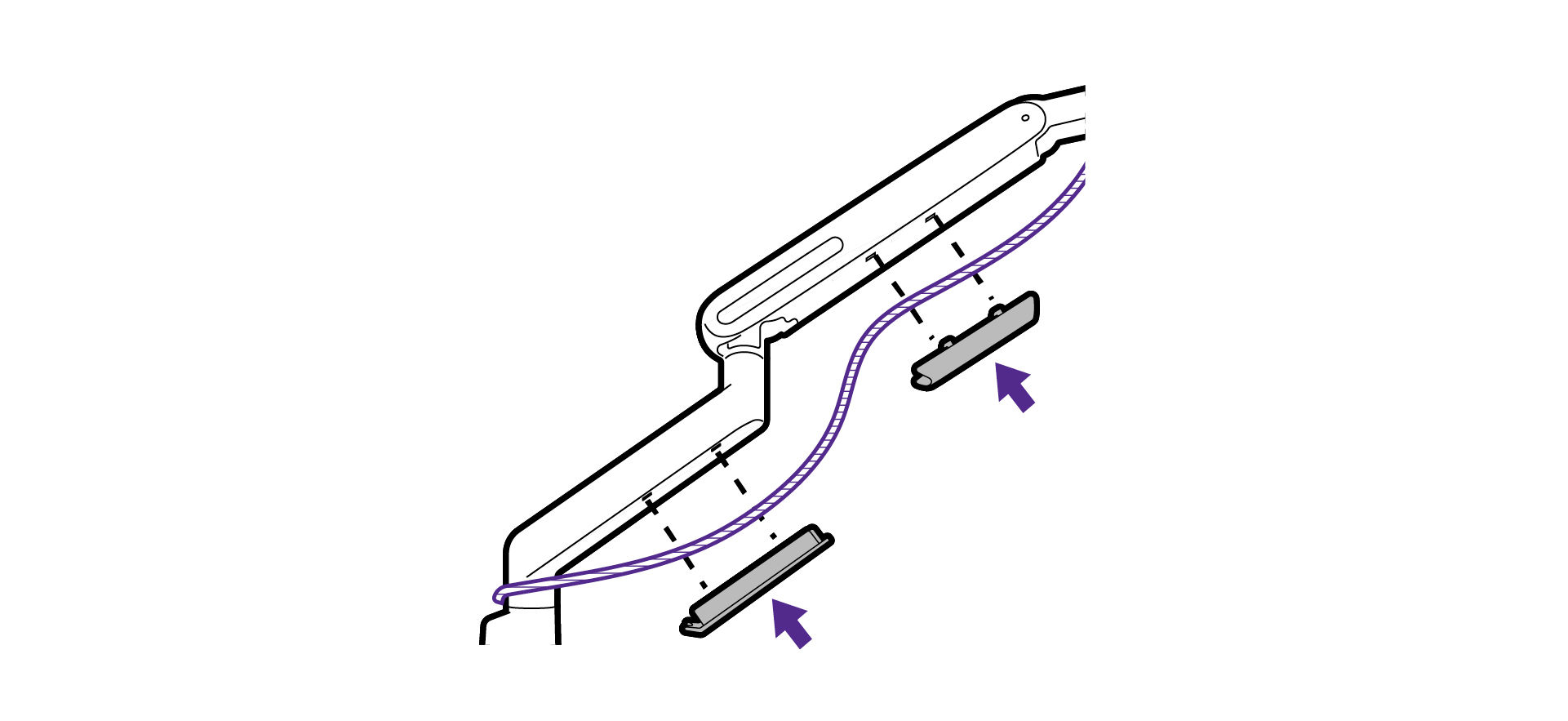

Route the cables properly and re-install the cable covers.
Route the cables properly and re-install the cable covers.
